Project 2_Creating a 3D rendered model for a Residential Building in AutoCad

AIM:- Create a 3 dimensional model of the residential building with a rendered view.

PROCEDURE:-

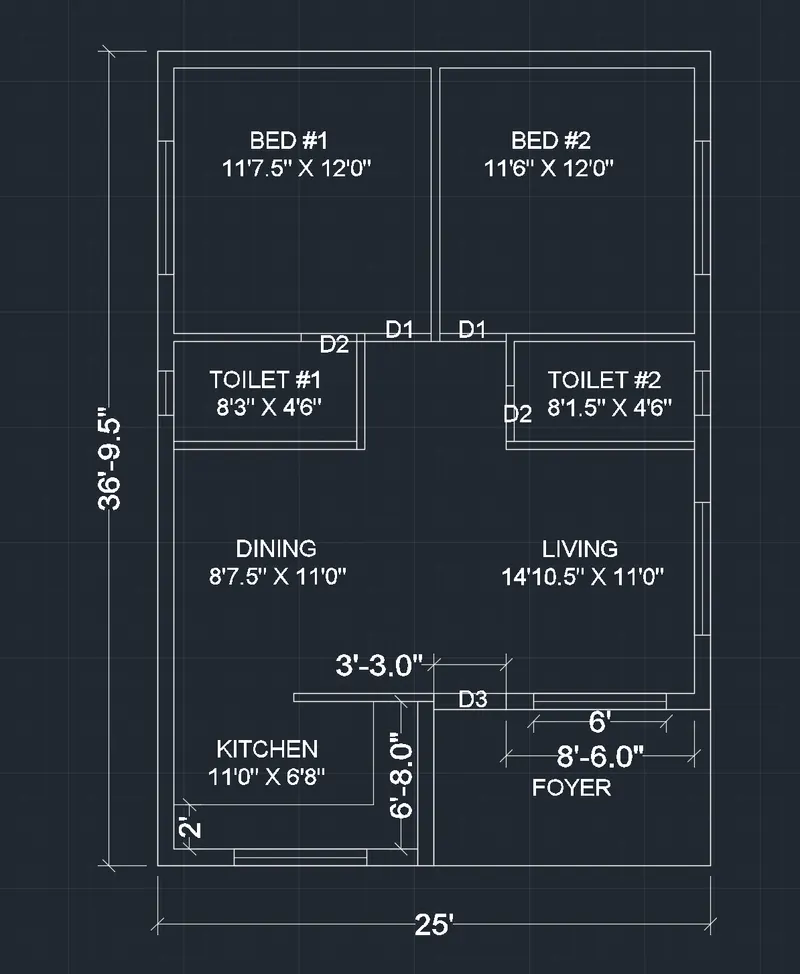

Draw the residential building plan with the help of line tool in the top view (X-Y plane)
Now convert the lines into region by selecting the respective lines to be converted into region.

Now select the region for wall and then enter the command extrution.

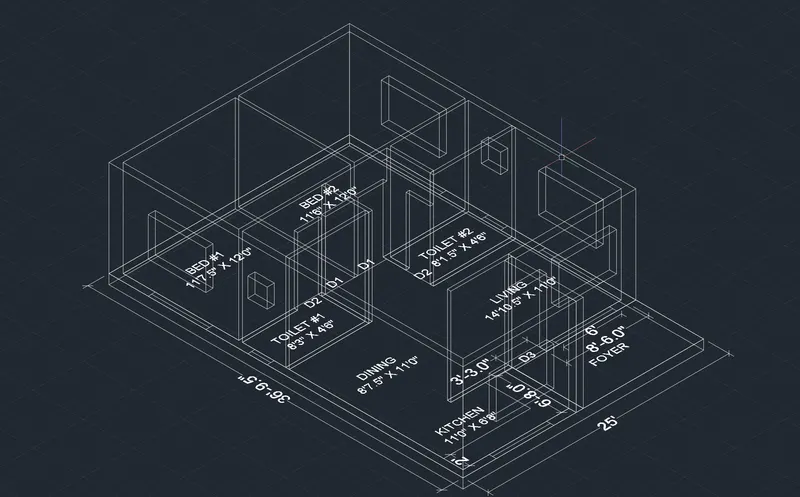

Now extrude the wall upto 10' height.
Now select the region for window and then extrude it upto the height of 4'.
Now move the extrurion of window upto the height of 3'.
Now enter command "Substract" and then select wall first and then press enter and then select the window so the window will be substracted from the wall.
Now select the region for door and then extrude it upto the height of 7'.
Now enter command "Substract" and then select wall first and then press enter and then select the door so the door will be substracted from the wall.
Now select the region for ventilation and then extrude it upto the height of 2'.
Now move the extrurion of ventilation upto the height of 5'.

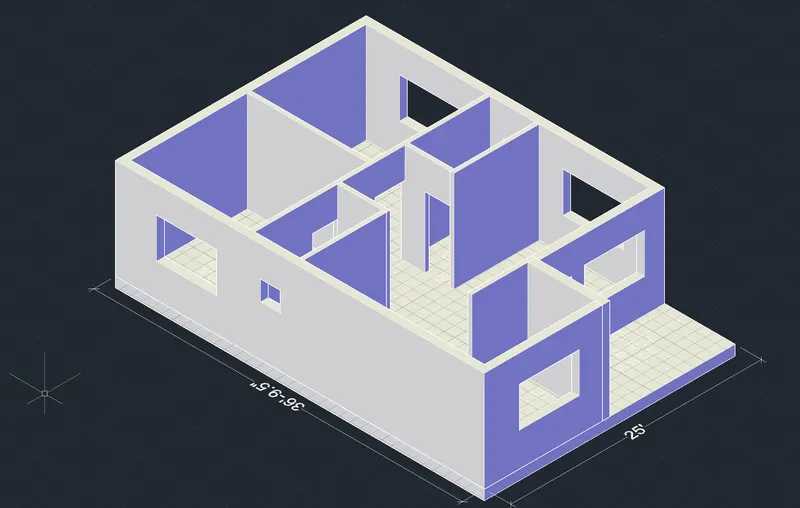

Now enter command "Substract" and then select wall first and then press enter and then select the ventilation so the ventilation will be substracted from the wall.

Now for the base draw a rectangle for the whole builtup and then extrude it in the negative "Y" direction. Extrude it upto 1' in the negative "Y" direction.

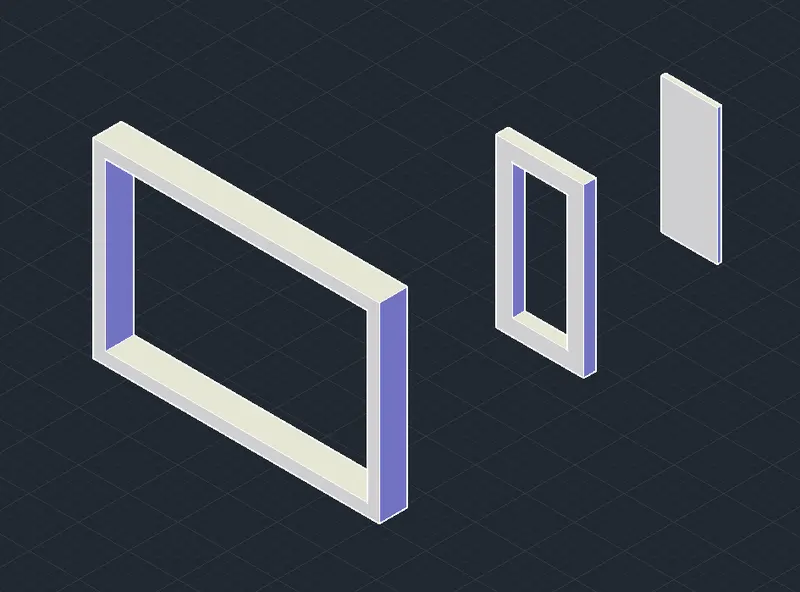

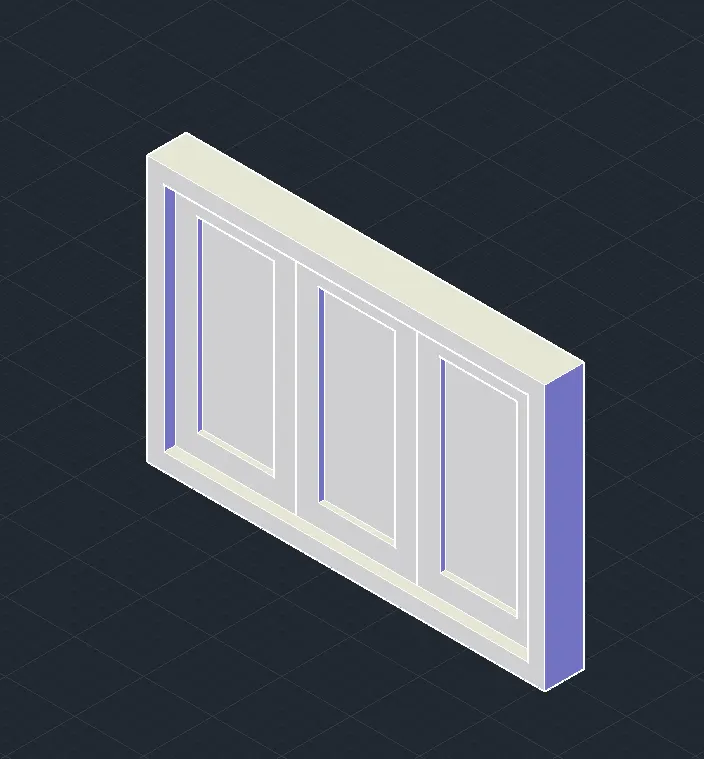

Now for the window select the region for the windows and copy it beside the drawing and then decrease the width from 9" to 7" to provide a window frame.
Now select the region and extrude the window frame upto the height of 4'.
Now put the rectangle at the bottom of length 3" shorter from both the sides to give the thickness of the frame.
Now extrude the rectangle upto the height of 3'6".
Now move the extrution upto the height of 3" to create a perfect frame for the window.
Now draw a rectangle of the length as same to the width of the open surface of the window frame.
Now decrease the width of the rectangle upto 2" and the extrude the rectangle upto the height of the 3'6".

Now move the 2" wide extrution into the window frame to make it like a window structure.

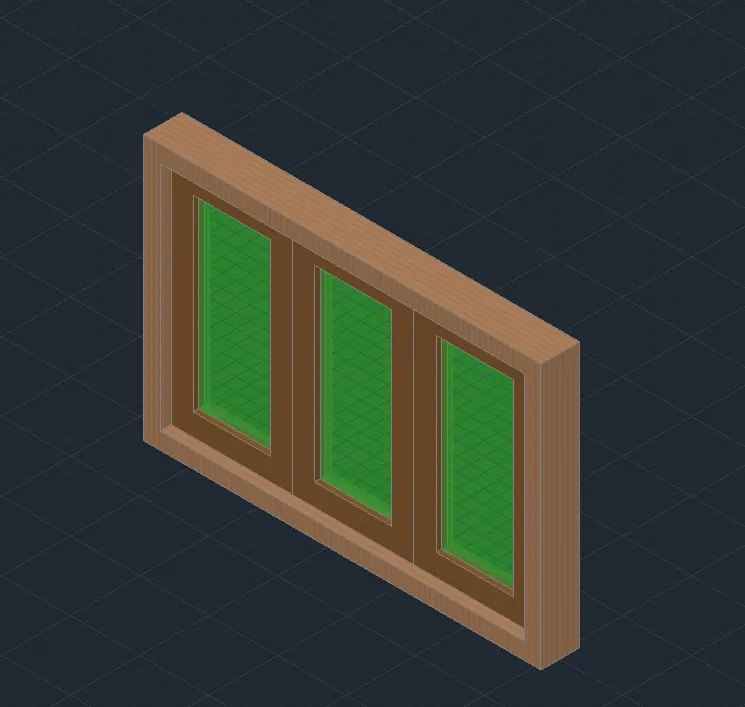

Now add the materials to the whole window like glass and wood to make it look like a window.
Material is to be added from the "VIEW > MATERIAL BROWSER"

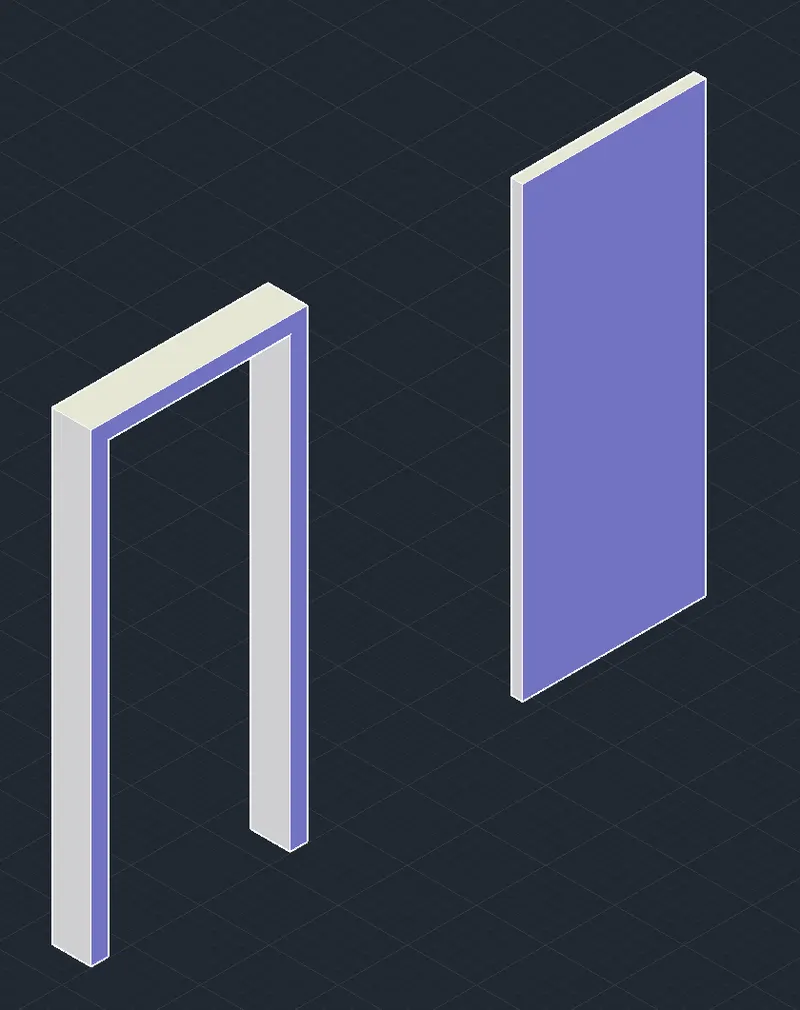

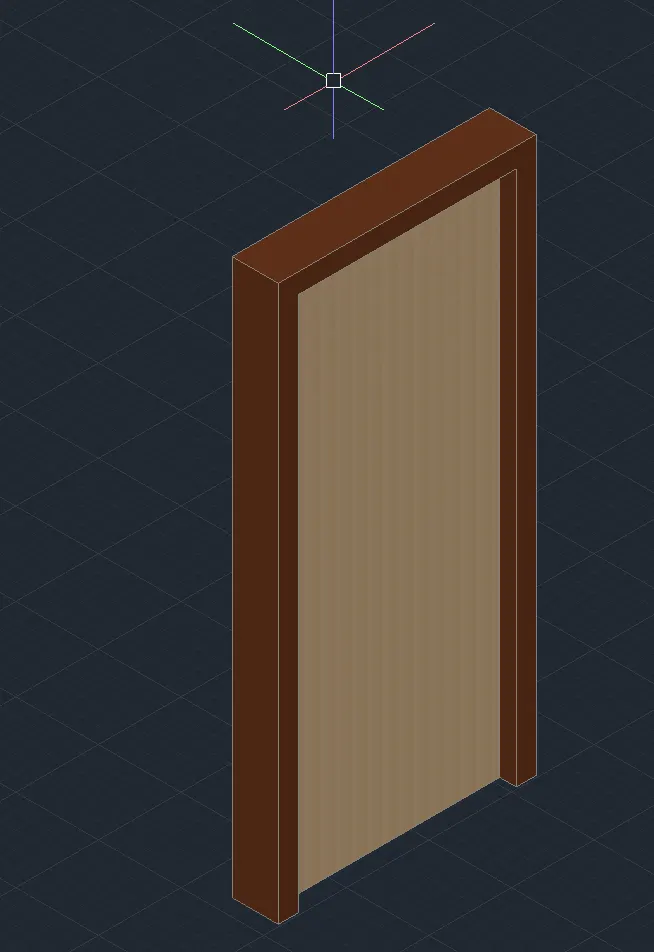

Now for the door select the region for the door and copy it beside the drawing and then decrease the width from 9" to 7" to provide a door frame.
Now select the region and extrude the door frame upto the height of 7'.
Now put the rectangle at the bottom of length 3" shorter from both the sides to give the thickness of the frame.
Now extrude the rectangle upto the height of 6'9".
Now draw a rectangle of the length as same to the width of the open surface of the door frame.
Now decrease the width of the rectangle upto 2" and the extrude the rectangle upto the height of the 6'9".

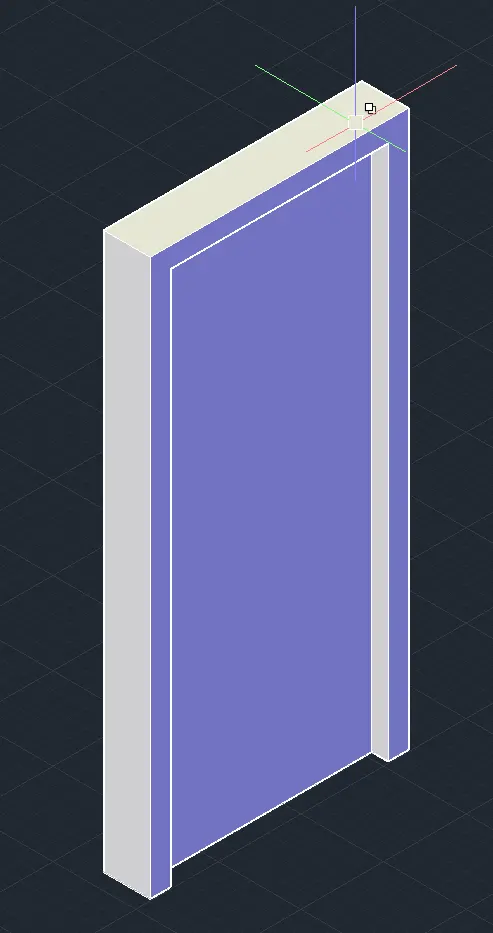

Now move the 2" wide extrution into the door frame to make it like a door structure.

Now add the materials to the whole door like wood to make it look like a window.
Material is to be added from the "VIEW > MATERIAL BROWSER"

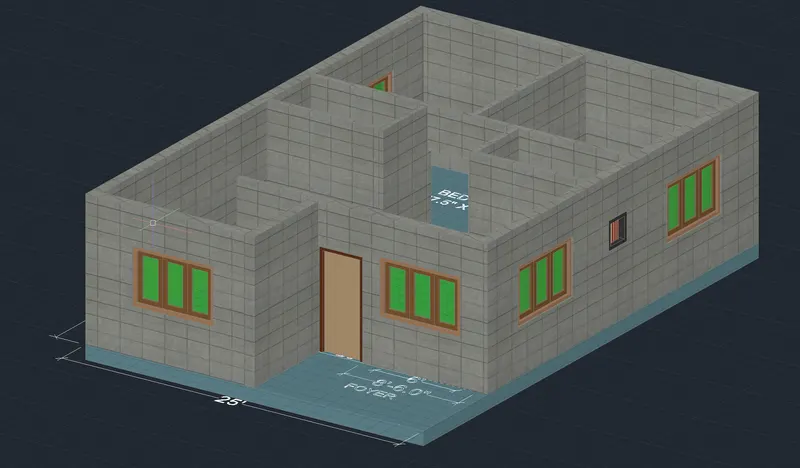

Now move this windows & doors into the wall extrution to complete the drawing.
And also add the concrete material to the wall to make it look realistic.

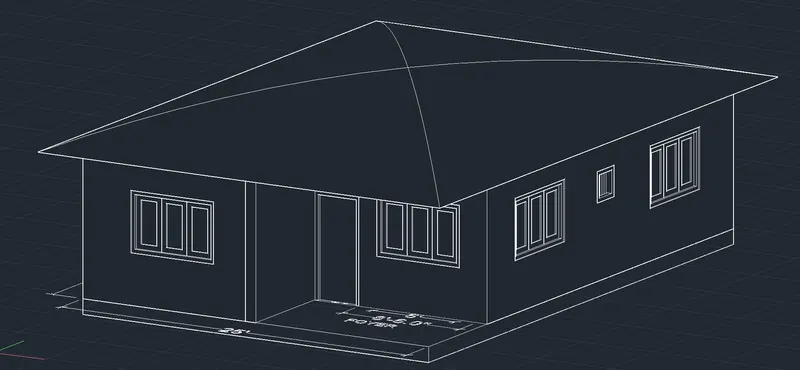

Now for the roof of the building lets take a conical roof.
for conical roof draw a rectangle 6" down from the top of the wall with the help of "dynamicUCS"
Now put a point at the centroid of that rectangle and then move that point in the positive "Y" direction.

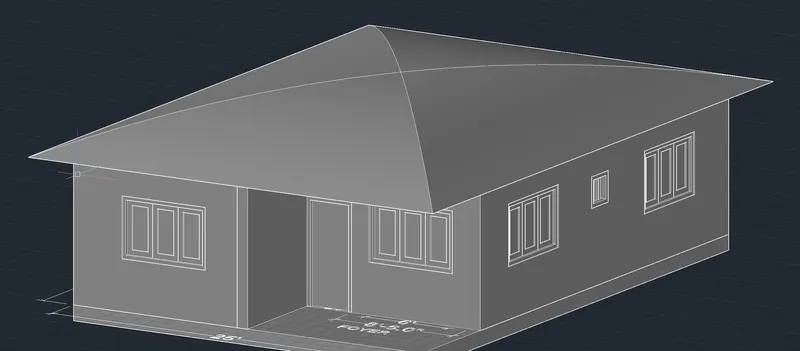

Now select the "LOFT" and then select rectangle and pint respectively to create "Loft" this loft shape will act as a roof of the residential building.

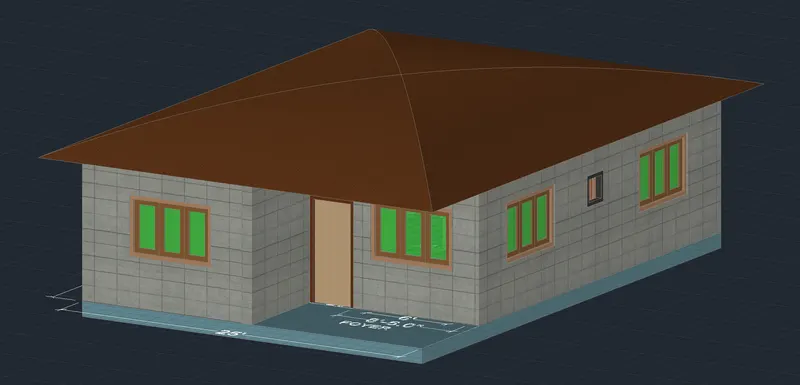

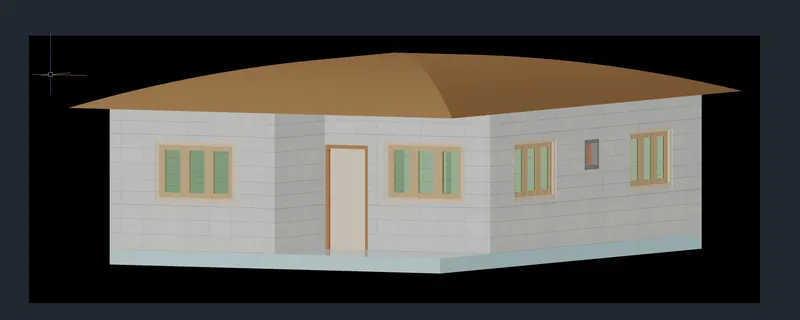

And add material of roofing from material browser to make it look like roof in the rendered image.
