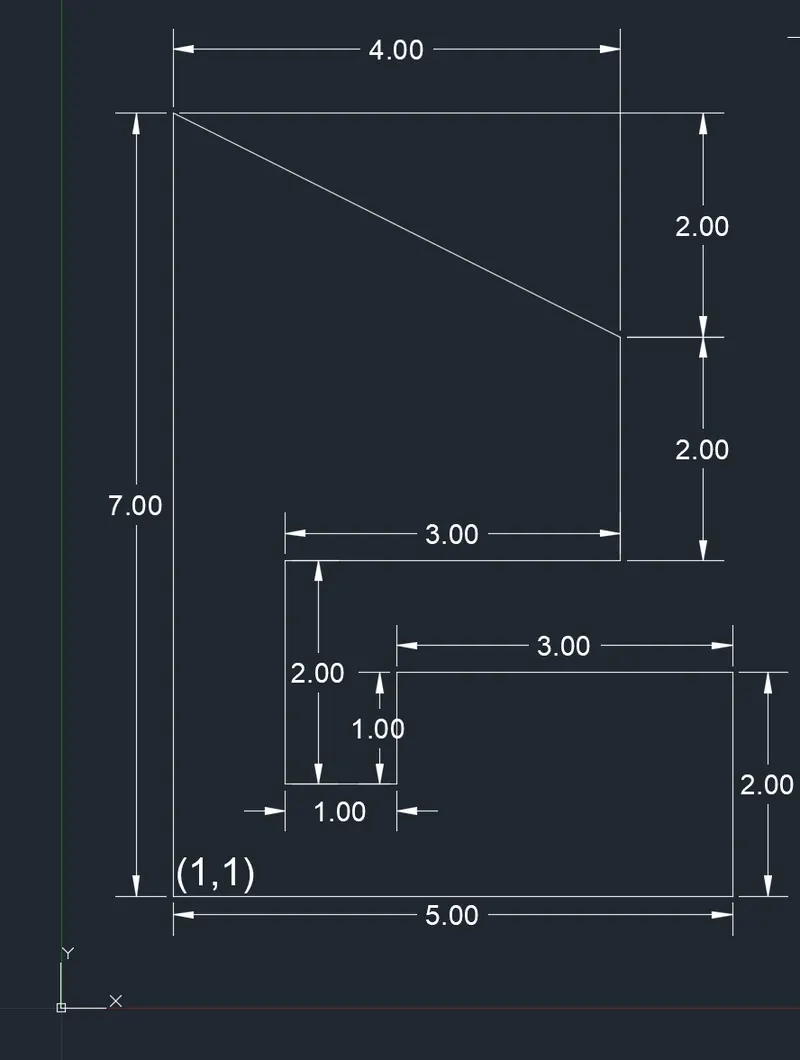

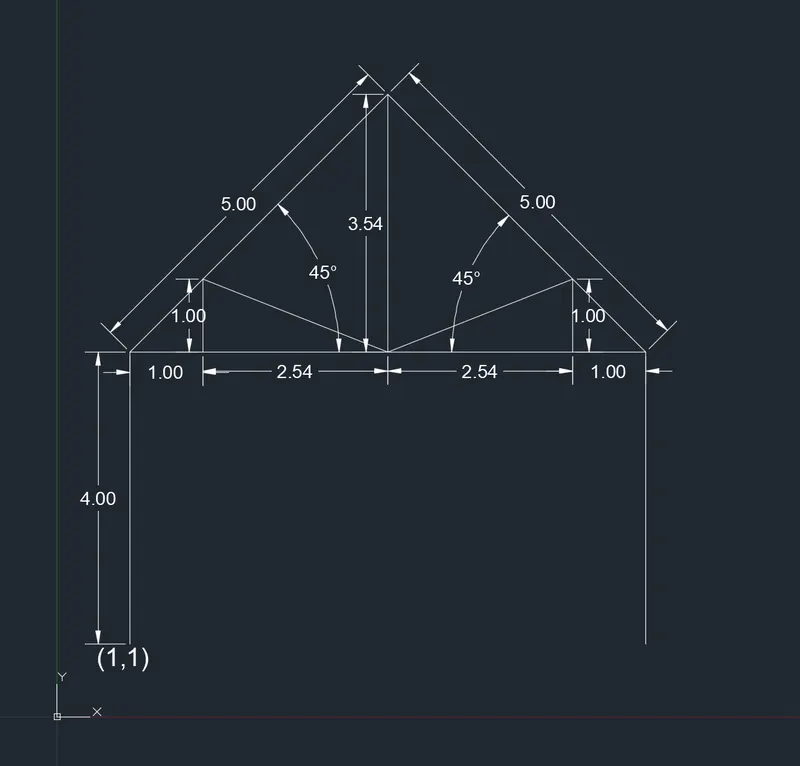

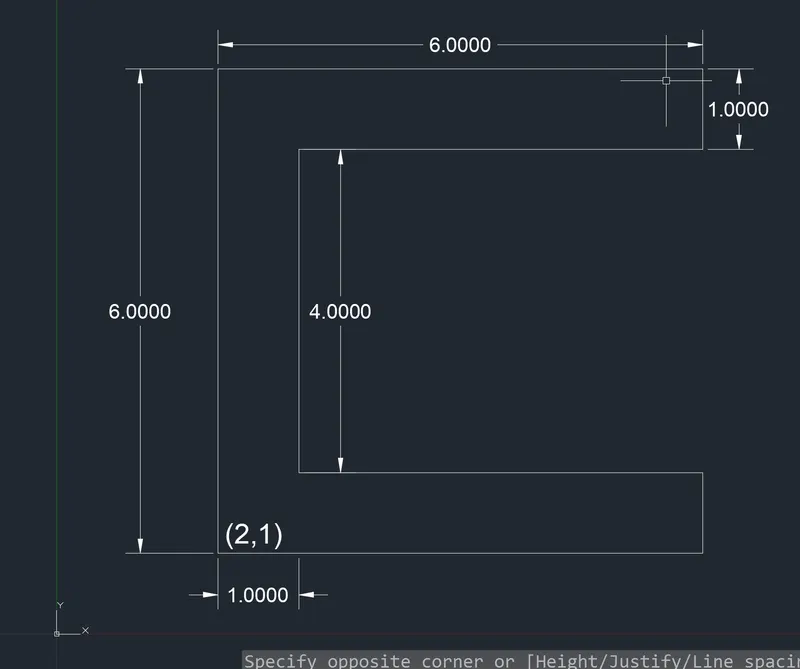

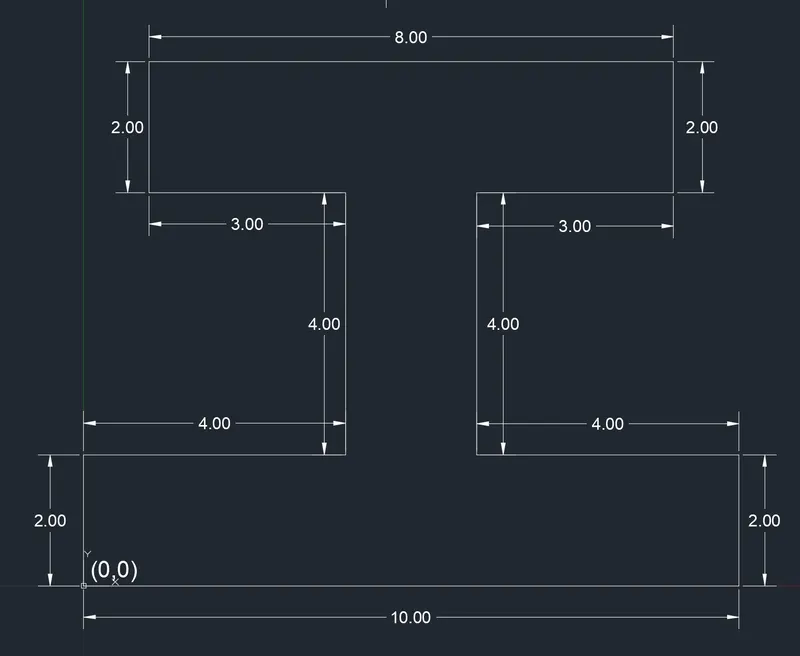

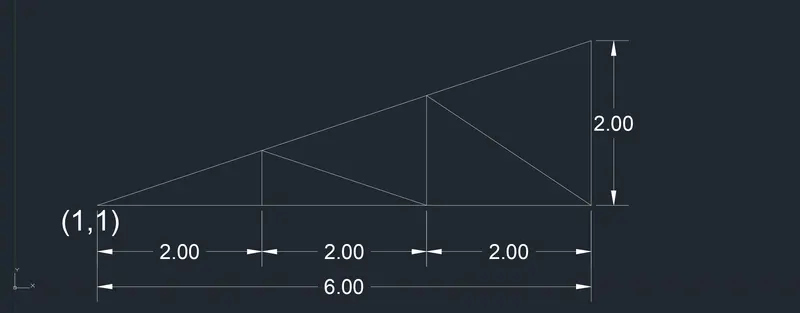

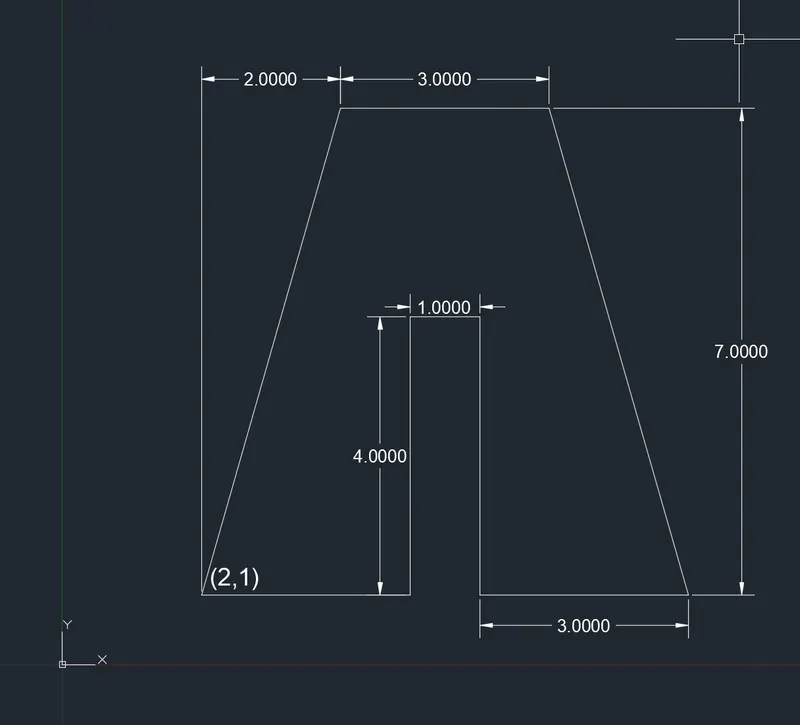

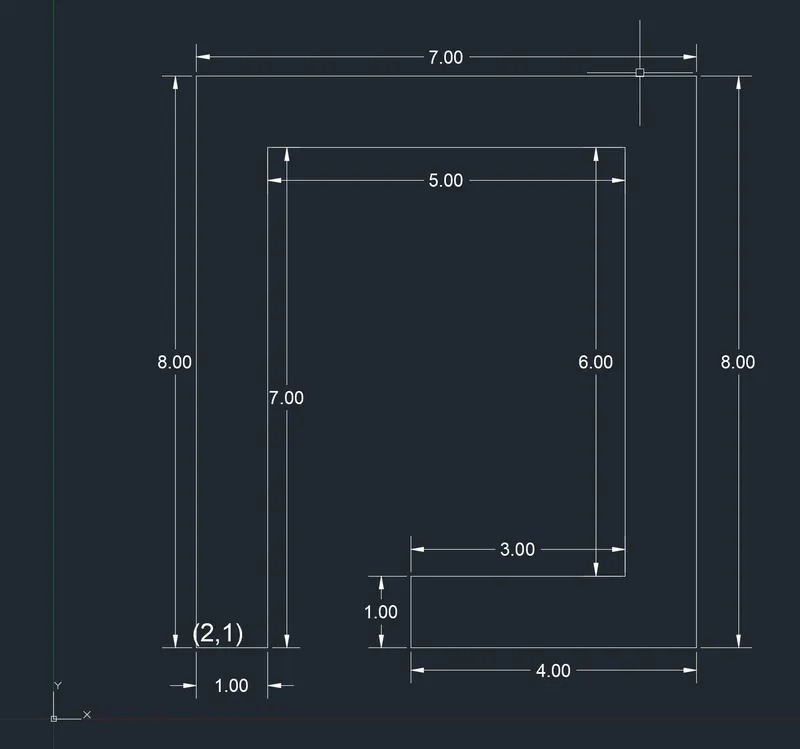

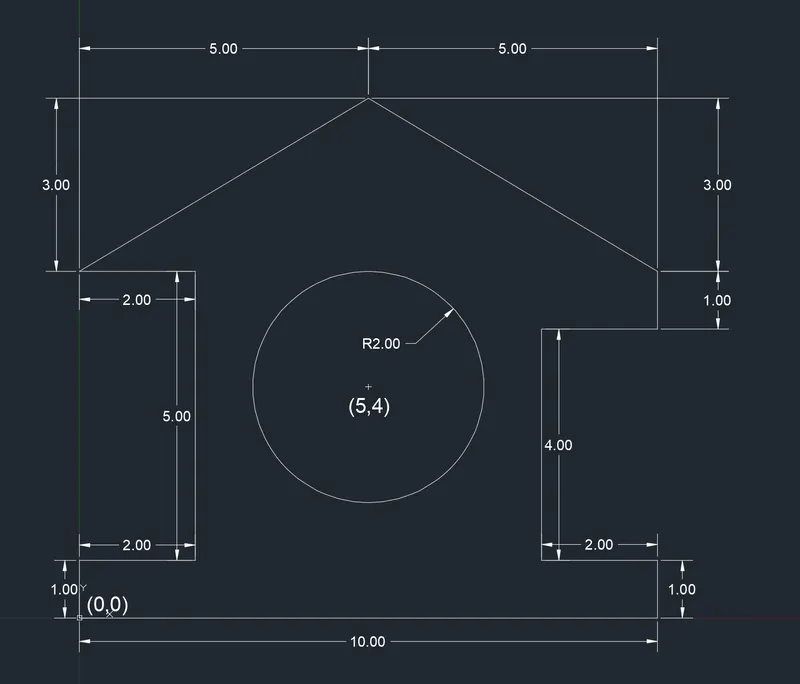

Creation of geometries by Coordinate system methods using AutoCad

CHALLENGE.:–  ETABS modelling of a 25 storey building. ----------------------------------------------------------------------------------------------------------- AIM.:-       Model a 25 storey building on ETABS with structural properties as specified below. Ground floor or plinth floor level…

QUE - 1.:-             The building shown, 20 × 35 m in plan, has columns on a 5 × 5 m grid and shear walls (with dimensions shown in m, 250 mm in thickness) in three alternative arrangements, (a), (b), (c), all with the same total cross-sectional area of the shear walls.…

Que - 1.:-             Comment on the layout of the framing plan concerning earthquake resistance in the two horizontal directions X or Y (dots are columns, lines depict beams). Look into aspects of symmetry, redundancy and bi-directional stiffness and ductility.      …

Question: A five storey structure with 5 translational DOF is shown here. Each storey has mass ‘m’. The eigenvalue problem has been solved and the 5 periods of vibration Tn and their corresponding mode shapes, φn has been derived.                  …

Que-1           Compute lateral stiffness of the one story frame with an intermediate realistic stiffness of the beam. The system has 3 DOFs as shown. Assume L = 2h and Elb = Elc. ANS.: Assume that Degree of freedom u1. so, u2=u3=0.              …

1-a                                                                      Area of failure:- This image shows a damage at the Beam-column joint.…

1)   Use the Architecture/ Structure Project file developed by you in Week 6 to 8. Export the Revit architecture and structure model to Navisworks Cache file following the export settings discussed in class. ANS. STEP-1- Open the Naviswork Manage  and open the file which you have saved in the week 6 to 8.…

1) Using Dynamo create a set of sinusoidal points and create a curve and create a surface out of the curve. ANS.   OPen revit->New Architectural template  Manage tab->Dynamo On Dynamo->New                             …

1)   Use the shortcut keys in Revit discussed in class to complete the following tasks and list them below:           a. Using 3D model create a section box           b. To create similar doors and windows in a floor plan layout       …

1)    What are HVAC systems? Why are they essential in the modeling of buildings? ANS. HVAC STANDS FOR HEATING, VENTILATION AND AIR CONDITIONING. IT IS A IMPORTANT PART OF BUILDING MODELLING. HEATING MEANS TO INCREASE THE TEMPERATURE OF THE INCOMING AIR IN THE BUILDING. VENTILATION IS A PROCESS TO MAINTAIN…

 1)    Select the type of structure you want to build from one of the three below:        a. Multi-Unit Residential Apartment        b. Office Buildings        c. School ANS.     {a.  Multi-Unit Residential Apartment} --------------------------------------------------------------------------------------------------------------------------------------…

1)    Open an architectural template. Using the Manage tab set project base point and project shared coordinates for the project. ANS. For opening the architectural templet file go to the file menu and then select the new option Then a dialogue box will appear, select architectural template option and then press…

1)    Why are building codes or standards essential for the modeling/ efficiency of drawings in Revit ? ANS.    The building codes or standards essential for the modeling/ efficiency of drawings in Revit because, Building codes are developed and maintained by a standard organization. This standard…

1)    AIM:-     Based on the project saved from Week 3, proceed from the First Floor Level. Model a Ceiling from the architecture tab above the walls at the first-floor level    PROCEDURE:- For the creation of the ceiling open the drawing. Go to the respective floor plan on which the…

1)    AIM:-     Using floor tool under architecture tab and select the floor with appropriate material and thickness using the property browser create a layout in the Ground floor Level.     PROCEDURE:- Open the week 2 project. Now for the creation of the floor first go to the ground…

1)     What is BIM? Summarize the features of BIM and benefits of using BIM over 2D CAD tools. BIM stands for 'Building Information and Modeling'. It is a foundation for the Architecture, Engineering And Construction industry. Based on an intelligent model and it is enabled by a cloud platform, BIM includes…

1)   From the file menu, create a new project (Structural / Architectural / Construction template ) and name the project appropriately     Procedure:- open the revit application. Now go to the file menu. Now select the (New > Project) Now select the templet (Architectural/structural) then select…

  AIM:-     Create a 3 dimensional model of the residential building with a rendered view.     PROCEDURE:- Draw the residential building plan with the help of line tool in the top view (X-Y plane) Now convert the lines into region by selecting the respective lines to be converted into region.…

1.    AIM:-     To Create a 3D Isometric View of the building with plan and elevation given.    PROCEDURE:- Draw the given plan with the help of line tool in the top view (X-Y plane) Now convert the lines into region by selecting the respective lines to be converted into region.…

1.    AIM:-      Create a 3D Furniture element as shown in the Figure. Assume dimensions which are missing.    PROCEDURE:-    Select the 3D modeling tool from the bottom. Now, for lines specify the first point and then start drawing the full furniture shape in 3D view. Now put…

1.    AIM:-    Create a layout of the Plan and Section A of the project in Challenges 7, using the template Tutorial-mArch.dwt in a scale as given in the Figure. Use the MV command to create the viewport of the size as shown in Figure. Also, use ATTEDIT command to edit the information in the title block.…

1.       AIM:-     Create the layouts of the Kitchen and provide hatches pattern as shown. Also, use blocks wherever required. Provide appropriate dimensions in the plan. Assume the size of doors, appliances and others as per the standards.      PROCEDURE:- At first attach…

1.    AIM:-      To Create the templates as shown in Figures. Take the size of the title block as per industry standards (For 1st A0 and second A3). Use text and attributes wherever required. After creating the title block save it as a block with names: Custom1_titleblock and Custom2_titleblock,…

AIM:-     To design and draft  a layout of residential building for the plot size of  {60' x 20'} and also the residential building is "East" facing and then also give all the floor plans, Elevation, Section for the respective plan. And also give the required structural drawings like Column Schedule,…

AIM:-    Create the Plan and Sections as shown in the Figures. Use proper dimension techniques and dimension styles to document the project. Assume the sizes of the doors and windows as per construction standards. Refer to sections for stair details if required. PROCEDURE:- At first attach the pdf in the…

1.      AIM:- To Draw the elevation and details of a wardrobe.And use layers to show the different parts of the wardrobe.      PROCEDURE:- Draw a horizontal baseline and give offset of 2600 mm. now give the offset of 900mm and 1180mm respectively to form the wardrobe boxes. Now give vertical…

1.     Aim:-  Create a column schedule with the help of lines. Also, insert text with the help of Dtext command or Single Line text.     Procedure:- Creating the columns of the given size.                           For 1st type…

1. RESIDENTIAL PLAN AIM:-  To draw a residential building plan and give it clear dimensions. PROCEDURE:-                               Regenerating model.AutoCAD menu utilities loaded.Command:Command:Command:Command:Command:Command: REC RECTANGSpecify…

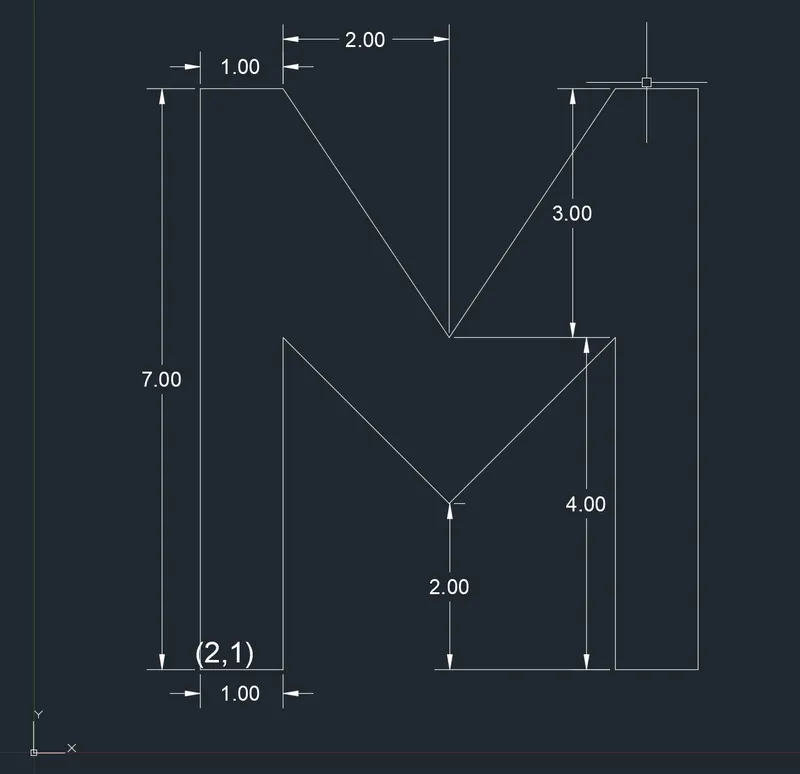

AIM :- To draw the given diagrams using autocad and describe each and every step of the procedure for the complition of diagram. PROCEDURE :- (1)                                 Enter line command and assume start point as (0,0) Now…

AIM  :- To create a floor plan, footing detail and isometric view using autocad with their complete procedure step by step. PROCEDURE :-     (1) For load bearing wall foundation details are as follows :                            …

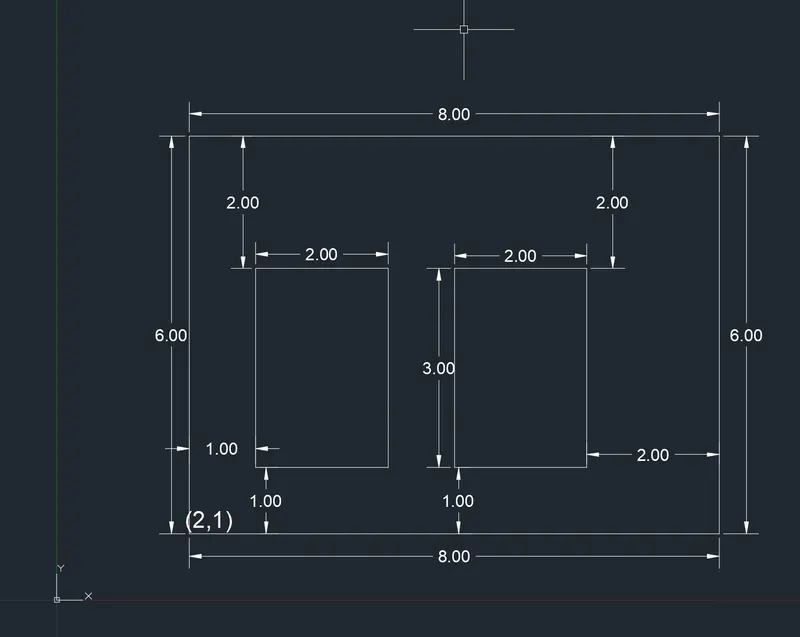

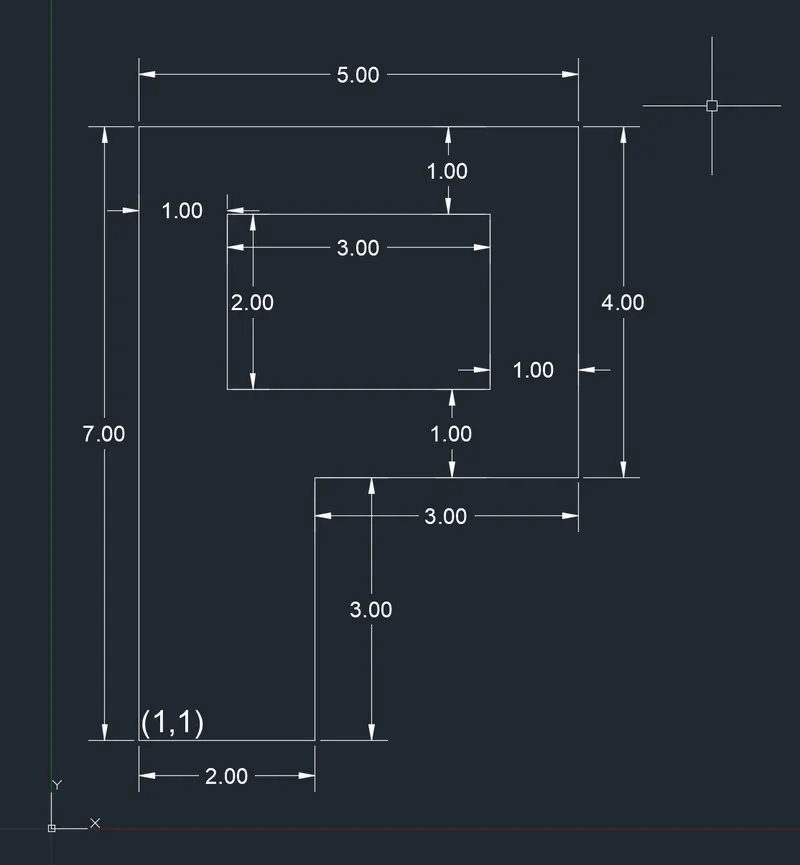

1.   P1 Absolute co-ordinate method :-                - Open the autocad                - Select the acad.dwt template                - Now, for line enter line command      …

Aim :- To Draw a G+1 floor residential building plan according to vaastu shastra , And calculate the Loads applied to the                building as per IS codes and also list down the drawings to be provided onsite for the construction procedure. Process :- G+1 floor Residential…

1.   Aim :- To find the proportion for the mix design having the strength of M35 grade concrete and fly ash used as the part of cement.      Procedure :-  Stipulation for proportioning :-                 a) Grade designation = M35      …
