Project 2_Analyze and Design the RC office building as per IS standard code in TEKLA STRUCTURAL DESIGNER

Aim: To Analyze and design and RCC office structure with IS 456 code

Procedure:

The structure contains a Ground , first and a roof

Dimensions 36m X 16m Height = 7.350

Step:1)

Open TSD > New file

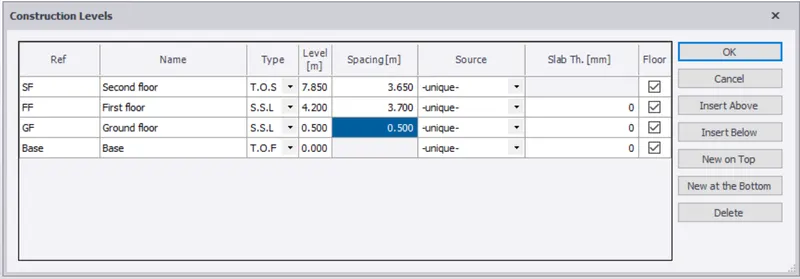

Model >Construction levels

Create levels for the structure

Step:2)

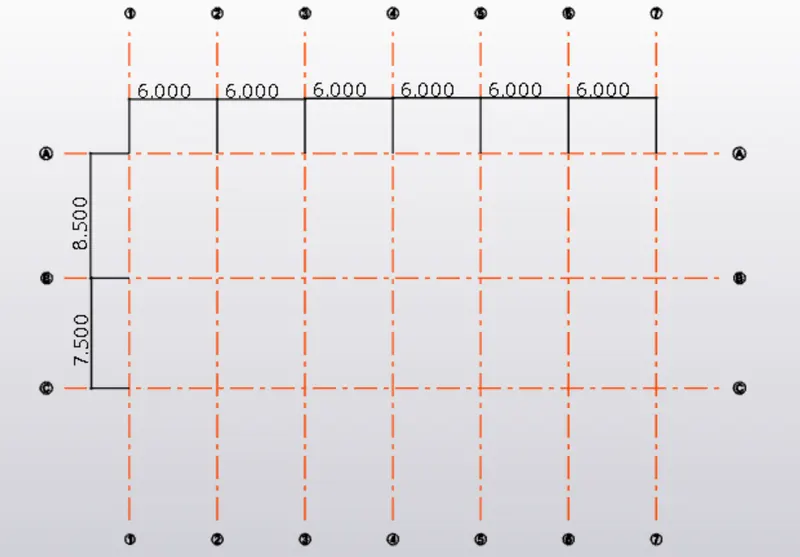

Model > Grids & construction lines

Create X & Y axis grid lines for the building

Step:3)

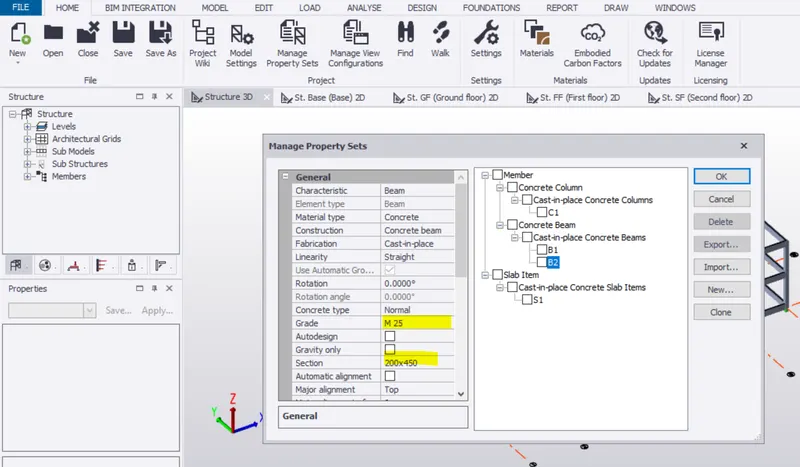

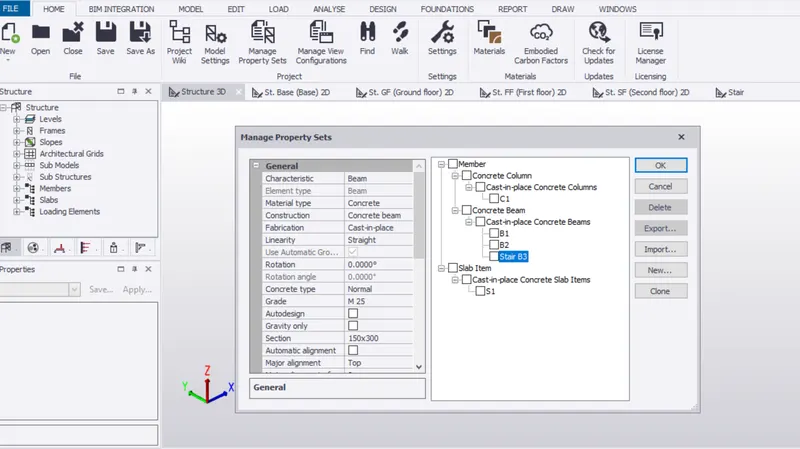

Home> Manage property sets

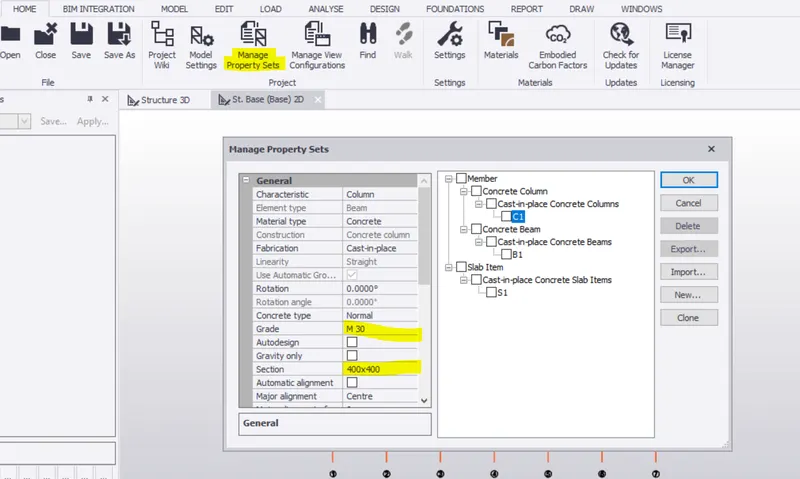

Create Column properties

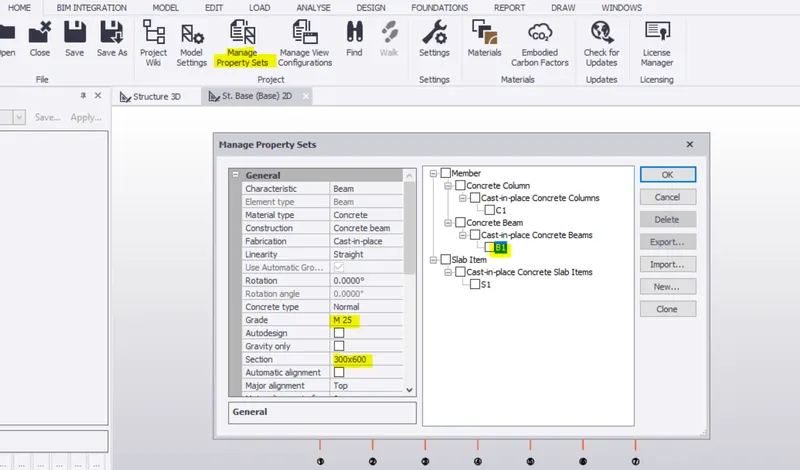

Create Beam properties

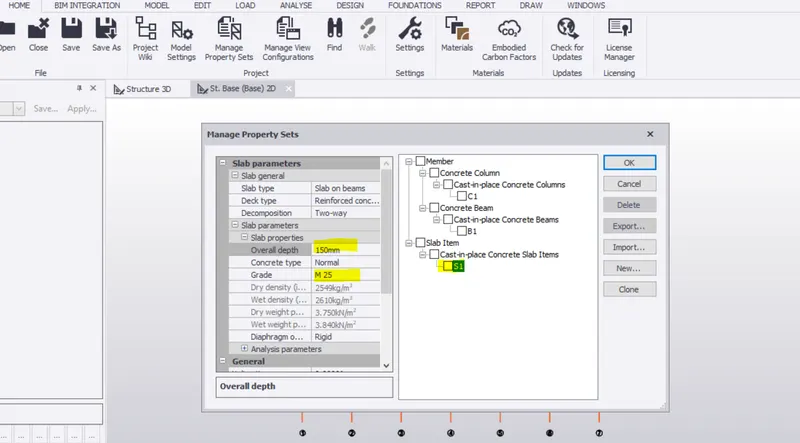

Create Slab properties

Step:4)

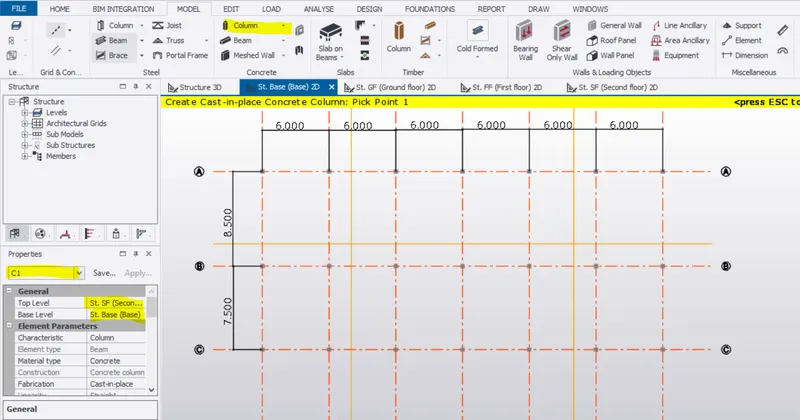

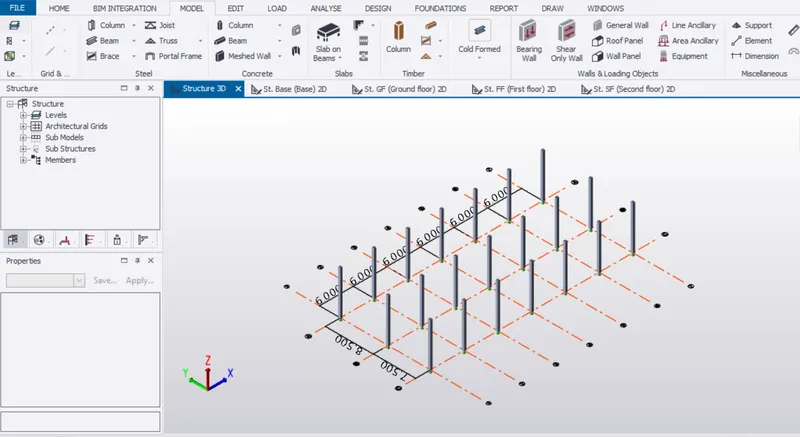

Model > Concrete columns

Place column at grid intersections

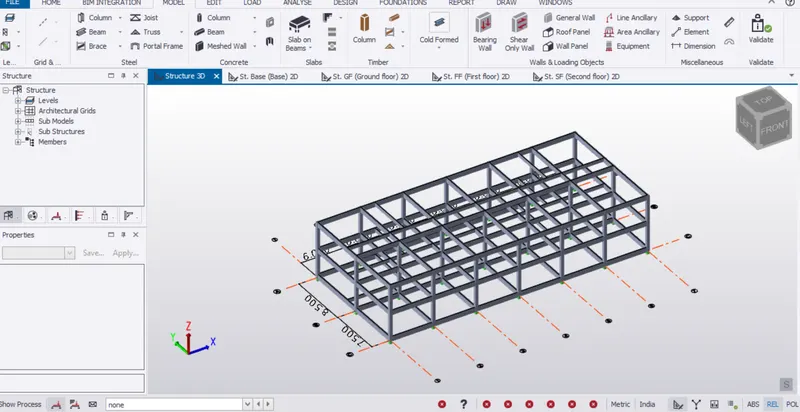

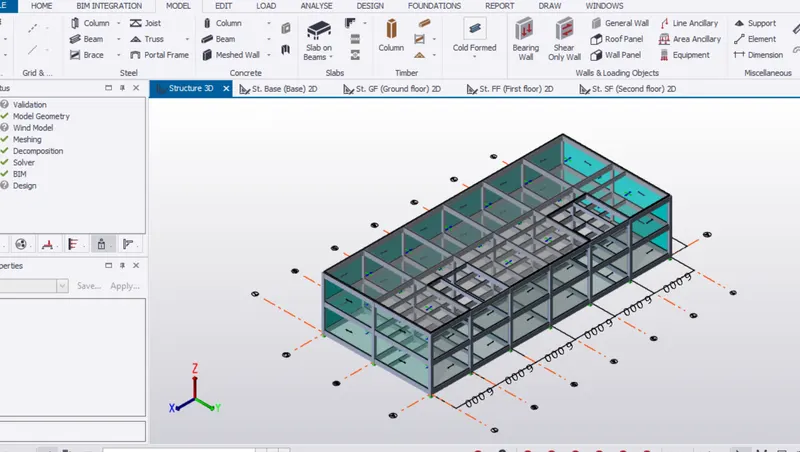

Model Beams

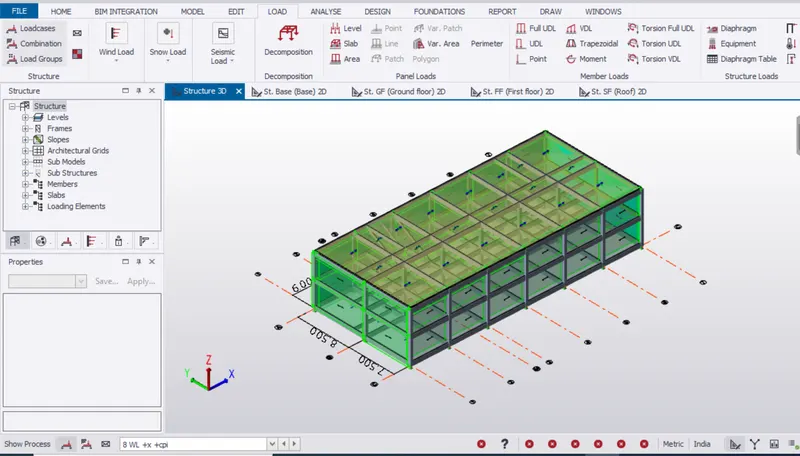

Model slabs. Place Roof & wall panel

Step:5)

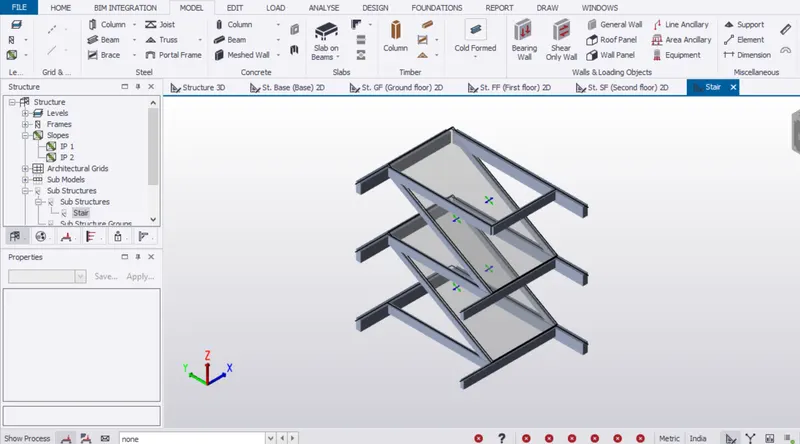

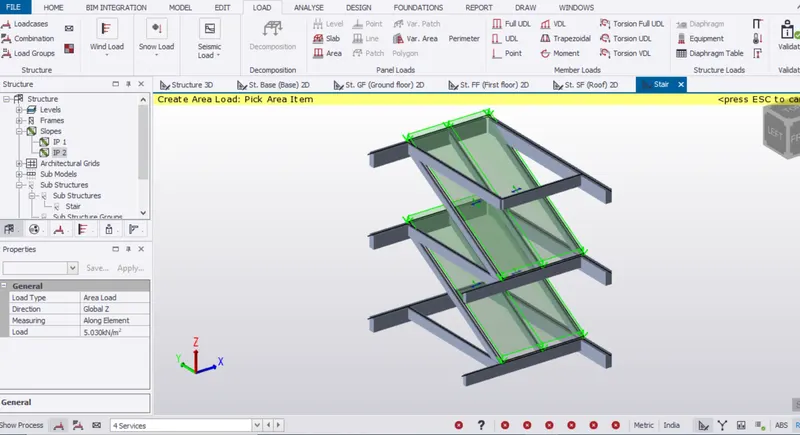

Create stairs

Add the adjacent stair beam and columns into substructure

Then create a sloped plane

Provide beam & slab

Step:5)

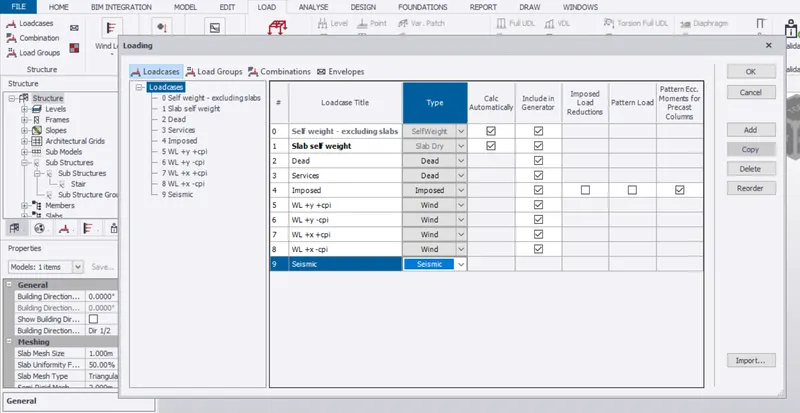

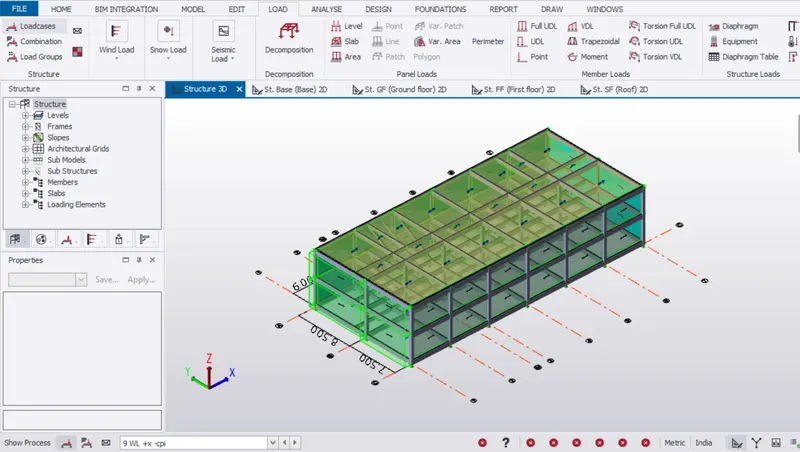

Load cases

Step:6)

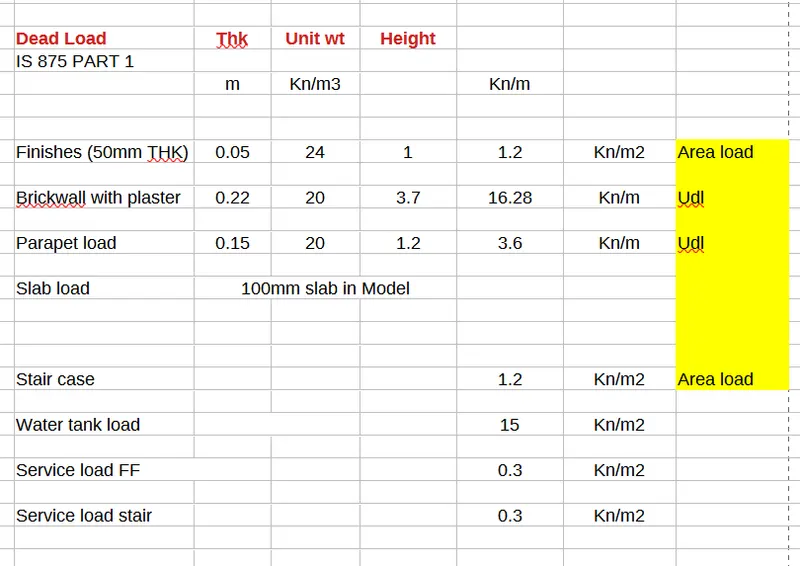

Dead load calculation

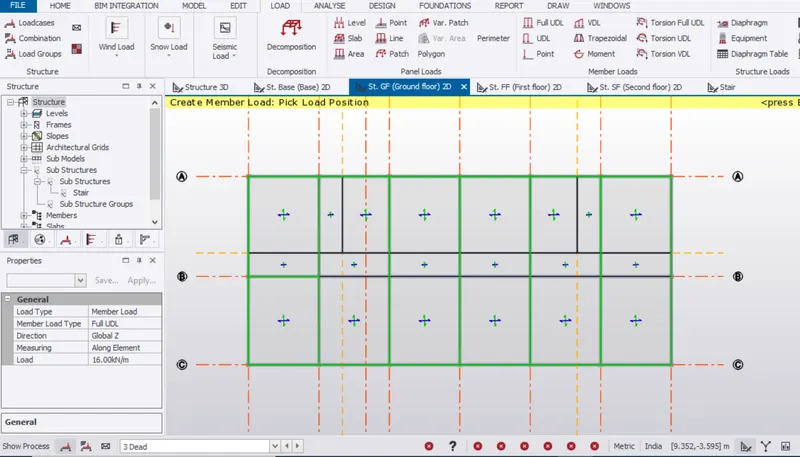

Dead load on beams

Dead load on slab

Dead load on stair

Step:7)

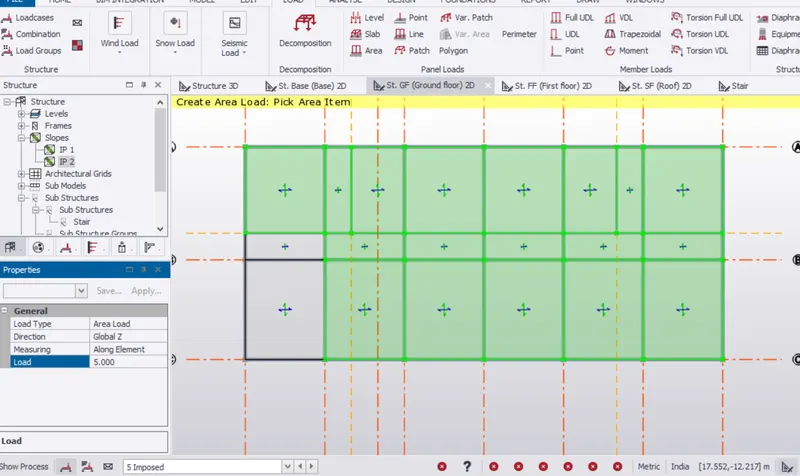

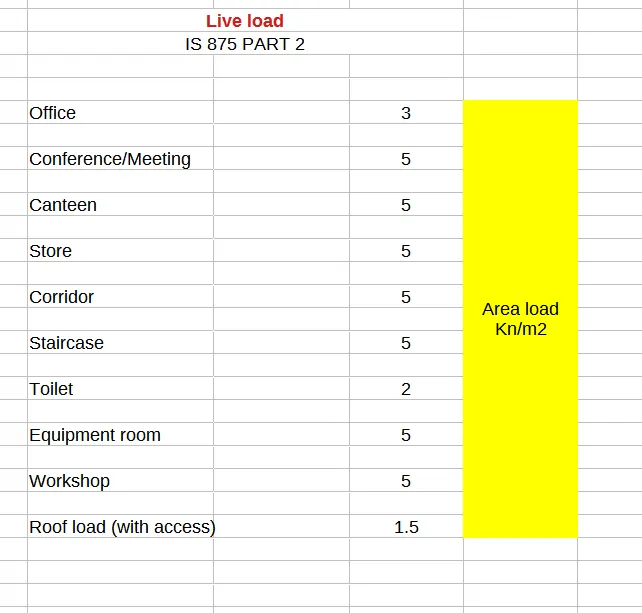

Live load calculation

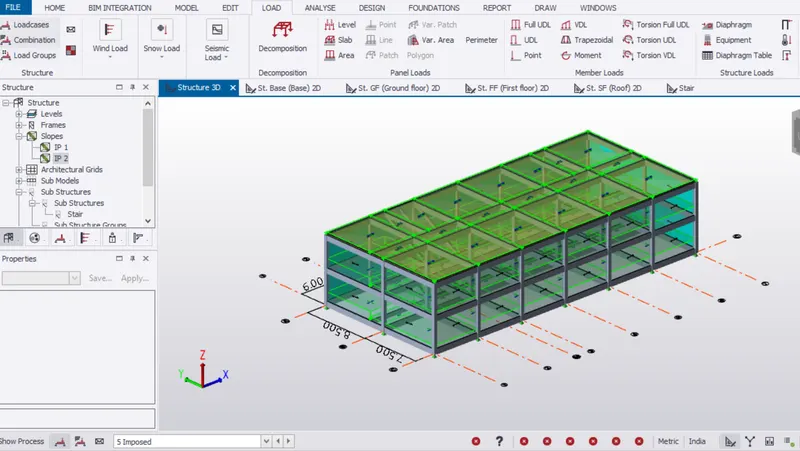

Live load on structure

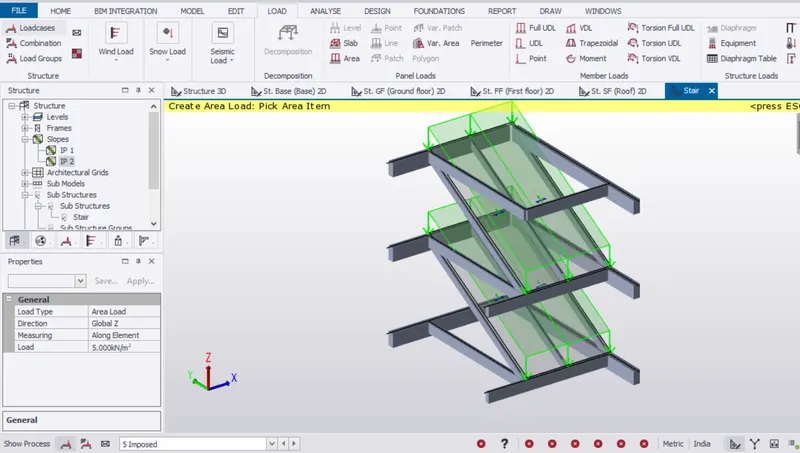

Live load on stairs

Step:7)

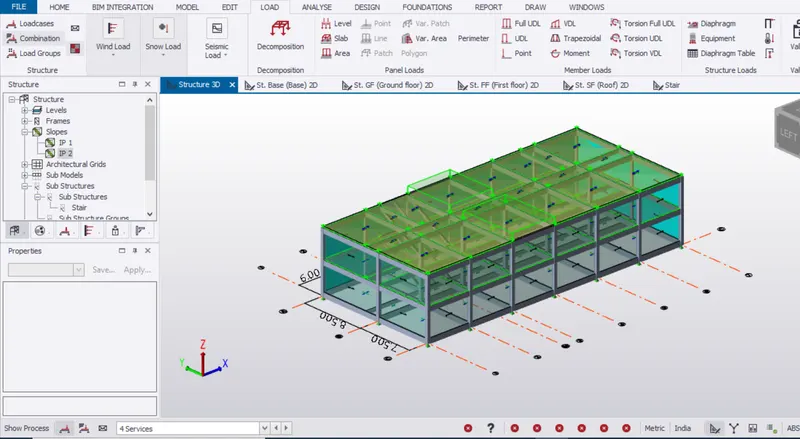

Service load

Step:8)

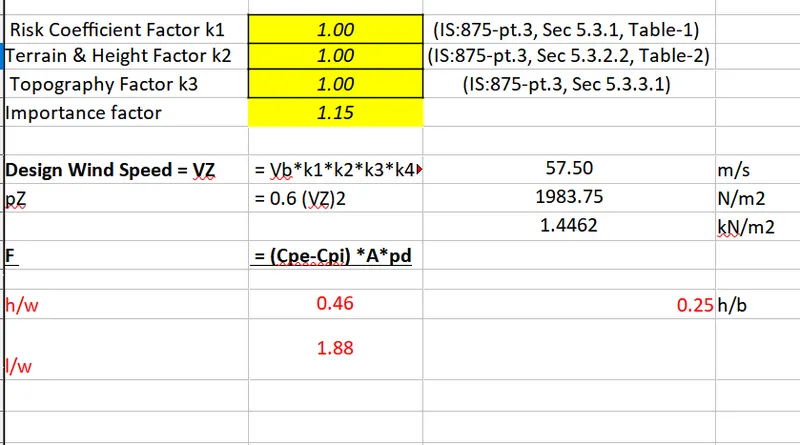

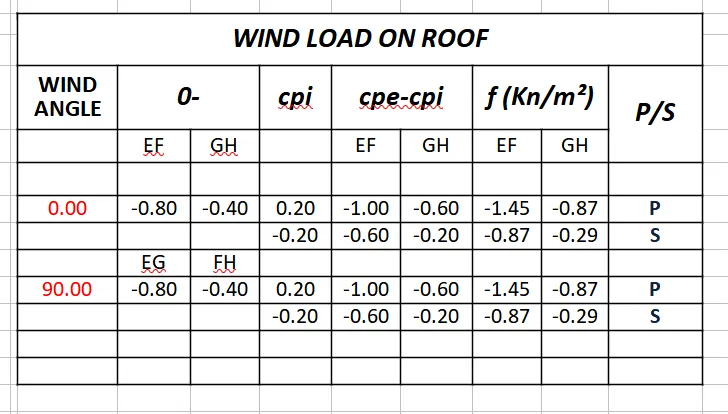

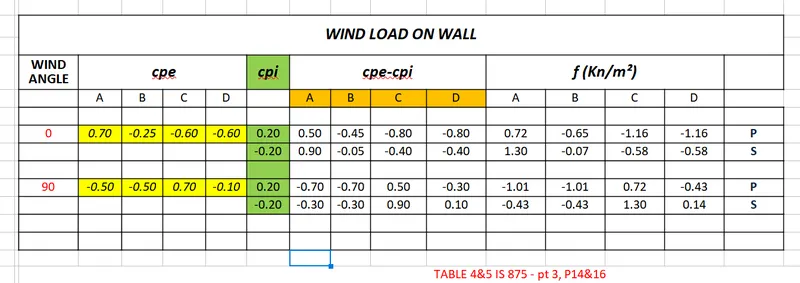

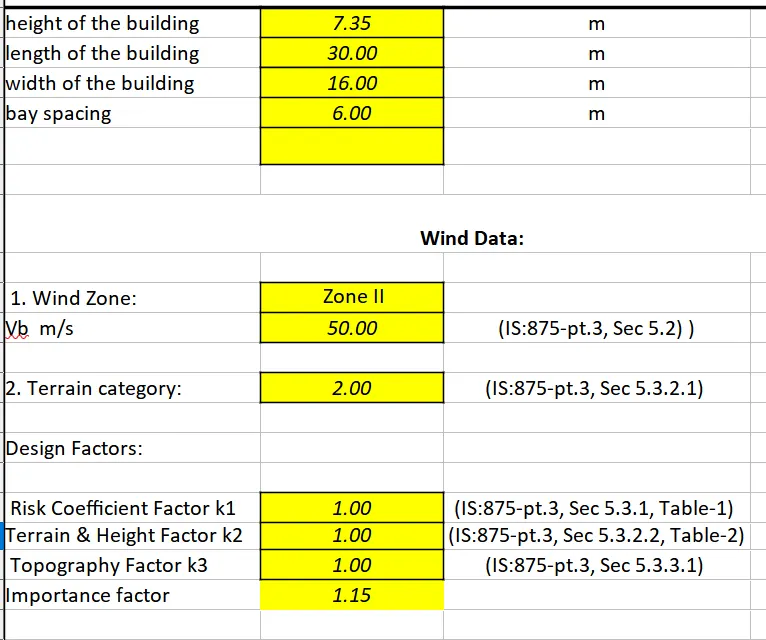

Wind load calculation

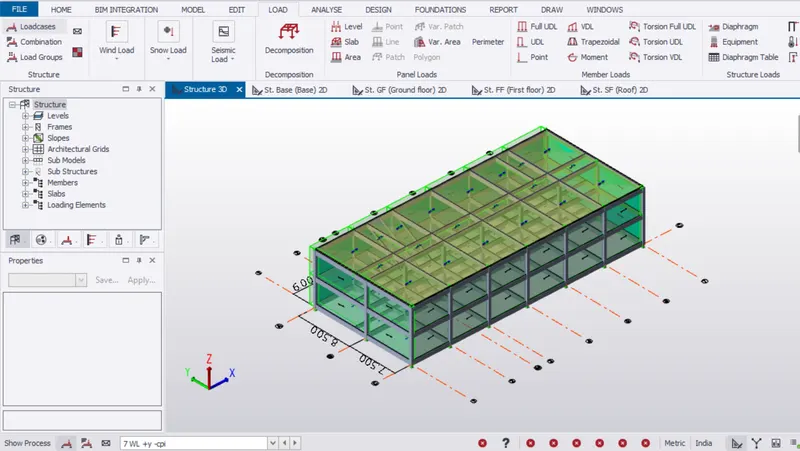

Wind load application

Step:9)

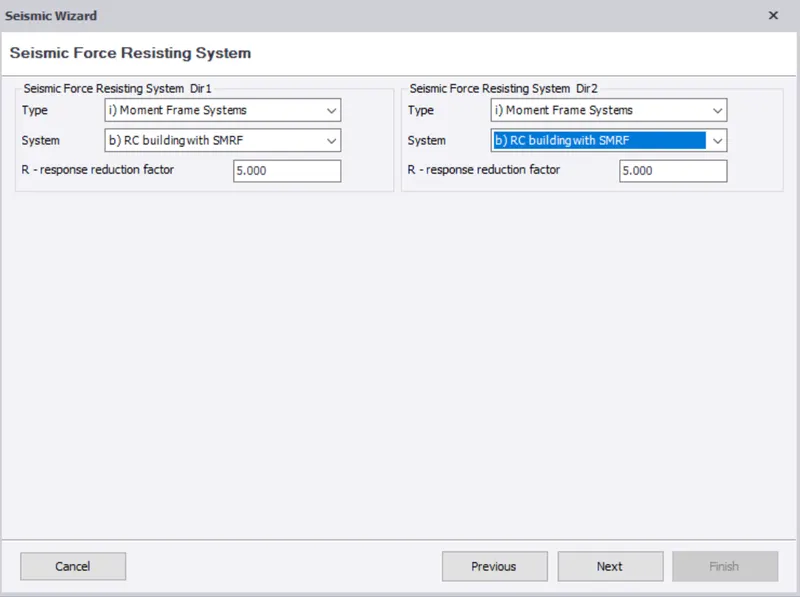

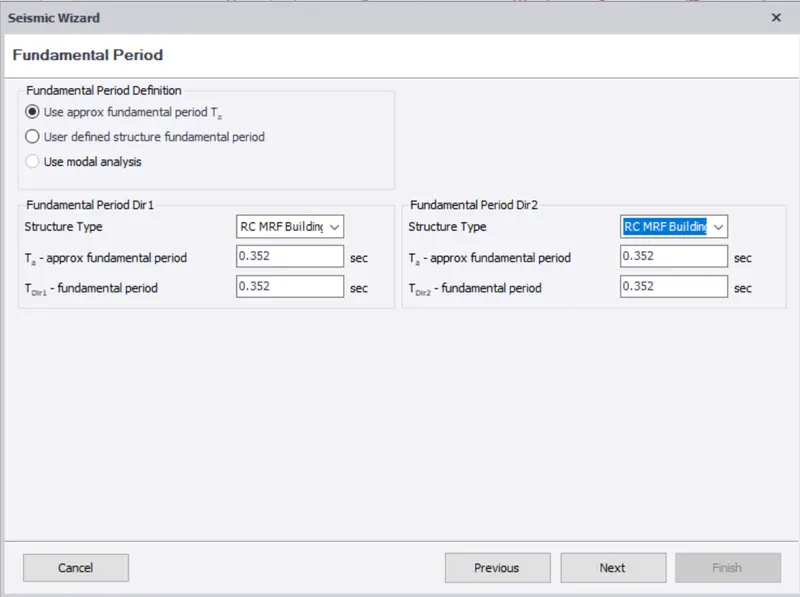

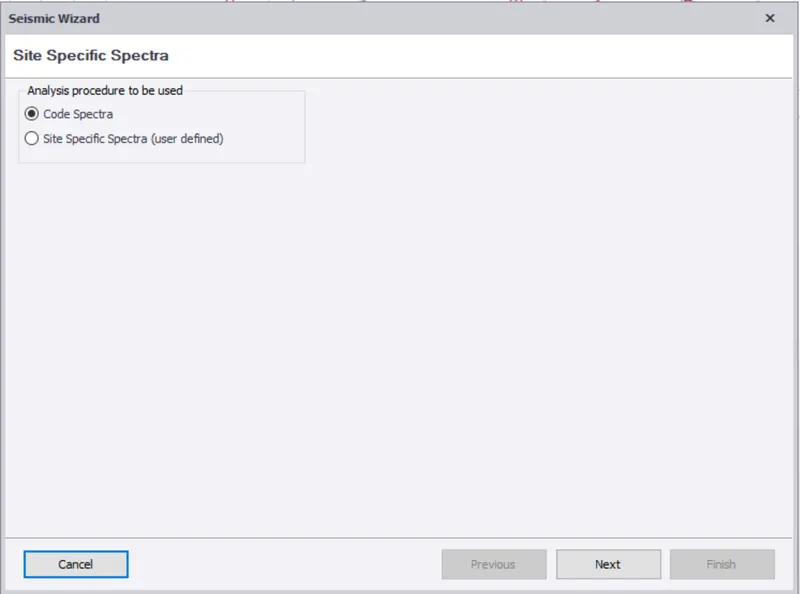

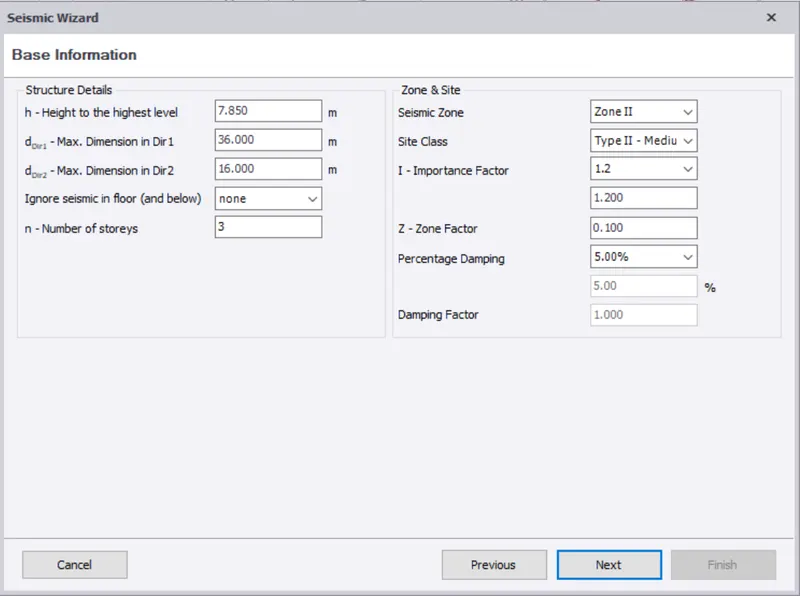

Seismic load

Step:10)

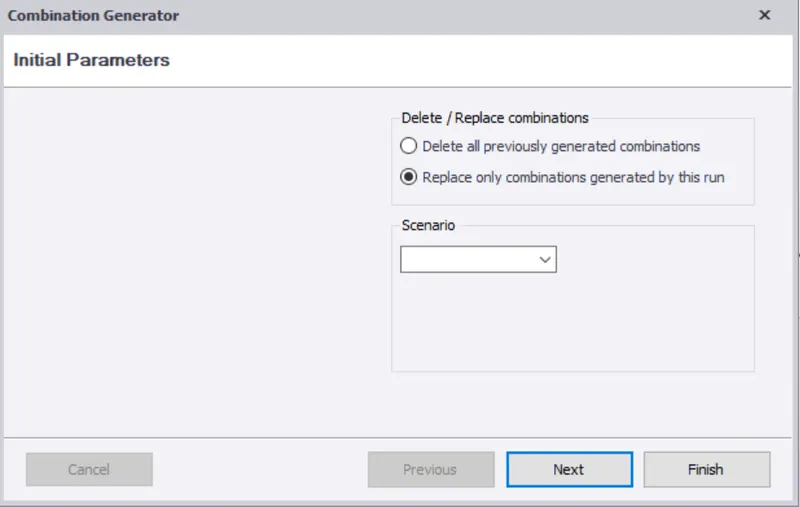

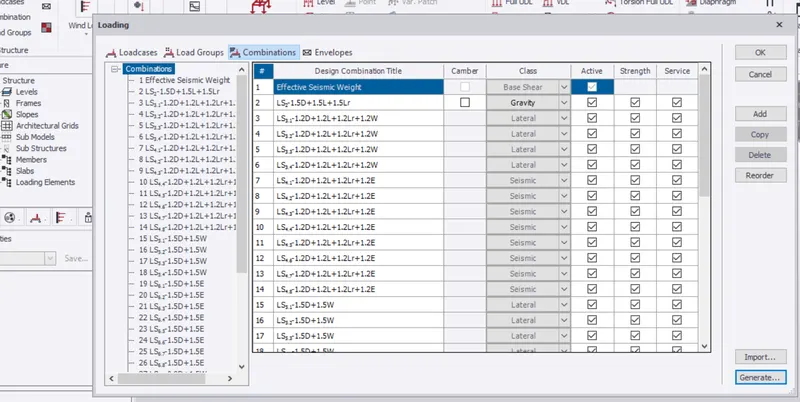

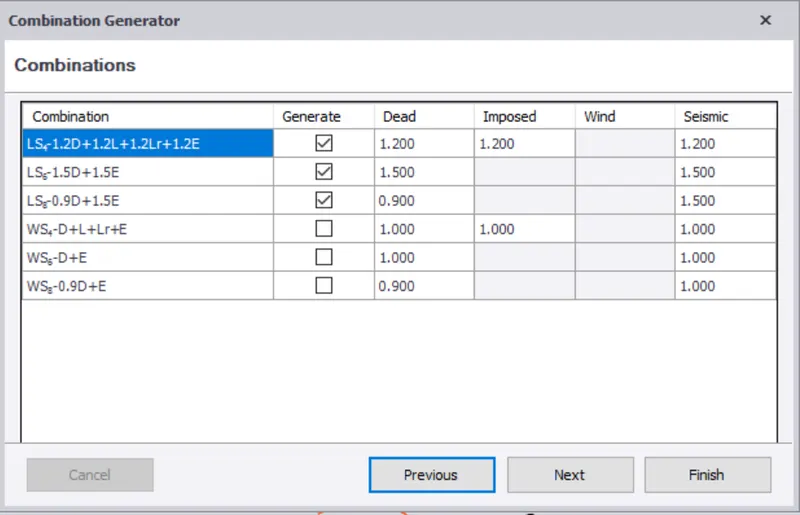

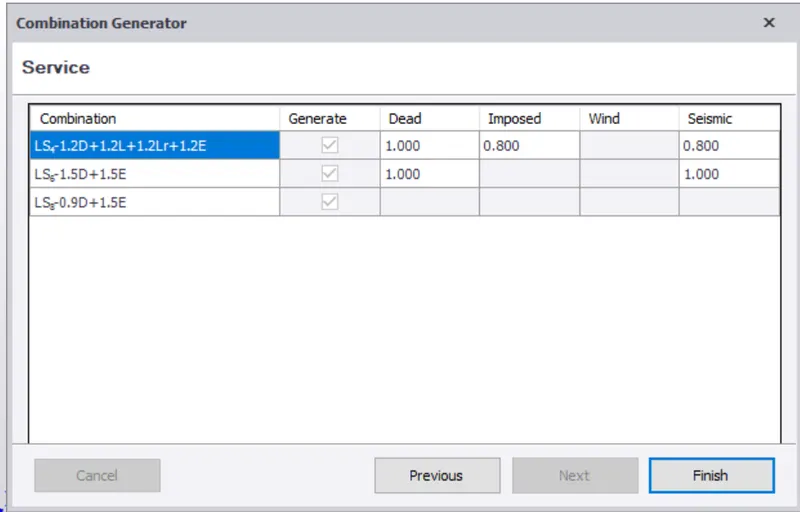

Load combinations

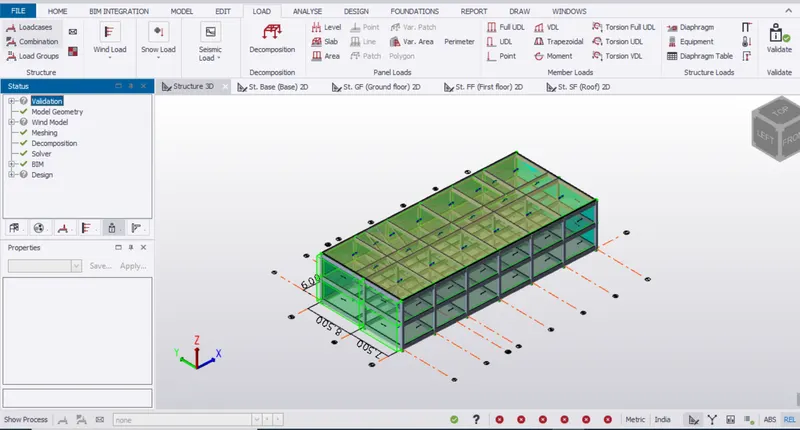

Validate model

Step:11)

Analyze >1st order linear

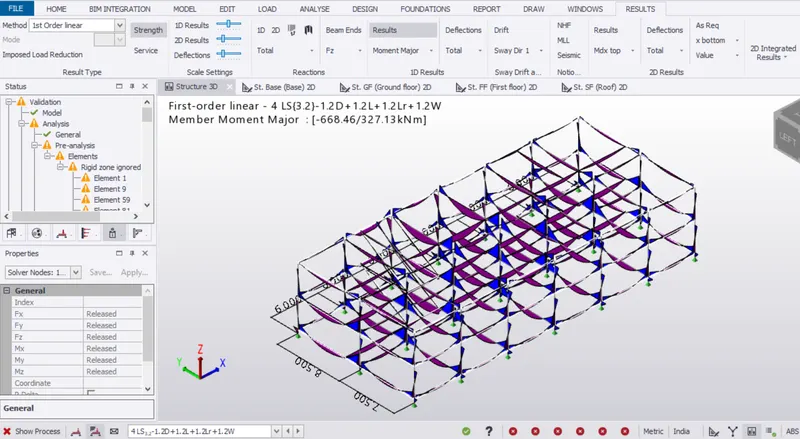

Analysis result

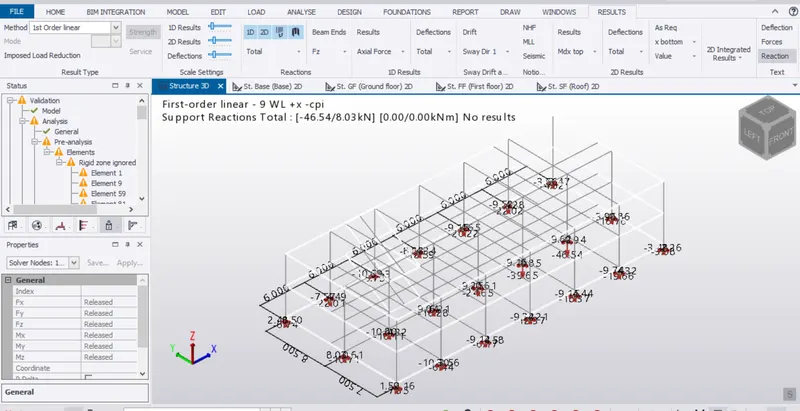

1. Reactions

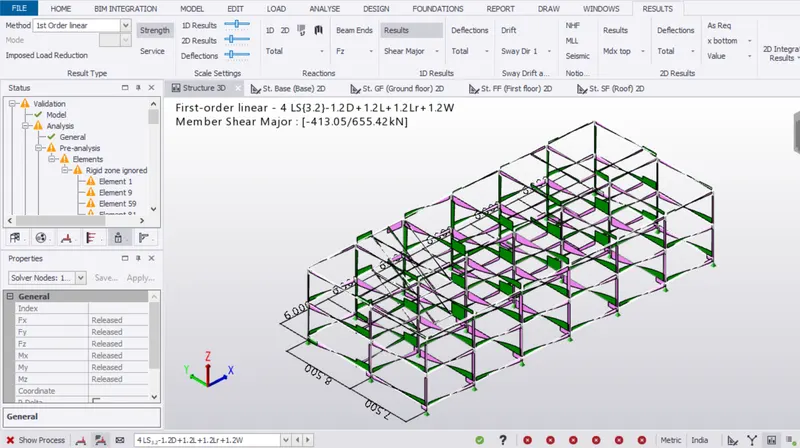

2. Shear

3. Moment

Step:12)

Design Members

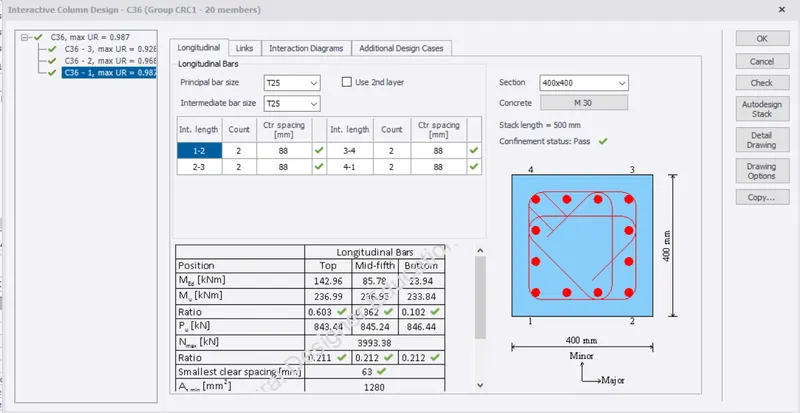

Column

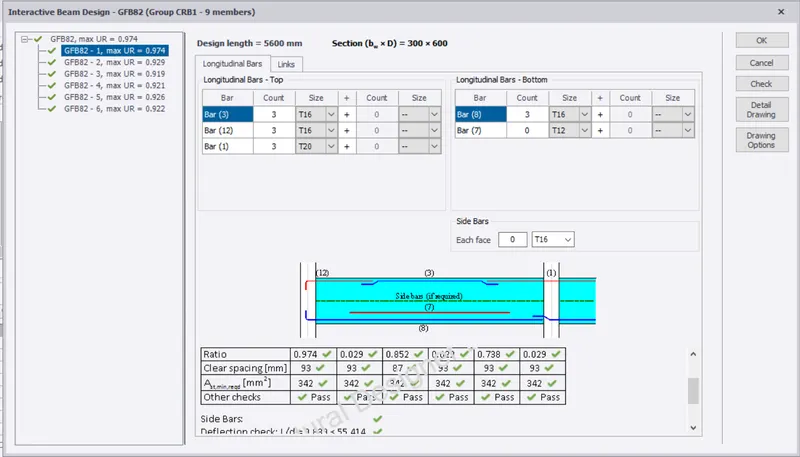

Beam

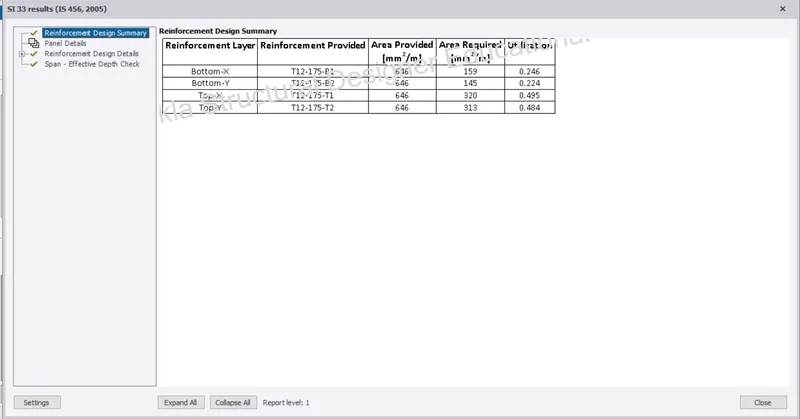

Slab

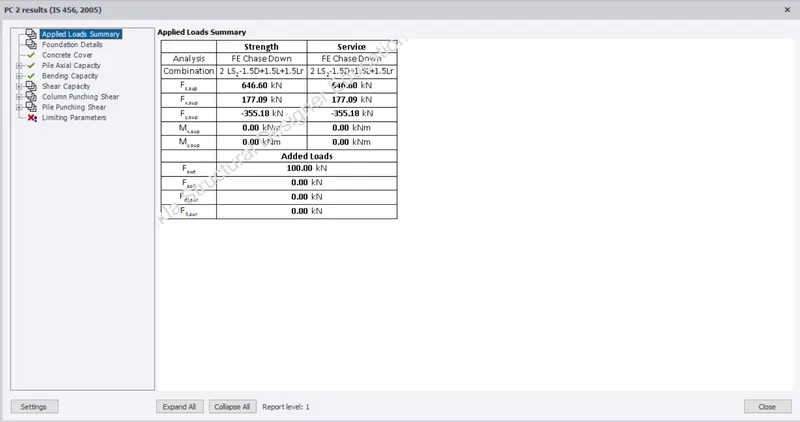

Pile footing

Step:12)

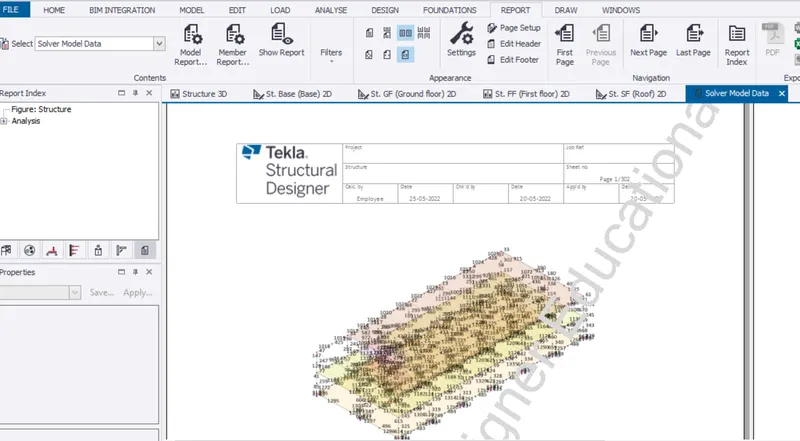

The report from the model was generated

Result:

The structure was analysed and modelled with the IS code & Design basis report was presented.
