Project 2

Aim: To develop  the RC building, Analysing and designing it and generating report

Procedure:

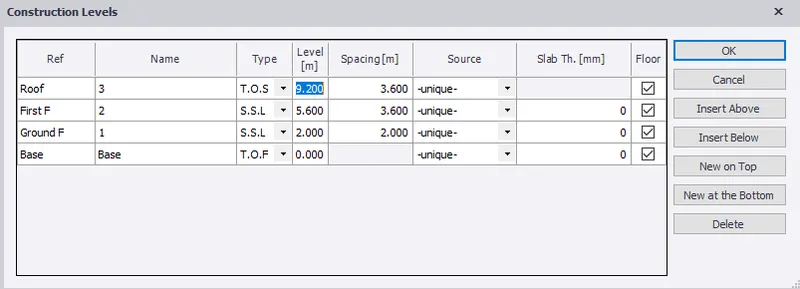

1. Selecting the construction level and entering the values

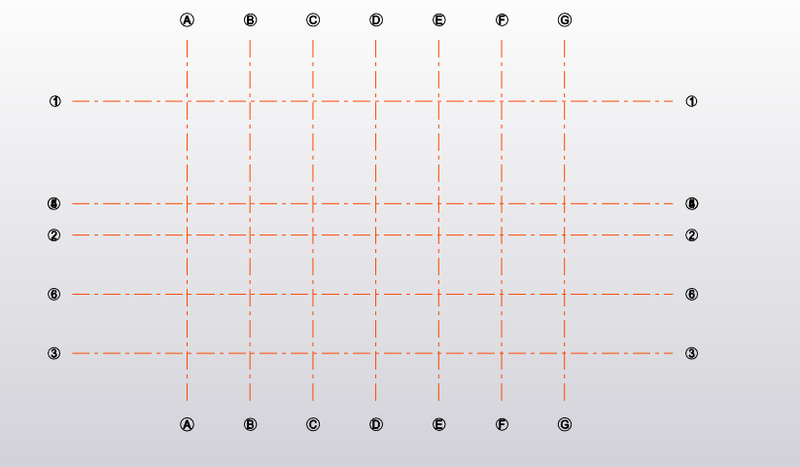

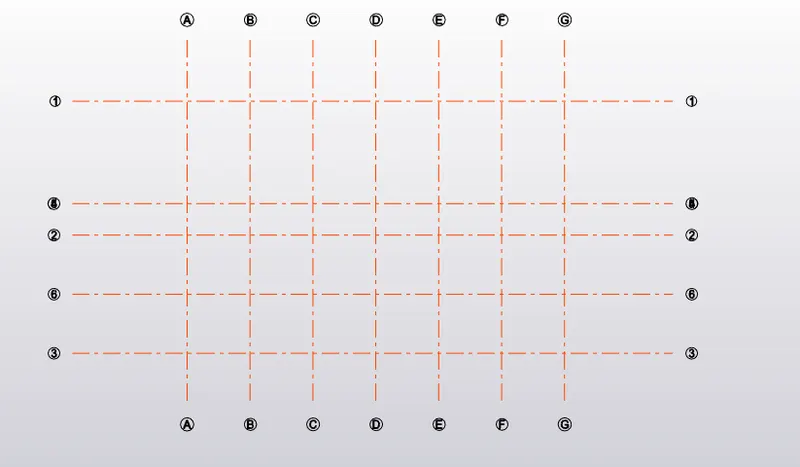

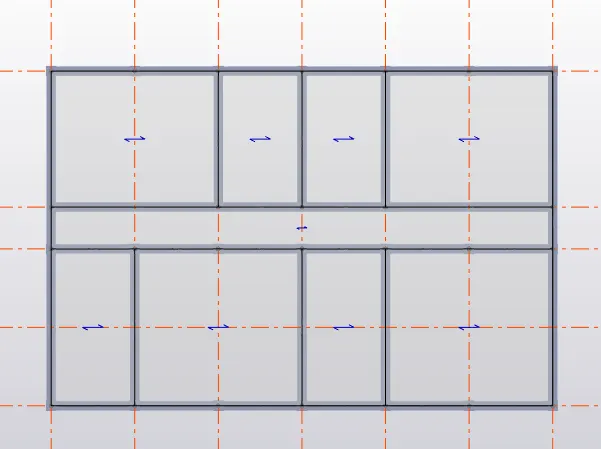

2. Selecting the Grid and drawing the gris and paralleling the grid at a distance of 4m horizontal and 8.5m and 7.5m vertically

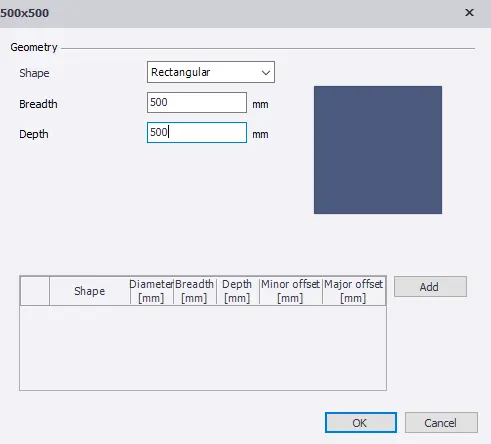

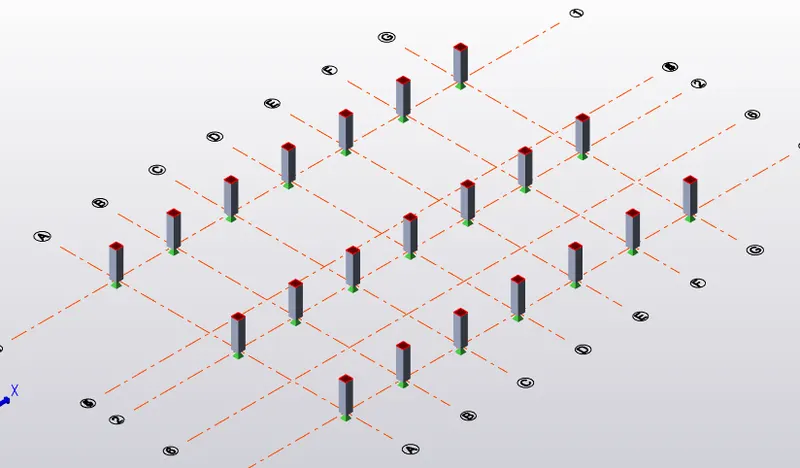

3. Defining the column of 500X500mm

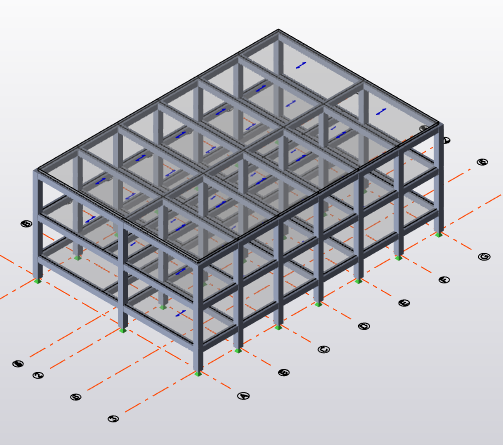

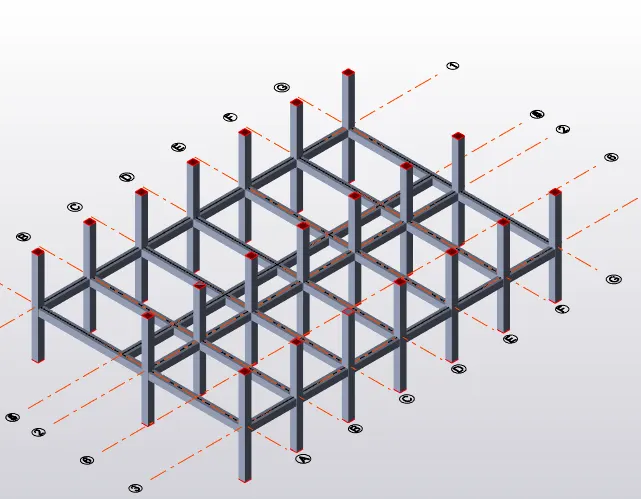

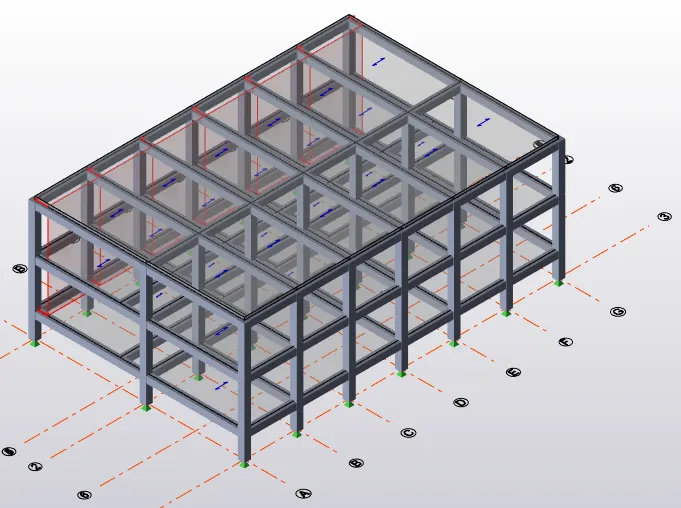

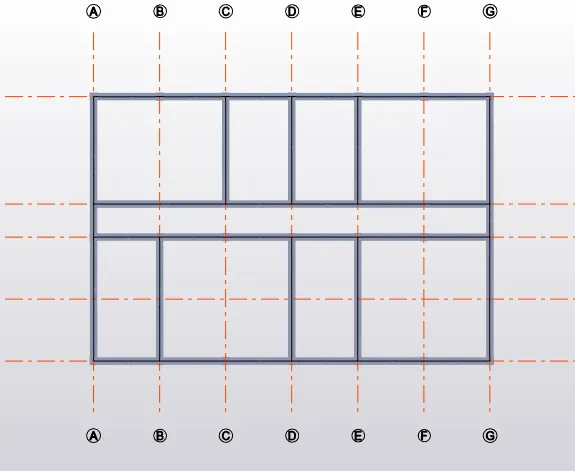

4. Defining the beam of size 450X500mm and modelling it

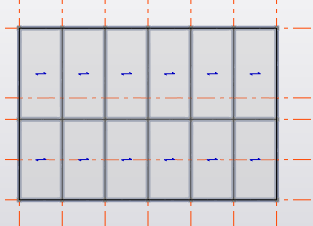

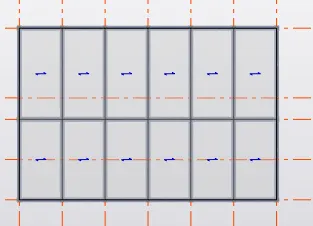

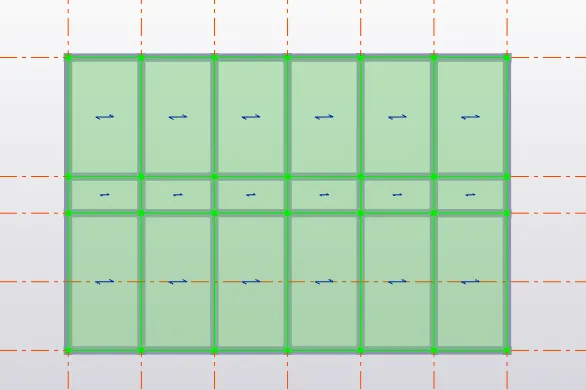

5. Defining the Slab of 200mm and assigning it

Load Calculations

1. Dead load calculated by the software

2. Brickwall load= 0.15*18*3.6= 10 Kn/m3

3. Service load= 0.25Kn/m2

4. Live load= 5Kn/m2

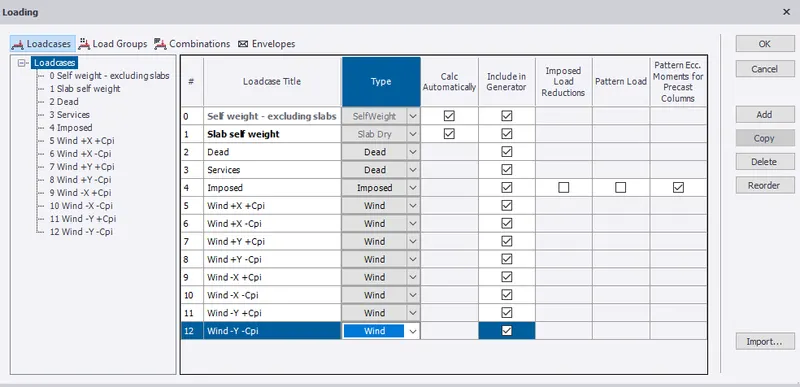

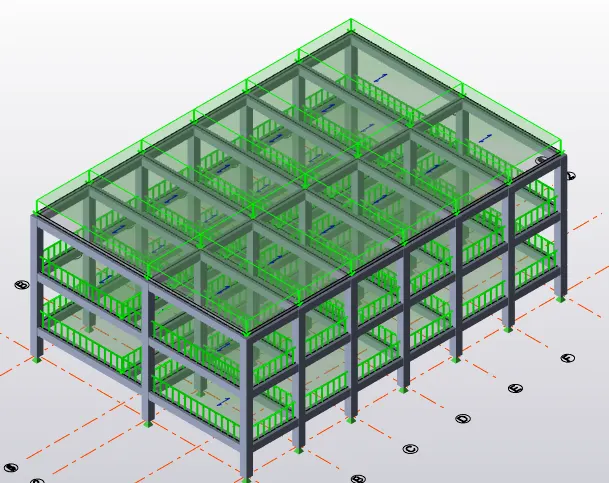

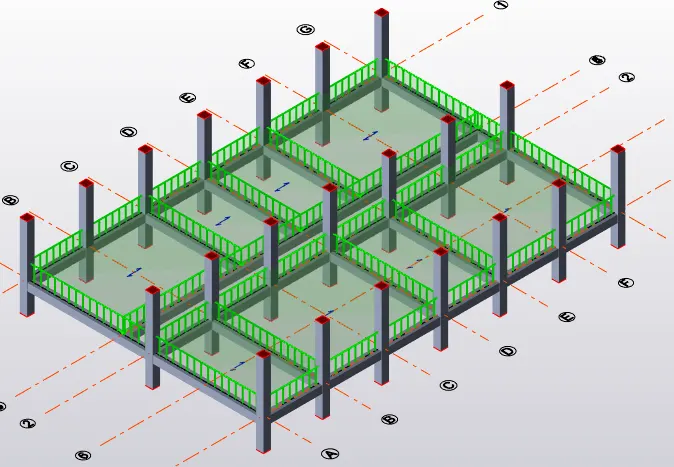

Applying the above calculated load on the building

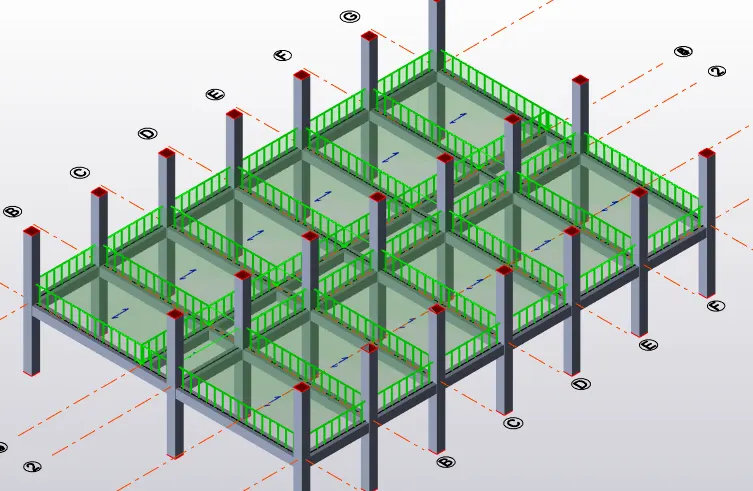

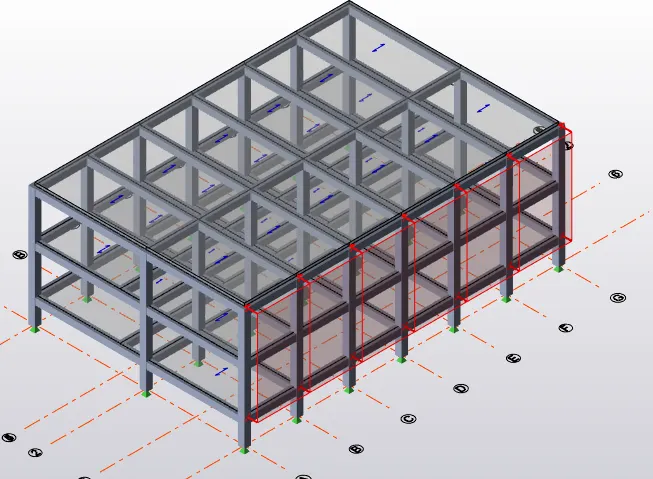

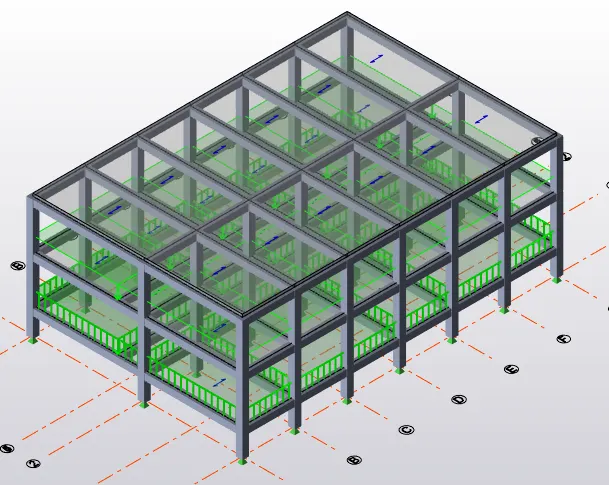

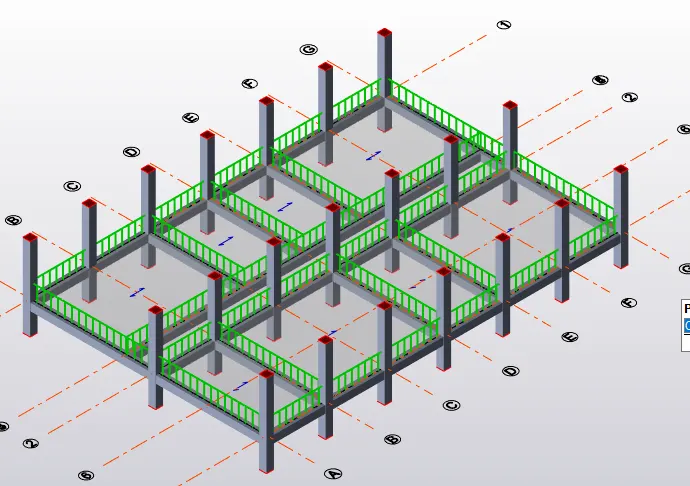

applying brickwall load

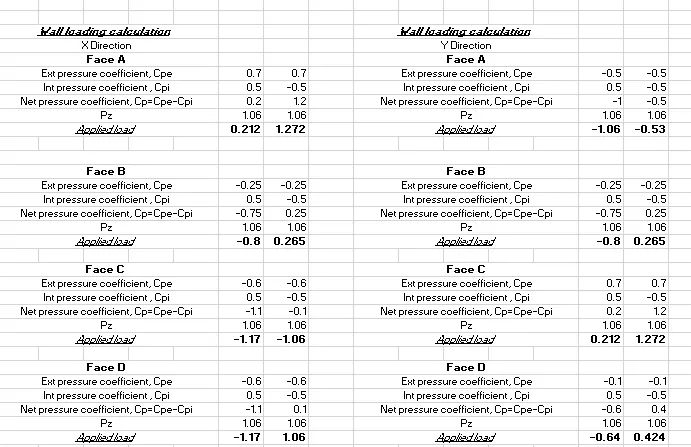

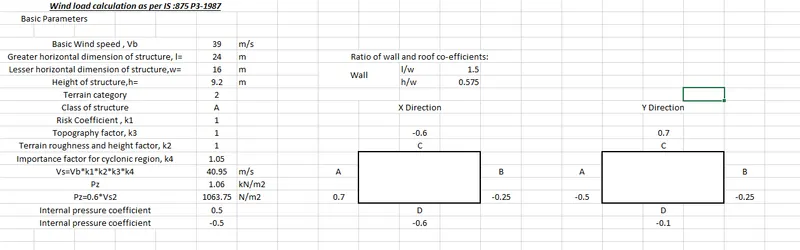

Wind load Calculation

Wind load is calculated in this manner

Dead Load

Service and live load

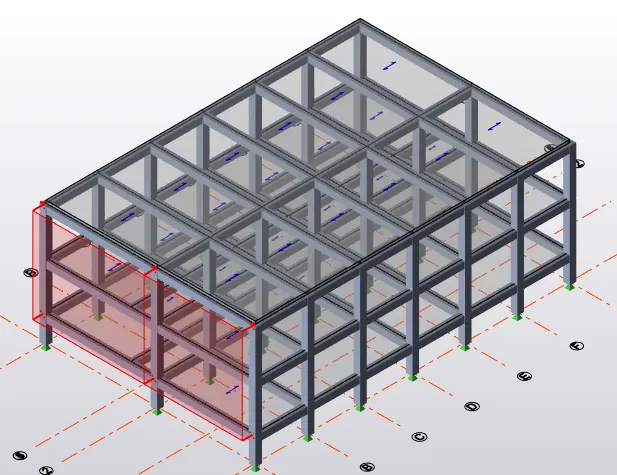

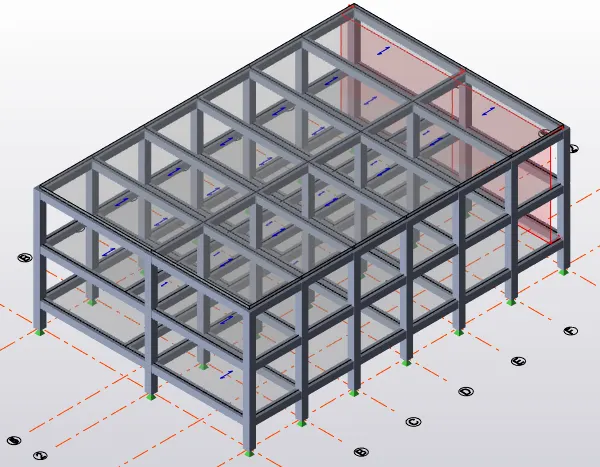

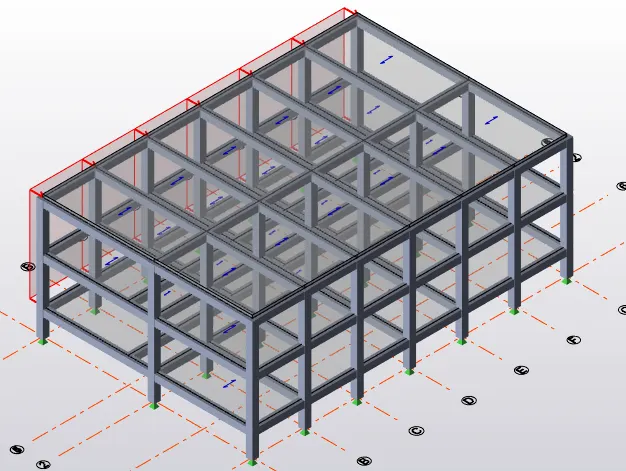

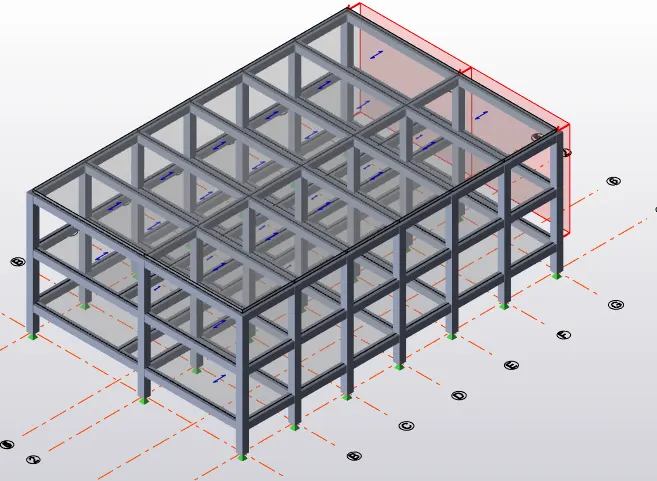

Wind loads

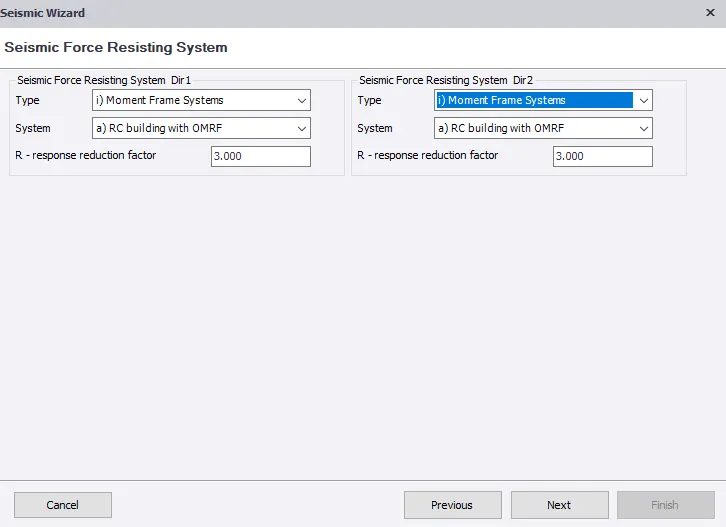

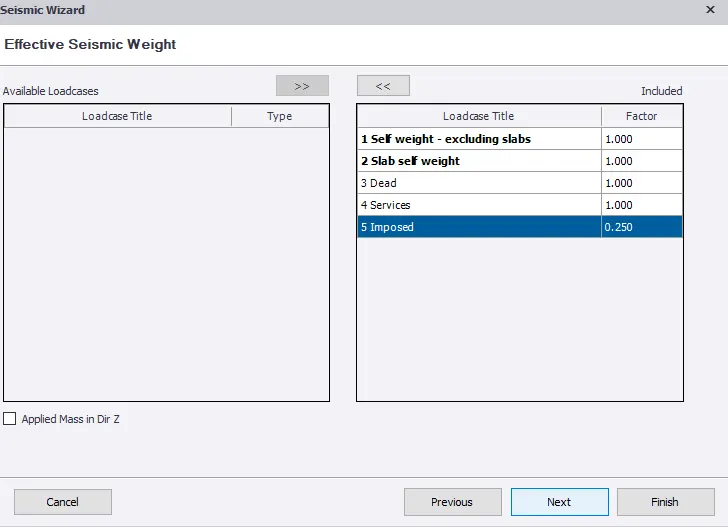

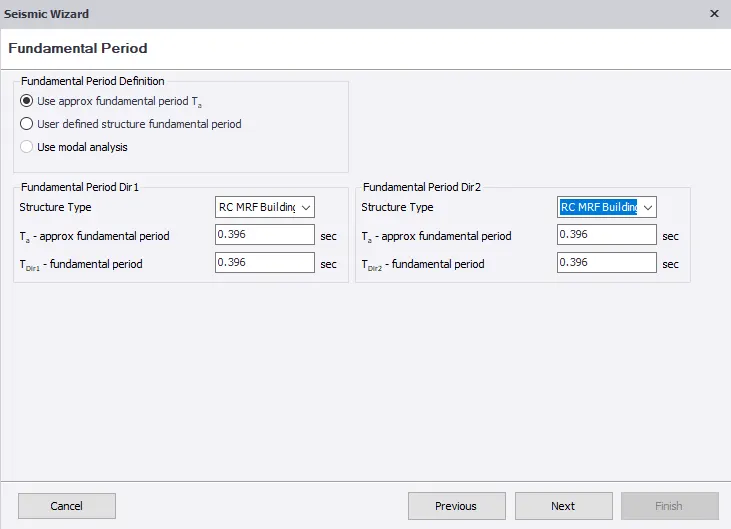

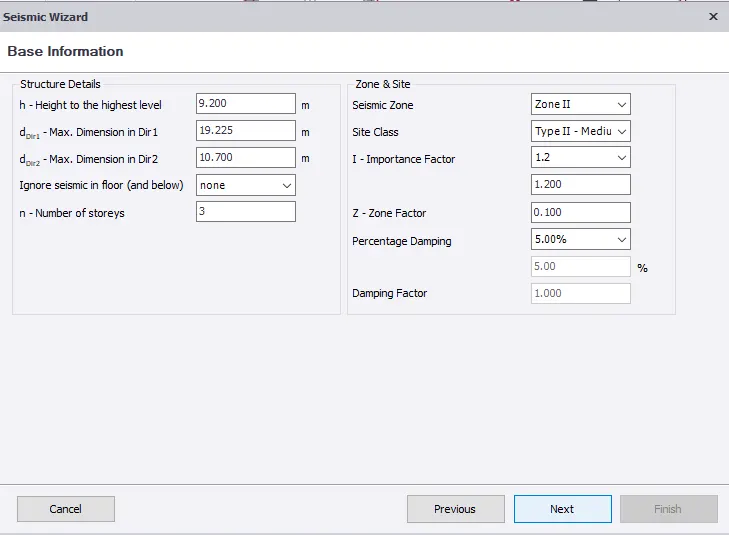

Seismic Loading

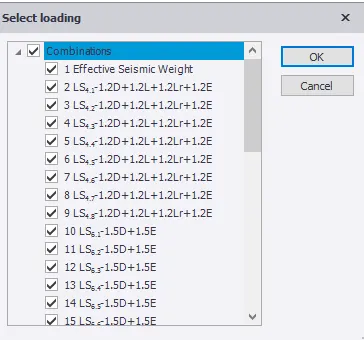

After applying all the loads analysing the model by clicking the analyse menu and selecting the 1st degree analysis

Obtaining the results in results menu

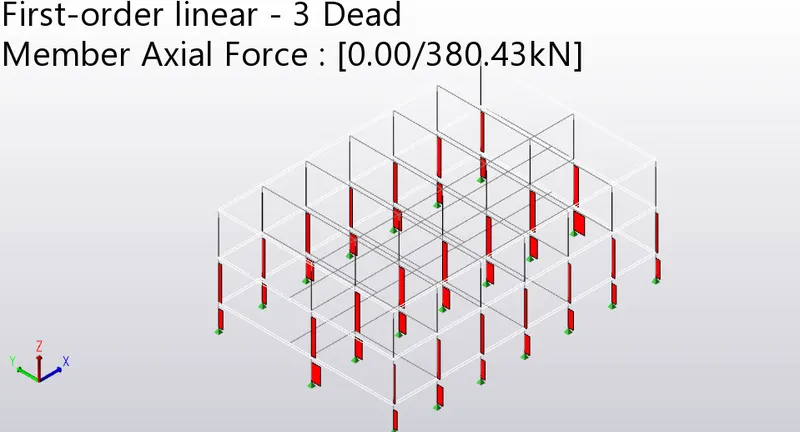

Axial Force

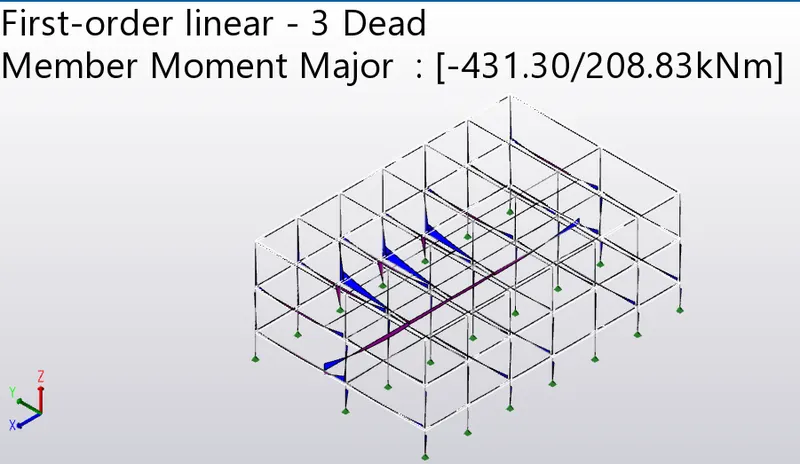

Major moment

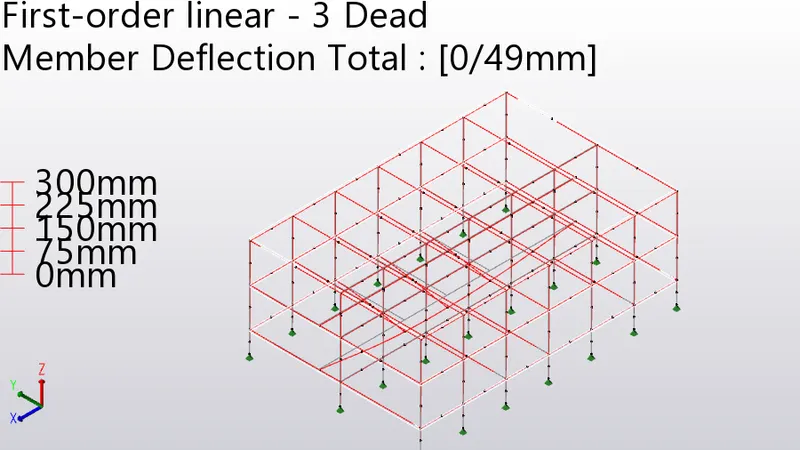

Deflection

Clicking on each member and checking the member if it passes alla the criteria or not

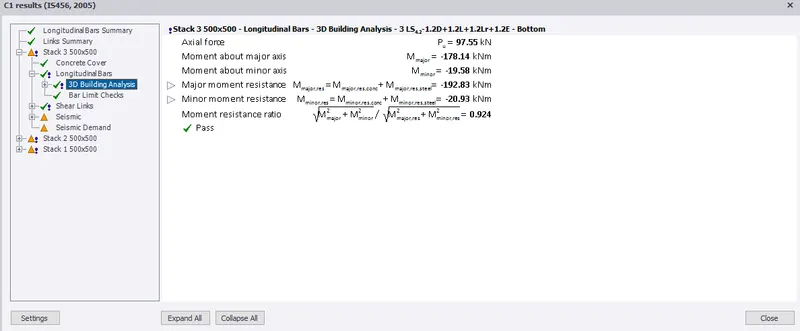

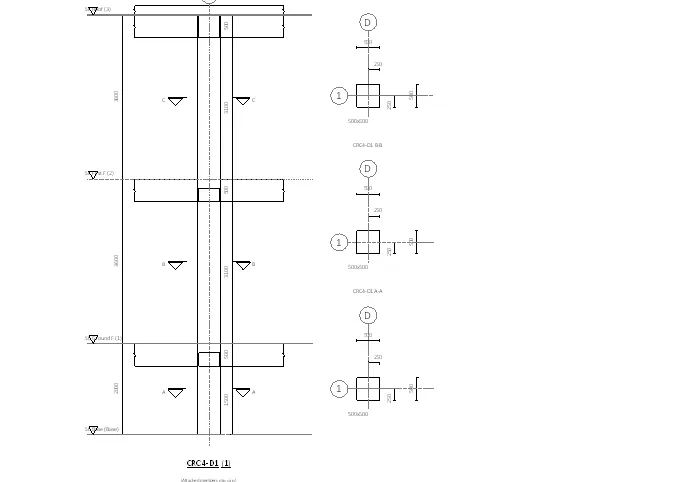

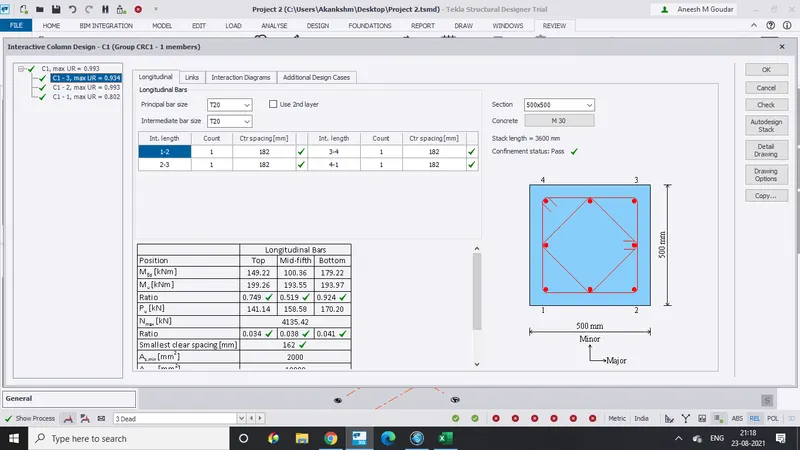

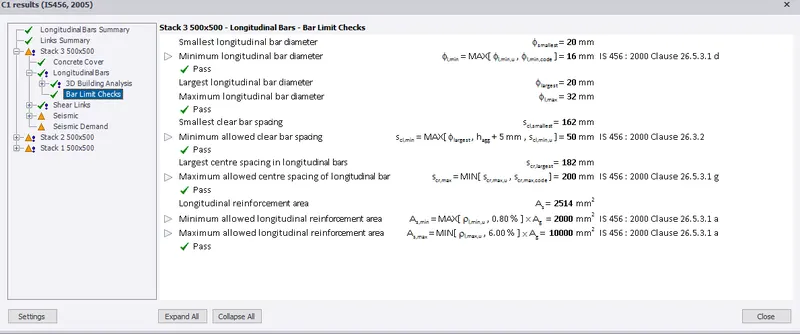

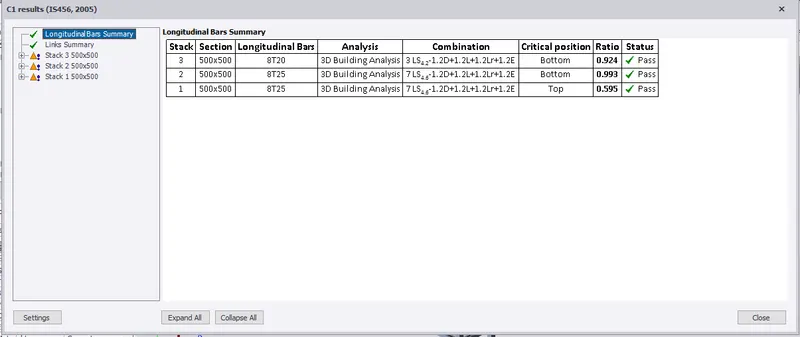

Checking Column

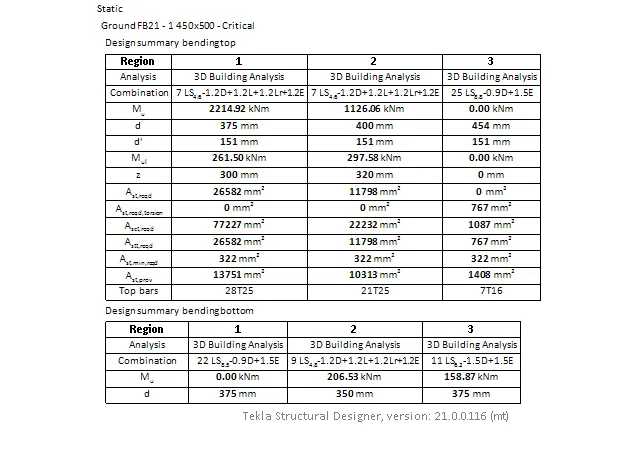

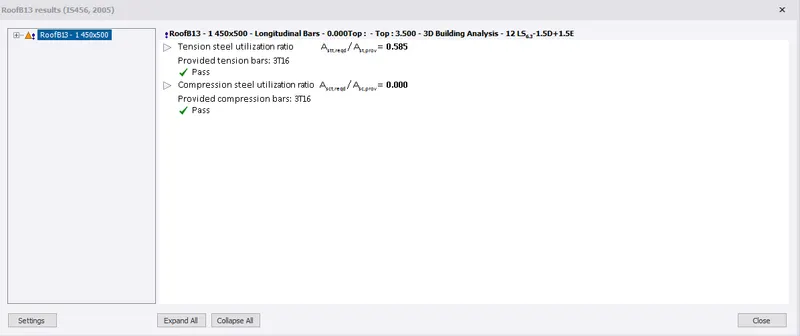

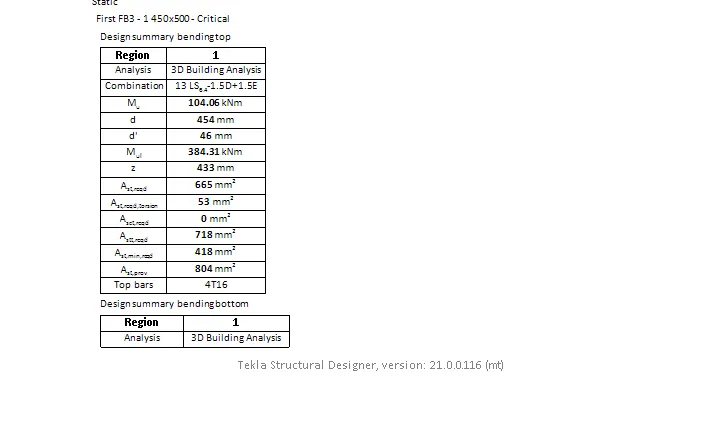

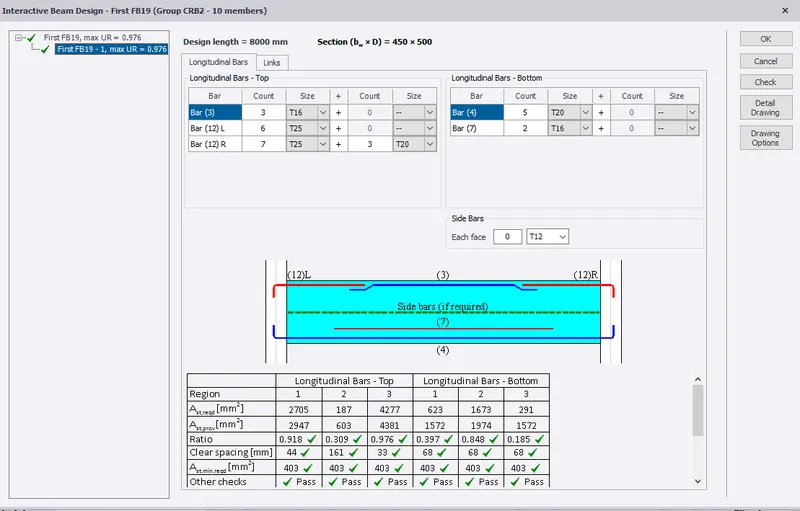

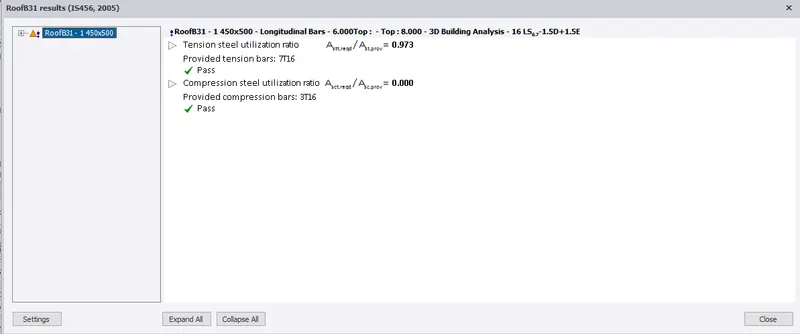

Checking beam

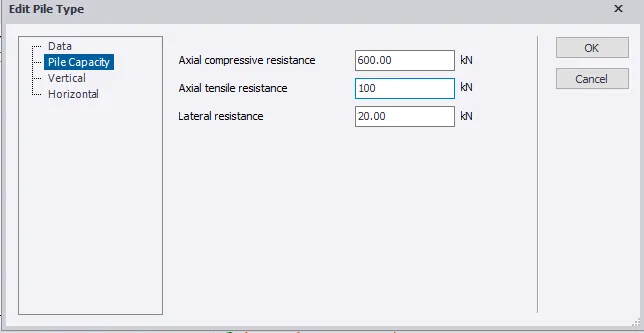

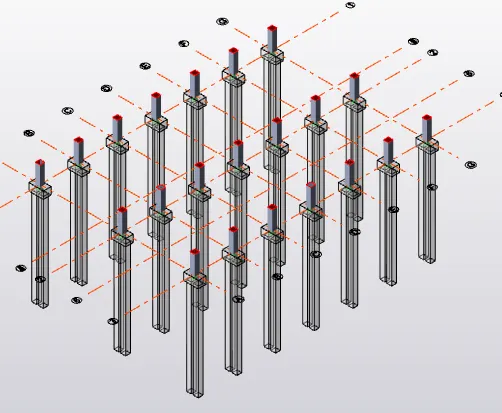

Foundation Design

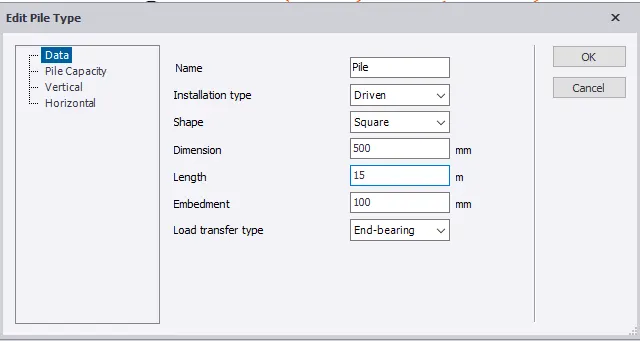

Selecting the foundation and selecting the catalouge

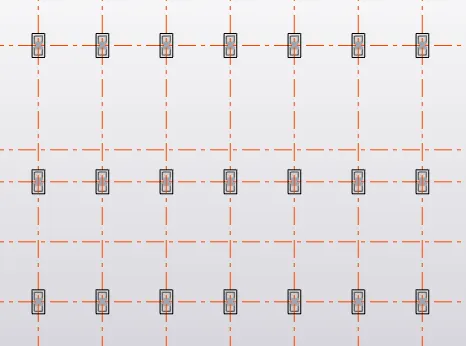

Selecting the column and draging it in the position to foundation

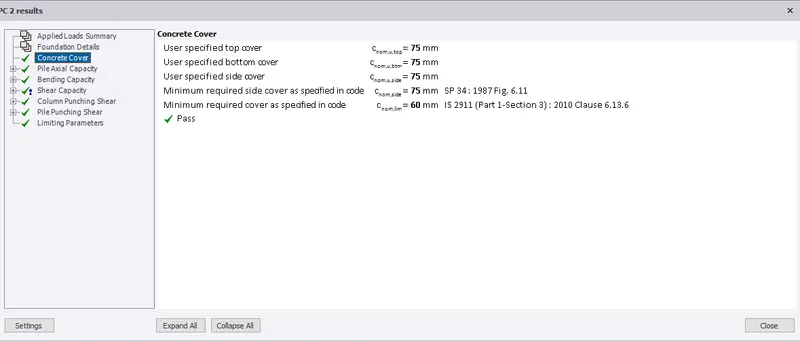

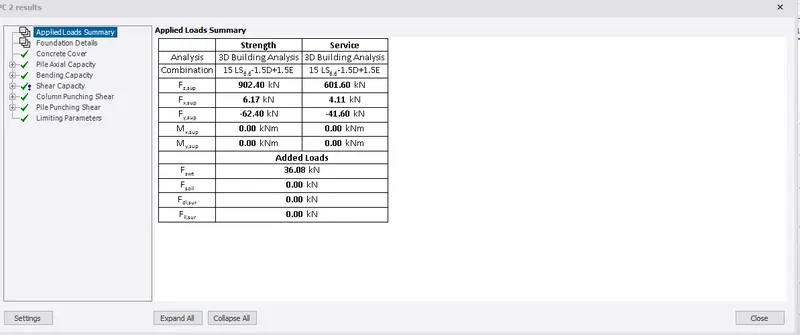

Checking Footing and designing

Report Generation

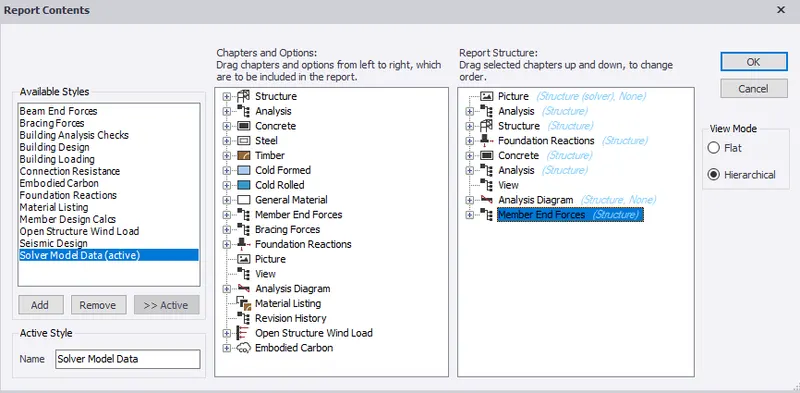

Selecting the report and selecting the model report and generating the report

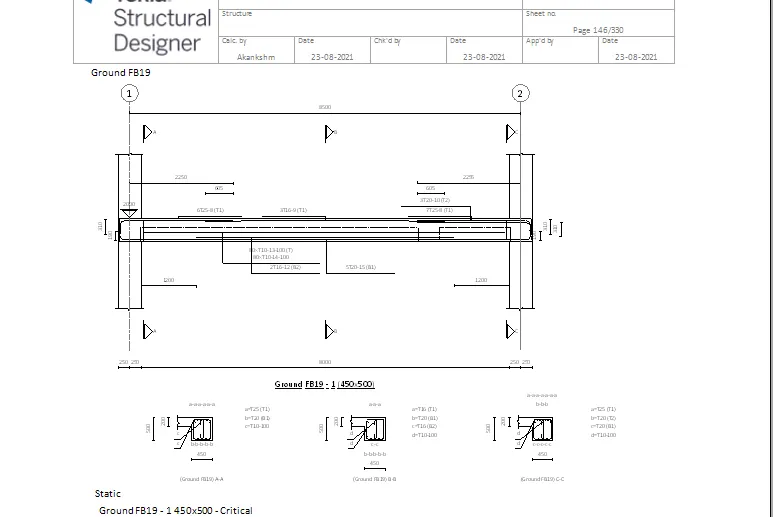

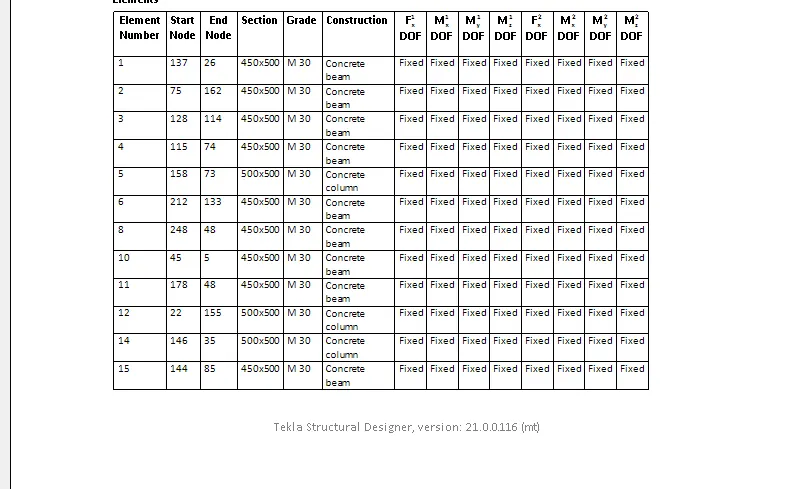

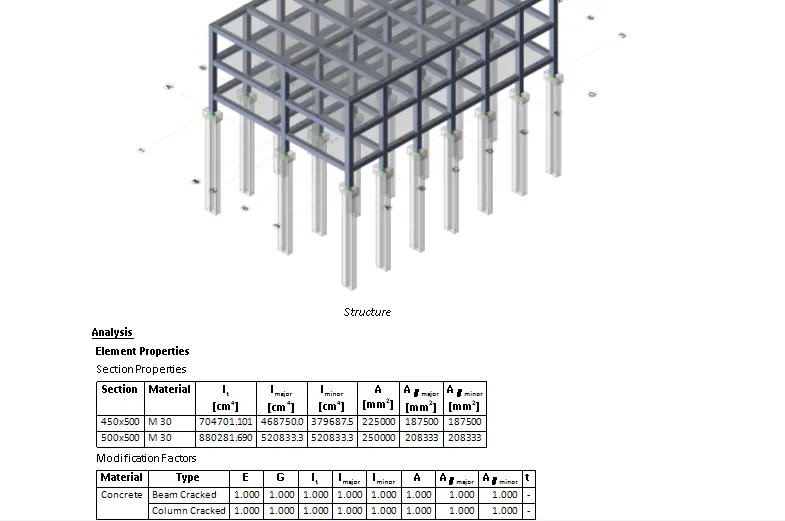

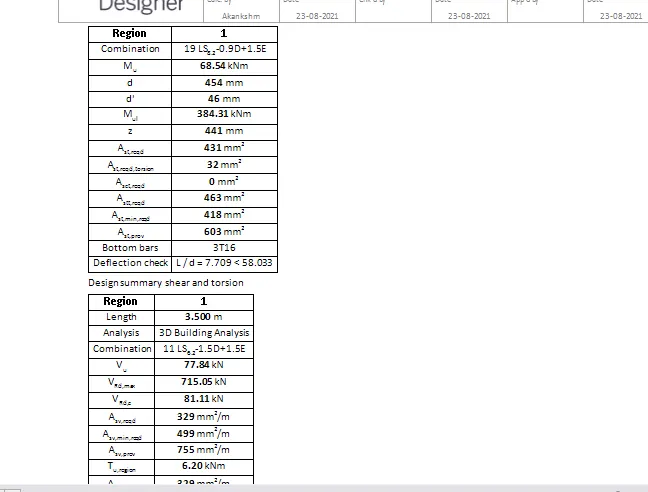

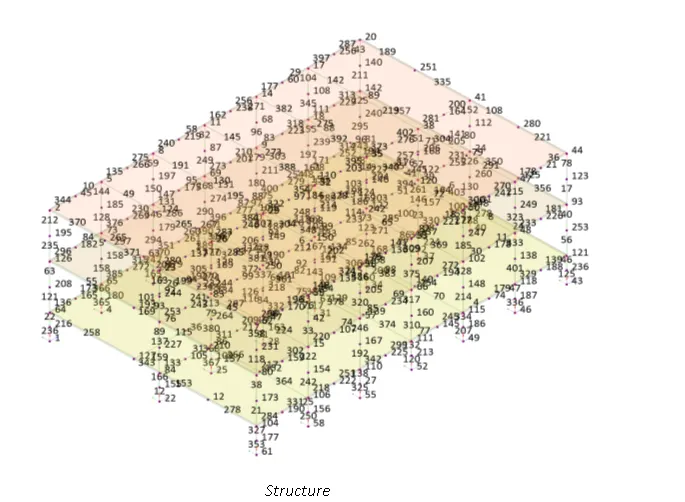

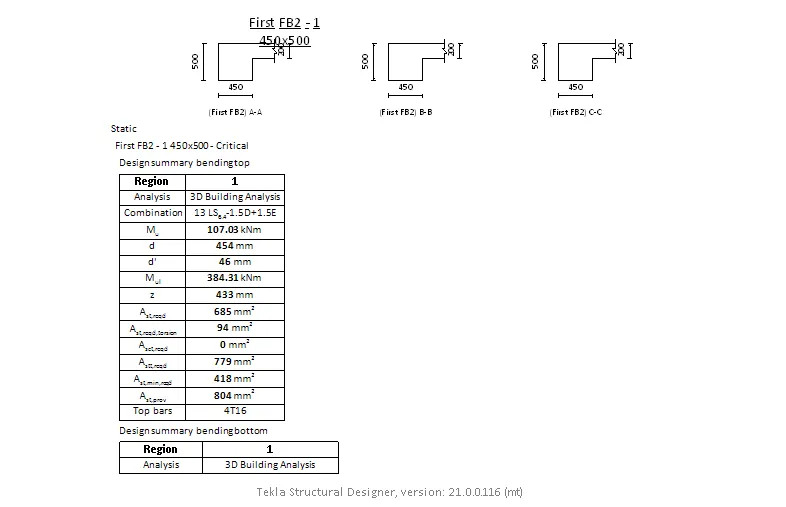

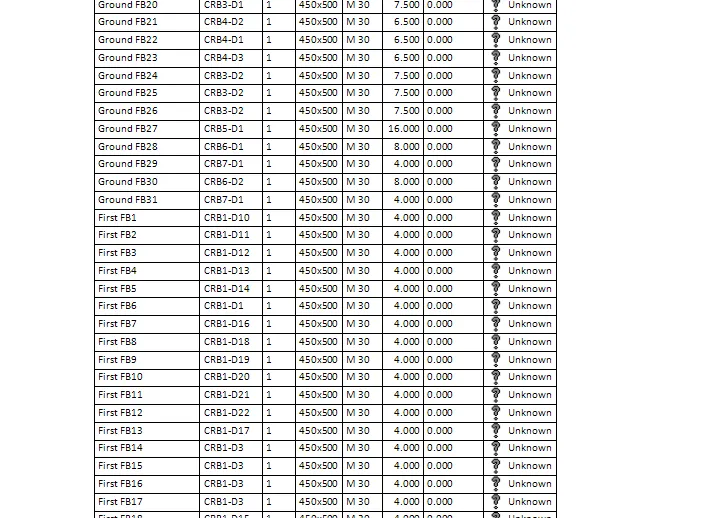

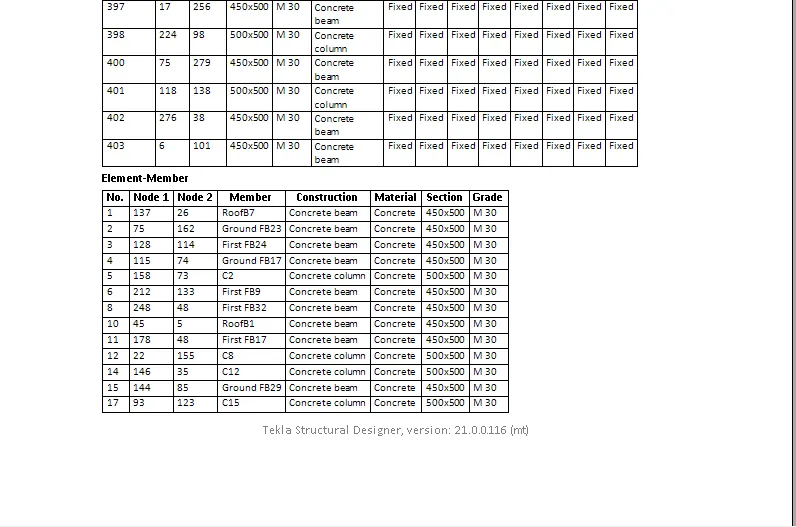

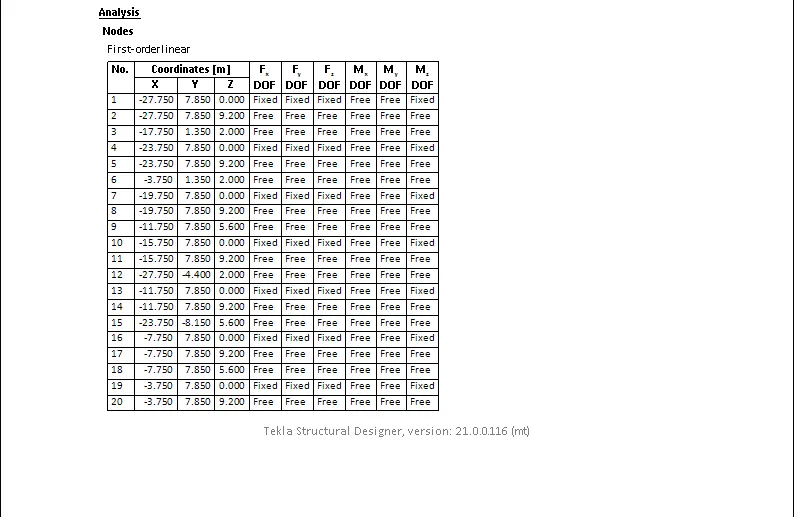

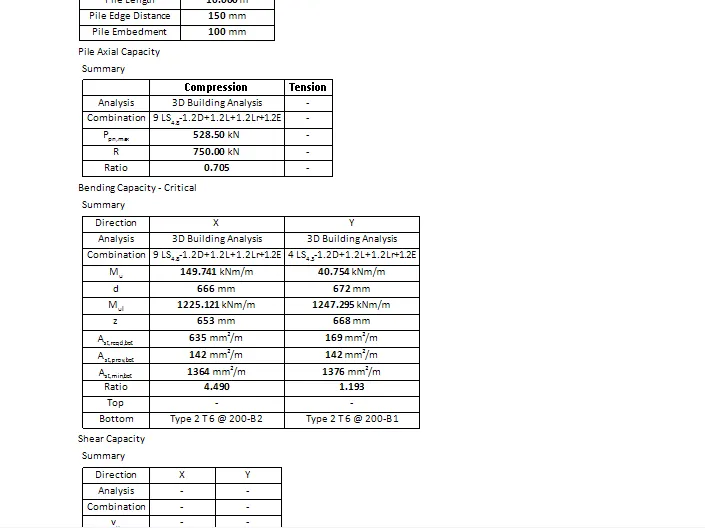

Report
