AutoCAD_Creating Column Schedule and Drawing Template_Week 5
Challenge 1

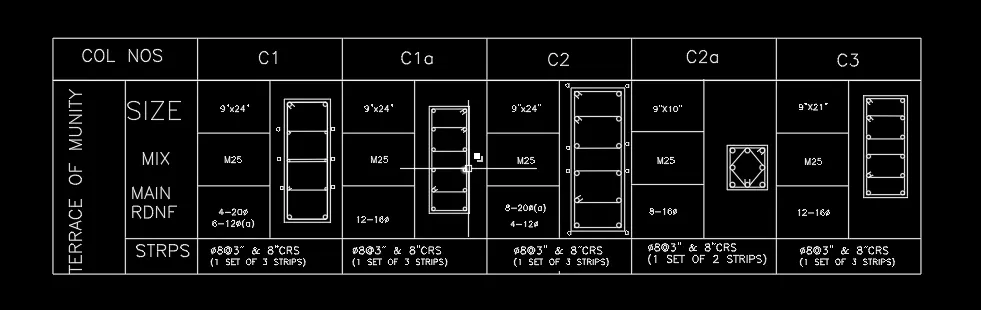

Aim: To Schedule the Column
Commands Used:
- LINE
- OFFSET
- DDPTYPE
- DIVIDE
- CIRCLE
- TRIM
- FILLET
- LWEIGHT
- SCALE
- TEXT
Procedure:
- Open AutoCad
- Open AutoCad Select new and Imperial system
- Select Engineering with precision 0'-0.0"
- Type Command Limits and enter lower left corner as 0'-0.0" and upper right corner as 50'-0.0"
Drawing a content table
- Type Command TEXT and selecting a single line text of height of 8" and angle of 90 degree and type TERRACE OF MUNITY
- Type Command TEXT and selecting a single line text of height of 8" and angle of 0 degree and type COL NOS, SIZE, MIX, MAIN RDNF and STRIPS
Drawing the column 1
- Type Command LINE and draw 9" horizontal line and 24" vertical line on both the sides
- Type Command OFFSET and draw an offset of 0.6" on all 4 sides
- Type Command TRIM and trim the unwanted lines
- Type Command DDPTYPE and select suitable point type
- Type Command DIVIDE and divide the line into 5 segments on 24" of both sides
- Type Command CIRCLE of diameter of 20mm=0.79" of 4 numbers at suitable place
- Type Command CIRCLE of diameter of 12mm=0.472" of 6 numbers at a place where a is marked
- Type Command FILLET of radius of 4mm at 4 corners
- Type Command TEXT of height 8" and style of Roman.shx and angle of 0 degree and type 9"X24", M25, 4-20dia( type %%C for diameter symbol), 6-12dia(type %%C for diameter symbol), (type %%C for diameter symbol)8@3" & 8" CRS ( 1 SET OF 3 STRIPS)
- Command LWEIGHT and draw a stirups of 8mm dia at the required places
- Command SCALE and scale the texts and diagram
- Command LINE and draw a line like table and place the texts and diagram in suitable places.

Drawing the column C1a
- Type Command LINE and draw 9" horizontal line and 24" vertical line on both the sides
- Type Command OFFSET and draw an offset of 0.6" on all 4 sides
- Type Command TRIM and trim the unwanted lines
- Type Command DDPTYPE and select suitable point type
- Type Command DIVIDE and divide the line into 5 segments on 24" of both sides
- Type Command CIRCLE of diameter of 16mm=0.63" of 12 numbers at suitable place
- Type Command FILLET of radius of 4mm on 4 corners
- Type Command TEXT of height 8" and style of ROman.shx and angle of 0 degree and type 9"X24", M25, 12-16dia( type %%C for diameter symbol), (type %%C for diameter symbol)8@3" & 8" CRS ( 1 SET OF 3 STRIPS)
- Command LWEIGHT and draw a stirups of 8mm dia at the required places
- Command SCALE and scale the texts and diagram
- Command LINE and draw a line like table and place the texts and diagram in suitable places.

Drawing the column C2
- Type Command LINE and draw 9" horizontal line and 24" vertical line on both the sides
- Type Command OFFSET and draw an offset of 0.6" on all 4 sides
- Type Command TRIM and trim the unwanted lines
- Type Command DDPTYPE and select suitable point type
- Type Command DIVIDE and divide the line into 5 segments on 24" of both sides
- Type Command CIRCLE of diameter of 20mm=0.79" of 8 numbers at suitable place
- Type Command CIRCLE of diameter of 12mm=0.472" of 4 numbers at place where a is marked
- Type Command FILLET of radius of 4mm at 4 corners
- Type Command TEXT of height 8" and style of Roman.shx and angle of 0 degree and type 9"X24", M25, 8-20dia( type %%C for diameter symbol), 4-12dia(type %%C for diameter symbol), (type %%C for diameter symbol)8@3" & 8" CRS ( 1 SET OF 3 STRIPS)
- Command LWEIGHT and draw a stirups of 8mm dia at the required places
- Command SCALE and scale the texts and diagram
- Command LINE and draw a line like table and place the texts and diagram in suitable places.

Drawing the column C2a
- Type Command LINE and draw 9" horizontal line and 10" vertical line on both the sides
- Type Command OFFSET and draw an offset of 0.6" on all 4 sides
- Type Command TRIM and trim the unwanted lines
- Type Command DDPTYPE and select suitable point type
- Type Command DIVIDE and divide the line into 2 segments on 10" of both sides
- Type Command CIRCLE of diameter of 16mm=0.63" of 8 numbers at suitable place
- Type Command FILLET of radius 4mm at 4 corners
- Type Command TEXT of height 8" and style of Roman.shx and angle of 0 degree and type 9"X10", M25, 8-16dia( type %%C for diameter symbol), (type %%C for diameter symbol)8@3" & 8" CRS ( 1 SET OF 2 STRIPS)
- Command LWEIGHT and draw a stirups of 8mm dia at the required places
- Command SCALE and scale the texts and diagram
- Command LINE and draw a line like table and place the texts and diagram in suitable places.

Drawing the column C3
- Type Command LINE and draw 9" horizontal line and 21" vertical line on both the sides
- Type Command OFFSET and draw an offset of 0.6" on all 4 sides
- Type Command TRIM and trim the unwanted lines
- Type Command DDPTYPE and select suitable point type
- Type Command DIVIDE and divide the line into 5 segments on 21" of both sides
- Type Command CIRCLE of diameter of 16mm=0.63" of 12 numbers at suitable place
- Type Command FILLET of radius 4mm at 4 corners
- Type Command TEXT of height 8" and style of Roman.shx and angle of 0 degree and type 9"X21", M25,12-16dia( type %%C for diameter symbol), (type %%C for diameter symbol)8@3" & 8" CRS ( 1 SET OF 3 STRIPS)
- Command LWEIGHT and draw a stirups of 8mm dia at the required places
- Command SCALE and scale the texts and diagram
- Command LINE and draw a line like table and place the texts and diagram in suitable places.

Result:

Challenge 2

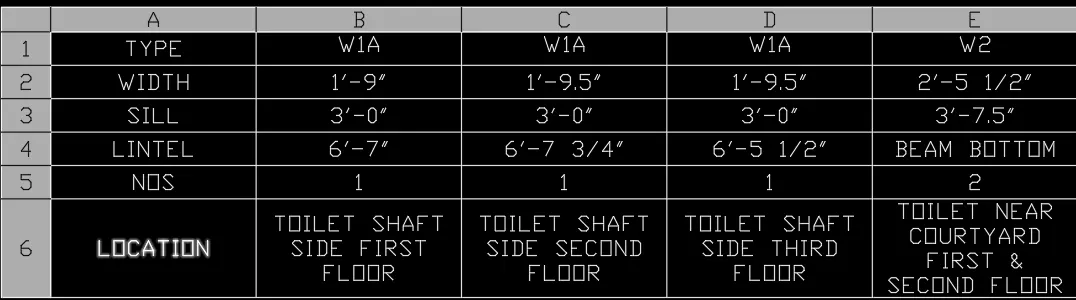

Aim: To Schedule the Window
Command Used:
- TABLE
- TEXT
Procedure:
- Open AutoCad
- Open AutoCad Select new and Imperial system
- Select Architectural with precision 0'-0 1/256"

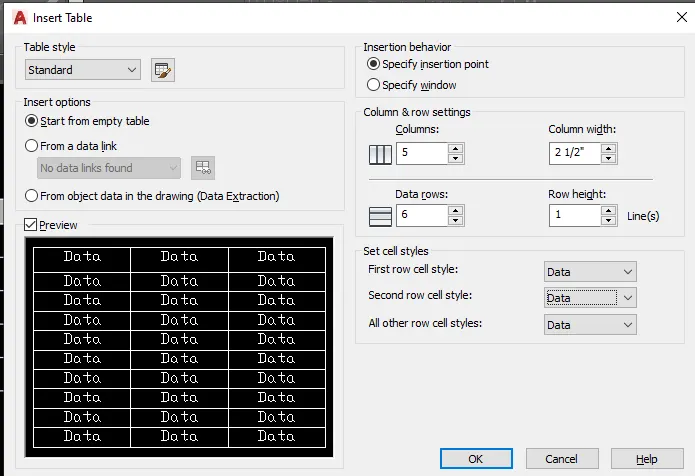

- Type Command TABLE without title and header with 5 columns and 6 rows with column width 2 1/2" and row height 1
- Type TEXT and enter the relevent texts on the relevent columns and rows

Result:

Challenge 3

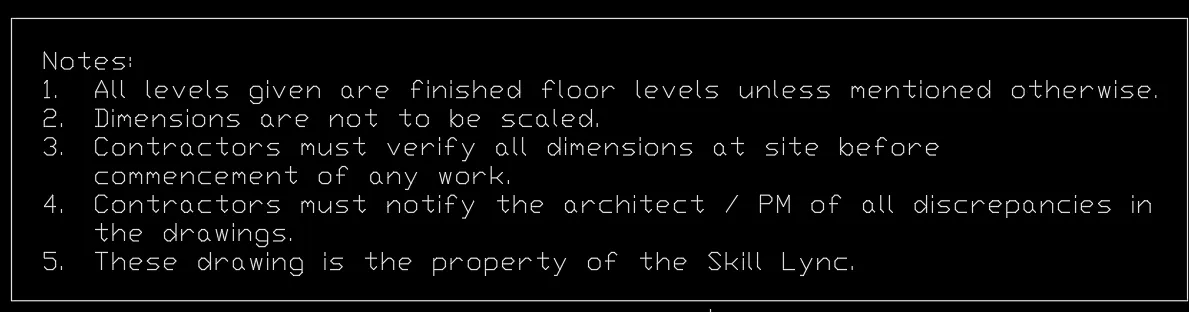

Aim: To create the template
Commands used:
- TEXT
Procedure:
- Open AutoCad
- Open AutoCad Select new and Imperial system
- Open Annotate tab and select Standard
- Type TEXT and selecting multiline text of height 8" and type the relevent information given in the template
Result:

Challenge 4

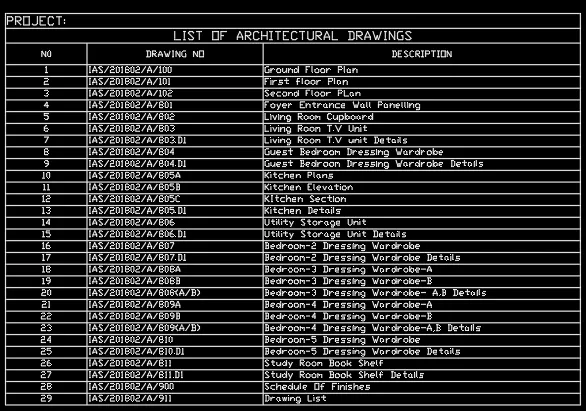

Aim:To create the Drawing Schedule
Commands used:
- TABLE
- TEXT
Procedure:
- Open AutoCad
- Open AutoCad Select new and Imperial system
- Open Annotate tab and select Standard
- Type Command TABLE with 2 title and header with 3 columns and 30 rows with column width 2.5" and row height 1
- Type TEXT and type PROJECT and justify left
- Type TEXT and type LIST OF ARCHITECTURAL DRAWINGS and justify center
- Type TEXT and enter the relevent texts on the relevent columns and rows
Result:

Challenge 5

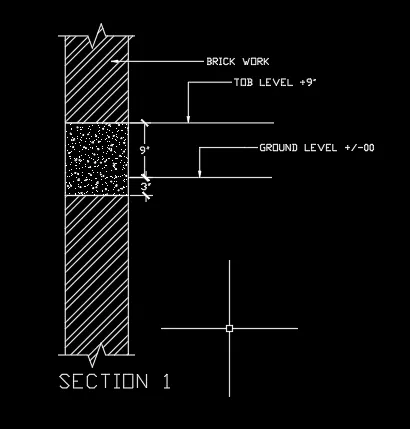

Aim:To create the Beam Detail
Commands used:
- LINE
- OFFSET
- HATCH
- MLEADER
- DIMLEADER
- TEXT
Procedure:
- Open AutoCad
- Open AutoCad Select new and Imperial system
- Selecting Engineering with precision 0'-0"
- Command LINE drawing vertical line with 12" of concrete portion including in it
- Command OFFSET of 2" to that vertical line
- In Express tool Tab selecting the Break-line symbol and specifying two point to break the line on both sides
- Command HATCH and selecting ANS132 and selecting the portion of brick work to hatch on both sides
- Command HATCH and selecting AR-CONC and selecting the concrete portion to hatch
- Clicking on AR-CONC hatch and opting properties and changing the scale to 0.05
- Selecting multileader style manager and modify in leader structure and making 2 as maximum leader points and type BRICK WORK
- Selecting multileader style manager and modify in leader structure and making 3 as maximum leader points and type TOP LEVEL +9" and GROUND LEVEL +/-00
- In annotate tab selecting manage dimension style and in symbols and arrows changing arrowheads to Architectural tick
- Command DIMLINEAR and dimensioning the concrete portion
- Command TEXT with angle 0 typing SECTION 1
Result:
