Project 2
- opened catia v5
- then placed the required p clamps in position
- then place the inter connection connector and two pole connectors at certain positions
- then bundle the wire from all connectors
- then add the cot tubes from all around the bundle with end extrmity 30mm

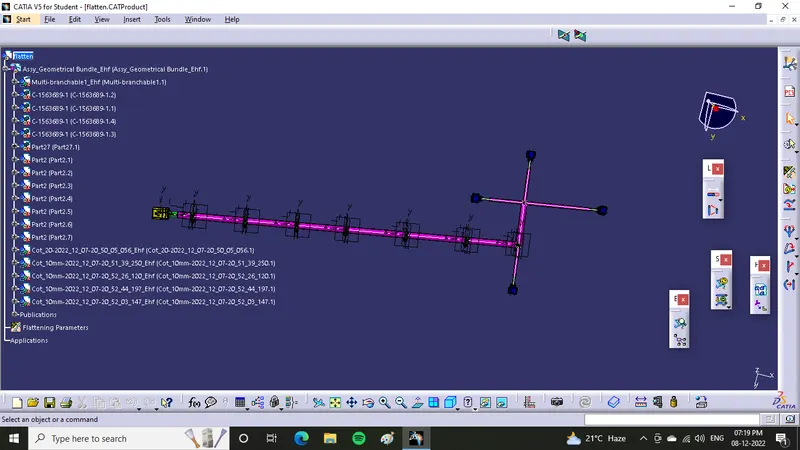

- then create a flatten product
- and adust the required positions by commands in flatten work bench

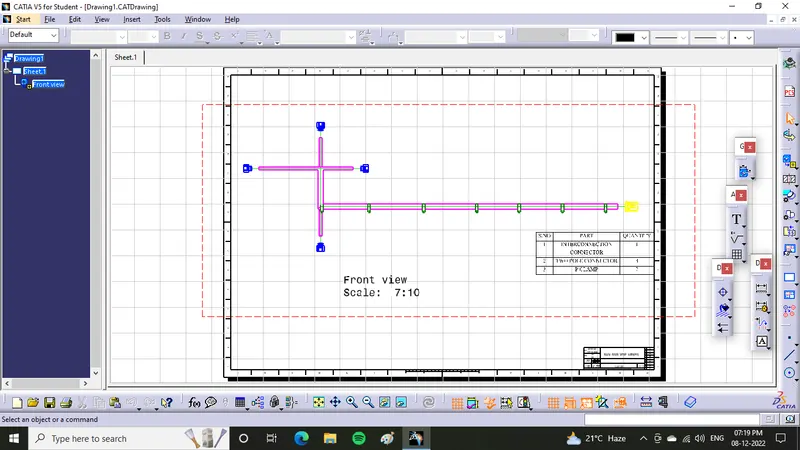

- then create new drawing sheet for the context and add front view
- then save as pdf
- then create all as a compressed folder
