Project 2

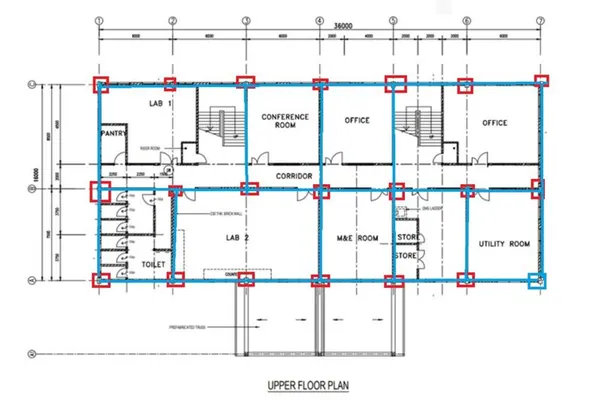

Develop general arrangement for the RC office building. Analyze and design the building as per IS standard code in TEKLA STRUCTURAL DESIGNER. Refer the attached plan and elevation. The building to be designed for dead, live, wind and seismic loading.

Report of each member to be generated and extract drawings for structural plans, beam reinforcement details from the software

AIM : To develop a model as per the given plan and analyze and design the structure.

TOOLS USED :
• Paint.
• Manage property sets.
• Construction levels.
• Grids.
• Columns.
• Beams.
• REports.
• Model report.
• Show report.
• Interactive design.
• Slabs on beams.
• Frames.
• Roof panels.
• Wall panels.
• Loads.
• Loadcases.
• Seismic wizard.

PROCEDURE :

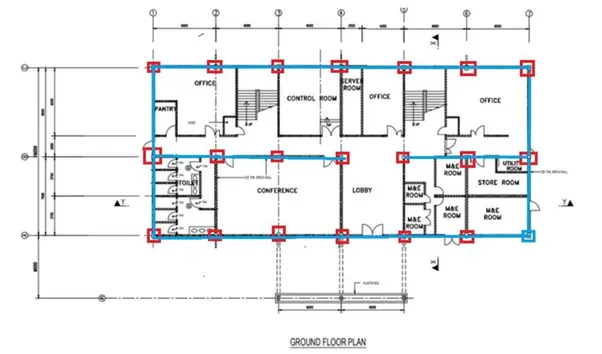

1. Firstly, open the plan of RC structure in paint to determine postion of beams and columns.

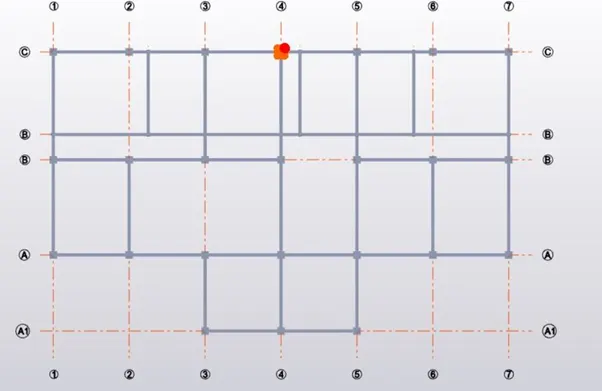

2. Then draw the positions of columns and beams of structure in paint.

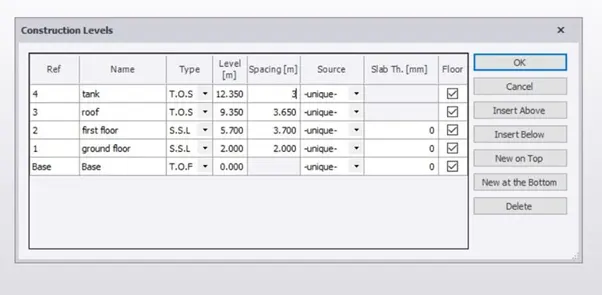

3. Open anew tekla file and create the construction levels for the structure with ground, first, roof tank and base levels.

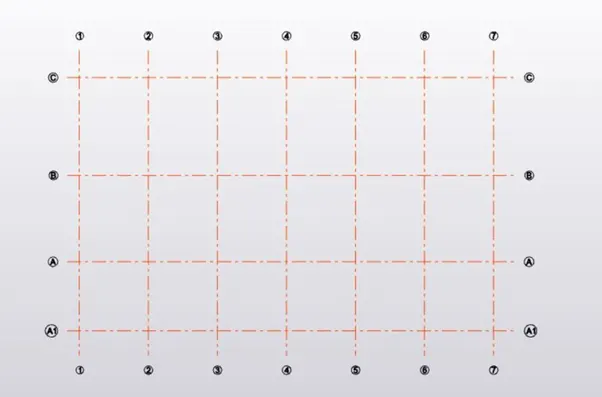

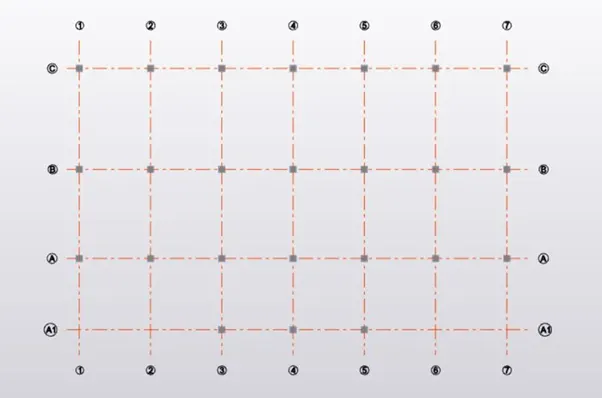

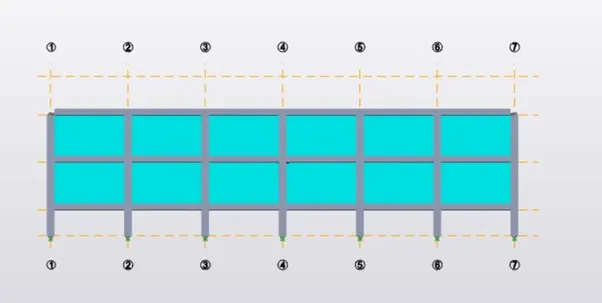

4. Now, construct horizontal and vertical grid lines as per the attachment.

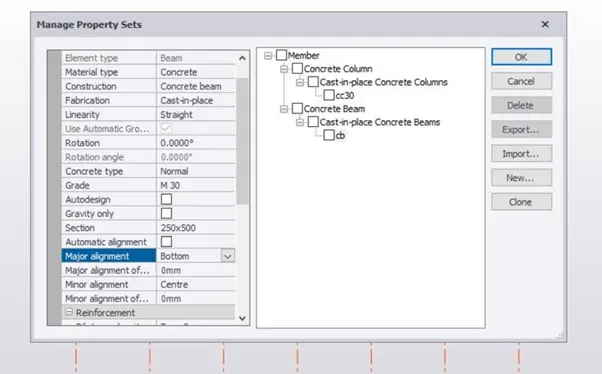

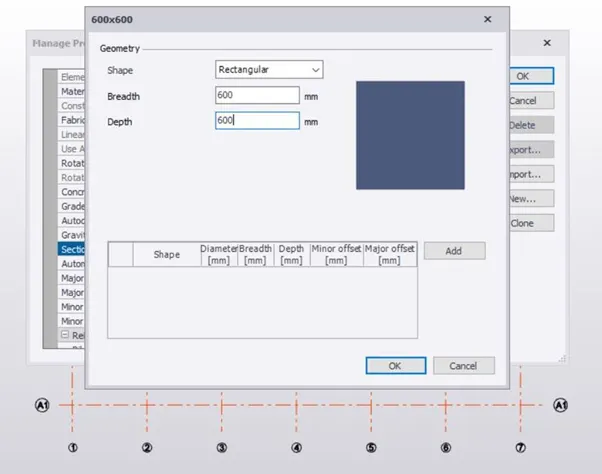

5. Using manage property sets create members used for the modeling.

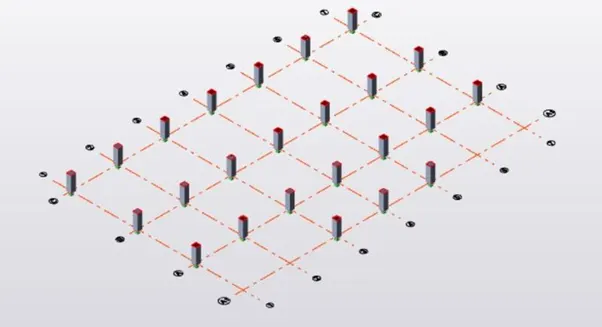

7. In the model tab click on columns and create concrete columns.

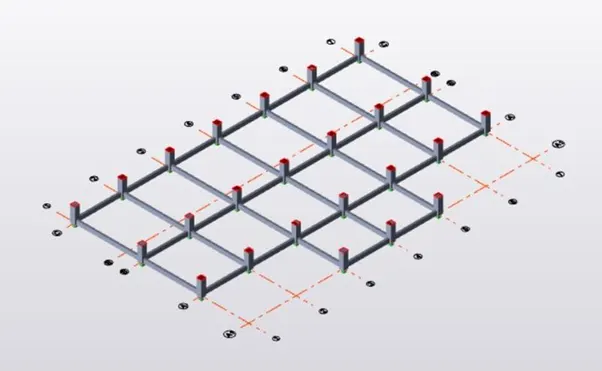

8. similarly create beams as well.

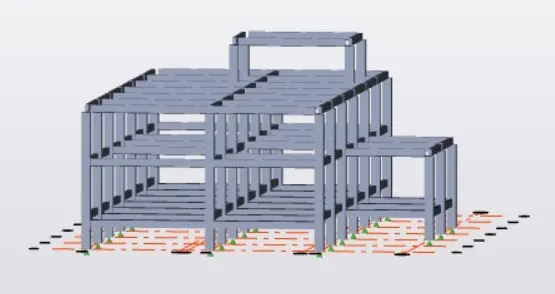

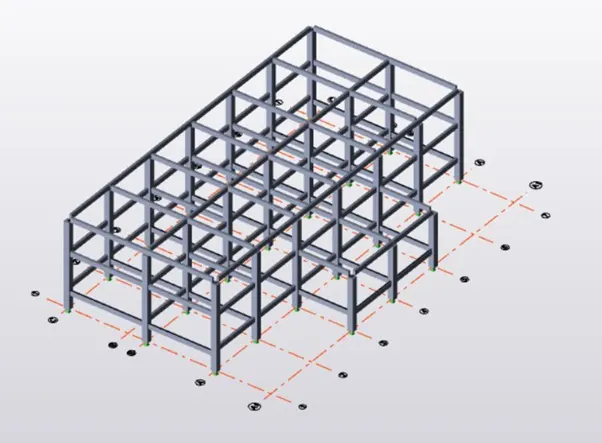

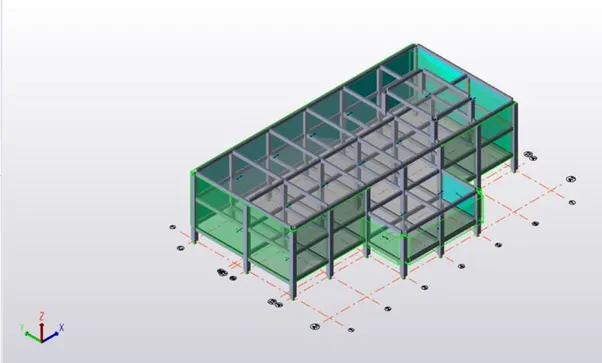

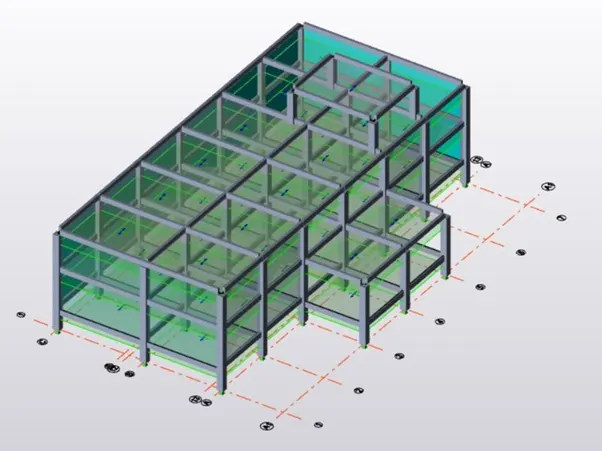

9. Click on 3D structure view for confirmation.

10. Repeat the same process for the the levels as per the plan.

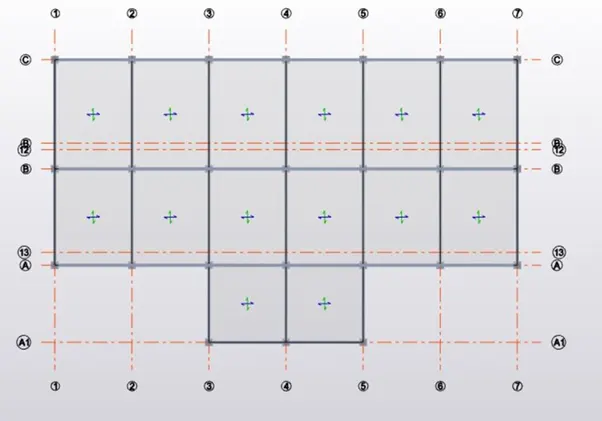

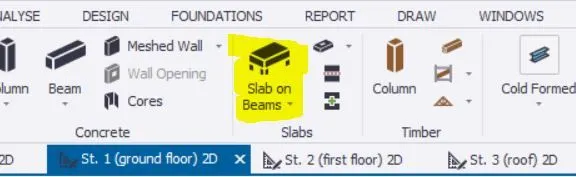

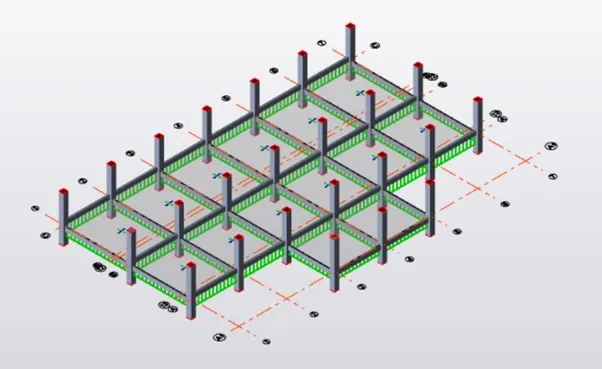

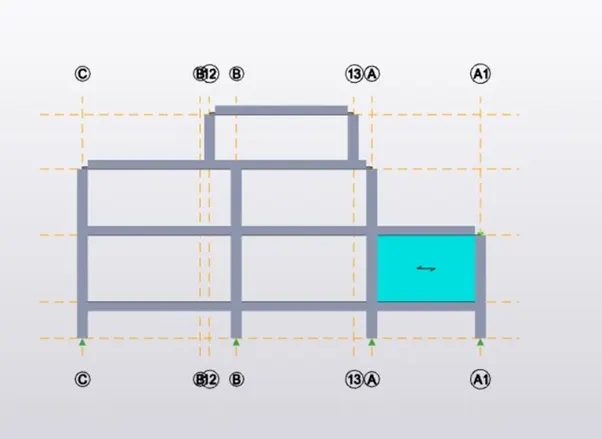

11. Select slabs on beams and insert slabs for all the floors, where ever required.

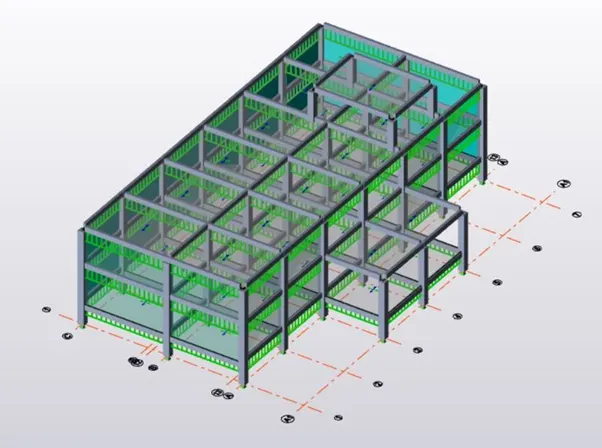

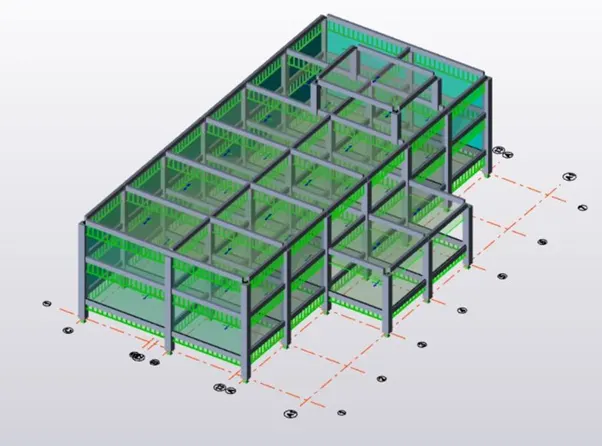

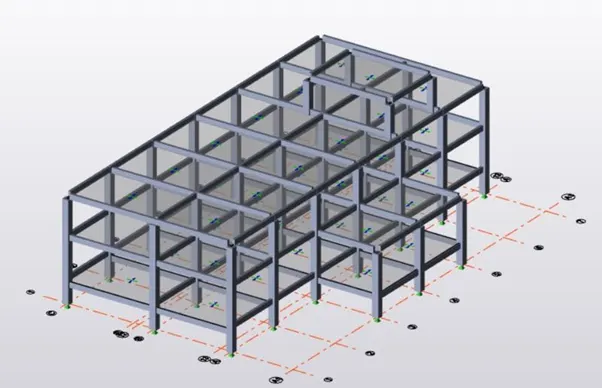

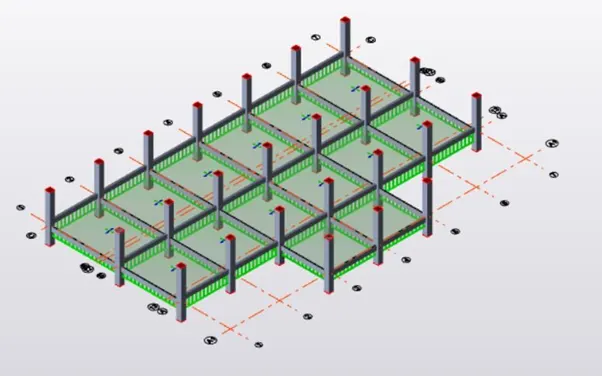

12. Go to 3D view to get a clear view of the slabs inserted.

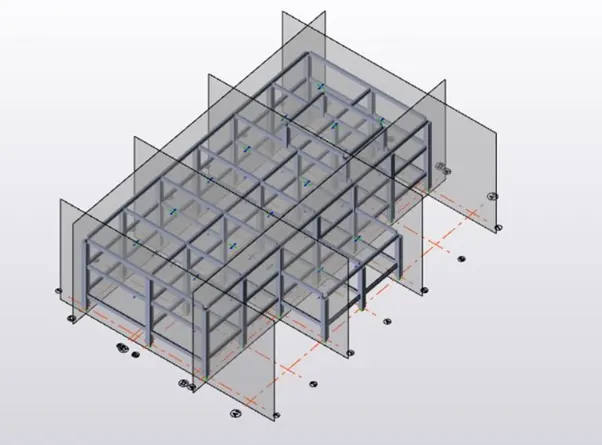

13. Insert frams which will be helpful while applying loads on the structure.

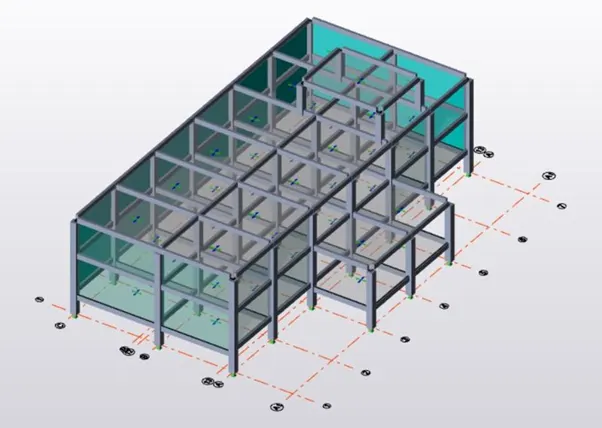

14. Add wall panels to the structure.


15. Repeat the same step for all the walls.

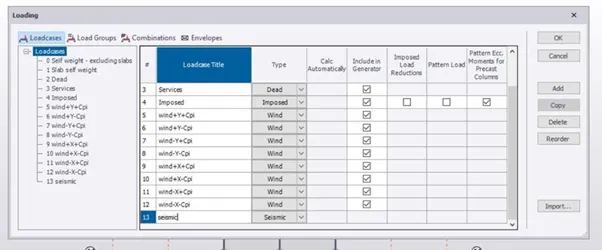

16. Go to loads and create new load cases.


17. Add the dead load on the beams.

18. Add the dead loads on the slabs.

19. Repeat the same step for all the floors.



20. Add live load on the structure for all the floors.

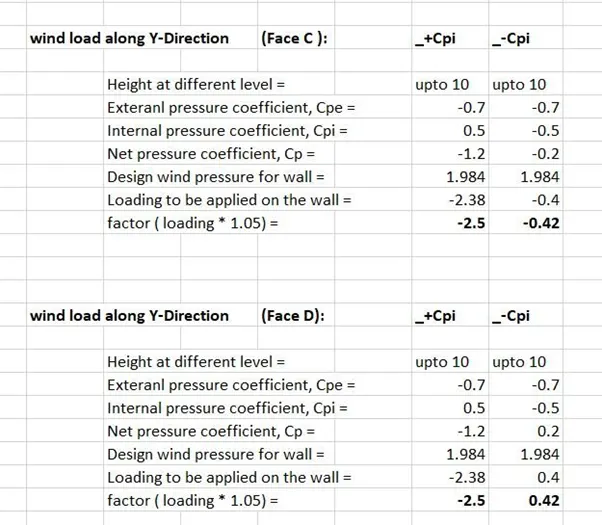

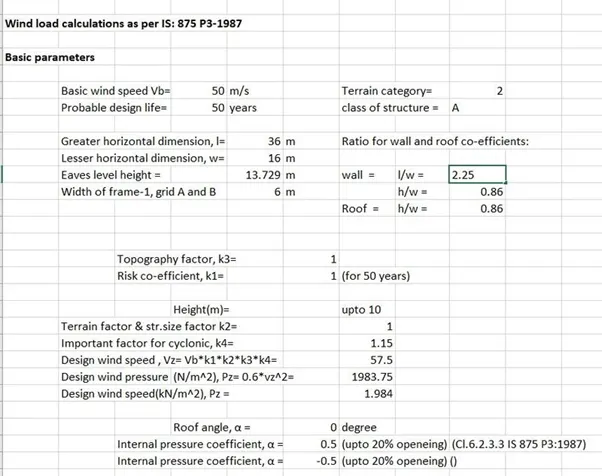

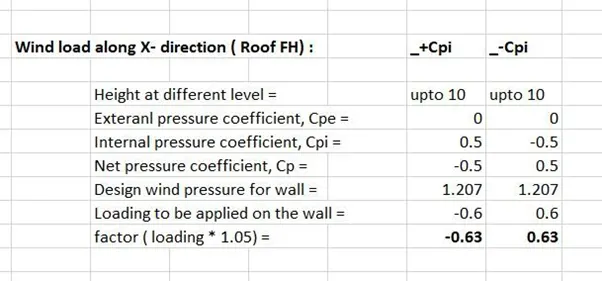

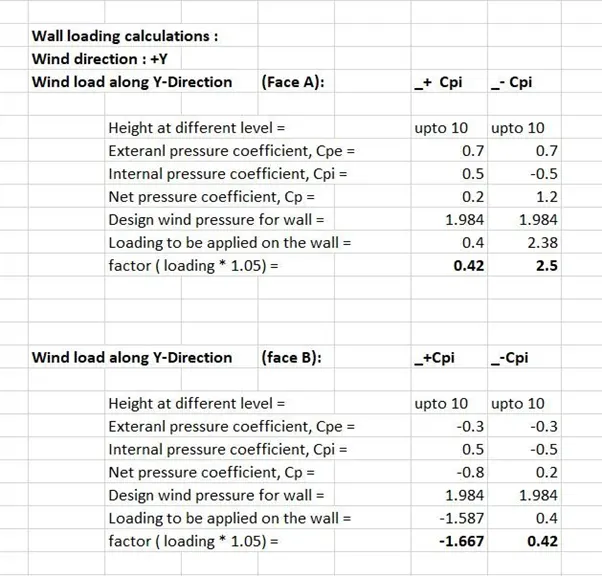

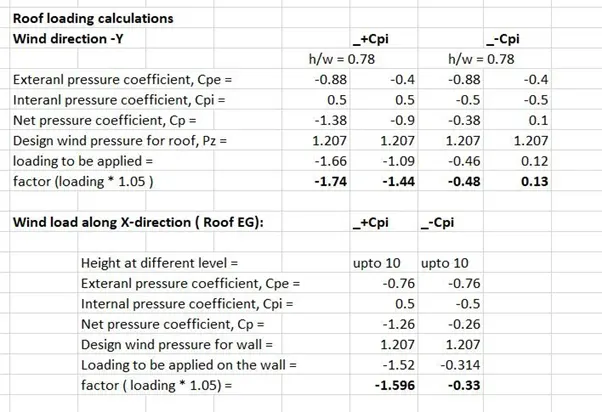

21. Do the wind load calculation for all the sides for both X and Y ( including both +Cpi and -Cpi values).

22. Start applying the wind loads on the structure.


23. Repeat the same process for all the sides.

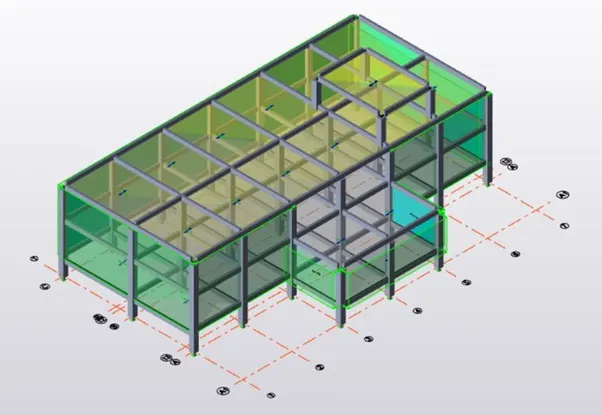

24. Add roof panels to the structure and also add roof load.

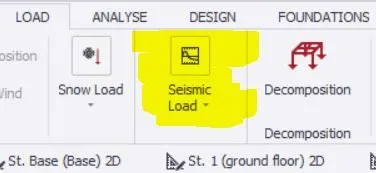

25. Apply seismic load on the structure by selecting seismic wizard.

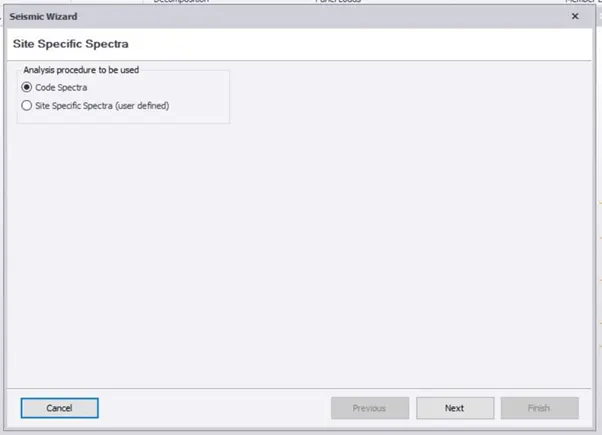

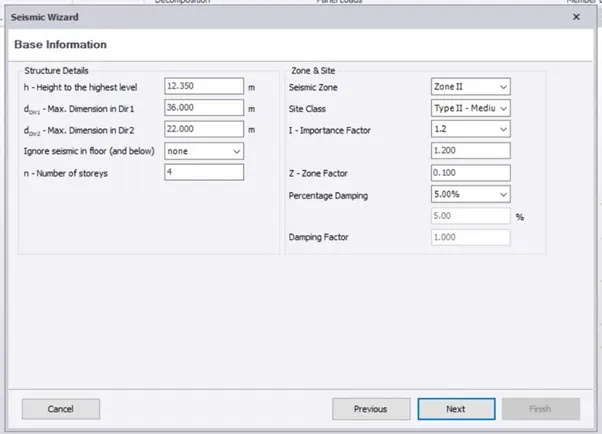

26. Seismic wizard dialog box appears.

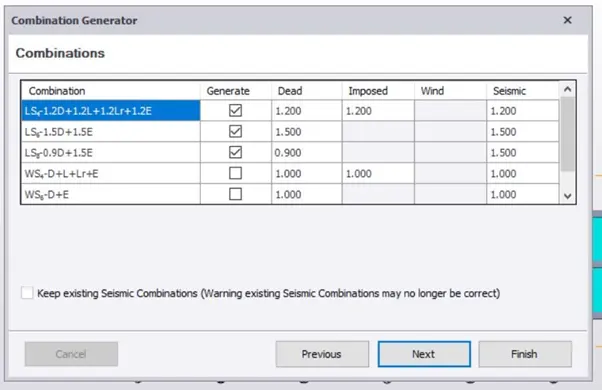

27. Enter the required values required for seismic load calculation.



28. Apply loads on structure which will be applied and visible now.

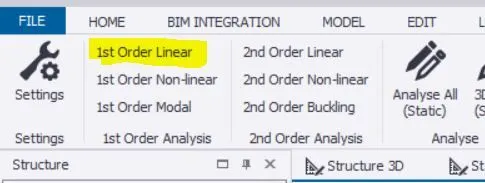

29. Analyze the structure by selecting 1st order Linear option.

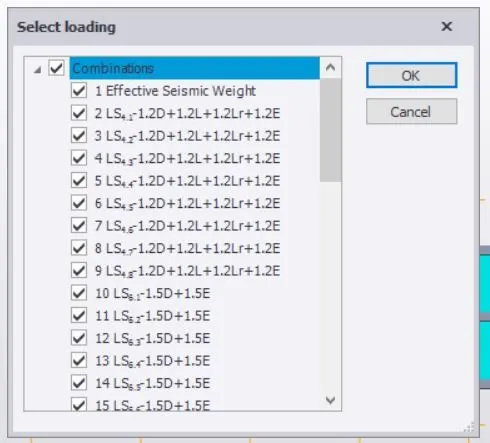

30. Select all the loadings required for the analysis.

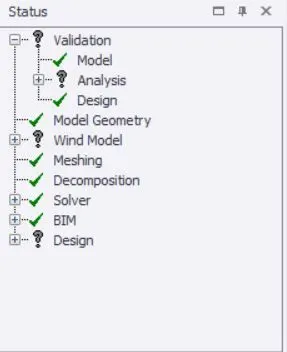

31. Validate the model to check that there are no errors.

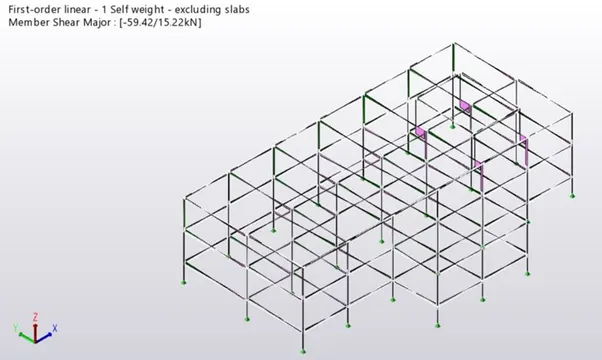

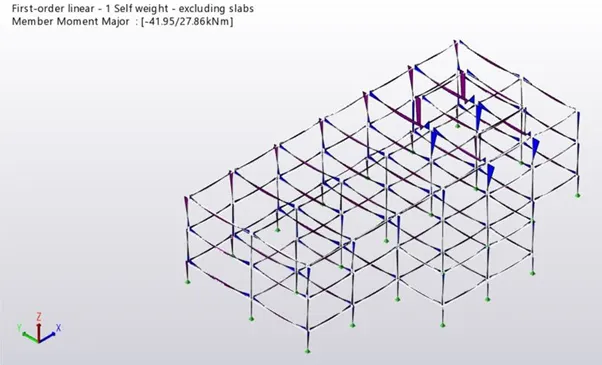

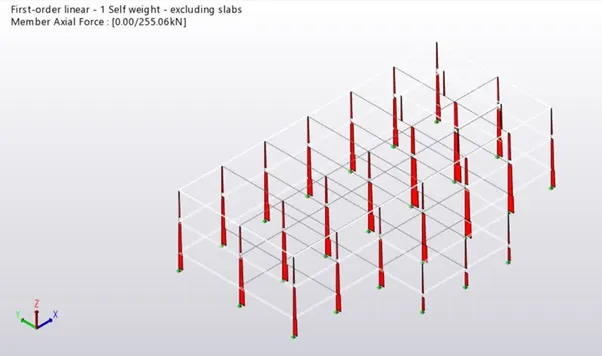

32. Check the axial load diagram.

33. Check the shear force and bending moment diagram.

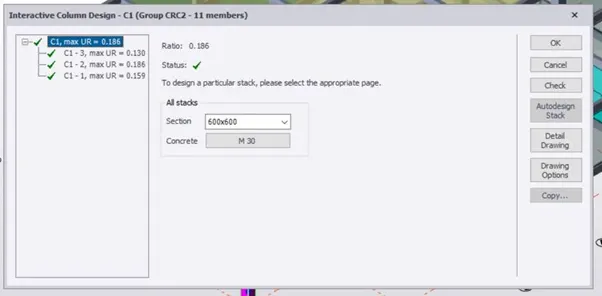

34. Click on check anel after selecting the member and click on interctive design and perform the design of all members.

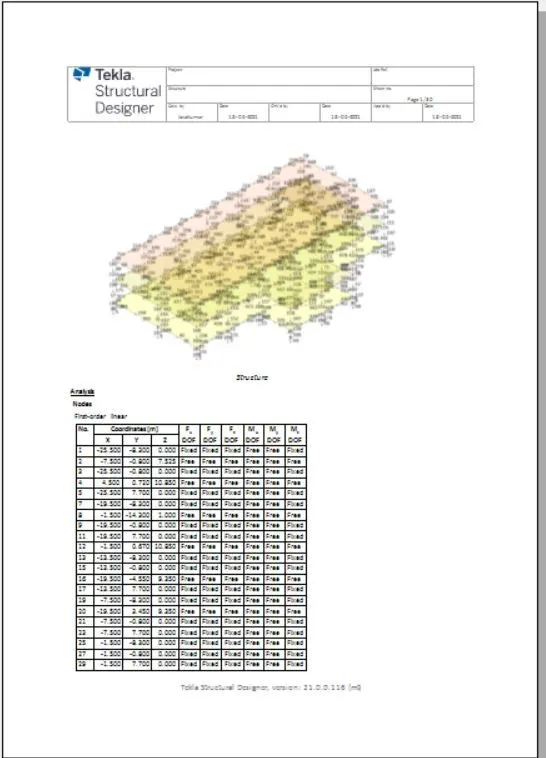

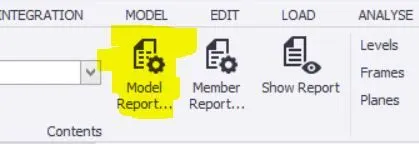

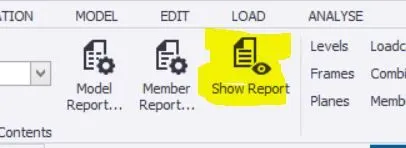

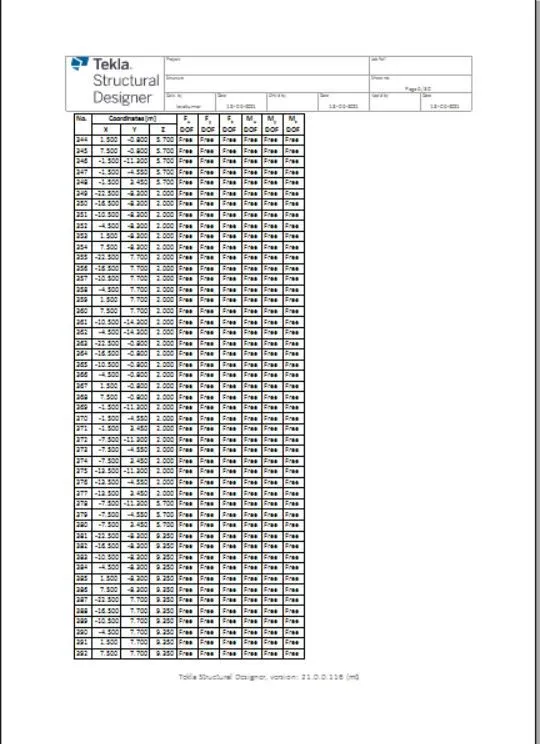

35. Click on model reports in the reports tab.

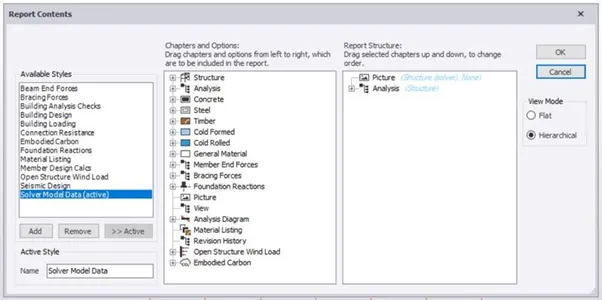

36. select the contents as per requirement and drag it into contents tab.


37. Click on show reports option.




RESULT : The structure is designed as per the given plan and loaded and analyzed and the structure was found to be error free.
