Project 2

Aim and Introduction:-

• The aim of this Project is to determine the types of loads and forces acting on the abutment structure and to design with determining the detail reinforcement drawing for the abutment structure by considering two conditions with various loading criteria.

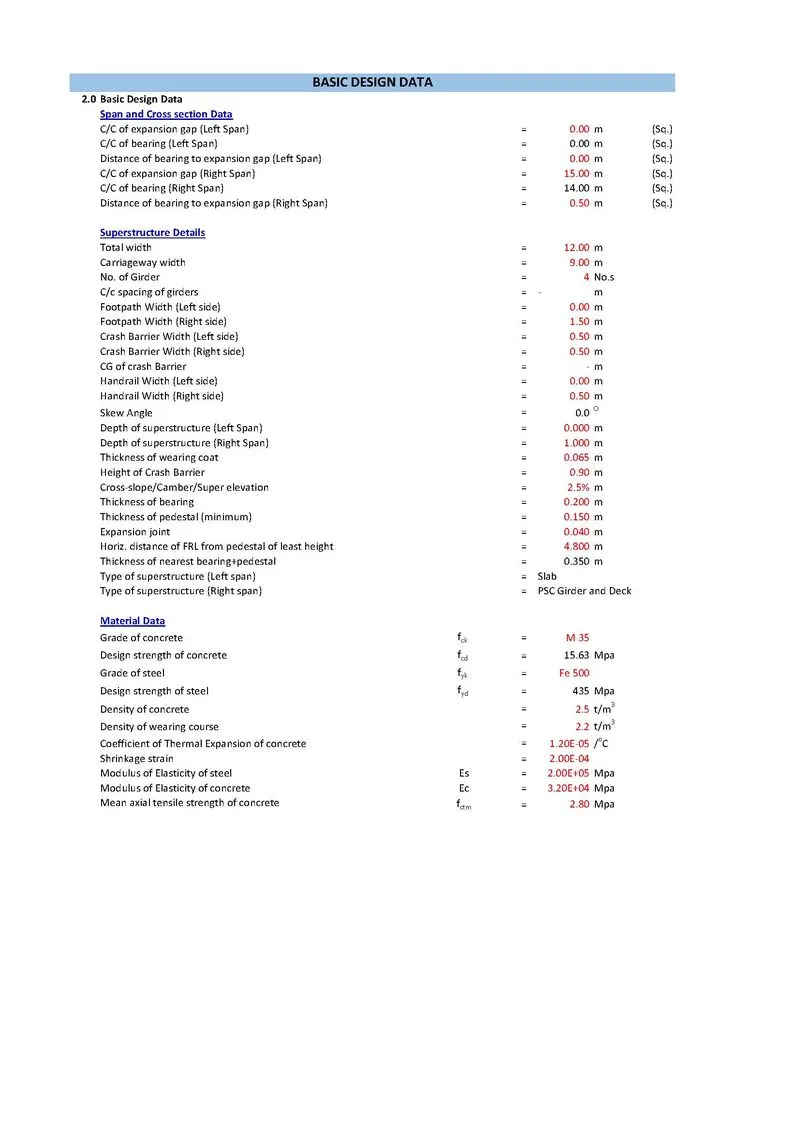

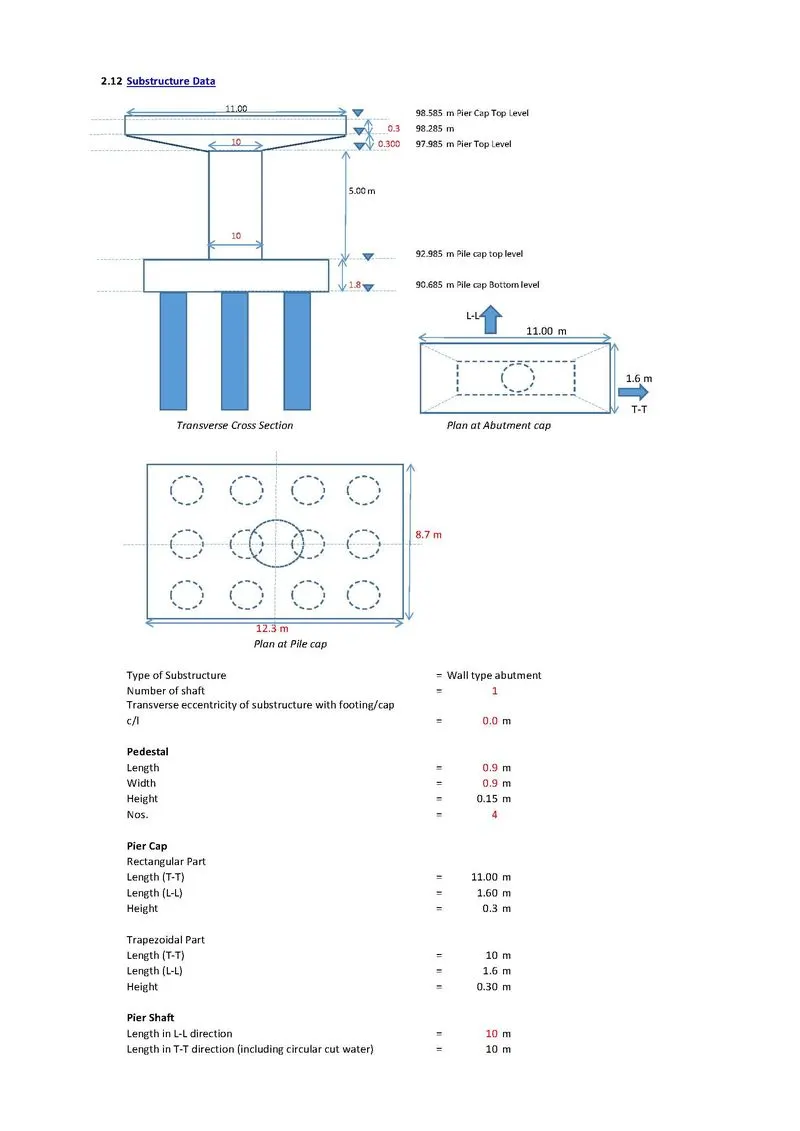

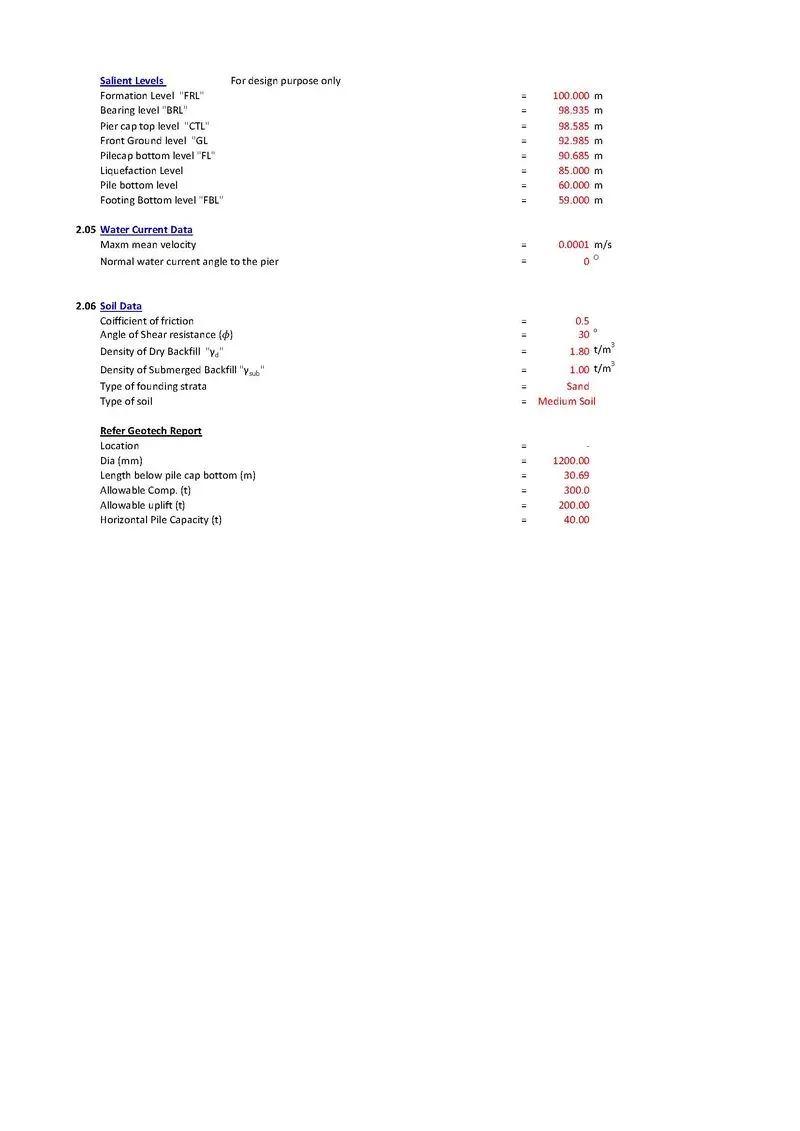

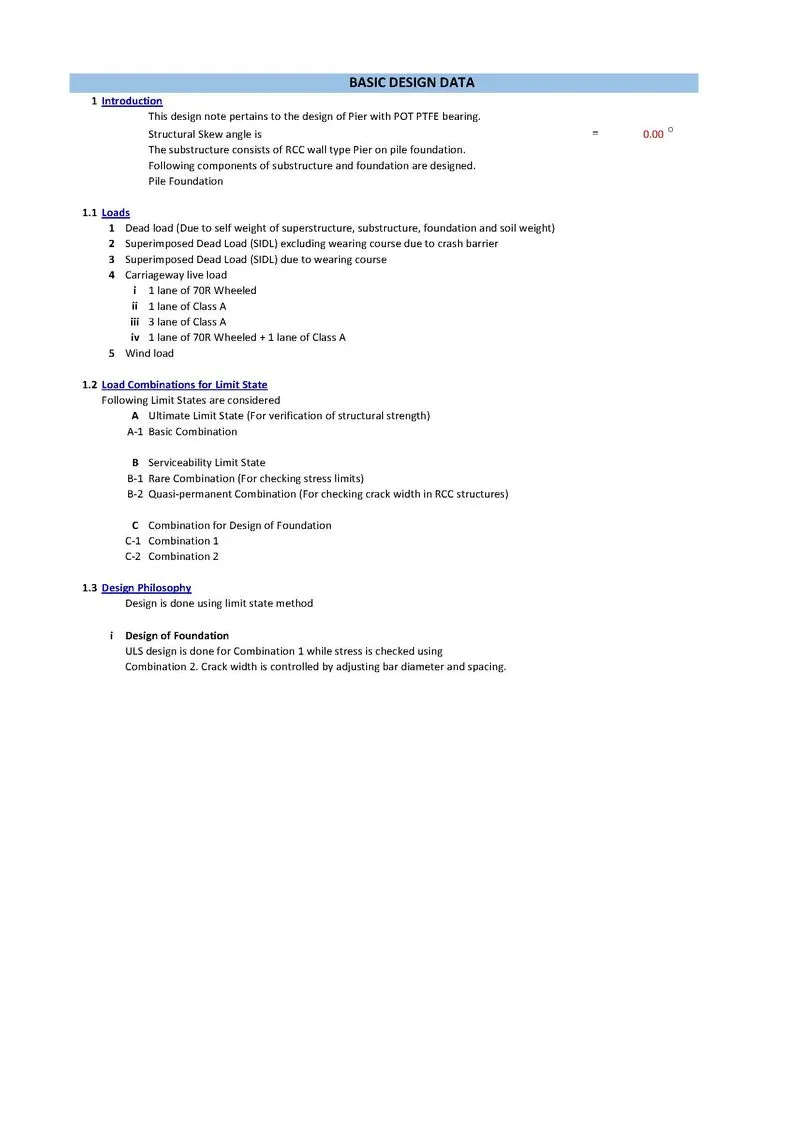

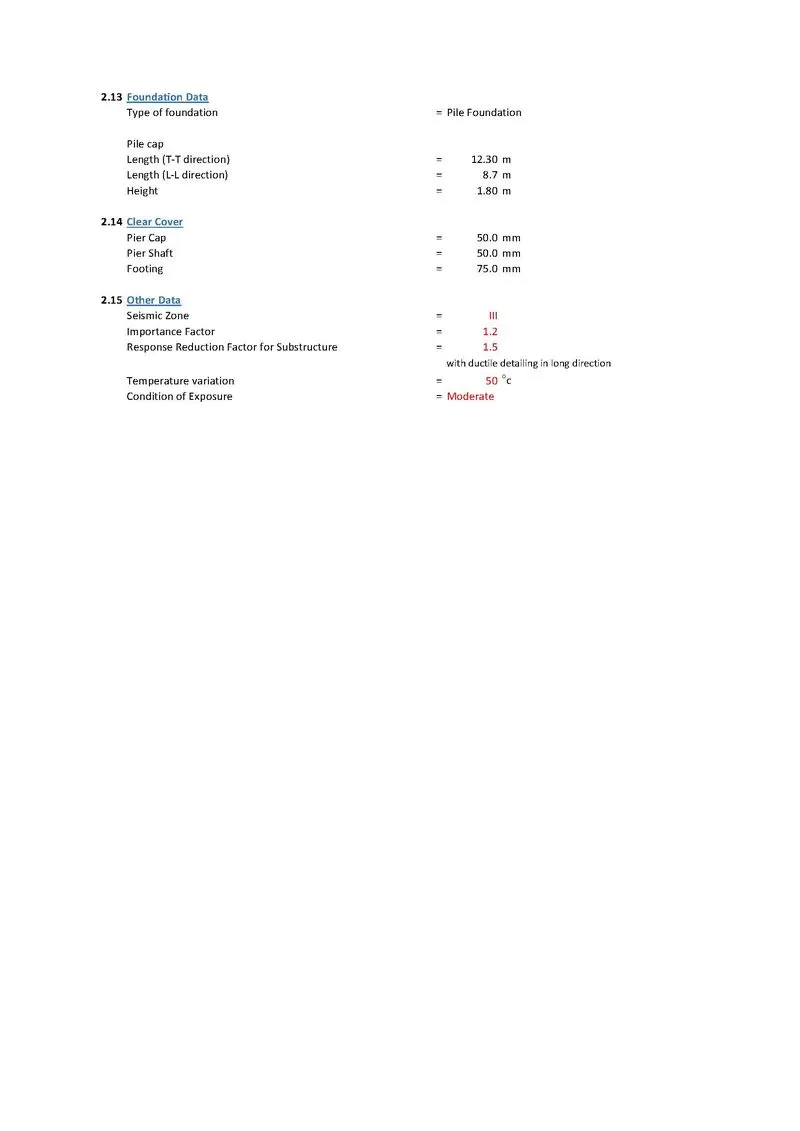

• So first of all the details components, levels with sizes specified from the given GAD has to be taken for the detail designing.
• For designing IRC 6, IRC 78,IS-2911 & IRC 112 has been reffered as follows.

Design Calculation:-

•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•

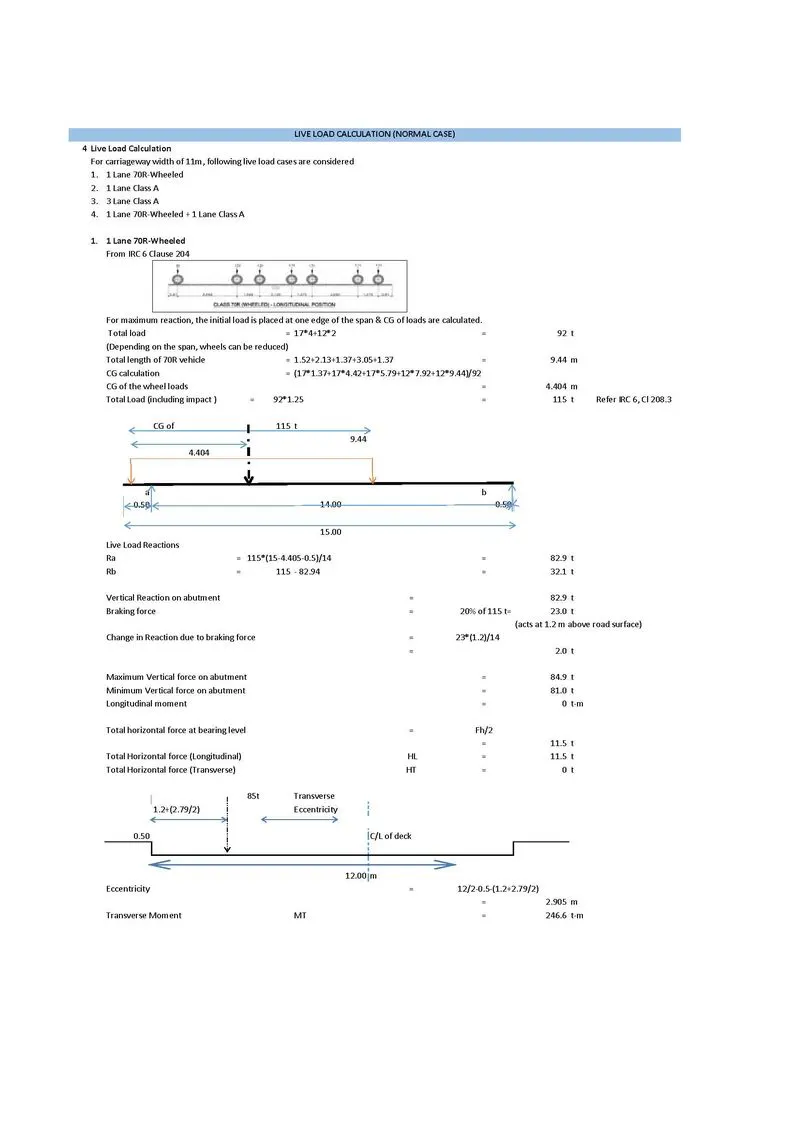

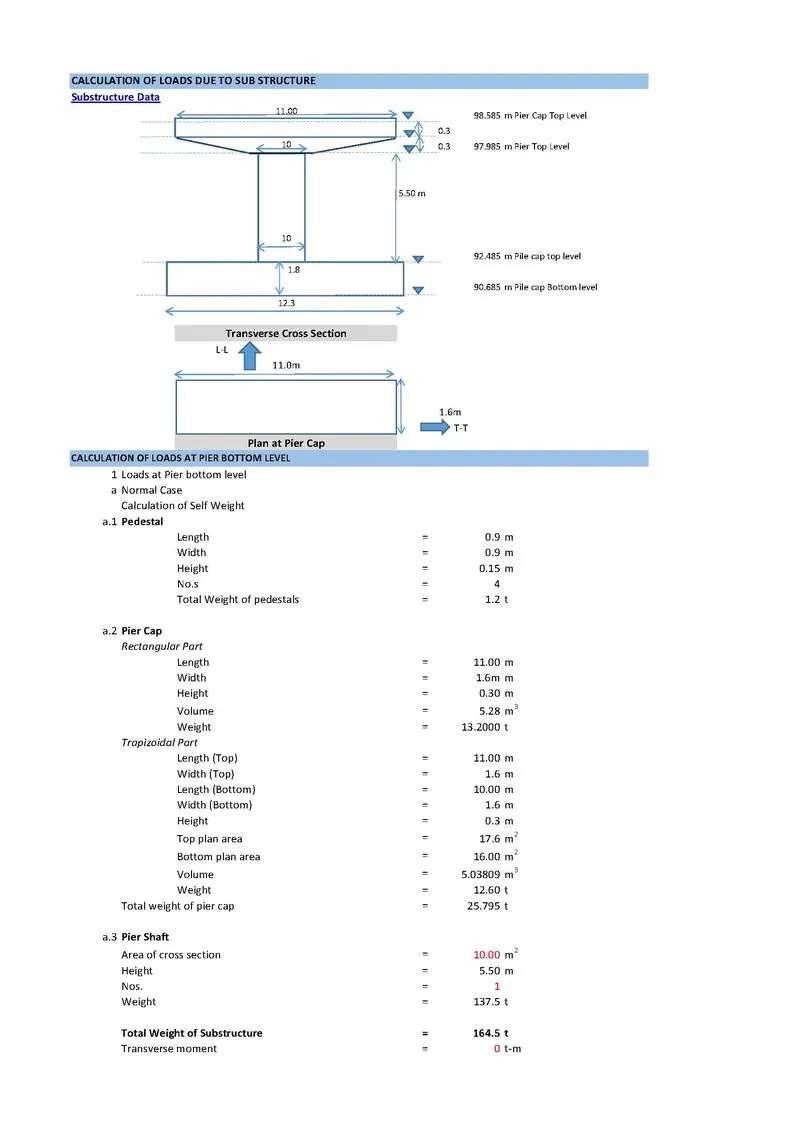

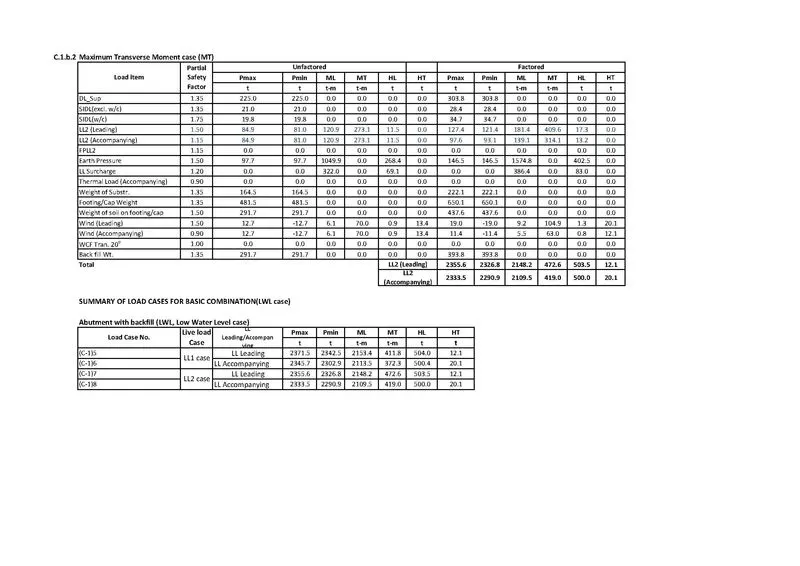

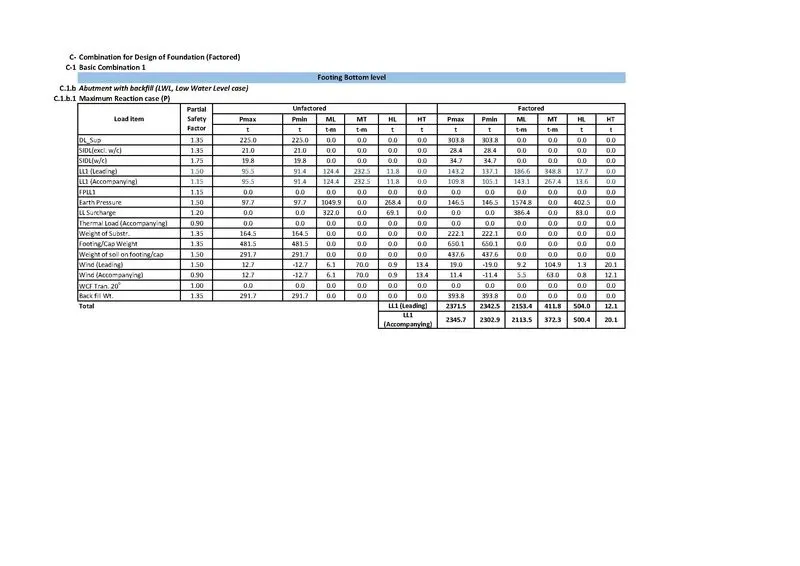

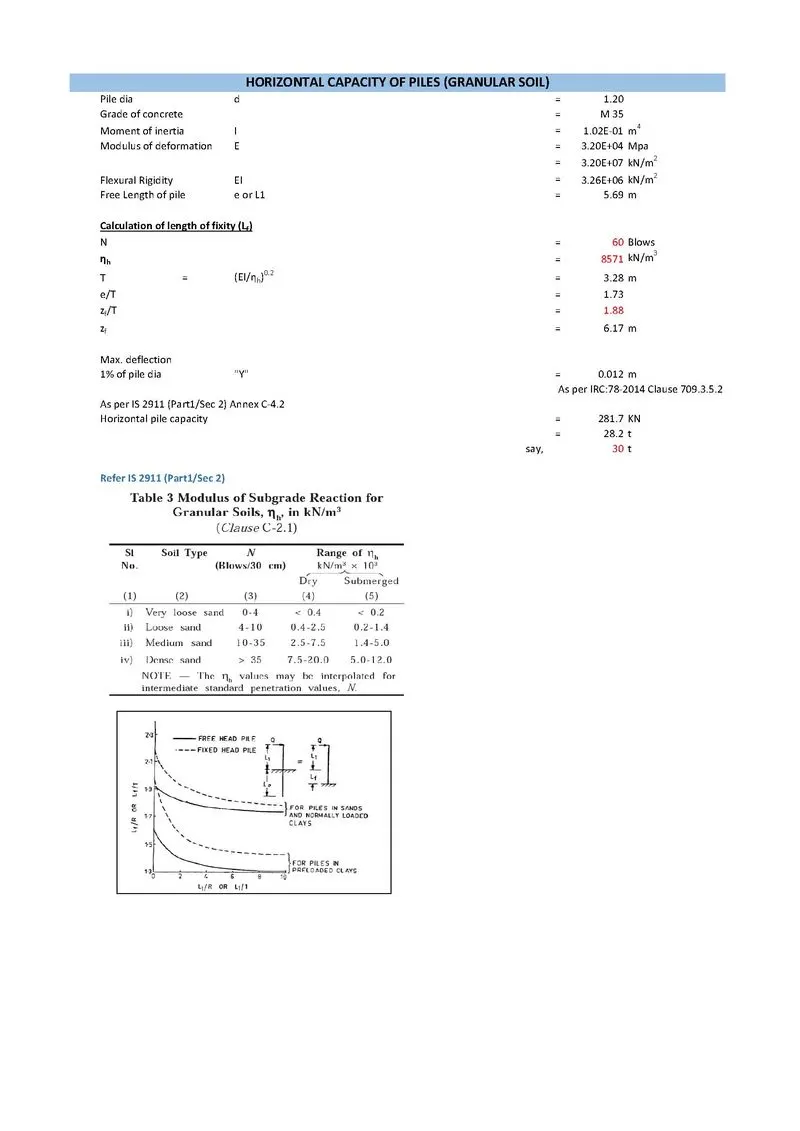

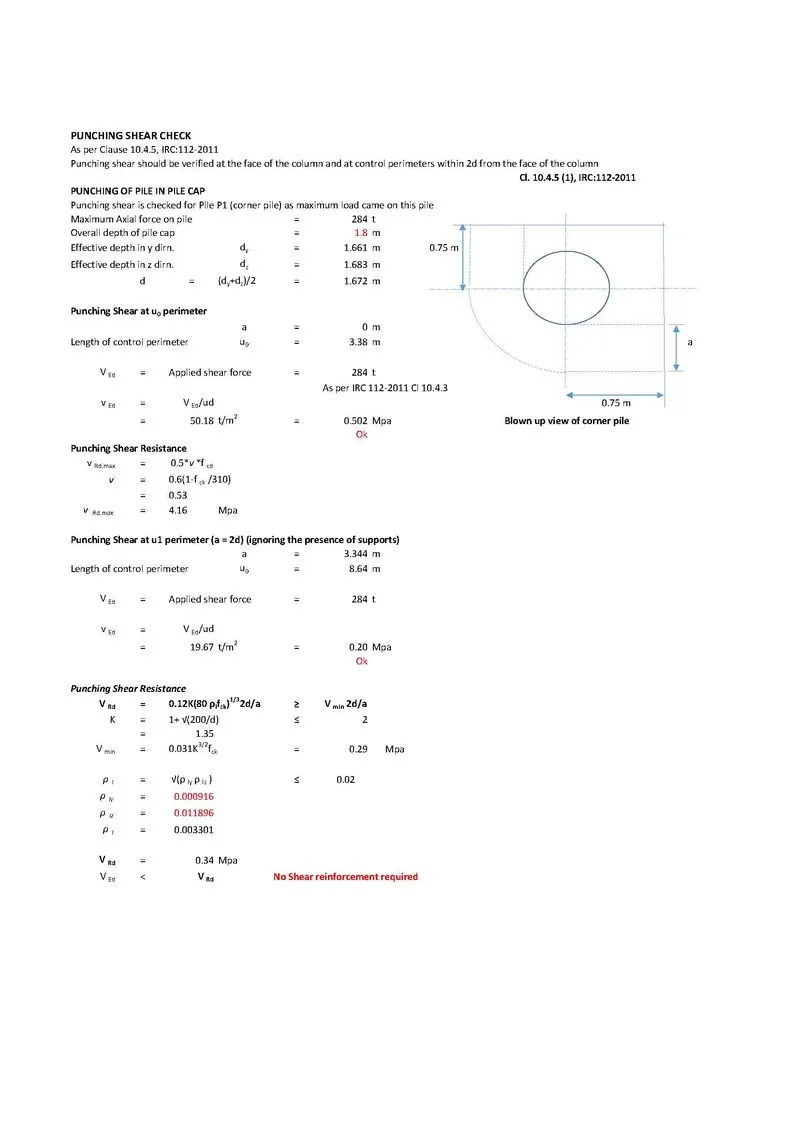

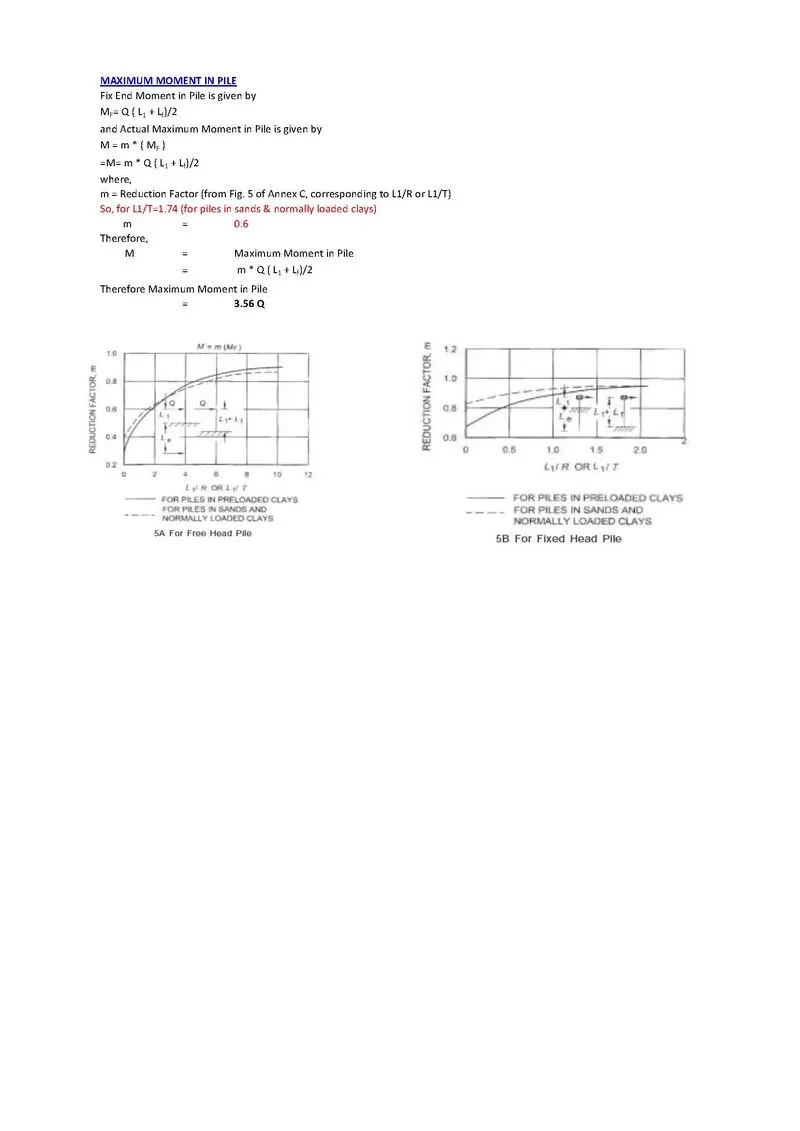

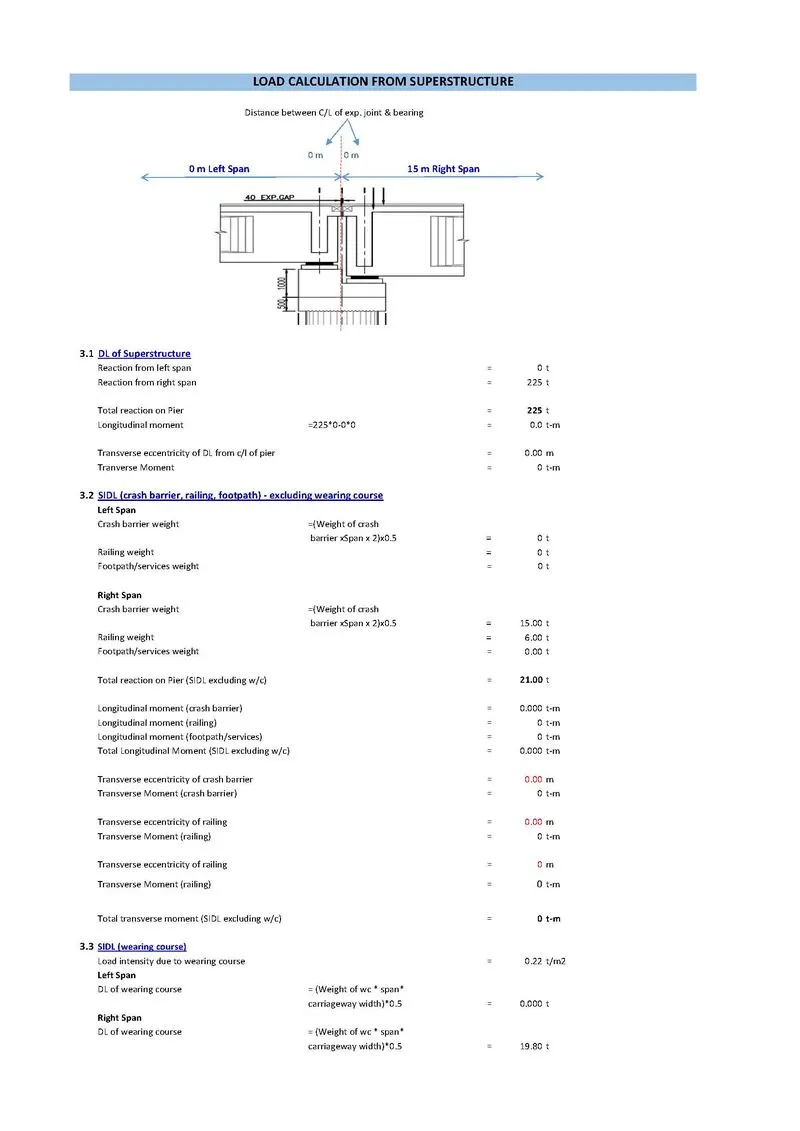

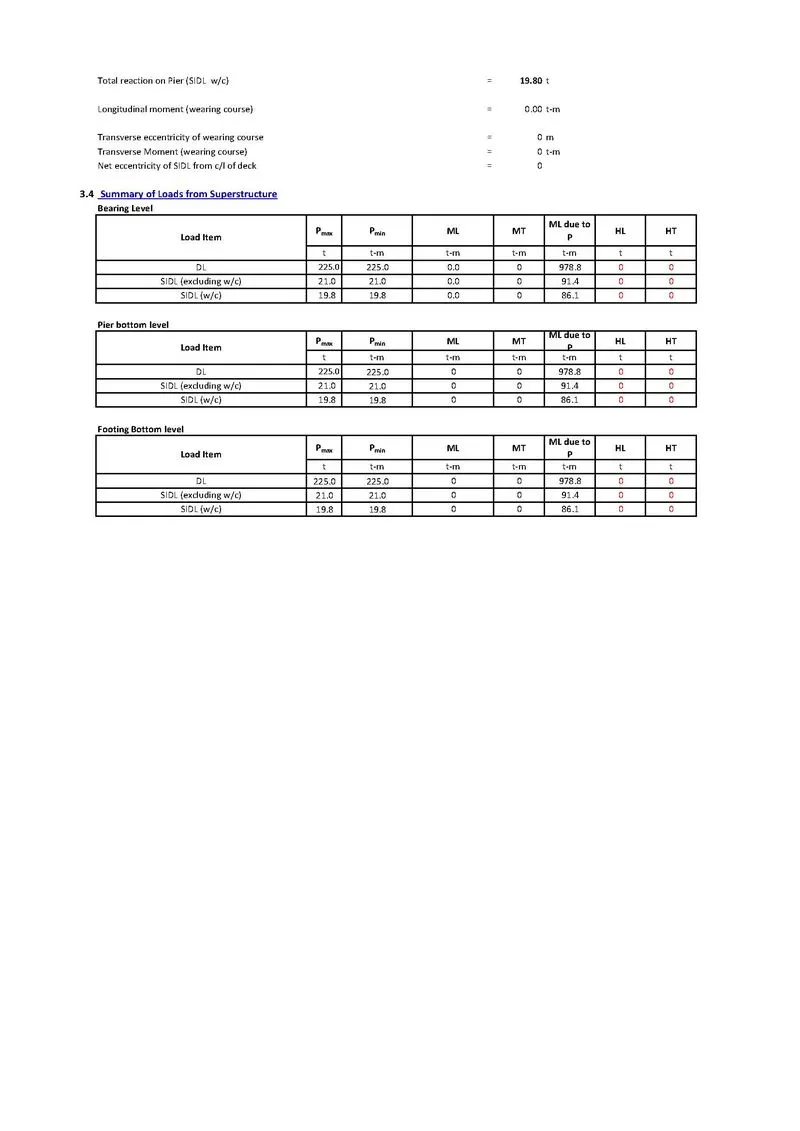

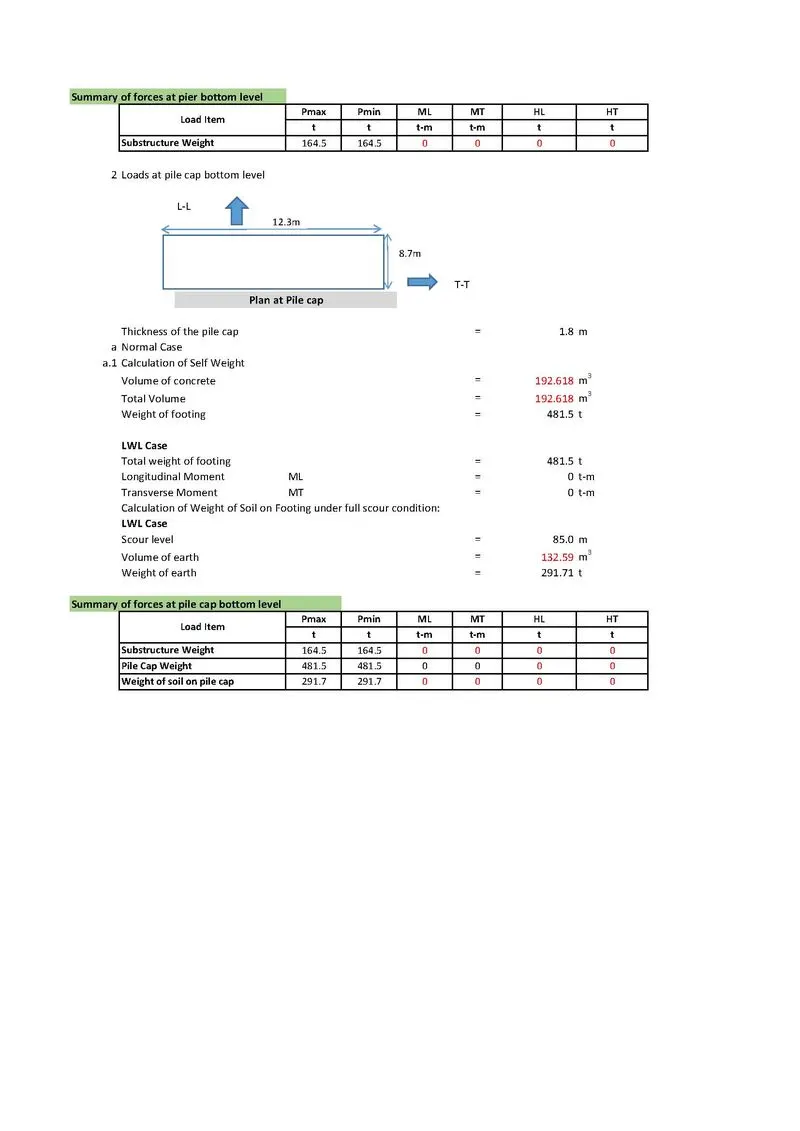

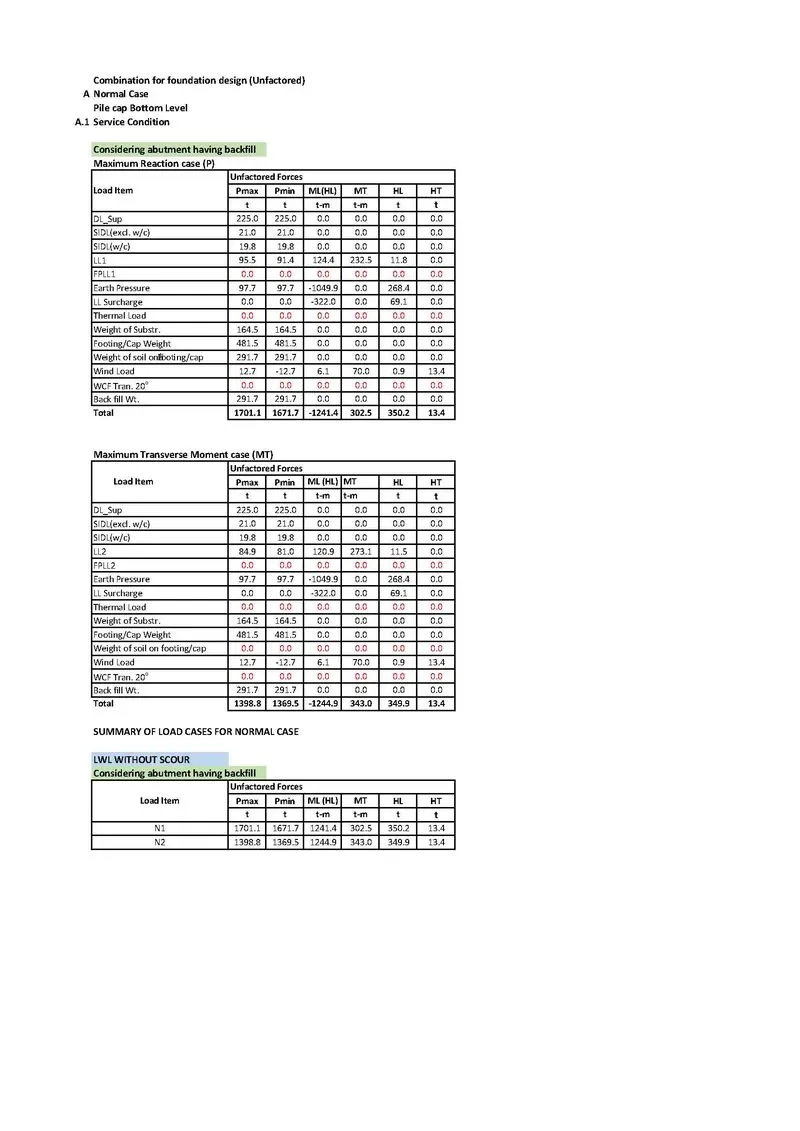

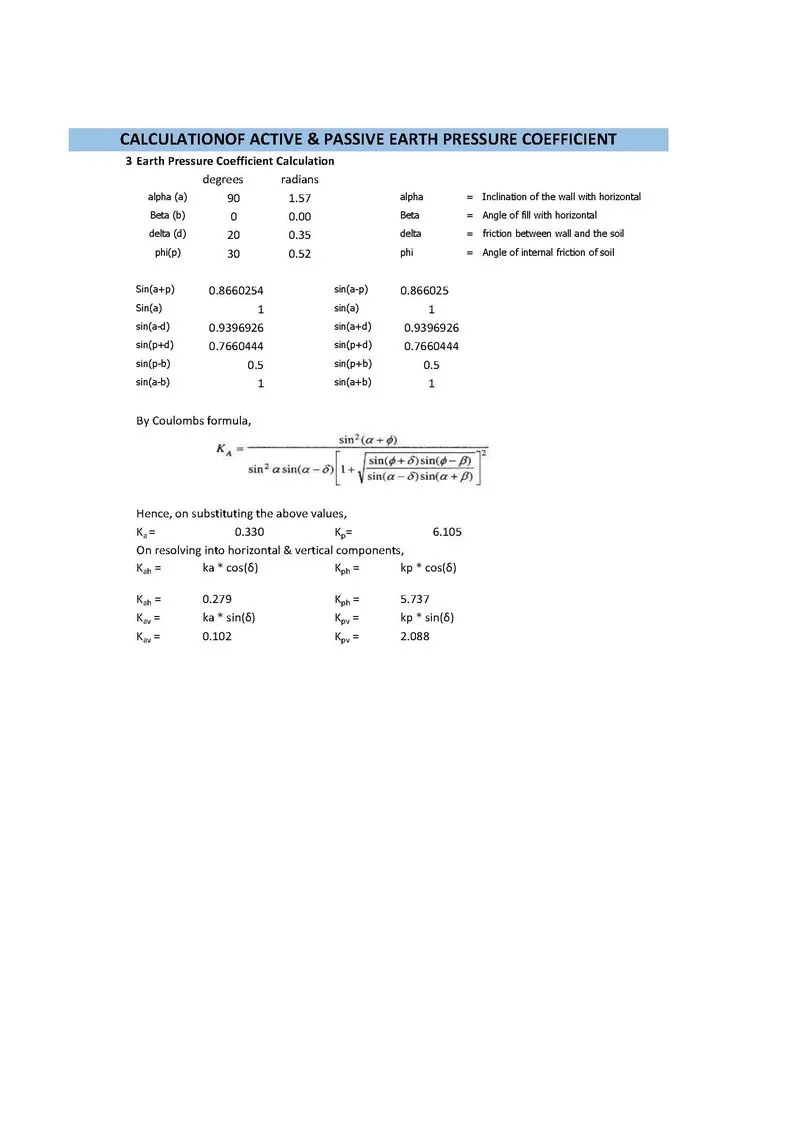

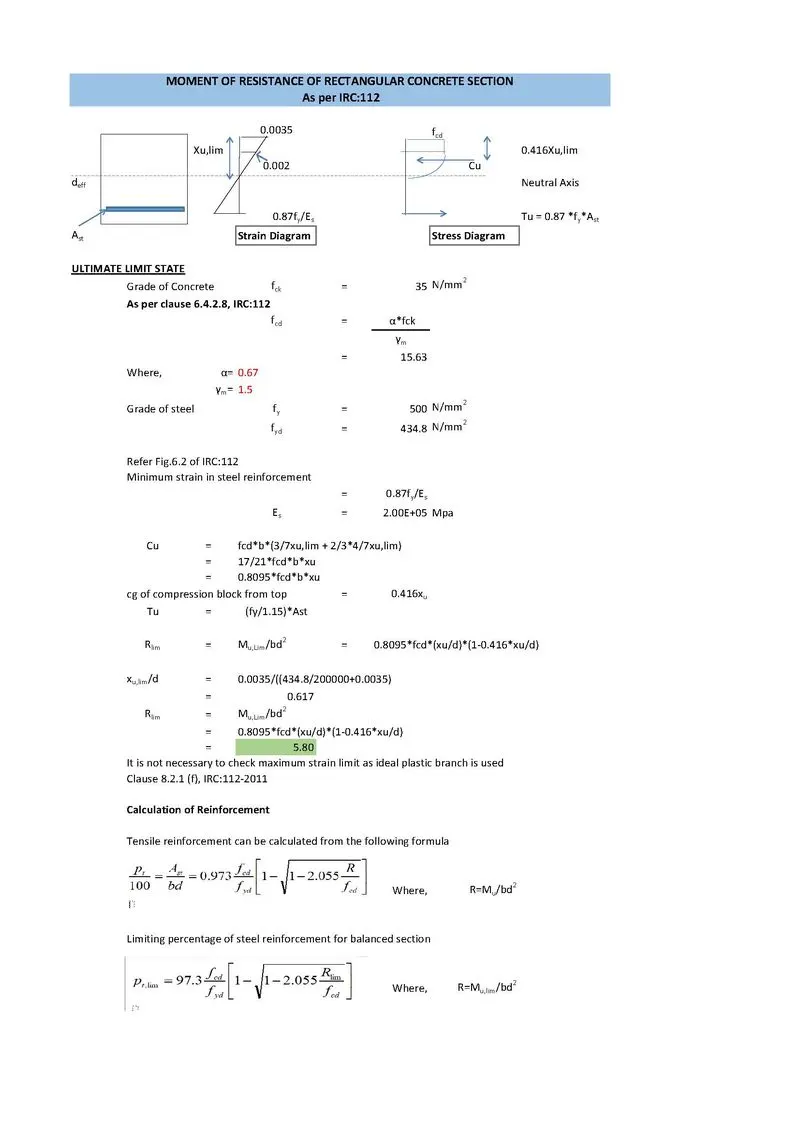

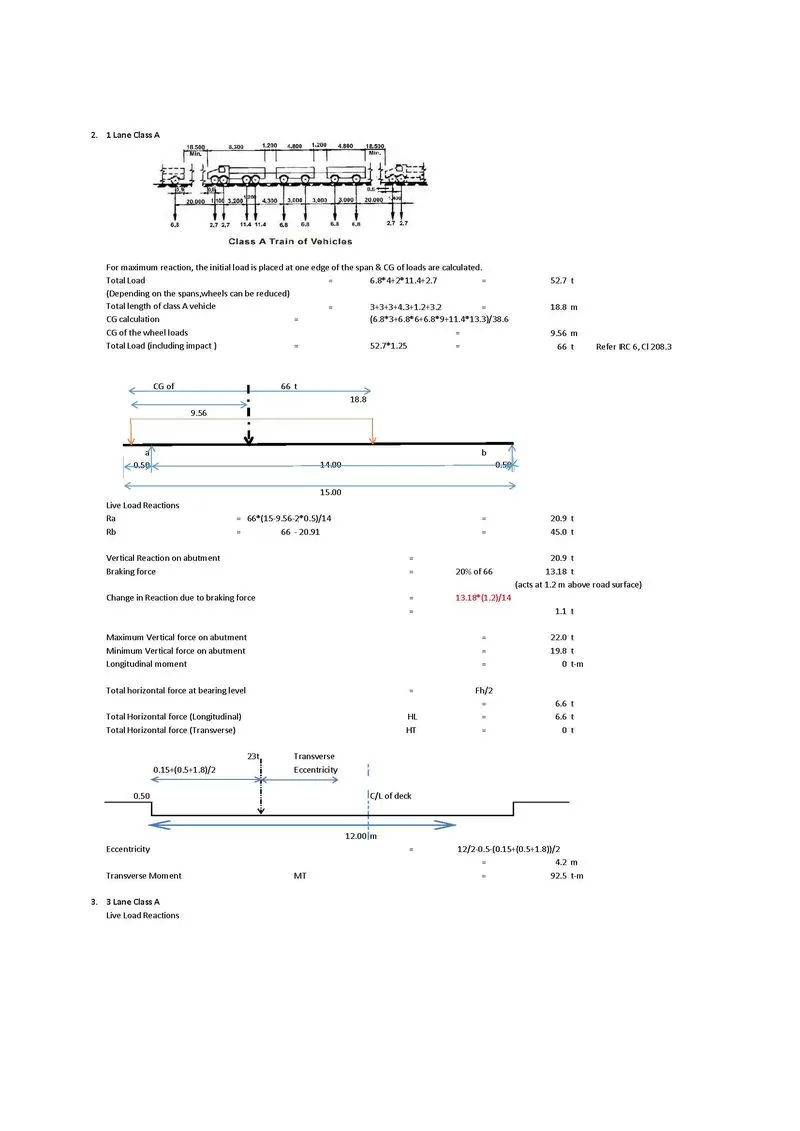

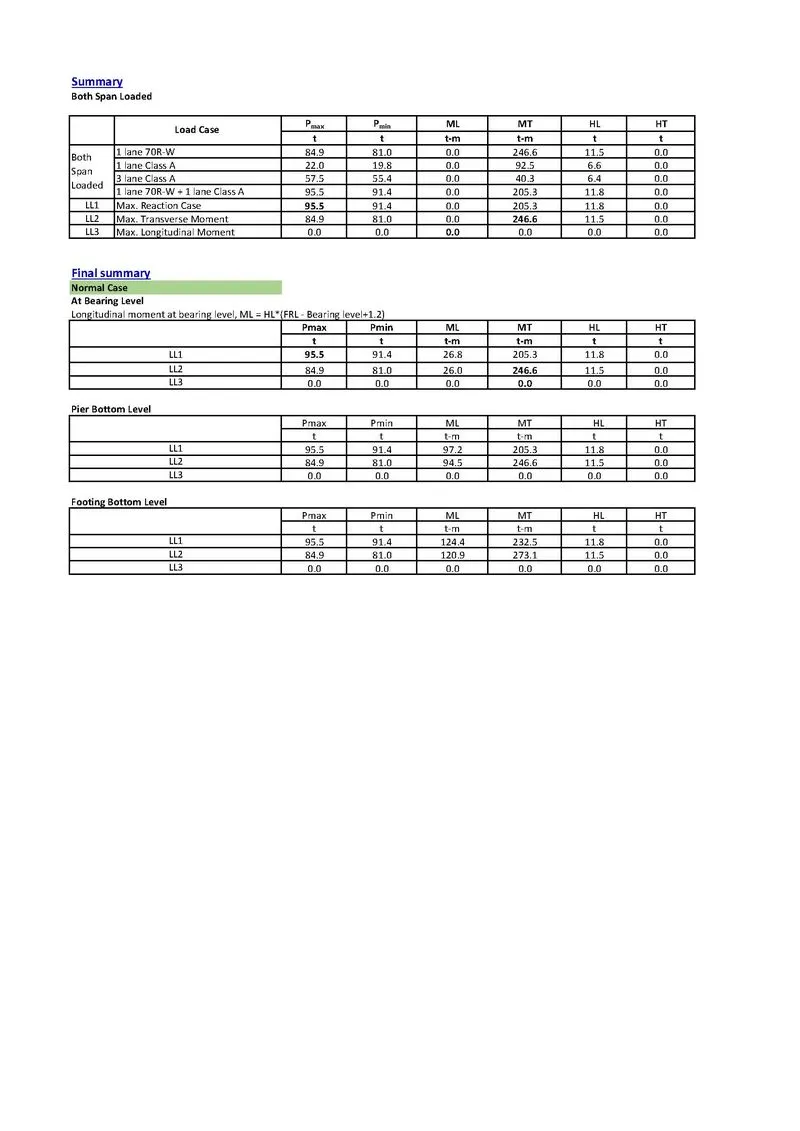

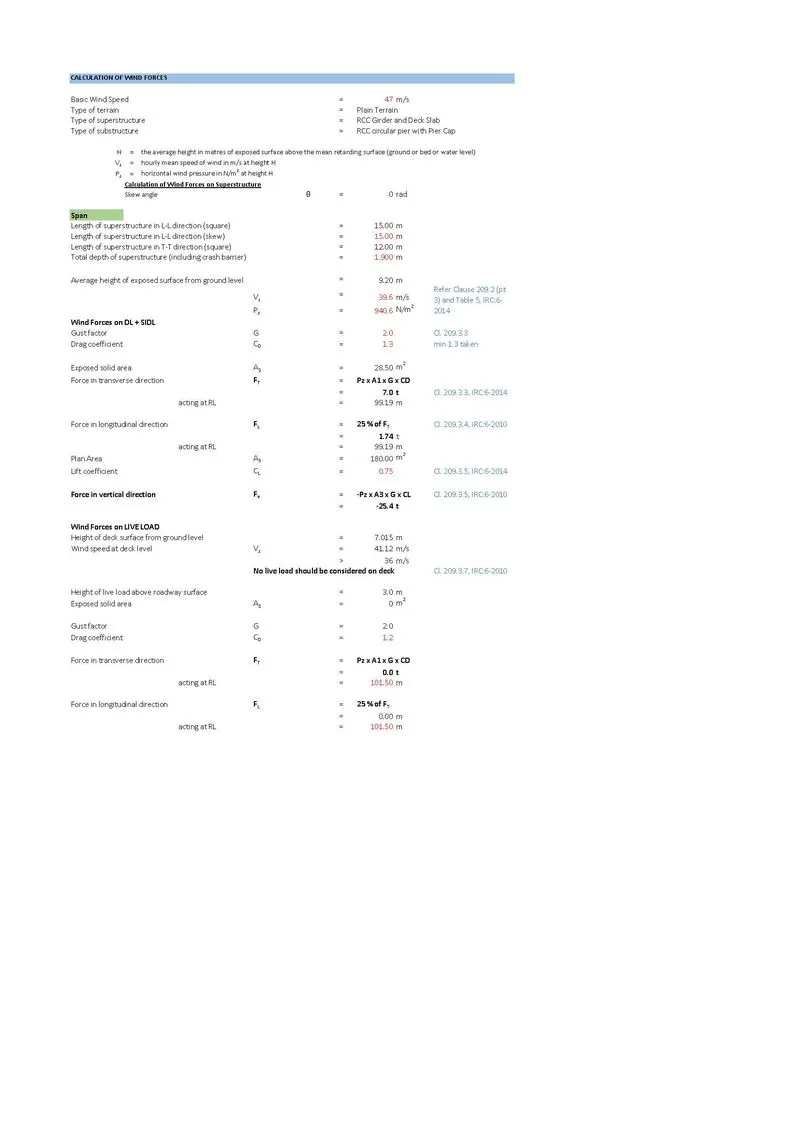

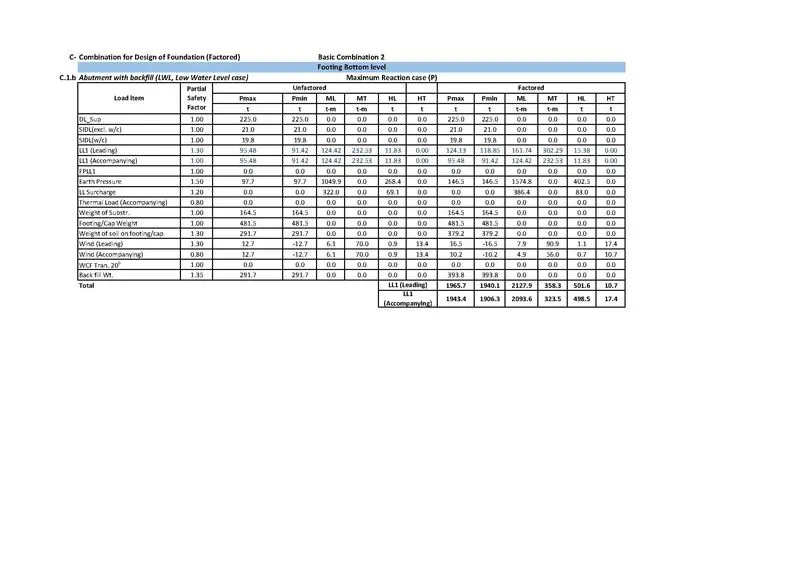

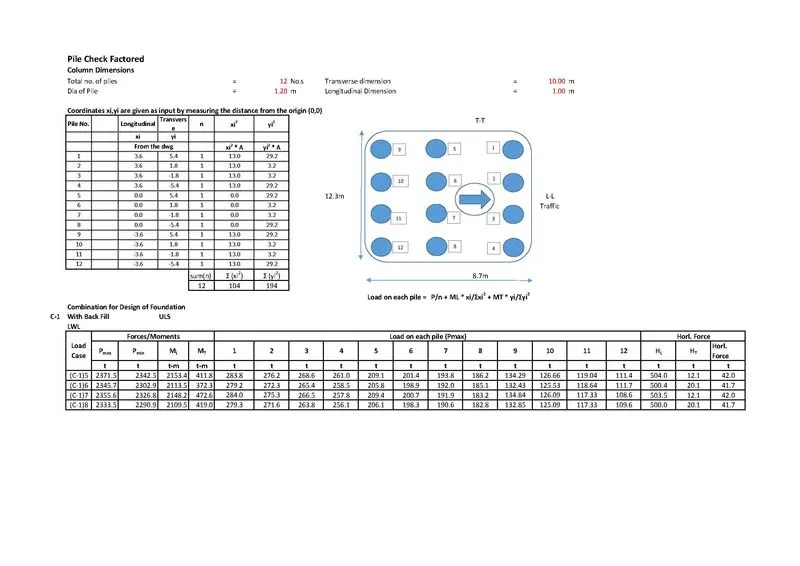

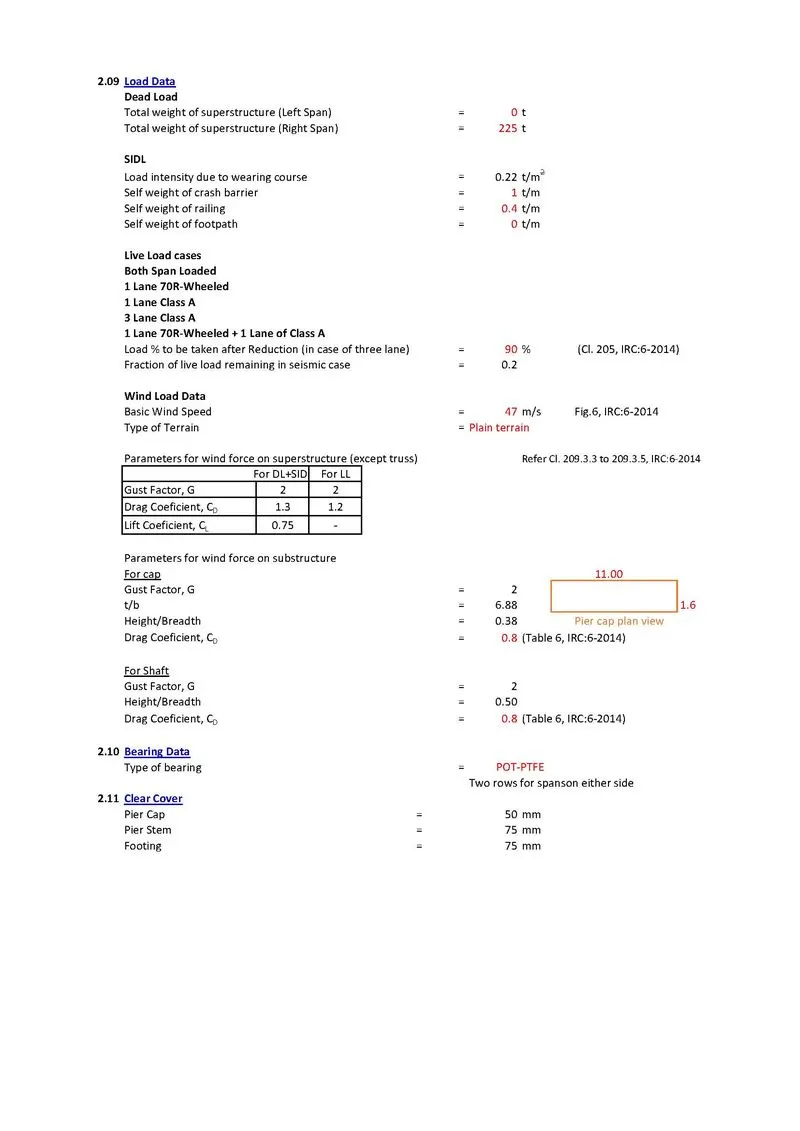

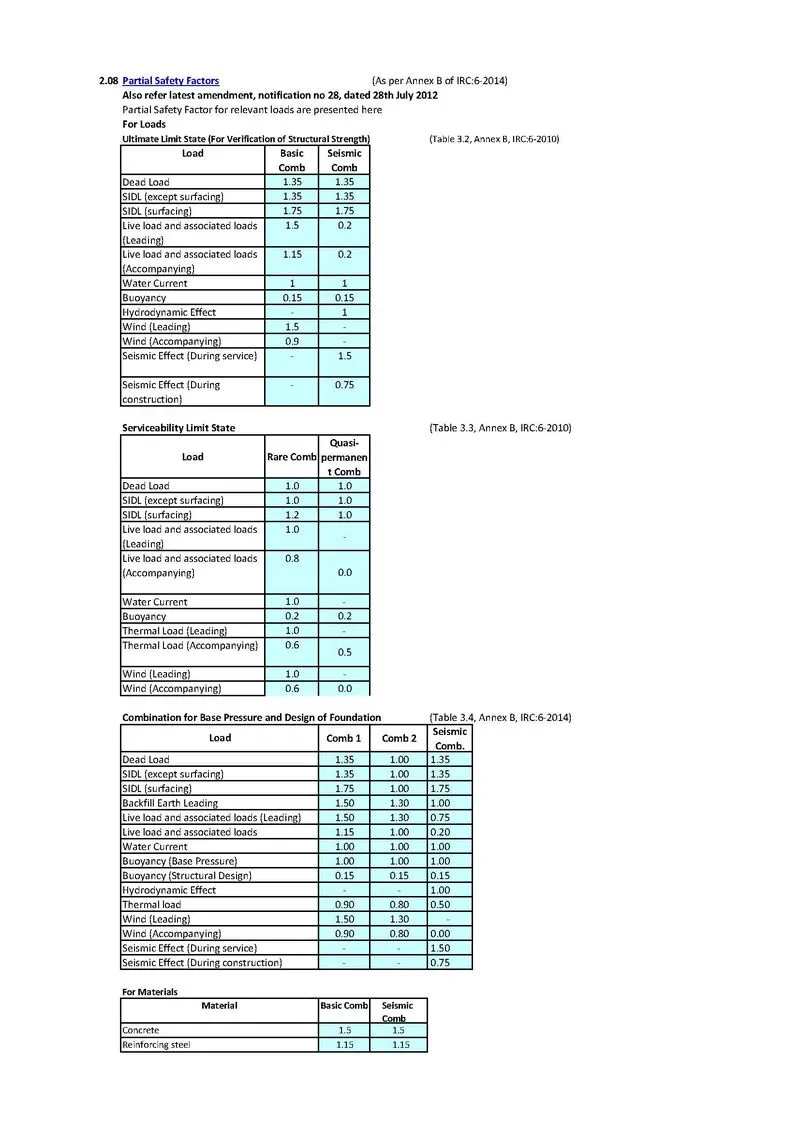

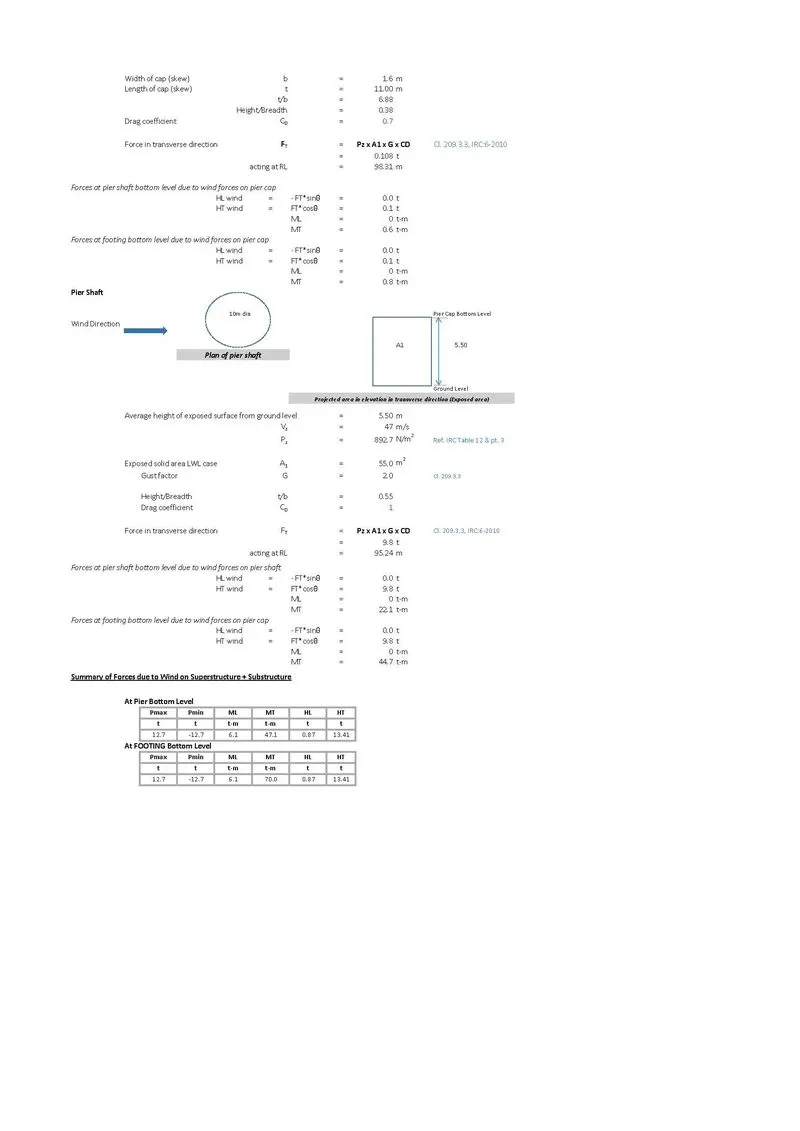

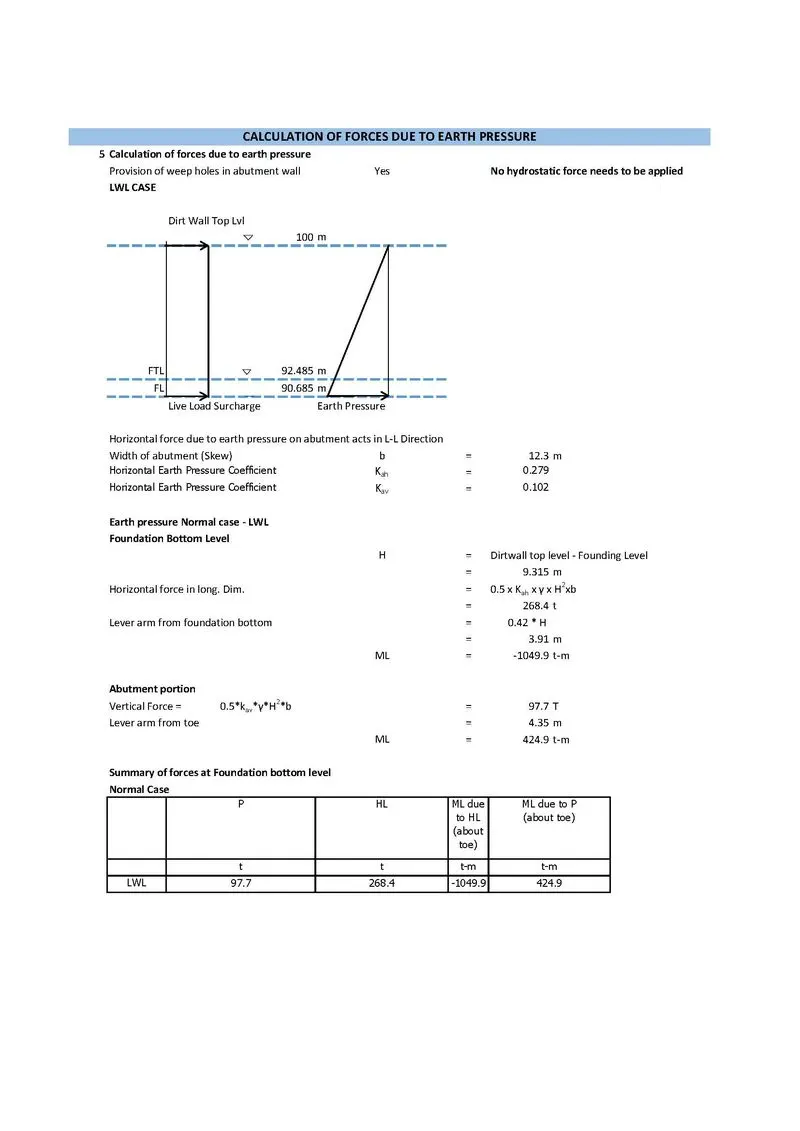

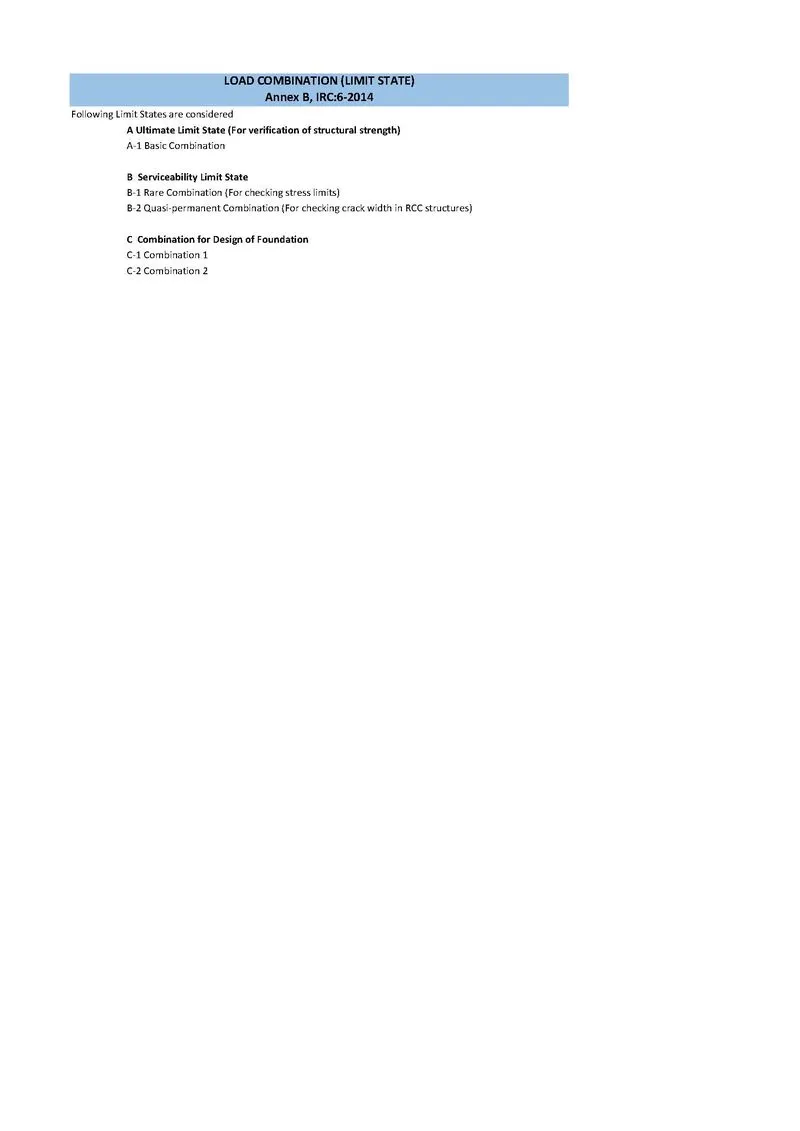

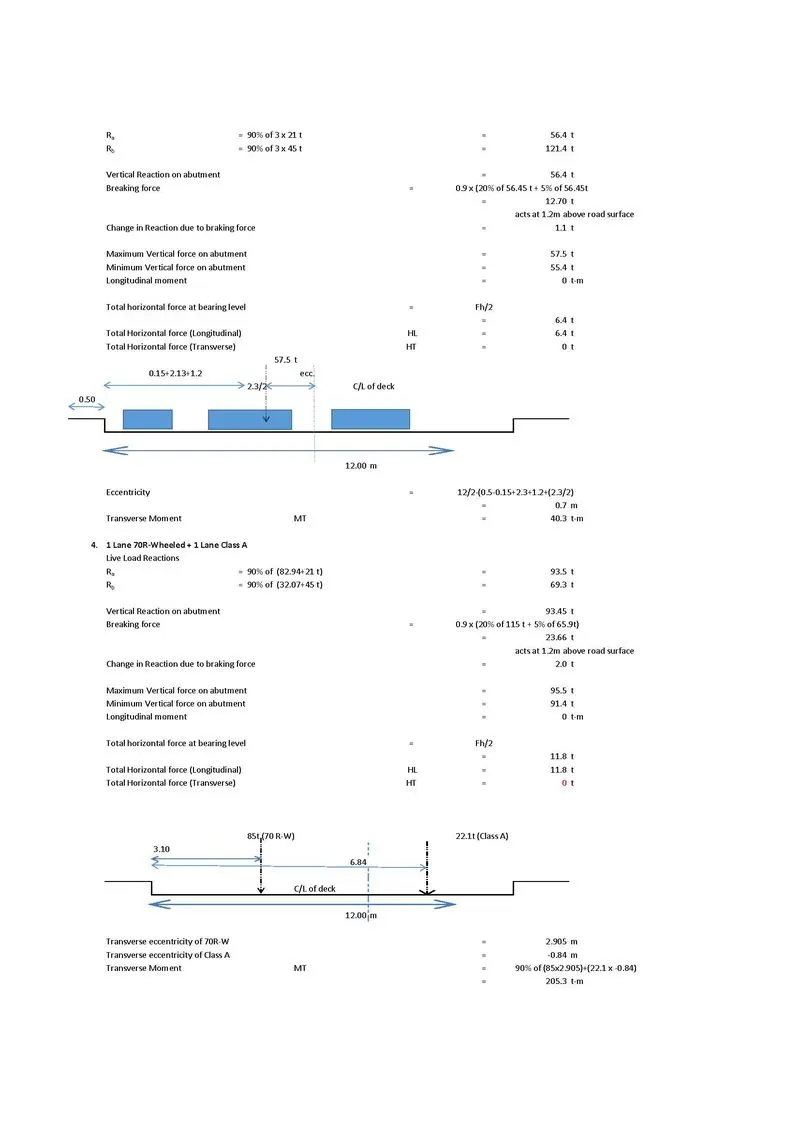

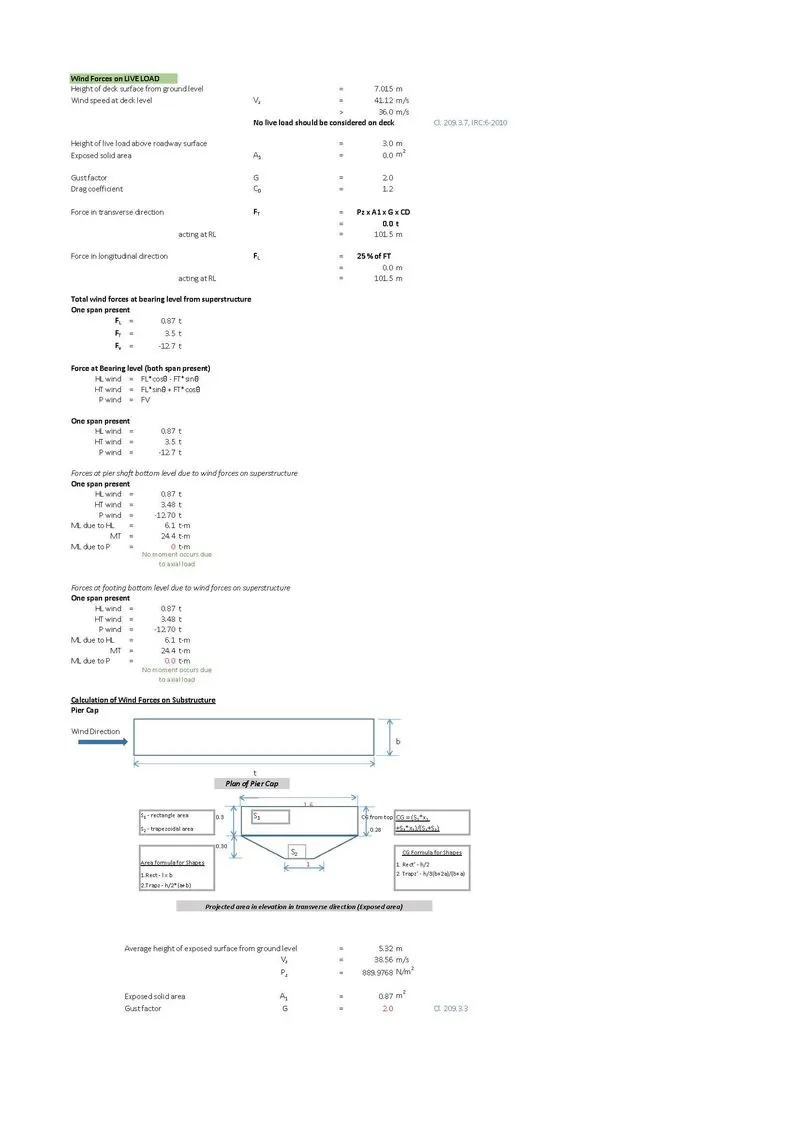

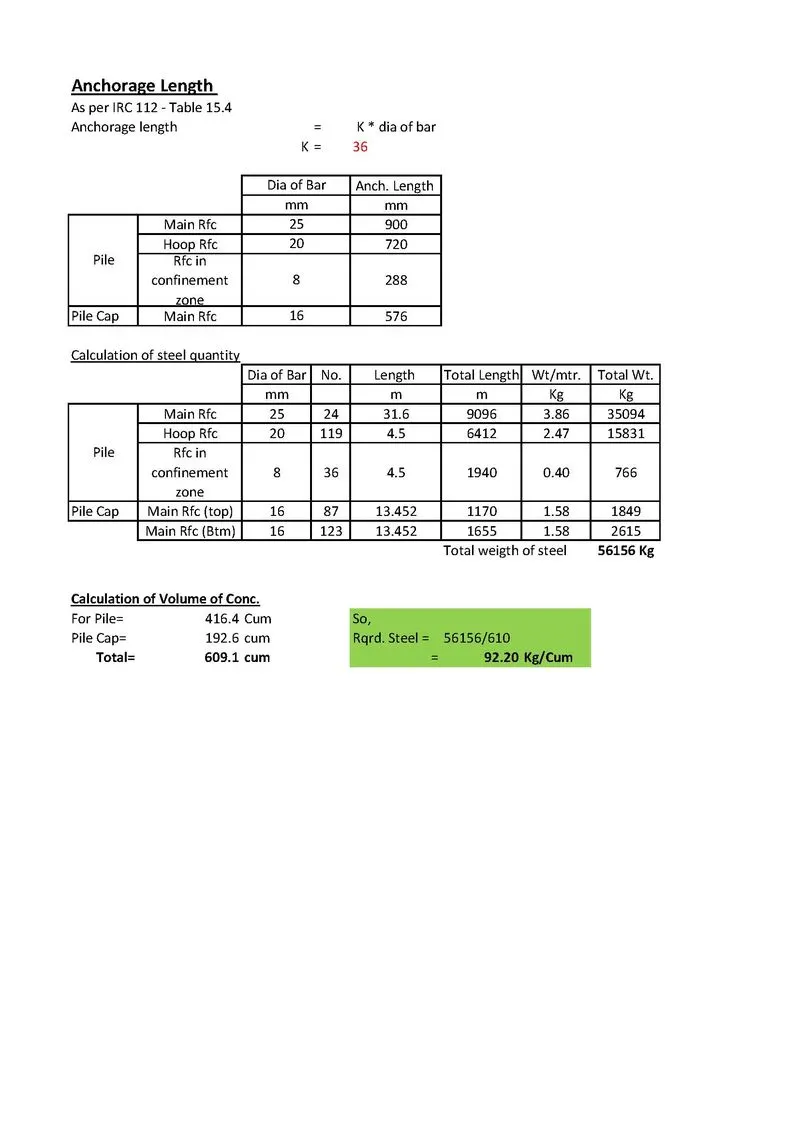

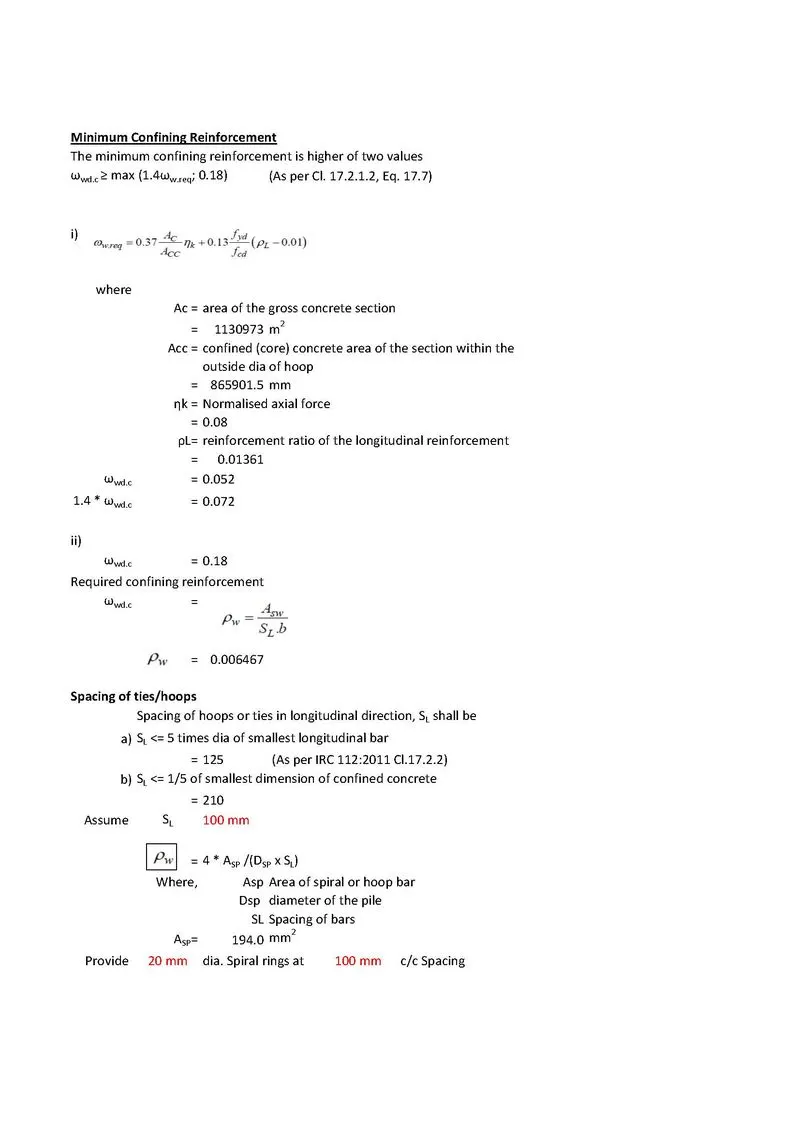

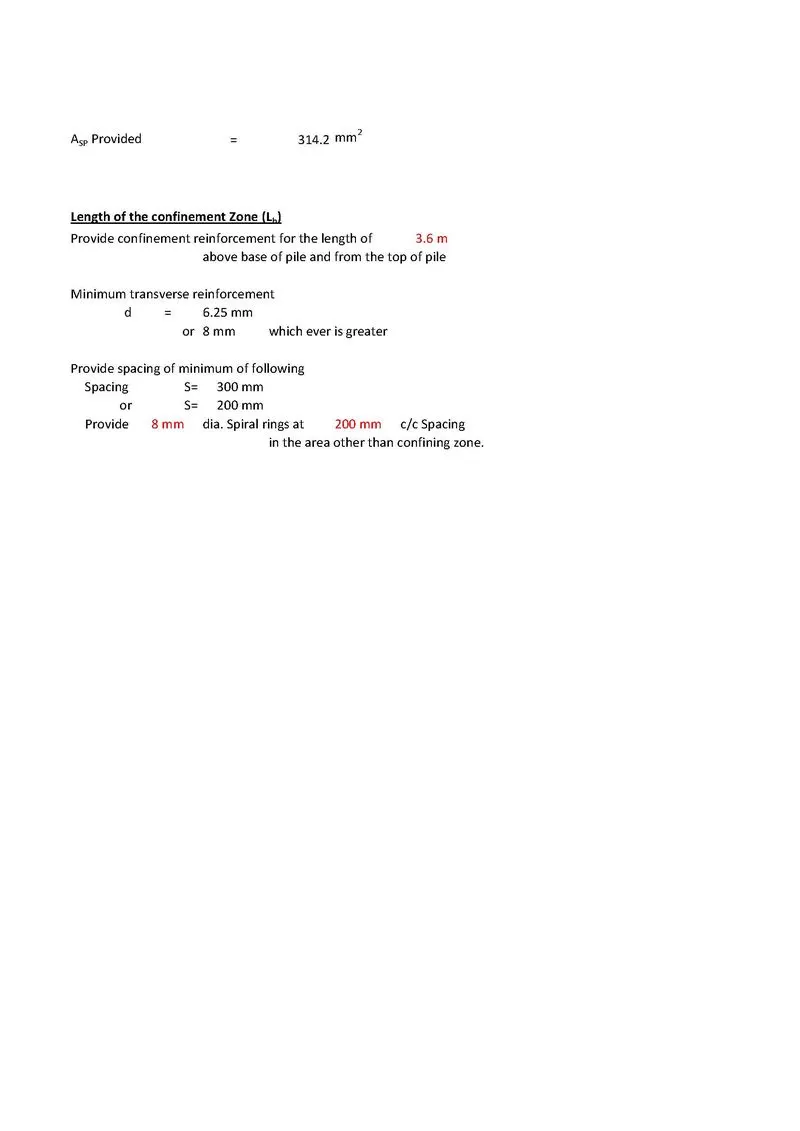

5) Also calculate the anchorage length of the bars and minimise the bars wherever you can.

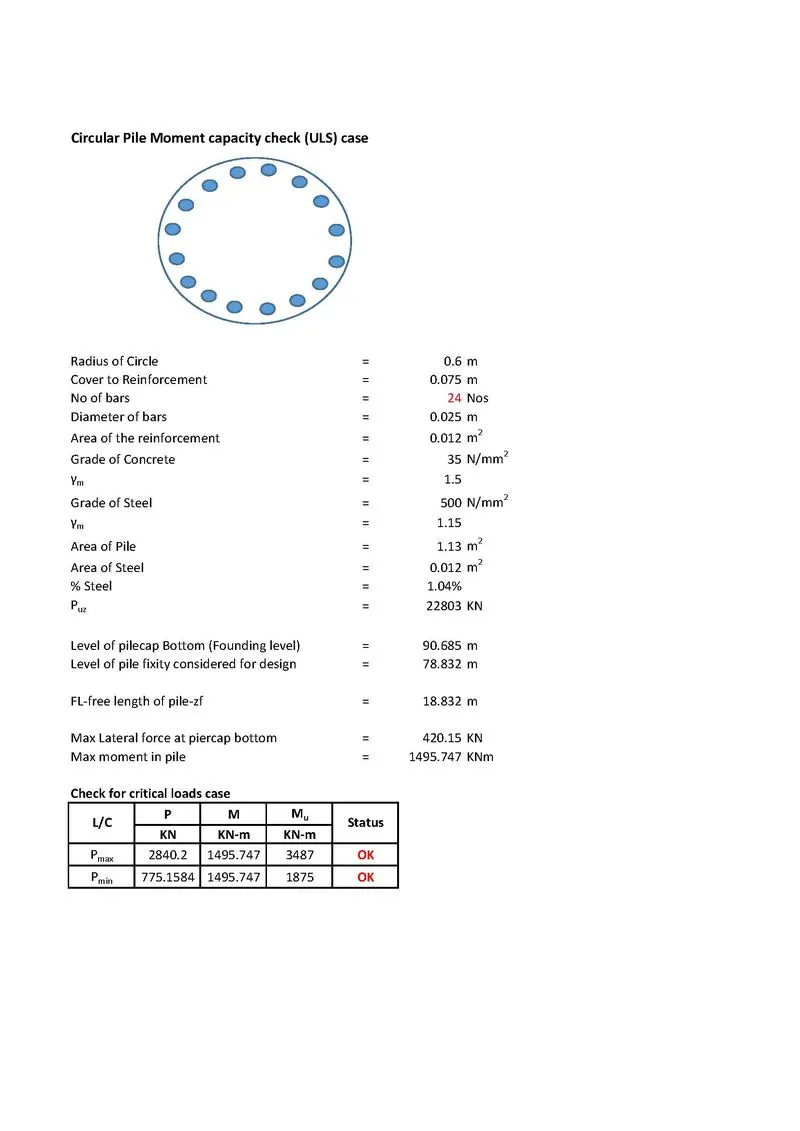

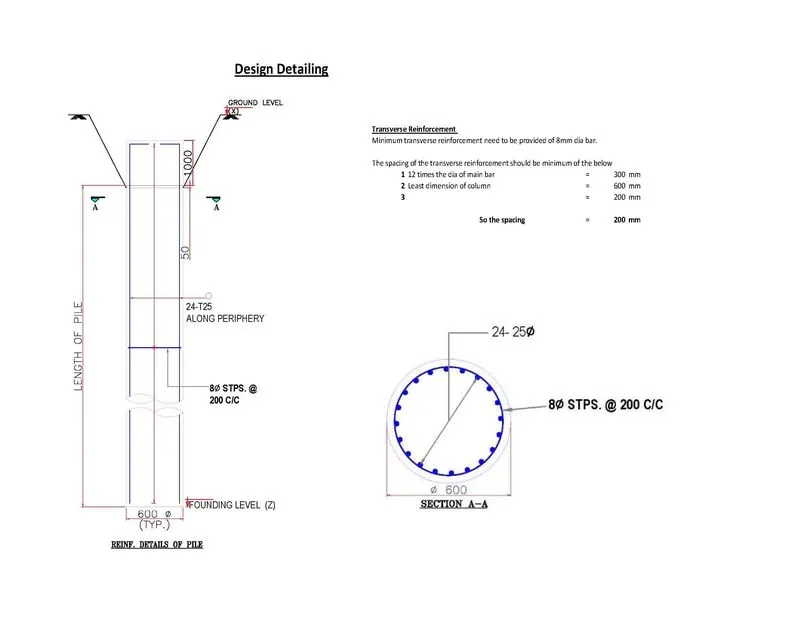

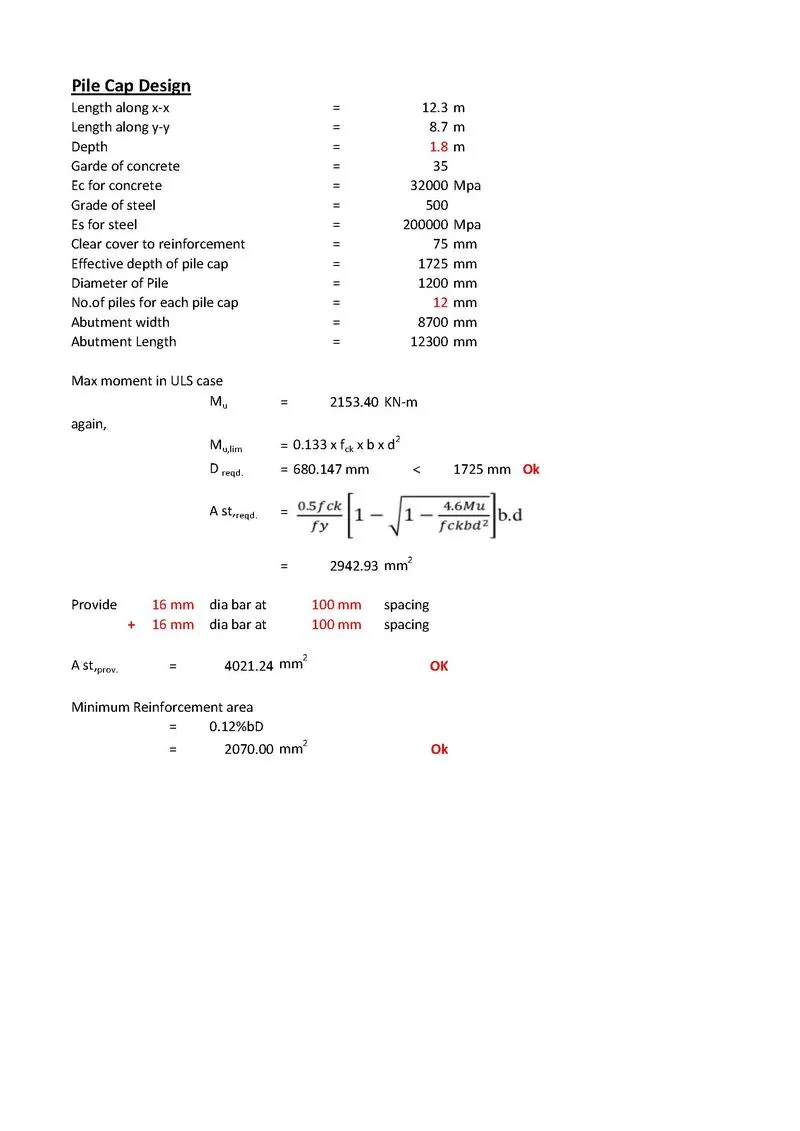

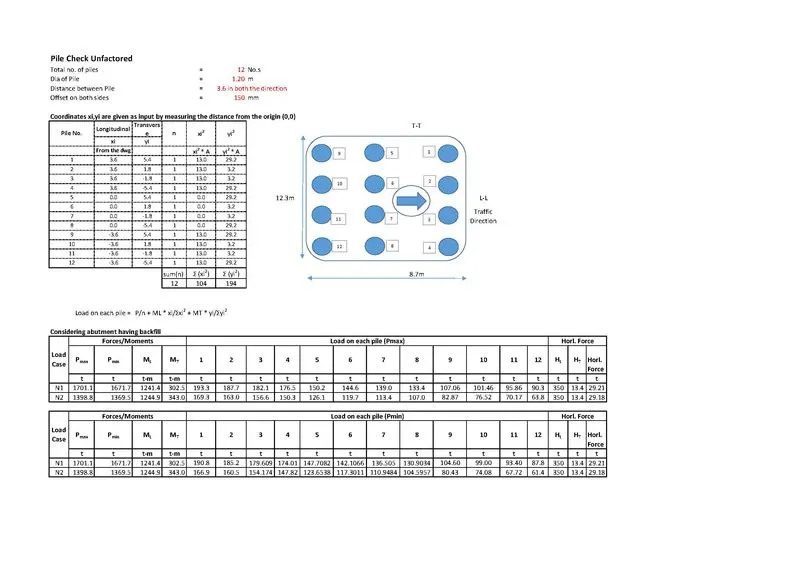

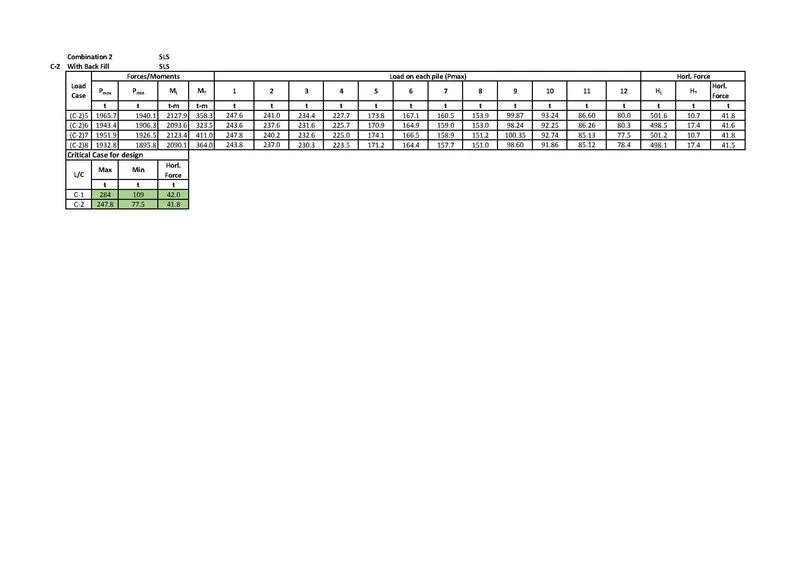

6) Draw rebars to the scale and therefore calculate the kg/cumec of the pile and pile cap.

•
