Project 2

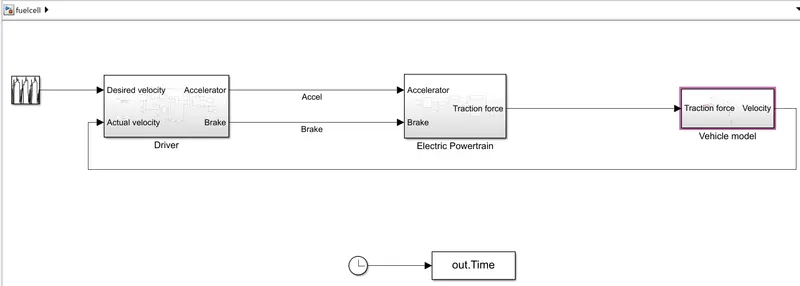

Fuel cell electric vehicle model set-up:

This model set-up consists of,

• Driver model
• Electric powertrain model
• Vehicle model

Driver block:

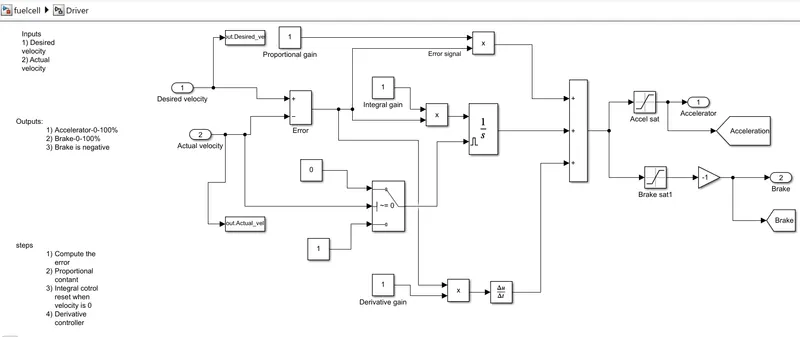

The PID controller is used to obtain the driver model. Two inputs is given as desired velocity and actual velocity. Two output is taken as accelerator and brake.

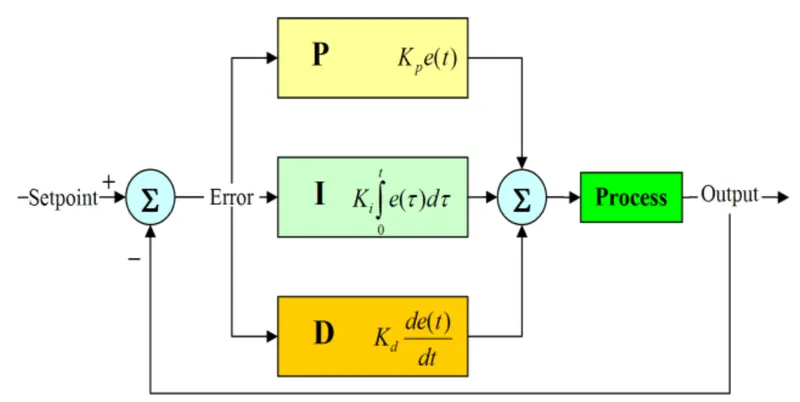

The formula to obtain PID controller is given below.

Vehicle model block:

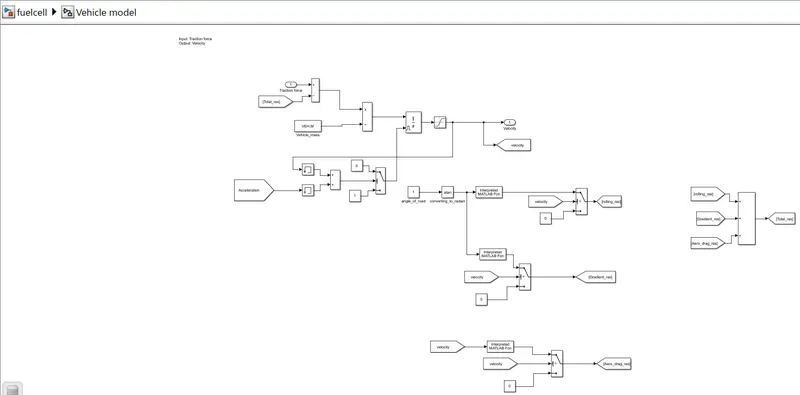

These are the formula to obtain vehicle model.

Rolling resistance:

Fr = M*g*u*cos(u)

M - mass

g - gravity

u - angle of slope

Aerodynamic drag:

Fa = (1/2)*delta*Af*Cd*(V*V)

Delta - density of surrounding air

Af - vehicle frontal area

Cd - drag coefficient

V - velocity of vehicle

Grade resistance:

Fg = M*g*sin(u)

M - mass

g - gravity

u - angle of slope

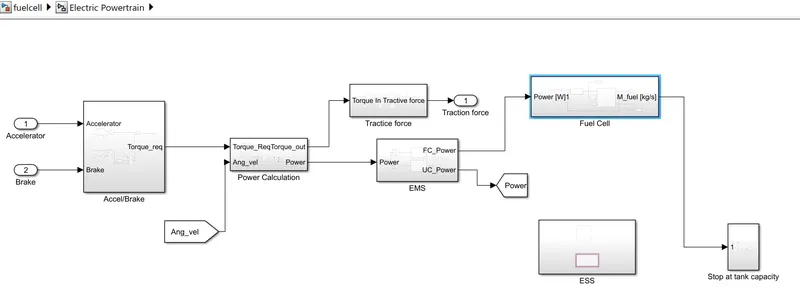

Electric power train model:

The power train model consists of,

• Battery model
• Fuel cell model
• Ultracapacitor model

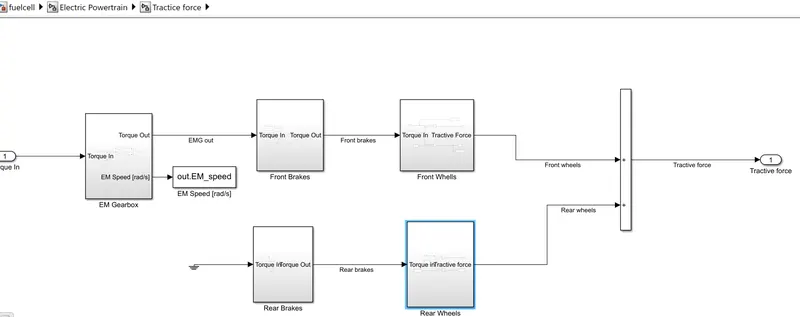

The tractive force is given as below.

• motor map has to translate to vehicle velocity
• this is done by tractive force
• tractive force is fed to vehicle velocity

The gear box output is depend on torque input from energy management and efficiency of gear box.

Wheel angular velocity=veh. velocity/veh. radius of tire

EM speed=gear box ratio*wheel speed

Brake torque= brake signal*veh.mass*ground friction*gravity*tire radius

Torque= radius of wheel*force

Velocity= radius*angular velocity



Fuel cell model:

• stack current/area of FC determines current density
• cell polarisation curve plot stack voltage from current density and cathode presure
• cathode pressure by current demand from FC
• EMS decide power to demant from fuel cell
• FC has feedback loop to minimum difference between demand and actual
• power demand fed to power Vs current map
• compressor run on current Vs rpm map to neccessary oxygen

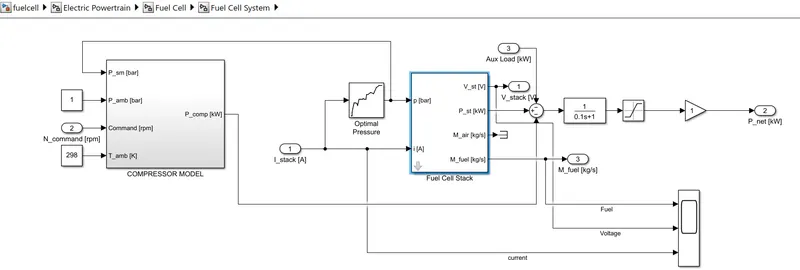

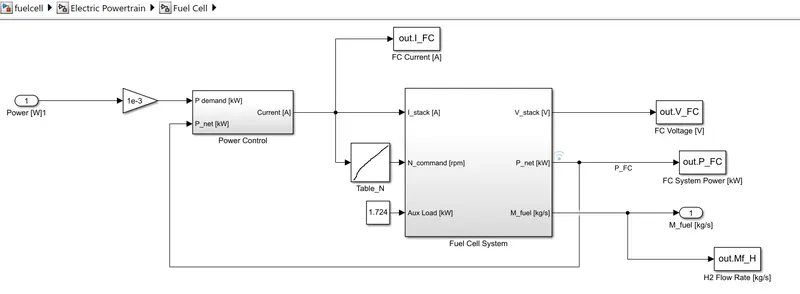

This the subsystem for fuel cell,

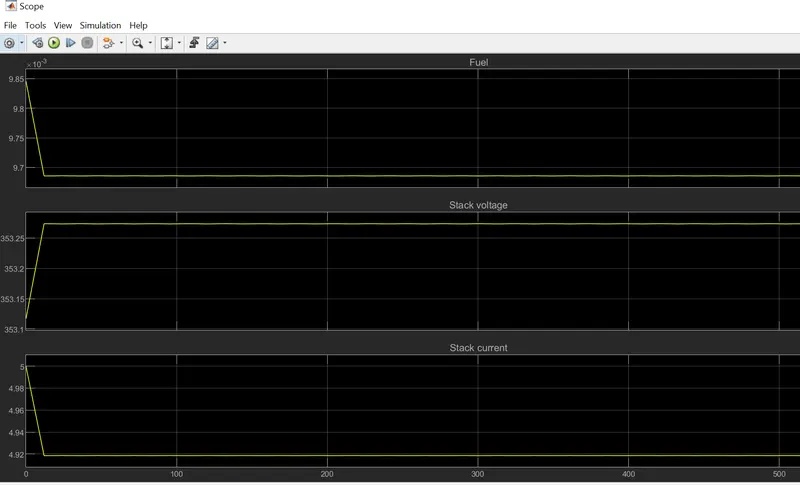

Result is shown from the fuel cell,

 Intializing Model:

.mat file have to load in workspace.

• velocity profile (speed Vs torque in km/hr)
• Veh data
• UC data
• environment data (slope, angle, gravity, air density, surrounding)
• Fuel cell data (lookup table, Current and voltage value)
• EM data (torque Vs speed curve)
