Report on Designing a Mold for a CPU Fan Bezel in SolidWorks

1. Introduction

The objective of this report is to document the process of designing a mold for a CPU fan bezel using SolidWorks. The design includes considerations for manufacturability, accuracy, and ease of use.

2. Initial Setup

1. Software Preparation: Ensure that SolidWorks is properly installed and configured.

2. Model Import: Import the provided CPU fan bezel model into SolidWorks.


3. Analyzing the Model

1. Inspect Geometry: Carefully examine the geometry of the CPU fan bezel to identify critical features and potential issues.

2. Determine Parting Line: Decide on the most suitable parting line for the mold. This is crucial for ensuring proper mold release and minimizing defects.


4. Creating the Mold

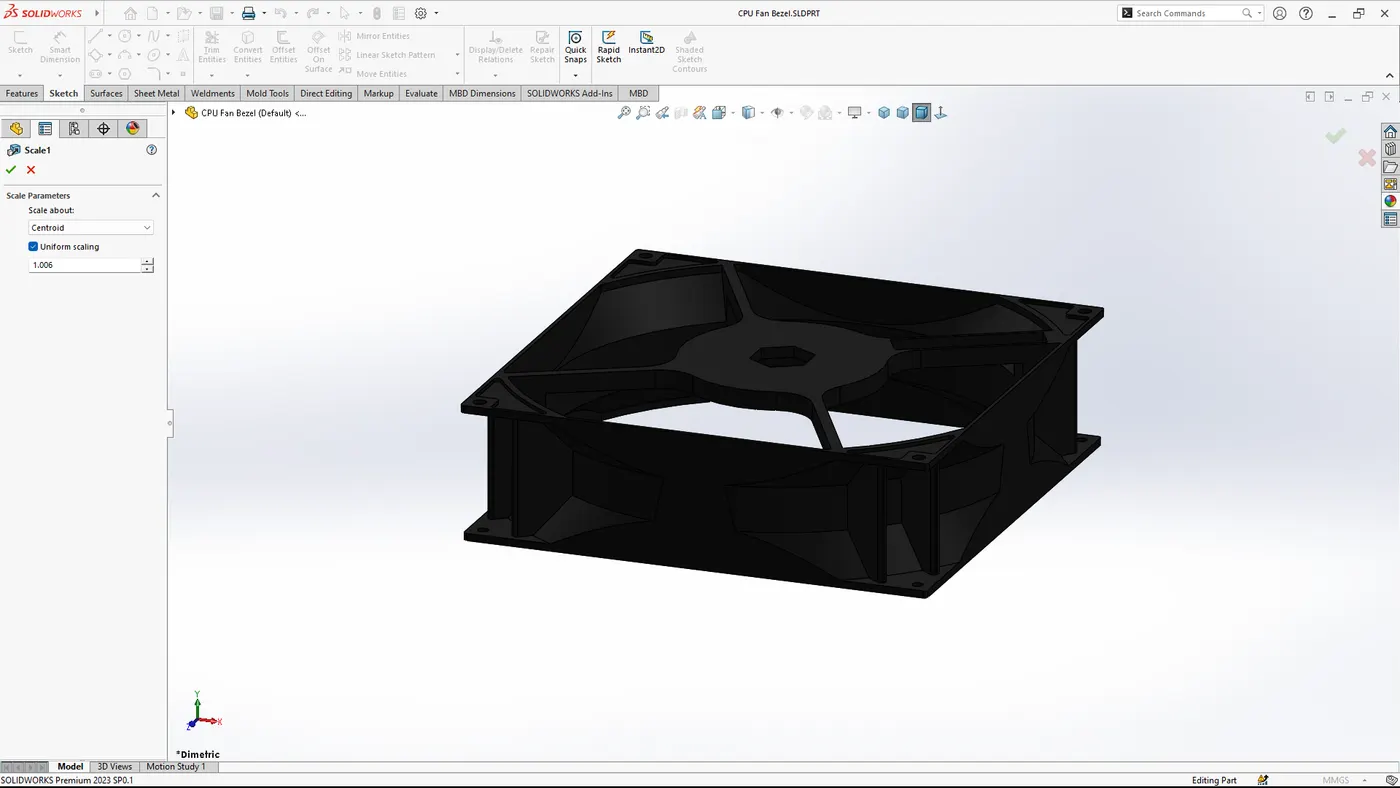

1. Scaling the model:
   - Scale the model according to the material specified.
   - In this case it is given as "ABS" & the shrinkage value is 0.6%.

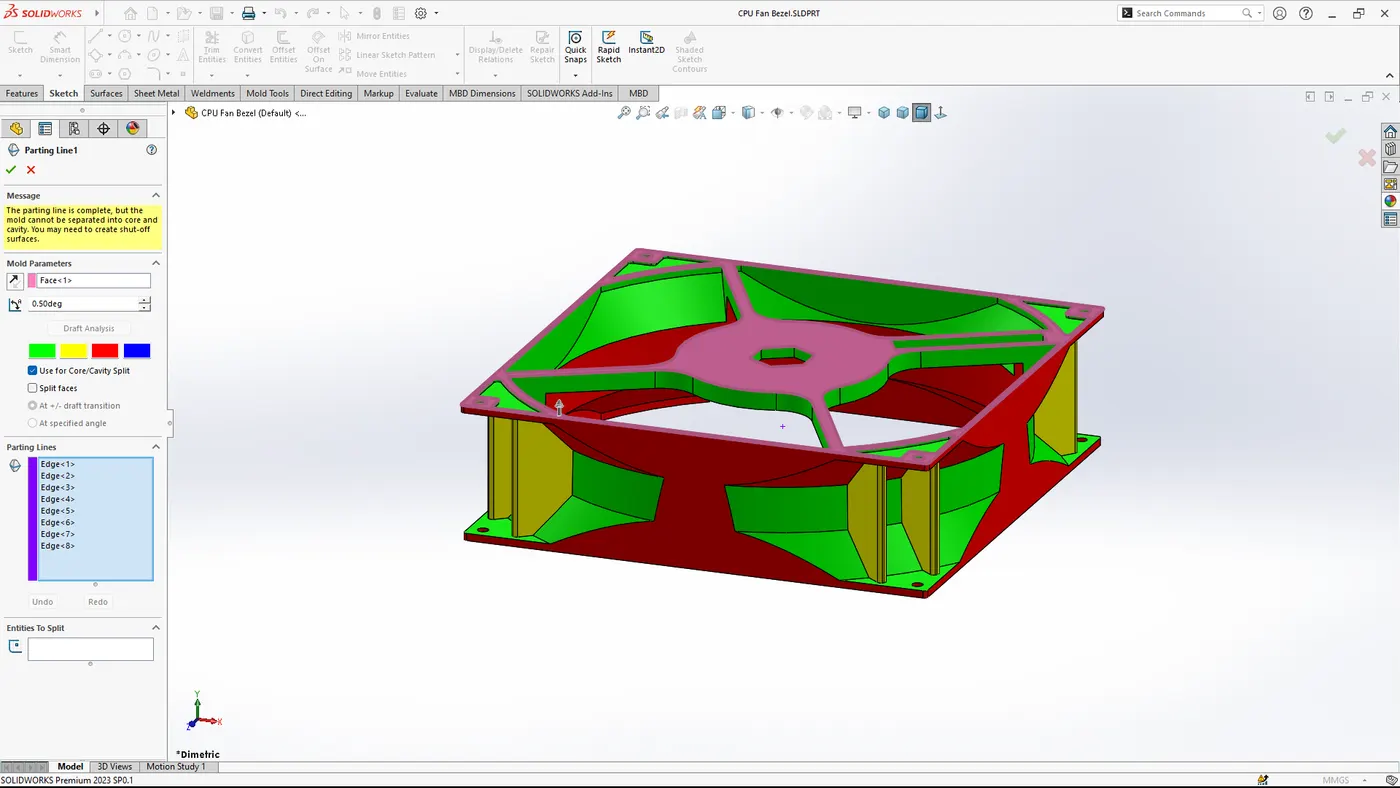

2. Define the Parting Line:
   - Open the part file in SolidWorks.
   - Use the `Draft Analysis` tool to determine draft angles and find the optimal parting line.
   - Create the parting line by selecting `Insert > Mold Tools > Parting Line`.

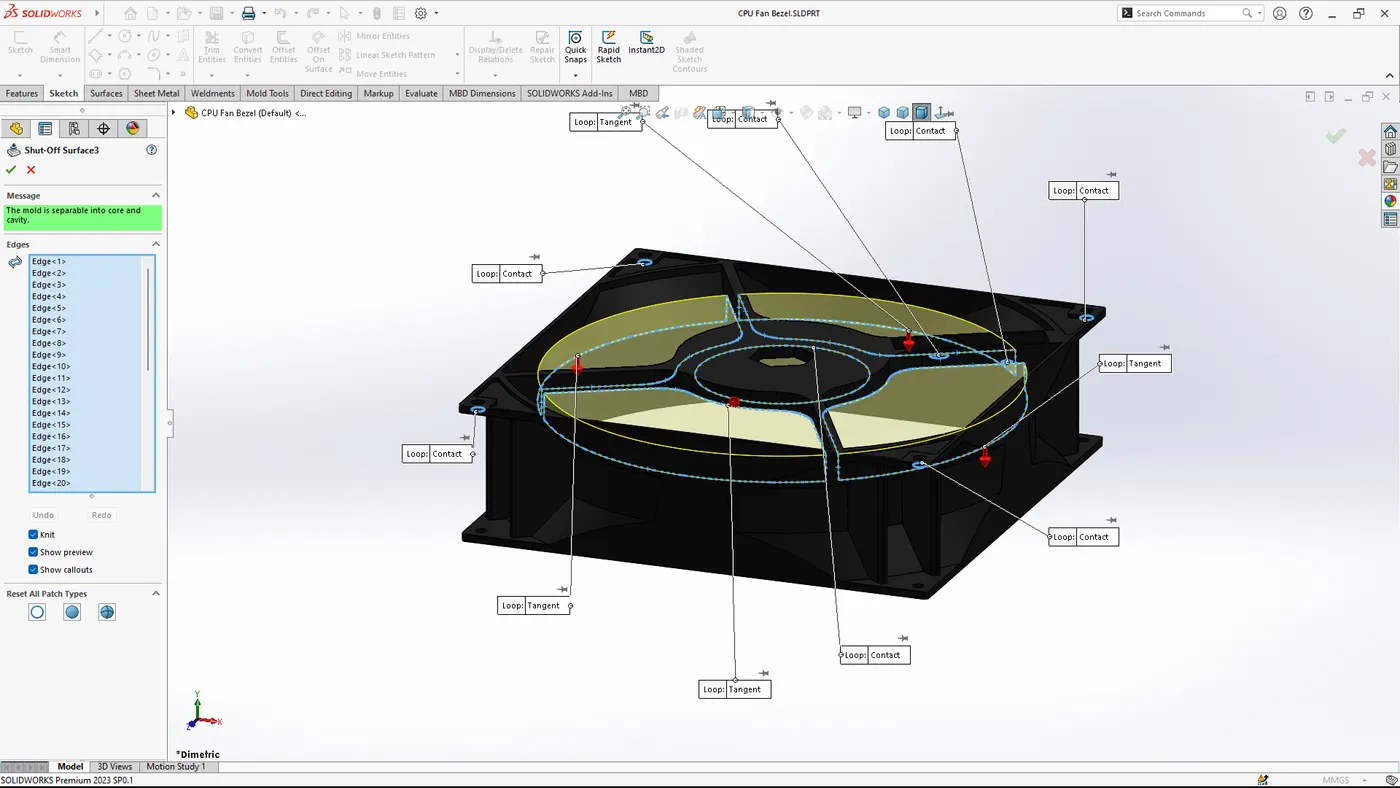

3. Specify the shut-off surface:
   - specify the shut-off surface wherever needed.

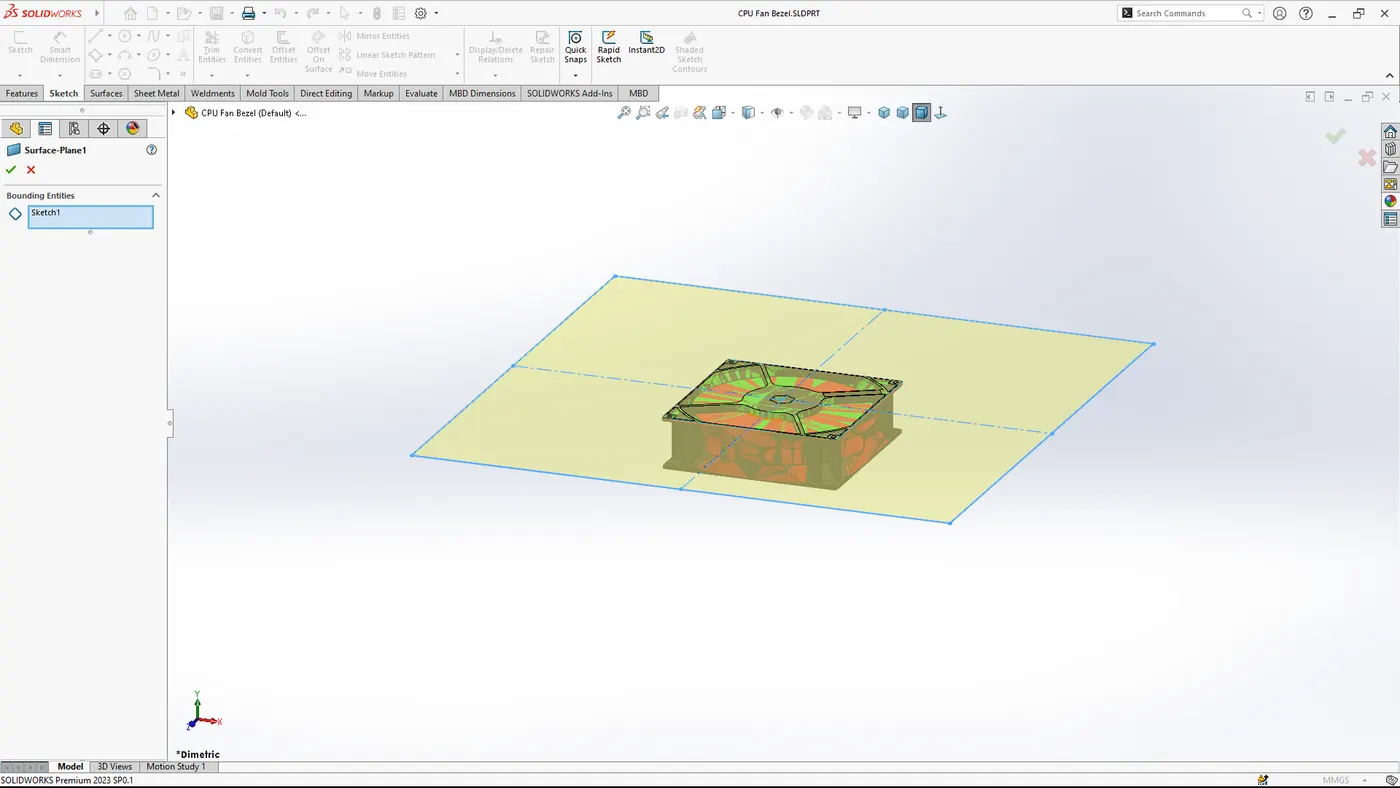

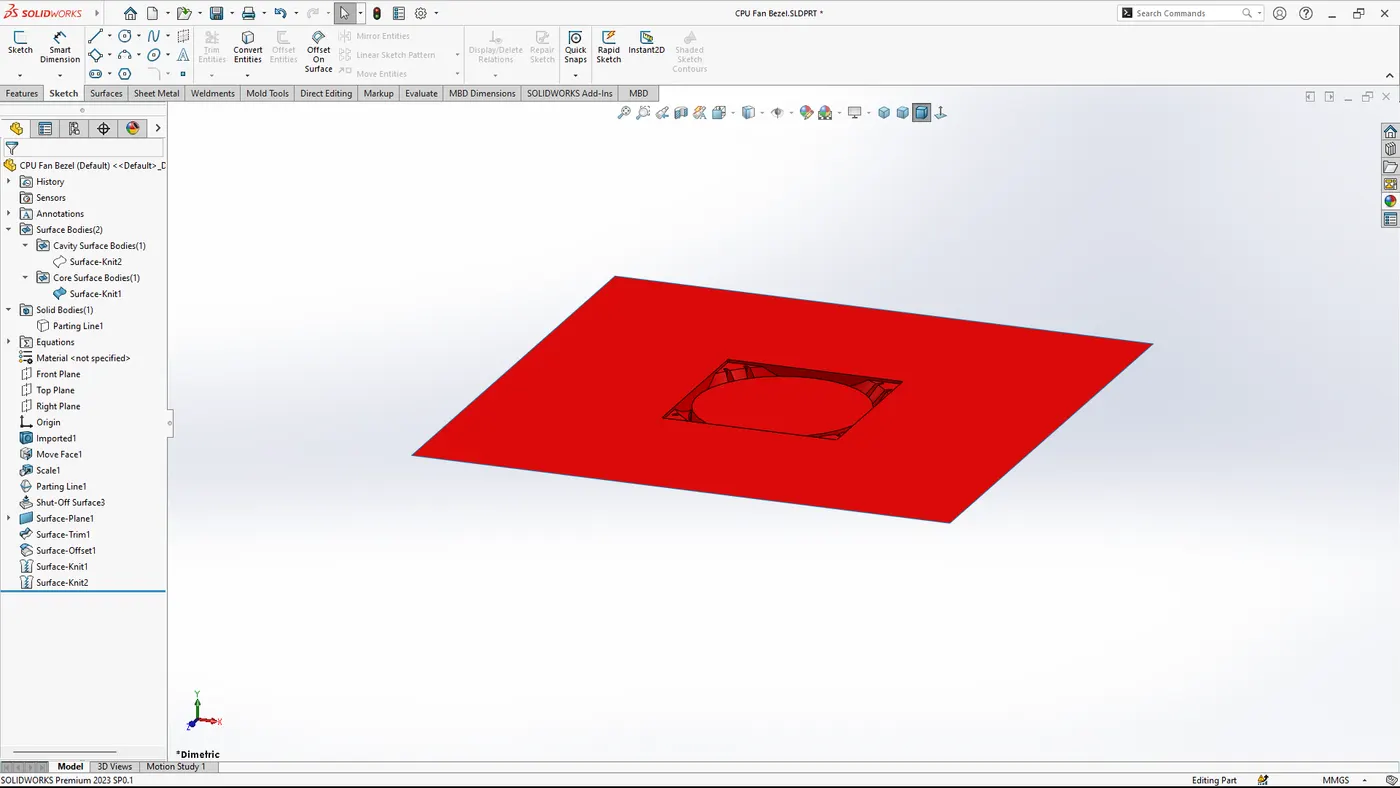

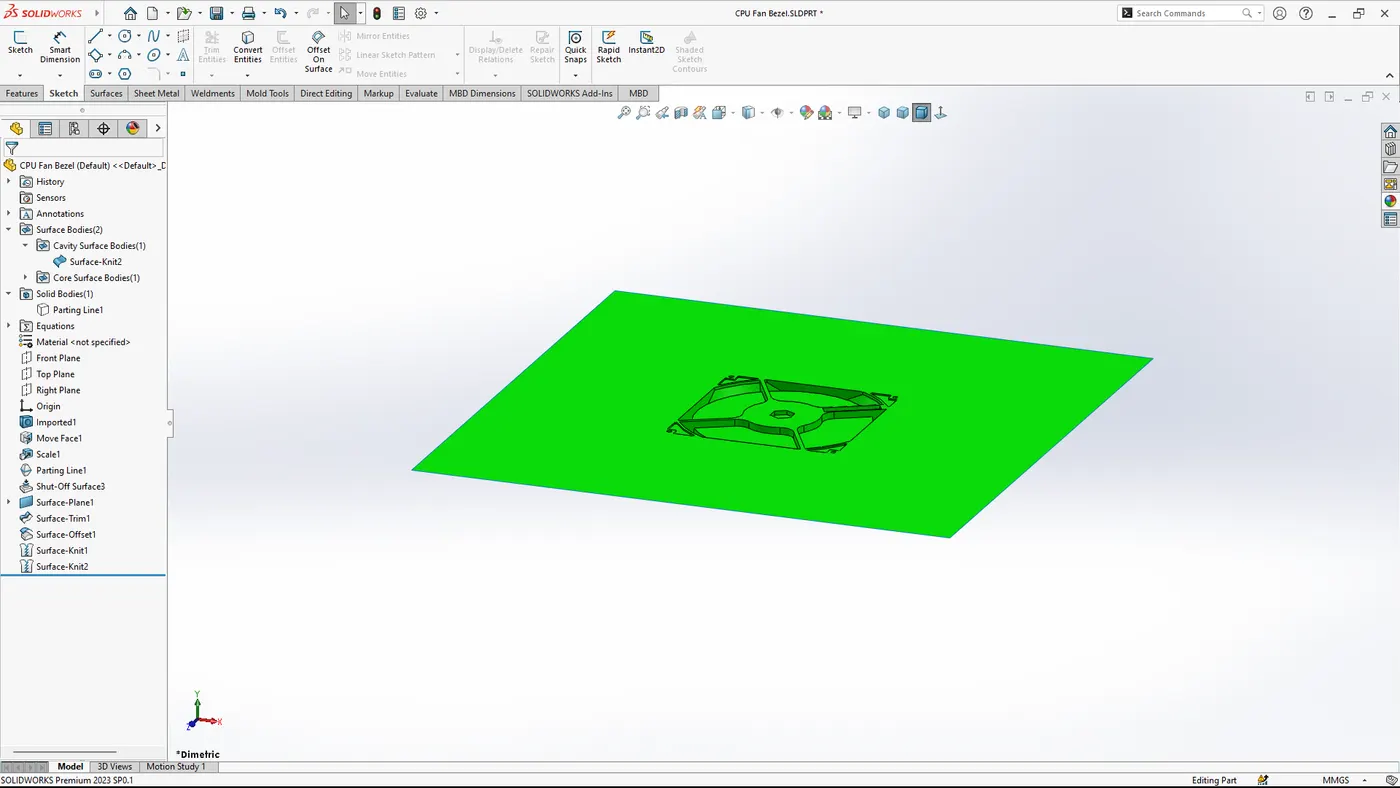

4. Create the Parting Surfaces:
   - Generate parting surfaces using `Insert > Mold Tools > Parting Surfaces`.
   - Ensure the surfaces completely enclose the parting line.

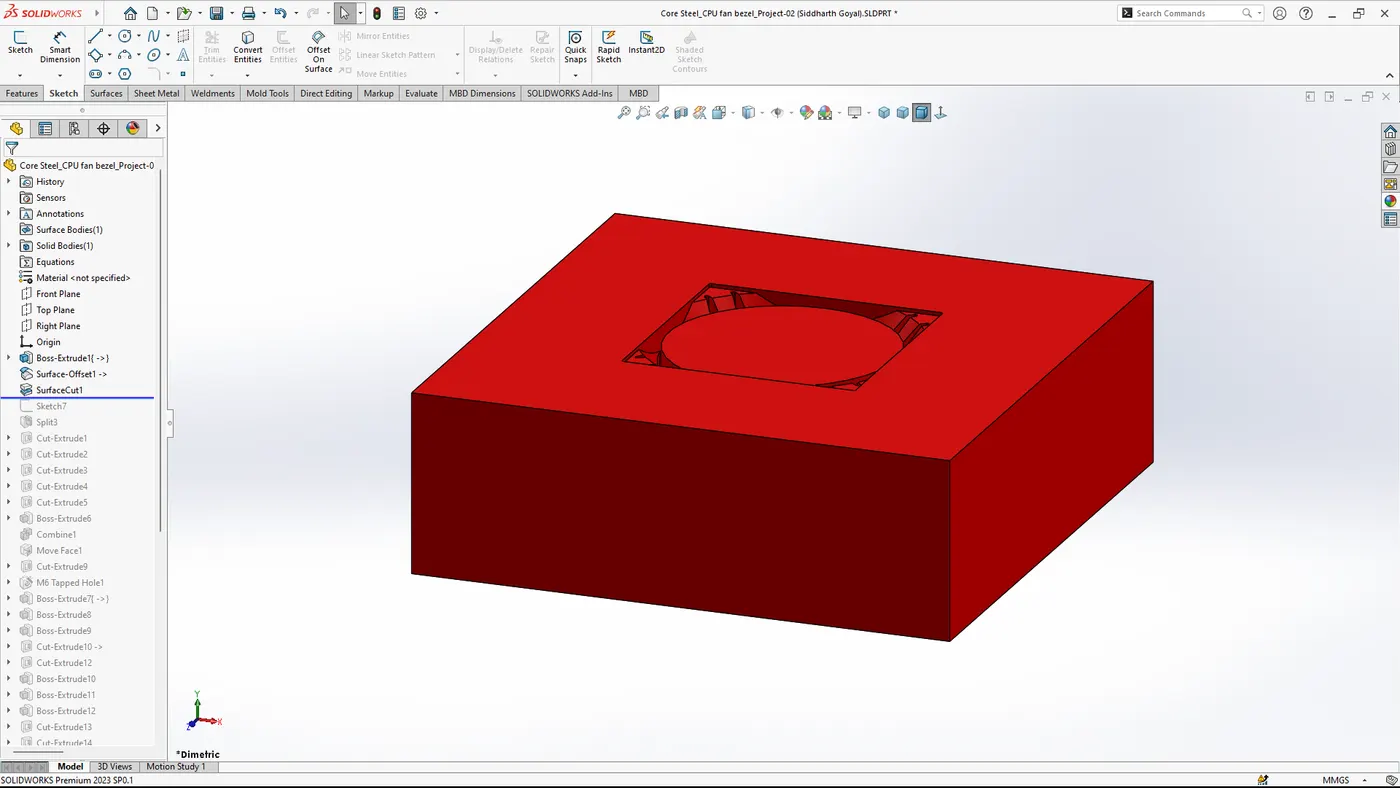

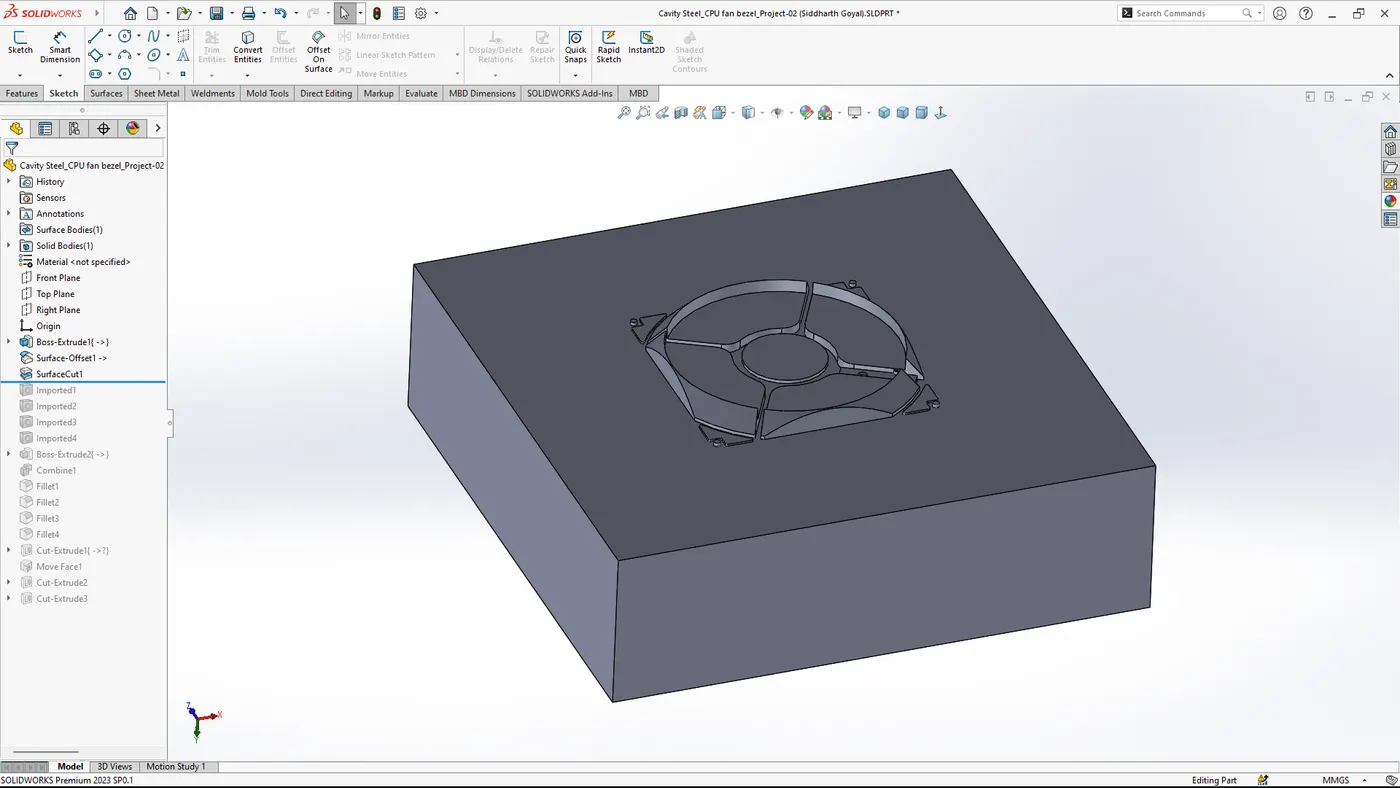

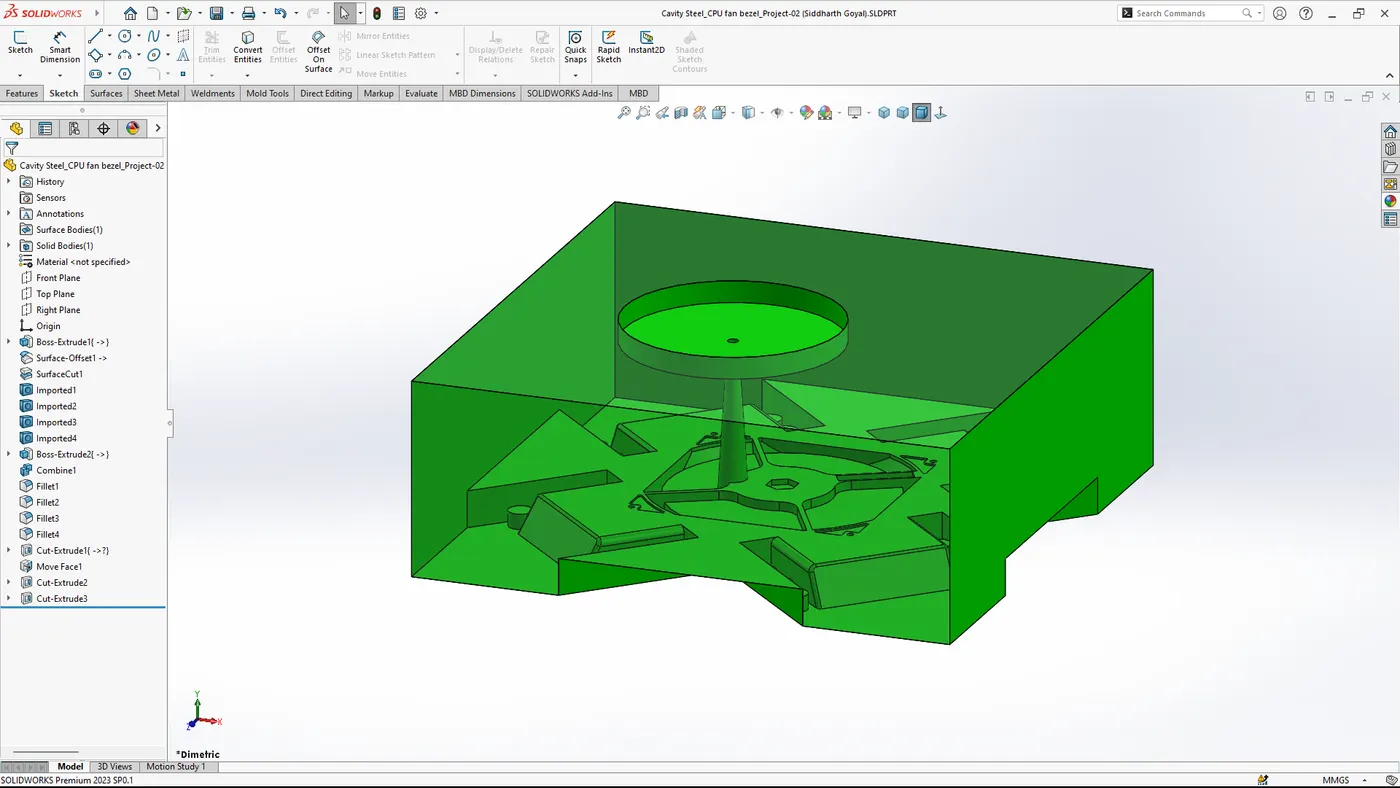

5. Core and Cavity Creation:
   - Use the `Tooling Split` command to separate the model into core and cavity.
   - Access this via `Insert > Mold Tools > Tooling Split`.
   - Define the direction of pull and confirm the core and cavity are properly divided.

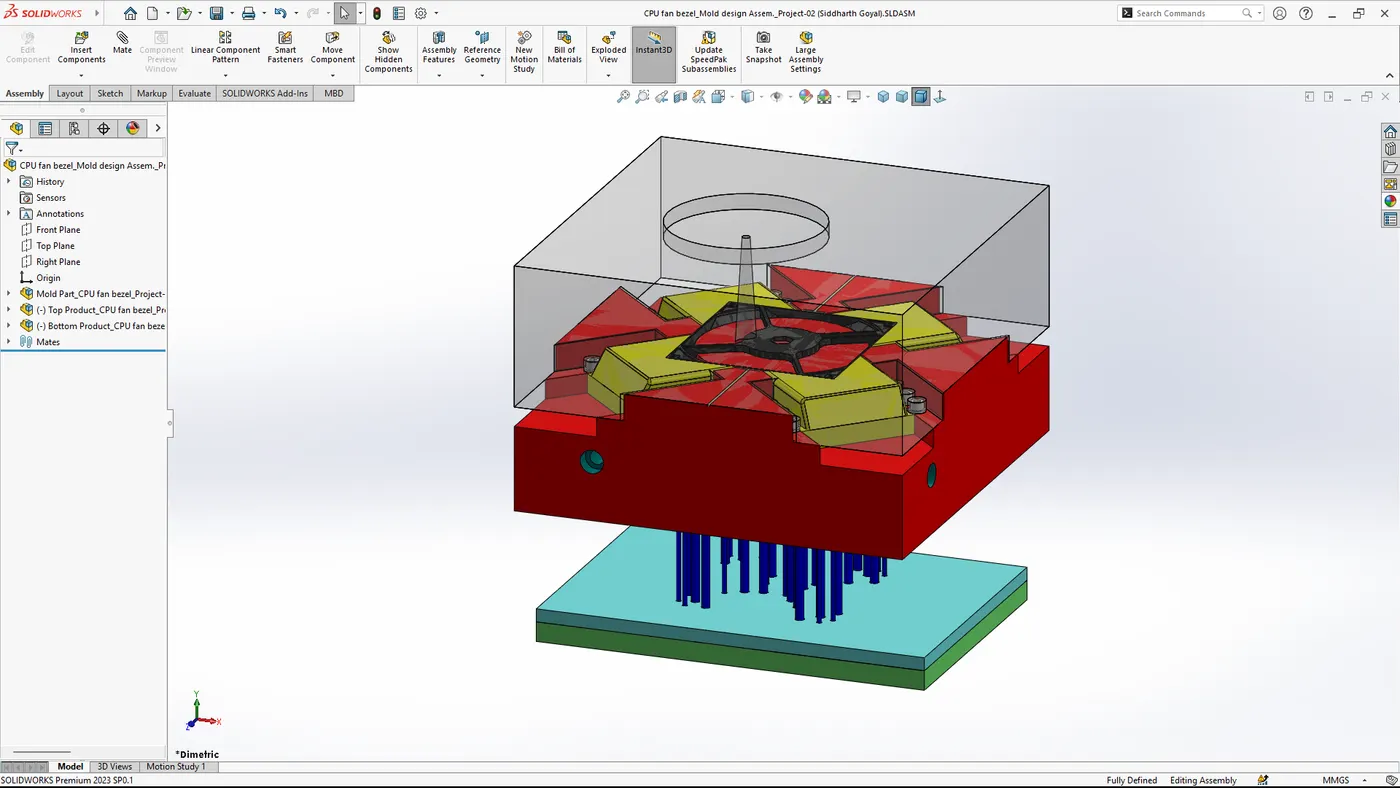

6. Generate the Mold Base:
   - Choose an appropriate mold base from the SolidWorks Mold Base Library.
   - Customize the mold base dimensions to fit the CPU fan bezel model.





5. Finalizing the Mold Design

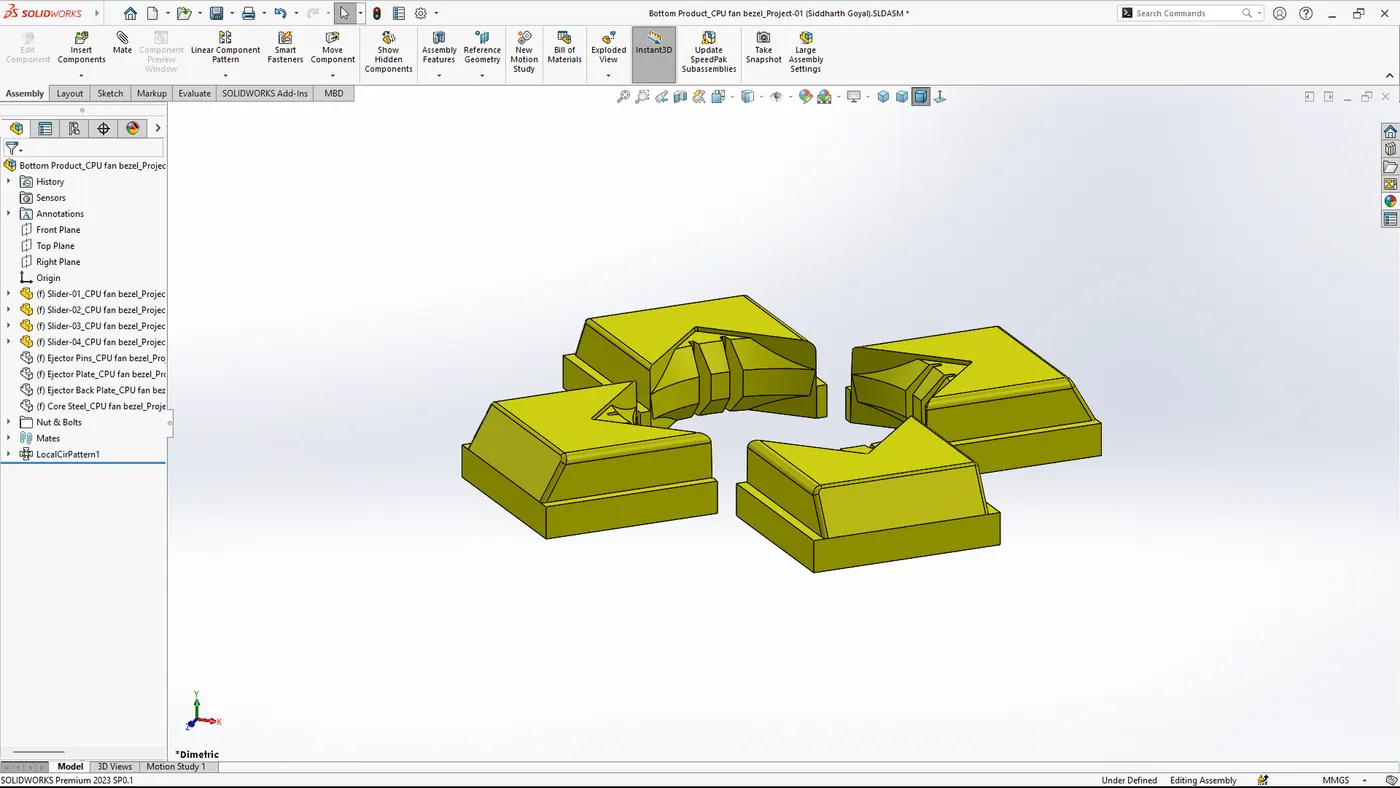

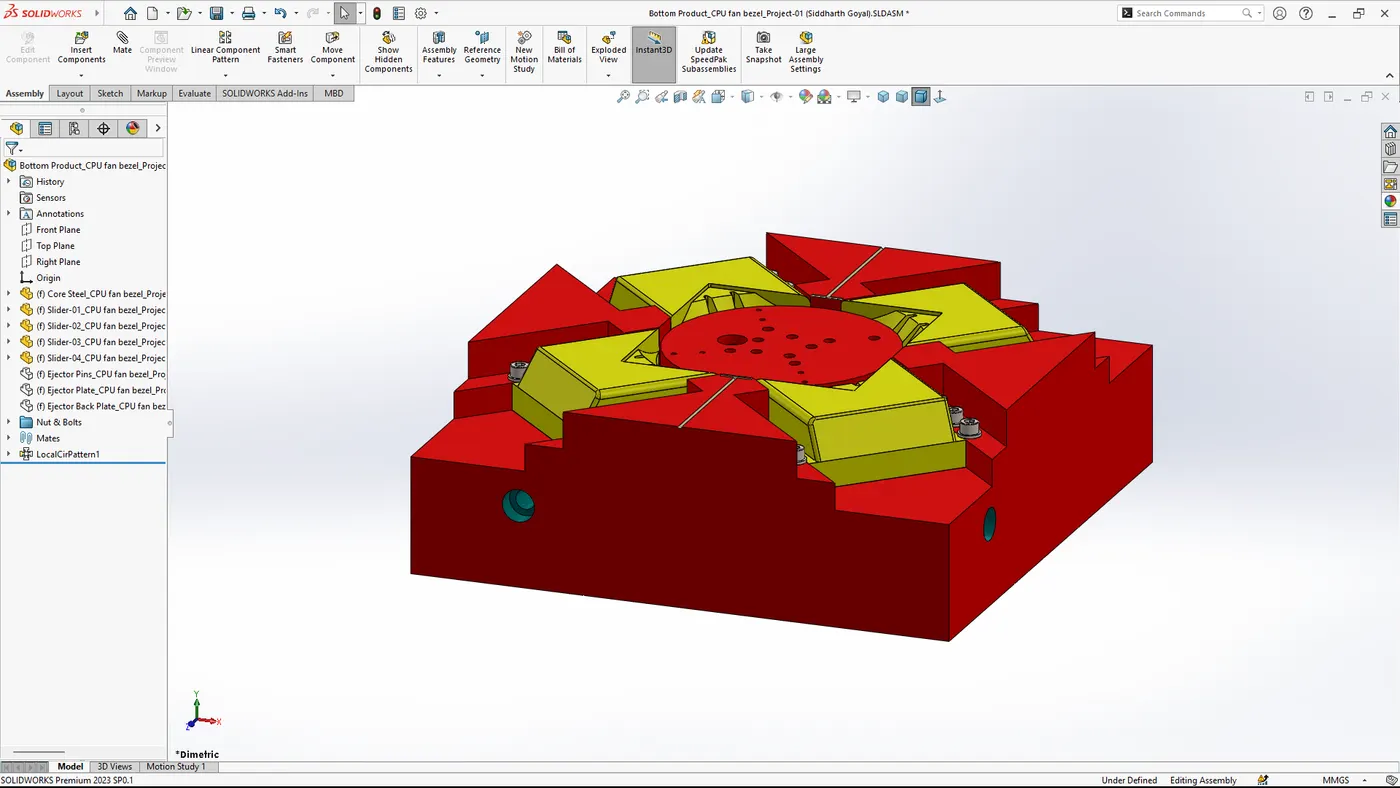

1. Add sliders:
   - Add sliders wherever the undercuts are present.
   - Sliders provides the easy ejection of the molded parts.

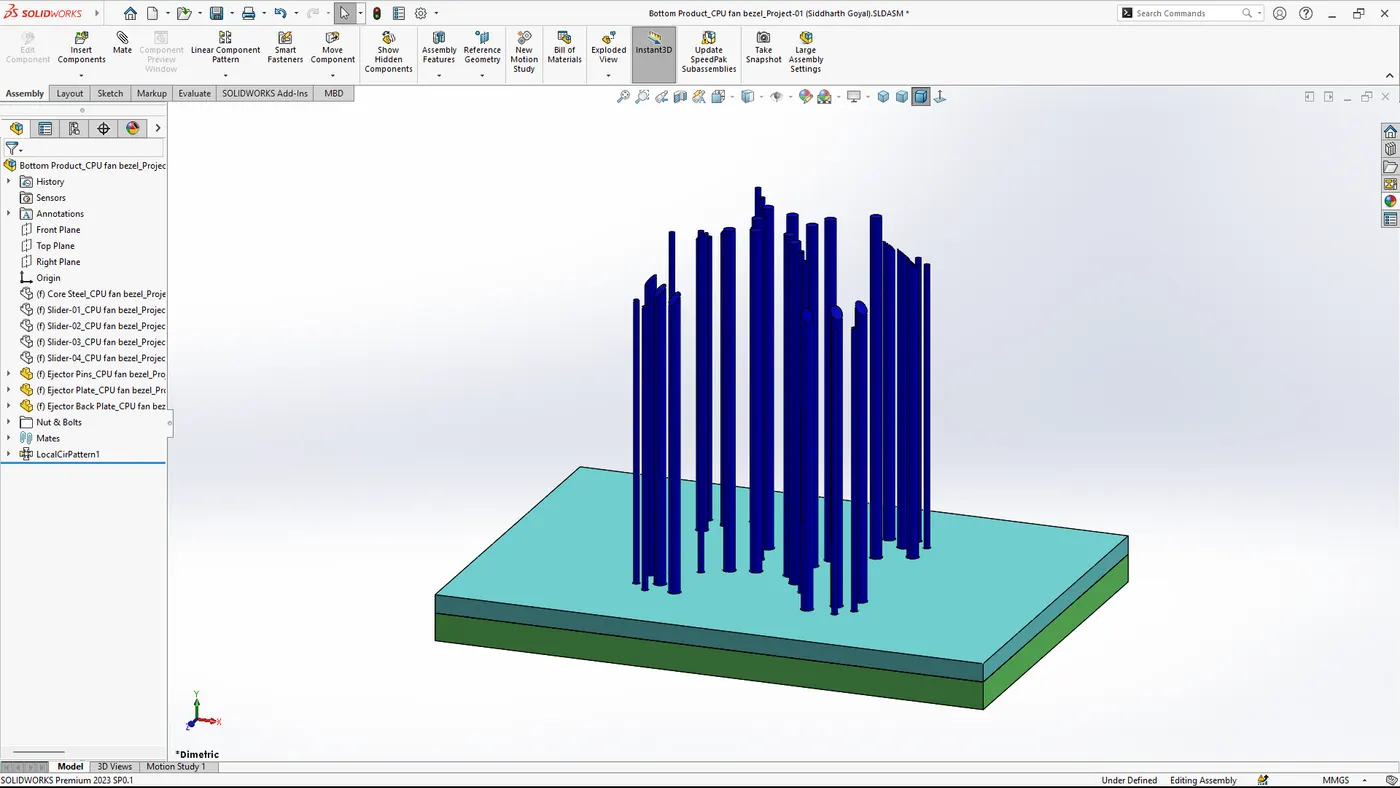

2. Add Ejector Pins:
   - Insert ejector pins where necessary to ensure the part can be ejected from the mold without damage.
   - Use `Insert > Mold Tools > Ejector Pin`.

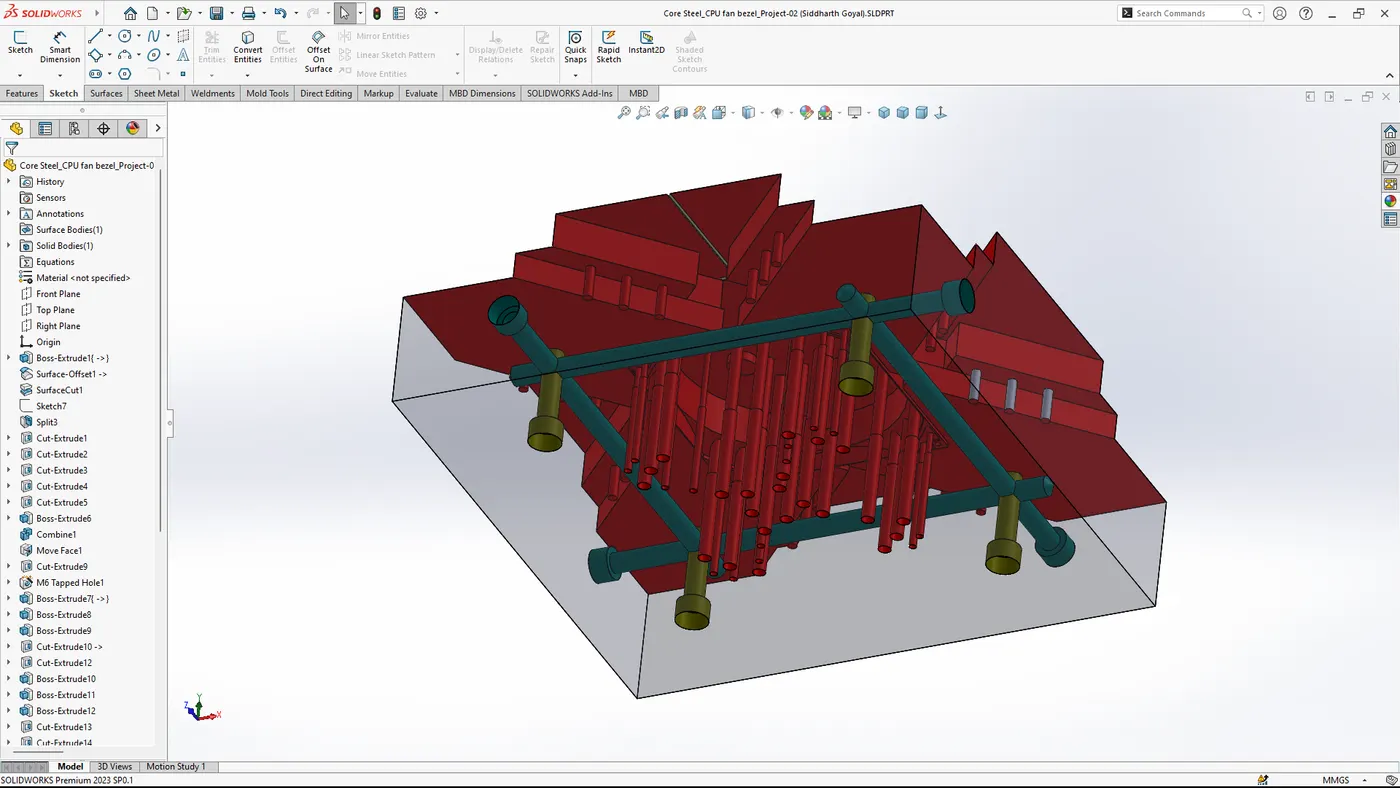

3. Cooling Channels:
   - Design cooling channels to ensure the mold can be cooled effectively during the injection process.
   - Access this via `Insert > Mold Tools > Cooling Channel`.



4. Create Runner System:
   - Design the runner system to allow molten material to flow into the mold cavity.
   - Utilize `Insert > Mold Tools > Runner`.



6. Simulation and Validation

1. Mold Flow Simulation:
   - Run a mold flow simulation to identify potential issues with the injection process.
   - Use `SolidWorks Plastics` to perform the simulation.
2. Validate Draft Angles:
   - Ensure all surfaces have appropriate draft angles to facilitate mold release.

7. Conclusion

This report details the step-by-step process of designing a mold for a CPU fan bezel in SolidWorks. By following these steps, a functional and manufacturable mold can be created, ensuring efficient production and high-quality parts.
