Project 2

WIRING HARNESS FOR BACK DOOR

AIM:

• To route the wiring harness for the given Tailgate.
• Application of all Packaging rules, Industry best practices studied in this course shall be demonstrated in design.
• Apply Protection coverings as required.

INTRODUCTION:

WIRING HARNESS OR CABLE HARNESS:

A cable harness, also known as a wire harness, wiring harness, cable assembly, wiring assembly, or wiring loom, is an assembly of electrical cables or wires which transmit signals or electrical power. The cables are bound together by a durable material such as rubber, vinyl, electrical tape, conduit, a weave of extruded string, or a combination thereof.

                                                                      1. Wiring Harness

Cable harnesses are usually designed according to geometric and electrical requirements. A diagram is then provided (either on paper or on a monitor) for the assembly preparation and assembly.

The wires are first cut to the desired length, usually using a special wire-cutting machine. The wires may also be printed on by a special machine during the cutting process or on a separate machine. After this, the ends of the wires are stripped to expose the metal (or core) of the wires, which are fitted with any required terminals or connector housings. The cables are assembled and clamped together on a special workbench, or onto a pinboard (assembly board), according to design specification, to form the cable harness. After fitting any protective sleeves, conduit, or extruded yarn, the harness is either fitted directly in the vehicle or shipped.

PACKAGING RULES:

• Wiring harness routing shall provide ease in manufacturing, accessibility, easy removal, and easy maintenance of attached equipment and wiring harness.
• Routing through small structural holes and openings shall be avoided, minimizing chafing and handling the wiring harness during installation.
• Avoid the harness routing and clipping in the Blind zone of the Operator during harness assembly or in service.
• Routing shall offer protection against possible damage through common misuses such as being handhold and temporary support for test equipment.
• Provide additional slack to the harness according to the surroundings and harness bending requirements.
• Ensure the routing meets the clearance requirements with different surrounding parts.
• Avoid routing over the bolts, near to the bolted joints. It may damage the harness or puncture the harness. Keep harness away from panel mounting screws.
• Avoid harness routing near sharp edges, if not possible provide protection to the harness.
• The maximum distance between two clips on a straight branch is 200mm.
• Provide Clips and clamps if the harness is going to bend at multiple locations.
• The use of too many sheet-metal brackets should be avoided.
• The branch length should be more than 50 mm.
• Min distance between clip and branching point to be 25 mm.
• Min distance between two branch breakouts should be 50 mm.

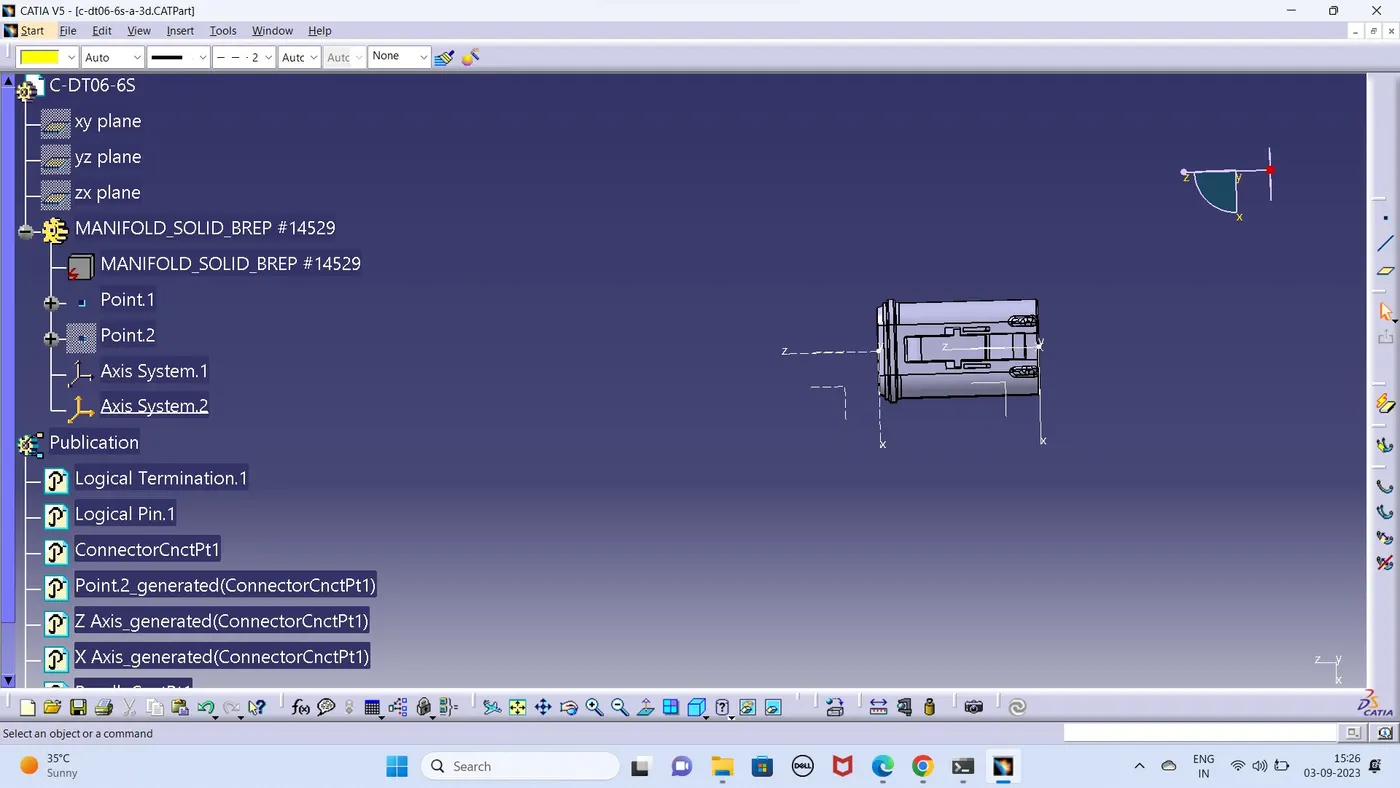

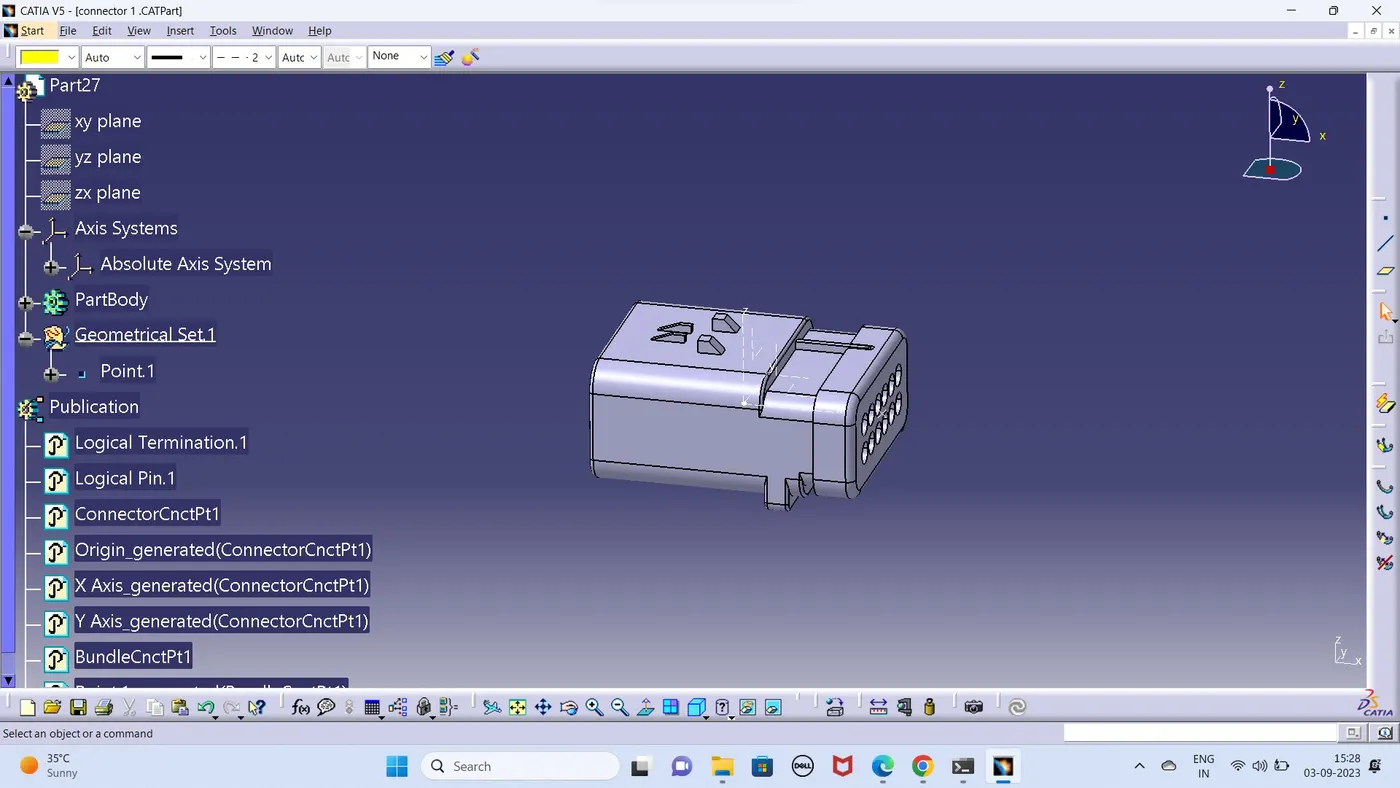

CONNECTOR USED

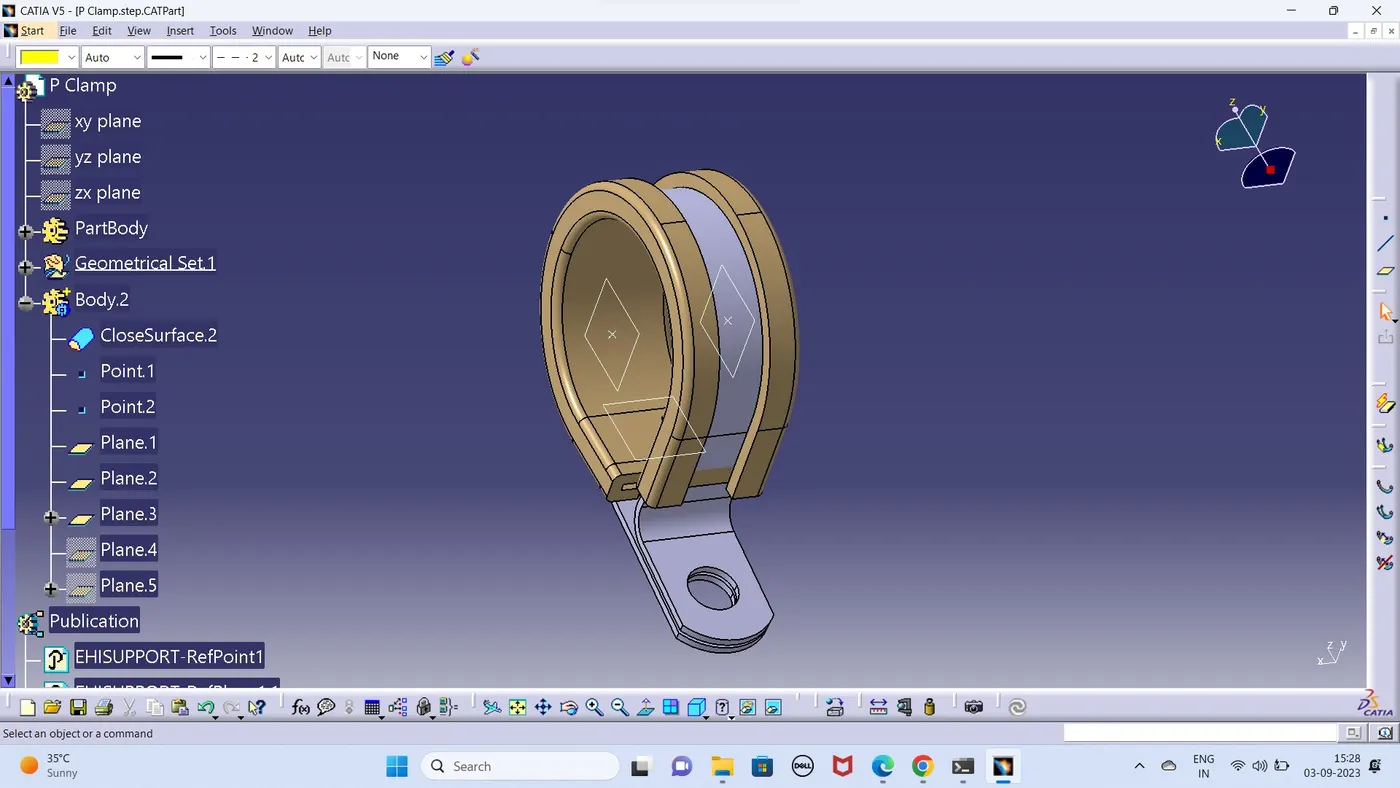

MOUNTING  CLIP USED

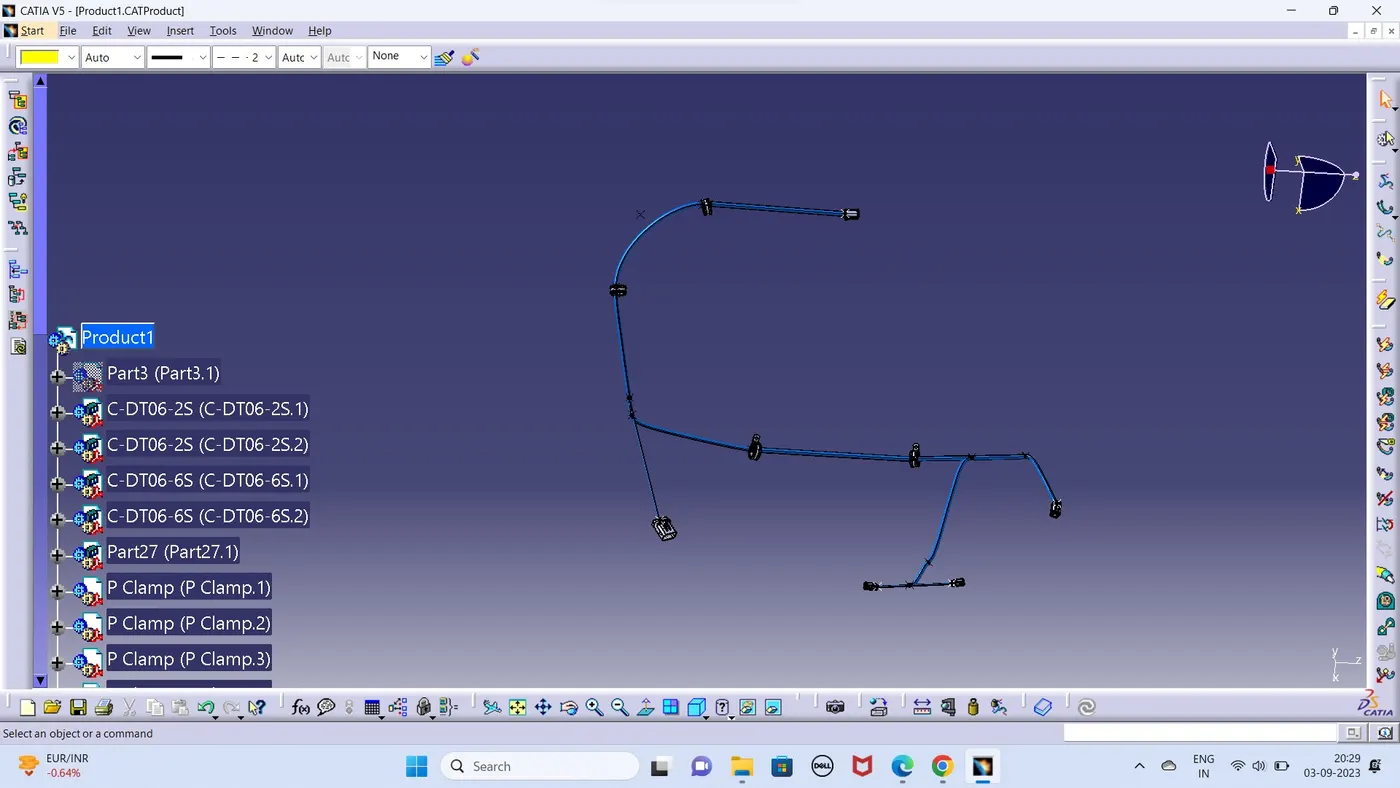

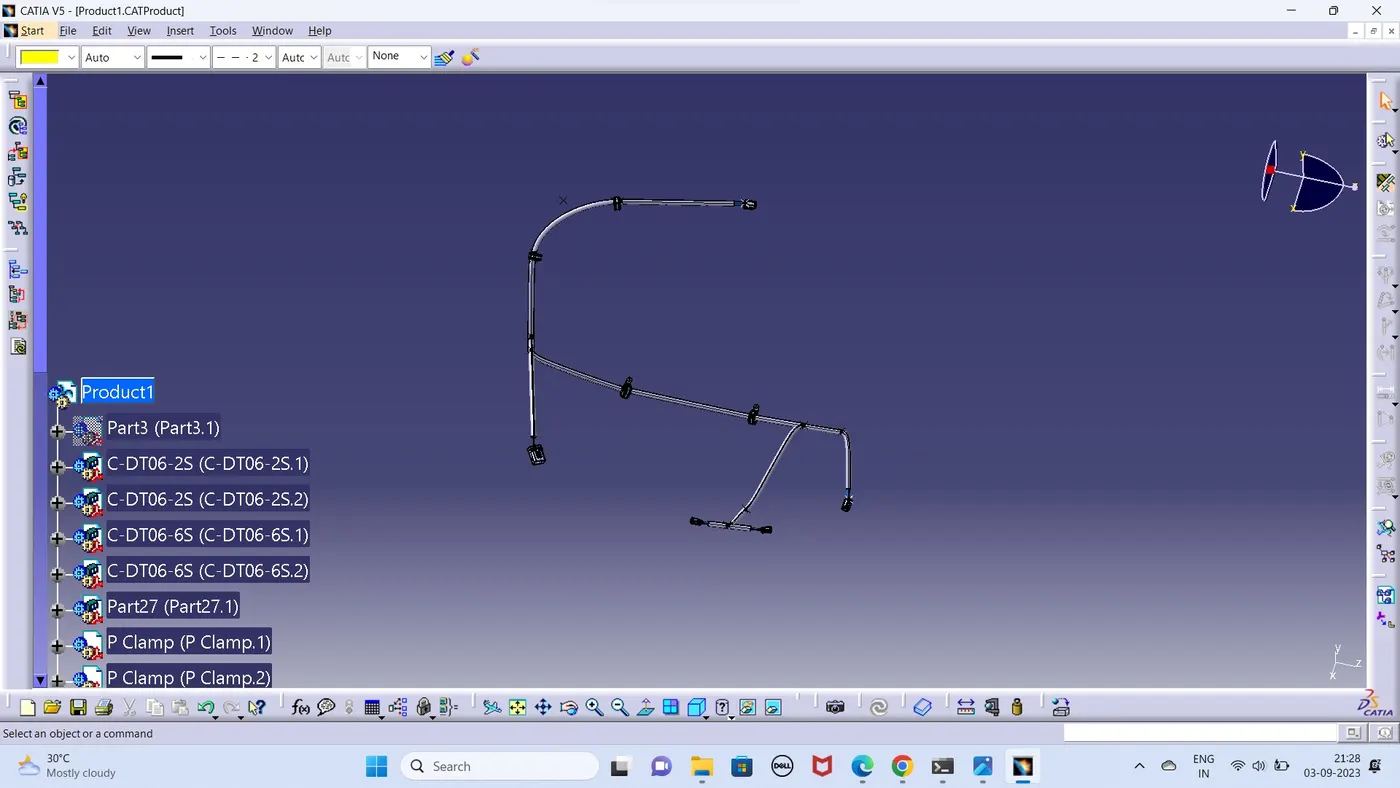

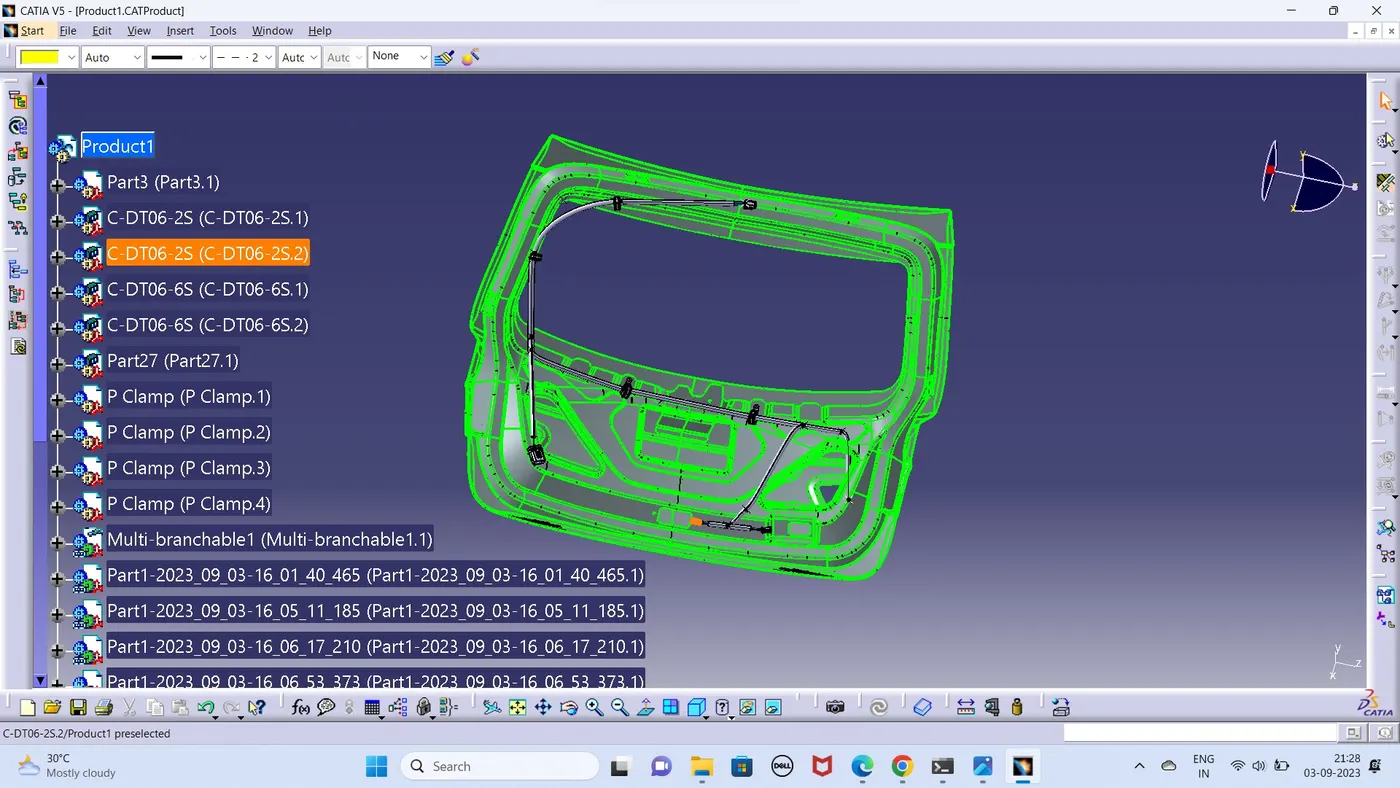

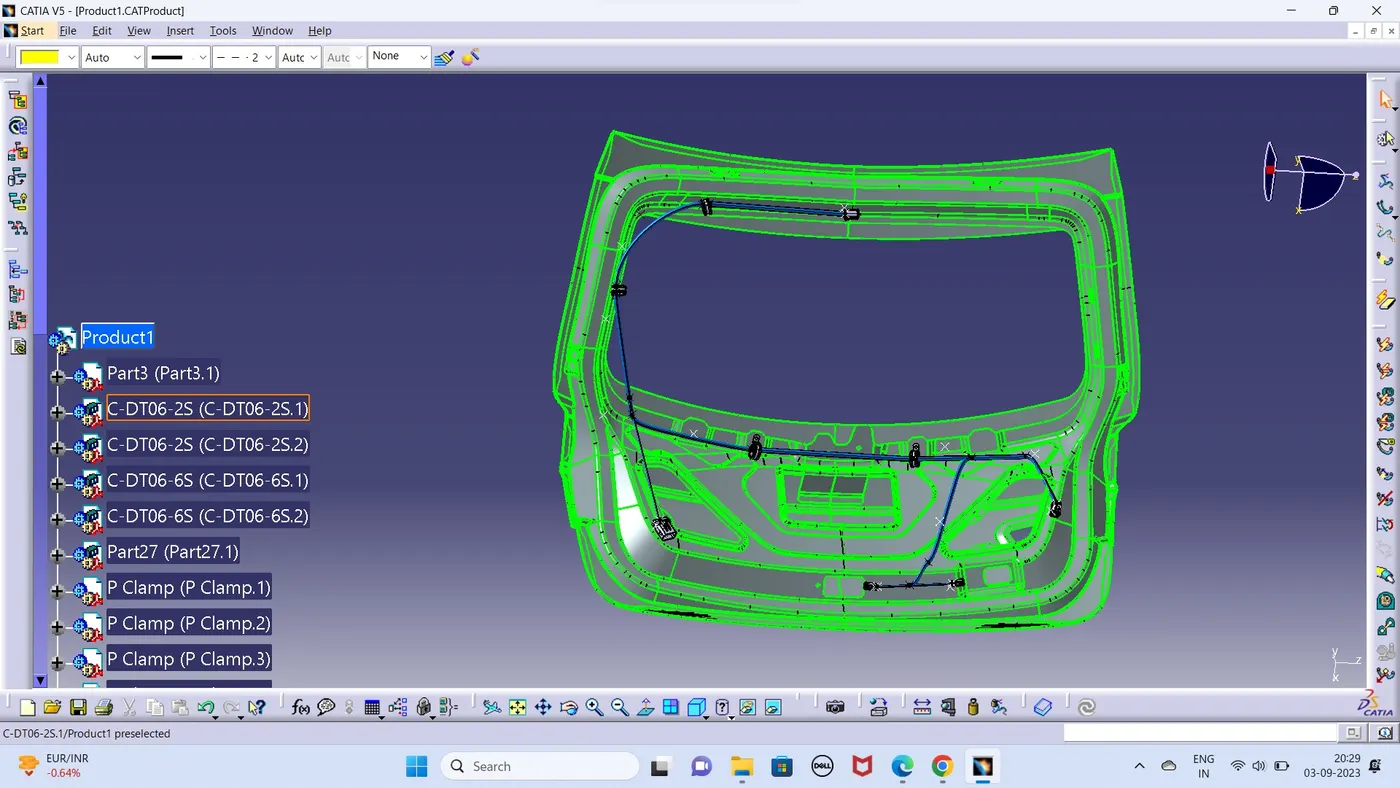

ROUTING

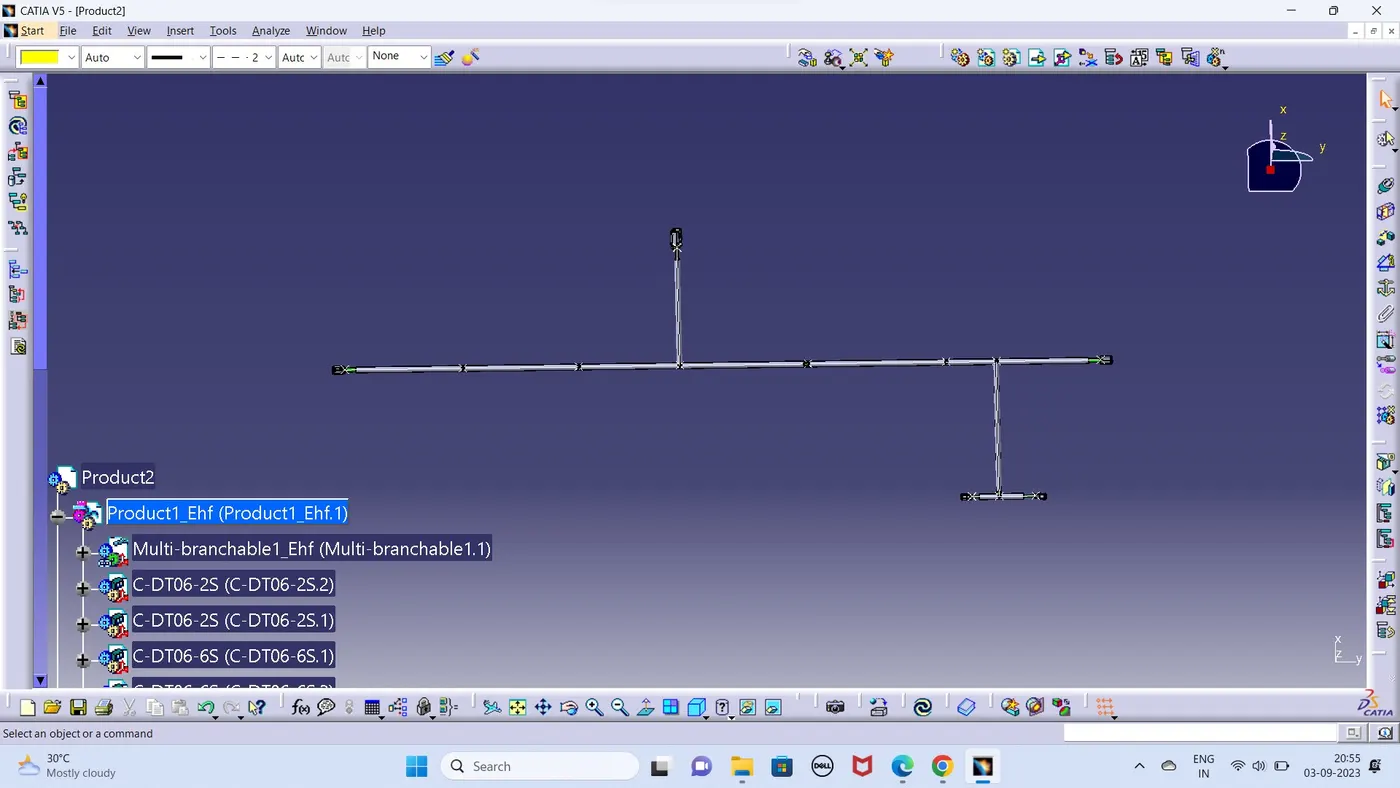

STRAITNING

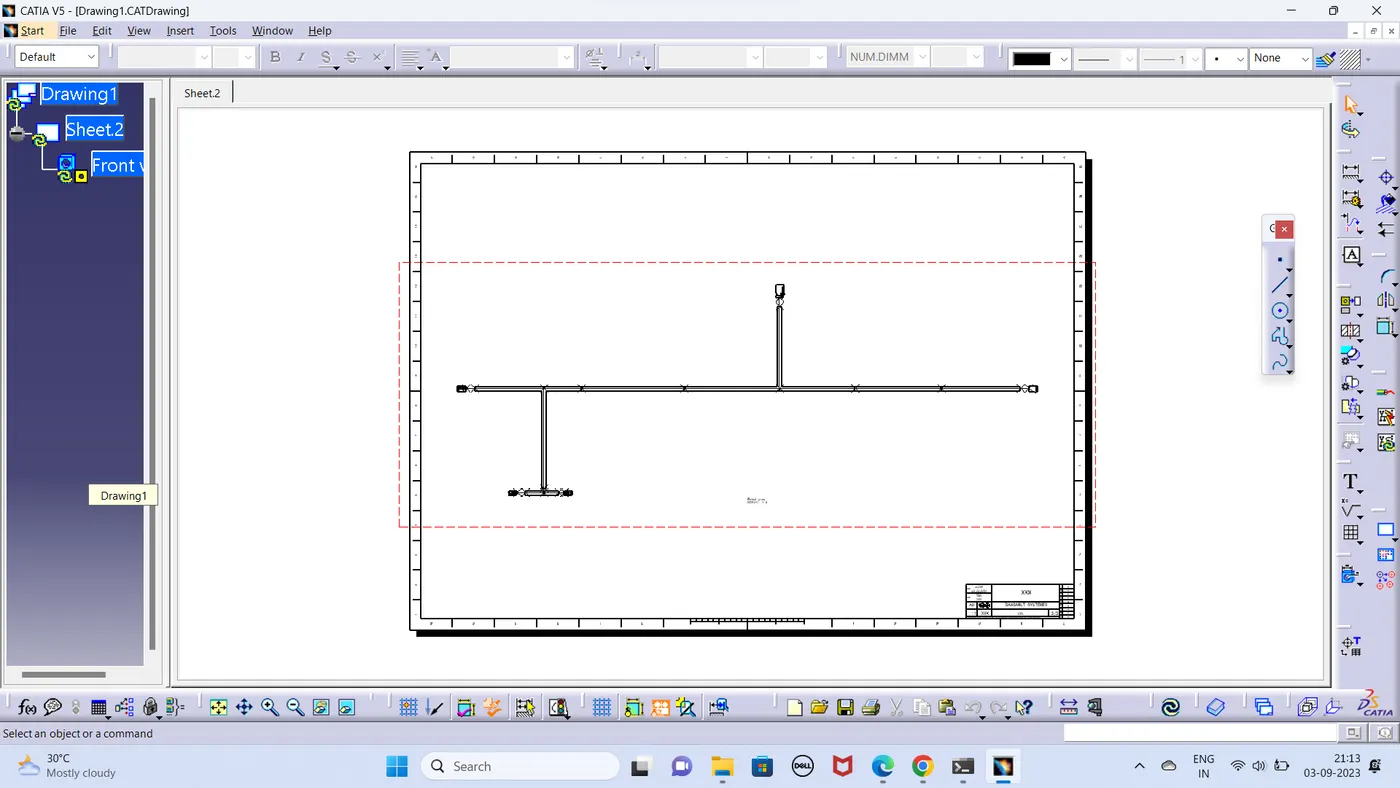

DRAWING

FILE SIZE IS MORE THAN 20 MB THAT IS WHY I ATTACHED WITH GOOGLE DRIVE
