Project 2

AIM:

To complete the PROJECT-2 as per the given data.

PROCEDURES AND DEATAIL:

1. Design a Warehouse Building located in Chennai using STAAD Pro Connect Edition. The specification must be as follows:



Width	30m
Length	50m
Eave Height	9m
Bay spacing	6m
Soil type	Medium
Safe Bearing Capacity	200 kN/m2
Roof slope	1 in 12

Assume suitable sections for structural elements. Follow IS800:2007, IS1893 and IS 875

1. Prepare a Design Basis Report for the project
2. Create structural model using STAAD Pro Connect Edition
3. Prepare DL, LL, WL and EQL load calculations as per IS 875 standards
4. Design using MS – Excel
   • Steel column
   • Rafter
   • Base plate
   • Pedestal
   • Z- purlin

1. Design Foundations using STAAD Foundation.
2. Attach necessary sketches and drawings wherever required.
3. All stipulations, assumptions and design parameter must adhere to Indian Standards.

Solution:

ROOF SLOPE CALCULATION:

Roof Slope  = 1 in 12

Width, b     = 30 m

X / (b/2)    = 1/12

X               = (30/2) / 12  =  15/12

X              = 1.25 m

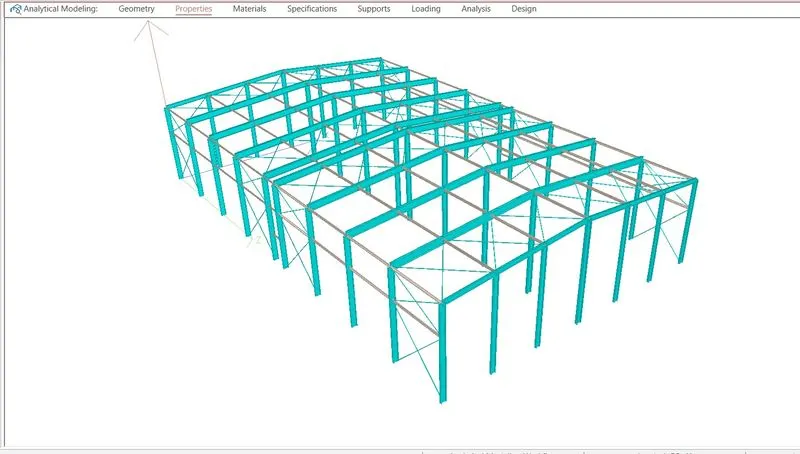

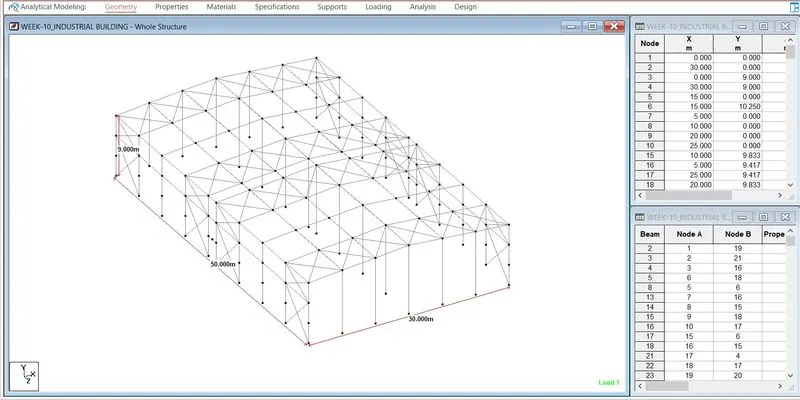

GEOMETRY / MODEL CREATION:

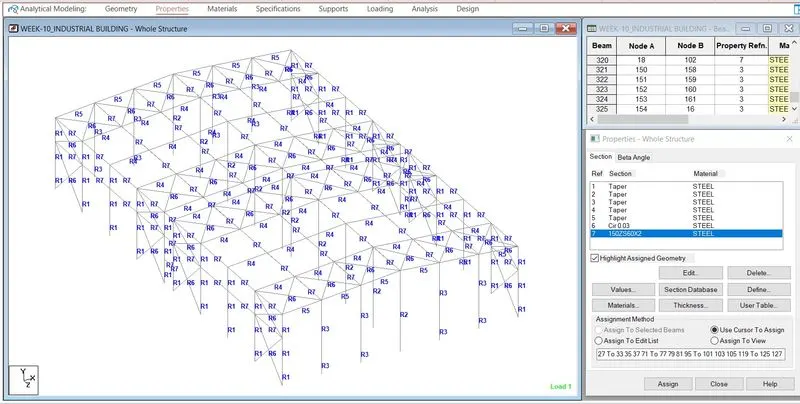

PROPERTIES:



3D VEIW OBJECT:

Material: STEEL

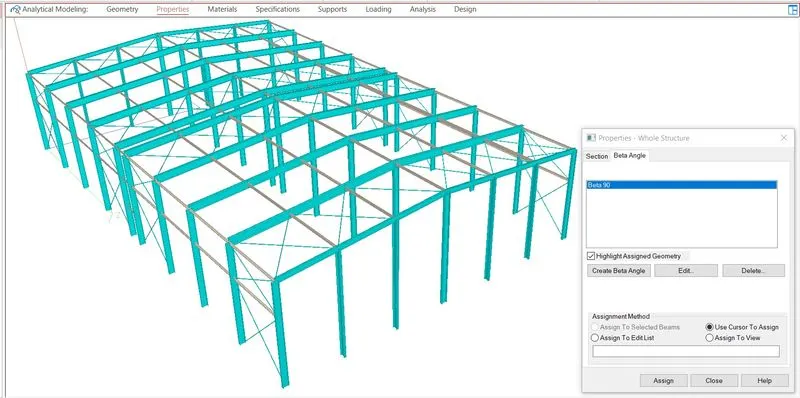

BETA Angle 90 degree for wind / gable columns

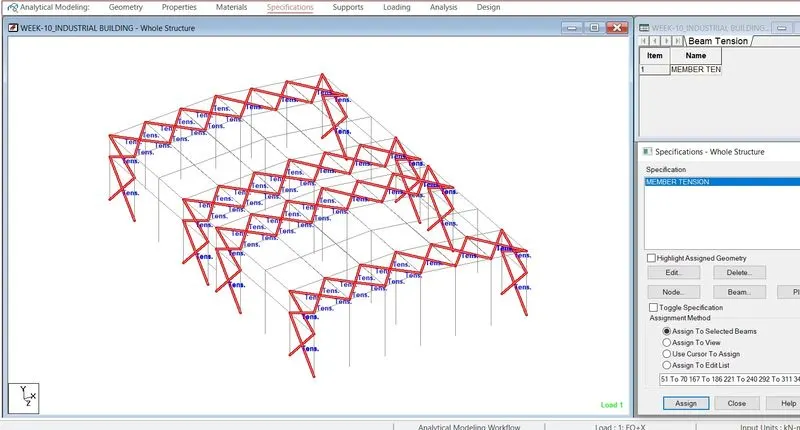

SPECIFICATION:

• Member Tension
• End MY MZ
• Start MY MZ

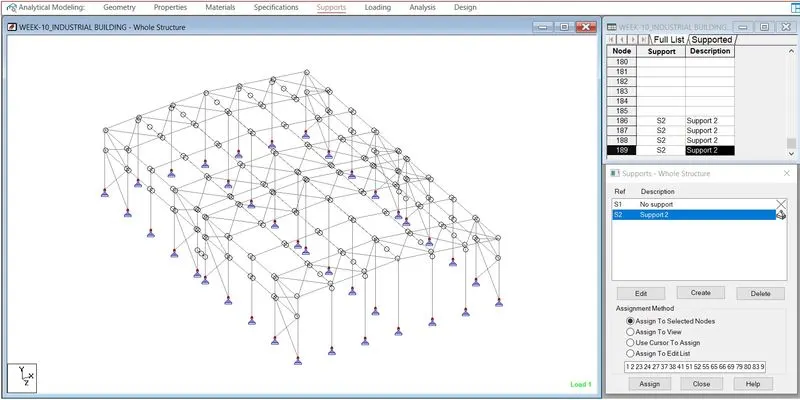

SUPPORT:

• Pinned

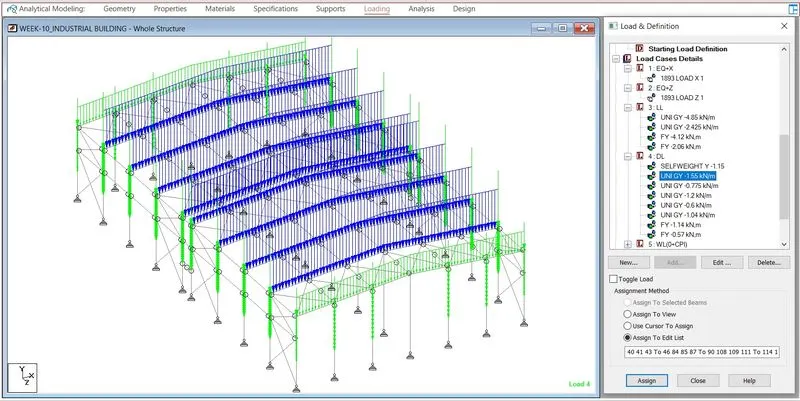

LOAD CASE DEFINATION:

1. EQ+X

• IS 1893 Load-X 1

2. EQ+Z

• IS 1893 Load-Z 1

3. DEAD LOAD

• Self weight Y -1.15
• Main frame rafter GY -1.55 KN/m
• Gable frame rafter GY -0.775 KN/m
• Main frame column GY -1.2 KN/m
• Gable frame column GY - 0.6 KN/m
• Gable / wind column GY -1.04 KN/m
• Wind frame point load FY - 1.14 KN/m
• Gable frame point load FY -0.57 KN/m

4. LIVE LOAD

• Main frame rafter GY -4.85 KN/m
• Gable frame rafter GY - 2.425 KN/m
• Wind frame point load FY - 4.15 KN/m
• Gable frame point load FY - 2.06 KN/m

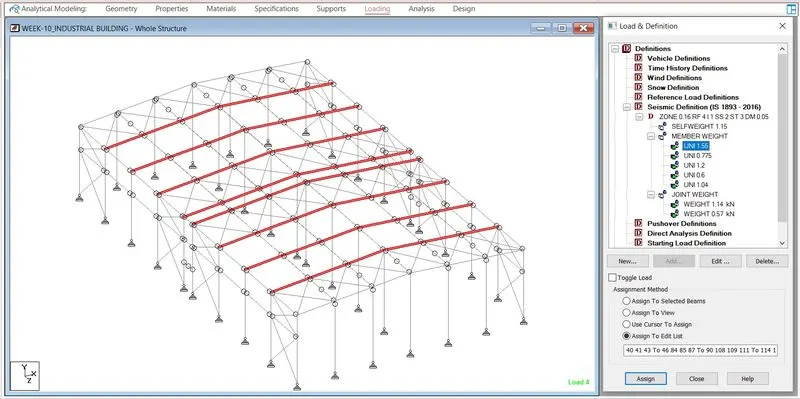

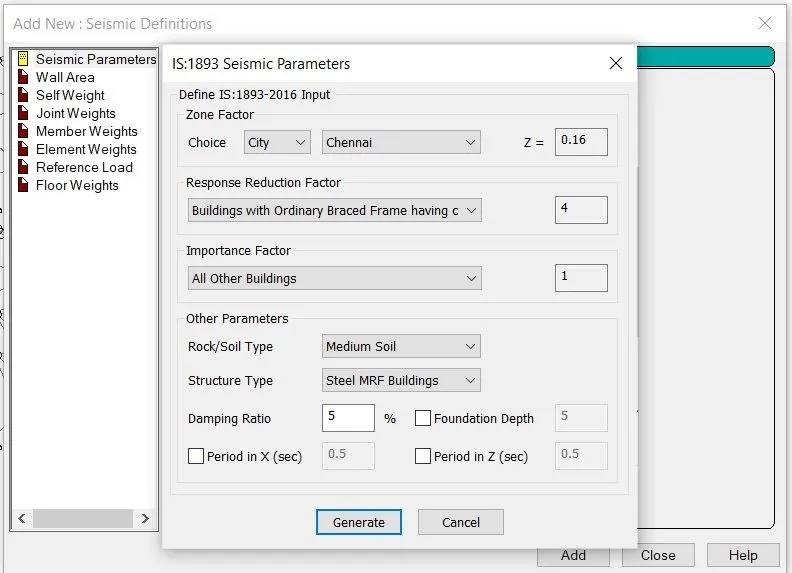

SEISMIC DEFINATION:

Zone Parameters:

Member Weight:

Assign to Edit list from followed by the Dead Load

• Self weight Y -1.15
• Main frame rafter GY -1.55 KN/m
• Gable frame rafter GY -0.775 KN/m
• Main frame column GY -1.2 KN/m
• Gable frame column GY - 0.6 KN/m
• Gable / wind column GY -1.04 KN/m

Joint Weight:

Assign to Edit list from followed by the Dead Load (point load)

• Wind frame point load FY - 1.14 KN/m
• Gable frame point load FY -0.57 KN/m

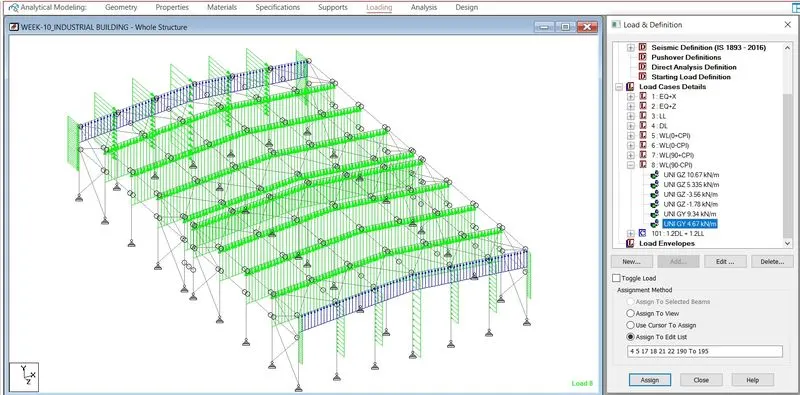

LOAD CASE DEFINATION:

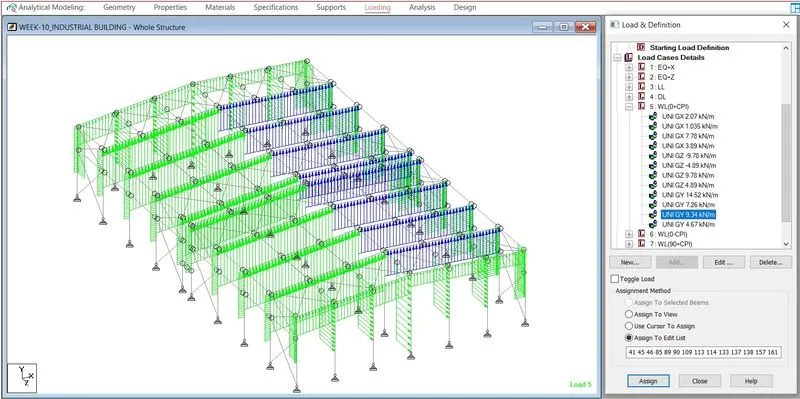

5. Wind load (0+CPi)

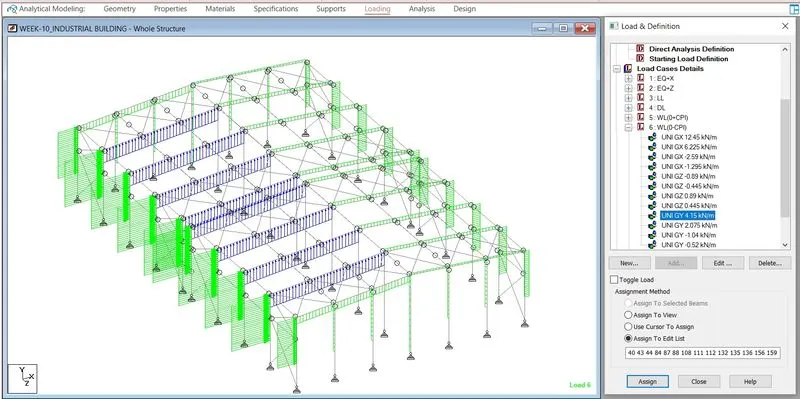

6. Wind load (0- CPi)

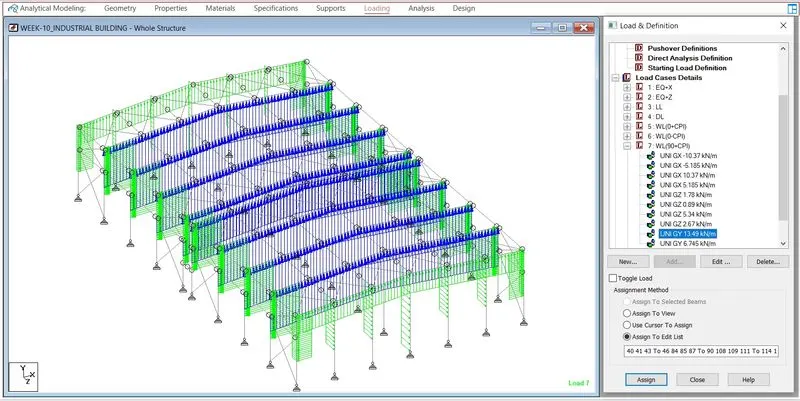

7. Wind load (90+CPi)

8. Wind load (90- CPi)

DESIGN OF STEEL COLUMN:

Solution:

Flange thickness = T = 12.7 mm.

Overall height of Column ISMB400 = h = 400 mm.

Clear depth between flanges = d = 400 – (12.7 x 2)
= 374.6 mm.

Thickness of web = t = 10.6mm.

Flange width = 2b = bf = 250 mm.

Hence, half Flange Width = b = 125 mm.

Self –weight = w = 0.822 kN/m.

Area of cross-section = A = 10466 mm2.

Radius of gyration about x = rx = 166.1 mm.

Radius of gyration about y = ry = 51.6 mm.

Type of section:

b/T = 125/12.7= 9.8 < 10.5

d/t =374.6/10.6 =35.3 < 42

(Table 3.1 of IS: 800)

Hence, cross-section can be classified as “COMPACT”.

Effective Sectional Area, Ae = 10,466 mm2

(Since there is no hole, (Clause 7.3.2 of IS: 800)
no reduction has been considered)

Effective Length:
As, both ends are pin-jointed effective length, KLx = KLy = 3m

Slenderness ratios:

KLx/rx = 9000/166.1 =54.1

KLy/ry = 9000/51.6 =174.41

Non-dimensional Effective Slenderness ratio, λ">λ3.3X728:

λ">λ =

    =2.5X(174)2π2X2X105">√2.5X(174)^2/π2X2X10^5= 3.83

Value of ϕ">ϕϕts=√2.5w(a2−0.3b2)γm0fy>tf from equation:

Hence, α">αα = 0.34 for buckling class ‘b’ will be considered.
Hence, ϕ">ϕϕ = 0.5 x [1+0.34 x (0.654-0.2)+0.6542] = 0.791

Calculation of x from equation x:

 = 0.809

Calculation of fcd from the following equation:

= 0.809 x 250/1.1 = 183.86 N/mm2

Factored axial load in kN.
pd = Ag fcd
    = 10466 x 183.86/1000 = 1924.28 kN.

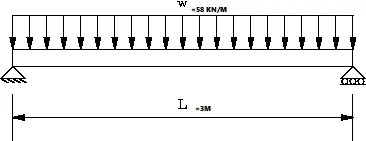

DESIGN OF RAFTER:

Solution:

Span of Rafter = 6 m

Dead load = 18KN/m

Imposed load = 40KN/m

support bearing = 100mm

yield strength = 250N/mm2

Design load calculation:

Factores load 1.5(DL+LL) =87 KN/m

Factores Bending moment = Wl28">106Wl28">Wl28��28= 65.25 KN/m

Section modulus Required:

Z reqd = (65.25 x x1.1) /250 =287100 mm3 = 287.1 cm3

Section classification:

ISMB-200

A = 323.3 mm2

D = 200mm

B = 100mm

t = 5.7 mm

T = 10.8 mm

Ixx = 2235.4 cm4

Iyy = 150 cm4

Zp = 375.35 cm3

Moment of resistence of the cross-section:

Md = βbZpfyγm0">βbZp/fyγm

      = (1 x 375.35 x 250) / ( 1.1)

Md = 85.306 > 65.25 KN/m

DESIGN OF BASE PLATE:

Strength of concrete, Fcu = 40 N/mm2

Yield strength of steel, fy = 250 N/mm2

Material factor, γm">γmγmFA−6XMzBL2= 1.1 KN

Factoresl oad = 1500 KN

Steel column section:

Thickness of flange, T = 12.7 mm

Area required:

Bearing strength of concrete = 0.4fcu = 0.4 x 40 = 16 N/mm2

                                          = (1500x1000) /( 16)

                                          = 93750 mm2

Let size of plate , Bplate = 450 mm

                          Dplate = 300 mm

                 Area of plate= 135000 mm2

projection on each side = a=b =25mm

W = (1500x1000) /( 450 x 300)

     = 11.11 N/mm2

Therefore, Thickness of Base Plate, clause 7.4.3.1

LXσ1σ1+σ2

ts= 7.3 mm < 12.7 mm

Size of Base plate 450 x 350 x 16 mm

DESIGN OF PEDESTAL:

Grade of concrete = 40 N/mm2

Load                    = 200 KN

Moment               = 120 KN

Horizontal shear   = 20 KN

Yield strength       = 250 N/mm2

Length of base plate = 450 mm

Width of base plate = 350 mm

C/C distance of bolt in group-Z = 300 mm

C/C distance of bolt in group-X = 180 mm

Bearing strength of concrete Fc = 16 N/mm2

Depth of Column = 300 mm

Width of Column = 250 mm

Anchor Bolt Details

Dia of anchor bolts =24 mm

No:of anchor bolts in each side = 4

Total no:of anchor bolts, n = 8

Gross area of the bolt ;Asb' = 452.16 mm2

Net area of bolt 'Anb' = 352 mm2

Ultimate tensile strength of bolt 'fub' = 400 N/mm2

Fyb (anchor bolts) = 240 N/mm2

Base plate Details

Ultimate tensile strength of plate 'fu' = 490 N/mm2

Thickness of plate = 16 mm

Yield stress of plate = 330 N/mm2

Anchor bolt design

Area of the plate =  157500 mm2

Stress,   Maximum pressure =FA+6XMzBL2">F/A+6XMz/BL2

= 10.6 N/mm2 < 16 Hence OK

             Minimum pressure =

                                         = -9.04 N/mm2 < 16 Hence OK

 Centroid = = 242.89 mm

a =L/2-C/3 = 144.04 mm

e = (L-Ld) / 2 =75 mm

y = (L - C/3-e) = 294.04 mm

Tension in anchor bolt along the length of plate, FT = (Mz - Fa)/Y

                                                                          = 364.38

Tension per bolt                                                   = 91 KN

Shear per bolt                                                     = 1.63 KN

Shear Check

Factored shear force = Vsb = 1.63 KN

                                 Vd,sb = 81290.9 N

                                          = 81 KN

Factored                      = 65.03 KN

Tensile Check

Factored tensile force in bolt, Tb = 91.1 KN

Tensile strength of bolt        Ts,b = Tn,b /γmb">γmb= 126 KN

Td,b = 98.65 KN

Combined Unity Check

Vsb/Vdb = 0.025

Tb/Tdb = 0.92

Unity check = 0.85 <  1, Hence OK

Anchor Bolt Length

 Bond strength in tension, τbd">τbd= 1.4 N/mm2

Anchor length required = Tb(3.14*τbd">τbd)

                                  = 863.44 mm

Let Anchor Bolt Length = 900 mm

DESIGN OF Z-PURLIN:

Span of the purlin = 6 m

spacing of purlin = 1.5 m

No:of sag rods = 1

slope of the roof = 4.76 = 5 degree

Dead load:

Weight of sheeting = 6kg/m2

self weight of purlin = 4.22 kg/m2

Additional load = 10% = 0.42 kg/m2

Total Dead load = 0.106 kg/m2

Live load:

Live load on roof = 75 kg/m2

Wind Load:

Basic wind speed = 50 m/s

Terrain caterogy  = 2

Building class      = B

               K1      = 1

               K2      = 1

               K3      = 1

Design wind speed, Vz = 57 m/s

Design wind pressure, Pz = 1949.9 m/s = 1.94 KN

Length of building, L = 50 m

Breadth of building, W = 30 m

Height of building, H = 10.25 m

Height of eaves, = 9 m

                      h/w = 0.34

                      L/w = 1.667

External Pressure Co-eeficient

Maximum downward =Cpe =  -0.4

Maximum upward =Cpe =  -0.7

Internal Pressure Co-eeficient

Maximum positive =Cpi =   0.5

Maximum negative =Cpi =  -0.5

For Maximum upward wind force

Max upward Cpe = - 0.7

Cpi = - 0.5

Cpe+Cpi = -1.2

Pz = 1.95

Wind Pressure for Purlin Design = - 2.339 KN/m2

For Maximum upward wind force

Max upward Cpe = - 0.4

Cpi = - 0.5

Cpe+Cpi = -0.1

Pz = 1.95

Wind Pressure for Purlin Design = 0.195 KN/m2

Design Load Calculation

spacing of purlin 1.5 m

slope of roof = 5degree

Total dead load = 0.096

DL Normal component = 0.144 KN/m

DL Tangential component = 0.013 KN/m

Total Live load = 0.75

LL Normal component = 1.121 KN/m

LL Tangential component = 0.098 KN/m

Total Wind load = -2.339

WL Normal component = - 3.496 KN/m

WL2 WL load = 0.195 KN/m

WL Normal component = 0.291 KN/m

Maximum Normal component = DL+LL = 1.265 KN/m

Purlin section

Selected section Z200 x 6 x 2.3

Area = 8.07 cm2

Weight of purlin = 6.335 kg/m

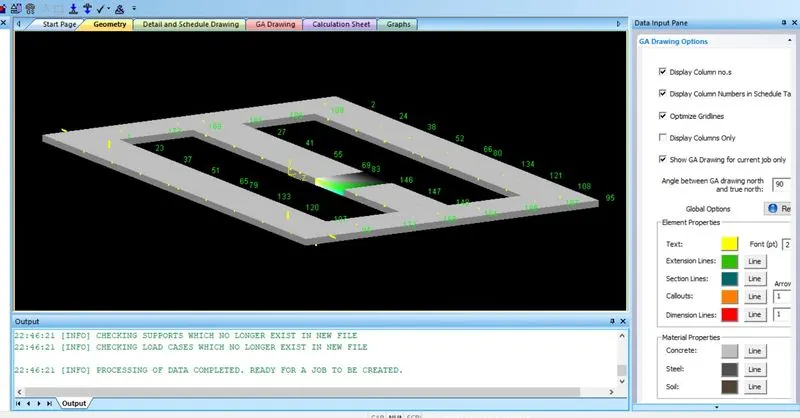

Foundations using STAAD Foundation.

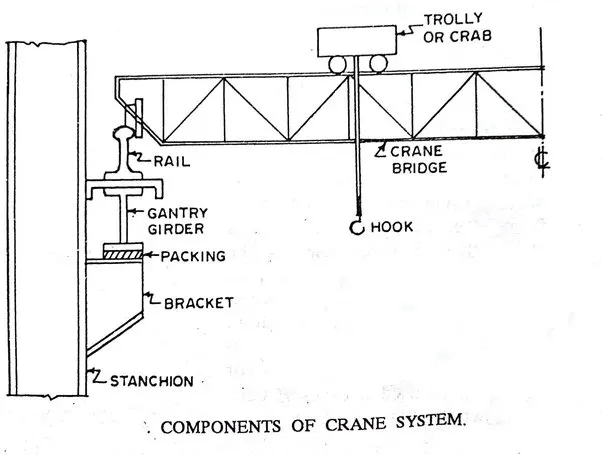

2. Design a simply supported gantry girder to carry electric overhead travelling crane

Given:

Span of gantry girder = 7 m

Span of crane girder = 9 m

Crane capacity = 250 kN

Self-weight of trolley, hook, electric motor etc. = 40 kN

Self-weight of crane girder excluding trolley = 100 kN

Minimum hook approach = 1.0 m

Distance between wheels = 3 m

Self-weight of rails = 0.2 kN/m

Solution:

Maximum moment due to vertical load

weight of trollley + crane capacity = 40 + 250 = 290 kN

Self-weight of crane girder excluding trolley = 100 kN

For maximum reaction on gantry girder, the moving load should be as close the gantry girder as possible.

Ra=290X89+1002=307.77KN">290X8/9+100/2=307.77KN

This load is transferred to gantry girder, through two wheels, the wheel base being 3m.

So load on gantry girder from each wheel = 307.77/2 = 158.88 KN

Factored load = 158.88 x 1.5 =230.83 KN

Maximum moments due to moving loads occur under a wheel when the c.g of wheel load &

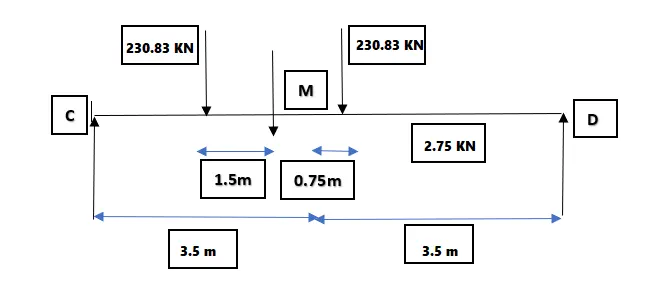

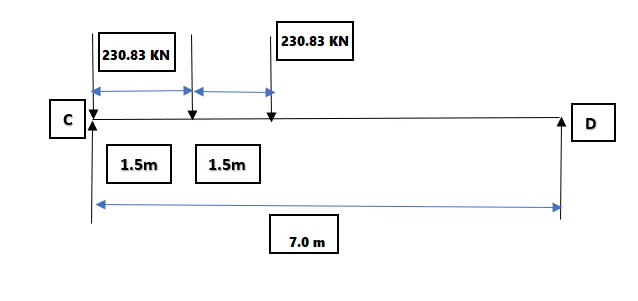

The wheel are equidistant from the ccentre of girder, as shown below.

RD= 230.83 x (3-1.5-0.75) + 230.83 x (3+0.75)    = 148.40 KN

                                7

Max. moment, Me = 148.40 x 2.25 = 333.90 KN-m

Moment due to impact = 0.25 x 333.90 = 83.47 KN-m

Assume self weight of girder = 2KN-m

Dead load due to self weight  + rails = 2+0.2= 2.2 KN-m

Factored DL = 2.2 x 1.5 = 3.3 KN-m

Moment due to DL = = 20.21 KN-m

Factored moment due to all vertical loads,

Mz = 333.90 + 83.47 + 20.21 = 437.58 KN-m

Maximum moment due to Lateral force:

Horizontal force transferred to rails = 10% of weight of trolley plus load lifted = (10/100) x (250+40) = 29 KN

This is distributed over 4 wheels.

So, horizontal force on each wheel = 29/4 = 7.25 KN

Factored horizontal force on each wheel = 1.5 x 7.25 = 10.875 KN

For maximum moment in gantry girder the position of loads is same as earlier except that it is horizontal, hence byproportioning we get.

My = (10.875/230.83) x 333.90 = 15.73 KN-m.

Shear force:

For maximum shear force on the girder, the trailing wheel should be just on the girder as shown below.

Vertical shear due to wheel loads = 230.83 + (230.83 x 3) / 7 = 329.75 KN

Priliminary Section:

Minimum economic depth, L/12 = 7000/12 = 583.33 mm

Width of the compression flange may be taken as (1/40) to (1/30) of span

So, flange width can be taken, L/40 = 7000/40 = 175 mm to L/30 = 7000/30 = 233.33 mm.

Required, Zp = 1.4 x M/fy = 1.4X437.58X106250">1.4X437.58X10^6/250 = 2450 x 103">10^3mm3

Let us try a ISMB 550 with ISMC 250 on compression flange.



RESULT:

PROJECT-2 is completed as per the given data
