Project 2

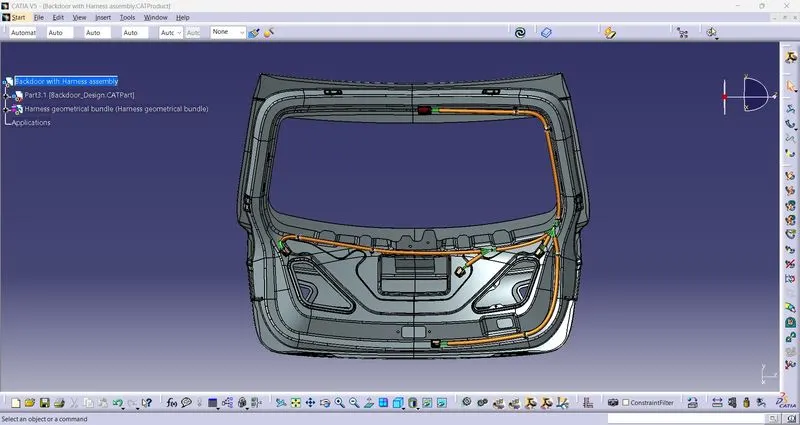

BACKDOOR AND HARNESS ASSEMBLY:

• In upper picture we can understand how bundle/branches look like and it has distributed as per their requirements.
• Also on branches for protection covering COT (Corrugated tubes) have used as per their diameters.
• And for supporting furr tree clips have in different places, also help to divert and give proper fittment for bundles.

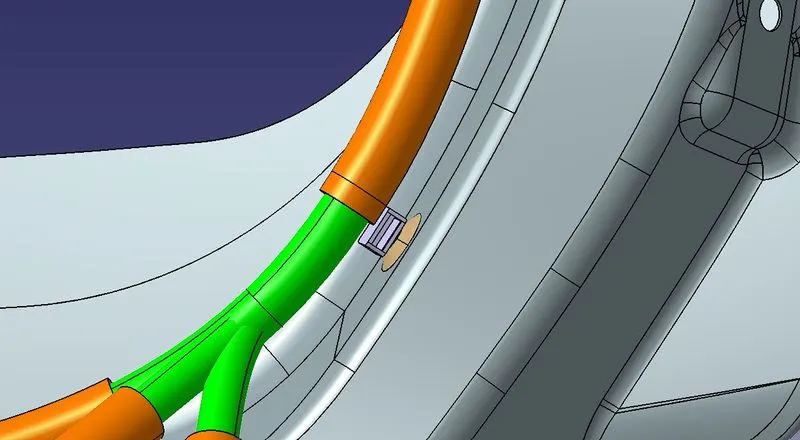

• Also for every corrugated tubes 20-30mm clearance have given at end of corrugated tubes.

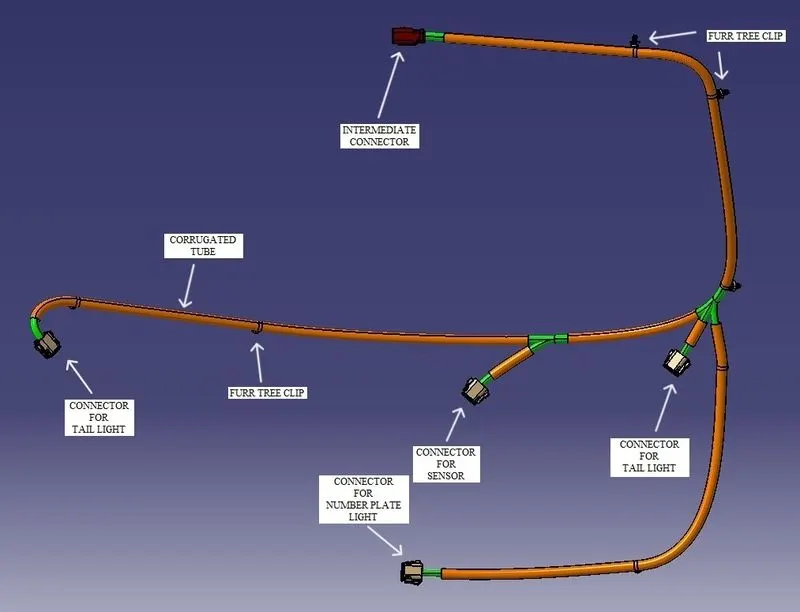

HARNESS GEOMETRICAL BUNDLE:

Types of connectors and supports:

1. INTERMEDIATE CONNECTOR
2. CONNECTORS FOR TAIL LIGHT
3. CONNECTOR FOR NUMBER PLATE LIGHT
4. CONNECTOR FOR SENSOR
5. FURR TREE CLIP
6. CORRUGATED TUBES

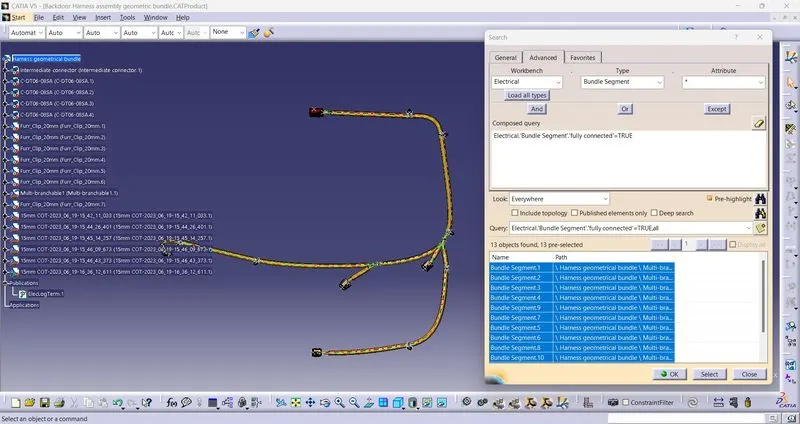

Fully connectivity search (TRUE):

• As we can see upper side for finding fully connectivity this how in search we can see that and also in picture we can see this bundle is fully connected with using of option TRUE.

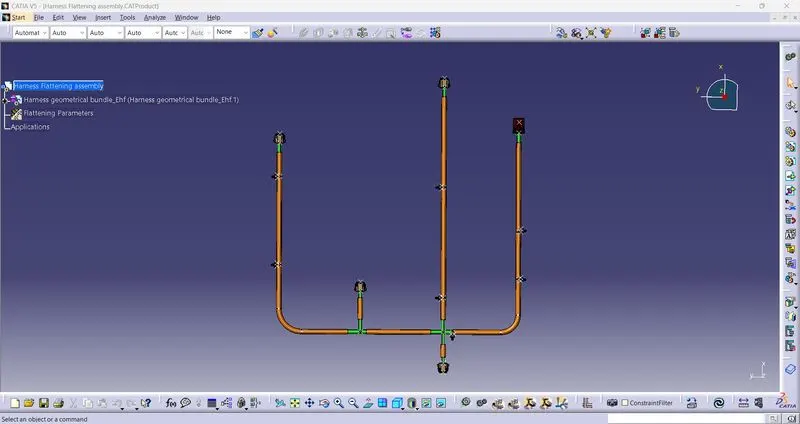

HARNESS FLATTENING ASSEMBLY:

• In upper picture we can understand how geometrical bundle has arranged in good flow for better view in drawing.
• For this flattening flattening parameters, extract, bend etc. command has used.

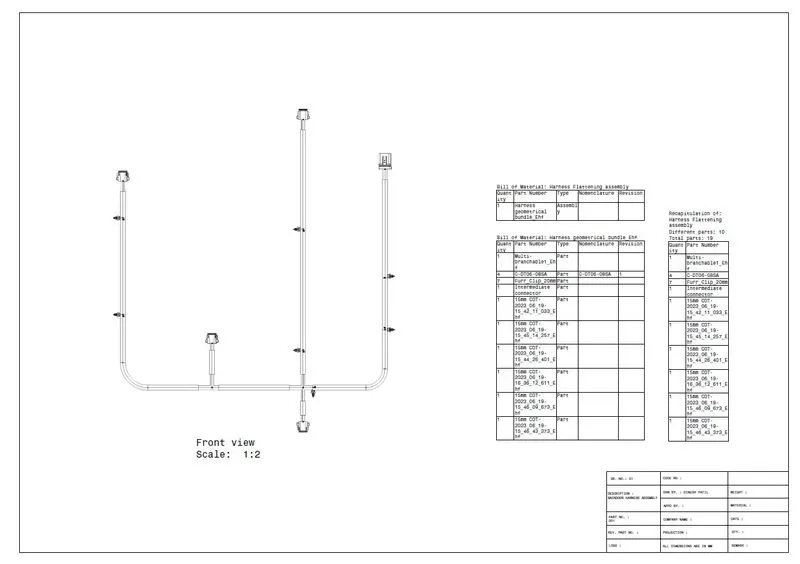

HARNESS FLATTENING DRAWING:

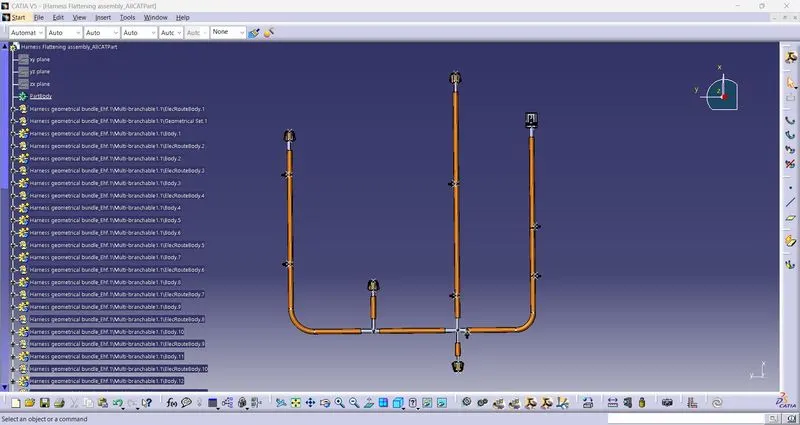

Harness Flattening CAT part:

Note: ( Every product files, part files and drawing file are in zip file which is attached below side.)

Conclusion: In this project i have learned how to create geometric bundle on any vehicle part with help of connector and supporters, also have learned how to create harness flattening and drawing.
