Project 2

SEAT BACK STO Back Angle: The back angle is the angle of recline of the torso line relative to the vertical. The back angle doesn’t measure the angle of the seat structure. H Point: Oscar is the name given to the 2D and 3D devices used to define and measure vehicle-seating accommodation. The 2D device is called the…

1. MODEL 1 2. MODEL 2 3. 8D Problem Solving: Pugh Analysis

Objective: The objective of this project is to design the assembly of the Butterfly valve and apply the GD&T concepts to the various parts of the Butterfly Valve. Name of the Parts: 1. Body 2. Shaft-Stem 3. Top Flange 4. Disc Plate 5. Lever Handle 6. Nut 1. Body: 2. Shaft-Stem: 3. Top Flange: 4. Disc Plate: 5. Lever…

What is the full form of OEM?  Original Equipment Manufacturer How the Design Responsibility  goes in Automotive The Automotive hierarchy will be followed as given below, The Design Responsibilities go from the lower level tier to the OEM. Because the parts/sub-assemblies are designed by the Tier companies and…

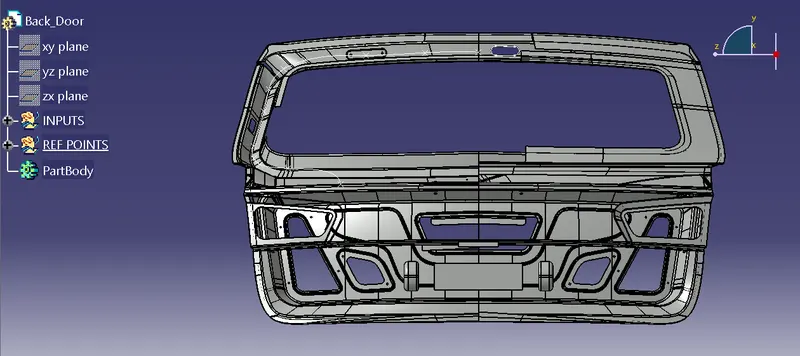

Objective : The objective of this project is to create the routing for the given Engine and prepare to flatten the view drawing in CATIA V the mechanical part as an electrical connector and apply the electrical properties to the Connectors. Procedure : Procedure for Connector Definition: Initially, the mechanical model…

Objective : The objective of this project is to create the routing for the given Engine and prepare to flatten the view drawing in CATIA V the mechanical part as an electrical connector and apply the electrical properties to the Connectors. Procedure : Procedure for Connector Definition: Initially, the mechanical model…

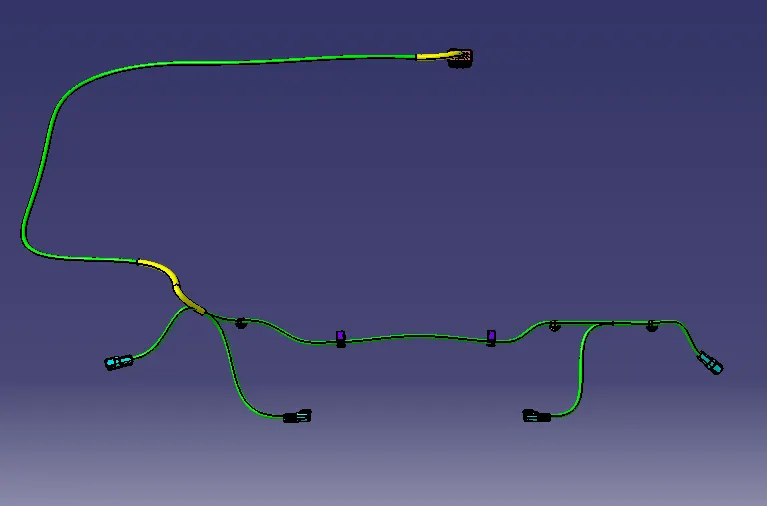

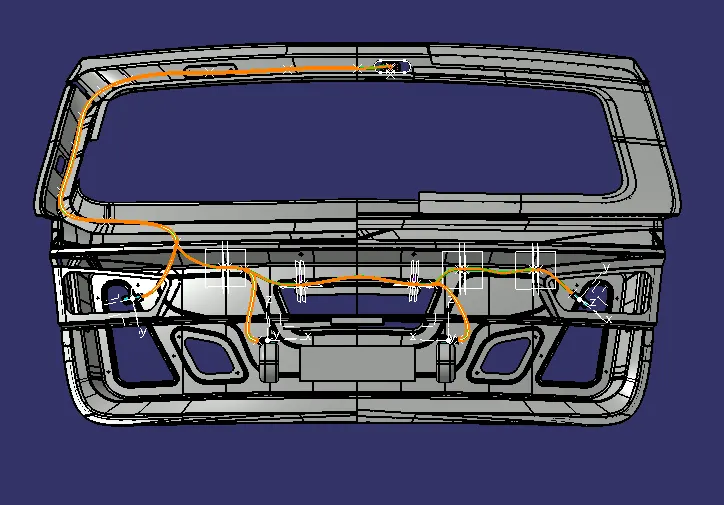

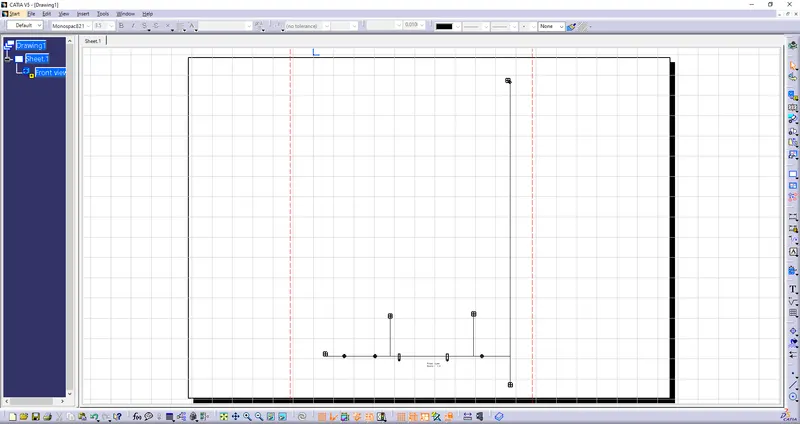

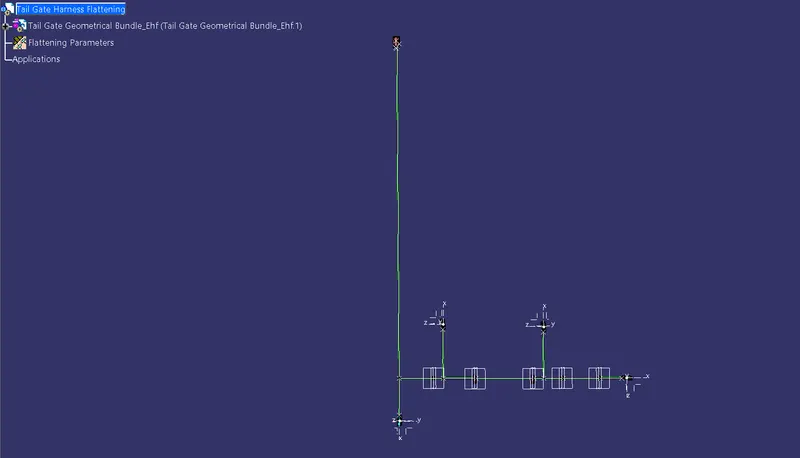

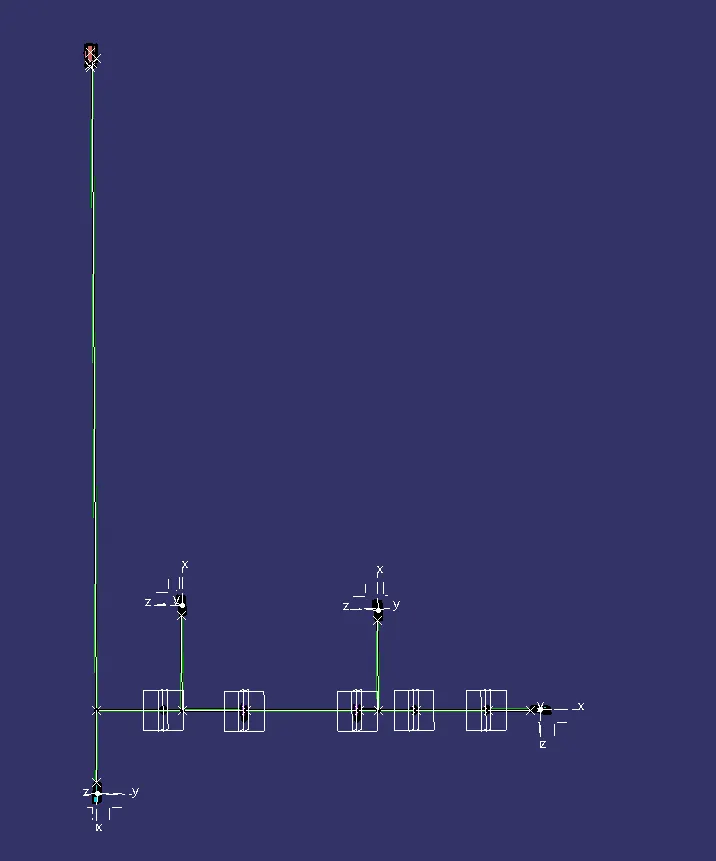

Input Assembly Model : First Step Flattened Assembly : Synchronization Parameters : Final Flattened Assembly : Wiring Harness Drawing :

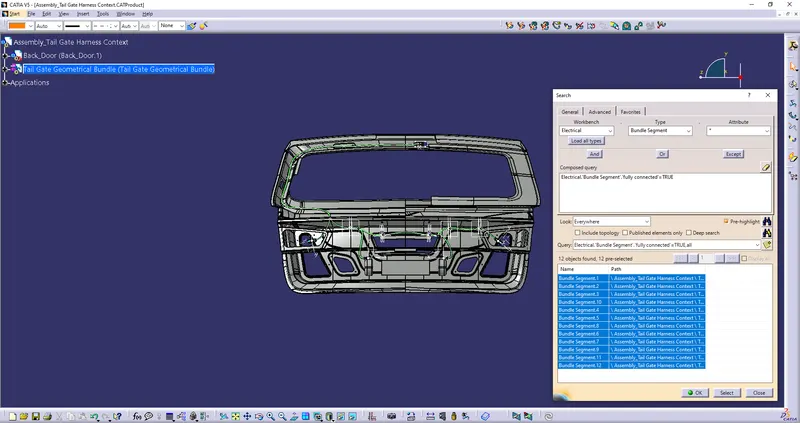

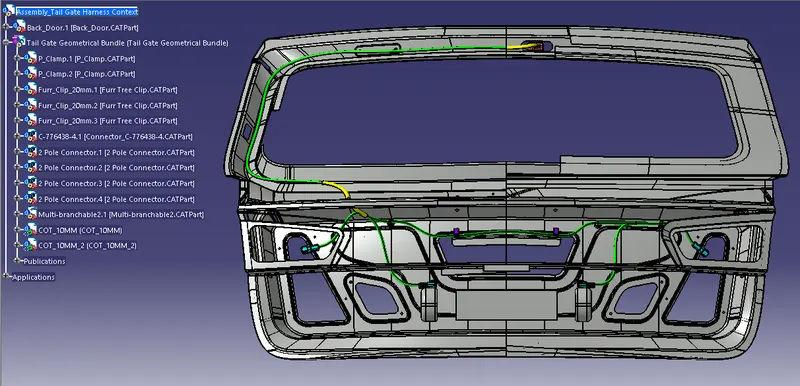

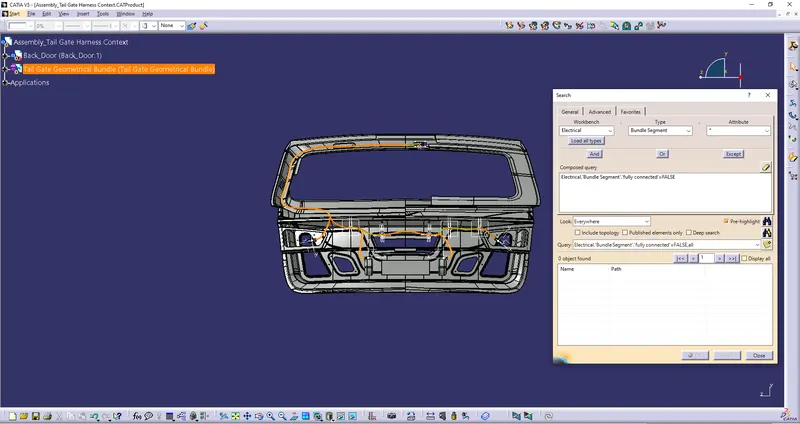

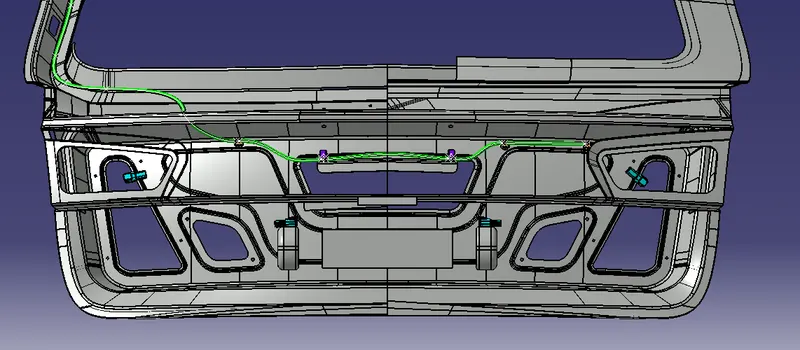

Harness A Connectors Harness A Assembly : Harness B Connectors Harness B Assembly : Harness Assembly Context : 1. Bundle Continuity : 2. Add annotation : 3. Bundle warning : 4. Generating CAT part from Product

Objective : The objective of this project is to create the harness layout in the Electrical workbench and use the following connectors as shown in the layout diagram. DT06-4S DT06-6S DT06-2S DT06-08SA Procedure : Initially, the mechanical model of the required connectors is downloaded. After that, the downloaded…

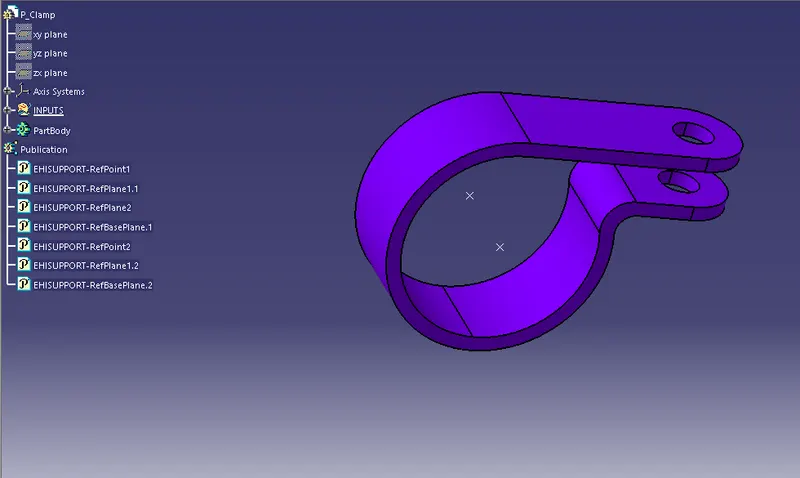

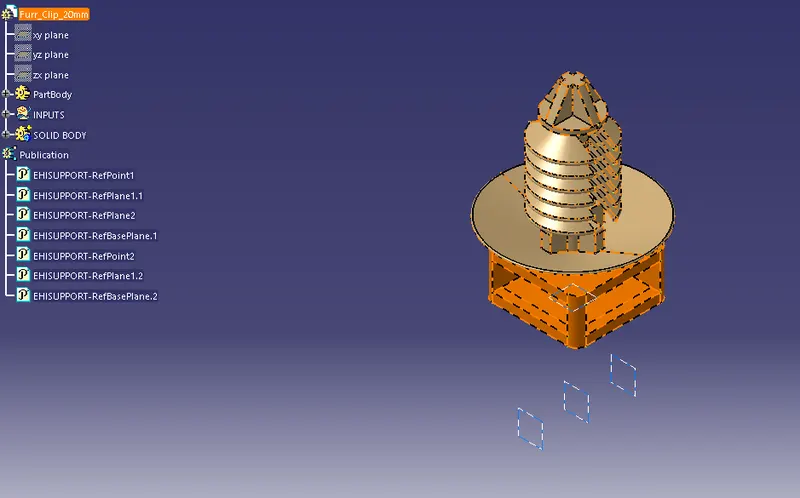

Q1: Electrical Support (Clips/Clams/Support Parts) - P CLAMP Objective : The objective of this project is to create Electrical support (P CLAMP)  and apply the electrical properties to the supports. Procedure : Initially, the mechanical model of the required connectors is downloaded. After that, the downloaded source…

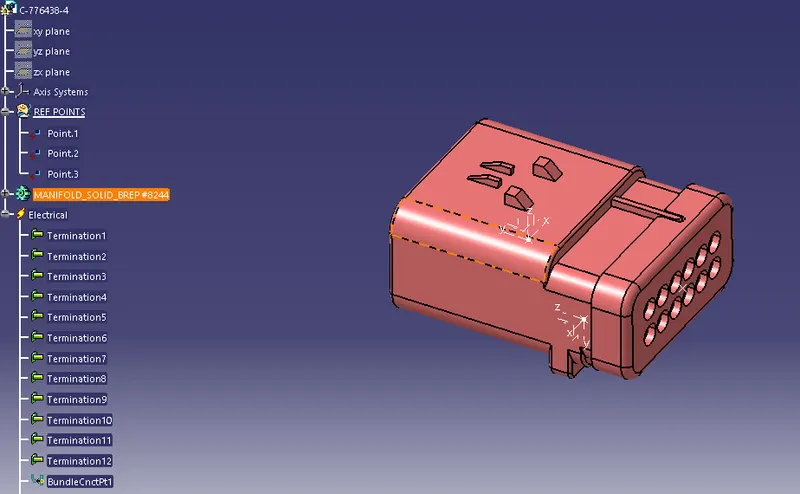

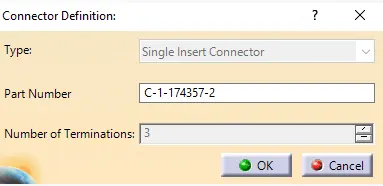

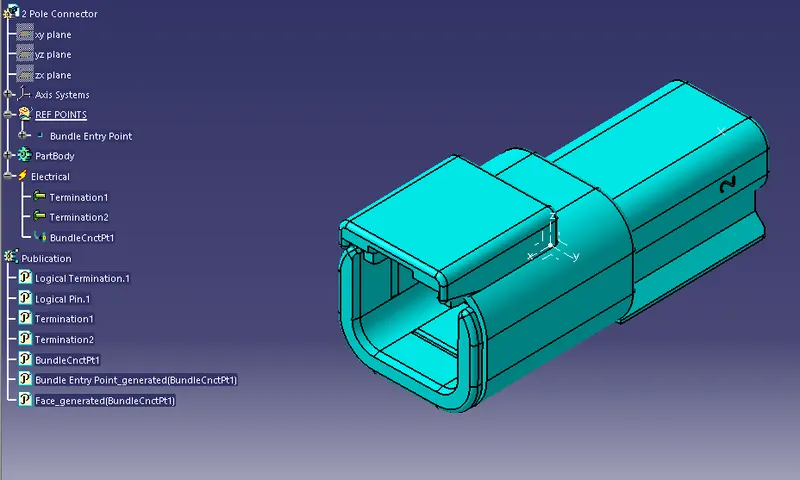

Objective : The objective of this project is to Convert the mechanical part as an electrical connector and apply the electrical properties to the Connectors. Procedure : Initially, the mechanical model of the required connectors is downloaded. After that, the downloaded source file (Stp/Igs) is converted into CAT Part.…

BOEING 747-8 DESIGN BY USING SOLIDWORKS   OBJECTIVE :  The main objective of this project is to model a Boeing 747-8 by using solidworks Part modeling and surface modeling environment, Assemble the designed parts by using a solidworks design environment. PARTS MODELED IN BOEING 747-8 :   Fuselage  Belly…

SURFACE MODELING OF YACHT Objective : The objective of this project is used to create a surface model of different parts of the Yacht using Solidworks. To assemble the different parts modeled for the Yacht. Part Modeling : Part Modeling you can create a part from a conceptual sketch through solid feature-based modeling,…

American Chopper  Objective : The objective of this project is used to create a model of different parts of the Chopper using Solidworks. To assemble the different parts modeled for the chopper. To create a Photorealistic model of the chopper and Render the model using Solidworks Photoview 360 or Solidworks visualize.…
