Project 2

OOmkar Bavadekar21 May 2023
CATIA

Project 2

Route the Wiring harness on Given car body and Prepare flatten view drawing in CATIA V5. Application of all Packaging rules, Industry best practices studied in this course shall be demonstrated in design. Apply Protection coverings as required.

Components required for routing

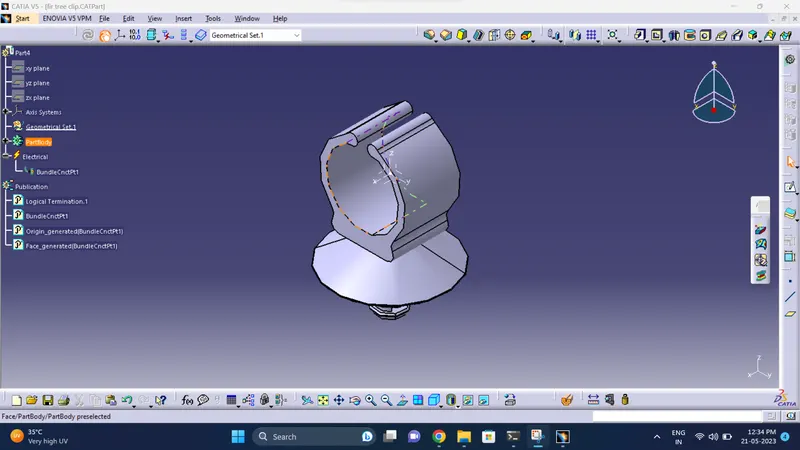

1. Fur tree clips

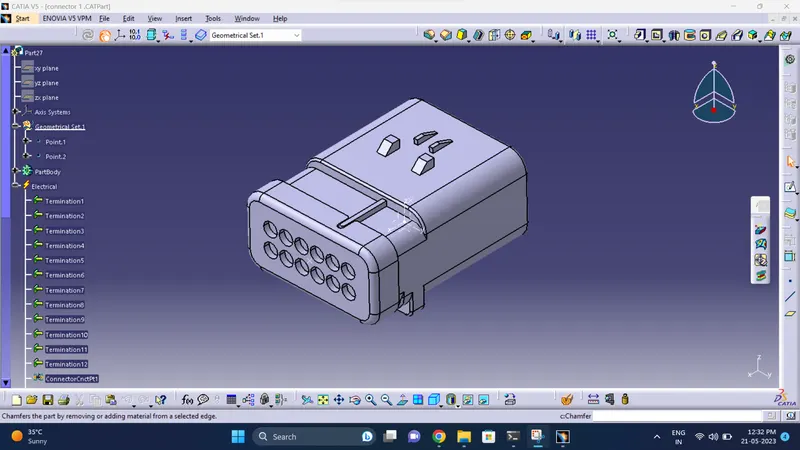

2. Main connector

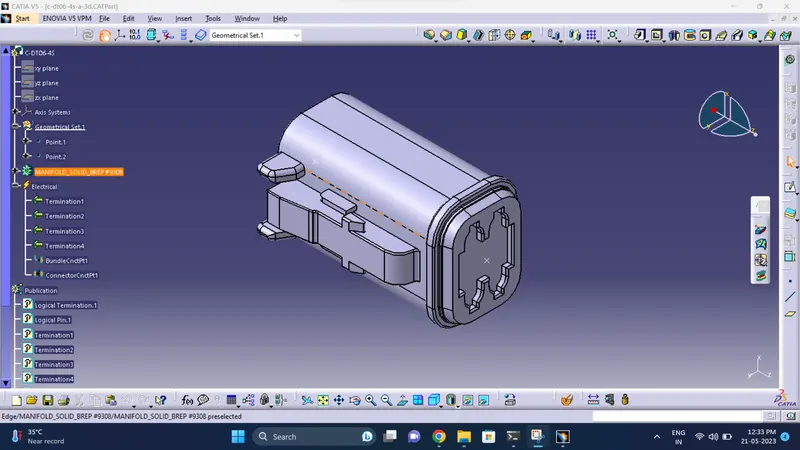

3. Small connectors

.

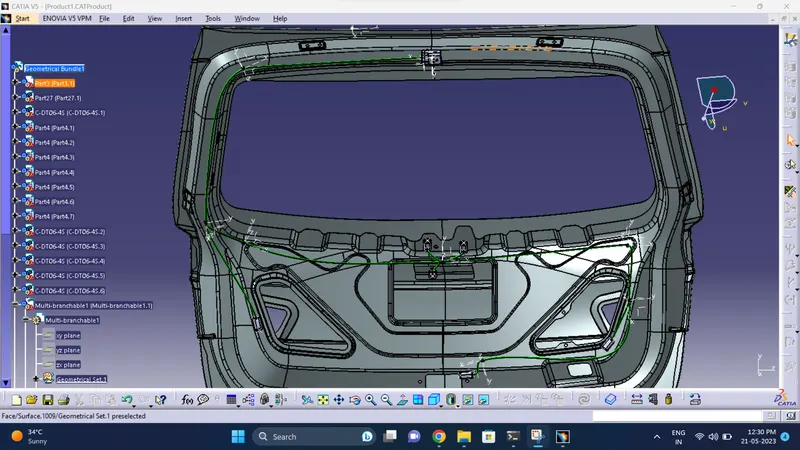

Multi branchable Wire routing

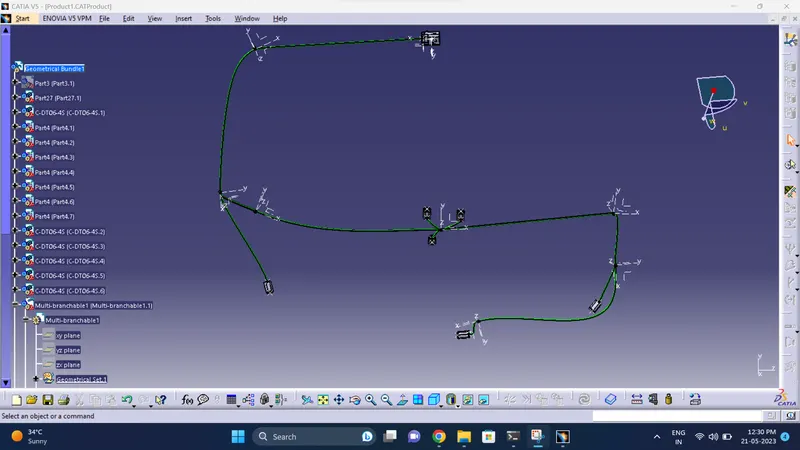

back door wire assembly

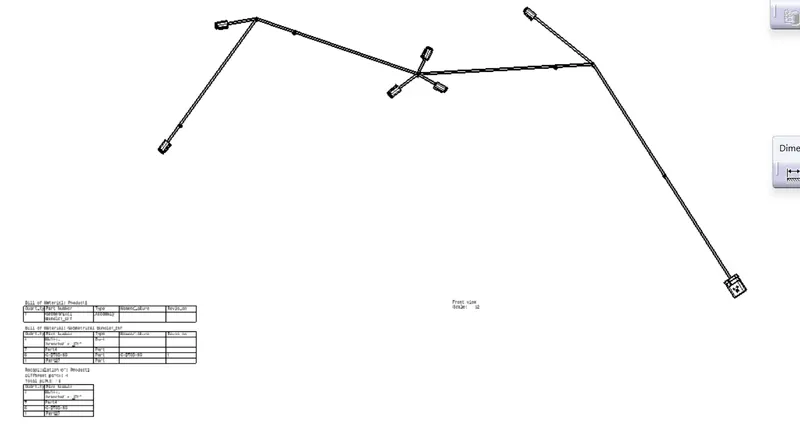

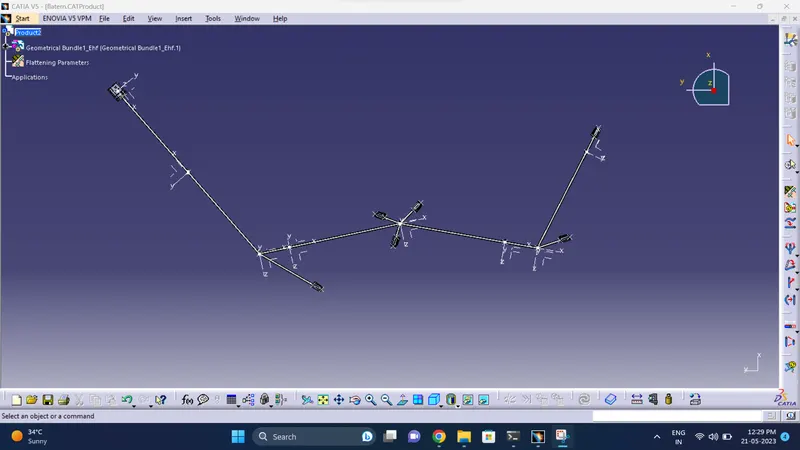

Flaterned view

Drawing
