Project 2

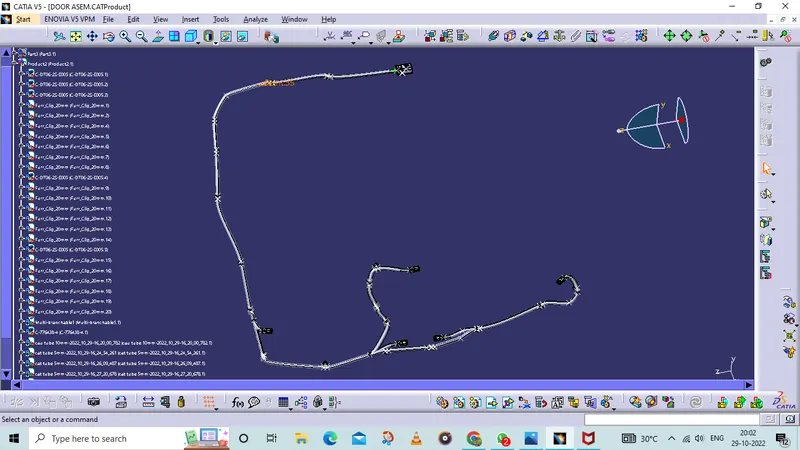

Aim: To route the wiring harness on the given tailgate assembly and prepare the flatten view and drawing in CATIA V5.

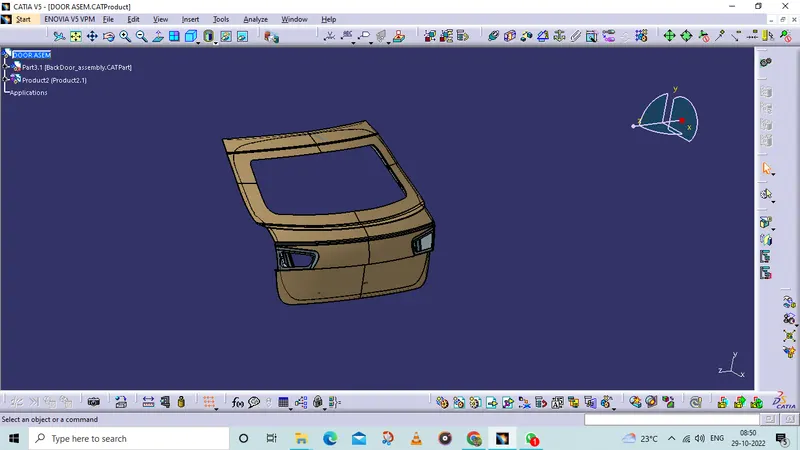

door assembley

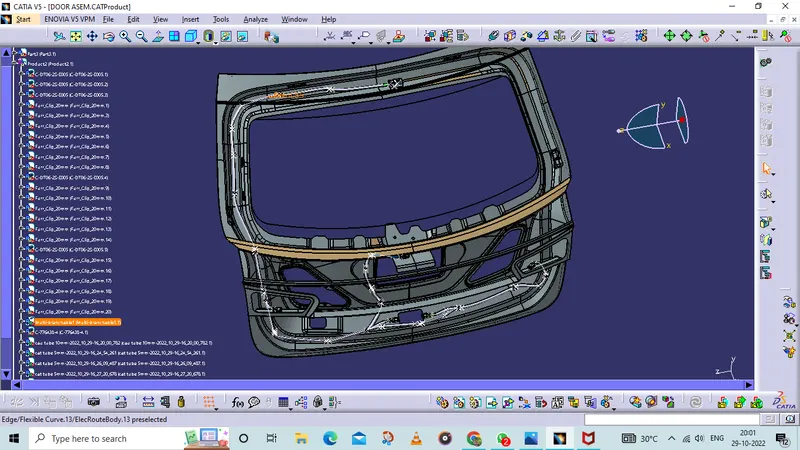

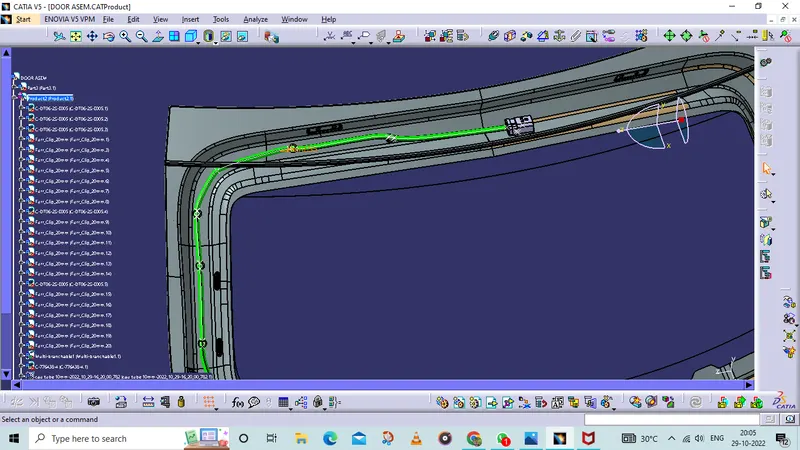

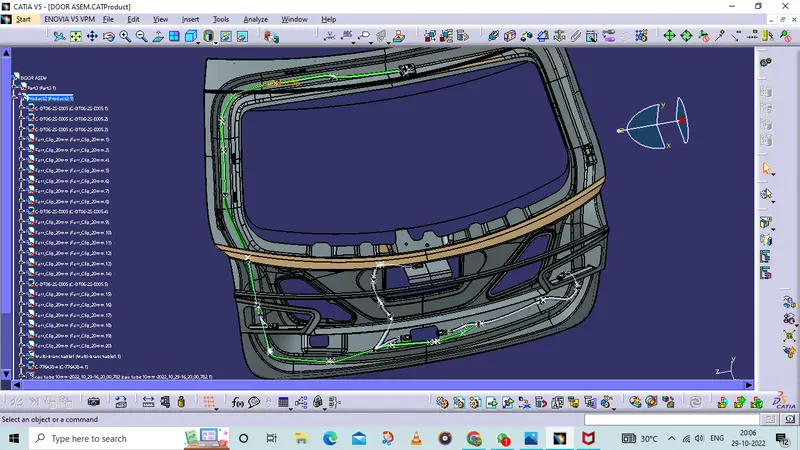

TO done a routing for the given car door

DESIGN CRITERIA AND PACKAGING ASSUMPTIONS:

• Wiring harness routing shall provide ease in manufacturing, accessibility, easy removal, and easy maintenance of attached equipment and wiring harnesses.
• Routing through small structural holes and openings shall be avoided, and handling of the wiring harness during installation.
• Avoid the harness routing and clipping in the Blind zone of the Operator during harness assembly or in service.
• Routing shall offer protection against possible damage through common misuses such as being handheld and temporary support for test equipment.
• Provide additional slack to the harness according to the surroundings and harness bending requirements.
• Ensure the routing meets the clearance requirements with different surrounding parts.
• Avoid routing over the bolts, near to the bolted joints. It may damage the harness or puncture the harness. Keep the harness away from panel mounting screws.
• Avoid harness routing near sharp edges, if not possible provide protection to the harness.
• The maximum distance between two clips on a straight branch is 200mm.
• Provide Clips and clamps if the harness is going to bend at multiple locations.
• The use of too many sheet-metal brackets should be avoided.
• The branch length should be more than 50 mm.
• Min distance between clip and branching point to be 25 mm.
• Min distance between two branch breakouts should be 50 mm.

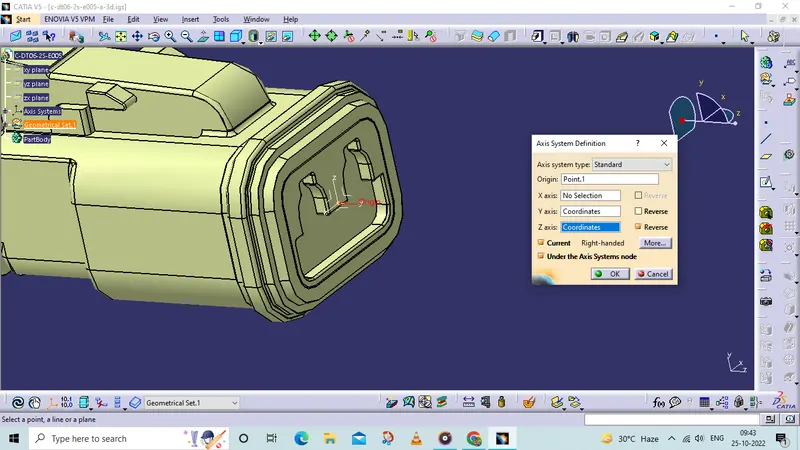

Define the MCAD- ECAD

IN elecrical part design work bench

it is required quantity is 4

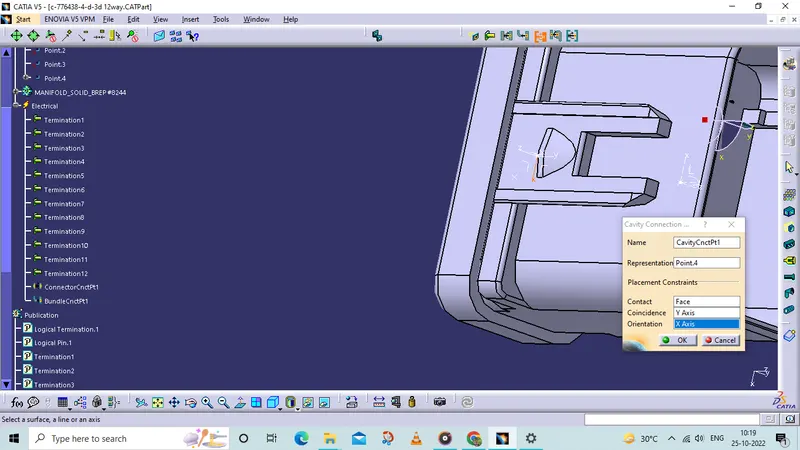

12 terminal connector

ADD A PROTECTION TUBE

AS A COT TUBE

To the bundles

furt clip act as a attaching feature and mounts the bundles

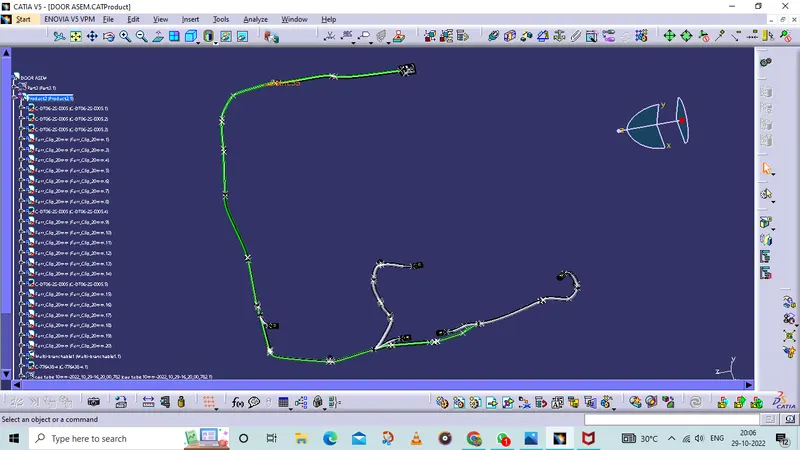

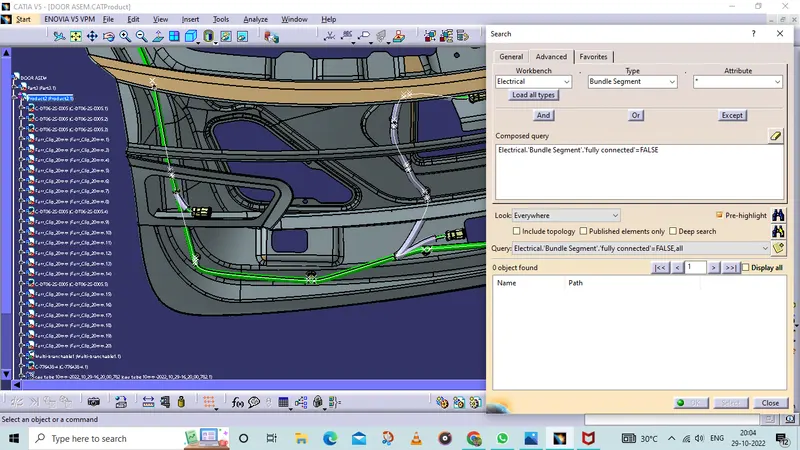

bundel continuity check

12 terminal connector act as a main connector From the other conectivity to the next door

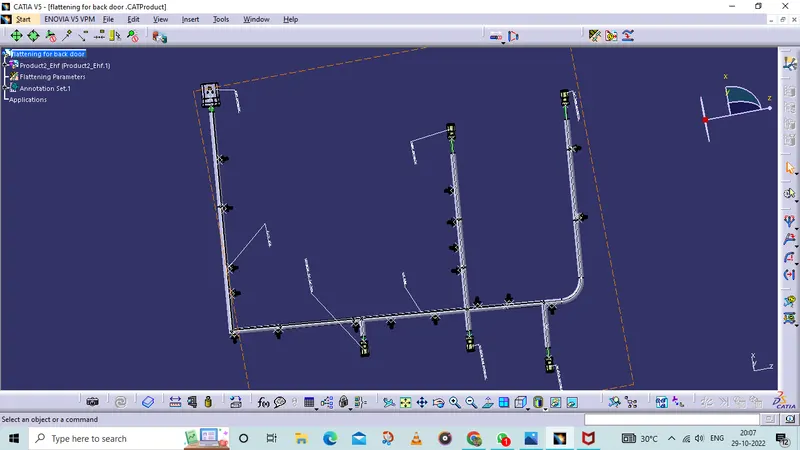

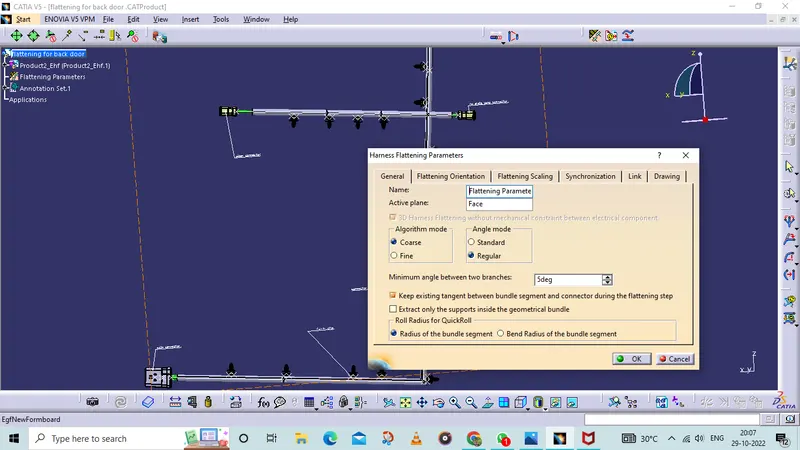

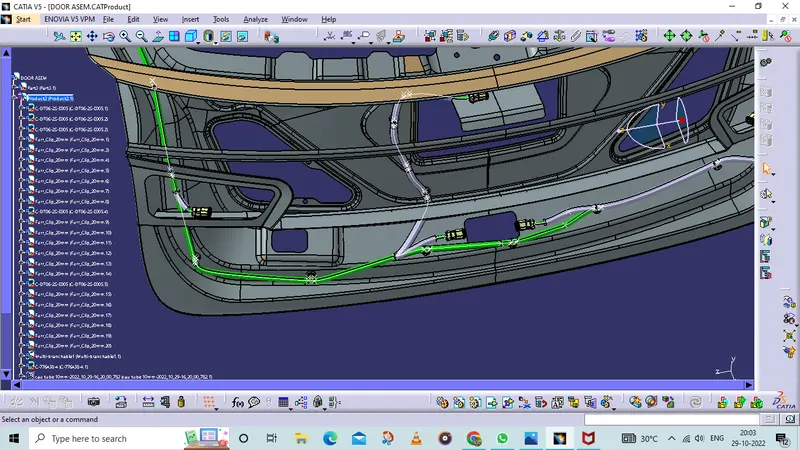

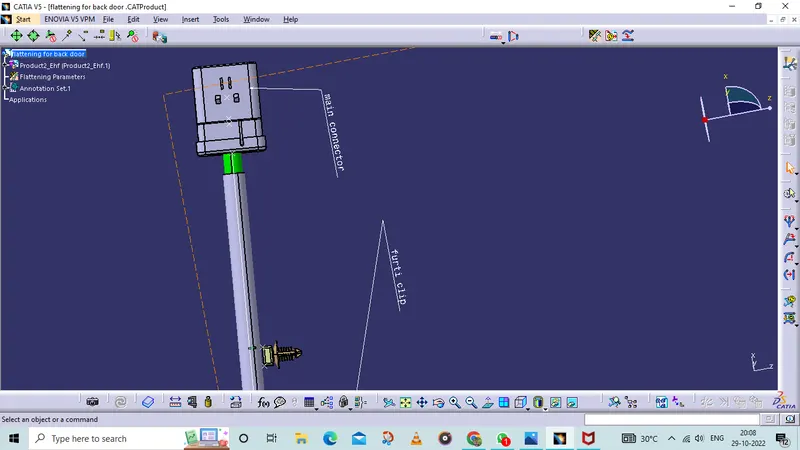

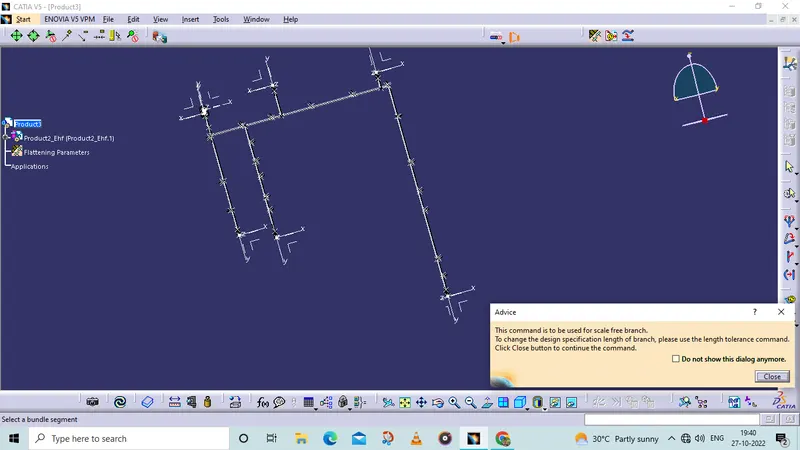

flattening perameters defined

Description

A 2-terminal connector used for the car tail lamp a 4 connectors

then 12 terminal connectors used and act as the main connectors for the door to the

furti clip is to mount the bundles and to fix the required position.

CONCLUSION:

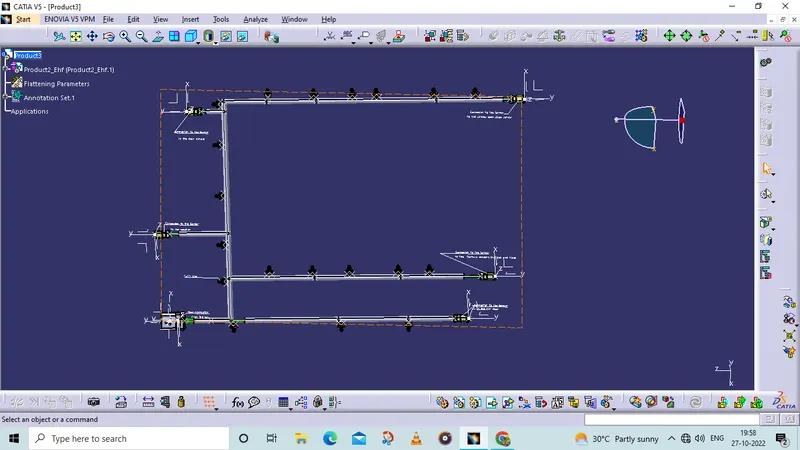

The wiring harness has been designed for the given tailgate assembly and the flattened view is drafted
