                                    PROJECT-2_TAILGATE WIRING HARNESS

AIM:

        To route the wiring harness on the given tailgate assembly and prepare the flatten view drawing in CATIA V5.

DESIGN CRITERIA AND PACKAGING ASSUMPTIONS:

  • Wiring harness routing shall provide ease in manufacturing, accessibility, easy removal, and easy maintenance of attached equipment and wiring harness.
  • Routing through small structural holes and openings shall be avoided, minimize chaffing and handling of the wiring harness during installation.
  • Avoid the harness routing and clipping in the Blind zone of the Operator during harness assembly or in service.
  • Routing shall offer protection against possible damage through common misuses such as being handhold and temporary support for test equipment.
  • Provide additional slack to the harness according to the surroundings and harness bending requirements.
  • Ensure the routing meets the clearance requirements with different surrounding parts.
  • Avoid routing over the bolts, near to the bolted joints. It may damage the harness or puncture the harness. Keep harness away from panel mounting screws.
  • Avoid harness routing near sharp edges, if not possible provide protection to the harness.
  • The maximum distance between two clips on a straight branch is 200mm.
  • Provide Clips and clamps if the harness is going to bend at multiple locations.
  • The use of too many sheet-metal brackets should be avoided.
  • The branch length should be more than 50 mm.
  • Min distance between clip and branching point to be 25 mm.
  • Min distance between two branch breakouts should be 50 mm.

COMPONENTS:

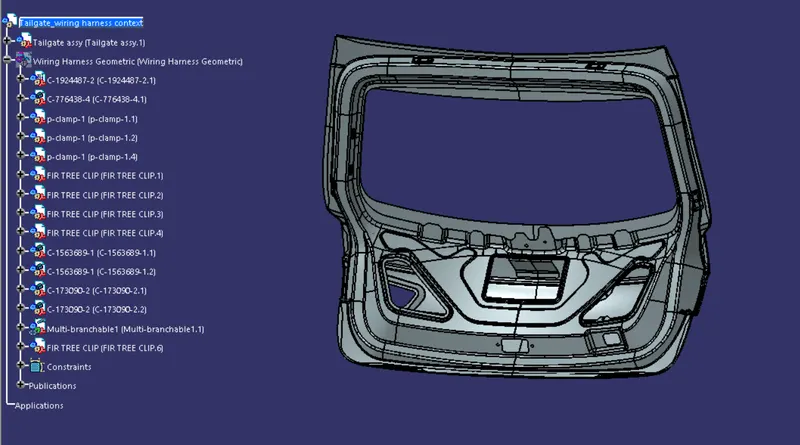

Car Tailgate Assembly:

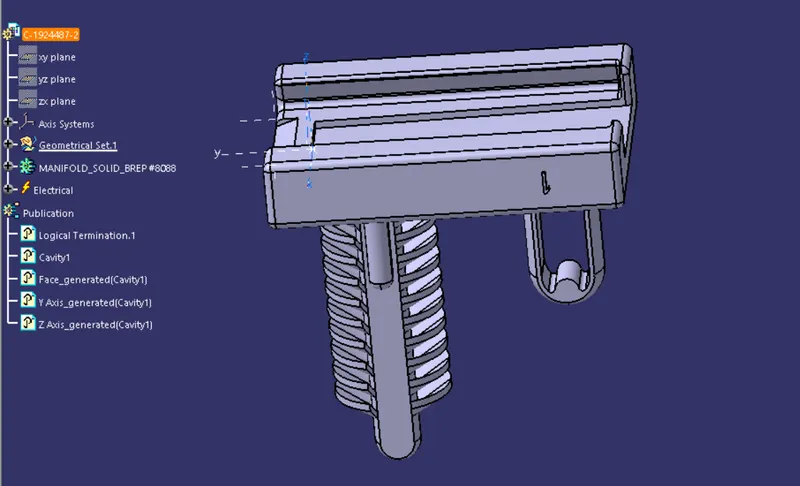

Mounting Clamp:

Interconnecting Connection:

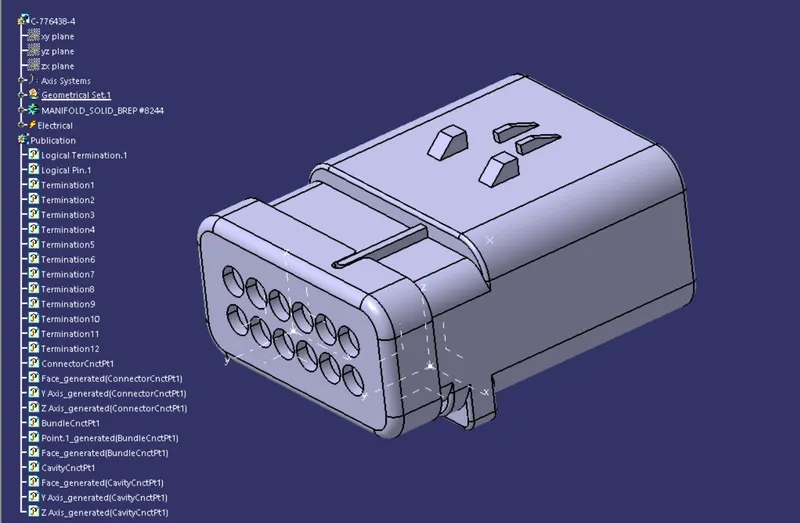

Four Pole Connector:

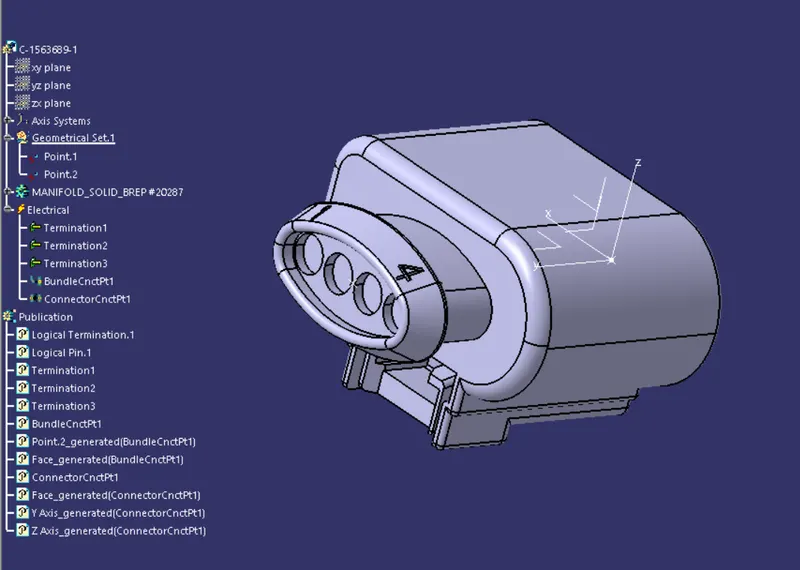

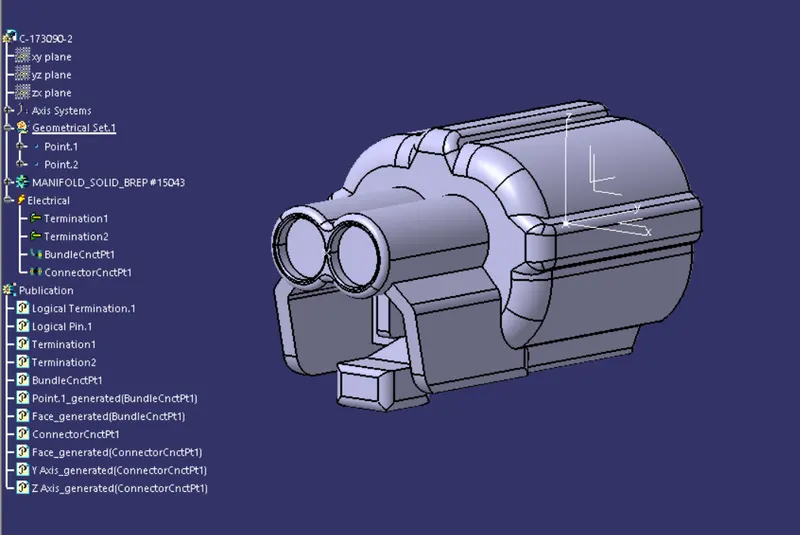

Two Pole Connector:

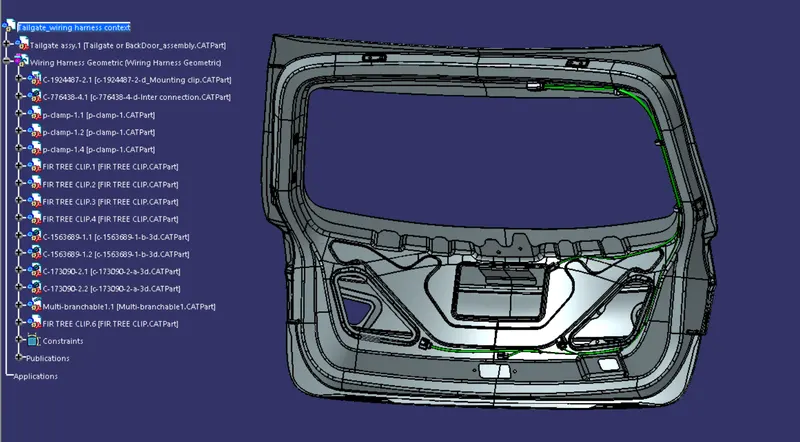

TAILGATE WIRING HARNESS:

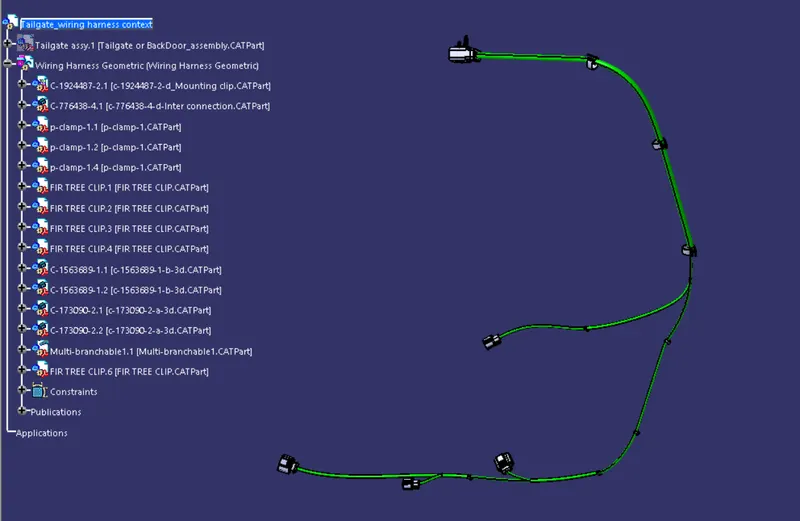

GEOMETRICAL BUNDLE:

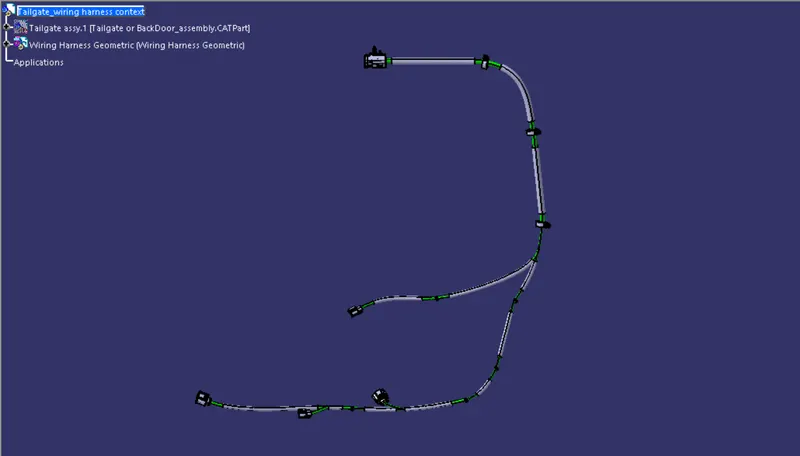

Bundle Routing with protective tubes:

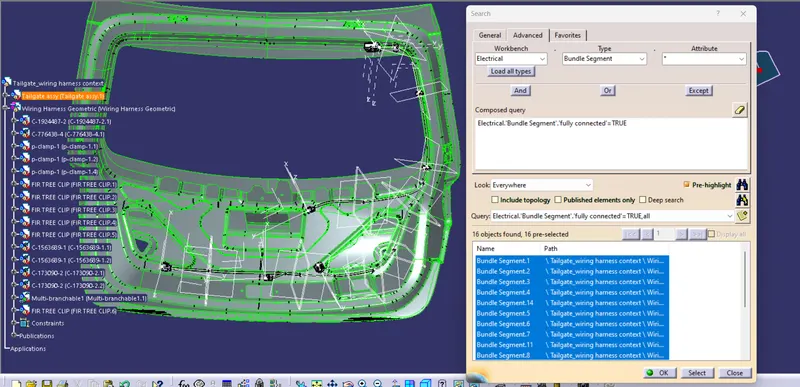

BUNDLE CONNECTIVITY CHECK:

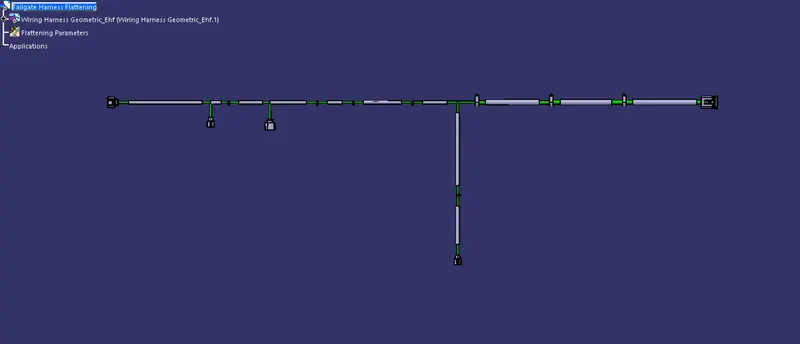

TAILGATE WIRING HARNESS:

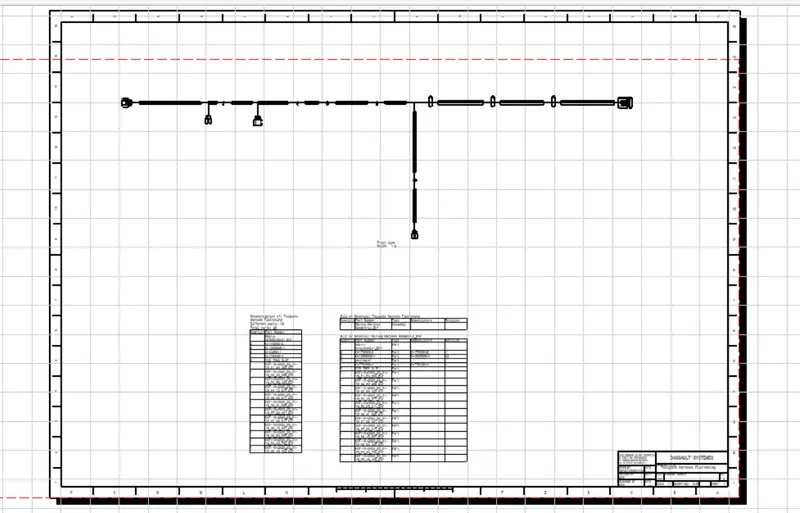

TAILGATE WIRING HARNESS DRAWING:


CONCLUSION:
       The wiring harness has been designed for the given tailgate assembly and the flattened view is drafted.
