Project 2

 STEPS INVOLVED IN WIRING HARNESS ROUTING  OF THE BACKDOOR

• Here we are using  6 connectors constitute of one inline connector, 2 connectors for tail lamp, one for camera sensor, one for wiper motor, one for number plate light  and  for support  we will use Fir tree  clip & p clamp
• Lets download all the required components

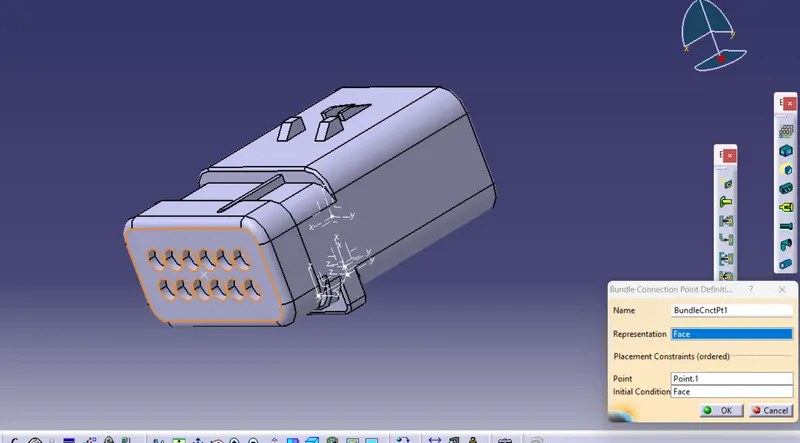

• Define  the connector as an electrical part and define the bundle point, and connector connection point of all the connector
• Add the connectors in to the connector catalogue

Inline connector

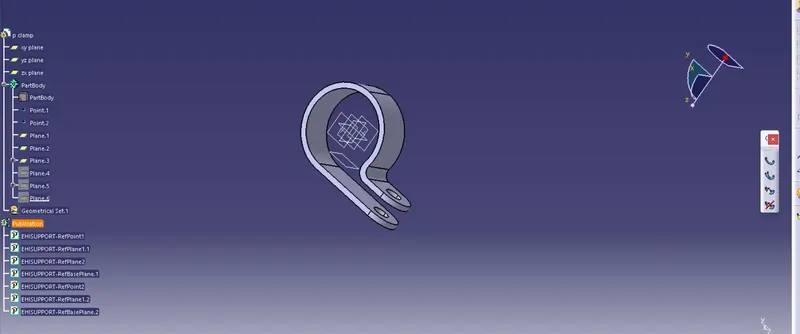

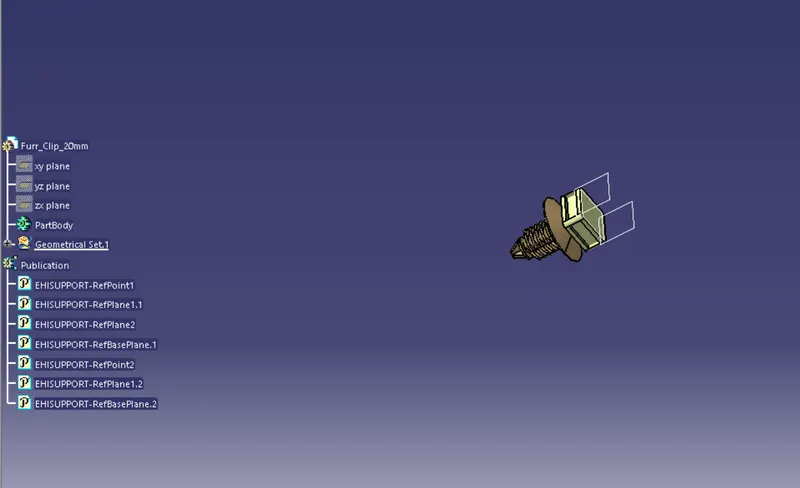

Fir tree clip

P clamp



• Create a product file and name it  as context  Wiring harness context file
• Create a product file for geometric bundle assembly and insert all the electrical parts in to this product file
• Copy the geometric bundle assembly in to main context file

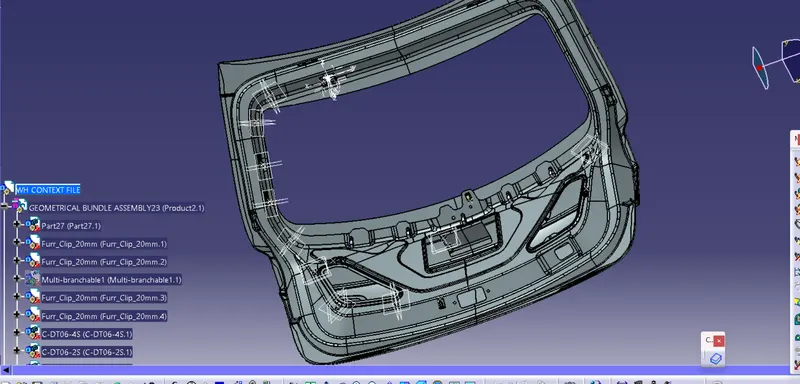

• Import the 'Backdoor ' CAD date in to the context file
• Arrange the components like inline connector, Fir tree, P clamps & the other connectors according to the layout

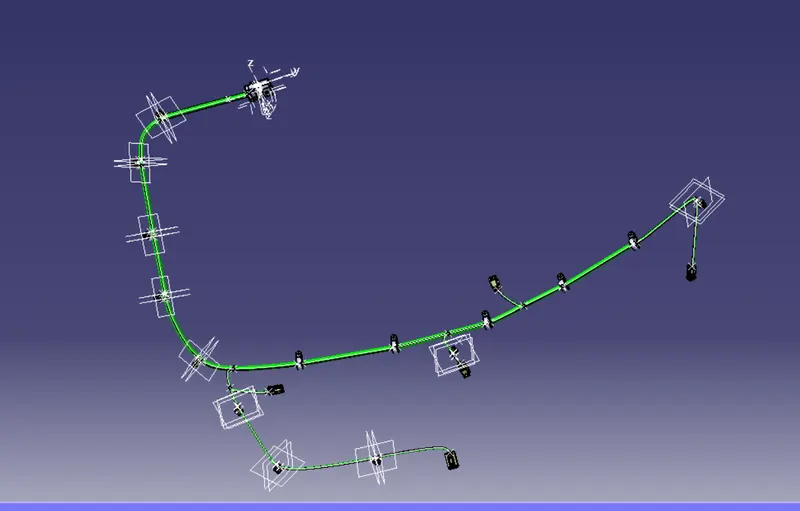

• Now let's start the routing

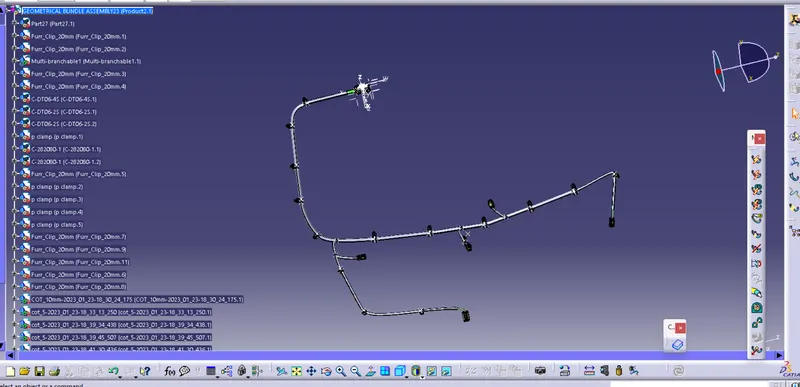

• Lets activate geometrical bundle and click on geomtrical bundle assembly product file

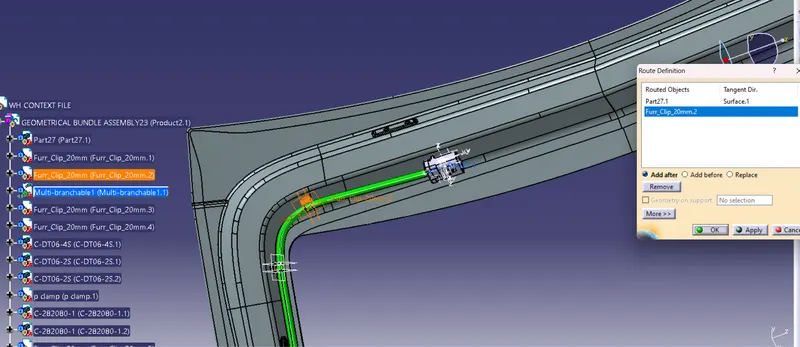

• start the routing from inline connector

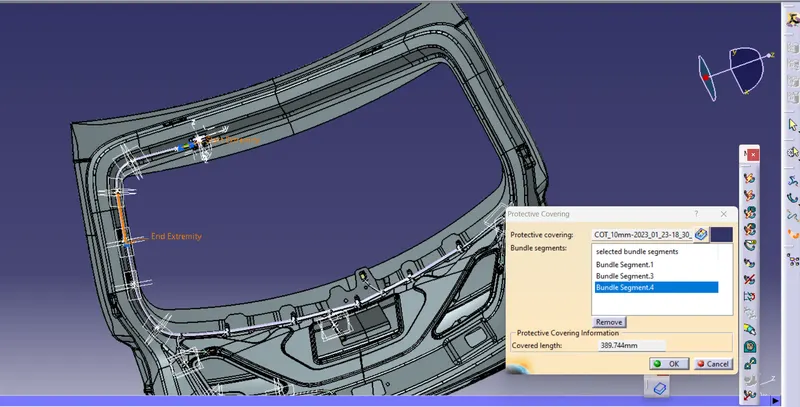

• After completing routing ,let's cover the bundles by COT tubes to protect it from surroundings

FLATTENING

• Create a product file and name it as flattening assembly
• switch to flattening workbench
• Initialize the flattening parameters
• Extract the geometrical bundle assemblyfile

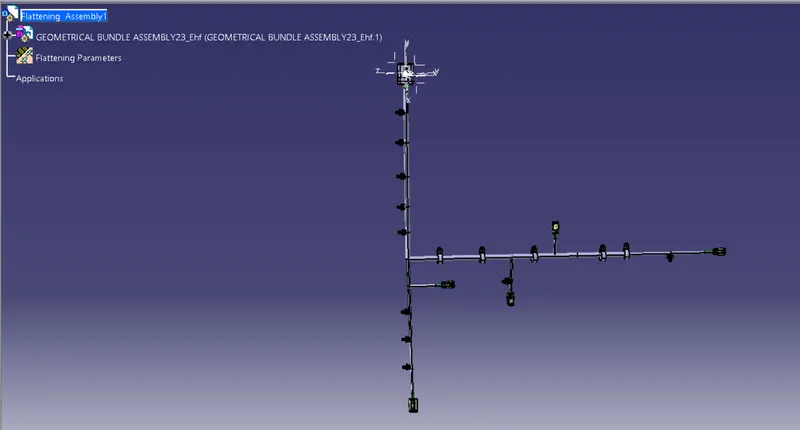

• Click on flatten and select the face and select all bundles
• Use the appropriate command to modify the flattened assmbly according to your perspective
• After flattening manipulate the clips or connectors to the front view inorder to view properly

    DRAWING FILE

• Create a new drawing file and save it

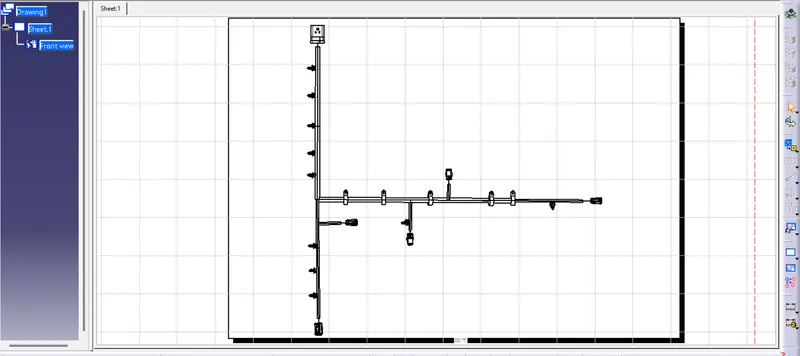

• Click on front view and select the face from the flattening assembly file
•  After importing 2D file in to drawing change the view  properties
