Project 2
AIM

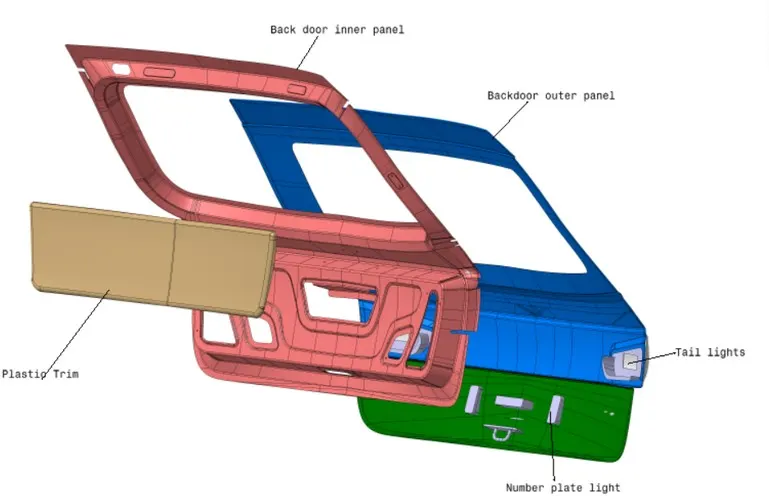

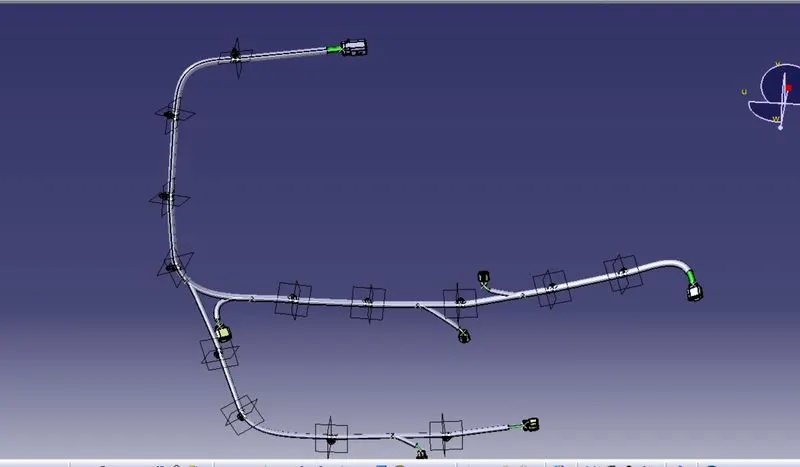

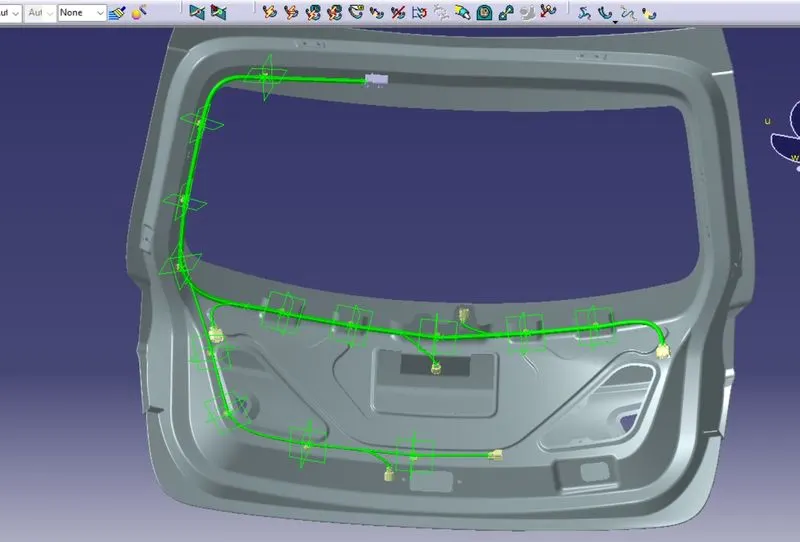

Provide proper routing of bundle without and interference and also provide support parts like clips and clamps , prepare the flattening and flatten drawing
DESIGN CRITERIA AND PACKAGING RULES
* Wiring harness routing shall provide ease in manufacturing, accessibility, easy removal, and easy maintenance of attached equipment and wiring harness.
* Routing through small structural holes and openings shall be avoided, minimize chaffing and handling of the wiring harness during installation.
* Avoid the harness routing and clipping in the Blind zone of the Operator during harness assembly or in service.
* Routing shall offer protection against possible damage through common misuses such as being handhold and temporary support for test equipment.
* Provide additional slack to the harness according to the surroundings and harness bending requirements. Ensure the routing meets the clearance requirements with different surrounding parts.
* Avoid routing over the bolts, near to the bolted joints. It may damage the harness or puncture the harness. Keep harness away from panel mounting screws.
* Use the clips and clamps for good routing
* Minimum distance between clips and connector is 50mm
* Maximum distance betwwn clips and connector is 200mm
* Used the Protecting cover for safety purpose which is 8mm and 12mm used
* Maintaned End Ectremity of protecting cover is minimum 15mm and maximumu 30mm

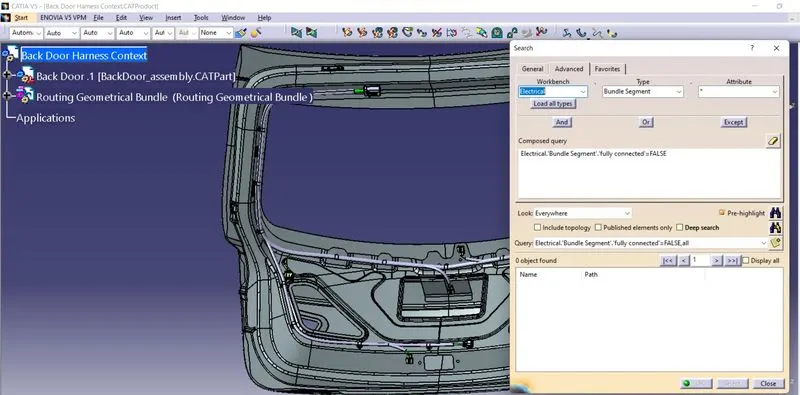

FULLY CONNECTED
COMPONENTS

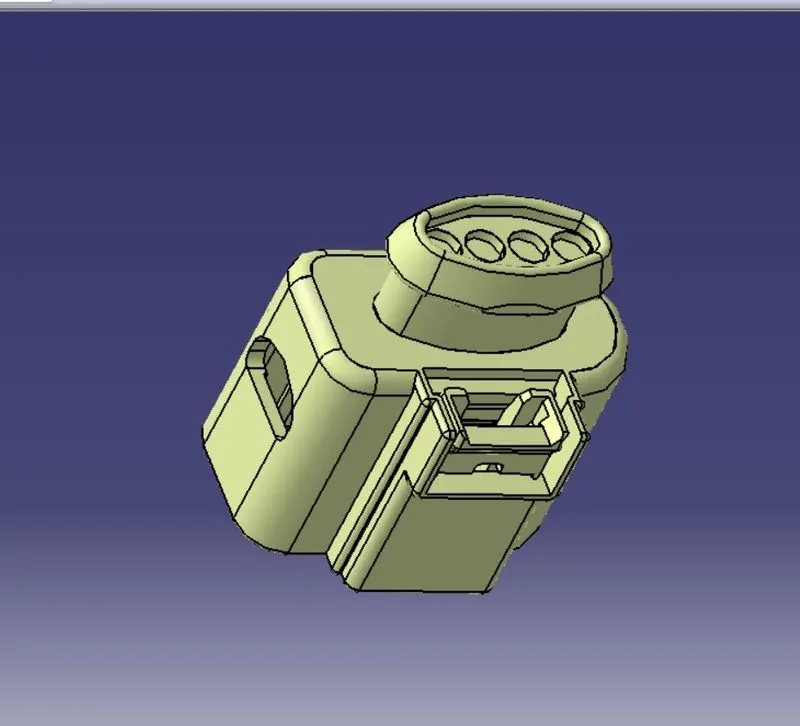

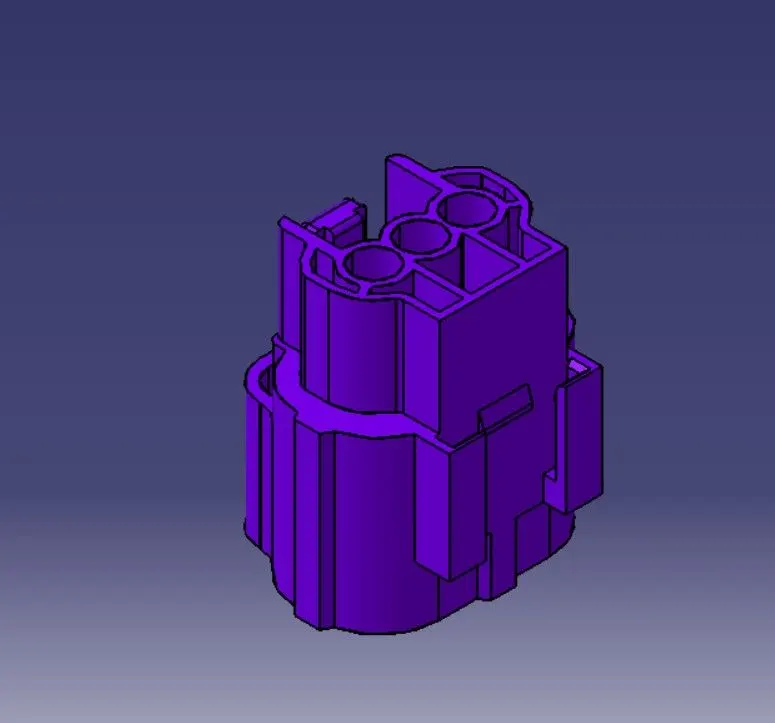

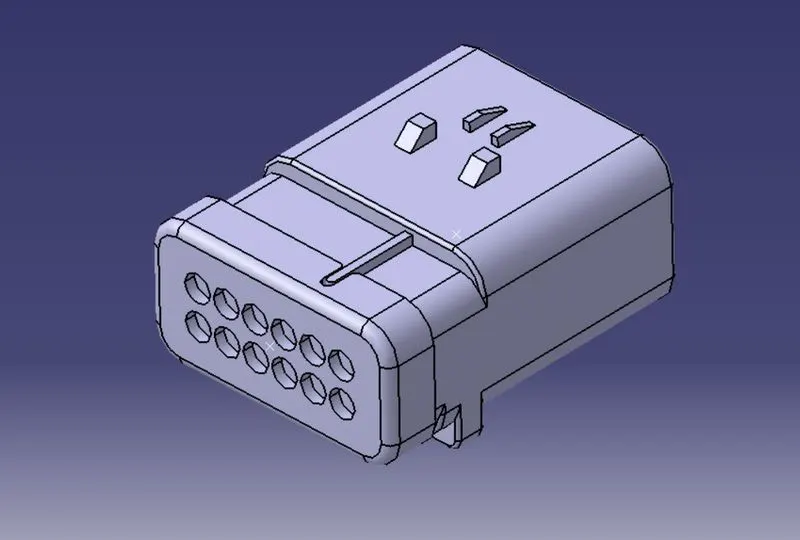

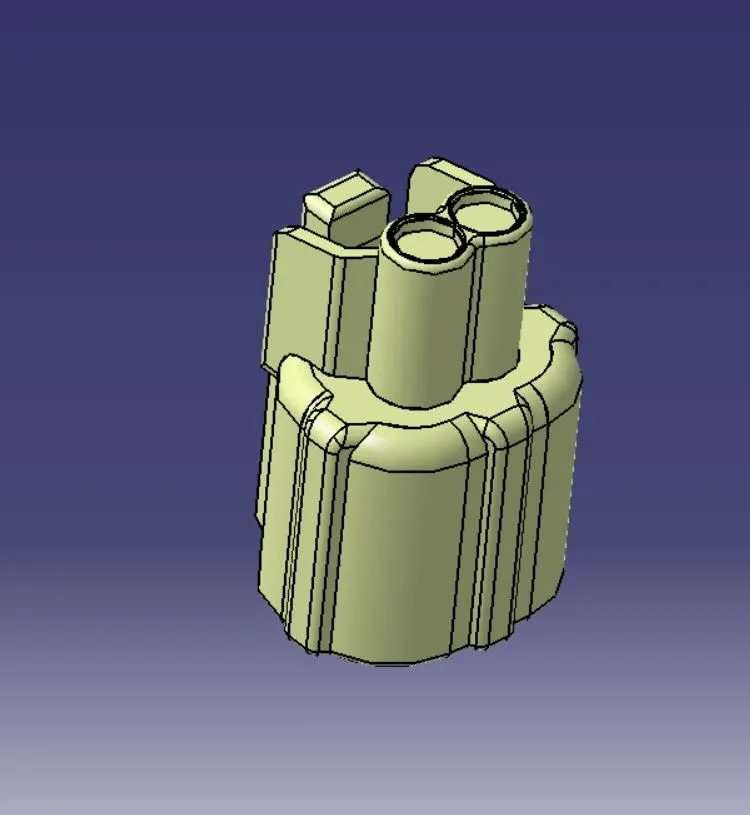

1. c-2-174357-2-e-3d
2. c-173090-2-a-3d
3. c-1563689-1-b-3d
4. c-776438-4-d-3d

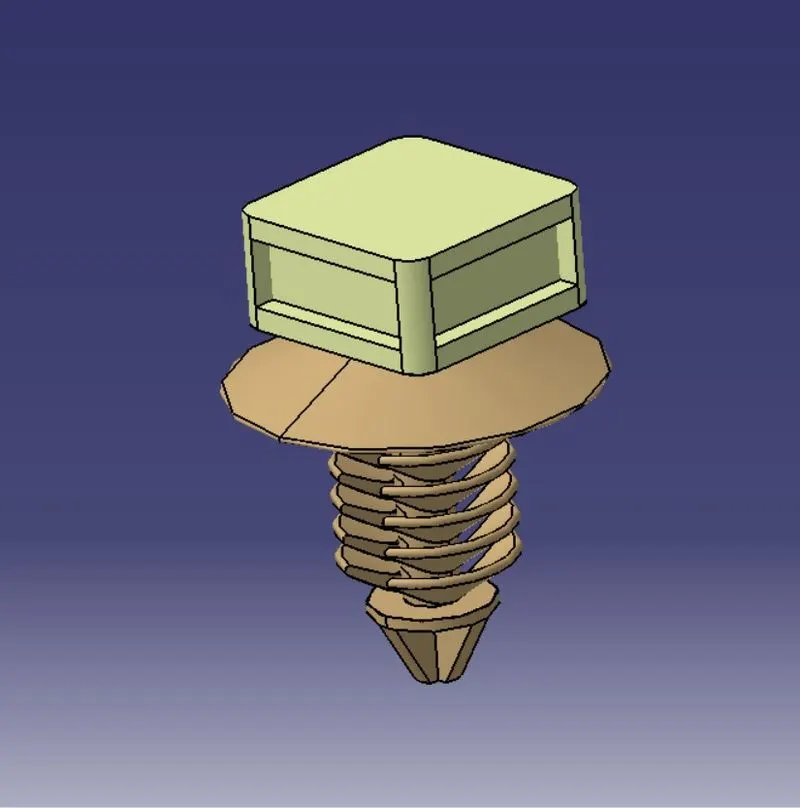

5. Furr Tree Clip
1. c-2-174357-2-e-3d
PRODUCT TYPE FEATURES
Connector & Housing Type : Housing For Female terminals
Connector System : Wire To Wire
Hybrid Connector : No
ELECTRICAL CHARACTERISTICS
Operating Voltage : 12
Nominal Voltage Architecture : 12
USAGE CONDITIONS
Operating Temprature (max) (c*) : 70,75,80,85,90,100,105
Operating Temprature (max) (f*) : 158,167,176,185,194,212,221
Operating Temprature Rnage : -30-105*c[-22-221*f]
2.c-173090-2-a-3d
PRODUCT TYPE FEATURES
Connector & Housing Type : Housing For Female terminals
Connector System : Wire To Wire
Hybrid Connector : No
ELECTRICAL CHARACTERISTICS
Operating Voltage : 12
Nominal Voltage Architecture : 12
USAGE CONDITIONS
Operating Temprature (max) (c*) : 70,75,80,85,90,100,105
Operating Temprature (max) (f*) : 158,167,176,185,194,212,221
Operating Temprature Rnage : -30-105*c[-22-221*f]
3.c-1563689-1-b-3d
PRODUCT TYPE FEATURES
Connector & Housing Types : Housing for female terminals
Connector system : Wire To Board , Wire to Device , Wire to wire
Hybrid Connector : No
ELECTRICAL CHARACTERSTICS
Operating Voltage : 12
Nominal Voltage Architecture : 12
USAGE CONDITIONS
Operating Temprature (max) (c*) : 70,75,80,85,90,100,105,110,120,125,130
Operating Temorature (max) (f*) : 158,167,176,185,194,212,221,230,248,257,226
Operating temprature Range : -40-130*c [-40-266*f]
4.c-776438-4-d-3d
PRODUCT TYPE FEATURE
Connector & Housing Types : Housing for female terminals
Connector System : Wire to Wire
ELECTRICAL CHARACTERSTICS
Operating Voltage :250
Nominal Voltage Architecture :12,24,42,48,80,90,125,240
USAGE CONDITIONS
Operating Temprature (max) (c*) : 70,75,80,85,90,100,105,110,120,125
Operating temprature (max) (f*) : 158,167,176,185,194,212,221,230,248,257
Operating Temprature Range : -40-125*c[-40-257*f]

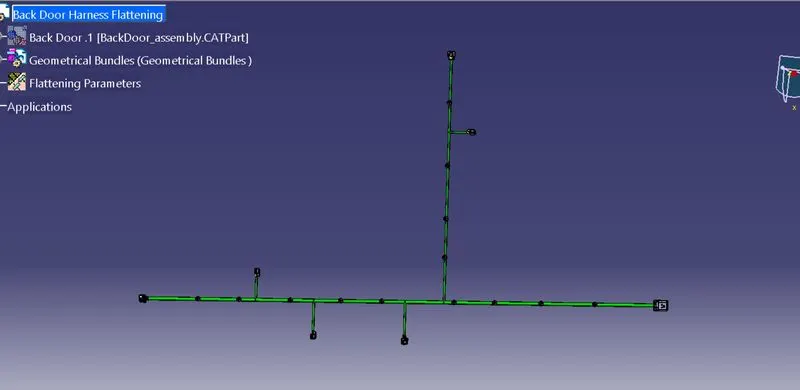

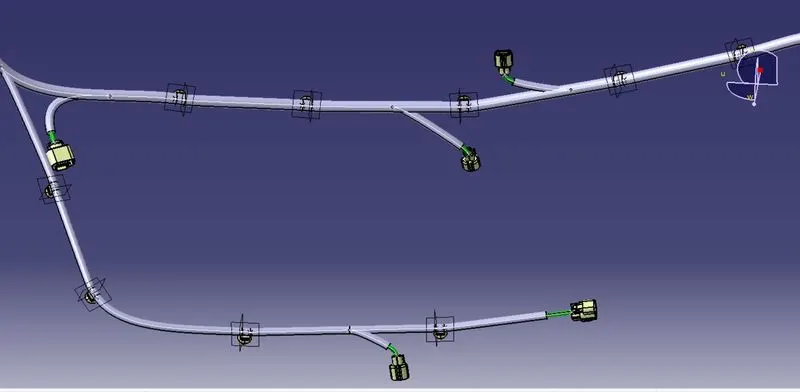

FLATTENING
Flattening is madatory to complete our wiring harness routing , because it is helps to calculate the bundle diemensions

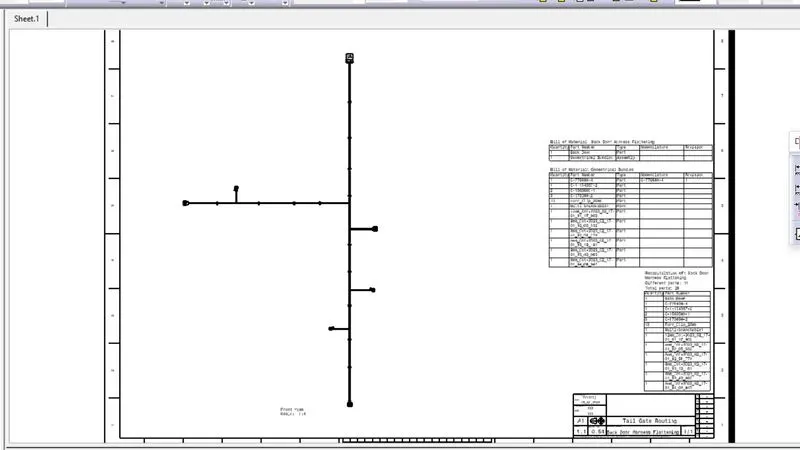

DRAFTING or DRAWING
