Project 1- Traffic Jam Assistant Feature

Traffic Jam Assistant Feature

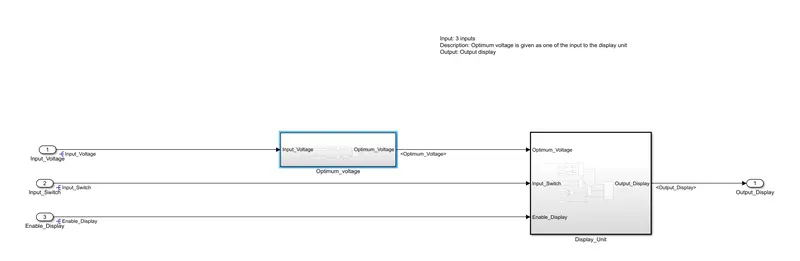

Model:

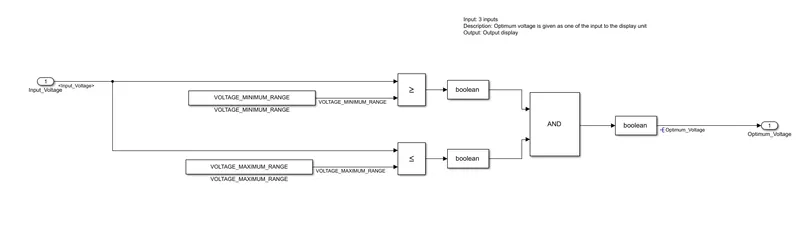

Optimum voltage:

Input voltage is compared against minimum and maximum voltage ranges

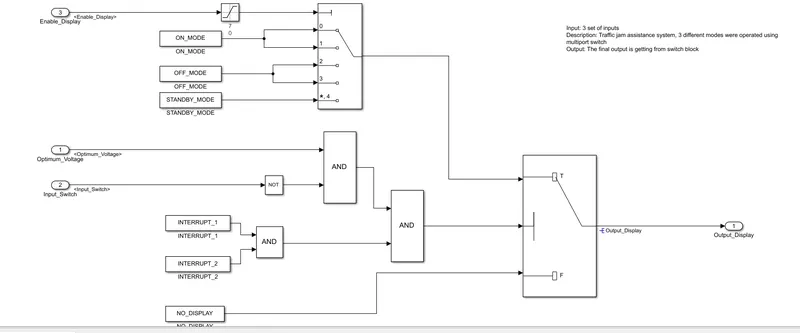

display unit:

three different modes, are connected with the multiport switch

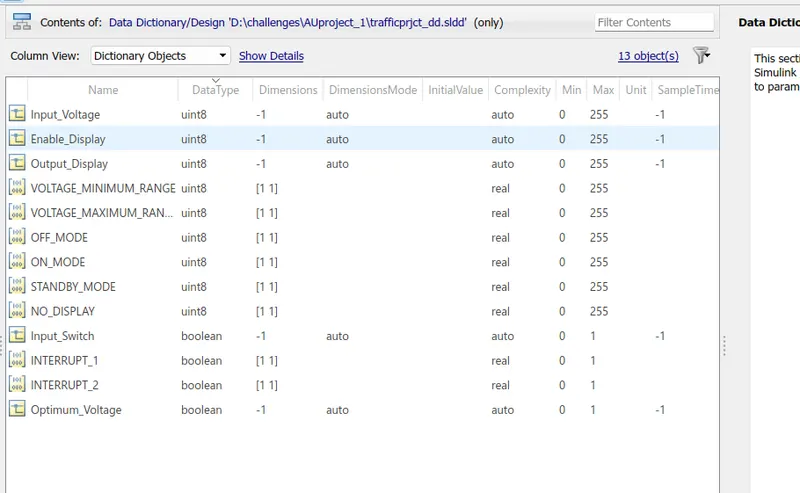

Creation of data dictionary:

the data dictionary is created using the given calibration, input and output signals

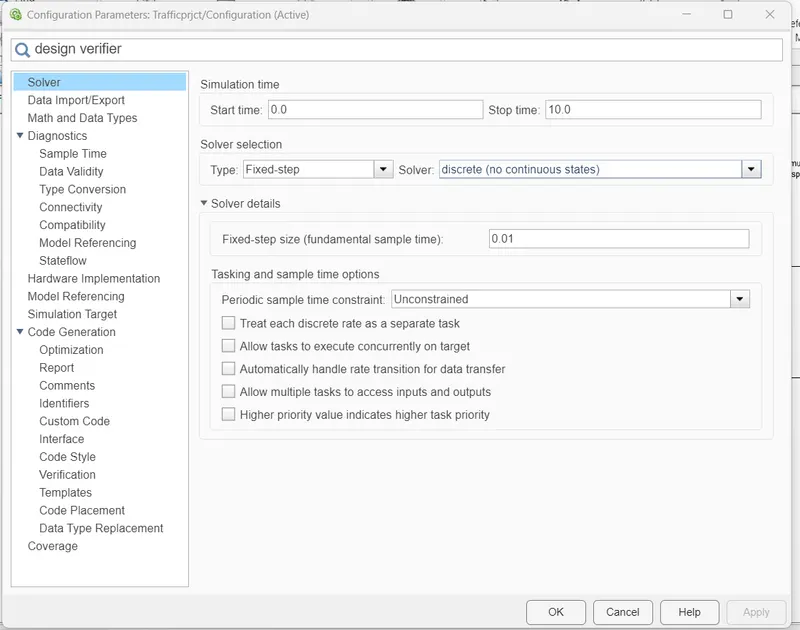

Configuration parameter setting:

run the model, then check for MAAB guidelines.

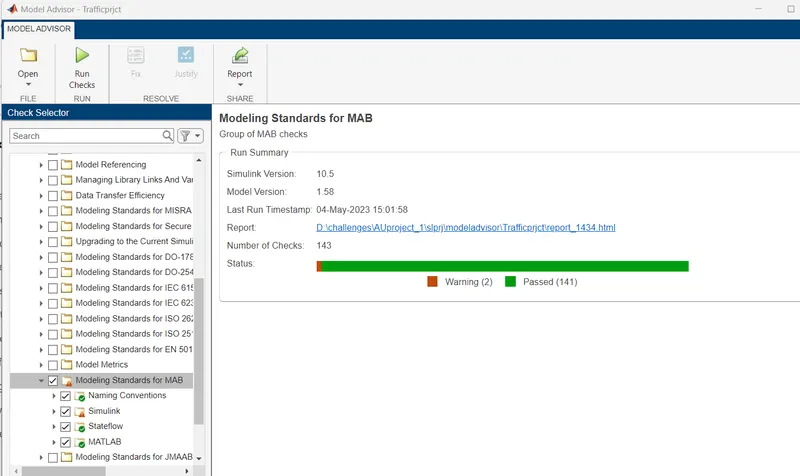

Model Advisor:

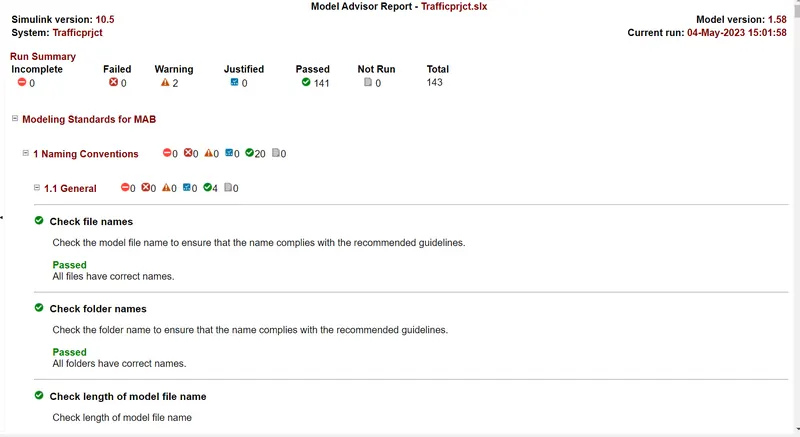

Check the model whether it is designed as per the MAAB guidelines and generate the report

the 2 warnings are acceptable

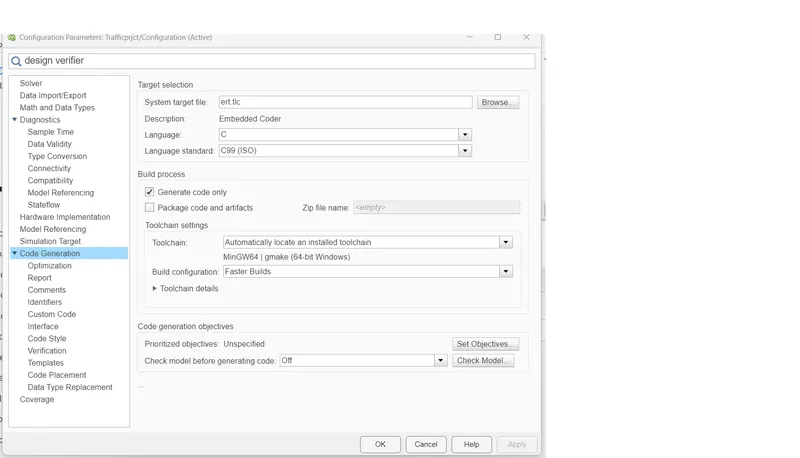

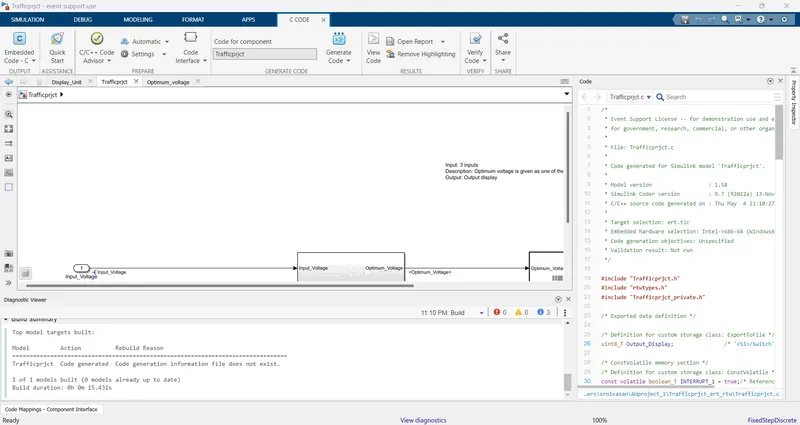

Code generation:

code is generated

Conclusion:

As per MAAB guidelines, traffic jam assistant feature is designed in simulink, the model advisor report and code is generated.
