Project 1 - Simulating a BTMS

BTMS system have to be calculating the value of the cooling method of air

that air flow how reduce the heat amount, then how to maintain to battery heating condition in to cooloing

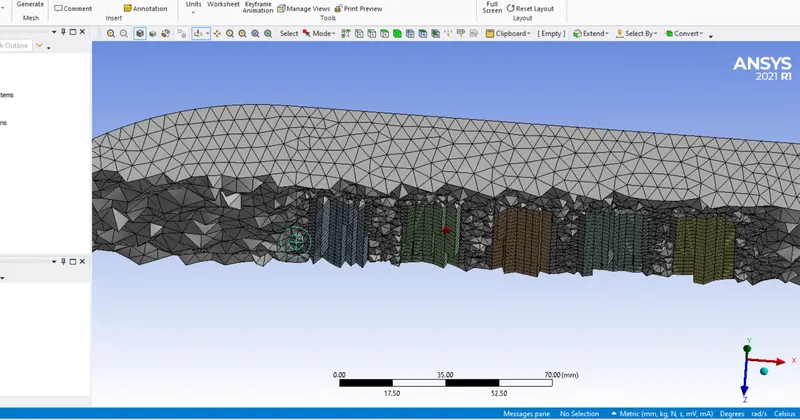

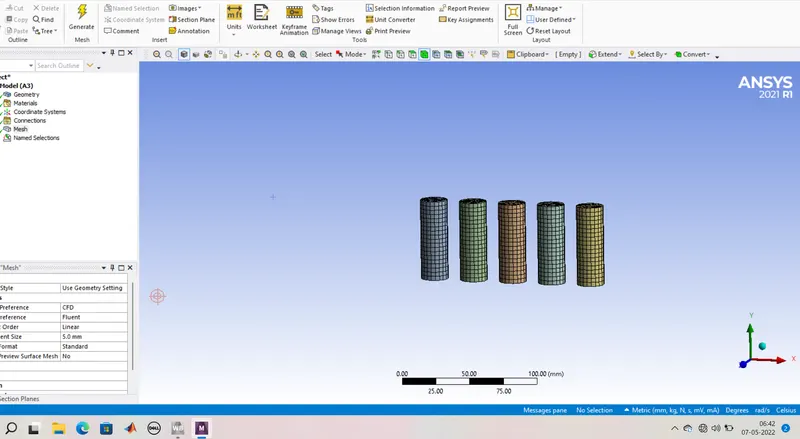

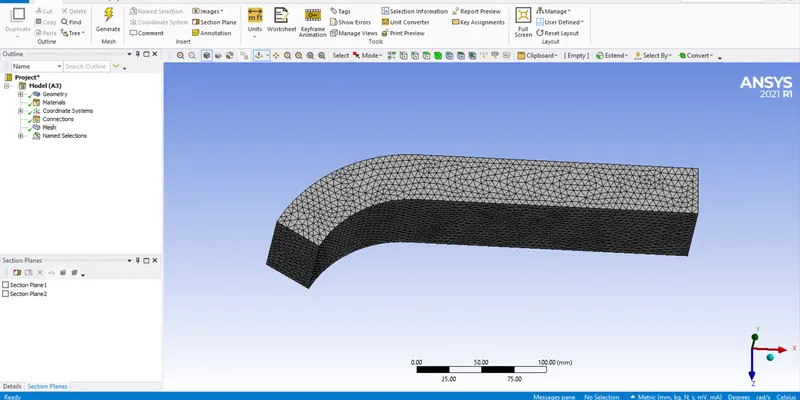

After meshing

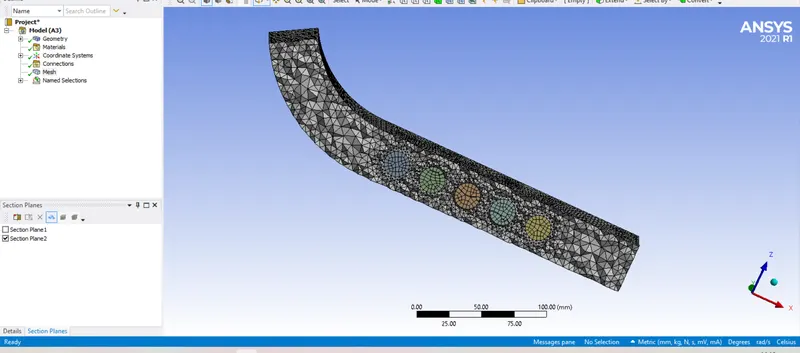

After section plane to be using

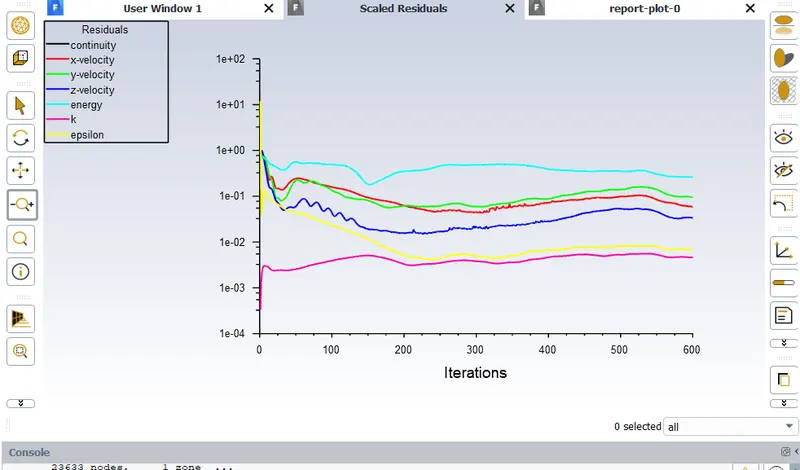

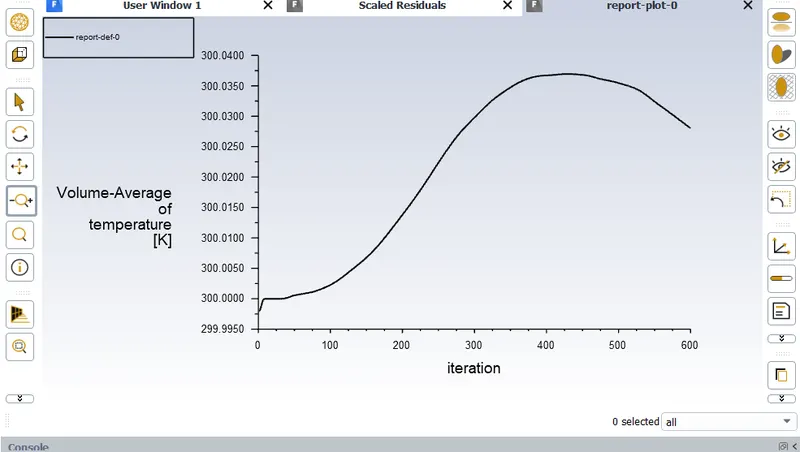

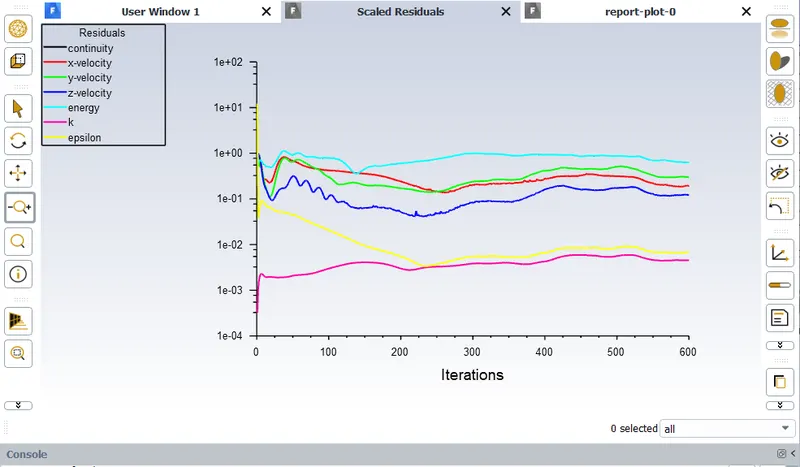

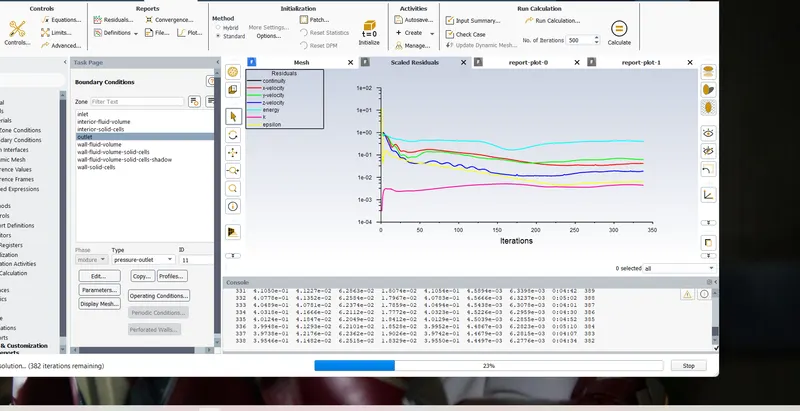

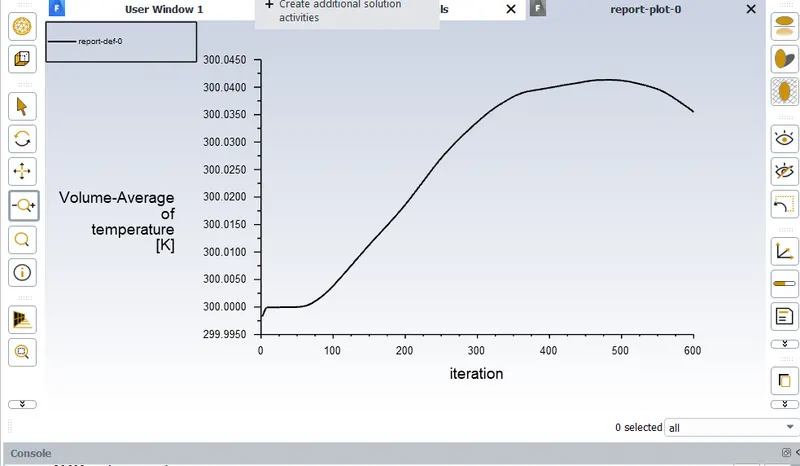

Final value of the ploted variable using the iteration value 500 iteration

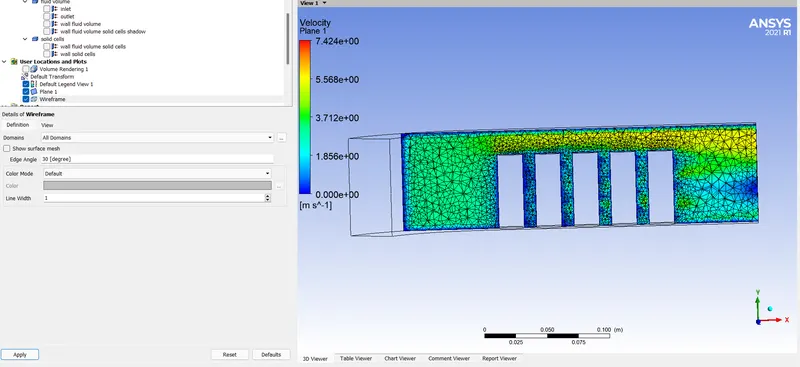

Plane inserted

velocity value changed to 30000W/m^3,velocity of the cooling air 4m/s

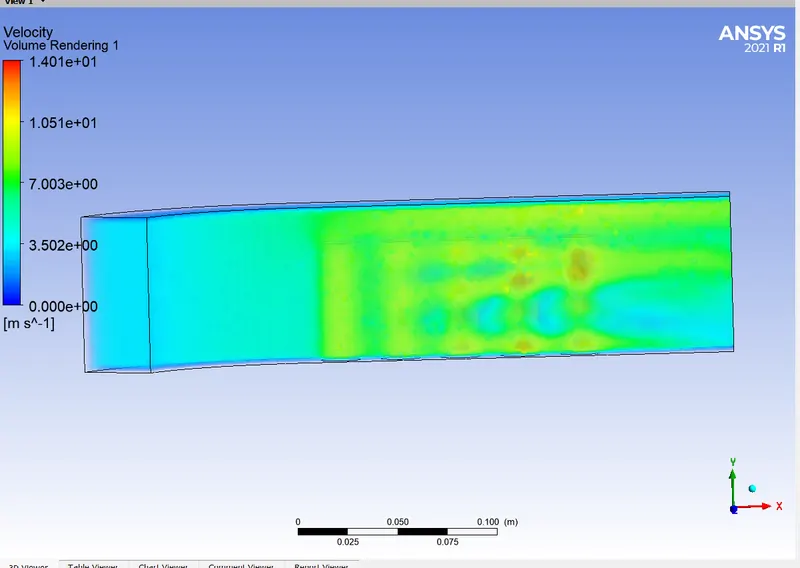

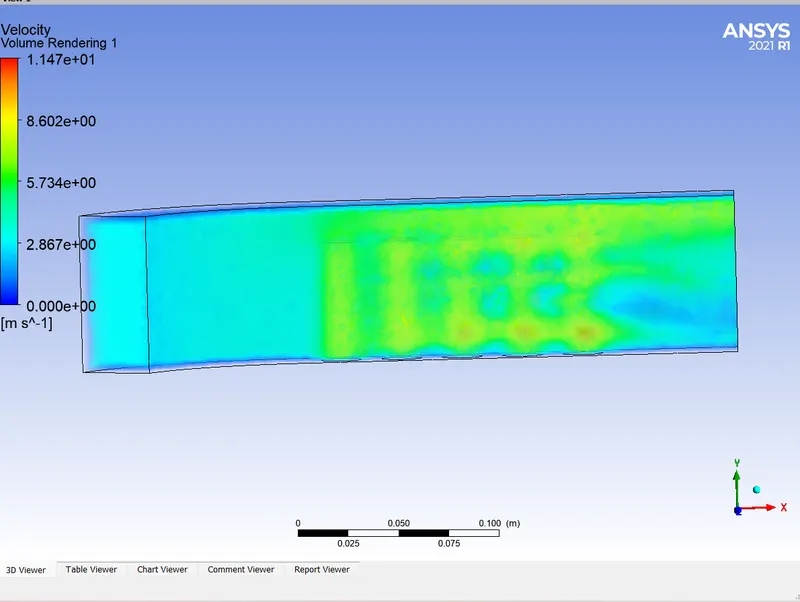

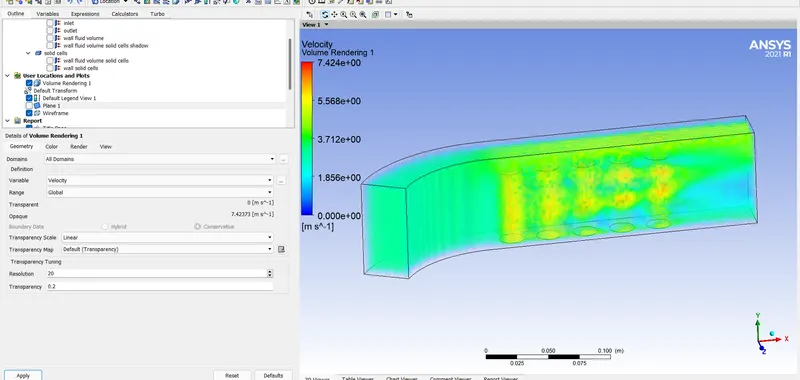

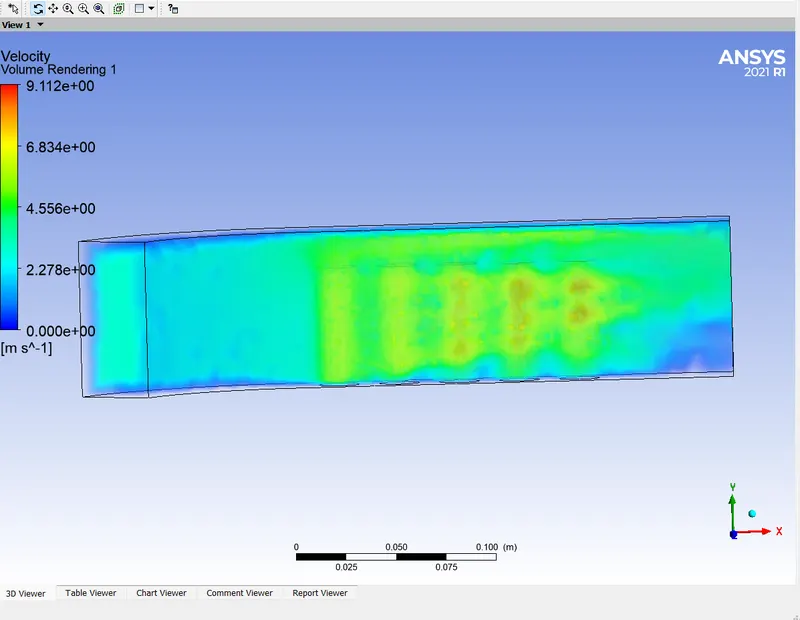

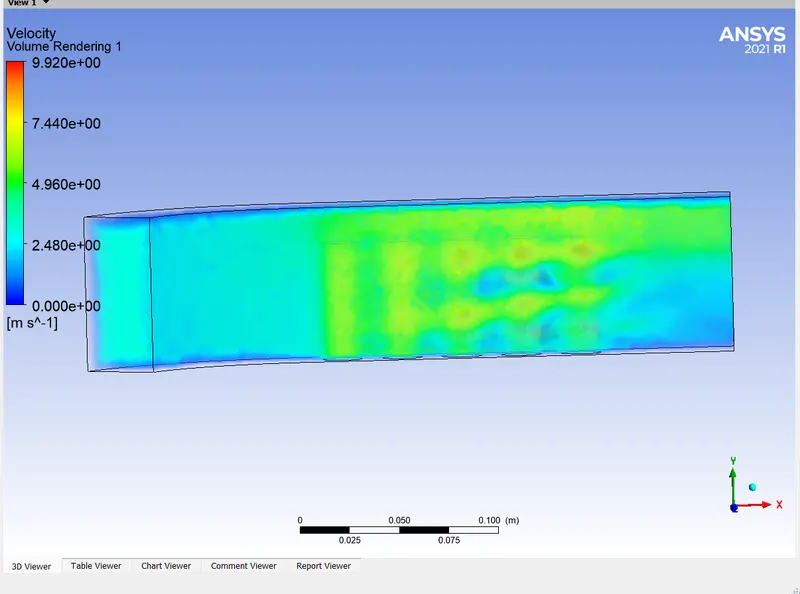

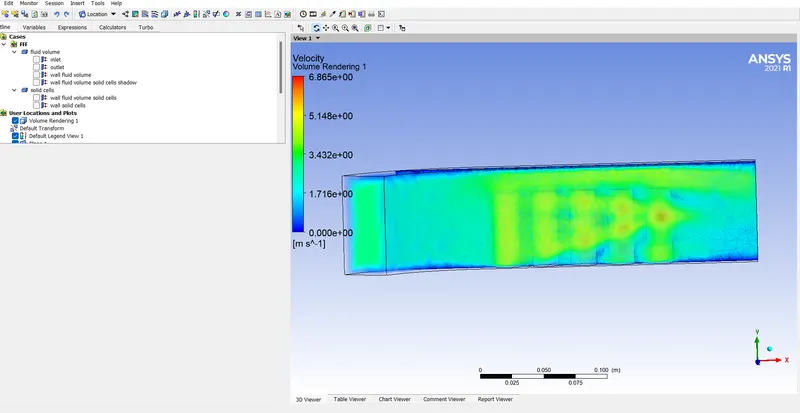

velocity rendering using this method

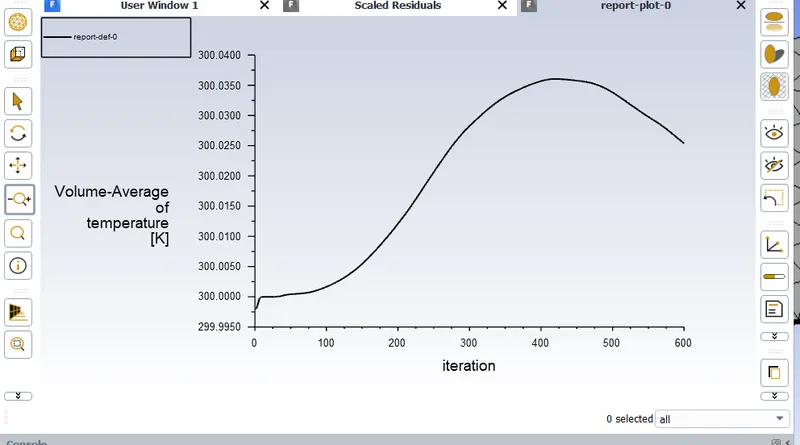

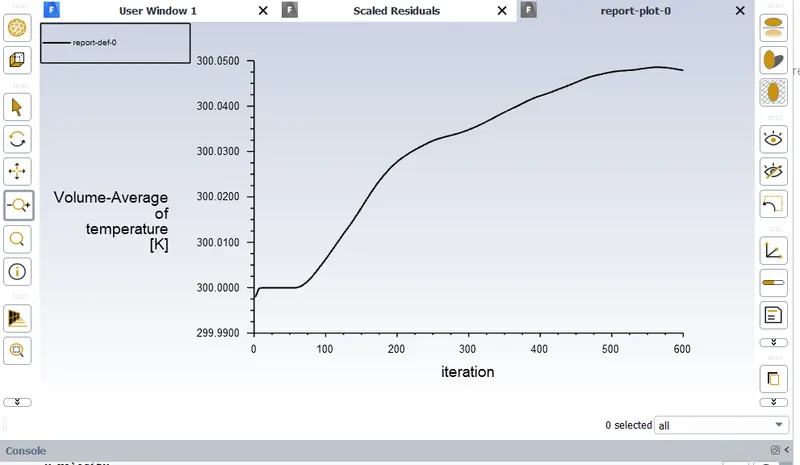

Polted value at 12mm Element size

Temprature avarage value going to 300.360

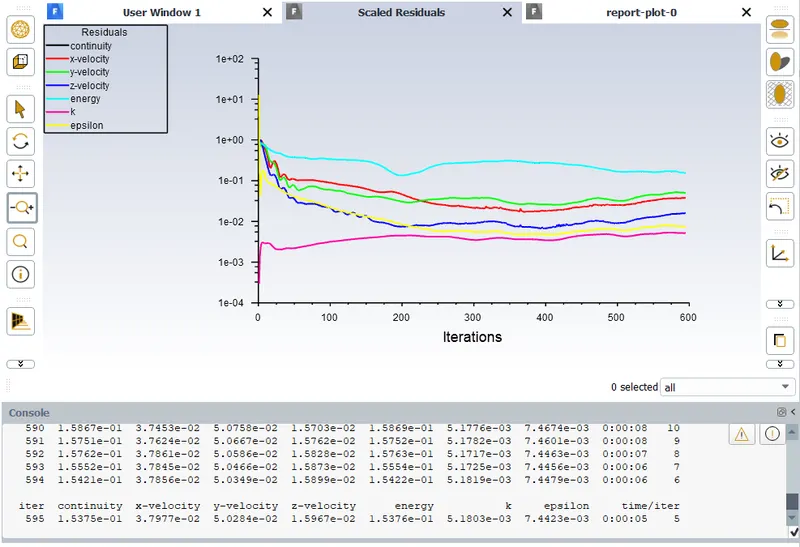

Plot for 9 mm Element size

Temprature average value gonig to 300.370

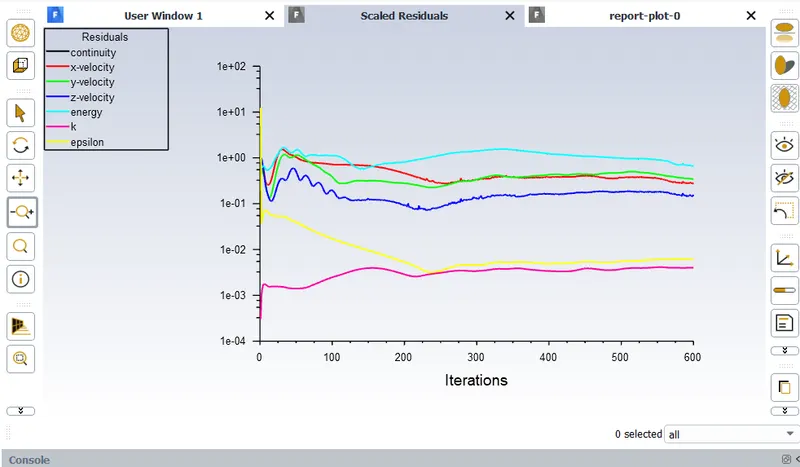

Plot at value of 6 mm Element size

Temprature avarage value gonig to 300.410

Plot at 4mm element size

Average temprature level going to 300.475

conclution

Element size of the material maintaned at high value size that temprature level going to maitained low,

That cooling level of the material 300.60 at 12mm of element size
