Project-1: Powertrain for aircraft in runways

Part A:

1. Search and list out the total weight of various types of aircrafts.

2. Is there any difference between ground speed and air speed?

3. Why is it not recommended to use aircraft engine power to move it on the ground at Airport?

4. How an aircraft is pushed to runway when its ready to take off?

5. Learn about take off power, tyre design, rolling resistance, tyre pressure, brake forces when landing.

Part B:

6. A. With necessary assumptions, calculate the force and power required to push / pull an aircraft by a towing vehicle.

B. Develop the model for the calculated force and power using Simulink.

7. A. Design an electric powertrain with type of motor, it’s power rating, and energy requirement to fulfill aircraft towing application in Simulink. Estimate the duty cycle range to control the aircraft speed from zero to highest. Make all required assumptions. Prepare a table of assumed parameters. Draw a block diagram of powertrain.

(Hint :DC7 Block)

B. Also, Design the parameters in excel sheet.

Solution:

1. To search and list out various types of aircraft along with its gross weight respectively.

Type	MTOW [kg]	MLW [tonnes]	TOR [m]	LR [m]	ICAO category	FAA category
Antonov An-225	640,000	591.7	3500		Heavy	Super
Scaled Composites Model 351 Stratolaunch	589,670		3660		Heavy	Super
Airbus A380-800[1][2][3]	575,000	394	3100	1930	Heavy	Super
Boeing 747-8F	447,700	346.091	3100	1800	Heavy	Heavy
Boeing 747-8	443,613	306.175	3100		Heavy	Heavy
Boeing 747-400ER	412,770	295.742	3090		Heavy	Heavy
Antonov An-124-100M	405,060	330	2520	900	Heavy	Heavy
Boeing 747-400	396,900	295.742	3018	2179	Heavy	Heavy
Lockheed C-5 Galaxy[4][5][6]	381,000	288.417	2530	1494	Heavy	Heavy
Boeing 747-200[7]	377,840	285.700	3338	2109	Heavy	Heavy
Boeing 747-300[7]	377,840	260.320	3222	1905	Heavy	Heavy
Airbus A340-500[8]	371,950	240	3050	2010	Heavy	Heavy
Airbus A340-600[8]	367,400	256	3100	2100	Heavy	Heavy
Boeing 777F	347,800	260.816	2830		Heavy	Heavy
Boeing 777-300ER	351,800	251.29	3100		Heavy	Heavy
Boeing 777-200LR	347,450	223.168	3000		Heavy	Heavy
Boeing 747-100[7]	340,200	265.300			Heavy	Heavy
Airbus A350-1000	308,000	233.5			Heavy	Heavy
Boeing 777-300	299,370	237.683	3380		Heavy	Heavy
Boeing 777-200ER	297,550	213.00	3380	1550	Heavy	Heavy
Airbus A340-300[8][9]	276,700	190	3000	1926	Heavy	Heavy
McDonnell Douglas MD-11	273,300	185	2990	1890	Heavy	Heavy
Airbus A350-900	270,000	175	2670	1860	Heavy	Heavy
Ilyushin Il-96M	270,000	195.04	3115	2118	Heavy	Heavy
McDonnell Douglas DC-10	256,280	183	2990	1890	Heavy	Heavy
Boeing 787-9[10]	254,000	192.777	2900		Heavy	Heavy
Boeing 787-10[10]	254,000	201.849			Heavy	Heavy
Airbus A340-200[8][11]	253,500	181	2990		Heavy	Heavy
Airbus A330-900	251,000	191	3100		Heavy	Heavy
Ilyushin IL-96-300	250,000	175	2600	1980	Heavy	Heavy
Airbus A330-300[12][13]	242,000	185	2500	1750	Heavy	Heavy
Airbus A330-200[12][13]	242,000	180	2220	1750	Heavy	Heavy
Lockheed L-1011-500	231,300	166.92	2636		Heavy	Heavy
Boeing 787-8[10]	228,000	172.365	3300	1695	Heavy	Heavy
Lockheed L-1011-200	211,400				Heavy	Heavy
Ilyushin IL-86	208,000	175			Heavy	Heavy
Boeing 767-400ER	204,000	158.758	3414		Heavy	Heavy
Airbus A300-600R[14]	192,000	140	2385	1555	Heavy	Heavy
Boeing 767-300ER	187,000	136.08	2713	1676	Heavy	Heavy
Concorde	185,000	111.1	3440	2220	Heavy	Heavy
Airbus A300-600[14]	163,000	138	2324	1536	Heavy	Heavy
Boeing 767-300	159,000	136.078	2713	1676	Heavy	Heavy
Airbus A310-300[14]	157,000	124	2290	1490	Heavy	Heavy
Vickers VC10	152,000	151.9			Heavy	Heavy
Boeing 707-320B[15]	151,000	97.5			Heavy	Heavy
Boeing 707-320C[15]	151,000	112.1			Heavy	Heavy
Douglas DC-8-61	147,000				Heavy	Heavy
Airbus A310-200[14]	142,000	123	1860	1480	Heavy	Heavy
Airbus A400M	141,000	122	980	770	Heavy	Heavy
Douglas DC-8-32	140,000				Heavy	Heavy
Douglas DC-8-51	125,000				Medium	Large
Boeing 757-300	124,000	101.6	2550	1750	Medium	Large
Boeing 707-120B[15]	117,000	86.3			Medium	Large
Boeing 757-200	116,000	89.9	2347	1555	Medium	Large
Boeing 720B[16]	106,000	79.5			Medium	Large
Boeing 720[16]	104,000	79.5			Medium	Large
Tupolev Tu-154M	104,000	80			Medium	Large
Tupolev Tu-204SM	104,000	87.5	2250		Medium	Large
Convair 880	87,500				Medium	Large
Boeing 737-900	85,000	66.36	2500	1704	Medium	Large
Boeing 737-900ER	85,000	71.35	2804	1829	Medium	Large
Boeing 727-200 Advanced[17]	84,000	70.1			Medium	Large
Airbus A321-100[18]	83,000	77.8	2200	1540	Medium	Large
Boeing 737-800	79,000	65.32	2308	1634	Medium	Large
Boeing 727-200[17]	78,000	68.1			Medium	Large
McDonnell-Douglas MD-83	73,000	63.28			Medium	Large
Boeing 727-100[17]	72,500	62.4			Medium	Large
Boeing 727-100C[17]	72,500	62.4			Medium	Large
McDonnell-Douglas MD-90-30	71,000	64.41	2165	1520	Medium	Large
de Havilland Comet 4	70,700				Medium	Large
Boeing 737-700	70,000	58.06	1921	1415	Medium	Large
Airbus A320-100[18]	68,000	66	1955	1490	Medium	Large
Boeing 737-400	68,000	54.9	2540	1540	Medium	Large
de Havilland Comet 3	68,000				Medium	Large
Boeing 377	67,000				Medium	Large
Boeing 737-600	66,000	54.66	1796	1340	Medium	Large
Airbus A220-300	65,000	57.61	1890	1494	Medium	Large
Hawker Siddeley Trident 2E	65,000				Medium	Large
Airbus A319[18]	64,000	62.5	1850	1470	Medium	Large
Boeing 737-300	63,000	51.7	1939	1396	Medium	Large
Boeing 737-500	60,000	49.9	1832	1360	Medium	Large
Airbus A220-100	59,000	50.80	1463	1356	Medium	Large
Airbus A318[18]	59,000	57.5	1375	1340	Medium	Large
Boeing 717-200HGW	55,000	47.174	1950		Medium	Large
Douglas DC-7	55,000				Medium	Large
de Havilland Comet 2	54,000				Medium	Large
Boeing 717-200BGW	50,000	46.265	1950		Medium	Large
de Havilland Comet 1	50,000				Medium	Large
Douglas DC-6A	48,600				Medium	Large
Douglas DC-6B	48,500				Medium	Large
Embraer 190[19]	48,000	43	2056	1323	Medium	Large
Caravelle III	46,000				Medium	Large
Fokker 100	46,000	39.95	1621	1350	Medium	Large
Douglas DC-6	44,000				Medium	Large
Avro RJ-85	42,000	36.74			Medium	Large
Handley Page Hermes	39,000				Medium	Large
Embraer 175[20]	37,500	32.8	2244	1304	Medium	Large
Bombardier CRJ900[21]	36,500	33.345	1778	1596	Medium	Large
Embraer 170[22]	36,000	32.8	1644	1274	Medium	Large
Bombardier CRJ700	33,000	30.39	1564	1478	Medium	Large
Douglas DC-4	33,000				Medium	Large
Vickers Viscount 800	30,400				Medium	Large
Bombardier Q400	28,000	28.01	1219	1295	Medium	Large
Bombardier CRJ200	23,000	21.319	1918	1479	Medium	Large
ATR 72-600	22,800	22.35	1333	914	Medium	Large
Saab 2000	22,800	21.5	1300		Medium	Large
Embraer ERJ 145	22,000	19.3	2270	1380	Medium	Large
ATR 42-500	18,600	18.3	1165	1126	Medium	Small
Saab 340	13,150	12.930	1300	1030	Medium	Small
Embraer 120 Brasilia	11,500	11.25	1560	1380	Medium	Small
BAe Jetstream 41	10,890	10.570	1493	826	Medium	Small
Learjet 75[23]	9,752	8.709	1353	811	Medium	Small
Pilatus PC-24[24]	8,300	7.665	893	724	Medium	Small
Embraer Phenom 300[25]	8,150	7.65	956	677	Medium	Small
Beechcraft 1900D	7,765	7.605	1036	853	Medium	Small
Cessna Citation CJ4[26]	7,761	7.103	1039	896	Medium	Small
de Havilland Hercules	7,000				Medium	Small
Embraer Phenom 100	4,800	4.43	975	741	Light	Small

https://en.wikipedia.org/wiki/List_of_airliners_by_maximum_takeoff_weight

2.Differences between ground speed and air speed.

Sol: Air speed:

• It is the speed at which the air is flowing around the aircraft’s wings.
• It is simply the speed at which an aircraft is moving relative to the air it is flying in.

Ground Speed:

• It the aircraft’s speed relative to the ground.
• Ground speed is what determines how fast an aircraft will get to its destination.

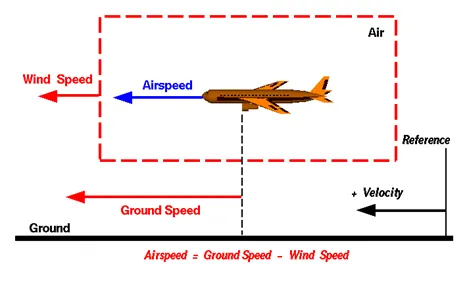

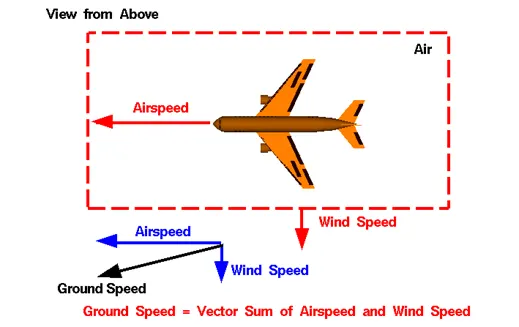

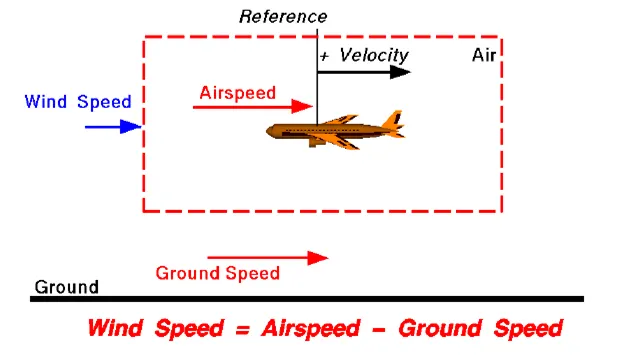

From this figure, we can say that ground speed is the vector summation of the airspeed and wind speed.

3.Why it is not recommended to use aircraft engine power to move it on the ground at airport?

Sol: Generally air crafts have reverse thrust which are having ability to move backward but the problem with this thrust is it will damage the terminal building and other equipment.

If the aircraft engine close to the ground then there are are 2 issues.

1. Blow sand and debris forward.

2 .This sand and debris sucks to the engine, which causes the failure of the engine.

4.How an aircraft is pushed to runway when it is ready to take off ?

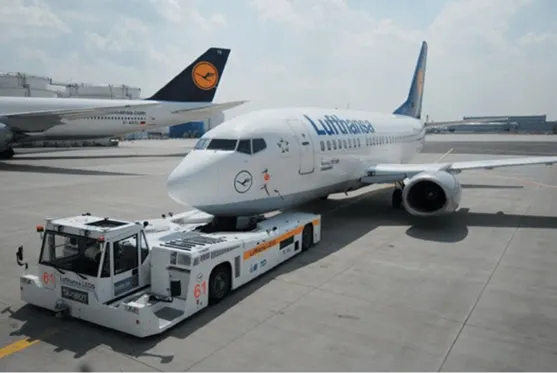

In airports, there is a systematic procedure called push back and in this, the aircraft is pushed towards its parking position. For this process, a tow bar is connected to the nose-wheel strut. The corresponding nose wheel strut is shown in the figure.

5.Learn about take off power, tyre design, rolling resistance, tyre pressure, brakes forces when landing.

Take off : It is the process in which an aircraft (or) aerospace vehicle moving away from the ground and become air borne.

Take off Power: It is the amount of power required to achieve take off. Generally the take off time is 5minutes for reciprocating engines and 2.5 min for gas engines.

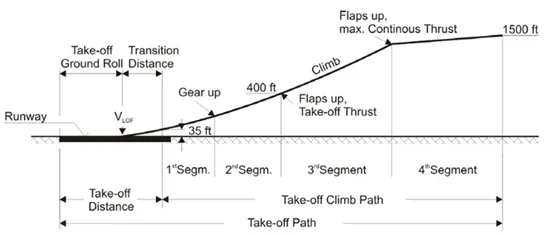

The above figure shows the take off path and it is observed that there are different segment to reach from ground to 1500ft.

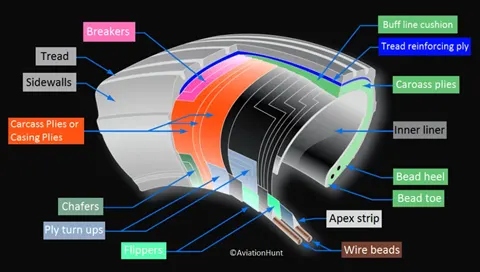

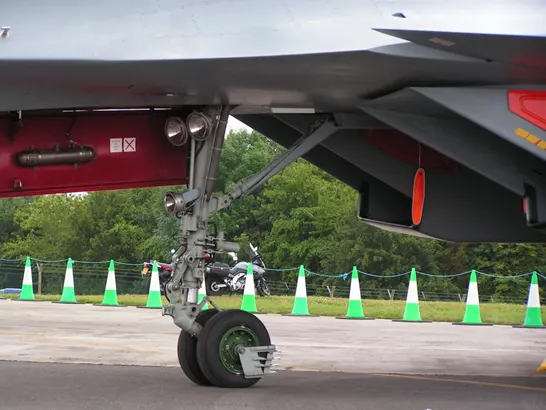

Tyre design:

The main purpose of designing aircraft Tyre is to withstand heavy loads while landing, take off and parking. The total number of wheels increases with the weight of the aircraft. It is used to absorb shock of landing and to get cushioning.

A Boeing 737NG & 737MAX uses 6 wheels, Boeing 787 uses 10 wheels, Boeing 777 uses 14 wheels and Airbus A380 uses 22 wheels. Aircraft tyre work under extreme conditions, carrying up to 340 tons and accelerating at over 250 km/hour at takeoff, in addition to enduring varied environmental stress when in flight and taxing.

• Carcass plies are mainly used to develop the Tyre. These are also called as casing plies.
• Retreading is nothing but restoring a worn tyre by renewing the tread area. If any repair occurs that is included in the retreading process.
• Load rating: It is the peak permissible load at a given inflation pressure.
• Ply Rating– It is used to recognize the peak recommended load rating and inflation pressure for a given
• Speed Rating– It is a rating at which the peak take off speed at which the given tyre has been tested.
• Skid Depth– It is the distance between the tread surface and the deepest groove as measured in the mould.

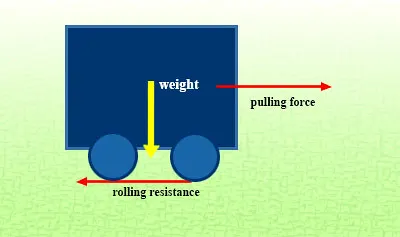

Rolling Resistance: It is a force resisting the motion when the vehicle rolls on the surface.

Where M is the mass of the vehicle.

µ_rr is the co-efficient of rolling resistance.

g is the gravitational force.

θ is the road angle.

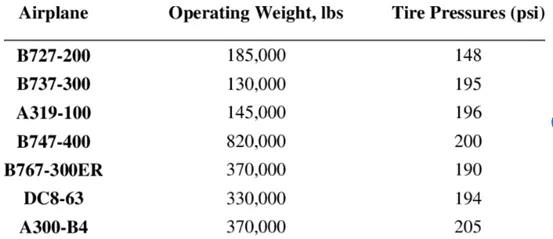

Tyre Pressure:

Generally the air Tyre pressure is upto 200psi(14bar, 1400kpa)

Brakes forces when landing:

Disc brake:

These brakes are same as that of braking system in automobiles. It consists of a pair of calipers, squeeze pads against the rotors of an airplane’s landing gear. When you apply the disc brakes the speed starts reducing at which they are rotating. After some time the speed of the aircraft will comes to zero completely.

Reverse thrust: Almost many air crafts use revers thrust during landing time. When flying, the thrust is projected out the rear of an airplane’s engines. When landing, however, pilots may use the reverse thrust feature. Reverse thrust changes the direction of the engines’ thrust. Rather than projecting out the rear, the thrust will be projected out the front. This reversal of thrust provides deceleration that allows airplanes to slow down more quickly when landing.

Wing Spoilers:

Many airplanes use wing spoilers to assist with braking when landing. Not to be confused with ailerons, spoilers are extendable flaps on the ends of an airplane’s wings. Pilots can raise the spoilers to decelerate the airplane as it approaches the runway. And even while on the runway, pilots will typically leave the wing spoilers raised. Raised wing spoilers create drag, which essentially slows down the airplane so that it’s able to brake more quickly.

6. With necessary assumptions, calculate the force and power required to push/pull an aircraft by a towing the vehicle. Develop the model for the calculated force and power using simulink.

Consider Max T/O Weight= 126800 lbs= 57,515kg

Max landing weight= 869000 lbs= 3,94,171kg

Total weight = 4,51,686Kg.

Area = 1752m².

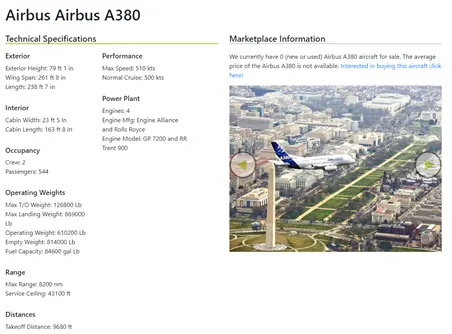

https://www.globalair.com/aircraft-for-sale/Specifications?specid=1545

Co efficient of Rolling resistance =0.01.

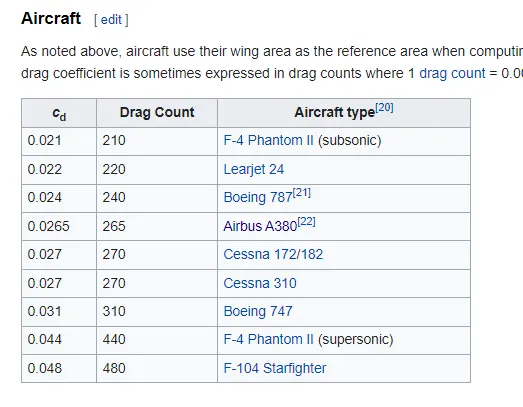

Drag coefficient of combined Towing vehicle and aircraft= 0.0265+0.13=0.156.

Gravitational force g= 9.81.

Speed to move the aircraft by towing the vehicle= 20Kmph.

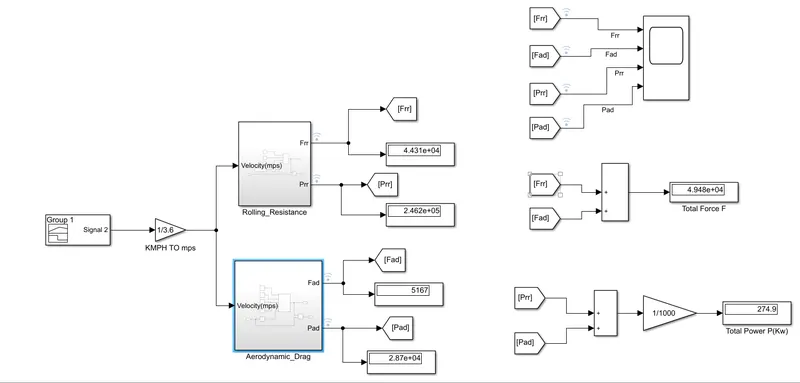

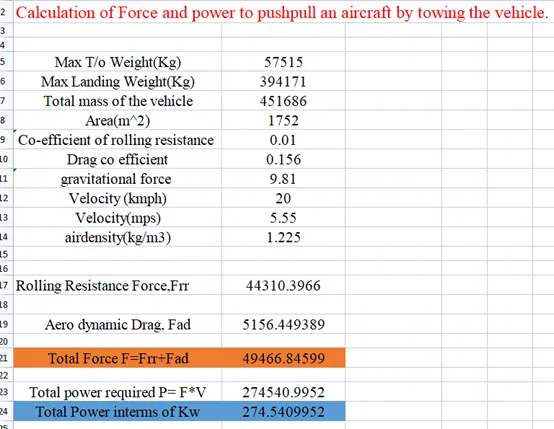

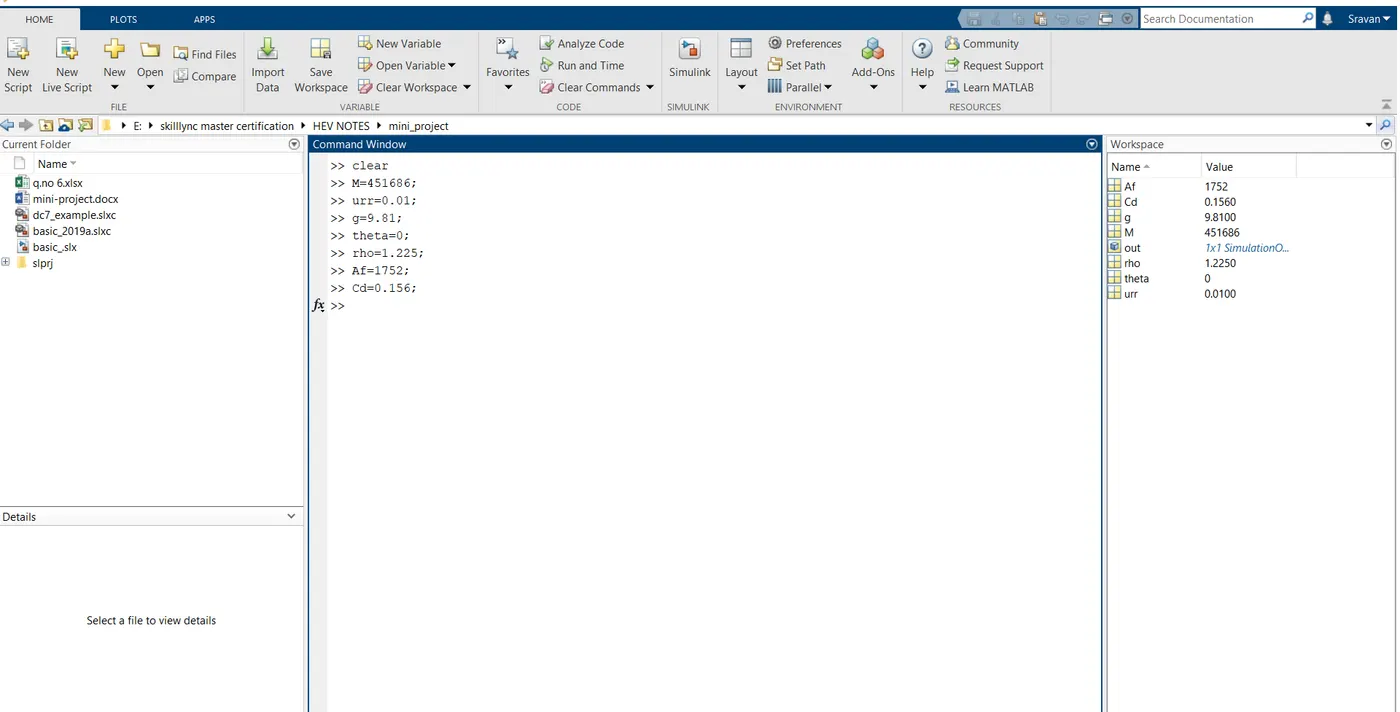

Calculations using excel sheet and MATLAB:

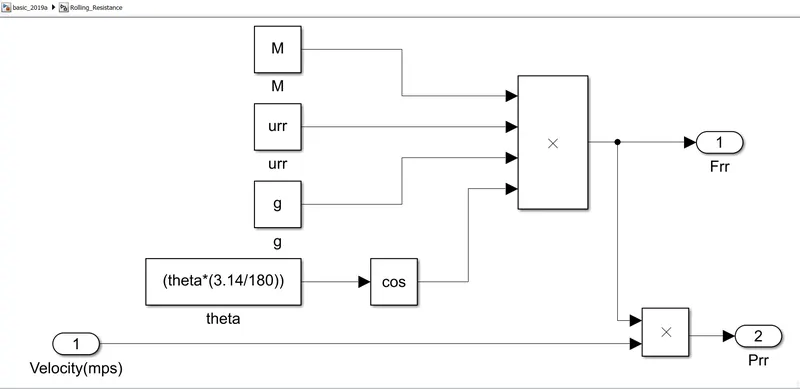

Frr= M*urr*g*COS(THETA). Prr= Frr*V;

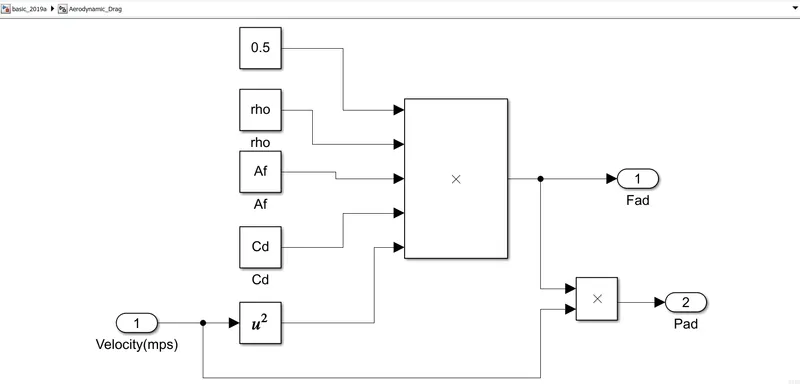

Fad= 0.5*rho*Cd*Af*V^2. Pad= Fad*V

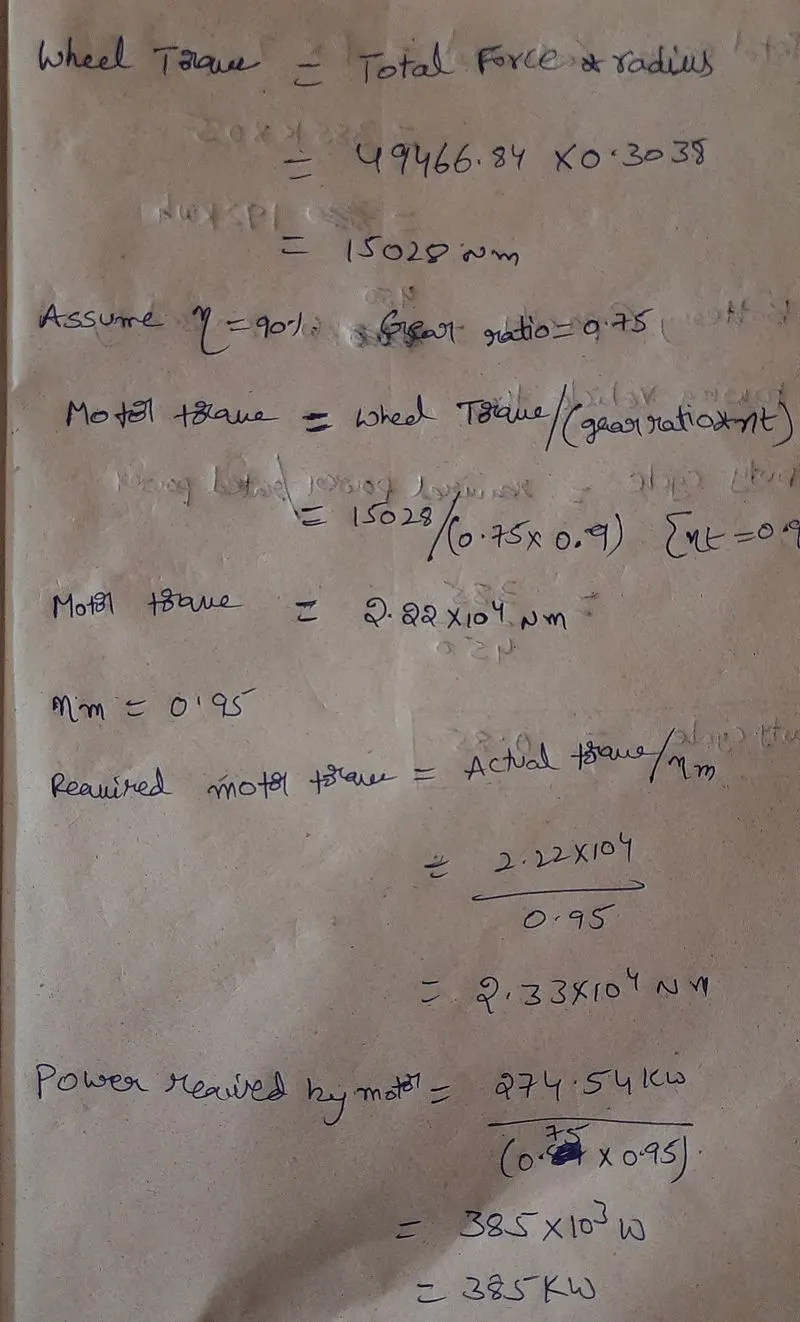

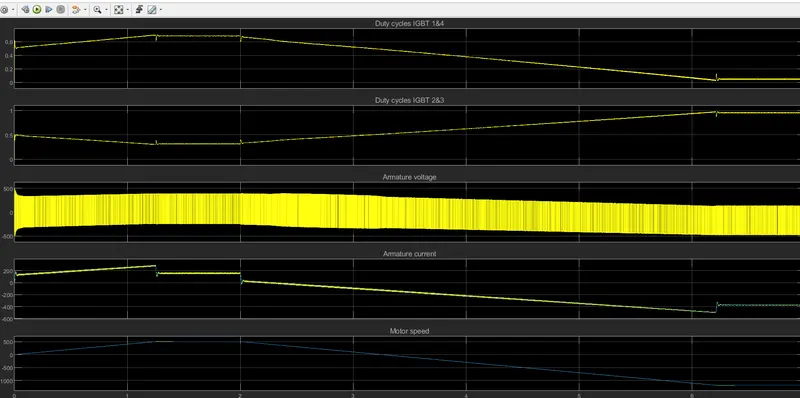

7 A. Design an electric powertrain with type of motor, it’s power rating, and energy requirement to fulfill aircraft towing application in Simulink. Estimate the duty cycle range to control the aircraft speed from zero to highest. Make all required assumptions. Prepare a table of assumed parameters. Draw a block diagram of powertrain.

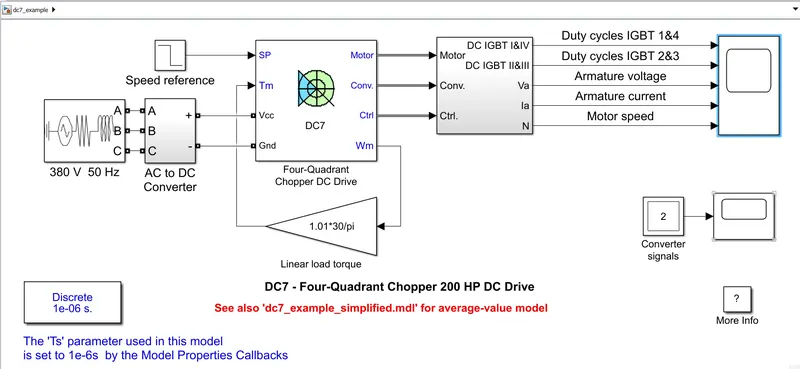

(Hint :DC7 Block)

B. Also, Design the parameters in excel sheet.

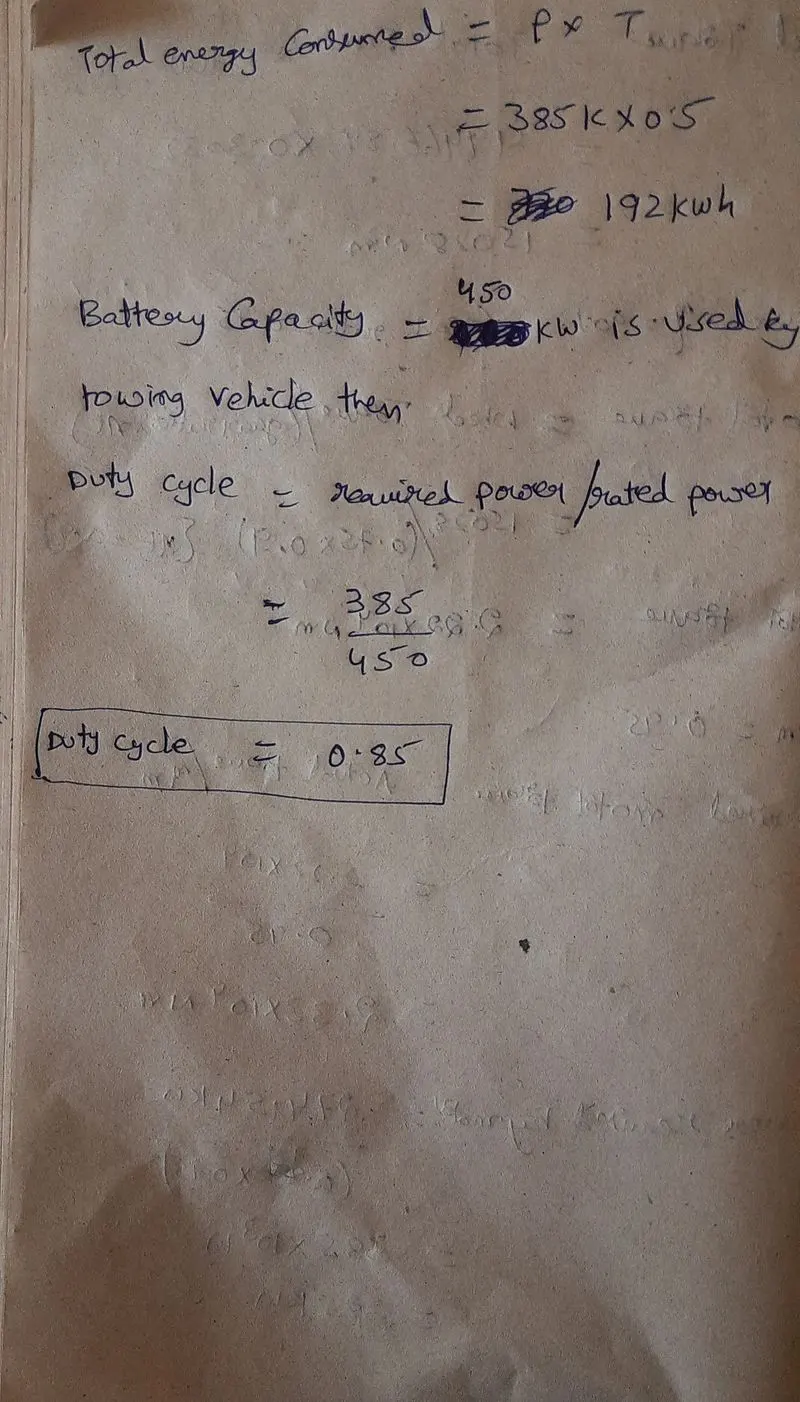

sol: with the continuation of problem no 6 additional calculation has been obtained.

For q.no B excel sheet alread i attached which is similar to q.no 6
