Project 1 - Parsing NASA thermodynamic data
- Code from project 1 parsing NASA thermodynamic data:
%Project 1- Parsing NASA thermodynamic data
%Diego Alejandro Cepeda Cuartas
clear all
close all
clc
%The idea of this code is to obtain thermodynamic coefficients according
%with the data provided by NASA. For achieving this, firstly we have to
%tidy the data values in order to read the necessary values and then, the
%fitting curve will be used for obtain the greatest coefficient value as
%Cp, H and S.
%Step 0- open the file text in matlab
fN=fopen('THERMO-Project_1.txt','r');
fgetl(fN)
A=fscanf(fN,'%c',[1 Inf])% %c serves to read all characters and
%Step 1- Input Values or value
prompt="Which species described on THERMO.dat (that are the same shown above, marked with 1 on the right side)\n do you want to get the coefficients and plots from? \n Both letters must be uppercase or lowercase!!! \n"
disp('The program only allows to show one species value per run, running it the times that you need')
x=input(prompt,'s')%The string value is introduced into the x variable and then:
%Step 2- Calling the function
y=parsing(x) % The function parsing select the coefficients from the exactly sepecies coefficients values
%Step 3- Determine the temperature values
B=splitlines(A)%Splitline takes the rows on the text and convert them in individual strings
%Tempersture values
To=string(B(1))
T=str2num(To)
T(1) %low temperature
T(2) %medium temperature
T(3) %high temperature
%Step 4- Defining Cp, H, S and Molecular weight equation
R=8.314 %J/mol K
Tl=298:1:1000; %Temperature range for plotting in Kelvin
Th=1000:1:5000%Temperature range for plotting in Kelvin
%1. Cp equation:
% a) Low Temperature equation parts(300K)
cl_1=y(5)*Tl.^4
cl_2=y(4)*Tl.^3
cl_3=y(3)*Tl.^2
cl_4=y(2)*Tl
cl_5=y(1)
% b) High Temperature equation parts(5000K)
ch_1=y(12)*Th.^4
ch_2=y(11)*Th.^3
ch_3=y(10)*Th.^2
ch_4=y(9)*Th
ch_5=y(8)
%SPECIFIC HEAT EQUATION:
Cl=cl_1+cl_2+cl_3+cl_4+cl_5
Ch=ch_1+ch_2+ch_3+ch_4+ch_5
%2. H equation:
% a) Low Temperature equation parts(300K)
hl_1=(y(6)*Tl.^-1)
hl_2=(y(5)/5)*Tl.^4
hl_3=(y(4)/4)*Tl.^3
hl_4=(y(3)/3)*Tl.^2
hl_5=(y(2)/2)*Tl
hl_6=y(1)
% b) High Temperature equation parts(5000K)
hh_1=y(13)*Th.^-1
hh_2=(y(12)/5)*Th.^4
hh_3=(y(11)/4)*Th.^3
hh_4=(y(10)/3)*Th.^2
hh_5=(y(9)/2)*Th
hh_6=y(8)
%ENTHALPY EQUATION:
Hl=hl_1+hl_2+hl_3+hl_4+hl_5+hl_6
Hh=hh_1+hh_2+hh_3+hh_4+hh_5+hh_6
%3. S equation:
% a) Low Temperature equation parts(300K)
sl_1=y(7)
sl_2=(y(5)/4)*Tl.^4
sl_3=(y(4)/3)*Tl.^3
sl_4=(y(3)/2)*Tl.^2
sl_5=y(2)*Tl
sl_6=y(1)*log(Tl)
% b) High Temperature equation parts(5000K)
sh_1=y(14)
sh_2=(y(12)/4)*Th.^4
sh_3=(y(11)/3)*Th.^3
sh_4=(y(10)/2)*Th.^2
sh_5=y(9)*Th
sh_6=y(8)*log(Th)
%ENTROPY EQUATION:
Sl=sl_1+sl_2+sl_3+sl_4+sl_5+sl_6
Sh=sh_1+sh_2+sh_3+sh_4+sh_5+sh_6
figure('name',['Thermodynamic behavior of ' upper(x)])
subplot(3,1,1)
plot(Tl,Cl,'r',Th,Ch,'r')
title('Specific heat behavior')
xlabel('Temperature (K)')
ylabel('Specific Heat')
hold on
subplot(3,1,2)
plot(Tl,Hl,'b',Th,Hh,'b')
title('Enthalpy behavior')
xlabel('Temperature (K)')
ylabel('Enthalpy ()')
subplot(3,1,3)
plot(Tl,Sl,'k',Th,Sh,'k')
title('Entropy behavior')
xlabel('Temperature (K)')
ylabel('Entropy')
a=num2str(y(15))
disp(['Molecular weight for ' upper(x) ':'])
disp([a ' g/mol'])- Code from parsing function:
function x=parsing(a) %Function for reading the txt. data fN=fopen('THERMO-Project_1.txt','r'); fgetl(fN) A=fscanf(fN,'%c',[1 Inf]);% %c serves to read all characters and B=splitlines(A);%Splitline takes the rows on the text and convert them in individual strings %Chemical molecular weight O=16; C=12; H=1; S=32; N=14; Ar=40; %1. Monoatomic oxygen- O if strcmp(a,'O')||strcmp(a,'o') row_1=string(B(6:8)); strfind(row_1(1),'E'); strfind(row_1(2),'E'); strfind(row_1(3),'E'); b1=row_1{1}; b2=row_1{2}; b3=row_1{3}; %High Temperature Coefficients ah_1=str2double(b1(1:15)); ah_2=str2double(b1(16:30)); ah_3=str2double(b1(31:45)); ah_4=str2double(b1(46:60)); ah_5=str2double(b1(61:75)); ah_6=str2double(b2(1:15)); ah_7=str2double(b2(16:30)); %Low Temperature Coefficients al_1=str2double(b2(31:45)); al_2=str2double(b2(46:60)); al_3=str2double(b2(61:75)); al_4=str2double(b3(1:15)); al_5=str2double(b3(16:30)); al_6=str2double(b3(31:45)); al_7=str2double(b3(46:60)); %Molecular weight mw=O %2. Diatomic oxygen- O2 elseif strcmp(a,'O2')||strcmp(a,'o2') row_2=string(B(10:12)); strfind(row_2(1),'E') strfind(row_2(2),'E') strfind(row_2(3),'E') b1=row_2{1}; b2=row_2{2}; b3=row_2{3}; %High Temperature Coefficients ah_1=str2double(b1(1:15)); ah_2=str2double(b1(16:30)); ah_3=str2double(b1(31:45)); ah_4=str2double(b1(46:60)); ah_5=str2double(b1(61:75)); ah_6=str2double(b2(1:15)); ah_7=str2double(b2(16:30)); %Low Temperature Coefficients al_1=str2double(b2(31:45)); al_2=str2double(b2(46:60)); al_3=str2double(b2(61:75)); al_4=str2double(b3(1:15)); al_5=str2double(b3(16:30)); al_6=str2double(b3(31:45)); al_7=str2double(b3(46:60)); %Molecular weight mw=O*2 %3. Monoatomic Hydrogen - H elseif strcmp(a,'H')||strcmp(a,'h') row_3=string(B(14:16)); strfind(row_3(1),'E'); strfind(row_3(2),'E'); strfind(row_3(3),'E'); b1=row_3{1}; b2=row_3{2}; b3=row_3{3}; %High Temperature Coefficients ah_1=str2double(b1(1:15)); ah_2=str2double(b1(16:30)); ah_3=str2double(b1(31:45)); ah_4=str2double(b1(46:60)); ah_5=str2double(b1(61:75)); ah_6=str2double(b2(1:15)); ah_7=str2double(b2(16:30)); %Low Temperature Coefficients al_1=str2double(b2(31:45)); al_2=str2double(b2(46:60)); al_3=str2double(b2(61:75)); al_4=str2double(b3(1:15)); al_5=str2double(b3(16:30)); al_6=str2double(b3(31:45)); al_7=str2double(b3(46:60)); %Molecular weight mw=H %4. Diatomic Hydrogen - H2 elseif strcmp(a,'H2')||strcmp(a,'h2') row_4=string(B(18:20)); strfind(row_4(1),'E'); strfind(row_4(2),'E'); strfind(row_4(3),'E'); b1=row_4{1}; b2=row_4{2}; b3=row_4{3}; %High Temperature Coefficients ah_1=str2double(b1(1:15)); ah_2=str2double(b1(16:30)); ah_3=str2double(b1(31:45)); ah_4=str2double(b1(46:60)); ah_5=str2double(b1(61:75)); ah_6=str2double(b2(1:15)); ah_7=str2double(b2(16:30)); %Low Temperature Coefficients al_1=str2double(b2(31:45)); al_2=str2double(b2(46:60)); al_3=str2double(b2(61:75)); al_4=str2double(b3(1:15)); al_5=str2double(b3(16:30)); al_6=str2double(b3(31:45)); al_7=str2double(b3(46:60)); %Molecular weight mw=H*2 %5. Hydroxyl - OH elseif strcmp(a,'OH')||strcmp(a,'oh') row_5=string(B(22:24)); strfind(row_5(1),'E'); strfind(row_5(2),'E'); strfind(row_5(3),'E'); b1=row_5{1}; b2=row_5{2}; b3=row_5{3}; %High Temperature Coefficients ah_1=str2double(b1(1:15)); ah_2=str2double(b1(16:30)); ah_3=str2double(b1(31:45)); ah_4=str2double(b1(46:60)); ah_5=str2double(b1(61:75)); ah_6=str2double(b2(1:15)); ah_7=str2double(b2(16:30)); %Low Temperature Coefficients al_1=str2double(b2(31:45)); al_2=str2double(b2(46:60)); al_3=str2double(b2(61:75)); al_4=str2double(b3(1:15)); al_5=str2double(b3(16:30)); al_6=str2double(b3(31:45)); al_7=str2double(b3(46:60)); %Molecular weight mw=O+H %6. Water - H2O elseif strcmp(a,'H2O')||strcmp(a,'H2O') row_6=string(B(26:28)); strfind(row_6(1),'E'); strfind(row_6(2),'E'); strfind(row_6(3),'E'); b1=row_6{1}; b2=row_6{2}; b3=row_6{3}; %High Temperature Coefficients ah_1=str2double(b1(1:15)); ah_2=str2double(b1(16:30)); ah_3=str2double(b1(31:45)); ah_4=str2double(b1(46:60)); ah_5=str2double(b1(61:75)); ah_6=str2double(b2(1:15)); ah_7=str2double(b2(16:30)); %Low Temperature Coefficients al_1=str2double(b2(31:45)); al_2=str2double(b2(46:60)); al_3=str2double(b2(61:75)); al_4=str2double(b3(1:15)); al_5=str2double(b3(16:30)); al_6=str2double(b3(31:45)); al_7=str2double(b3(46:60)); %Molecular weight mw=(H*2)+O %7. Hydroperoxyl Radical - HO2 elseif strcmp(a,'HO2')||strcmp(a,'ho2') row_7=string(B(30:32)); strfind(row_7(1),'E'); strfind(row_7(2),'E'); strfind(row_7(3),'E'); b1=row_7{1}; b2=row_7{2}; b3=row_7{3}; %High Temperature Coefficients ah_1=str2double(b1(1:15)); ah_2=str2double(b1(16:30)); ah_3=str2double(b1(31:45)); ah_4=str2double(b1(46:60)); ah_5=str2double(b1(61:75)); ah_6=str2double(b2(1:15)); ah_7=str2double(b2(16:30)); %Low Temperature Coefficients al_1=str2double(b2(31:45)); al_2=str2double(b2(46:60)); al_3=str2double(b2(61:75)); al_4=str2double(b3(1:15)); al_5=str2double(b3(16:30)); al_6=str2double(b3(31:45)); al_7=str2double(b3(46:60)); %Molecular weight mw=H+(O*2) %8. Hydrogen Peroxide - H2O2 elseif strcmp(a,'H2O2')||strcmp(a,'h2o2') row_8=string(B(34:36)); strfind(row_8(1),'E'); strfind(row_8(2),'E'); strfind(row_8(3),'E'); b1=row_8{1}; b2=row_8{2}; b3=row_8{3}; %High Temperature Coefficients ah_1=str2double(b1(1:15)); ah_2=str2double(b1(16:30)); ah_3=str2double(b1(31:45)); ah_4=str2double(b1(46:60)); ah_5=str2double(b1(61:75)); ah_6=str2double(b2(1:15)); ah_7=str2double(b2(16:30)); %Low Temperature Coefficients al_1=str2double(b2(31:45)); al_2=str2double(b2(46:60)); al_3=str2double(b2(61:75)); al_4=str2double(b3(1:15)); al_5=str2double(b3(16:30)); al_6=str2double(b3(31:45)); al_7=str2double(b3(46:60)); %Molecular weight mw=(H*2)+(O*2) %9. Carbon - C elseif strcmp(a,'C')||strcmp(a,'c') row_9=string(B(38:40)); strfind(row_9(1),'E'); strfind(row_9(2),'E'); strfind(row_9(3),'E'); b1=row_9{1}; b2=row_9{2}; b3=row_9{3}; %High Temperature Coefficients ah_1=str2double(b1(1:15)); ah_2=str2double(b1(16:30)); ah_3=str2double(b1(31:45)); ah_4=str2double(b1(46:60)); ah_5=str2double(b1(61:75)); ah_6=str2double(b2(1:15)); ah_7=str2double(b2(16:30)); %Low Temperature Coefficients al_1=str2double(b2(31:45)); al_2=str2double(b2(46:60)); al_3=str2double(b2(61:75)); al_4=str2double(b3(1:15)); al_5=str2double(b3(16:30)); al_6=str2double(b3(31:45)); al_7=str2double(b3(46:60)); %Molecular weight mw=C %10. Carbon-Hydrogen Molecule- CH elseif strcmp(a,'CH')||strcmp(a,'ch') row_10=string(B(42:44)); strfind(row_10(1),'E'); strfind(row_10(2),'E'); strfind(row_10(3),'E'); b1=row_10{1}; b2=row_10{2}; b3=row_10{3}; %High Temperature Coefficients ah_1=str2double(b1(1:15)); ah_2=str2double(b1(16:30)); ah_3=str2double(b1(31:45)); ah_4=str2double(b1(46:60)); ah_5=str2double(b1(61:75)); ah_6=str2double(b2(1:15)); ah_7=str2double(b2(16:30)); %Low Temperature Coefficients al_1=str2double(b2(31:45)); al_2=str2double(b2(46:60)); al_3=str2double(b2(61:75)); al_4=str2double(b3(1:15)); al_5=str2double(b3(16:30)); al_6=str2double(b3(31:45)); al_7=str2double(b3(46:60)); %Molecular weight mw=C+H %11. Methylene- CH2 elseif strcmp(a,'CH2')||strcmp(a,'ch2') row_11=string(B(46:48)); strfind(row_11(1),'E'); strfind(row_11(2),'E'); strfind(row_11(3),'E'); b1=row_11{1}; b2=row_11{2}; b3=row_11{3}; %High Temperature Coefficients ah_1=str2double(b1(1:15)); ah_2=str2double(b1(16:30)); ah_3=str2double(b1(31:45)); ah_4=str2double(b1(46:60)); ah_5=str2double(b1(61:75)); ah_6=str2double(b2(1:15)); ah_7=str2double(b2(16:30)); %Low Temperature Coefficients al_1=str2double(b2(31:45)); al_2=str2double(b2(46:60)); al_3=str2double(b2(61:75)); al_4=str2double(b3(1:15)); al_5=str2double(b3(16:30)); al_6=str2double(b3(31:45)); al_7=str2double(b3(46:60)); %Molecular weight mw=C+(H*2) %12. Thioformaldehyde- CH2(S) elseif strcmp(a,'CH2(S)')||strcmp(a,'ch2(s)') row_12=string(B(50:52)); strfind(row_12(1),'E'); strfind(row_12(2),'E'); strfind(row_12(3),'E'); b1=row_12{1}; b2=row_12{2}; b3=row_12{3}; %High Temperature Coefficients ah_1=str2double(b1(1:15)); ah_2=str2double(b1(16:30)); ah_3=str2double(b1(31:45)); ah_4=str2double(b1(46:60)); ah_5=str2double(b1(61:75)); ah_6=str2double(b2(1:15)); ah_7=str2double(b2(16:30)); %Low Temperature Coefficients al_1=str2double(b2(31:45)); al_2=str2double(b2(46:60)); al_3=str2double(b2(61:75)); al_4=str2double(b3(1:15)); al_5=str2double(b3(16:30)); al_6=str2double(b3(31:45)); al_7=str2double(b3(46:60)); %Molecular weight mw=C+(H*2)+S %13. Methyl Radical- CH3 elseif strcmp(a,'CH3')||strcmp(a,'ch3') row_13=string(B(54:56)); strfind(row_13(1),'E'); strfind(row_13(2),'E'); strfind(row_13(3),'E'); b1=row_13{1}; b2=row_13{2}; b3=row_13{3}; %High Temperature Coefficients ah_1=str2double(b1(1:15)); ah_2=str2double(b1(16:30)); ah_3=str2double(b1(31:45)); ah_4=str2double(b1(46:60)); ah_5=str2double(b1(61:75)); ah_6=str2double(b2(1:15)); ah_7=str2double(b2(16:30)); %Low Temperature Coefficients al_1=str2double(b2(31:45)); al_2=str2double(b2(46:60)); al_3=str2double(b2(61:75)); al_4=str2double(b3(1:15)); al_5=str2double(b3(16:30)); al_6=str2double(b3(31:45)); al_7=str2double(b3(46:60)); %Molecular weight mw=C+(H*3) %14. Methane- CH4 elseif strcmp(a,'CH4')||strcmp(a,'ch4') row_14=string(B(58:60)); strfind(row_14(1),'E'); strfind(row_14(2),'E'); strfind(row_14(3),'E'); b1=row_14{1}; b2=row_14{2}; b3=row_14{3}; %High Temperature Coefficients ah_1=str2double(b1(1:15)); ah_2=str2double(b1(16:30)); ah_3=str2double(b1(31:45)); ah_4=str2double(b1(46:60)); ah_5=str2double(b1(61:75)); ah_6=str2double(b2(1:15)); ah_7=str2double(b2(16:30)); %Low Temperature Coefficients al_1=str2double(b2(31:45)); al_2=str2double(b2(46:60)); al_3=str2double(b2(61:75)); al_4=str2double(b3(1:15)); al_5=str2double(b3(16:30)); al_6=str2double(b3(31:45)); al_7=str2double(b3(46:60)); %Molecular weight mw=C+(H*4) %15. Carbon Monoxide-CO elseif strcmp(a,'CO')||strcmp(a,'co') row_15=string(B(62:64)); strfind(row_15(1),'E'); strfind(row_15(2),'E'); strfind(row_15(3),'E'); b1=row_15{1}; b2=row_15{2}; b3=row_15{3}; %High Temperature Coefficients ah_1=str2double(b1(1:15)); ah_2=str2double(b1(16:30)); ah_3=str2double(b1(31:45)); ah_4=str2double(b1(46:60)); ah_5=str2double(b1(61:75)); ah_6=str2double(b2(1:15)); ah_7=str2double(b2(16:30)); %Low Temperature Coefficients al_1=str2double(b2(31:45)); al_2=str2double(b2(46:60)); al_3=str2double(b2(61:75)); al_4=str2double(b3(1:15)); al_5=str2double(b3(16:30)); al_6=str2double(b3(31:45)); al_7=str2double(b3(46:60)); %Molecular weight mw=C+O %16. Carbon Dioxide- CO2 elseif strcmp(a,'CO2')||strcmp(a,'co2') row_16=string(B(66:68)); strfind(row_16(1),'E'); strfind(row_16(2),'E'); strfind(row_16(3),'E'); b1=row_16{1}; b2=row_16{2}; b3=row_16{3}; %High Temperature Coefficients ah_1=str2double(b1(1:15)); ah_2=str2double(b1(16:30)); ah_3=str2double(b1(31:45)); ah_4=str2double(b1(46:60)); ah_5=str2double(b1(61:75)); ah_6=str2double(b2(1:15)); ah_7=str2double(b2(16:30)); %Low Temperature Coefficients al_1=str2double(b2(31:45)); al_2=str2double(b2(46:60)); al_3=str2double(b2(61:75)); al_4=str2double(b3(1:15)); al_5=str2double(b3(16:30)); al_6=str2double(b3(31:45)); al_7=str2double(b3(46:60)); %Molecular weight mw=C+(O*2) %17. Bicarbonate ion- HCO elseif strcmp(a,'HCO')||strcmp(a,'hco') row_17=string(B(70:72)); strfind(row_17(1),'E'); strfind(row_17(2),'E'); strfind(row_17(3),'E'); b1=row_17{1}; b2=row_17{2}; b3=row_17{3}; %High Temperature Coefficients ah_1=str2double(b1(1:15)); ah_2=str2double(b1(16:30)); ah_3=str2double(b1(31:45)); ah_4=str2double(b1(46:60)); ah_5=str2double(b1(61:75)); ah_6=str2double(b2(1:15)); ah_7=str2double(b2(16:30)); %Low Temperature Coefficients al_1=str2double(b2(31:45)); al_2=str2double(b2(46:60)); al_3=str2double(b2(61:75)); al_4=str2double(b3(1:15)); al_5=str2double(b3(16:30)); al_6=str2double(b3(31:45)); al_7=str2double(b3(46:60)); %Molecular weight mw=H+C+O %18. Formaldehyde- CH2O elseif strcmp(a,'CH2O')||strcmp(a,'ch2o') row_18=string(B(74:76)); strfind(row_18(1),'E'); strfind(row_18(2),'E'); strfind(row_18(3),'E'); b1=row_18{1}; b2=row_18{2}; b3=row_18{3}; %High Temperature Coefficients ah_1=str2double(b1(1:15)); ah_2=str2double(b1(16:30)); ah_3=str2double(b1(31:45)); ah_4=str2double(b1(46:60)); ah_5=str2double(b1(61:75)); ah_6=str2double(b2(1:15)); ah_7=str2double(b2(16:30)); %Low Temperature Coefficients al_1=str2double(b2(31:45)); al_2=str2double(b2(46:60)); al_3=str2double(b2(61:75)); al_4=str2double(b3(1:15)); al_5=str2double(b3(16:30)); al_6=str2double(b3(31:45)); al_7=str2double(b3(46:60)); %Molecular weight mw=C+(H*2)+O %19. Hydroxymethyl-CH2OH elseif strcmp(a,'CH2OH')||strcmp(a,'ch2oh') row_19=string(B(78:80)); strfind(row_19(1),'E'); strfind(row_19(2),'E'); strfind(row_19(3),'E'); b1=row_19{1}; b2=row_19{2}; b3=row_19{3}; %High Temperature Coefficients ah_1=str2double(b1(1:15)); ah_2=str2double(b1(16:30)); ah_3=str2double(b1(31:45)); ah_4=str2double(b1(46:60)); ah_5=str2double(b1(61:75)); ah_6=str2double(b2(1:15)); ah_7=str2double(b2(16:30)); %Low Temperature Coefficients al_1=str2double(b2(31:45)); al_2=str2double(b2(46:60)); al_3=str2double(b2(61:75)); al_4=str2double(b3(1:15)); al_5=str2double(b3(16:30)); al_6=str2double(b3(31:45)); al_7=str2double(b3(46:60)); %Molecular weight mw=C+(H*3)+O %20. Methoxy Radical- CH3O elseif strcmp(a,'CH3O')||strcmp(a,'ch3o') row_20=string(B(82:84)); strfind(row_20(1),'E'); strfind(row_20(2),'E'); strfind(row_20(3),'E'); b1=row_20{1}; b2=row_20{2}; b3=row_20{3}; %High Temperature Coefficients ah_1=str2double(b1(1:15)); ah_2=str2double(b1(16:30)); ah_3=str2double(b1(31:45)); ah_4=str2double(b1(46:60)); ah_5=str2double(b1(61:75)); ah_6=str2double(b2(1:15)); ah_7=str2double(b2(16:30)); %Low Temperature Coefficients al_1=str2double(b2(31:45)); al_2=str2double(b2(46:60)); al_3=str2double(b2(61:75)); al_4=str2double(b3(1:15)); al_5=str2double(b3(16:30)); al_6=str2double(b3(31:45)); al_7=str2double(b3(46:60)); %Molecular weight mw=C+(H*3)+O %21. Metanol- CH3OH elseif strcmp(a,'CH3OH')||strcmp(a,'ch3oh') row_21=string(B(86:88)); strfind(row_21(1),'E'); strfind(row_21(2),'E'); strfind(row_21(3),'E'); b1=row_21{1}; b2=row_21{2}; b3=row_21{3}; %High Temperature Coefficients ah_1=str2double(b1(1:15)); ah_2=str2double(b1(16:30)); ah_3=str2double(b1(31:45)); ah_4=str2double(b1(46:60)); ah_5=str2double(b1(61:75)); ah_6=str2double(b2(1:15)); ah_7=str2double(b2(16:30)); %Low Temperature Coefficients al_1=str2double(b2(31:45)); al_2=str2double(b2(46:60)); al_3=str2double(b2(61:75)); al_4=str2double(b3(1:15)); al_5=str2double(b3(16:30)); al_6=str2double(b3(31:45)); al_7=str2double(b3(46:60)); %Molecular weight mw=C+(H*4)+O %22. Ethynyl Radical- C2H elseif strcmp(a,'C2H')||strcmp(a,'c2h') row_22=string(B(90:92)); strfind(row_22(1),'E'); strfind(row_22(2),'E'); strfind(row_22(3),'E'); b1=row_22{1}; b2=row_22{2}; b3=row_22{3}; %High Temperature Coefficients ah_1=str2double(b1(1:15)); ah_2=str2double(b1(16:30)); ah_3=str2double(b1(31:45)); ah_4=str2double(b1(46:60)); ah_5=str2double(b1(61:75)); ah_6=str2double(b2(1:15)); ah_7=str2double(b2(16:30)); %Low Temperature Coefficients al_1=str2double(b2(31:45)); al_2=str2double(b2(46:60)); al_3=str2double(b2(61:75)); al_4=str2double(b3(1:15)); al_5=str2double(b3(16:30)); al_6=str2double(b3(31:45)); al_7=str2double(b3(46:60)); %Molecular weight mw=(C*2)+H %23. Acetylene- C2H2 elseif strcmp(a,'C2H2')||strcmp(a,'c2h2') row_23=string(B(94:96)); strfind(row_23(1),'E'); strfind(row_23(2),'E'); strfind(row_23(3),'E'); b1=row_23{1}; b2=row_23{2}; b3=row_23{3}; %High Temperature Coefficients ah_1=str2double(b1(1:15)); ah_2=str2double(b1(16:30)); ah_3=str2double(b1(31:45)); ah_4=str2double(b1(46:60)); ah_5=str2double(b1(61:75)); ah_6=str2double(b2(1:15)); ah_7=str2double(b2(16:30)); %Low Temperature Coefficients al_1=str2double(b2(31:45)); al_2=str2double(b2(46:60)); al_3=str2double(b2(61:75)); al_4=str2double(b3(1:15)); al_5=str2double(b3(16:30)); al_6=str2double(b3(31:45)); al_7=str2double(b3(46:60)); %Molecular weight mw=(C*2)+(H*2) %24. Vinyl Radical- C2H3 elseif strcmp(a,'C2H3')||strcmp(a,'c2h3') row_24=string(B(98:100)); strfind(row_24(1),'E'); strfind(row_24(2),'E'); strfind(row_24(3),'E'); b1=row_24{1}; b2=row_24{2}; b3=row_24{3}; %High Temperature Coefficients ah_1=str2double(b1(1:15)); ah_2=str2double(b1(16:30)); ah_3=str2double(b1(31:45)); ah_4=str2double(b1(46:60)); ah_5=str2double(b1(61:75)); ah_6=str2double(b2(1:15)); ah_7=str2double(b2(16:30)); %Low Temperature Coefficients al_1=str2double(b2(31:45)); al_2=str2double(b2(46:60)); al_3=str2double(b2(61:75)); al_4=str2double(b3(1:15)); al_5=str2double(b3(16:30)); al_6=str2double(b3(31:45)); al_7=str2double(b3(46:60)); %Molecular weight mw=(C*2)+(H*3) %25. Ethylene- C2H4 elseif strcmp(a,'C2H4')||strcmp(a,'c2h4') row_25=string(B(102:104)); strfind(row_25(1),'E'); strfind(row_25(2),'E'); strfind(row_25(3),'E'); b1=row_25{1}; b2=row_25{2}; b3=row_25{3}; %High Temperature Coefficients ah_1=str2double(b1(1:15)); ah_2=str2double(b1(16:30)); ah_3=str2double(b1(31:45)); ah_4=str2double(b1(46:60)); ah_5=str2double(b1(61:75)); ah_6=str2double(b2(1:15)); ah_7=str2double(b2(16:30)); %Low Temperature Coefficients al_1=str2double(b2(31:45)); al_2=str2double(b2(46:60)); al_3=str2double(b2(61:75)); al_4=str2double(b3(1:15)); al_5=str2double(b3(16:30)); al_6=str2double(b3(31:45)); al_7=str2double(b3(46:60)); %Molecular weight mw=(C*2)+(H*4) %26. Ethyl Radical- C2H5 elseif strcmp(a,'C2H5')||strcmp(a,'c2h5') row_26=string(B(106:108)); strfind(row_26(1),'E'); strfind(row_26(2),'E'); strfind(row_26(3),'E'); b1=row_26{1}; b2=row_26{2}; b3=row_26{3}; %High Temperature Coefficients ah_1=str2double(b1(1:15)); ah_2=str2double(b1(16:30)); ah_3=str2double(b1(31:45)); ah_4=str2double(b1(46:60)); ah_5=str2double(b1(61:75)); ah_6=str2double(b2(1:15)); ah_7=str2double(b2(16:30)); %Low Temperature Coefficients al_1=str2double(b2(31:45)); al_2=str2double(b2(46:60)); al_3=str2double(b2(61:75)); al_4=str2double(b3(1:15)); al_5=str2double(b3(16:30)); al_6=str2double(b3(31:45)); al_7=str2double(b3(46:60)); %Molecular weight mw=(C*2)+(H*5) %27. Ethane- C2H6 elseif strcmp(a,'C2H6')||strcmp(a,'c2h6') row_27=string(B(110:112)); strfind(row_27(1),'E'); strfind(row_27(2),'E'); strfind(row_27(3),'E'); b1=row_27{1}; b2=row_27{2}; b3=row_27{3}; %High Temperature Coefficients ah_1=str2double(b1(1:15)); ah_2=str2double(b1(16:30)); ah_3=str2double(b1(31:45)); ah_4=str2double(b1(46:60)); ah_5=str2double(b1(61:75)); ah_6=str2double(b2(1:15)); ah_7=str2double(b2(16:30)); %Low Temperature Coefficients al_1=str2double(b2(31:45)); al_2=str2double(b2(46:60)); al_3=str2double(b2(61:75)); al_4=str2double(b3(1:15)); al_5=str2double(b3(16:30)); al_6=str2double(b3(31:45)); al_7=str2double(b3(46:60)); %Molecular weight mw=(C*2)+(H*6) %28. Ketene- CH2CO elseif strcmp(a,'CH2CO')||strcmp(a,'ch2co') row_22=string(B(114:116)); strfind(row_22(1),'E'); strfind(row_22(2),'E'); strfind(row_22(3),'E'); b1=row_22{1}; b2=row_22{2}; b3=row_22{3}; %High Temperature Coefficients ah_1=str2double(b1(1:15)); ah_2=str2double(b1(16:30)); ah_3=str2double(b1(31:45)); ah_4=str2double(b1(46:60)); ah_5=str2double(b1(61:75)); ah_6=str2double(b2(1:15)); ah_7=str2double(b2(16:30)); %Low Temperature Coefficients al_1=str2double(b2(31:45)); al_2=str2double(b2(46:60)); al_3=str2double(b2(61:75)); al_4=str2double(b3(1:15)); al_5=str2double(b3(16:30)); al_6=str2double(b3(31:45)); al_7=str2double(b3(46:60)); %Molecular weight mw=(C*2)+(H*2)+O %29. Ethynyloxidanyl- HCCO elseif strcmp(a,'HCCO')||strcmp(a,'hcco') row_29=string(B(118:120)); strfind(row_29(1),'E'); strfind(row_29(2),'E'); strfind(row_29(3),'E'); b1=row_29{1}; b2=row_29{2}; b3=row_29{3}; %High Temperature Coefficients ah_1=str2double(b1(1:15)); ah_2=str2double(b1(16:30)); ah_3=str2double(b1(31:45)); ah_4=str2double(b1(46:60)); ah_5=str2double(b1(61:75)); ah_6=str2double(b2(1:15)); ah_7=str2double(b2(16:30)); %Low Temperature Coefficients al_1=str2double(b2(31:45)); al_2=str2double(b2(46:60)); al_3=str2double(b2(61:75)); al_4=str2double(b3(1:15)); al_5=str2double(b3(16:30)); al_6=str2double(b3(31:45)); al_7=str2double(b3(46:60)); %Molecular weight mw=(C*2)+H+O %30. Formic Acid- HCCOH elseif strcmp(a,'HCCOH')||strcmp(a,'hccoh') row_29=string(B(122:124)); strfind(row_29(1),'E'); strfind(row_29(2),'E'); strfind(row_29(3),'E'); b1=row_29{1}; b2=row_29{2}; b3=row_29{3}; %High Temperature Coefficients ah_1=str2double(b1(1:15)); ah_2=str2double(b1(16:30)); ah_3=str2double(b1(31:45)); ah_4=str2double(b1(46:60)); ah_5=str2double(b1(61:75)); ah_6=str2double(b2(1:15)); ah_7=str2double(b2(16:30)); %Low Temperature Coefficients al_1=str2double(b2(31:45)); al_2=str2double(b2(46:60)); al_3=str2double(b2(61:75)); al_4=str2double(b3(1:15)); al_5=str2double(b3(16:30)); al_6=str2double(b3(31:45)); al_7=str2double(b3(46:60)); %Molecular weight mw=(C*2)+(H*2)+O %31. Methylene Amidogen Radical- H2CN elseif strcmp(a,'H2CN')||strcmp(a,'h2cn') row_31=string(B(126:128)); strfind(row_31(1),'E'); strfind(row_31(2),'E'); strfind(row_31(3),'E'); b1=row_31{1}; b2=row_31{2}; b3=row_31{3}; %High Temperature Coefficients ah_1=str2double(b1(1:15)); ah_2=str2double(b1(16:30)); ah_3=str2double(b1(31:45)); ah_4=str2double(b1(46:60)); ah_5=str2double(b1(61:75)); ah_6=str2double(b2(1:15)); ah_7=str2double(b2(16:30)); %Low Temperature Coefficients al_1=str2double(b2(31:45)); al_2=str2double(b2(46:60)); al_3=str2double(b2(61:75)); al_4=str2double(b3(1:15)); al_5=str2double(b3(16:30)); al_6=str2double(b3(31:45)); al_7=str2double(b3(46:60)); %Molecular weight mw=(H*2)+C+N %32. Hydrogen Cyanide- HCN elseif strcmp(a,'HCN')||strcmp(a,'hcn') row_32=string(B(130:132)); strfind(row_32(1),'E'); strfind(row_32(2),'E'); strfind(row_32(3),'E'); b1=row_32{1}; b2=row_32{2}; b3=row_32{3}; %High Temperature Coefficients ah_1=str2double(b1(1:15)); ah_2=str2double(b1(16:30)); ah_3=str2double(b1(31:45)); ah_4=str2double(b1(46:60)); ah_5=str2double(b1(61:75)); ah_6=str2double(b2(1:15)); ah_7=str2double(b2(16:30)); %Low Temperature Coefficients al_1=str2double(b2(31:45)); al_2=str2double(b2(46:60)); al_3=str2double(b2(61:75)); al_4=str2double(b3(1:15)); al_5=str2double(b3(16:30)); al_6=str2double(b3(31:45)); al_7=str2double(b3(46:60)); %Molecular weight mw=H+C+N %33. Nitroxyl- HNO elseif strcmp(a,'HNO')||strcmp(a,'hno') row_33=string(B(134:136)); strfind(row_33(1),'E'); strfind(row_33(2),'E'); strfind(row_33(3),'E'); b1=row_33{1}; b2=row_33{2}; b3=row_33{3}; %High Temperature Coefficients ah_1=str2double(b1(1:15)); ah_2=str2double(b1(16:30)); ah_3=str2double(b1(31:45)); ah_4=str2double(b1(46:60)); ah_5=str2double(b1(61:75)); ah_6=str2double(b2(1:15)); ah_7=str2double(b2(16:30)); %Low Temperature Coefficients al_1=str2double(b2(31:45)); al_2=str2double(b2(46:60)); al_3=str2double(b2(61:75)); al_4=str2double(b3(1:15)); al_5=str2double(b3(16:30)); al_6=str2double(b3(31:45)); al_7=str2double(b3(46:60)); %Molecular weight mw=H+O+N %34. Nitrogen- N elseif strcmp(a,'N')||strcmp(a,'n') row_34=string(B(138:140)); strfind(row_34(1),'E'); strfind(row_34(2),'E'); strfind(row_34(3),'E'); b1=row_34{1}; b2=row_34{2}; b3=row_34{3}; %High Temperature Coefficients ah_1=str2double(b1(1:15)); ah_2=str2double(b1(16:30)); ah_3=str2double(b1(31:45)); ah_4=str2double(b1(46:60)); ah_5=str2double(b1(61:75)); ah_6=str2double(b2(1:15)); ah_7=str2double(b2(16:30)); %Low Temperature Coefficients al_1=str2double(b2(31:45)); al_2=str2double(b2(46:60)); al_3=str2double(b2(61:75)); al_4=str2double(b3(1:15)); al_5=str2double(b3(16:30)); al_6=str2double(b3(31:45)); al_7=str2double(b3(46:60)); %Molecular weight mw=N %35. Dinitrogen Monohydride- HNN elseif strcmp(a,'HNN')||strcmp(a,'hnn') row_35=string(B(142:144)); strfind(row_35(1),'E'); strfind(row_35(2),'E'); strfind(row_35(3),'E'); b1=row_35{1}; b2=row_35{2}; b3=row_35{3}; %High Temperature Coefficients ah_1=str2double(b1(1:15)); ah_2=str2double(b1(16:30)); ah_3=str2double(b1(31:45)); ah_4=str2double(b1(46:60)); ah_5=str2double(b1(61:75)); ah_6=str2double(b2(1:15)); ah_7=str2double(b2(16:30)); %Low Temperature Coefficients al_1=str2double(b2(31:45)); al_2=str2double(b2(46:60)); al_3=str2double(b2(61:75)); al_4=str2double(b3(1:15)); al_5=str2double(b3(16:30)); al_6=str2double(b3(31:45)); al_7=str2double(b3(46:60)); %Molecular weight mw=(N*2)+H %36.Nitrous Oxide- N2O elseif strcmp(a,'N2O')||strcmp(a,'n2o') row_29=string(B(146:148)); strfind(row_29(1),'E'); strfind(row_29(2),'E'); strfind(row_29(3),'E'); b1=row_29{1}; b2=row_29{2}; b3=row_29{3}; %High Temperature Coefficients ah_1=str2double(b1(1:15)); ah_2=str2double(b1(16:30)); ah_3=str2double(b1(31:45)); ah_4=str2double(b1(46:60)); ah_5=str2double(b1(61:75)); ah_6=str2double(b2(1:15)); ah_7=str2double(b2(16:30)); %Low Temperature Coefficients al_1=str2double(b2(31:45)); al_2=str2double(b2(46:60)); al_3=str2double(b2(61:75)); al_4=str2double(b3(1:15)); al_5=str2double(b3(16:30)); al_6=str2double(b3(31:45)); al_7=str2double(b3(46:60)); %Molecular weight mw=(N*2)+O %37. Imidogen- NH elseif strcmp(a,'NH')||strcmp(a,'nh') row_37=string(B(150:152)); strfind(row_37(1),'E'); strfind(row_37(2),'E'); strfind(row_37(3),'E'); b1=row_37{1}; b2=row_37{2}; b3=row_37{3}; %High Temperature Coefficients ah_1=str2double(b1(1:15)); ah_2=str2double(b1(16:30)); ah_3=str2double(b1(31:45)); ah_4=str2double(b1(46:60)); ah_5=str2double(b1(61:75)); ah_6=str2double(b2(1:15)); ah_7=str2double(b2(16:30)); %Low Temperature Coefficients al_1=str2double(b2(31:45)); al_2=str2double(b2(46:60)); al_3=str2double(b2(61:75)); al_4=str2double(b3(1:15)); al_5=str2double(b3(16:30)); al_6=str2double(b3(31:45)); al_7=str2double(b3(46:60)); %Molecular weight mw=N+H %38. Amine Radical-NH2 elseif strcmp(a,'HN2')||strcmp(a,'hn2') row_38=string(B(154:156)); strfind(row_38(1),'E'); strfind(row_38(2),'E'); strfind(row_38(3),'E'); b1=row_38{1}; b2=row_38{2}; b3=row_38{3}; %High Temperature Coefficients ah_1=str2double(b1(1:15)); ah_2=str2double(b1(16:30)); ah_3=str2double(b1(31:45)); ah_4=str2double(b1(46:60)); ah_5=str2double(b1(61:75)); ah_6=str2double(b2(1:15)); ah_7=str2double(b2(16:30)); %Low Temperature Coefficients al_1=str2double(b2(31:45)); al_2=str2double(b2(46:60)); al_3=str2double(b2(61:75)); al_4=str2double(b3(1:15)); al_5=str2double(b3(16:30)); al_6=str2double(b3(31:45)); al_7=str2double(b3(46:60)); %Molecular weight mw=N+(H*2) %39. Ammonia- NH3 elseif strcmp(a,'NH3')||strcmp(a,'nh3') row_39=string(B(158:160)); strfind(row_39(1),'E'); strfind(row_39(2),'E'); strfind(row_39(3),'E'); b1=row_39{1}; b2=row_39{2}; b3=row_39{3}; %High Temperature Coefficients ah_1=str2double(b1(1:15)); ah_2=str2double(b1(16:30)); ah_3=str2double(b1(31:45)); ah_4=str2double(b1(46:60)); ah_5=str2double(b1(61:75)); ah_6=str2double(b2(1:15)); ah_7=str2double(b2(16:30)); %Low Temperature Coefficients al_1=str2double(b2(31:45)); al_2=str2double(b2(46:60)); al_3=str2double(b2(61:75)); al_4=str2double(b3(1:15)); al_5=str2double(b3(16:30)); al_6=str2double(b3(31:45)); al_7=str2double(b3(46:60)); %Molecular weight mw=N+(H*3) %40. Nitric Oxide- NO elseif strcmp(a,'NO')||strcmp(a,'no') row_40=string(B(162:164)); strfind(row_40(1),'E'); strfind(row_40(2),'E'); strfind(row_40(3),'E'); b1=row_40{1}; b2=row_40{2}; b3=row_40{3}; %High Temperature Coefficients ah_1=str2double(b1(1:15)); ah_2=str2double(b1(16:30)); ah_3=str2double(b1(31:45)); ah_4=str2double(b1(46:60)); ah_5=str2double(b1(61:75)); ah_6=str2double(b2(1:15)); ah_7=str2double(b2(16:30)); %Low Temperature Coefficients al_1=str2double(b2(31:45)); al_2=str2double(b2(46:60)); al_3=str2double(b2(61:75)); al_4=str2double(b3(1:15)); al_5=str2double(b3(16:30)); al_6=str2double(b3(31:45)); al_7=str2double(b3(46:60)); %Molecular weight mw=N+O %41. Nitrogen Dioxide- NO2 elseif strcmp(a,'NO2')||strcmp(a,'no2') row_41=string(B(166:168)); strfind(row_41(1),'E'); strfind(row_41(2),'E'); strfind(row_41(3),'E'); b1=row_41{1}; b2=row_41{2}; b3=row_41{3}; %High Temperature Coefficients ah_1=str2double(b1(1:15)); ah_2=str2double(b1(16:30)); ah_3=str2double(b1(31:45)); ah_4=str2double(b1(46:60)); ah_5=str2double(b1(61:75)); ah_6=str2double(b2(1:15)); ah_7=str2double(b2(16:30)); %Low Temperature Coefficients al_1=str2double(b2(31:45)); al_2=str2double(b2(46:60)); al_3=str2double(b2(61:75)); al_4=str2double(b3(1:15)); al_5=str2double(b3(16:30)); al_6=str2double(b3(31:45)); al_7=str2double(b3(46:60)); %Molecular weight mw=N+(O*2) %42. Fulminic Acid- HCNO elseif strcmp(a,'HCNO')||strcmp(a,'hcno') row_42=string(B(170:172)); strfind(row_42(1),'E'); strfind(row_42(2),'E'); strfind(row_42(3),'E'); b1=row_42{1}; b2=row_42{2}; b3=row_42{3}; %High Temperature Coefficients ah_1=str2double(b1(1:15)); ah_2=str2double(b1(16:30)); ah_3=str2double(b1(31:45)); ah_4=str2double(b1(46:60)); ah_5=str2double(b1(61:75)); ah_6=str2double(b2(1:15)); ah_7=str2double(b2(16:30)); %Low Temperature Coefficients al_1=str2double(b2(31:45)); al_2=str2double(b2(46:60)); al_3=str2double(b2(61:75)); al_4=str2double(b3(1:15)); al_5=str2double(b3(16:30)); al_6=str2double(b3(31:45)); al_7=str2double(b3(46:60)); %Molecular weight mw=H+C+N+O %43. Cyanic Acid- HOCN elseif strcmp(a,'HOCN')||strcmp(a,'hocn') row_43=string(B(174:176)); strfind(row_43(1),'E'); strfind(row_43(2),'E'); strfind(row_43(3),'E'); b1=row_43{1}; b2=row_43{2}; b3=row_43{3}; %High Temperature Coefficients ah_1=str2double(b1(1:15)); ah_2=str2double(b1(16:30)); ah_3=str2double(b1(31:45)); ah_4=str2double(b1(46:60)); ah_5=str2double(b1(61:75)); ah_6=str2double(b2(1:15)); ah_7=str2double(b2(16:30)); %Low Temperature Coefficients al_1=str2double(b2(31:45)); al_2=str2double(b2(46:60)); al_3=str2double(b2(61:75)); al_4=str2double(b3(1:15)); al_5=str2double(b3(16:30)); al_6=str2double(b3(31:45)); al_7=str2double(b3(46:60)); %Molecular weight mw=H+C+N+O %44. Isocyanic Acid- HNCO elseif strcmp(a,'HNCO')||strcmp(a,'hnco') row_44=string(B(178:180)); strfind(row_44(1),'E'); strfind(row_44(2),'E'); strfind(row_44(3),'E'); b1=row_44{1}; b2=row_44{2}; b3=row_44{3}; %High Temperature Coefficients ah_1=str2double(b1(1:15)); ah_2=str2double(b1(16:30)); ah_3=str2double(b1(31:45)); ah_4=str2double(b1(46:60)); ah_5=str2double(b1(61:75)); ah_6=str2double(b2(1:15)); ah_7=str2double(b2(16:30)); %Low Temperature Coefficients al_1=str2double(b2(31:45)); al_2=str2double(b2(46:60)); al_3=str2double(b2(61:75)); al_4=str2double(b3(1:15)); al_5=str2double(b3(16:30)); al_6=str2double(b3(31:45)); al_7=str2double(b3(46:60)); %Molecular weight mw=H+C+N+O %45. Cobalt Hexammine- NCO elseif strcmp(a,'NCO')||strcmp(a,'nco') row_45=string(B(182:184)); strfind(row_45(1),'E'); strfind(row_45(2),'E'); strfind(row_45(3),'E'); b1=row_45{1}; b2=row_45{2}; b3=row_45{3}; %High Temperature Coefficients ah_1=str2double(b1(1:15)); ah_2=str2double(b1(16:30)); ah_3=str2double(b1(31:45)); ah_4=str2double(b1(46:60)); ah_5=str2double(b1(61:75)); ah_6=str2double(b2(1:15)); ah_7=str2double(b2(16:30)); %Low Temperature Coefficients al_1=str2double(b2(31:45)); al_2=str2double(b2(46:60)); al_3=str2double(b2(61:75)); al_4=str2double(b3(1:15)); al_5=str2double(b3(16:30)); al_6=str2double(b3(31:45)); al_7=str2double(b3(46:60)); %Molecular weight mw=C+N+O %46. Cyanide- CN elseif strcmp(a,'CN')||strcmp(a,'cn') row_46=string(B(186:188)); strfind(row_46(1),'E'); strfind(row_46(2),'E'); strfind(row_46(3),'E'); b1=row_46{1}; b2=row_46{2}; b3=row_46{3}; %High Temperature Coefficients ah_1=str2double(b1(1:15)); ah_2=str2double(b1(16:30)); ah_3=str2double(b1(31:45)); ah_4=str2double(b1(46:60)); ah_5=str2double(b1(61:75)); ah_6=str2double(b2(1:15)); ah_7=str2double(b2(16:30)); %Low Temperature Coefficients al_1=str2double(b2(31:45)); al_2=str2double(b2(46:60)); al_3=str2double(b2(61:75)); al_4=str2double(b3(1:15)); al_5=str2double(b3(16:30)); al_6=str2double(b3(31:45)); al_7=str2double(b3(46:60)); %Molecular weight mw=C+N %47. Diazomethyl Radical- HCNN elseif strcmp(a,'HCNN')||strcmp(a,'hcnn') row_47=string(B(190:192)); strfind(row_47(1),'E'); strfind(row_47(2),'E'); strfind(row_47(3),'E'); b1=row_47{1}; b2=row_47{2}; b3=row_47{3}; %High Temperature Coefficients ah_1=str2double(b1(1:15)); ah_2=str2double(b1(16:30)); ah_3=str2double(b1(31:45)); ah_4=str2double(b1(46:60)); ah_5=str2double(b1(61:75)); ah_6=str2double(b2(1:15)); ah_7=str2double(b2(16:30)); %Low Temperature Coefficients al_1=str2double(b2(31:45)); al_2=str2double(b2(46:60)); al_3=str2double(b2(61:75)); al_4=str2double(b3(1:15)); al_5=str2double(b3(16:30)); al_6=str2double(b3(31:45)); al_7=str2double(b3(46:60)); %Molecular weight mw=H+C+(N*2) %48. Nitrogen- N2 elseif strcmp(a,'N2')||strcmp(a,'n2') row_48=string(B(194:196)); strfind(row_48(1),'E'); strfind(row_48(2),'E'); strfind(row_48(3),'E'); b1=row_48{1}; b2=row_48{2}; b3=row_48{3}; %High Temperature Coefficients ah_1=str2double(b1(1:15)); ah_2=str2double(b1(16:30)); ah_3=str2double(b1(31:45)); ah_4=str2double(b1(46:60)); ah_5=str2double(b1(61:75)); ah_6=str2double(b2(1:15)); ah_7=str2double(b2(16:30)); %Low Temperature Coefficients al_1=str2double(b2(31:45)); al_2=str2double(b2(46:60)); al_3=str2double(b2(61:75)); al_4=str2double(b3(1:15)); al_5=str2double(b3(16:30)); al_6=str2double(b3(31:45)); al_7=str2double(b3(46:60)); %Molecular weight mw=N*2 %49. Argon- Ar elseif strcmp(a,'AR')||strcmp(a,'ar') row_49=string(B(198:200)); strfind(row_49(1),'E'); strfind(row_49(2),'E'); strfind(row_49(3),'E'); b1=row_49{1}; b2=row_49{2}; b3=row_49{3}; %High Temperature Coefficients ah_1=str2double(b1(1:15)); ah_2=str2double(b1(16:30)); ah_3=str2double(b1(31:45)); ah_4=str2double(b1(46:60)); ah_5=str2double(b1(61:75)); ah_6=str2double(b2(1:15)); ah_7=str2double(b2(16:30)); %Low Temperature Coefficients al_1=str2double(b2(31:45)); al_2=str2double(b2(46:60)); al_3=str2double(b2(61:75)); al_4=str2double(b3(1:15)); al_5=str2double(b3(16:30)); al_6=str2double(b3(31:45)); al_7=str2double(b3(46:60)); %Molecular weight mw=Ar %50. Propane- C3H8 elseif strcmp(a,'C3H8')||strcmp(a,'c3h8') row_50=string(B(202:204)); strfind(row_50(1),'E'); strfind(row_50(2),'E'); strfind(row_50(3),'E'); b1=row_50{1}; b2=row_50{2}; b3=row_50{3}; %High Temperature Coefficients ah_1=str2double(b1(1:15)); ah_2=str2double(b1(16:30)); ah_3=str2double(b1(31:45)); ah_4=str2double(b1(46:60)); ah_5=str2double(b1(61:75)); ah_6=str2double(b2(1:15)); ah_7=str2double(b2(16:30)); %Low Temperature Coefficients al_1=str2double(b2(31:45)); al_2=str2double(b2(46:60)); al_3=str2double(b2(61:75)); al_4=str2double(b3(1:15)); al_5=str2double(b3(16:30)); al_6=str2double(b3(31:45)); al_7=str2double(b3(46:60)); %Molecular weight mw=(C*3)+(H*8) %51. Isopropyl Radical- C3H7 elseif strcmp(a,'C3H7')||strcmp(a,'c3h7') row_51=string(B(206:208)); strfind(row_51(1),'E'); strfind(row_51(2),'E'); strfind(row_51(3),'E'); b1=row_51{1}; b2=row_51{2}; b3=row_51{3}; %High Temperature Coefficients ah_1=str2double(b1(1:15)); ah_2=str2double(b1(16:30)); ah_3=str2double(b1(31:45)); ah_4=str2double(b1(46:60)); ah_5=str2double(b1(61:75)); ah_6=str2double(b2(1:15)); ah_7=str2double(b2(16:30)); %Low Temperature Coefficients al_1=str2double(b2(31:45)); al_2=str2double(b2(46:60)); al_3=str2double(b2(61:75)); al_4=str2double(b3(1:15)); al_5=str2double(b3(16:30)); al_6=str2double(b3(31:45)); al_7=str2double(b3(46:60)); %Molecular weight mw=(C*3)+(H*7) %52. Ethanal- CH3CHO elseif strcmp(a,'CH3CHO')||strcmp(a,'ch3cho') row_52=string(B(210:212)); strfind(row_52(1),'E'); strfind(row_52(2),'E'); strfind(row_52(3),'E'); b1=row_52{1}; b2=row_52{2}; b3=row_52{3}; %High Temperature Coefficients ah_1=str2double(b1(1:15)); ah_2=str2double(b1(16:30)); ah_3=str2double(b1(31:45)); ah_4=str2double(b1(46:60)); ah_5=str2double(b1(61:75)); ah_6=str2double(b2(1:15)); ah_7=str2double(b2(16:30)); %Low Temperature Coefficients al_1=str2double(b2(31:45)); al_2=str2double(b2(46:60)); al_3=str2double(b2(61:75)); al_4=str2double(b3(1:15)); al_5=str2double(b3(16:30)); al_6=str2double(b3(31:45)); al_7=str2double(b3(46:60)); %Molecular weight mw=(C*2)+(H*4)+O %53. Vinoxy Radical- CH2CHO elseif strcmp(a,'CH2CHO')||strcmp(a,'ch2cho') row_53=string(B(214:216)); strfind(row_53(1),'E'); strfind(row_53(2),'E'); strfind(row_53(3),'E'); b1=row_53{1}; b2=row_53{2}; b3=row_53{3}; %High Temperature Coefficients ah_1=str2double(b1(1:15)); ah_2=str2double(b1(16:30)); ah_3=str2double(b1(31:45)); ah_4=str2double(b1(46:60)); ah_5=str2double(b1(61:75)); ah_6=str2double(b2(1:15)); ah_7=str2double(b2(16:30)); %Low Temperature Coefficients al_1=str2double(b2(31:45)); al_2=str2double(b2(46:60)); al_3=str2double(b2(61:75)); al_4=str2double(b3(1:15)); al_5=str2double(b3(16:30)); al_6=str2double(b3(31:45)); al_7=str2double(b3(46:60)); %Molecular weight mw=(C*2)+(H*3)+O else disp('You have to choose one into the list') end %Low coefficients from the species chosen x(1)=al_1; x(2)=al_2; x(3)=al_3; x(4)=al_4; x(5)=al_5; x(6)=al_6; x(7)=al_7; %High Coefficients from the species chosen x(8)=ah_1; x(9)=ah_2; x(10)=ah_3; x(11)=ah_4; x(12)=ah_5; x(13)=ah_6; x(14)=ah_7; %Molecular weight x(15)=mw; end - O2 Thermodynamic behavior plot:

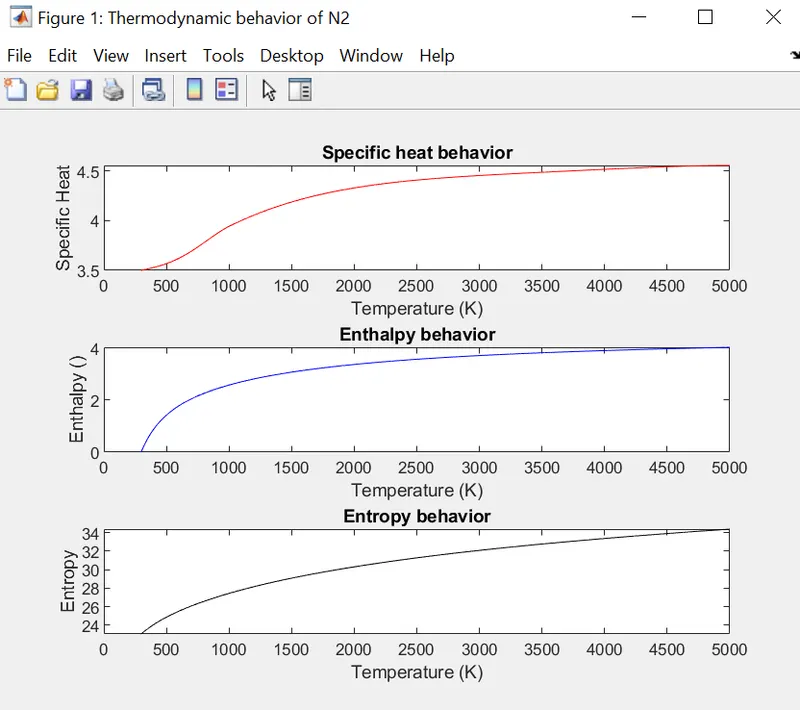

- N2 Thermodynamic behavior plot:

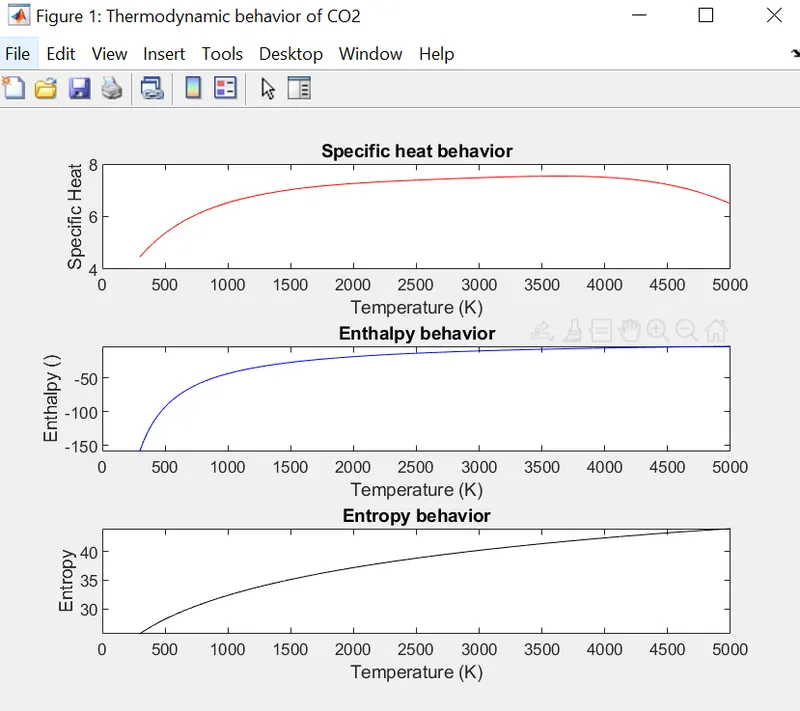

- CO2 Thermodynamic behavior plot:

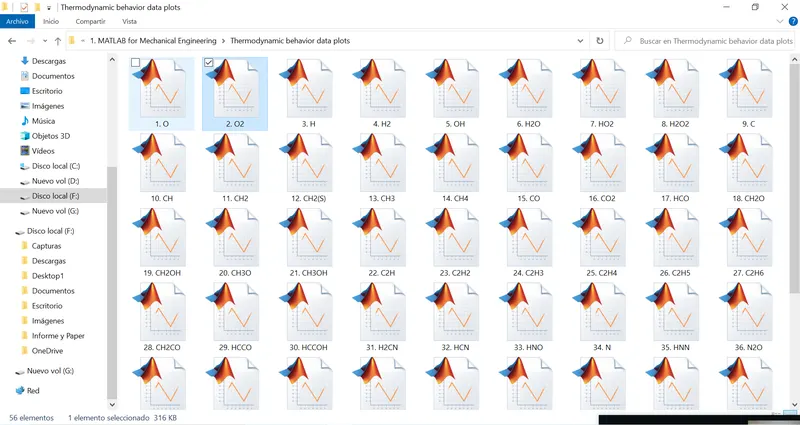

Window screen:
The data results file are also attached below.
- Google drive report link:
https://docs.google.com/document/d/1bTbJNguUh-bgcDJ2OBjfFiU-0Gi6GaBEPLR3YFnhiek/edit?usp=sharing
The molecular weight value appears only in the command window when a unique species is selected, if you want to look the values, repeat the run the times that you see it necessary.
And that's it, thanks.
