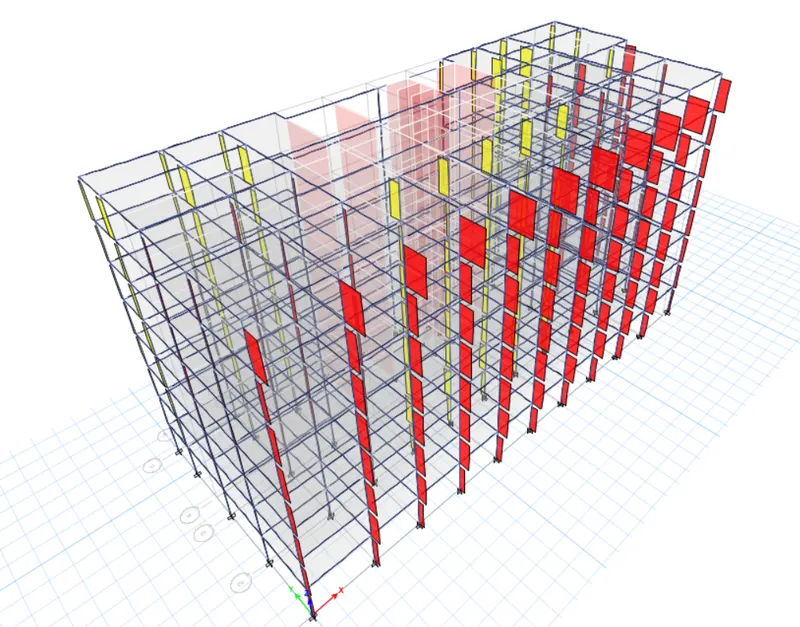

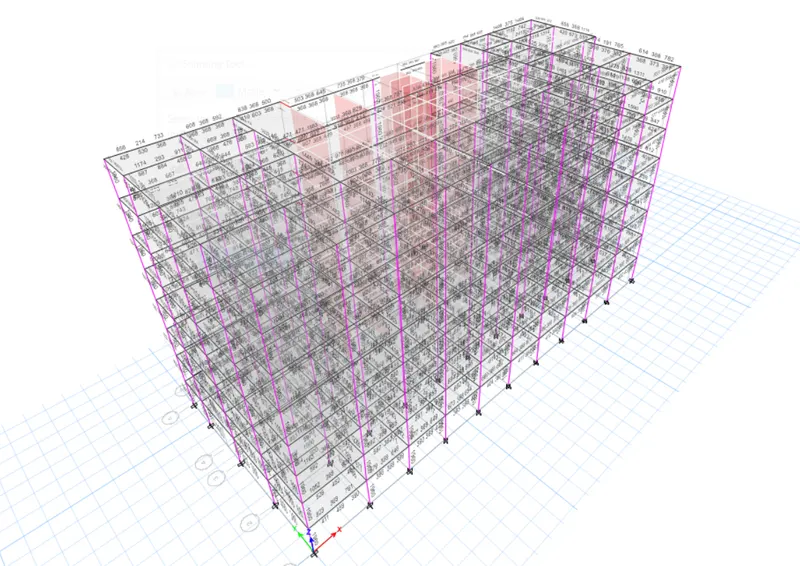

Project 1 - MODELLING, ANALYSIS & DESIGN OF TALL BUILDINGS IN ETABS

PROCEDURE :

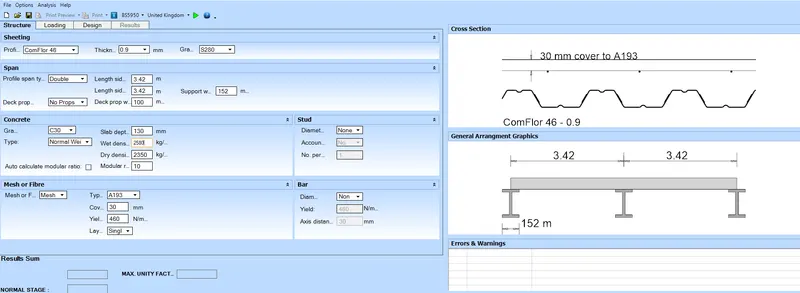

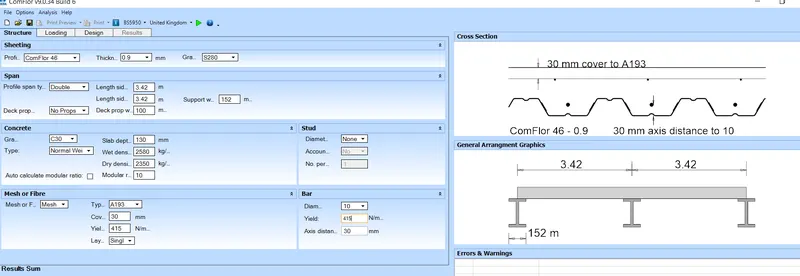

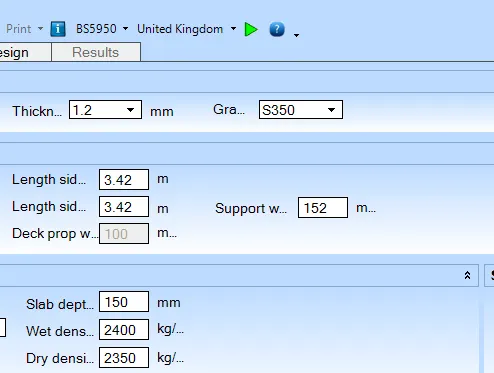

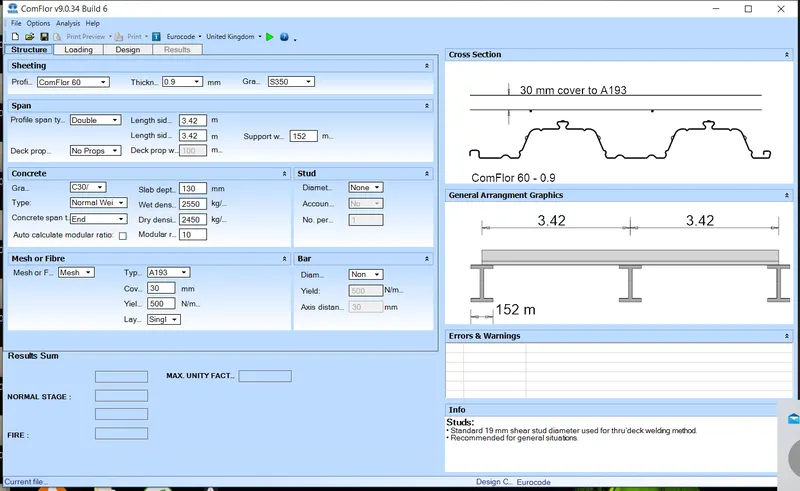

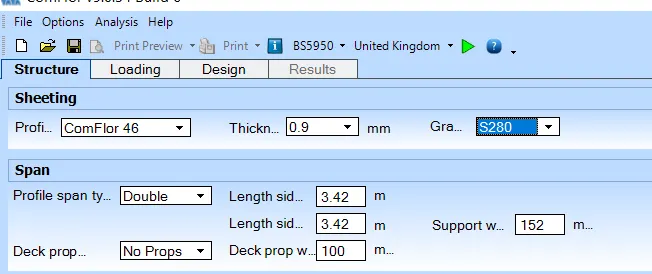

open comfort software and enter the given data i.e. thickness and grade.

then enter the lengths of the given member.

enter the span details such as profile span, deck properties, and support width.

then enter the mesh details such as grade, and yield stress.

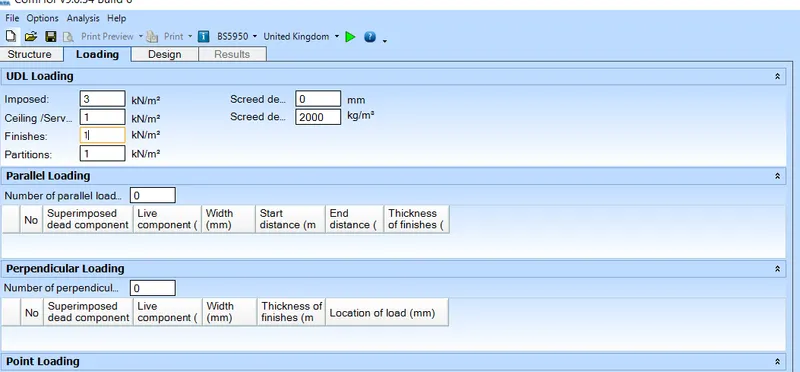

go to the next tab, i.e. loading, and enter the live and dead load.

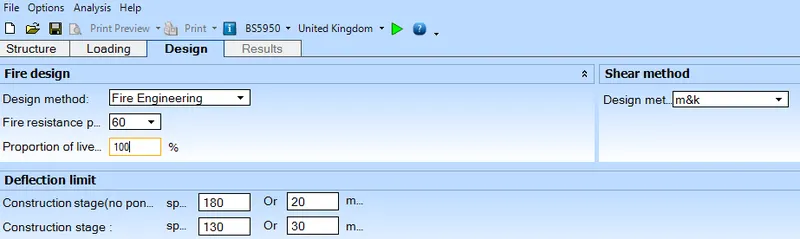

enter the design method as fire engineering and enter the fire resistance.

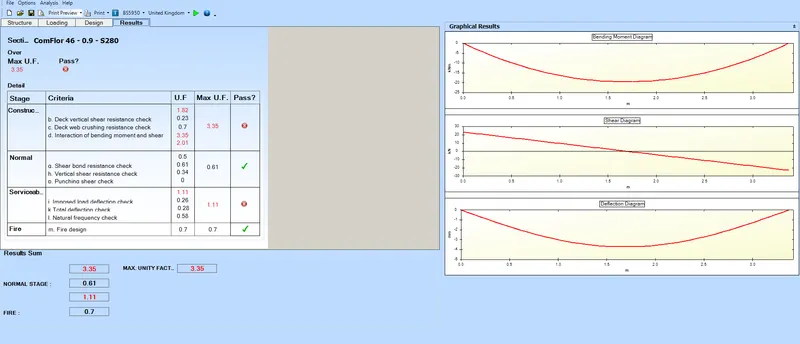

in the last step, run the analysis and note the results.
