Project 1 - MODELLING, ANALYSIS & DESIGN OF TALL BUILDINGS IN ETABS

Aim:

To model a tall building in ETABS for the given architectural drawing along with the given parameters and to design their frame elements.

Procedure in ETABS modeling:

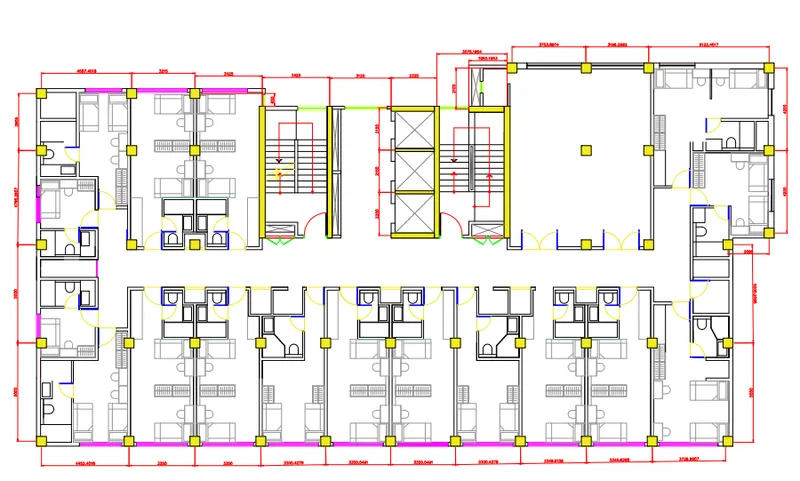

a) Column spacing and wall spacing marking in the architectural drawing

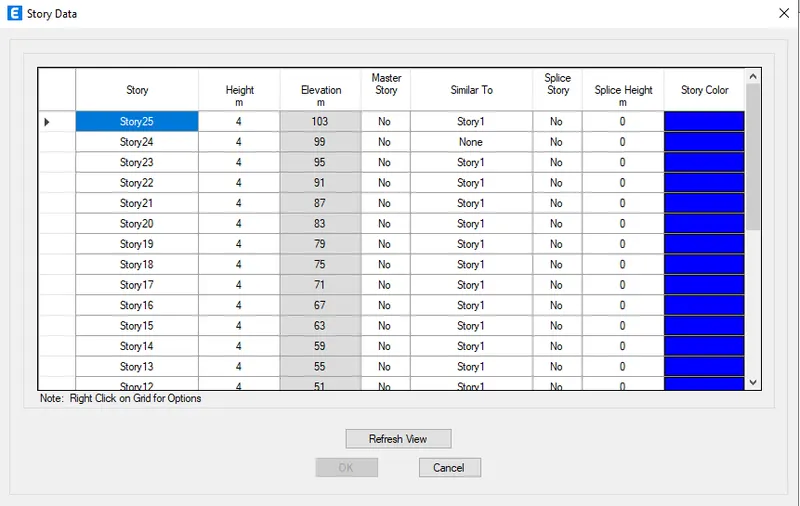

b) Story assignment

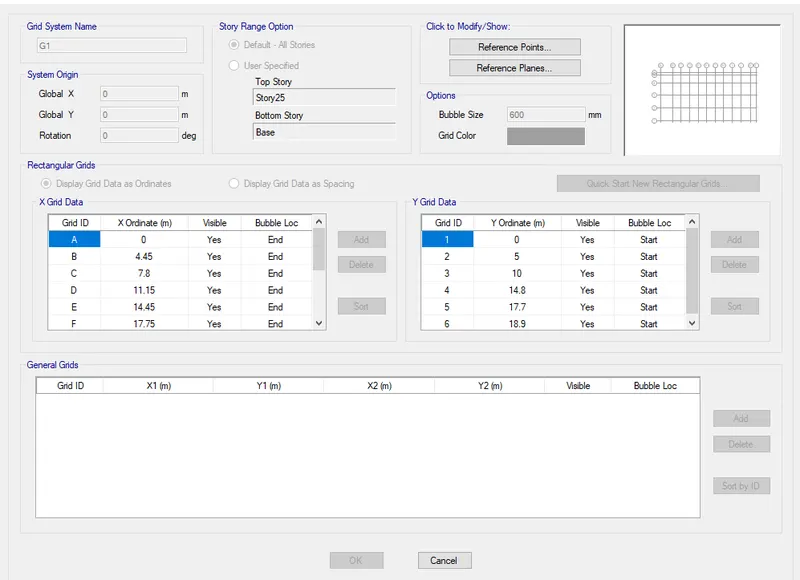

c) Grid assignment

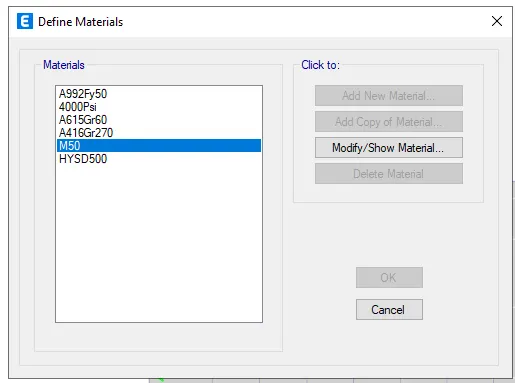

d) Material assignment

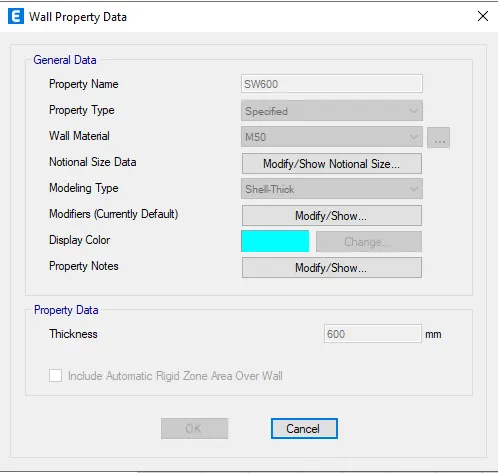

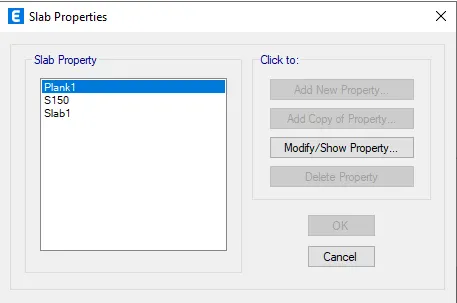

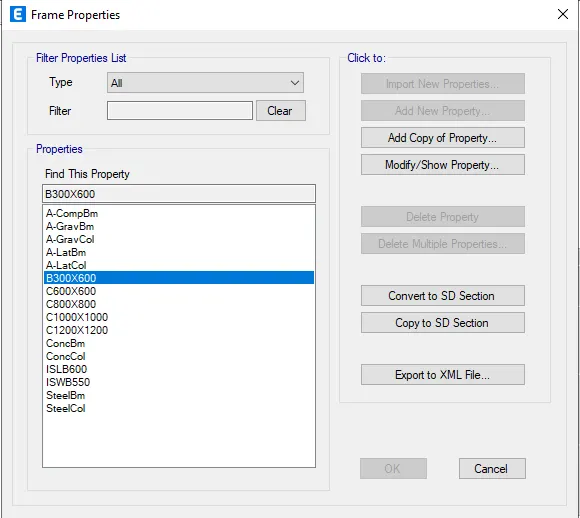

e) Frame sections, Slab section & wall section assignment

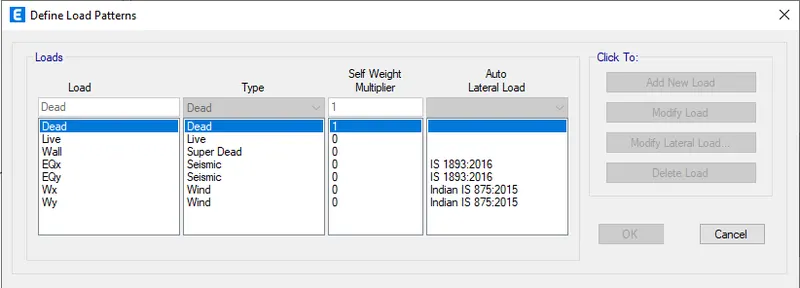

f) Load patterns

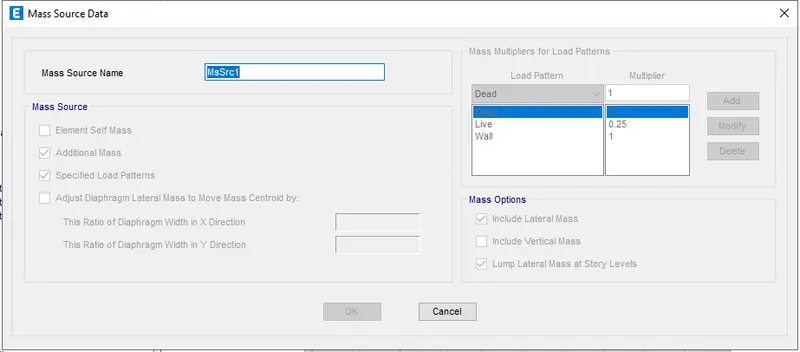

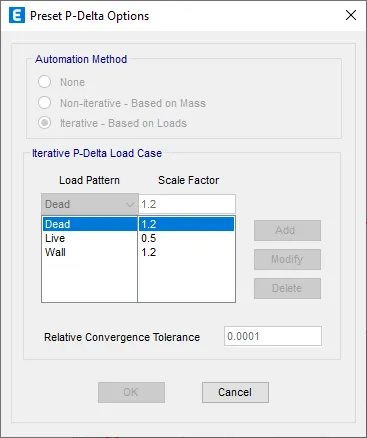

g) Mass source & P-delta assignment

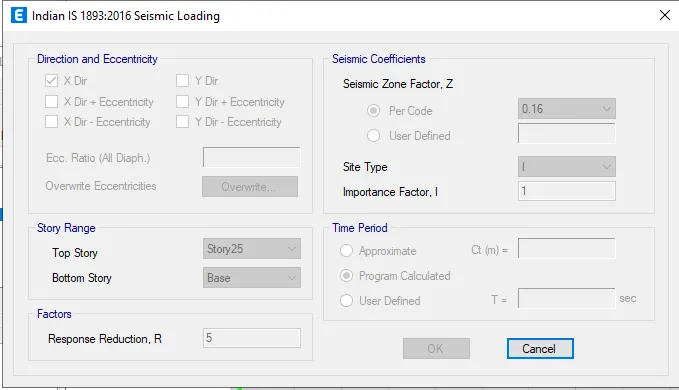

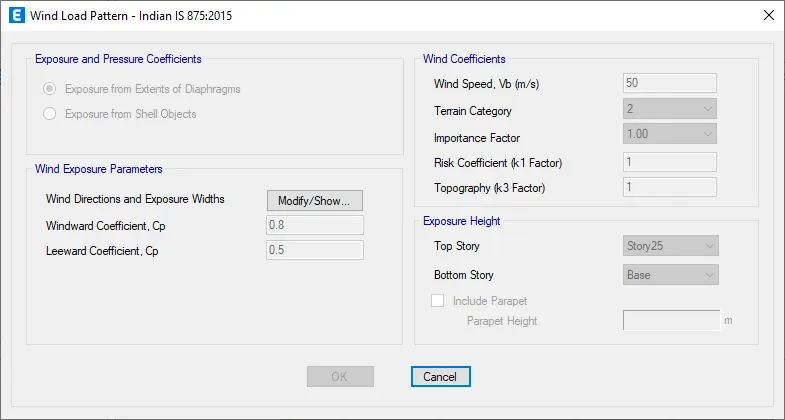

h) Load case definitions for Earthquake and Wind

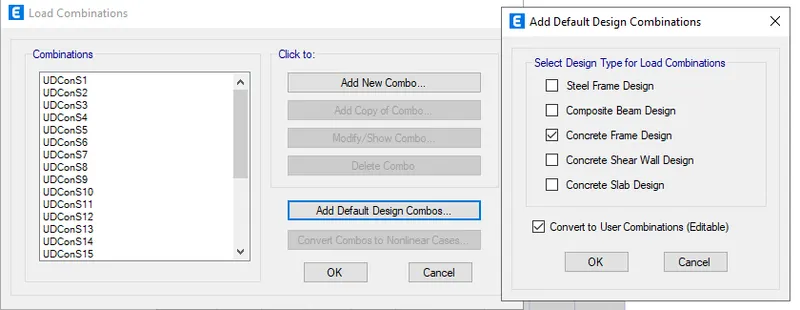

i) Load combinations for concrete frame design

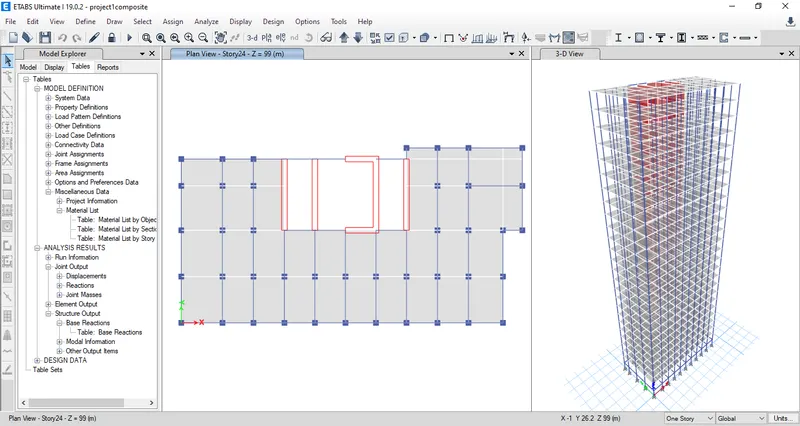

j) Modeling of columns, beams, slabs & shear walls

(4 Different column sizes are used for the tall building)

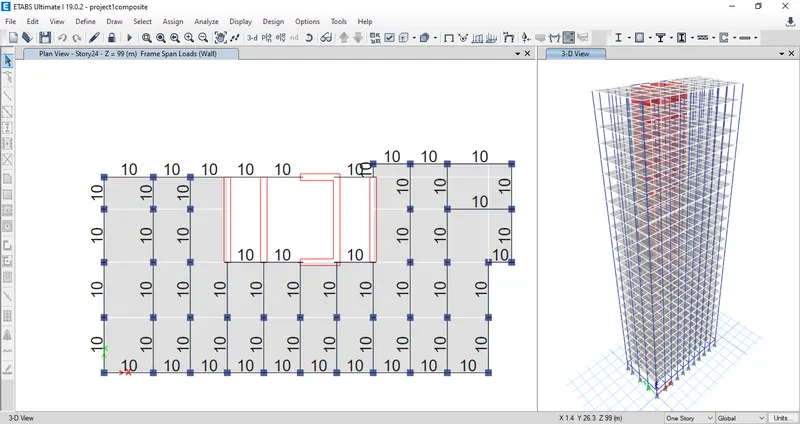

k) Wall load & Floor live load assignment

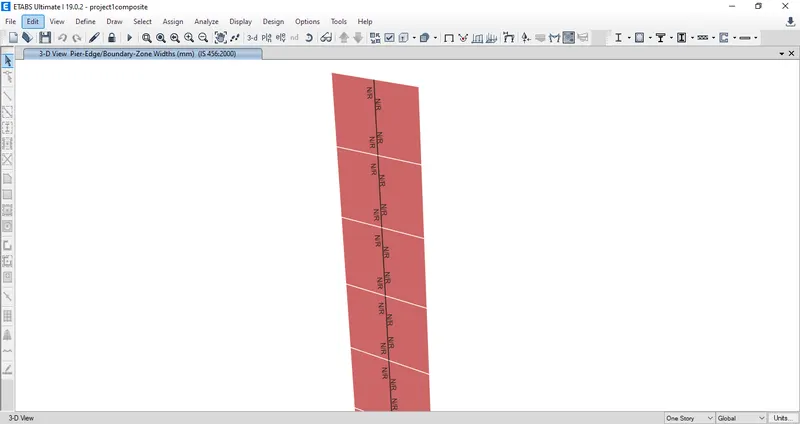

l) Run analysis & Check design of frames

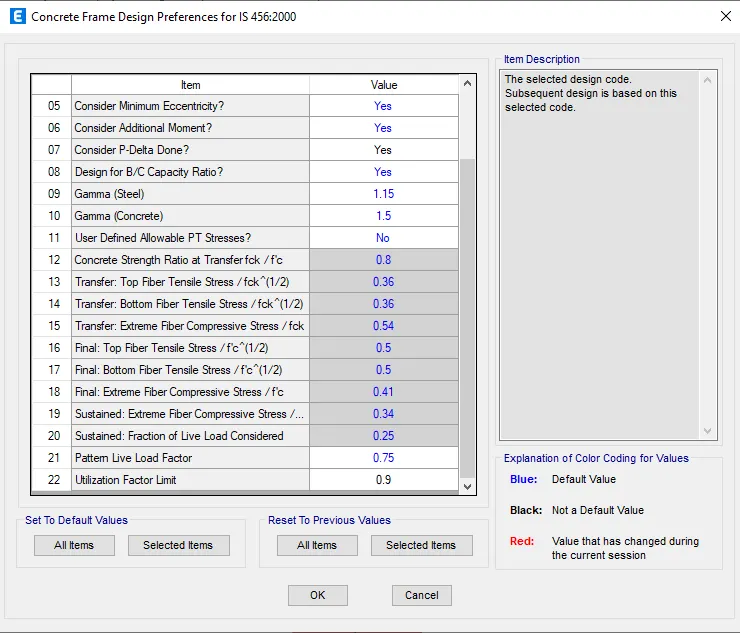

(Utilization factor kept as 0.9)

m) Verification of gravity load at base reaction:

Floor area of each level = m2

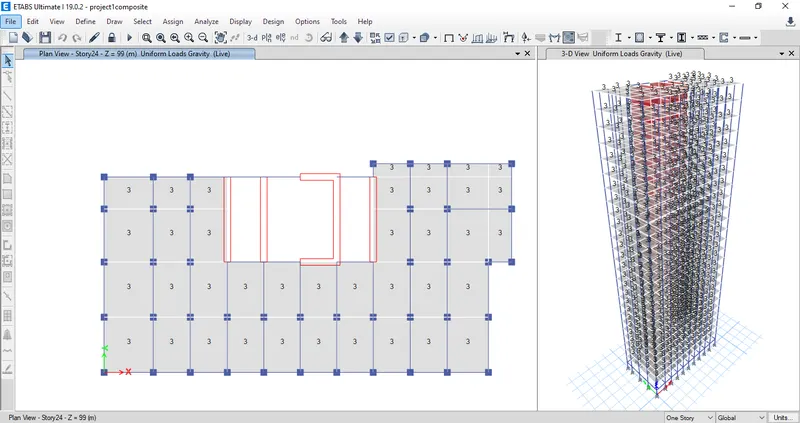

Live load assigned = 3 kN/m2

Total live load at each level = kN

Overall live load in the tall building = 25 story x kN = kN

This is verified with the ETABS live load base reaction result as given below.

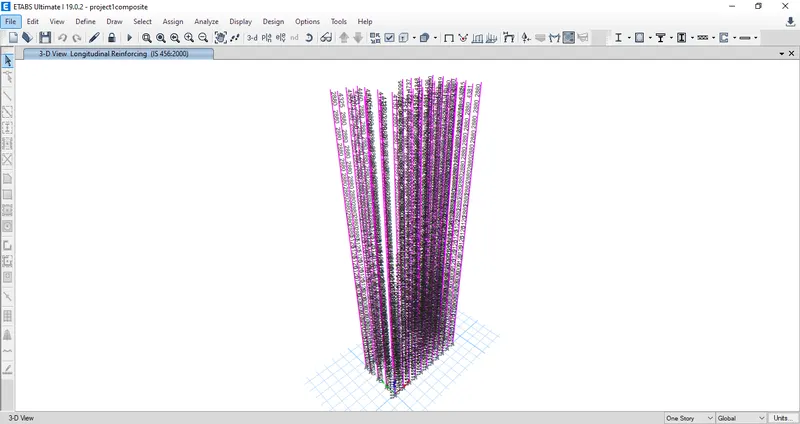

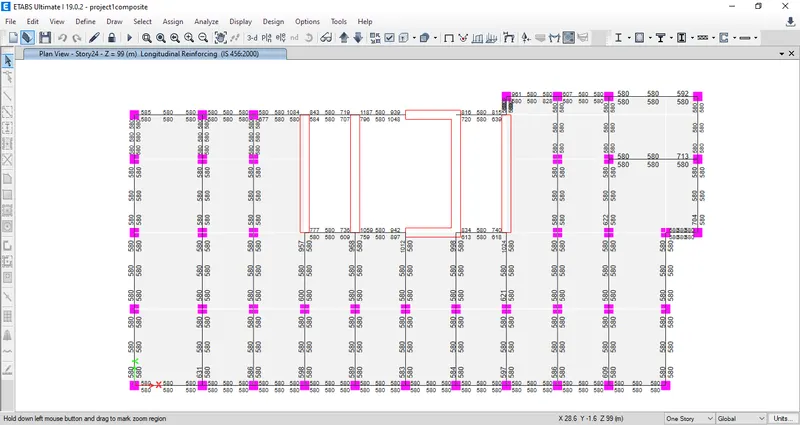

n) Design of Column & beam rebar:

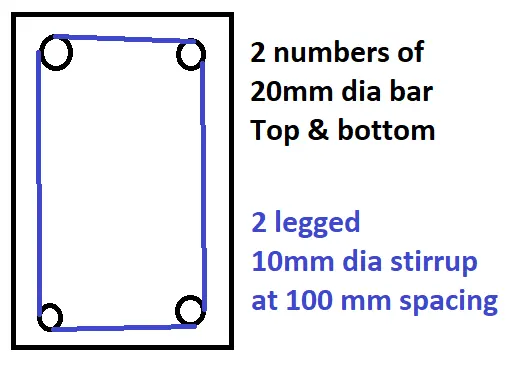

Beam

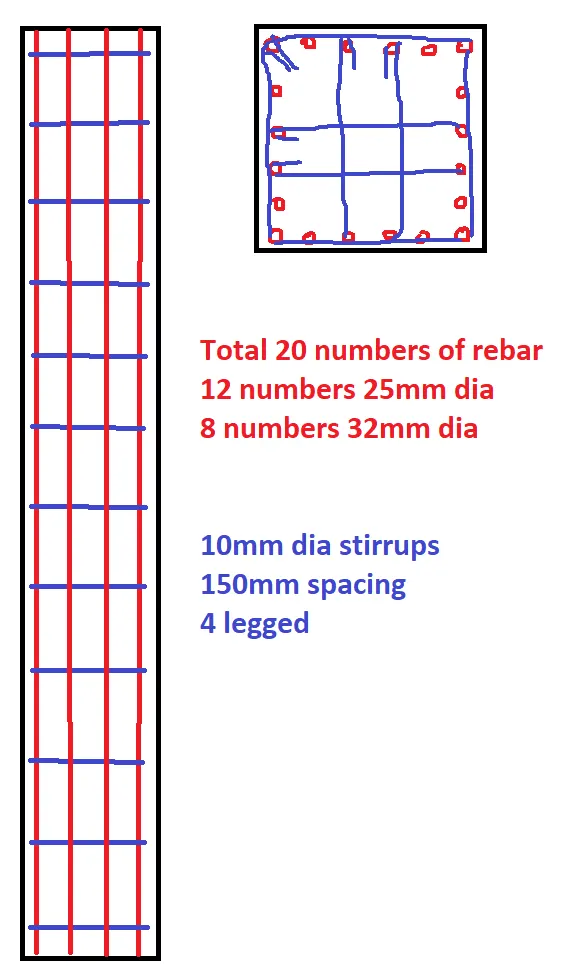

Column:

Conclusion:

Thus a tall building with all given parameters and for the given architectural drawing is modeled and designed. Also detailed ETABS report, model working file are attached in the submission.
