Mini Project on Vehicle Direction Detection

Aim: Vehicle Direction Detection

Objective:

1. To Develop MATLAB Simulink Model according to MAAB guide line and check it.

2. Taging the requirements to the Simulink model to there corresponding subsystem.

3. Code Generation.

4. Sample time should be 0.01s.

Procedure:

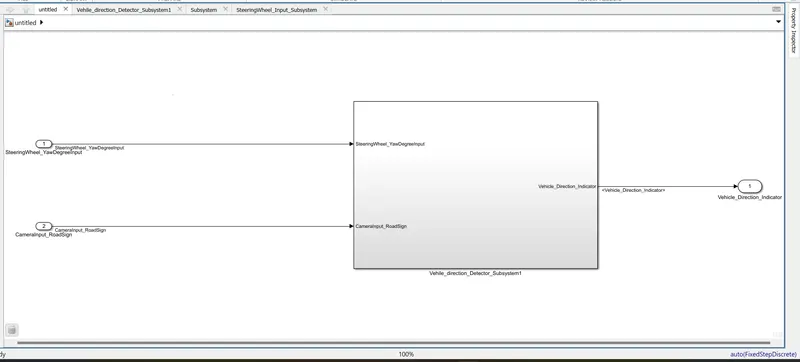

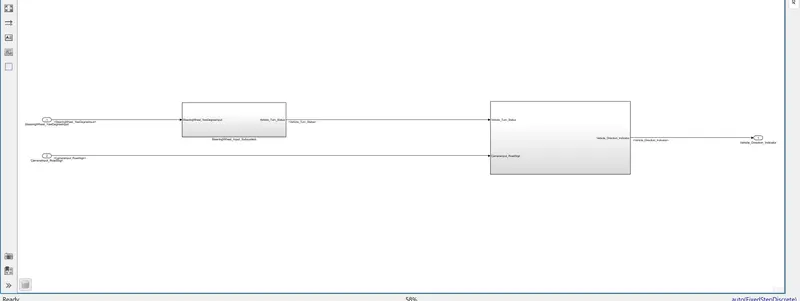

1. designed a subsystem as required

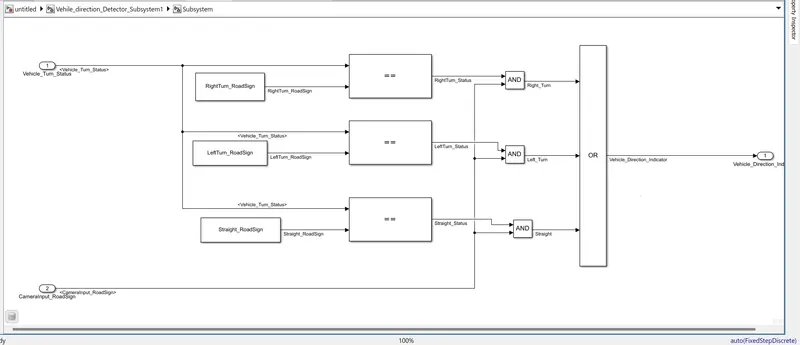

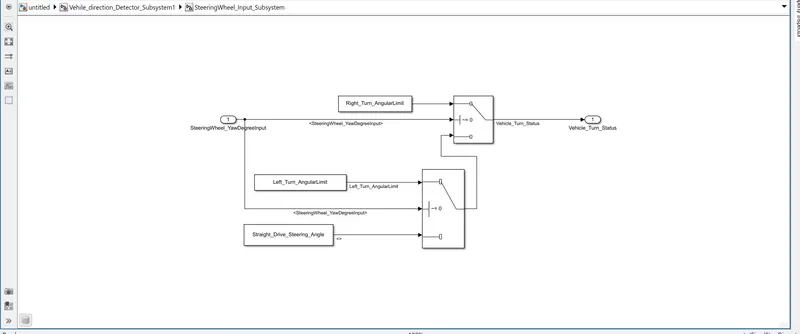

2. Logic designed as below

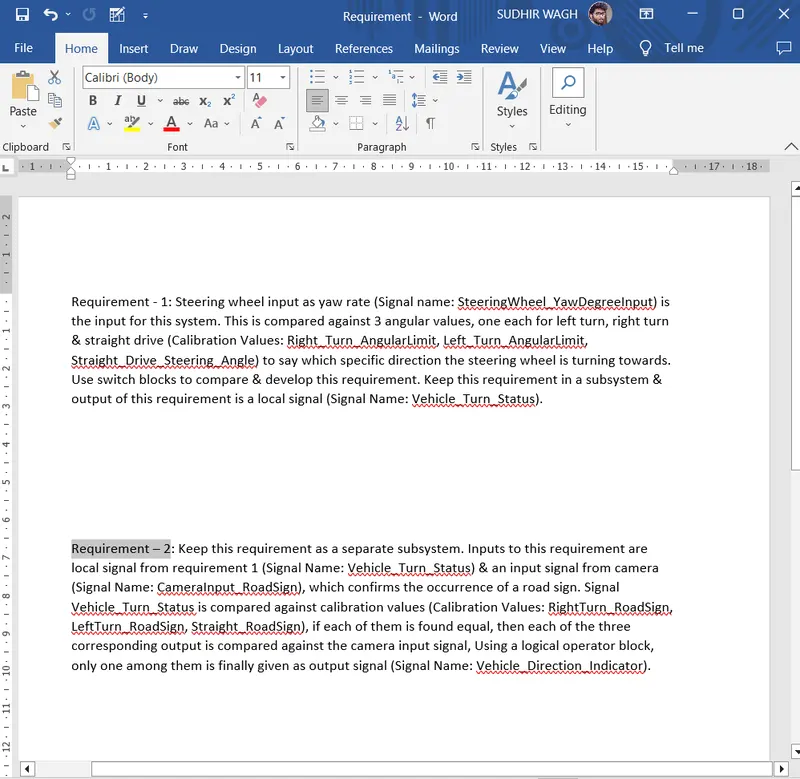

3.Requirement tagging to word file

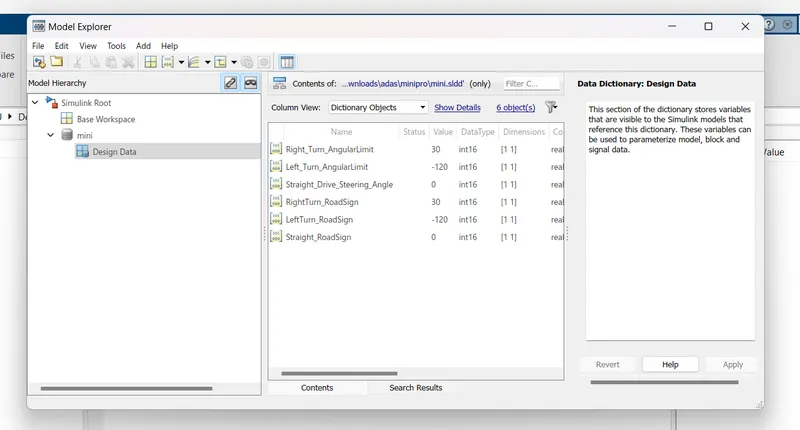

4.Creating a Simulink Data Dictionary

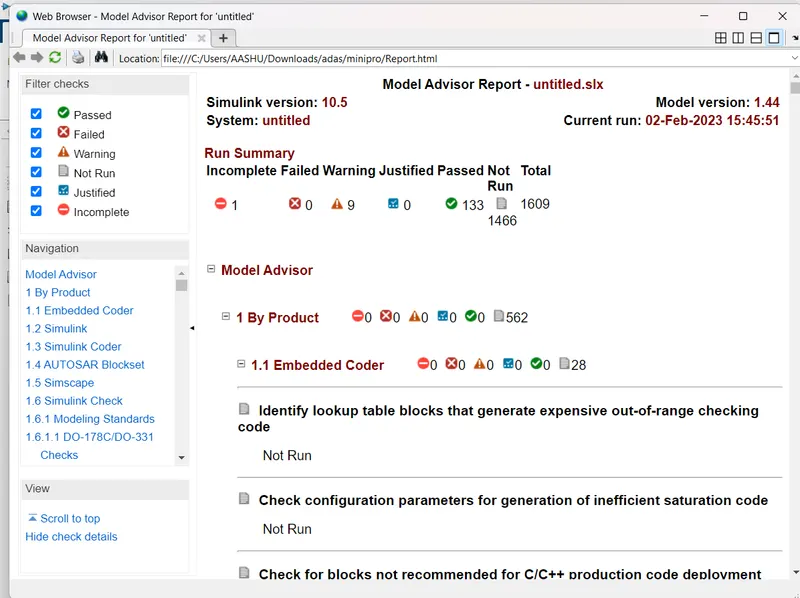

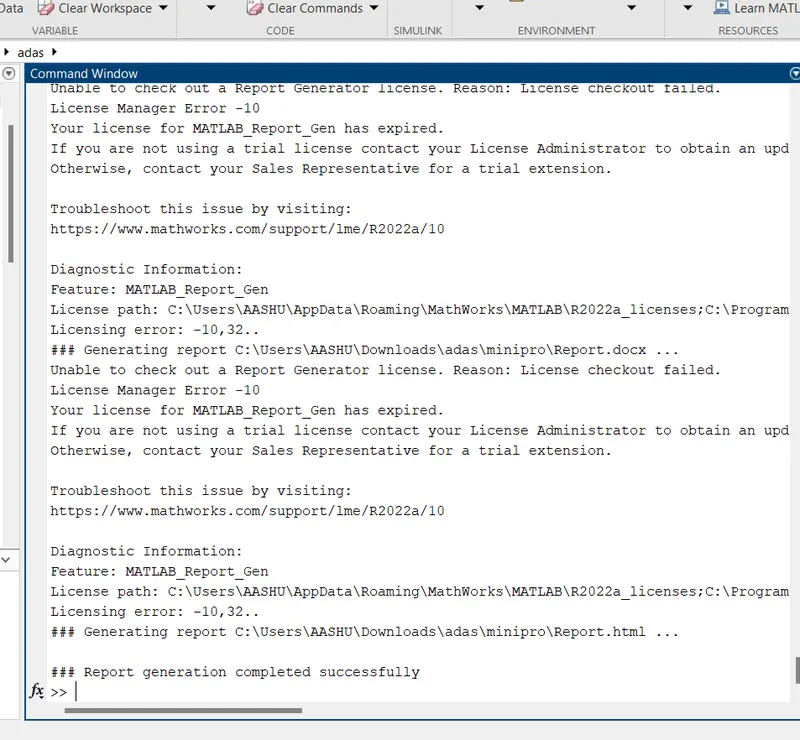

5.Create Model Advisory Report

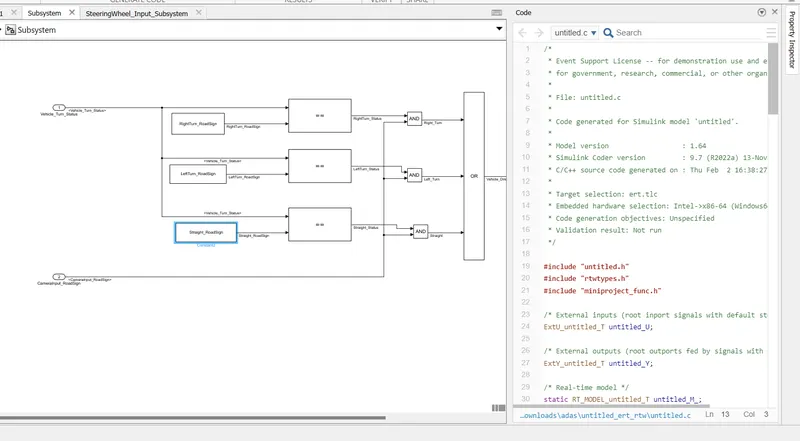

And code also generated attached below

Conclusion: In this Model as the camera reads road signs it stores into its memory with its own unique values for left turn and right turn and also for straight or over speed etc. But among this we are using only turning and straight driving signals to assist our driver
