Project 1 (Mini Project on Vehicle Direction Detection
STUDENT OF ONLINE EV BATCH 16
ANS :
OBJECTIVE :
- Development of MATLAB Simulink model as per requirement.
- Tag the requirements to the simulink model; tagging requirement 1 & requirement 2 to their corresponding subsystems.
- MBD compliant changes, Data Dictionary creation & code generation.
- Choosing code generation, Storage class for Input signals: ImportedExtern; Storage class for Output signal: Export to File; Storage class for local signals: localizable; Storage class for calibration signals: Const.
- Choosing sample time for all signals as 0.01
MATLAB FUNCTIONAL MODEL :
- CHANGE SOLVER SETTING.
- CHANGE CODE GENERATION SETTING.
- CREATE SLDD FILE.
- CREATE REQUIREMENT 1 SUBSYSTEM.
- CREATE REQUIREMENT 2 SUBSYSTEM.
- CREATE SUBSYSTEM.
- TAG THE SYSTEM'S.
- RESOLVE AND PROPOGATE THE SIGNAL.
- GO FOR MIL TEST.
- GO FOR SIL TEST.
- GENERATE C-CODE.
- GO FOR MODEL ADVISOR TEST.

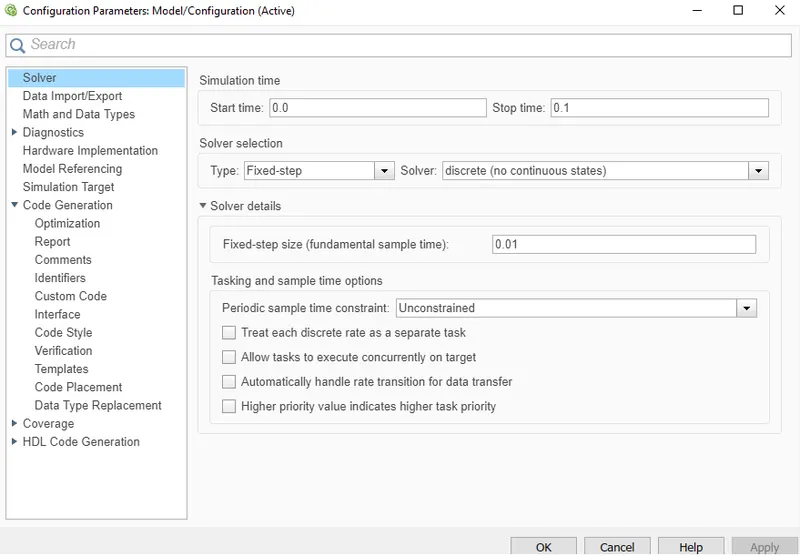

CHANGE SOLVER SETTING :

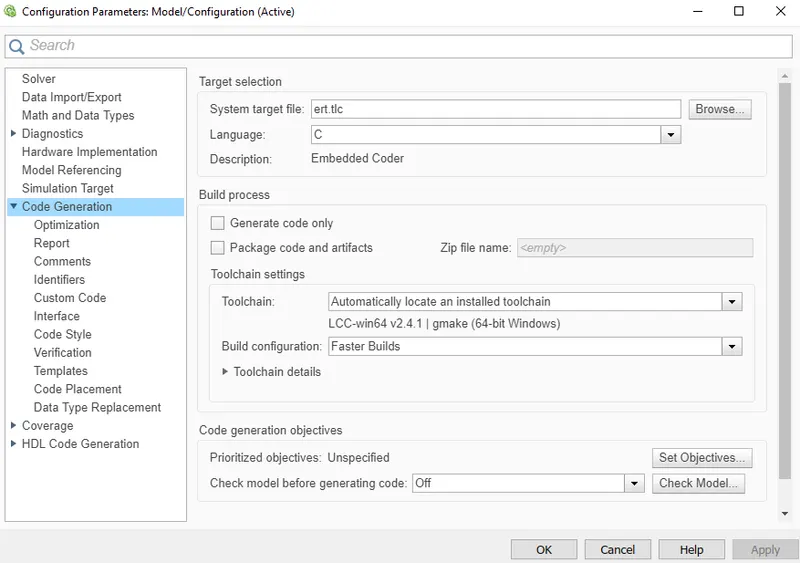

CHANGE CODE GENERTION SETTING :

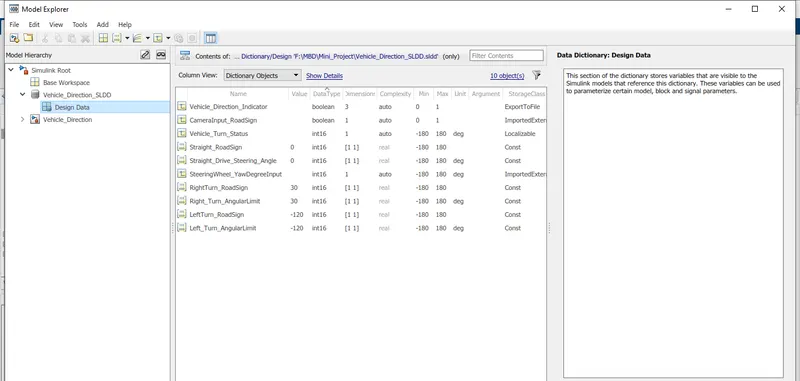

CREATE SLDD FILE :

Requirement - 1 :
- Steering wheel input as yaw rate (Signal name: SteeringWheel_YawDegreeInput) is the input for this system.
- This is compared against 3 angular values, one each for left turn, right turn & straight drive (Calibration Values: Right_Turn_AngularLimit, Left_Turn_AngularLimit, Straight_Drive_Steering_Angle) to say which specific direction the steering wheel is turning towards.
- Use switch blocks to compare & develop this requirement. Keep this requirement in a subsystem & output of this requirement is a local signal (Signal Name: Vehicle_Turn_Status).

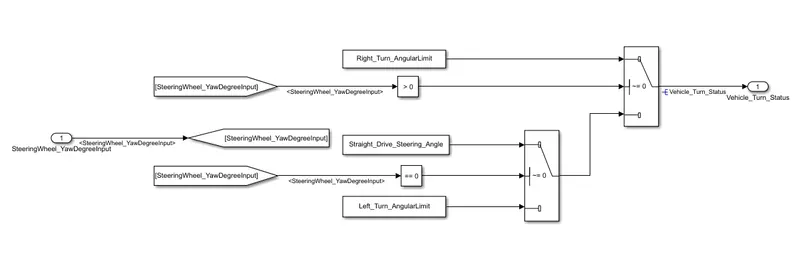

REQUIREMENT-1 SUBSYSTEM :

Requirement – 2 :
- Keep this requirement as a separate subsystem. Inputs to this requirement are local signal from requirement 1 (Signal Name: Vehicle_Turn_Status) & an input signal from camera (Signal Name: CameraInput_RoadSign), which confirms the occurrence of a road sign.
- Signal Vehicle_Turn_Status is compared against calibration values (Calibration Values: RightTurn_RoadSign, LeftTurn_RoadSign, Straight_RoadSign), if each of them is found equal, then each of the three corresponding output is compared against the camera input signal,
- Using a logical operator block, only one among them is finally given as output signal (Signal Name: Vehicle_Direction_Indicator).

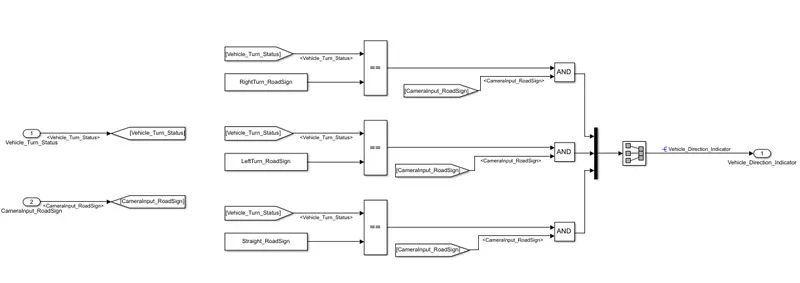

REQUIREMENT-2 SUBSYSTEM :

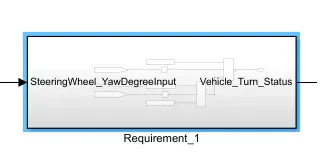

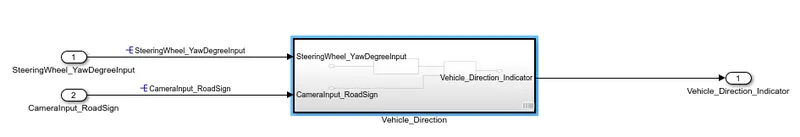

CREATED SUBSYSTEM :

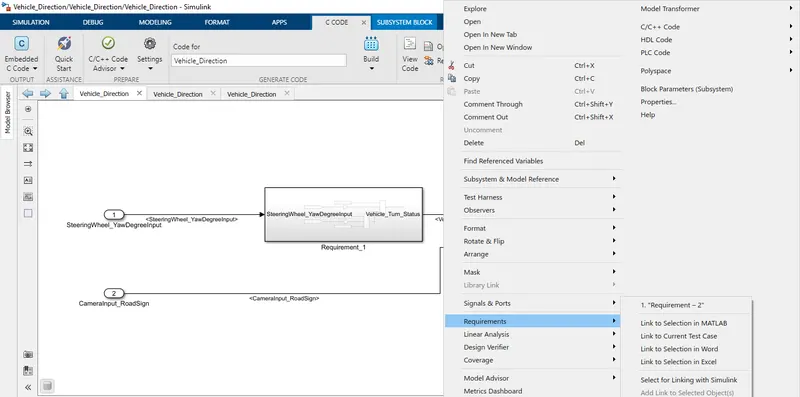

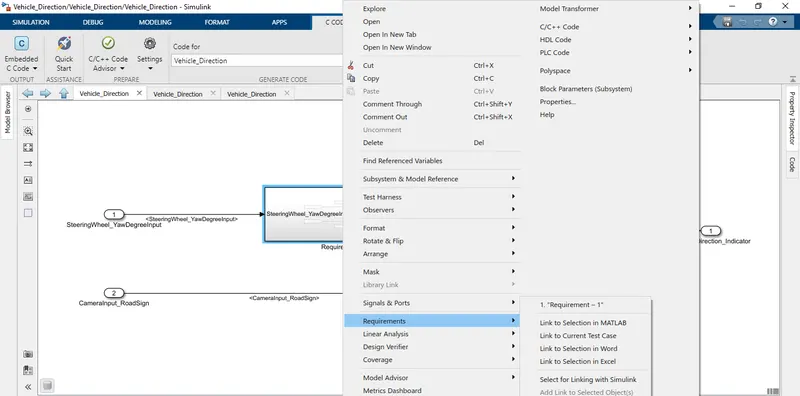

TAG REQUIREMENT '1' & '2' :
- RIGHT CLICK ON SUBSYSTEM.
- MOVE TO REQUIREMENT.
- LINK TO SELECTION IN WORD.

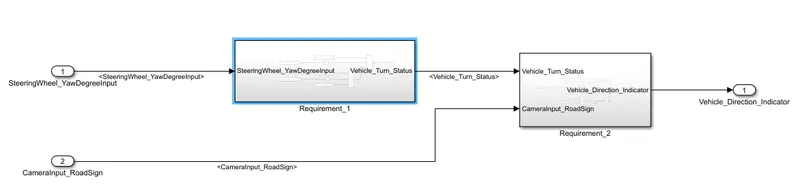

CREATED MODEL :

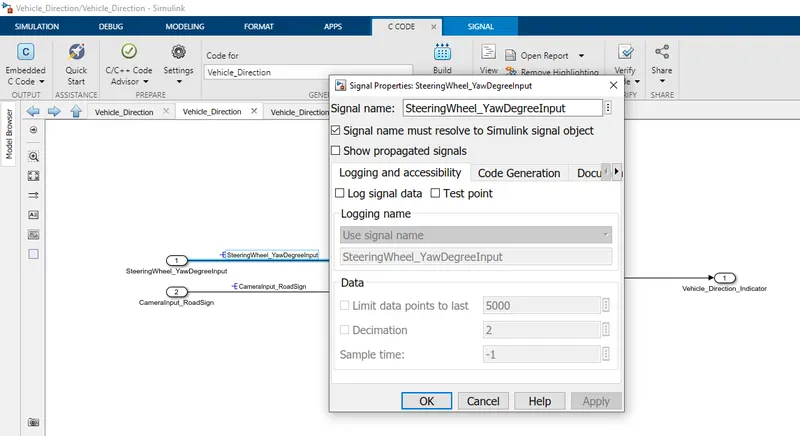

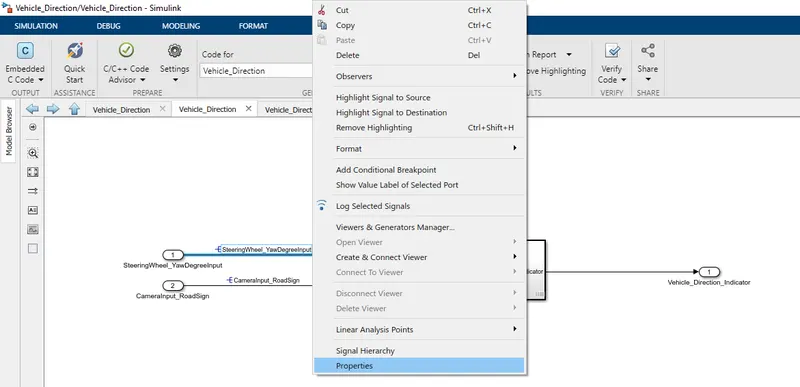

RESOLVE AND PROPOGATE THE SIGNAL :
- DOUBLE CLICK ON SIGNAL.
- THEN, RIGHT CLICK.
- MOVE TO PROPERTIES.
- PUT THE SIGNAL NAME.
- ENABLE 'SIGNAL NAME MUST RESOLVE TO SIMULINK SIGNAL OBJECT'.
- FOR PROPOGATION JUST DOUBLE TAP ON LINE.
- USE THIS SYMBOL '<>'.
- PUT ENTER INSIDE THIS.

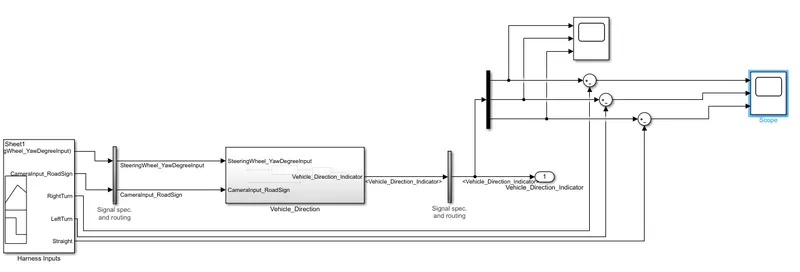

MIL TEST :

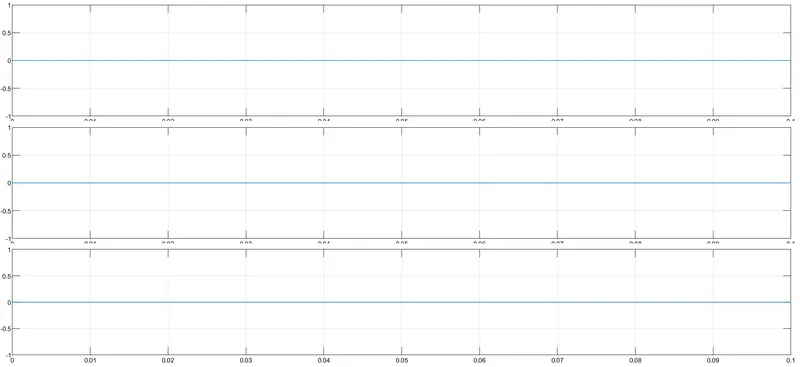

MIL TEST OUTPUT :

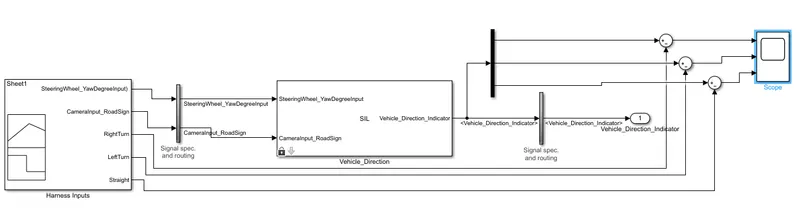

SIL TEST :

SIL OUTPUT :

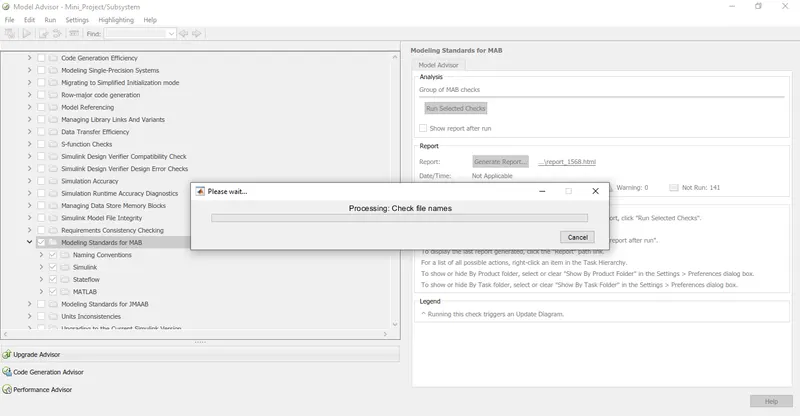

MODEL ADVISOR :
- GO TO MODELING OPTION.
- MOVE TO MODEL ADVISOR.
- TAP ON THAT.
- MOVE TO BY TASK OPTION.
- ENABLE ONLY MODELING SIMULINK FOR MAB.
- RUN SELECTED CHECKS.
- REDUCE WARNINGS.

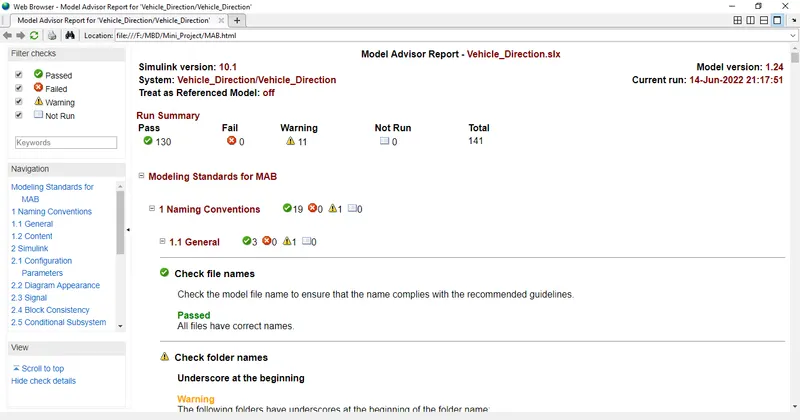

- GENERATE REPORT.
STEP-1 :

STEP-2 :

STEP-3 :

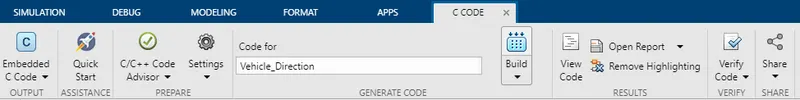

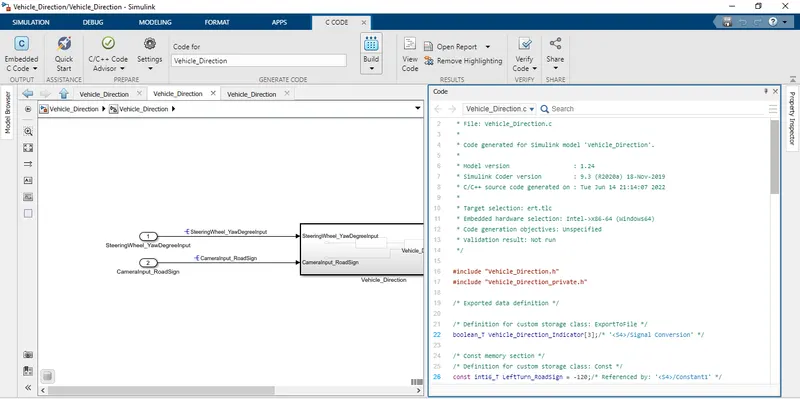

C-CODE GENERATION :
- MOVE TO APPS OPTION.
- GO FOR EMBEDDED CODER.
- TAP ON THAT.
- GO TO BUILD OPTION.
- GENERATE THE CODE.
STEP-1 :

STEP-2 :

STEP-3 :

C-CODE :
/*
* File: Vehicle_Direction.c
*
* Code generated for Simulink model 'Vehicle_Direction'.
*
* Model version : 1.24
* Simulink Coder version : 9.3 (R2020a) 18-Nov-2019
* C/C++ source code generated on : Tue Jun 14 21:14:07 2022
*
* Target selection: ert.tlc
* Embedded hardware selection: Intel->x86-64 (Windows64)
* Code generation objectives: Unspecified
* Validation result: Not run
*/
#include "Vehicle_Direction.h"
#include "Vehicle_Direction_private.h"
/* Exported data definition */
/* Definition for custom storage class: ExportToFile */
boolean_T Vehicle_Direction_Indicator[3];/* '/Signal Conversion' */
/* Const memory section */
/* Definition for custom storage class: Const */
const int16_T LeftTurn_RoadSign = -120;/* Referenced by: '/Constant1' */
const int16_T Left_Turn_AngularLimit = -120;/* Referenced by: '/Constant4' */
const int16_T RightTurn_RoadSign = 30; /* Referenced by: '/Constant' */
const int16_T Right_Turn_AngularLimit = 30;/* Referenced by: '/Constant' */
const int16_T Straight_Drive_Steering_Angle = 0;/* Referenced by: '/Constant3' */
const int16_T Straight_RoadSign = 0; /* Referenced by: '/Constant2' */
/* Real-time model */
RT_MODEL_Vehicle_Direction_T Vehicle_Direction_M_;
RT_MODEL_Vehicle_Direction_T *const Vehicle_Direction_M = &Vehicle_Direction_M_;
/* Model step function */
void Vehicle_Direction_step(void)
{
/* local block i/o variables */
int16_T Vehicle_Turn_Status;
/* Outputs for Atomic SubSystem: '/Vehicle_Direction' */
/* Switch: '/Switch' incorporates:
* Constant: '/Constant'
* Constant: '/Constant4'
* Switch: '/Switch1'
*/
if (Vehicle_Direction_ConstB.Compare != 0) {
Vehicle_Turn_Status = Right_Turn_AngularLimit;
} else if (Vehicle_Direction_ConstB.Compare_p != 0) {
/* Switch: '/Switch1' incorporates:
* Constant: '/Constant3'
*/
Vehicle_Turn_Status = Straight_Drive_Steering_Angle;
} else {
Vehicle_Turn_Status = Left_Turn_AngularLimit;
}
/* End of Switch: '/Switch' */
/* SignalConversion: '/Signal Conversion' incorporates:
* Logic: '/AND'
* Logic: '/AND1'
* Logic: '/AND2'
*/
Vehicle_Direction_Indicator[0] = false;
Vehicle_Direction_Indicator[1] = false;
Vehicle_Direction_Indicator[2] = false;
/* End of Outputs for SubSystem: '/Vehicle_Direction' */
}
/* Model initialize function */
void Vehicle_Direction_initialize(void)
{
/* (no initialization code required) */
}
/* Model terminate function */
void Vehicle_Direction_terminate(void)
{
/* (no terminate code required) */
}
/*
* File trailer for generated code.
*
* [EOF]
*/
