Project 1 - Meshing of Floor Panel

AIM

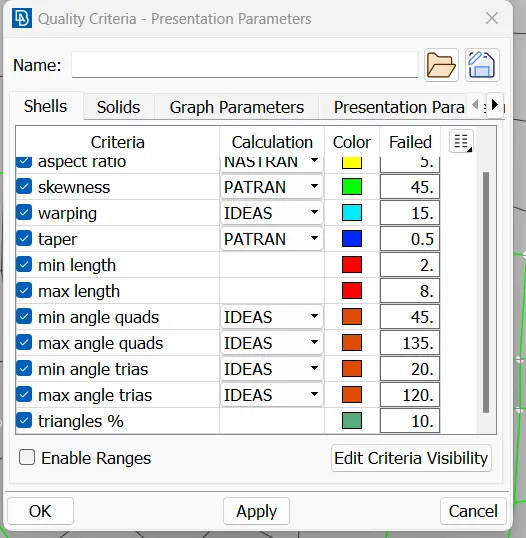

Follow the below-mentioned quality criteria, mesh the component given below, and assign thickness:

Target Element Length = 5 Units

S.N	Quality Criteria	Value
1	Aspect Ratio	5
2	Skewness	45
3	Warping	15
4	Taper	0.5
5	Min. Length	2 Units
6	Max. Length	8 Units
7	Min angle Quad	45
8	Max angle Quad	135
9	Min angle Tria	20
10	Max angle Tria	120
10	Tria %	10

You will have to submit a detailed report describing whatever you have performed in the challenge.

OBJECTIVE

mesh the component

assign thickness:

input quality criteria

BODY OF CONTENT

• Importing the component
• perform topo to stitch surfaces
• perform geometric check and correct errors
• refine macros and perometers to targetted length
• input quality criteris

•

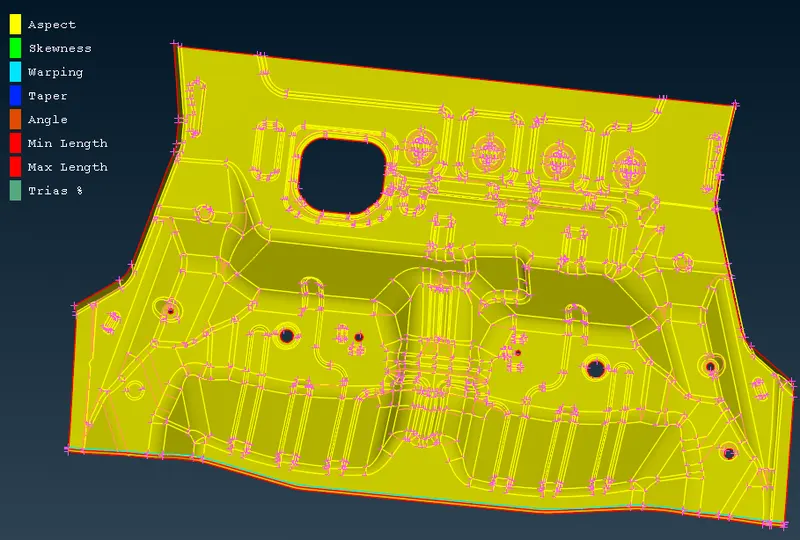

• use skin offset method to take mid surface for same model
•

• delete unwanted hotpoints
• create cut where ever necessary to avoid features failing quality criteria and toggle lines where ever necessary
• mesh the components using best mesh
• avoid trias as much as possible and avoid off elements
• arange mesh flow inta organised pattern
• assign thickness to the mid surface

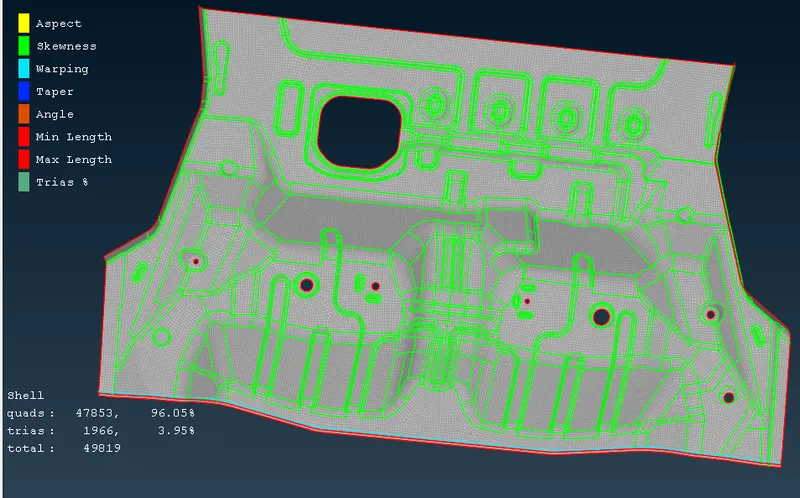

• the below id the mesh obtained with manual method

•

Conclusion

Mid surface of all components has been made and meshing has been done

Trias has been kept to minimum to avoid failure due to stress concentration

Quality criterias are all satisfied as per given and off elements are avoided
