Project 1 - Meshing of Floor Panel

Aim: To extracr midsurface and to have proper mesh flow for the given quality criteria, for the given floor panel model

using Ansa

procedure

• To import the model to ANSA

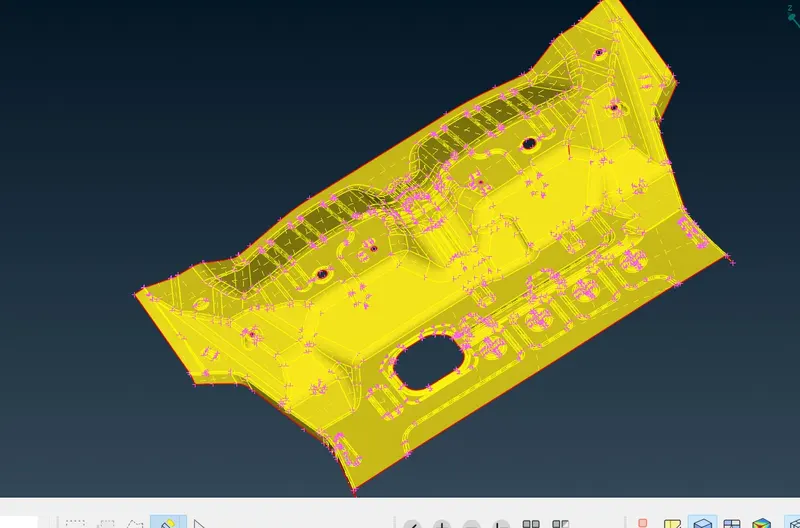

• Need to perform Topology and clean up the surface

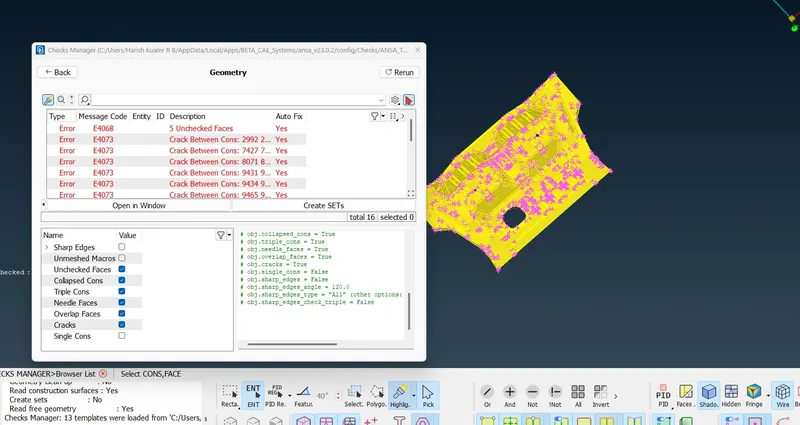

Check manager------ Geometry

• Remove the cracks and create a new surface by using the option Faces----- New
• After geometry Cleanup , then extract midsurface using the option Midsurface---Skin or offset

• Set the PID for the extracted mid surface Faces---Set PID and mention the thicknes to the component
• Then provide the Mesh Parameter and Quality Criteria to maintain the mesh Quality on the midsurface

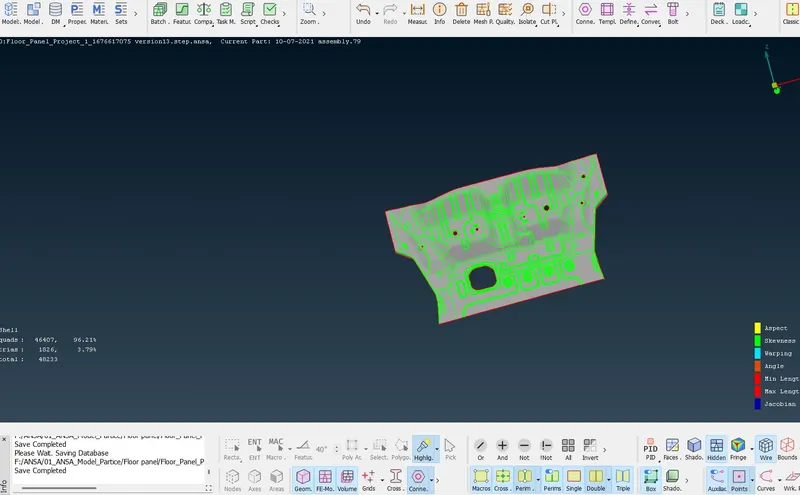

• Generate the mesh on the midsurface by using option Mesh Generation----- Best
• To have a better mesh flow and to maintain the quality of the mesh by using option reconstruct and smooth

Mesh Genration ----Reconstruct

Shell mesh ---- Smooth ,so that we can achieve proper mesh flow

• To minimise the trias we can use split, swap and jion option

Element--- Split

Conclusion:

To extract the midsurface and to mesh the given component with proper mesh flow for the given Quality criteria and Mesh parameter.
