Project 1 - Meshing of Floor Panel

                                       Project 1 - Meshing of Floor Panel

Aim: To Extract a mid-surface of the Floor and to create a proper mesh flow in the model with proper               quality criteria.


 Quality Criteria Value

• Target Element Length = 5 Units
•  Aspect Ratio = 5
•  Skewness = 45
•  Warping 15
•  Taper 0.5
•  Min. Length 2 Units
• Max. Length 8 Units
• Min angle Quad 45
•  Max angle Quad 135
• Min angle Tria 20
• Max angle Tria 120
• Tria % 10
•
  Procedure :

  Topology and Geometry clean up

• Imported the file to ANSA GUI.

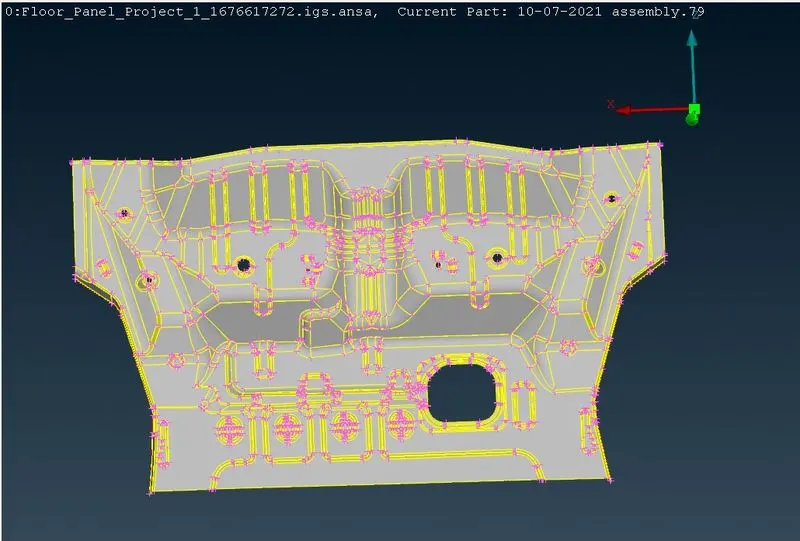

•  Did topo , checked for geometrical error. Cleared the geometrical errors by auto fix and by deleting surfaces and creating new surface.

  Midsurface

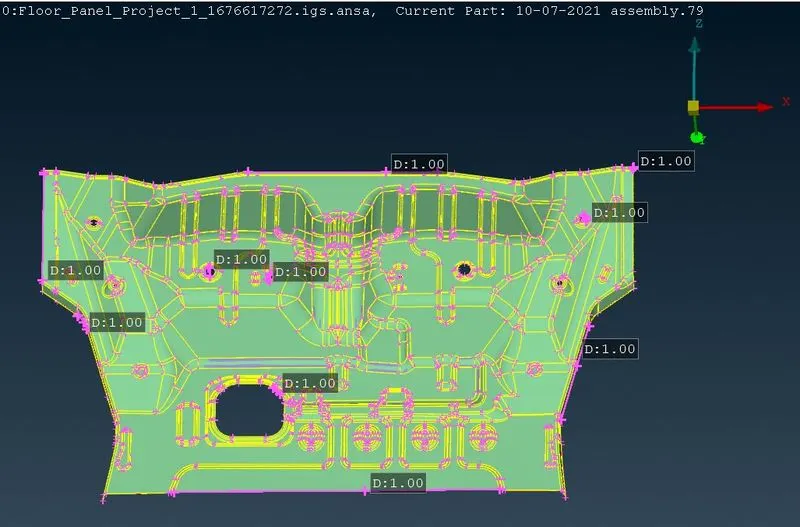

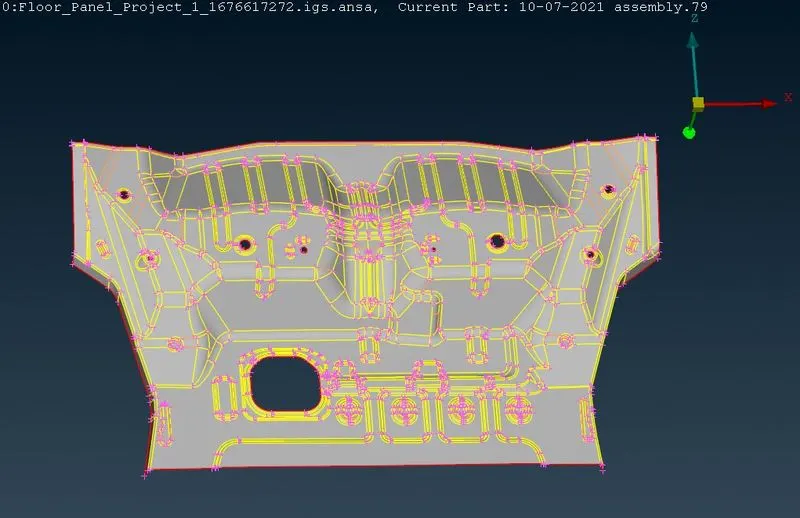

• Extracted midsurface using Midsurface > Skin process. Assigned the right color for surfaces.

  Meshing

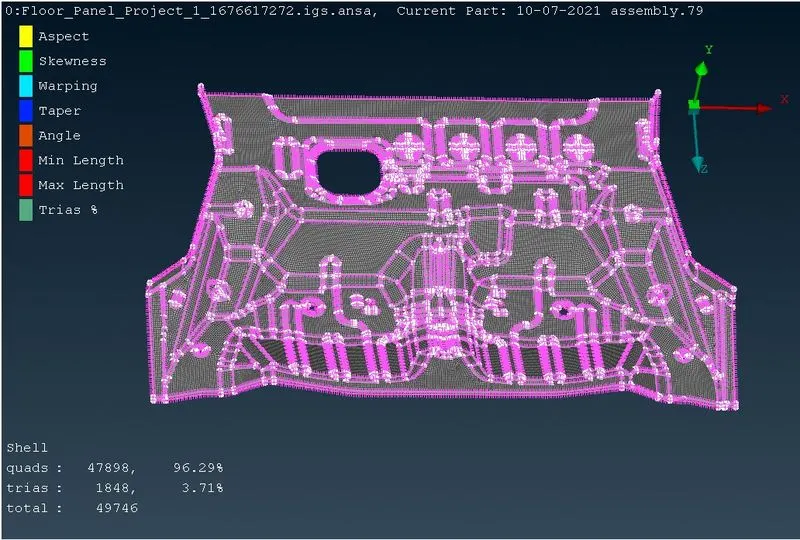

• Meshed the midsurface using batch mesh, improved the mesh quality and errors using smooth , reconnstruct and fix quality options.

  Assigning thickness


• As the thickness of the whole floor panel is 1mm , thickness not assigned.








  Conclusion

  The extraction of the midsurface is done by skin method and the meshing is done by Batch meshing.
