Week- 5 - Solid meshing

Week- 5 - Solid meshing

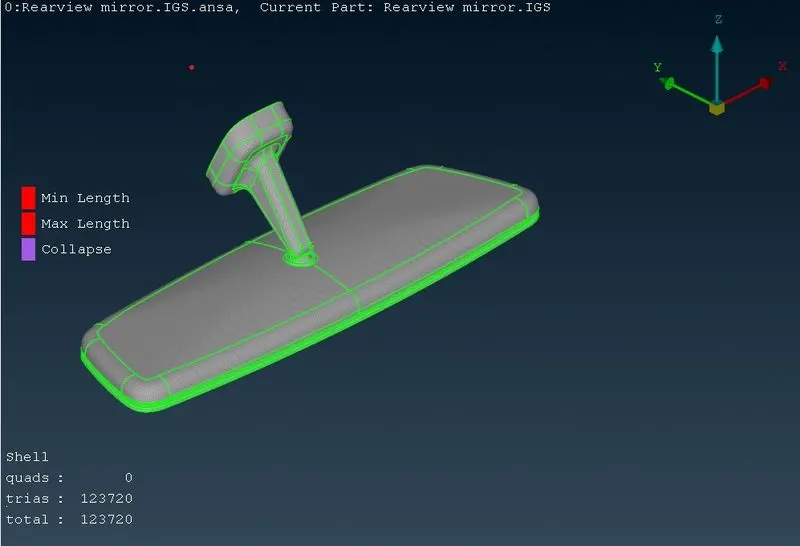

Rear View Mirror

Aim :For the given Rear view mirror component, check for the geometrical errors and mesh the Surfaces with the given 2D element Quality criterias given below.

Procedure

• Selected each material individually
• Assigned target length
• Did Topo
• checked for Geomaterical errors
• fixed geomaterical errors with auto fix
• Assigned values for min length and max length and tetra collapse
• meshed using best mesh with tria and otho tria mesh
• cleared quality failing area with reconstruct and smooth mesh
• checks for Intersections
• volume mesh > define > visible ok
• Used tetra rapid and meshed the undefined volume

Conclusion

Meshed all the parts and fixed the quality, and fixed the tet collapse .
