Project 1 Mechanical design of battery pack

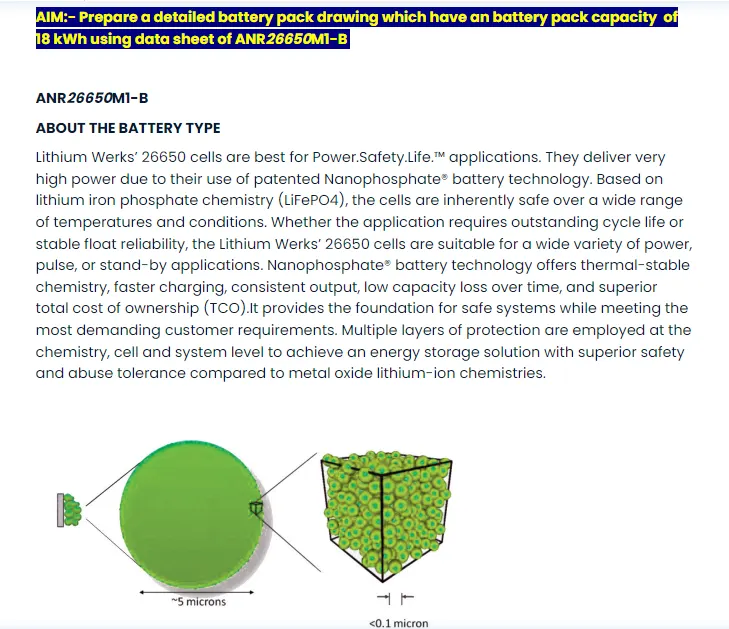

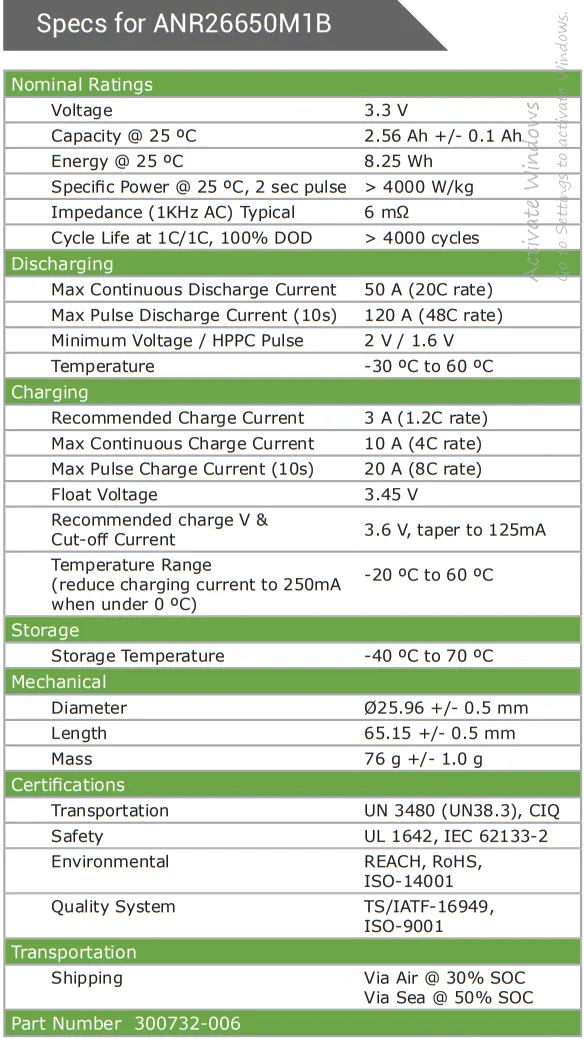

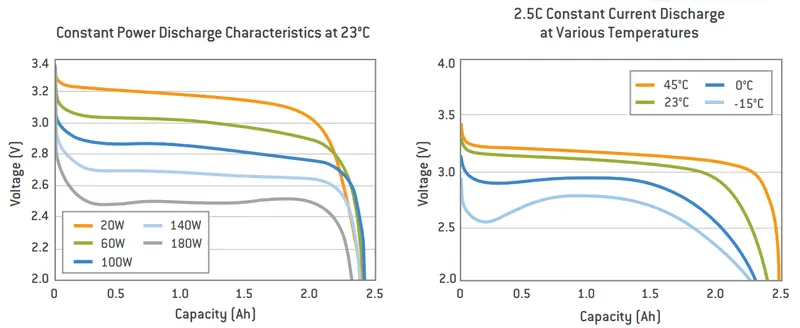

constant power and current discharge graph

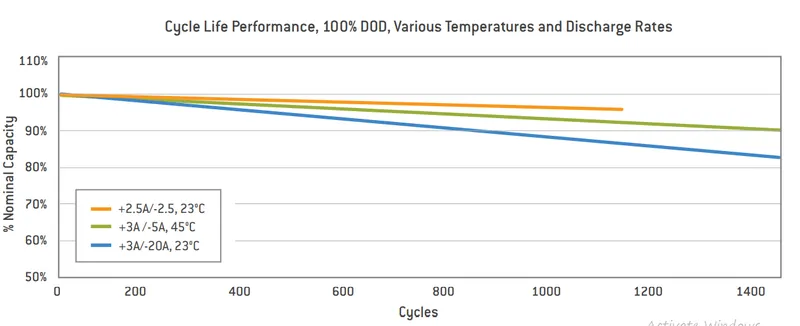

Cycle Life at 20A Discharge, 100% DOD

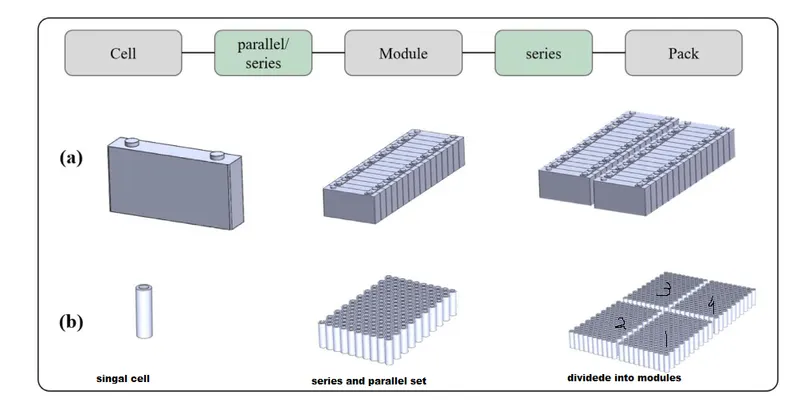

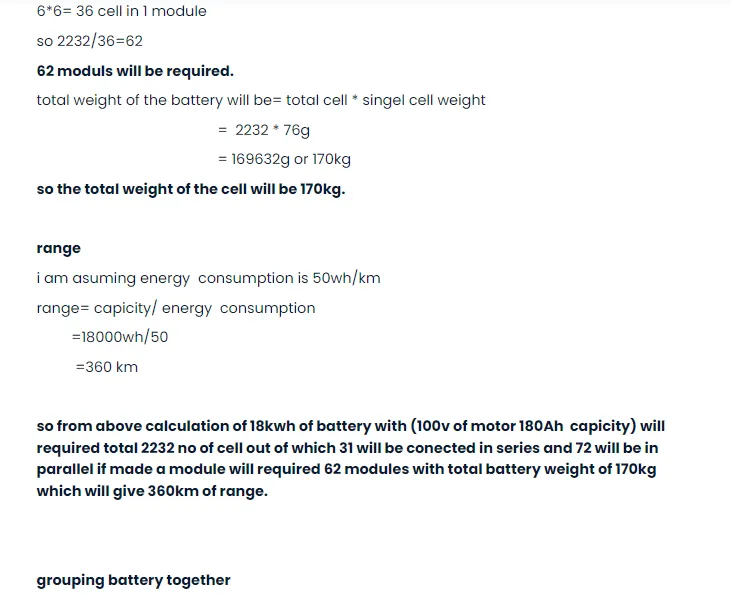

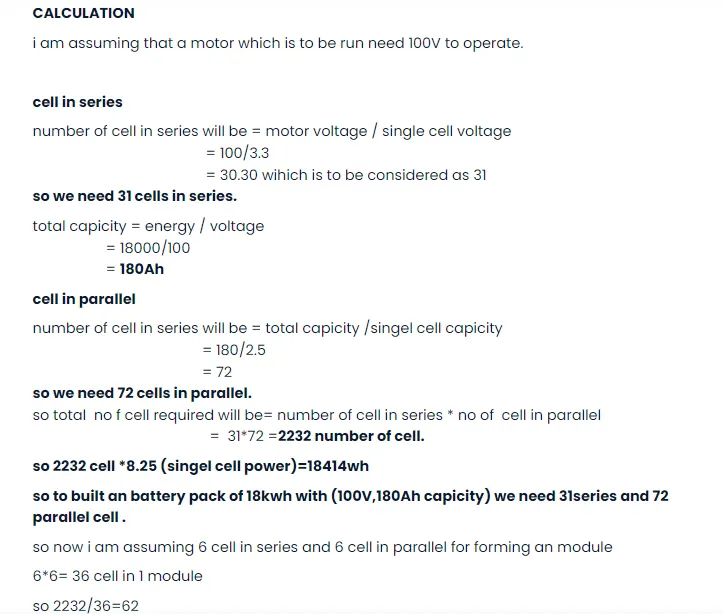

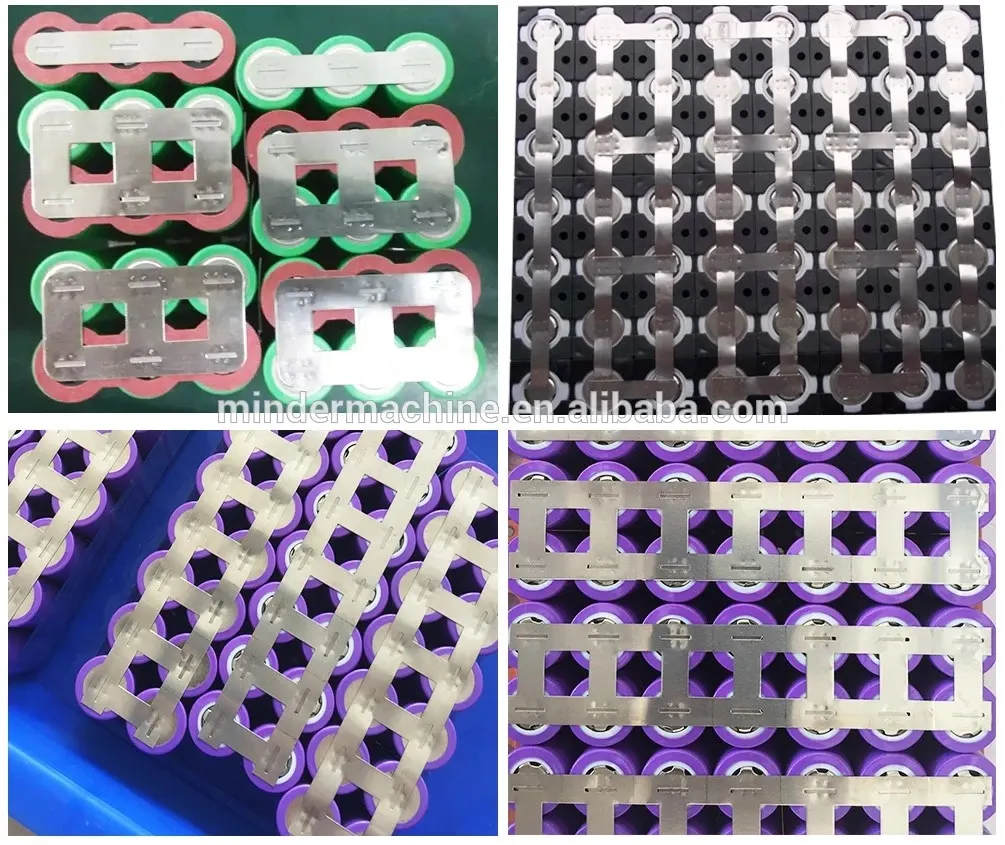

in above figure (b) shows how cylinderical cells are combined together and made a set of it .

now after make the group we need to weld the terminal of each cell so that we can create.

welding of the cell terminal

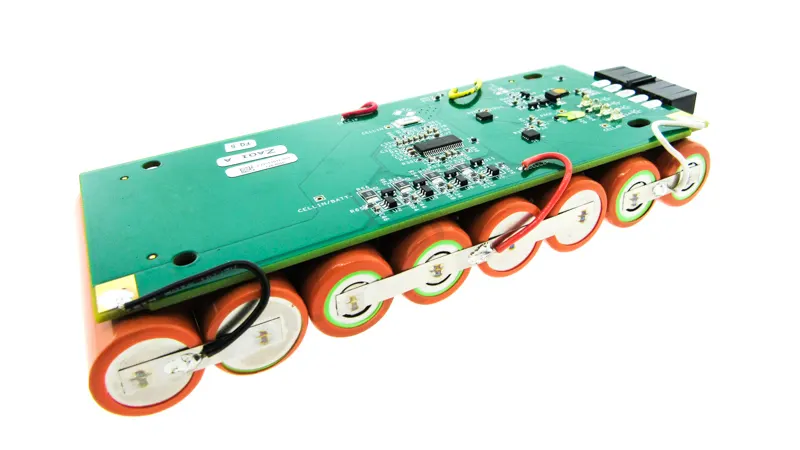

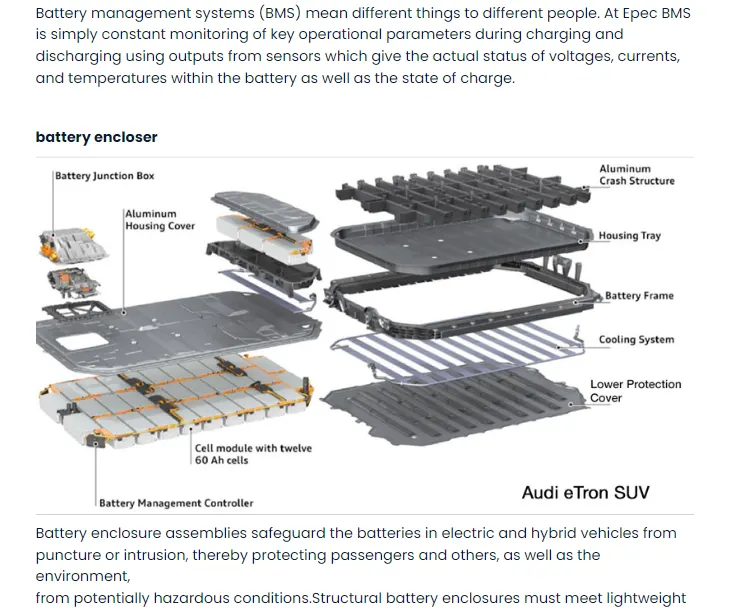

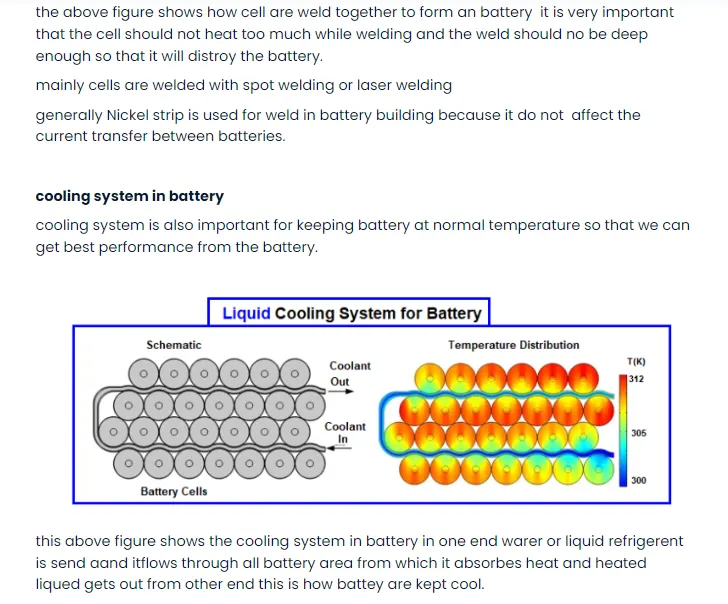

connecting of battery management system (BMS) in battery.
