Project - Speed Control of a Direct Current (DC) motor

DESIGNED THE MODEL AS ASKED IN QUESTION FOR DC MOTOR WHICH IS SHOWN IN SCHEMATIC DIAGRAM GIVEN

IN THE QUESTION.

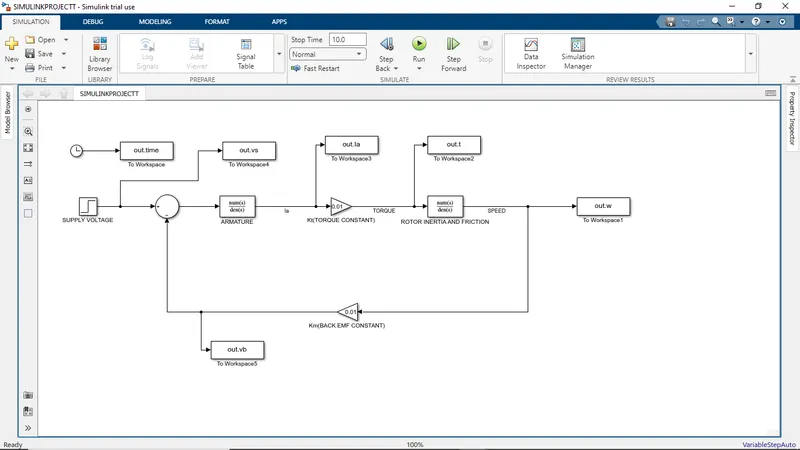

FOR THIS I USED TRANFER FUNCTION FOR ARMATURE AND ROTORAND DEFINED RESPECTIVE VALUES IN IT.

IN FIRST BLOCK DEFINED VALUES OF Ra AND La AND SECOND TRANSFER FUNCTION BLOCK DEFINED VALUES

OF J AND B.

AND VALUES FOR EMF IS DEFINED IN GAIN BLOCK.

TOOK THE INPUT AND TO WORKSPACE BLOCKS FOR TAKING THIS TO MATLAB COMMAND AND CONFIGURED THEM TO

AS ARRAY INSTEAD OF TIMESERIES.

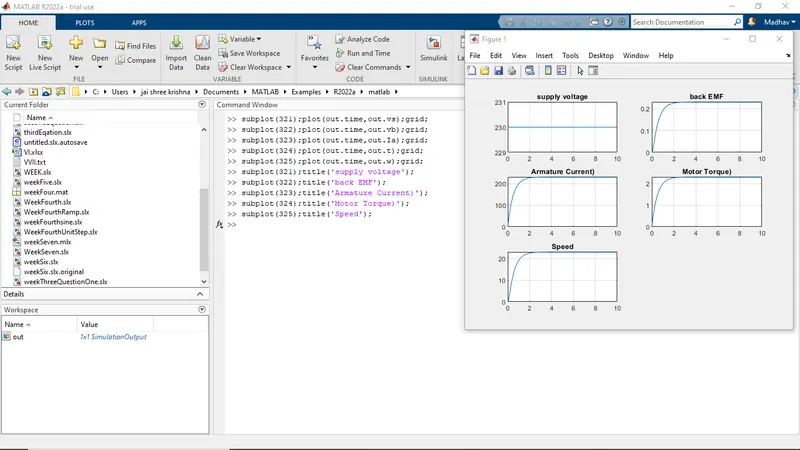

AND THEN USED SUBPLOT COMMAND IN MATLAB TO SHOW THE REQUIRED RESULTS.

THAT IS ALL FROM MY SIDE.

SUBMITTING ALL THE REQUIRED FILES IN BROWSE SECTION.

THANK YOU
