Project 1 - Loss calculation for a DC/DC converter-MATLAB

Aim: To Model 3 Phase Inverter using Simulink (model the parasitic as well) with a switching frequency of 10Khz using 3 phase Squirrel Cage Induction motor, using the V/F method, open loop Given Parameters Power = 100 HP DC Voltage = 800 V Output Voltage = 460 VRMS – line to line Initial Speed = 1500 RPM Final Speed =…

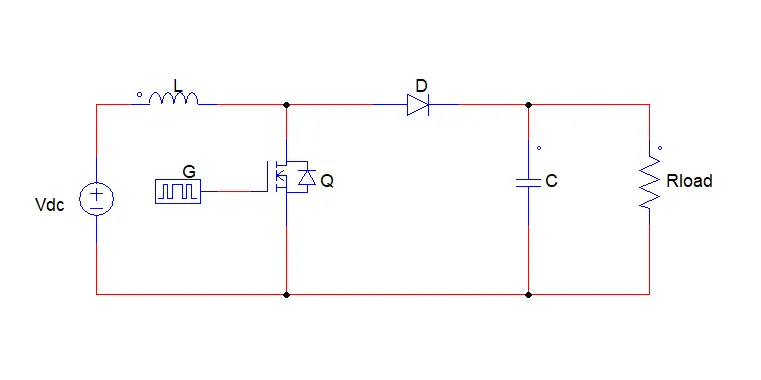

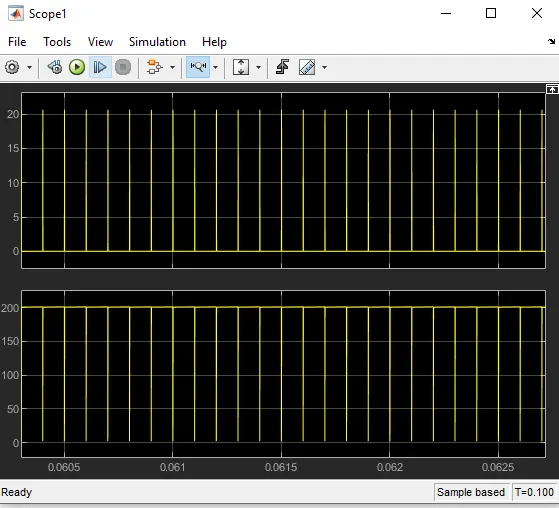

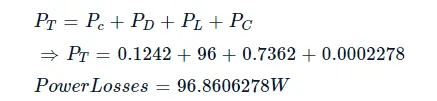

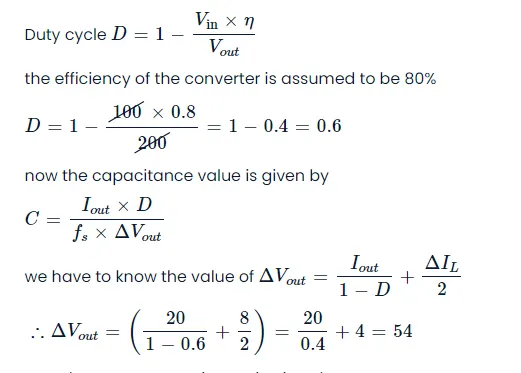

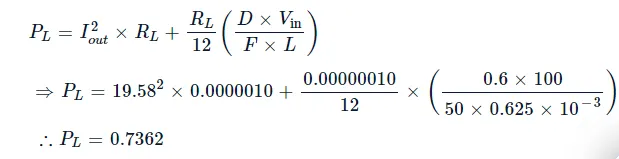

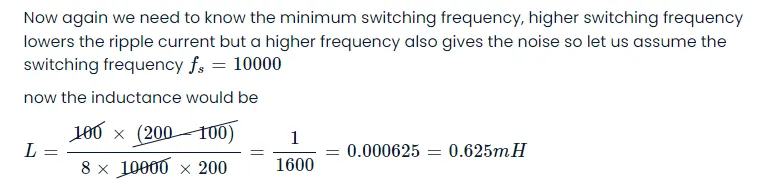

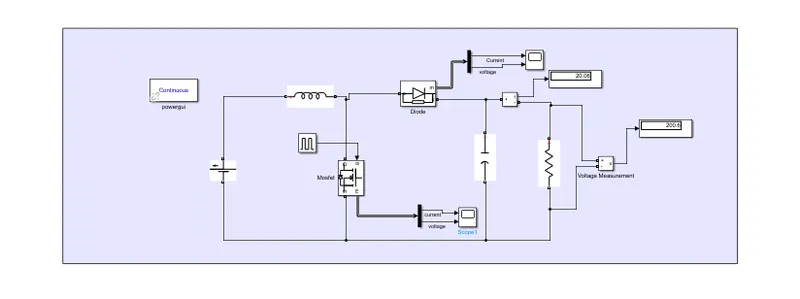

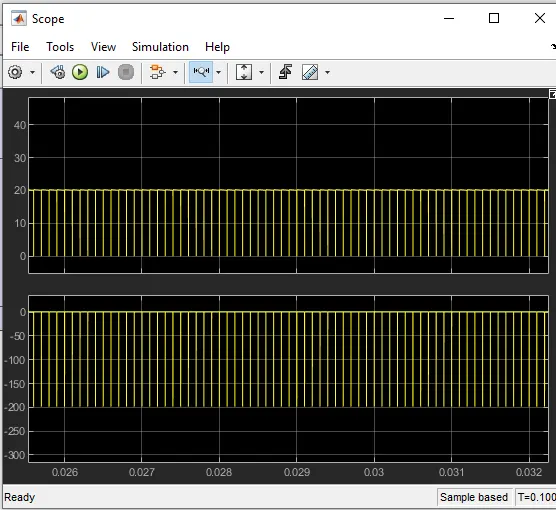

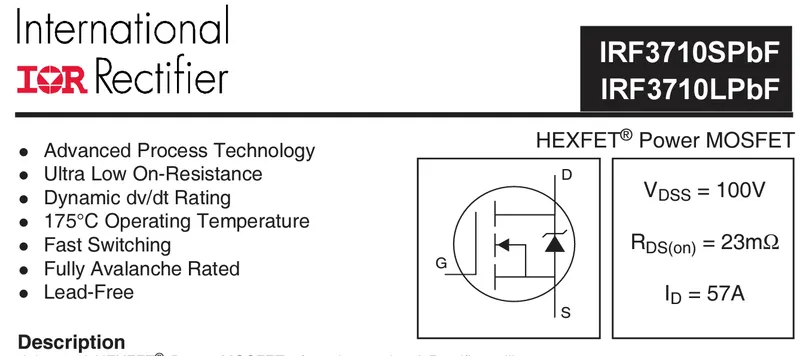

 To design a boost converter and calculate its loss of different components including the power switching device and derive the efficiency of the boost converter. Let us say  Vin=100Vand we need the output voltage of 200V and the output power needed is Pout=2kW then the output current would be Iout=20A then…

Project 2 Aim: To calculate the SoC% and maximum heat generated by the battery according to the given drive cycle and considering the given specifications using MATLAB/Simulink. Theory: Lithium Ion Batteries are new era of energy storage applications, Although it has its own flaws, due to its high energy density it…

Problem 1 :  Aim : Design a battery pack for a car roughly 150 Kw with 120 V. Use 3500 mAh 3.6V nominal NMC chemistry cell.        a. Design the battery pack configuration.         b. Draw the BMS topology for this battery pack Battery pack configurations  Battery pack configurations can be designed with several options,…

Problem 1 :  Aim : Design a battery pack for a car roughly 150 Kw with 120 V. Use 3500 mAh 3.6V nominal NMC chemistry cell.        a. Design the battery pack configuration.         b. Draw the BMS topology for this battery pack Battery pack configurations  Battery pack configurations can be designed with several options,…

AIM : To build a electric vehicle with the li-ion battery and  suitable motor by using simulink model parameters  objective  Create a MATLAB model of electric car which uses lithium ion battery and suitable motor. Choose suitable blocks from Simscape or Powertrain block set. Implement the vehicle speed control…

Aim : To design a model of an electric rickshaw by using matlab simulink  Summary we can observe that .I am going to build a matlab model of an electric rickshaw(three wheel) passenger vehicle by driven using the PM brushed motor and assuming the efficiency points of motor controller and motor with an suitable LI-ion…

AIM Create a MATLAB model of electric car which uses lithium ion battery and induction motor. Choose suitable blocks from Powertrain block set. Prepare a report about your model including following: Objectives:         1. System level configurations        2. Model parameters        3. Results        4. Conclusion   Electric…

Part A 1.  List out the total weight of various types of aircrafts. The weight of the aircraft is needed to be calculated by the pilot for every flight to ensure the aircraft remains within weight limitations set by the manufacturer .These limitations are to ensure the aircraft is able to perform and recover from…

Problem 1  AIM : For a defined driving cycle, calculate the energy required for braking For the defined drive cycle with its time(s)and velocity(m/s).The driving time has took 250sec and with its  velocity considaration .In the excel sheet the table as been shown    The equation for kinetic energy from…

Problem 1 AIM :  The MATLAB demo model named ‘Speed control of a DC motor using BJT H-bridge  The basic concept of speed control using H bridge configuration. Most DC motors have two terminals because they are series type (armature and field windings are connected in series) DC motors.  H-Bridge…

Problem 1 Aim : The types of power converter circuits are employed in electric and hybrid electric vehicle Introuction  About Electric Velhicle  Electric vehicle is a velhicle that uses one or more electric motors for propulsion.It have low running costs as they have fewer moving parts for maintenance and also…

Problem 1 Aim : The difference between mapped and dynamic model of engine, motor and generator We are using the powertrain block set it consists of an advanced simulink models of the various architectures of velhicle which we can select the one of the architectures and simulate them in various conditions and drive cycle.…

Problem 1: Aim : By using the Advisor tool we build the ouput for EV_defaults_in file, if cargo mass is 500 kg with all other default conditions, the vehicle travel for 45 km with FTP drive cycle  Steps to follow  1.First open the Advisor tool. 2.Select the 'EV_DEFAULT_in' in the load file. 3.When we open…

Aim A Simulink model for the DC motor by using the Proportional, Integral, and Derivative (PID) control design knowledge gained in the training to design, develop and test a controller to maintain a desired speed for the motor. Describtion Simulink model of a dc motor by using PID control design   Steady state model…

clc clear all interpol=xlsread('vl.xlsx','sheet1','A2:B25') %IMPORTING THE XLXS SHEET FROM XL TO MATLAB V=interpol(:,1);%assembling voltage values from xl coloumn 1 I=interpol(:,2);assembling current values from xl coloumn2 figure(1) plot(v,I,'r');%plotting voltage vs current x=-17.3:0.1:0.9;%asembling given range in question…
