Project 1 - Loss calculation for a DC/DC converter-MATLAB

EV Refresher batch5

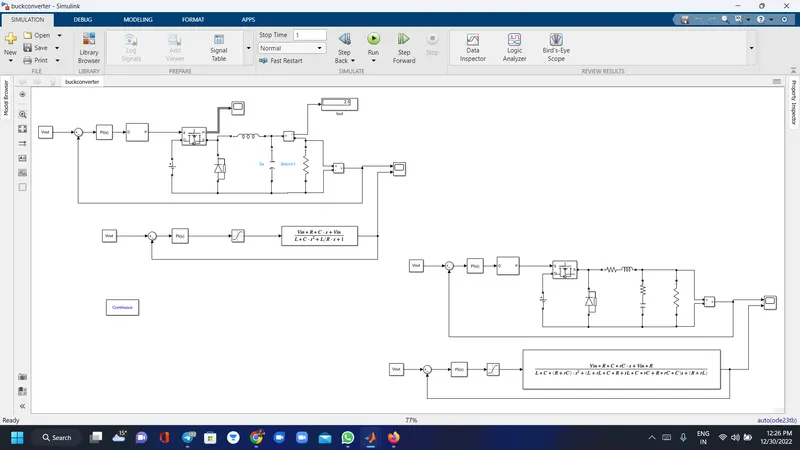

model

A Buck converter consists of a transistor and diode that applies the supply voltage on an inductor capacitor, LC, circuit. The output voltage is the voltage across the capacitor. The input voltage u on the LC circuit is controlled by pulse width modulation, PWM.

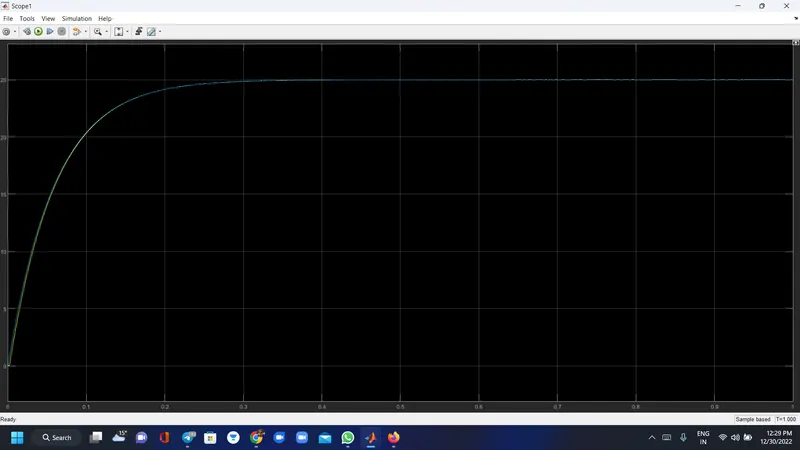

Results ideal

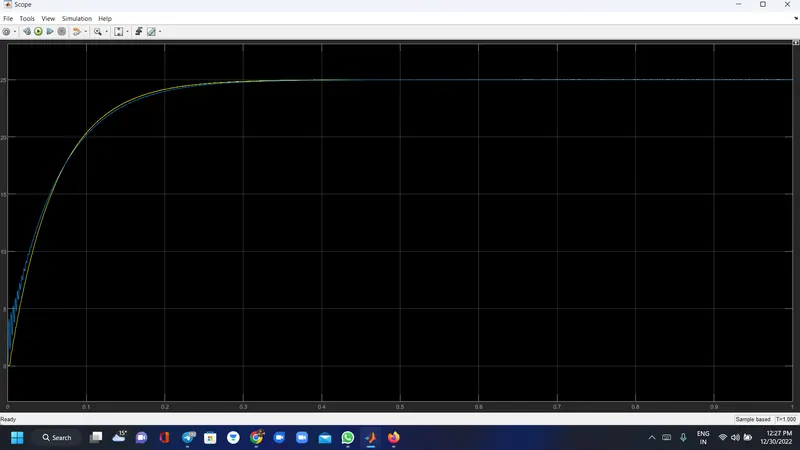

Results non ideal

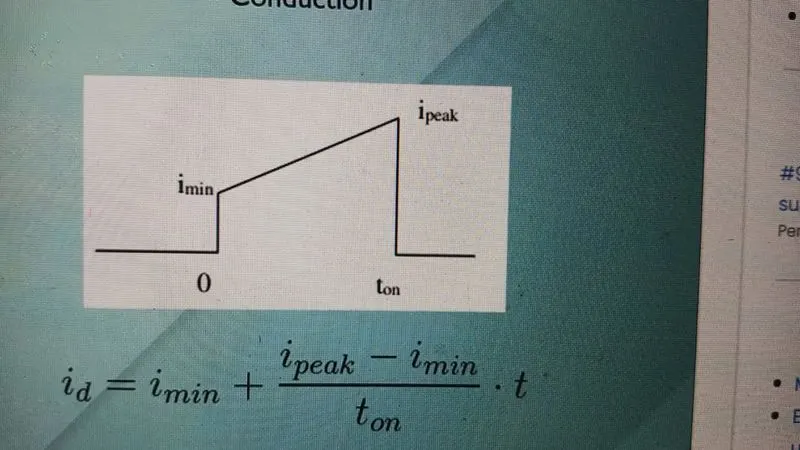

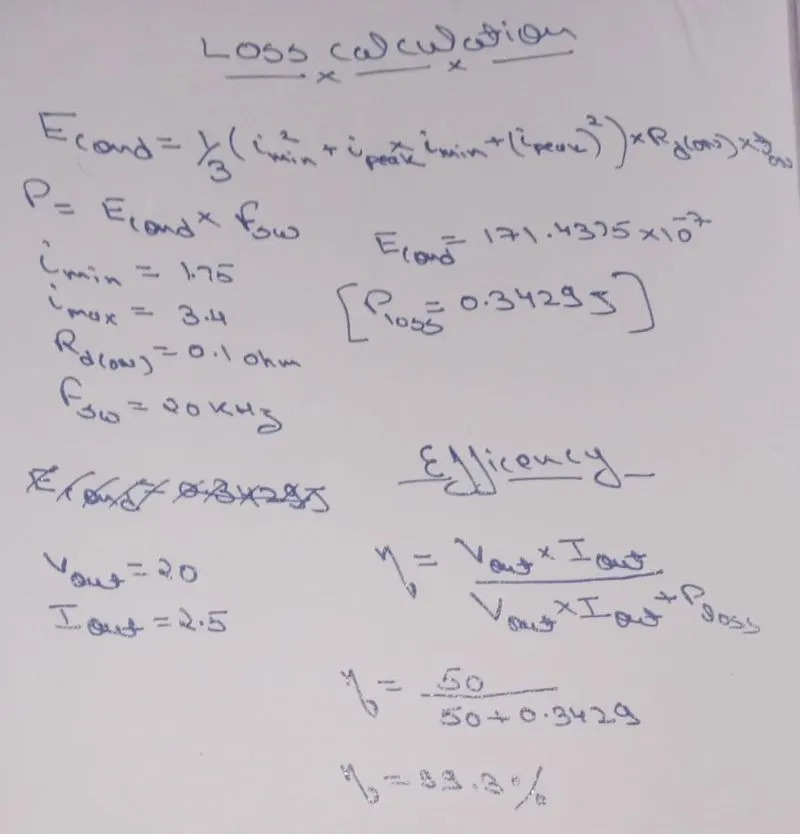

loss calculation for ideal buck converter

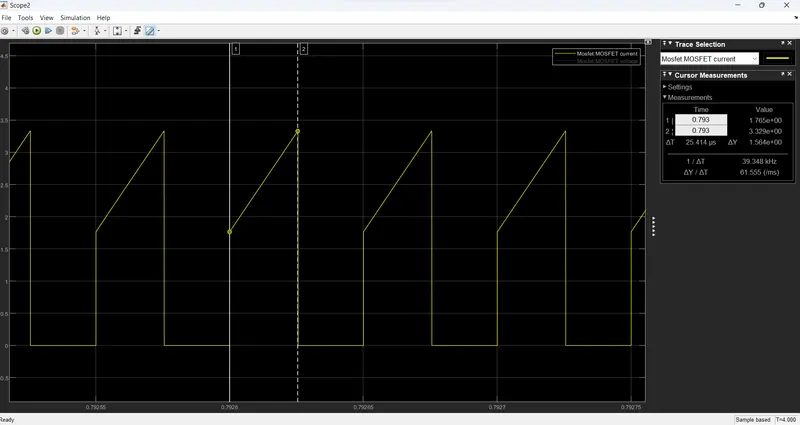

t_(on)=25.414us
