Project 1 - LED Desktop Lamp

Task 1

LED Desktop Lamp Products

Market analysis

• The global market of LED desk lamps is expecting a growth of 6.8% by the report presented by CAGR by 2021-2030
• The growing factors
  • Urbanization
  • Energy efficiency building awareness about environmental impacts on climate change
• The LED desktop Lamp has a light fixture that looks similar to a normal desktop Lamp but in addition, it has LED bulbs
• The market has 2 types of LED desk lamps
  • Wired
    • Connected to an electrical outlet
    • Standard 120 V is plugged into it
    • Battery powered version is available too
  • Wireless
    • Not connected to an electrical outlet
    • Transmit electricity wirelessly
    • Via induction coils /radiowaves
  • Use of desktop lamps
    • Home
      • Kitchen
      • Bathroom
      • Basement
    • Commercial sector
      • Offices
      • Hotels
      • Hospitals

Market Size

Region -

North America

• US
• Canada

Latin America

• Brazil
• Mexico

Europe

• Germany
• France
• Italy
• K
• Spain
• Russia

Asia Pacific

• India
• China
• Japan
• South Korea
• Australia
• South East Asia

Middle East

• UAE
• Saudi Arab

Africa

• South Africa
  • North America dominated the global market with high revenue and high demand for LED desk lamps
  • Latin America to has the fastest growth in LED Lamp
  • Europe has grown in the R&D industry and manufacturing investments
  • Due to an increase in awareness about energy efficiency Asia Pacific region is also expecting a huge growth
  • In terms of volume contribution, the Middle East and Africa will continue to dominate.

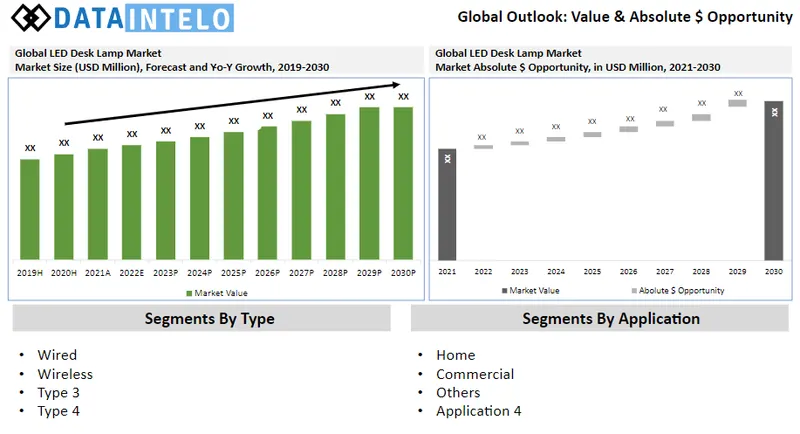

Fig: Global LED desktop lamp Market Analysis

State of the Art products

• BenQ e-Reading Desk Lamp

• Lepower Metal Desk Lamp

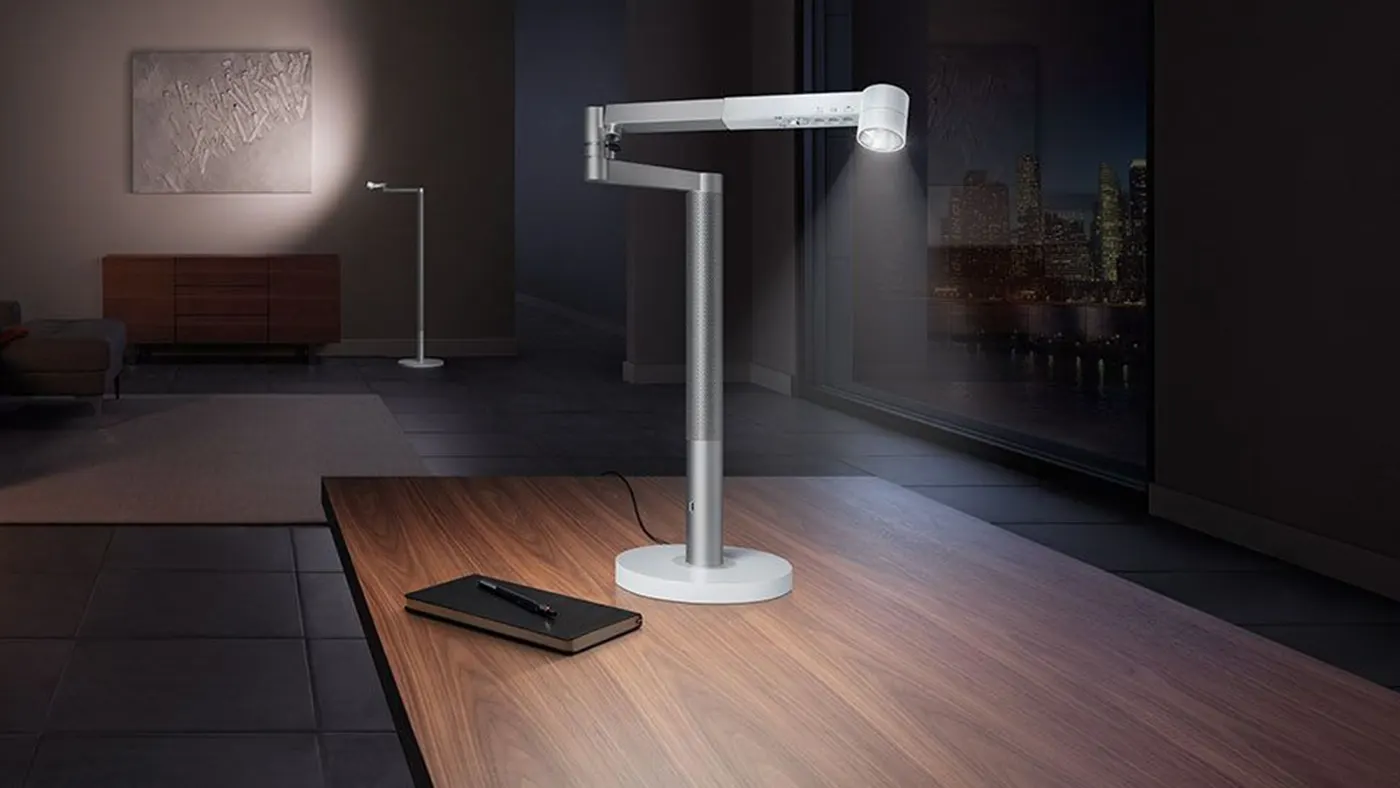

• Dyson Lightcycle Morph

• IKEA Forsa

• OttLite Dual-Shade LED Desk Lamp

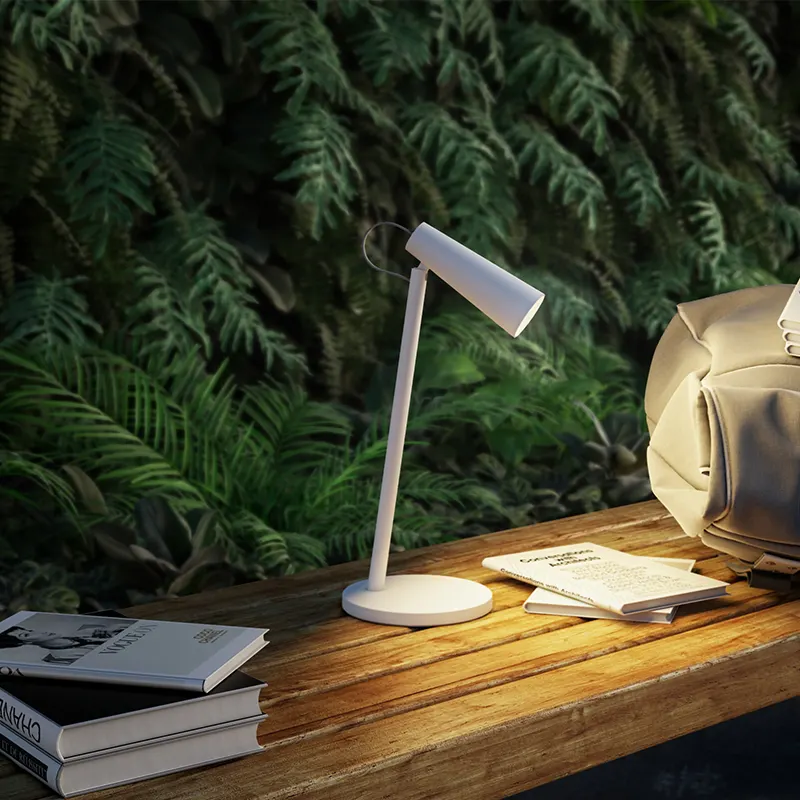

• Mi rechargeable LED table Lamp

• Phillips EcoLink CAP Rechargeable Desk Lamp

Key Players

• Phillips
• Panasonic
• Toshiba
• CREE
• OSRAM
• MaxLite
• BrighTech
• PHIVE
• BenQ
• Tomobs
• Newhouse
• Koncept
• Lighting
• Sunllipe
• Etekcity

Industry Trends

• Declining prices of the LED products lead to more Manufacturability of the LED lamps
• Increase in the need for energy-efficient lighting systems
• Rise of LED lighting business penetration rate
• Commercial lighting market increases due to 38% of this energy consumption
• LED light business penetration rate development in the US market
• Rapid urbanization
• Increasing awareness over the importance of energy efficiency

Task 2

Requirements-

Customer Requirements	● A lamp style to meet the decor space ● Smart lamp with touch ● Controlled LED desk map ● Minimal futuristic size ● Lamps to ease eye not to strain ● Lamps for aging eye
Functional Requirements	● To provide the target illumination ● To accomplish tasks such as writing, reading, drafting, computer work, crafting,painting sewing, and knitting ● To ensure task visibility ● Ergonomic effort
Performance Requirements	● Ambient adaptation ● Incandescent lighting technology to accurately render the colours ● Dim to warm technology to perform in various Temperature well ● Average desktop illuminance of 0.7 not lower than that ● Color rendering ● Color temperature control ● Photobiological safety
Design Requirements	● Optical design ● To provide optimal eye comfort ● No lamp shades ● Aside from glare control and coverage of the desktop illuminance should have taken into account during the design phase ● Power supply should be greater than 3-10 watts ● Uniformity of the illuminance ● Direct-lit and edge lit design ● Acrylic or polycarbonate luminous flux to create high luminance ● The design should provide visual comfort by adapting ambient platform

Task 3

Concept generation using Customer Feedback System

#	Customer Statement	Need Statement
1	The light can not be deemed..the 3 mode of light actualy does not help much..the light covers a very very less area..the only positive thing of this lamp is it is light weight,portable and small..u can take it in your college bag also..but not good for self study where u have to use a book and a note to write.the light is sufficient for only and only one book.. Model-Mi Rechargeable LED Table Lamp	Need light quality with dim specifications and to cover large surface area
2	Trust me battery back up is very pooR Model-Mi Rechargeable LED Table Lamp	Need a good battery backup for the lamp
3	Don't go for phillips name as I had used it nowhere written phillips or as a sub brand . Everything is good except the Battery backup .... Where charging time is above 6 hours and Battery backup is almost 2 hour 40 minutes. You can't use it while charging as it continue to lower light even you are charging it. The best part is it can be chargeable through any powerbank Model-Phillips Ecolink Cap Rechargeable	Need extended battery backup
4	Not at all stable whatever position you keep it keeps on falling. Dim light of no use. Model-Phillips Ecolink Cap Rechargeable	A stable lamp design is needed with a dim light
5	No you don’t need this product. Eye soreness increased with the usage of product and can’t return due to Amazon policies. So in short use good lighting in your workspace and a good monitor that’s it. No need to extra spend on this product. Thanks. Model-BenQ LED lamp	Eye comfort should be keep on eye while designing the product
6	Apparently it will only work with the supplied USB cable and no extensions. Otherwise it won't stay on. To route the cable so it's not running across my desk I need to use an extension. I want to run it behind then under the desk forward to my computer, which is in front of the desk on the left. With the length of the USB cable supplied I have to run it as shown. Otherwise I find it bright and effective. It would be nice nice to know what the color temperature is when you change it. I'm left to putting a white piece of paper under the light and adjusting until it looks white. Model-BenQ LED lamp	An extended USB supply extension for any kind of power bank to charge the lamp is required. Need to design more customer-required product

We have obtained some of the required need from the customers and in the upcoming part we will make consideration of this need statement to generate the concept idea for designing the LED desktop lamp

Concept of Operations

Product Scope and Objective

Scope

• The product provides the task lighting
• An adjustable design which can be positioned to accommodate a range of tasks
• Clear bright light easy work on beneath
• Focus light beam

Objective

• To design a desk lamp LED with a long lifespan
• Energy savings
• To generate less heat
• Durability
• Dimmable
• Brighter light with a focused beam
• Unique design
• No UV emission

Define stakeholders and responsibilities

• Individuals and teams to operate the LED desk lamp as individuals or as a part of the companies which is being utilized
• The developers who develop and oversee the systems and services
• To ensure eye comfort for various users varying from kids to adults

Define operating scenarios

The operating scenarios include

• Specific task lighting application
  • Writing
  • Computer work
  • Reading
  • Working
  • Craftwork
• Clear and bright easy work
• Focused beam with a minimal amount of glare

Define operating environment

• Home
  • Desktop room
  • Drawing room
• Commercial
  • Hotel
  • Hospital
  • Offices

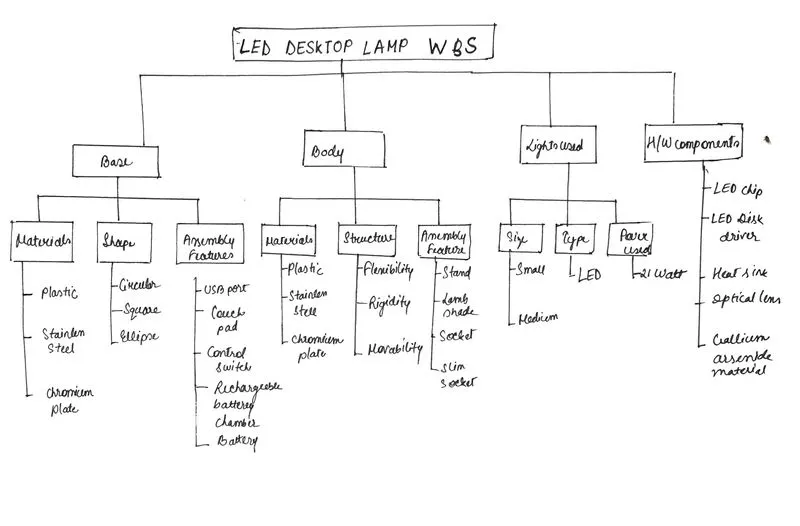

The work breakdown structure (WBS) during the development of the product components

Modular architecture of Desktop LED lamp

Reason

• The desktop LED lamp is modular in architecture because it can be easily assembled and comes apart
• It has simple construction which allows it to ship flat packed
• Minimal design and hides the hinge mechanism which lets the parts to move around to direct the light in the parts where we need it
• It has touch sensitive copper switch to adjust the lamp brightness into 3 or 2 settings
• Easily upgradable and maintenance
• Easy to allocate tasks
• Standardization and reusability

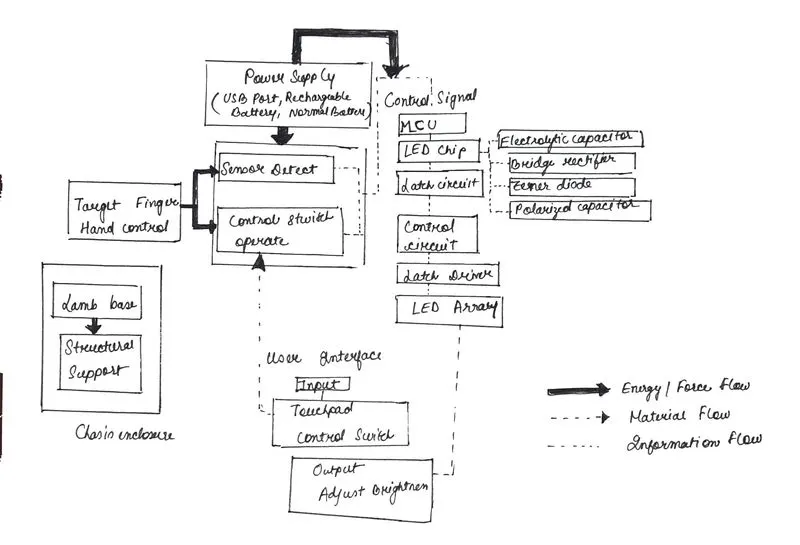

Architecture Schematic Diagram of Desktop LED lamp

The interface control of the LED desktop Lamp

Mechanical interface

• CRI color rendering index mechanics is used to describes the
  • Visual warmth-Amber hue
  • Coolness -Blue hue of white light
• 2700k-3000k warm white
• 3500k neutral
• 4100-5500 k cool white

Electrical interface

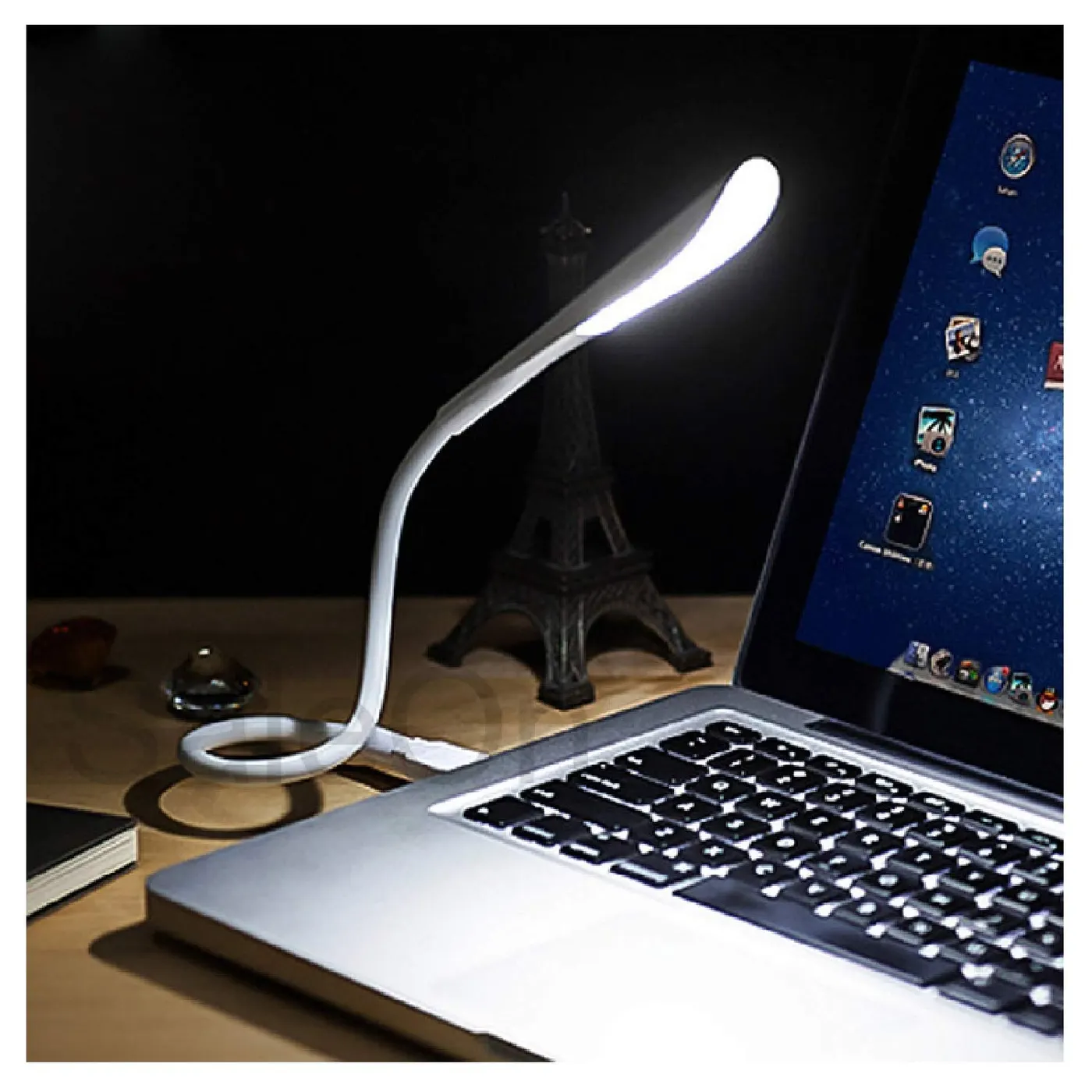

• Powered USB port interface is used to give the electrical power supply input
• The electrical interface is connected with the battery group and the control circuit in a sequence

Information flow interface

• The base of the lamp has wire running through it
• Purpose of the base to run the electrical current through the LED light bulb
• Cutoff switch to stop and start the flow of electricity
• Contact points lead up into the inside of the bulb

Human-machine interface

• Human Machine Interface of the LED desk lamp can be described as manual control or touch sensitive lamp
• Manual control switch can be used to used to switch on and off as well as brighten and lighten the LED bulb
• Led array and latch driver with CapSensor control circuit is used to sense the human touch to adjust the brightness of the LED desk lamp

Task 4

Product development roadmap:

	Q1 1800	Q2 1920	Q3 1970	Q4 2022
BODY	Flourescent Lamp (Liquid mercury,phosphorus,high vacuum glass tube,electrode coil,Aluminium Tube)	Incandescent Lamp (Glass bulb.An inert gas, Tungsten filament, Contact wire , Support wires, Glass mount/support. Base contact wire)	LED lamp with control switch (LED chip drivers,Optic Lens,LED lamp stand)	LED Lamp with touchpad and control switch (Touchpad,LED chip drivers,Optic Lens,LED lamp stand) Desktop LED lamp with USB compatibility
POWER	Tubes coated with Phosphorus Cathode shield	Tangsten sealed Coil Filament Cathod sheild	Light Emitting Diode External power supply with battery	Recharceable battery Wired power connector USB cord
HEAT	No need of heat sink but Heat lamp is required to regulate the heat	Ballast to regulate the heat sink current	Heat sink needed for high power LED	Heat sink with new tech depending upon the Temperature of the diode
LIFE SPAN	Short	Short	Median	Long
ENERGY	Not energy efficient	Not energy efficient	Energy efficient	Energy efficient

The mission statement of the product:

	Mission Statement
Product Description	This lamp enables the choices of variety in light that can be used from day to night under various circumstances It meets the standards of international products about making sure of the eyes get comfort while under the LED light Improves the efficiency of reading and writing as well as for computer work
Benefits statement	● Energy saving ● Long lifespan ● Brighter light ● No UV emmission ● Durable ● Dimmable ● Less heat generated ● Design options available are unique in feature
Business Objectives	● User friendly ● To reduce the need of diffusers and reflectors which can trap the light ● More efficient product design to recessed tasking and downlights
Core Market	● North America ○ US ○ Canada ● Latin America ○ Brazil ○ Mexico ● Europe ○ Germany ○ France ○ Italy ○ U.K ○ Spain ○ Russia ● Asia Pacific ○ India ○ China ○ Japan ○ South Korea ○ Australia ○ South East Asia ● Middle East ○ UAE ○ Saudi Arabia ● Africa ○ South Africa
Stakeholders	Manufacturing and supply chain partners Retailers and stores Existing and new customers

Product development resource requirements

Staffing requirements:

• Manufacturing team
• Designer
• Developer
• Instrumentation engineer
• Software engineer to develop the IoT-operated LED desk lamp
• Purchasing Team
  • Verify supply chain readiness, identify lead time
• Legal Team
  • Assure trade compliance, prepare a patent application
• Financial Team
  • Prepare business case, complete financial analysis
• Project Management Team
  • Manage schedule, progress, resources, and deliverables

Budget requirements:

• The budget requirements of the product would be divided into various categories which are described below

Q-2022

Number of person needed	Mechanical Engineer	Electrical Engineer	Manufacture Engineer	Industry Engineer	Test Engineer	Marketing person
Operative new Technology	3	3	1	0	2	1
Battery Technology	2	4	3	1	3	1
Resource Demand	7	9	5	3	4	0
Resource Capacity	8	10	5	3	5	2
Capacity Utilization	80%	90%	100%	100%	80%	100%
Budget	$300k	$450k	$200k	$120k	$150k	$60k

Facility or IT requirements:

Physical Location

• A physical Location is needed to establish the manufacture centre

IT equipment or software

• Microcontroller unit(MCU)
• Led latch and driver
• Capacitive sensor circuit
• Halftone method (Digital LED)

Product Schedule

Concept

The streamlined process from concept to product launch has 4 important phases. These phases are-

Conceiving phase

• Feasible study
• Identify customers and addressable market size
  • Propose product features and expected price
  • Collect customer's voices and analyze customer needs
  • Develop marketing and sales plans

Design phase

• Preliminary Design
• Final design
  • Conduct design reviews, build and test prototypes and make improvements

Verification phase

• Design verification
• Product Validation
  • Finalize design and testing and apply for regulatory approvals

Launch phase

• Product Launch
• Post Launch Evaluation
  • Finalize product metrics

Design phases in detail

The early stage of Design

• Opportunity Identification
• Identifying Customer needs
• Product Idealization
• Concept Generation
• Product Planning

During Design and Development

• Define Product Architecture
• Apply Industrial Design Methodology
• Design for Manufacturability and Sustainability
• Prototyping and Testing

Later Stage of Design

• Pursuit Patent and Intellectual Property Protection
• Design for Service and Maintainability
• Production Trails and Scale up
• Marketing and Delivery

Task 5

The three areas I have picked to meet the design meets are-

a)Usability

• Usability is associated with the learning curve, efficiency to use of the product, how likely it is to create errors.
• Evaluation aspects
  • Is the LED lamp intuitive to use?
  • Do the users understand the features and functions from the get-go?
  • Are all features safe to use?
  • Has the LED desk lamp considered all the potential users and use cases?
  • Is the LED desk Lamp tough to break?

b) Emotional Appeal

• This criterion evaluated how consumers comprehend the product, via product appearance,feel, sound, and smell.
• Evaluation aspects
  • Is the LED desk lamp product exciting and attractive?
  • What image and identity does it bring to the customers?
  • Does the LED desk lamp inspire pride of ownership?

c) Easy to Maintain and Repair

• This criterion evaluated the ease of maintaining and the repair of the product,and the lifetime experience.
• Evaluation aspects
  • Is it easy and obvious to maintain the LED desktop Lamp?
  • How easy will the LED desk lamp fail and how to repair it ?
  • Does the LED desk lamp product effectively communicate assembly/disassembly procedures?

Simplicity

• Evaluation aspects
  • What single problem does the product solve clearly and thoroughly?
    • Yes, it does solve the single problem of providing a straight beam of brighter light for working purposes.
  • Does each feature solve a single problem effectively?
    • Yes, the controller switch and touchpad help in adjusting the brightness of the LED desk lamp
  • What features can be removed without sacrificing satisfaction?
    • The LED desk lamp is simple in design but if new addition of a touchpad is included then it can be removed because without a touchpad controller switch can do the job

Immediate intuition

• Questions to ask
  • Are the function and operating procedure obvious?
    • Yes
  • How long would it take someone to understand it for the first time?
    • Hardly 30 sec to 1 minute to understand
    • The product is user friendly
  • How can the product reduce stress when using it?
    • The light system in many areas is not good to provide an equal amount of brightness in all directions
    • Hence LED desktop Lamp focuses on one aspect to provide task lighting by reducing stress to work on less light situation

Approachable innovation

• Questions
  • Does the customer appreciate the innovation?
    • Yes, the customer appreciates it because the awareness about energy-efficient products is blooming
  • Does the customer understand the innovation right away?
    • Yes customer understands the innovation because it is easy to use and understandable
  • Will the customer be familiar with at least some parts of the products ?

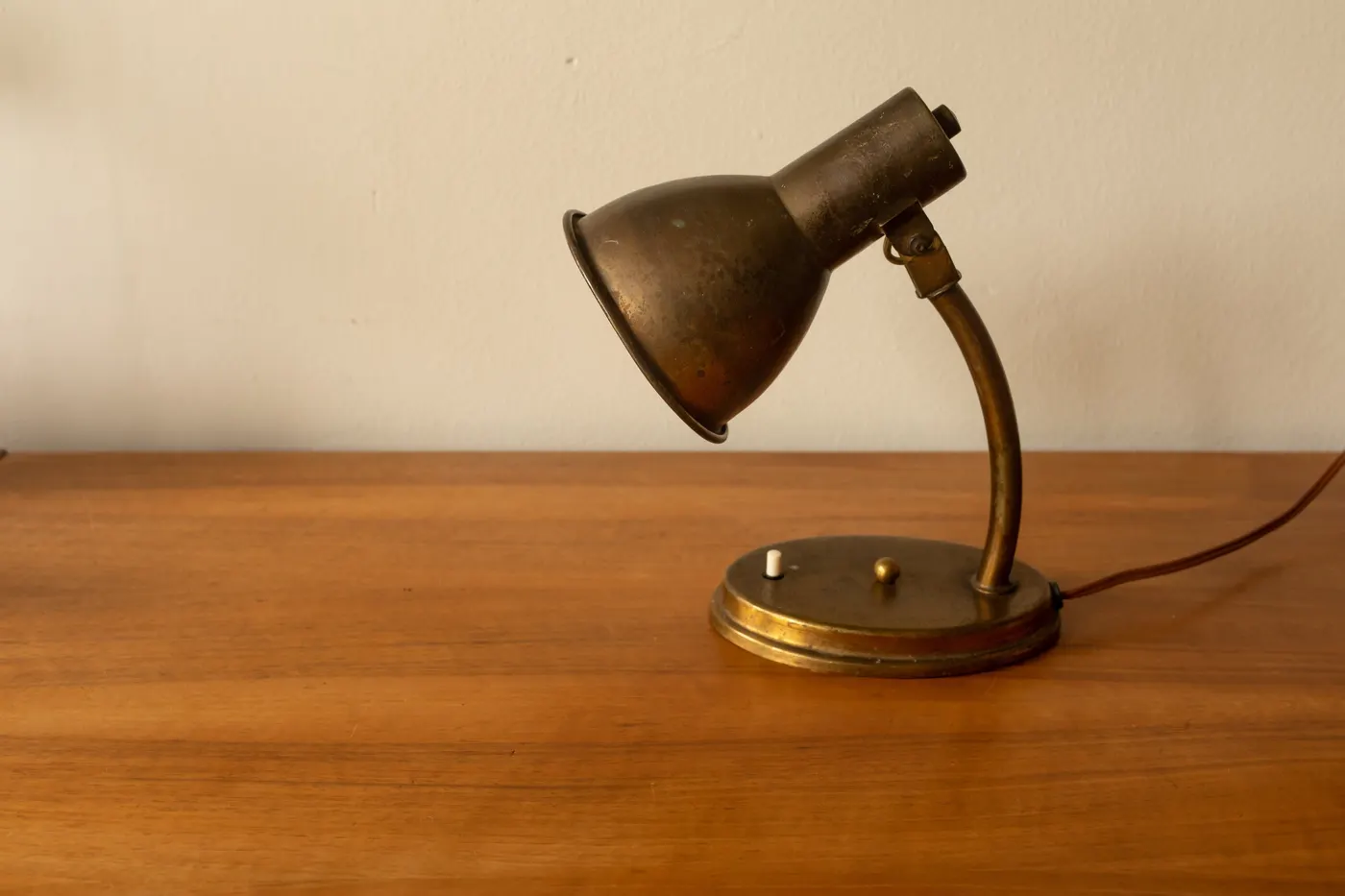

    • Yes,people do know about old oil lamps and flame lamp. The mechanism to control the brightness of the firelit is similar to the new LED desk lamp with more advanced features and a bulb attached with the lamp

Aesthetics

• Questions to ask?
  • Does the customer feel happy about the appearance of the product?
    • Yes customers are happy with the new design of LED Desktop Lamp
  • Does the customer want to show off the products to their friends/family?
    • The branded LED desk lamps with the most costly one might become a show-off product for the customers friend's/family
  • Does the product promote pride of ownership?
    • Yes

Ergonomics

• It uses psychological and physiological principles in the design and engineering process.
• Questions to ask?
  • Will people feel comfortable using the product for a long time ?
    • Yes the LED desk Lamp has a long life span with good rechargeable battery availability
  • Will repetitive operations hurt people's bodies?
    • No, it doesn't hurt the human eye because the CRI index is low which provides eye comfort to the patient.

Generate industrial design drawings (hand sketch is fine, but encourage to use Photoshop or illustrator is possible) and explain how it differs from initial concept

Industrial design Concept

• The design I have created is using infinite painter app which is a free software to paint
• I don't have access to Adobe Photoshop or Illustrator hence I found infinite painter software simple to use
• A simple design is created with some new features

Industrial design drawing-

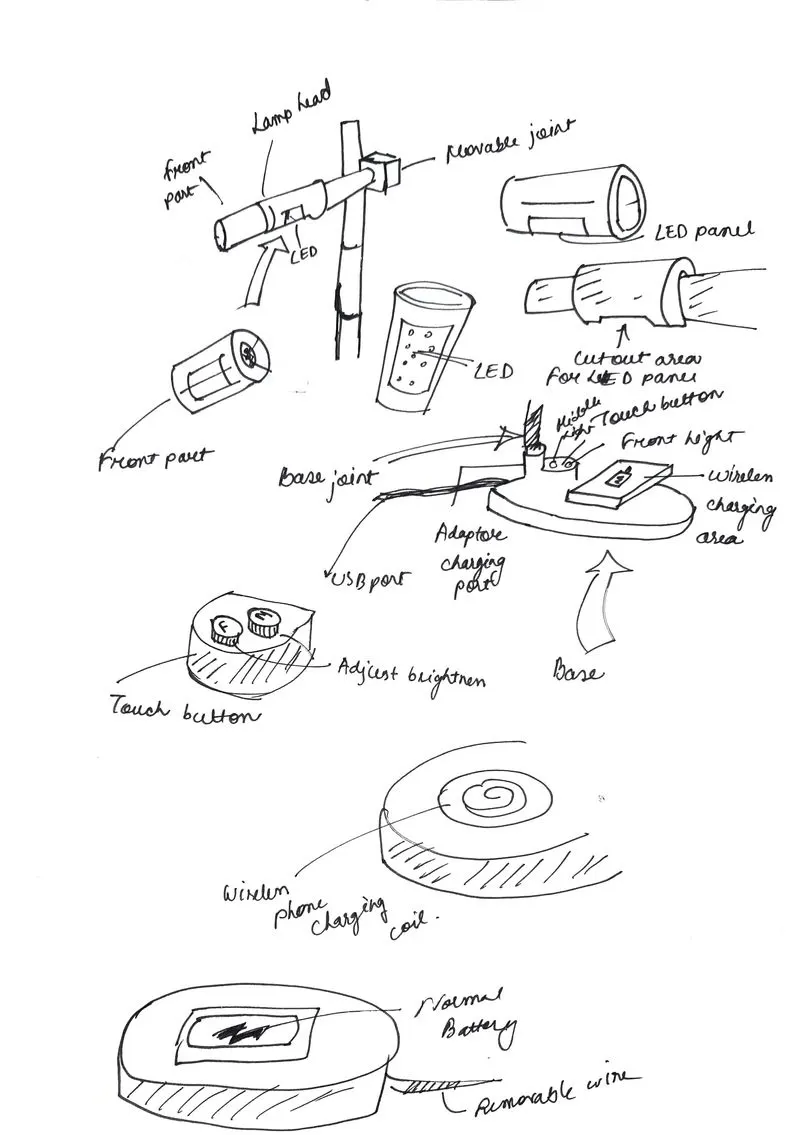

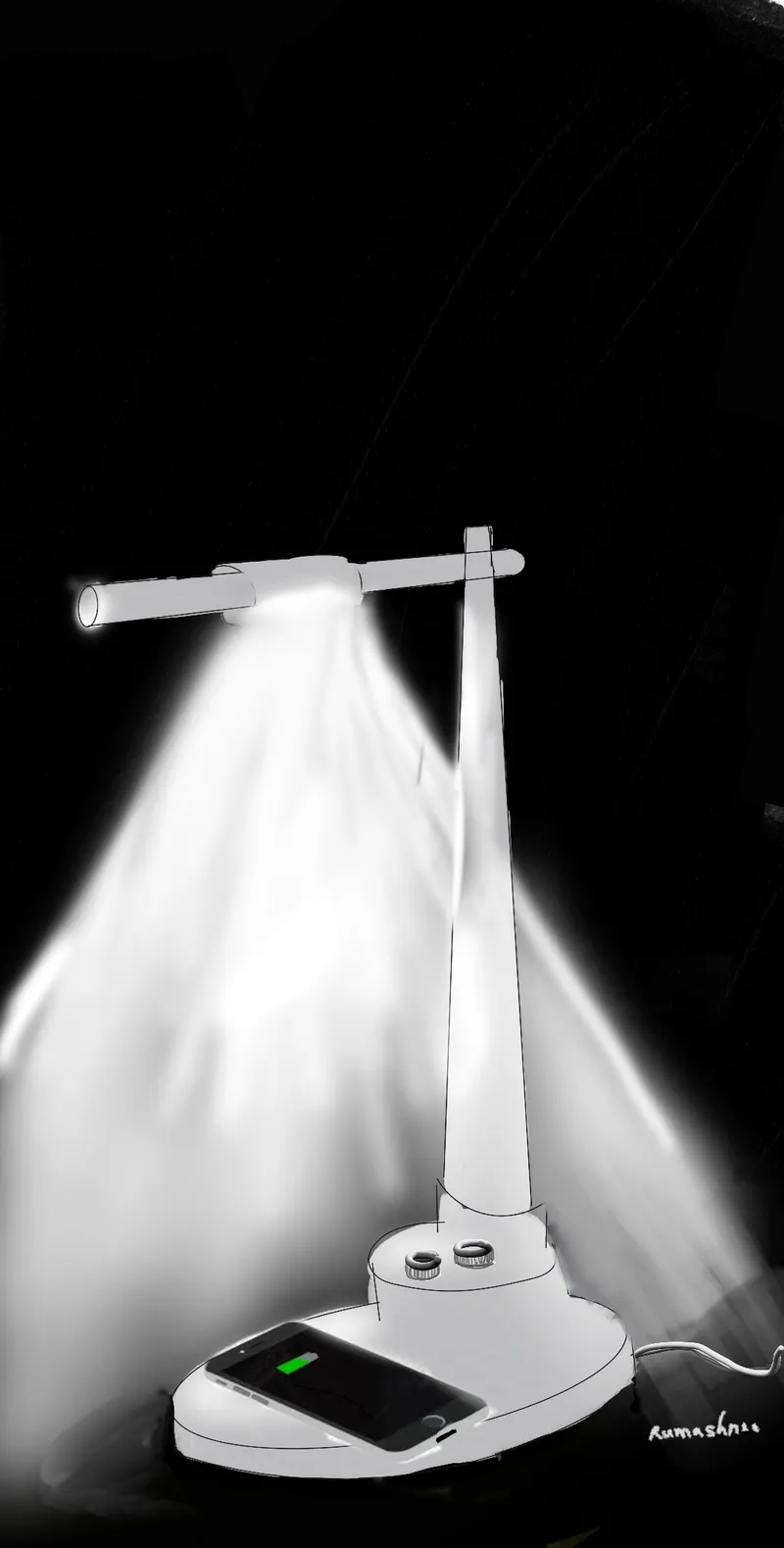

Fig: A rough image drawing sketch of the LED desktop lamp on Infinite Painter Software

Normal LED desk Lamp vs The new designed LED desk lamp

• The new lamp has some new features than the traditional lamp
  • Wireless charging panel
  • 360° movable joint
  • Touch the button and control switch if a person wants to decrease the brightness.But if they don't want to decrease the brightness than normal touch button light will available for task work
  • Removable wire or adjustable normal battery function
• The normal LED lamp doesn't have
  • Wireless charging
  • Flexibility
  • Movability
  • Removable wire
  • Proper balancing structure
  • Lightweight
• The new designed LED desk lamp has
  • Chrome plated shiny finished surface
  • Marvelous and unique structural view
  • Organized feature layout
  • Ease of portability
  • Ease of handling
  • Durability
  • Ease of manufacture

Source-

https://dataintelo.com/report/led-desk-lamp-market/

https://www.humanscale.com/products/lighting/element-790-desk-light

https://en.wikipedia.org/wiki/Lamp

https://www.researchgate.net/publication/224259644_Design_and_implementation_of_a_digital_LED_desk_lamp_using_the_halftone_method_and_a_touch_pad

https://www.researchgate.net/figure/Technical-specifications-of-new-LED-table-lamp-and-benchmark-lamp_tbl2_348278952

https://www.pinterest.com/emrekosmaz/desktop-lamp/

https://www.lightology.com/index.php?module=how_to&sub=desk_task_lighting

https://design-milk.com/modular-led-table-lamp-flexible-positioning/

https://www.scirp.org/journal/paperinformation.aspx?paperid=111163

Image source-

https://www.benq.com/en-ap/lamps/desklamp.html

https://www.amazon.in/LEPOWER-Adjustable-Eye-Caring-Bedroom-Office/dp/B075YQMP7Z

https://www.dyson.in/products/lighting/lightcycle/overview

https://www.ikea.com/in/en/cat/work-study-lamps-20502/

https://www.ottlite.com/

https://store.mi.com/in/item/3192900010

https://www.amazon.in/PHILIPS-Rechargeable-Controlled-Brightness-Control/dp/B097N6MNR4
