Project 1 - Creation of user defined data type to implement the user interfaces for working with ‘Set’ (Mathematical Set theory) using Linked List
EMB LIVE BATCH : ABHINAYA
Overview of the Project:-
Here the main objective of the project is to do the mathematical set operation. The set operation has many operations here they are told to do the union and intersection of the list created as a linked list. so here we are creating a structure it has a collection of different data. Here is the process to first create two lists using the reference address. The main concept of LinkedList is self-referential structure.
Implementation of interface for mathematical Set Theory using C programming:
First, we are creating the structure as a typedef model to rename the user-defined name.
In that, we are creating two data types int for storing the integer value, and the pointer variable is used it storing the address of the same structure itself.
And after we are creating the main function we get the values of list 1 and list 2 using the for loop and using the many function call in that.
And then we are creating the different functions which are mentioned in the main program.
Creating two lists of data using the linked list method:
First, we are getting the size of the list. Using the for loop we are inserting the data. Inside the foe loop, we use the insert node function.
In these functions, we are using arguments are head address and value from the user.
Inside the inserted node, we are creating the size of the list using the malloc function.
Entering the data in the data area, And storing the address of the head to the next pointer and we are storing the new node address in the head for the next update.
Likewise, we are creating the two lists.
Getting Union of two lists:
Here we get a function call of getting union with the argument of head1 and head2
In the union function, we are using the head unit as a list by inserting the value of the first list in the union and jumping to the next area by addressing stores in the next.
Insert node function as same as the function which is used for the creation of the linked list.
Using another while loop we are getting the second list.
Using the compare function using not we are getting only the value that is not placed in the list one and inserted in the union in the list.
Getting Intersectionthe of two lists:
In the intersection, we are easy to get an intersection because just we compare to list and return the value which is placed in both lists commonly.
Using the If command comparing the data of lists 1 and 2.
if the condition is true it passes the next step which has an intersection list and using the insert function we are inserting the data into that list.
Display function:
It is used to display the data of the different lists by using different arguments passing to the display function.
So creating the temporary list with the head is null. And print data and use the next address stored in the pointer variable pointing to the structure.
If head next has it recognize it is last node .
PROGRAM:-
#include
#include
#include
typedef struct node //defining the structure
{
int data; //creating the data type of the variable
struct node *next; //creating self referential node
}
Node; //changing the structure name as node
static Node *head1,*head2,*head,*head_union,*head_intersection,*newnode,*tail,*res_union,*res_intersection; //declaring the different variables in structure type
//Declaring different function with the arguments
Node *insert_node(Node *head_ref,int n);
void display_list(Node *head_ref);
Node *get_union(Node *head_pointer1,Node *head_pointer2);
Node *get_intersection(Node *head_pointer1,Node *head_pointer2);
int compare(Node *head,int data);
void display_list(Node *head_ref) //function for displaying the linked lists
{
if(head_ref == 0)
{
printf("List is empty");
}
else
{
tail = head_ref; //we are transferring address if the list to tail
while(tail != 0)
{
printf("%d ", tail->data); // prints the data of current node
tail = tail->next; // advances the position of current node
}
tail = newnode;
}
}
Node *insert_node(Node *head_ref, int n) //function used to create the new list
{
printf("\nInserting Elements at the beginning....\n");
newnode = (Node*) malloc(sizeof(Node)); //allocating the memory to the nodes
printf("Address of created newnode : %d\n",newnode);
newnode -> data = n; //assigning the value to node
printf("Inserted value is : %d\n",newnode->data);
newnode -> next = head_ref; //address of the previous address is transfered to the new node
head_ref = newnode; //transferring the new address to the head_ref for linking new node
return head_ref;
}
Node *get_union(Node *head_pointer1,Node *head_pointer2) //function used to union to list
{
while(head_pointer1 !=0)
{
head_union = insert_node(head_union,head_pointer1->data); //here we are inserting the data of list 1 into the union function
head_pointer1 = head_pointer1 -> next; //we transfers the node using the address in next.
}
while (head_pointer2 != 0)
{
if (!compare(head_union, head_pointer2 -> data)) //Here we are insering the element from list 2 number where not in the in th list1 to the union
head_union = insert_node(head_union,head_pointer2 -> data); //inserting the element not in the list2
head_pointer2 = head_pointer2 -> next; //travelling to next node
}
return head_union;
}
//function to compare the node data with a value by linearly traversing across head to tail in a linked list
int compare(Node *head, int data)
{
while (head != 0)
{
if (head -> data == data) //comparing the data of list 2 with list 1
return 1;
head = head -> next;
}
return 0;
}
Node *get_intersection(Node *head_pointer1,Node *head_pointer2) //function to get the intersection of two linked lists
{
while (head_pointer1 != 0)
{
if (compare(head_pointer2, head_pointer1 -> data)) //we are comparing the both list for intersection
head_intersection = insert_node(head_intersection,head_pointer1 -> data); //transferring the that value to the intersection
head_pointer1 = head_pointer1 -> next;
}
return head_intersection;
}
int main()
{
int first_list_nodes=0,second_list_nodes=0,first_list_items=0,second_list_items=0;
int f;
printf("Enter the number of nodes in first linked list:"); //creating first linked list
fflush(stdout);
scanf("%d", &first_list_nodes);
printf("Enter the values for %d nodes:", first_list_nodes); // entering the nodes of first linked list
for (f = 0;f < first_list_nodes; f++)
{
fflush(stdout);
scanf("%d", &first_list_items); //getting the data in run time
head1 = insert_node(head1,first_list_items); //inserting the data in list
}
display_list(head1); //displaying the head1 list
printf("\n\nEnter the number of nodes in second linked list : "); //creating second linked list
fflush(stdout);
scanf("%d", &second_list_nodes);
printf("Enter the values for %d nodes : ", second_list_nodes); // entering the nodes of second linked list
for (f = 0;f < second_list_nodes; f++)
{
fflush(stdout);
scanf("%d", &second_list_items);
head2 = insert_node(head2,second_list_items);
}
display_list(head2); //displaying the head2 list
res_union = get_union(head1,head2); //transferring the result of union function to the res union
printf("\nUnion of the two linked lists : ");
display_list(res_union); //transferring the values as arguments to display function
res_intersection = get_intersection(head1,head2); //transferring the result of intersection function to the res intersection
printf("\nIntersection of the two linked lists : ");
display_list(res_intersection); //transferring the values as arguments to display function

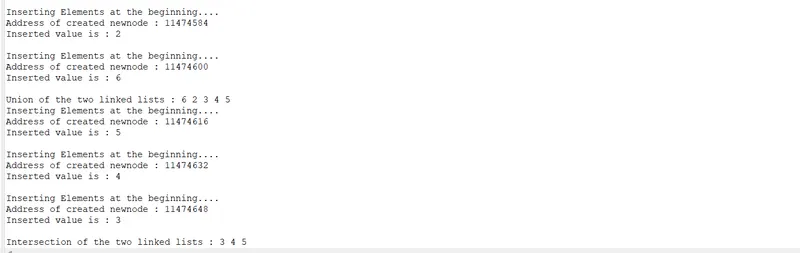

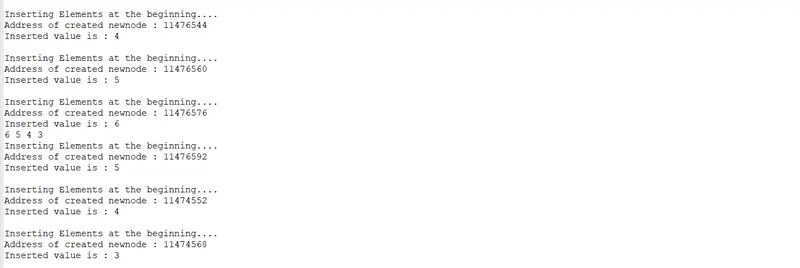

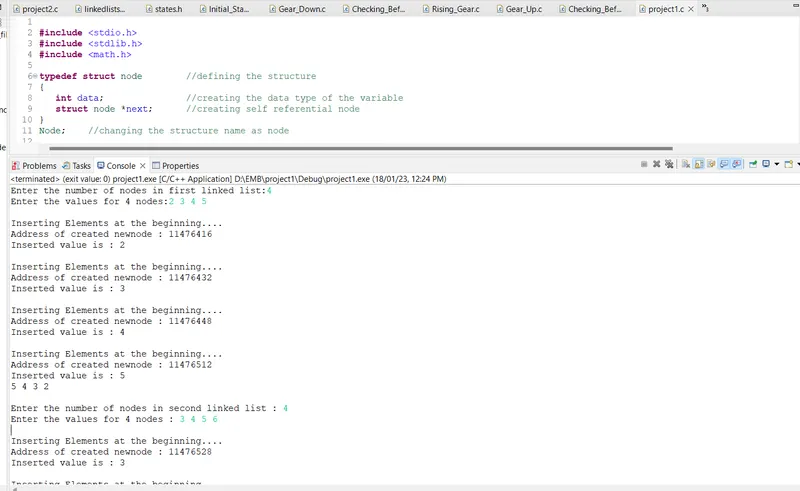

}OUTPUT:
