Project 1 _Creating an Architectural plan for the provided plot size and develop relevant basic structural drawings
AIM :-
TO DRAW RESIDENTIAL BUILDING OF DIMENSIONS 60’ X 20’ WITH THE FOLLOWING
1)ARICHITECTURAL DRAWING
PLOT DRAWING

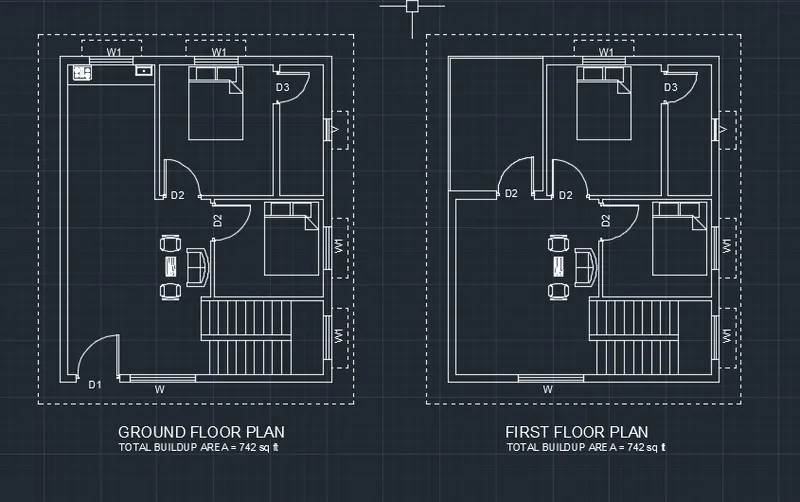

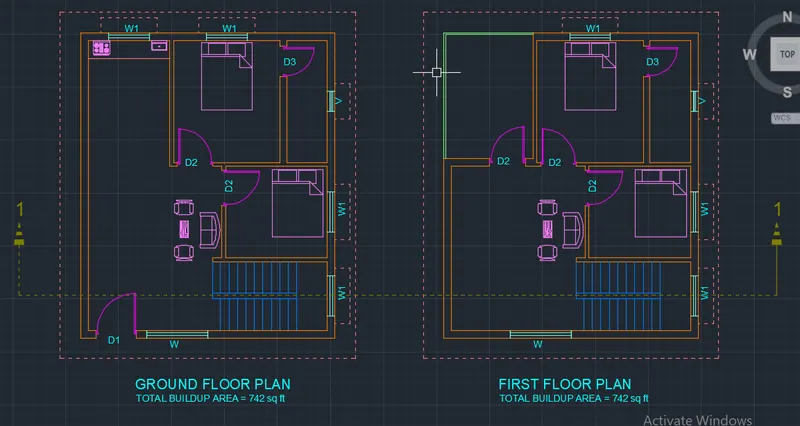

GROUND FLOOR PLAN
FIRST FLOOR PLAN
ELEVATION PLAN
2)STRUCTURAL DRAWING

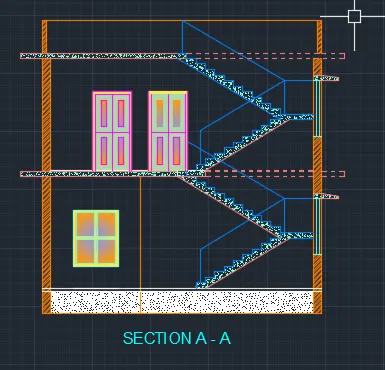

SECTION VIEW

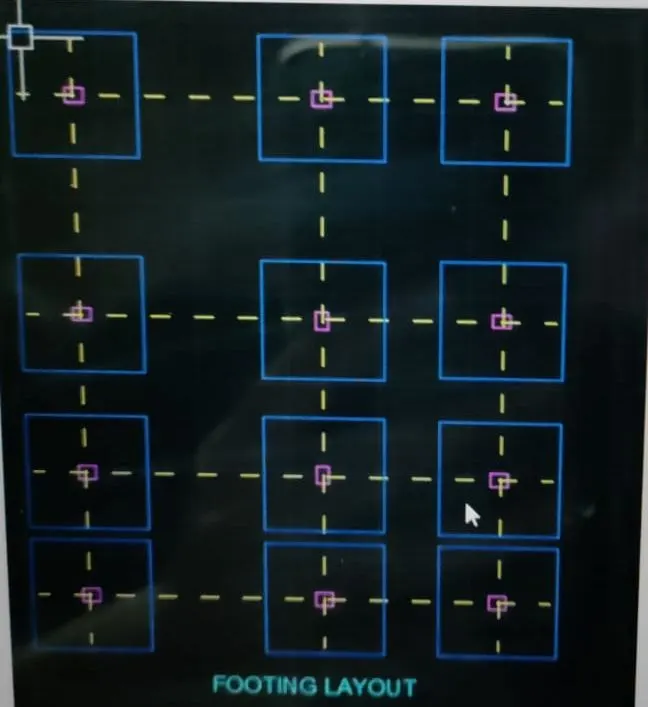

FOOTING LATOUT
COLUMN LAYOUT
BEAM LAYOUT
INTRODUCTION:-
THE RESIDENTIAL BUILDING TO BE DRAWN WITH PLOT DIMENSIONS ARE 60’X20’
THE PLINTH DIMENSIONS ARE CHOSEN AS 30’X18
THE G+1 FLOOR IS DESIGNED AS DUPLEX HOUSE WITH STAIRS INSIDE THE HOME
THE PLOT IS EAST FACING
THE BUILDING IS DESIGNED WITH FOLLOWING ROOMS
GROUND FLOOR TWO BED ROOMS
STAIRCASE TO FIRST FLOOR
FIRST FLOOR GREAT ROOM
IN FIRST FLOOR TWO BED ROOMS
BALCONY
STAIRCASE TO ROOF
BUILDING IS DESIGNED WITH MAIN DOOR AT THE NORTH EAST FACING NORTH AND MAIN
INITIALLY LAYERS ARE CREATED ALL THE COMPONENTS OF THE HOUSE.
THE DIMENSIONS OF THE COMPONENTS OF HOUSE ARE AS FOLLOWS
WALLS
THICKNESS OF MAIN WALLS IS TAKEN AS 9’’
INTERNAL WALL THICKNESS IS TAKEN AS 4.5’’
COLUMNS AND BEAMS
ALL THE COLUMNS SIZE ARE 9’’ X 12’’
ALL THE BEAMS SIZE ARE 9’’X9’’
REBAR SPECIFICATIONS
DOORS
DOORS ARE THREE TYPES USED IN THIS
MAIN DOOR (D1) SIZE IS 4’X7
D2 DOOR SIZE IS 3’6’’X7'
D3 DOOR SIZE IS 3'X6'
WINDOWS
WINDOWS ARE TWO TYPES ARE USED
W-SIZE 6'X5'
W1- SIZE IS 4'X5'
VENTILATORS
VENTILATORS ARE ONE TYPES ARE USED
SIZE 2'X2'
STAIRCASE
INNER STAITCASE CONSIST OF 21 STEPS
THREAD AND RAISER ARE TAKEN AS 10'' AND 6''
HAND RAILS ARE 2'' IN DIANETER AND HEIGHT OF 3'
COMPOUND WALL
HEIGHT OF COMPOUND WALL IS IS TAKEN AS 6'
THICKNESS OF COMPOUND WALL IS SIMILAR TO WALL THICKNESS IS 9''
PROCEDURE:-
OPEN AUTOCADAND SET UNITS AS REQUIRED
TYPR UN IN COMMAND BOX AND PRESS ENTER
CHANGE UNITS TYPE TO DECIMAL AND PRECISION TO 0.00 AND INSRTION SCALE TO MILLIMETERS
NEXT TYPE 'D' IN COMMANDBOX AND PRESS ENTER
ALL LINES ARE DRAWN BY USING LINECOMMAND AND ALL TEXT IN THE ABOVE IS WRITTEN BY USING THE TEXT COMMAND
DIM COMMAND USED FOR GIVE THE DIMENSIONS TO THE DRAWINGS
TRIM IS USED TO REMOVE THE UNWANTED OBJECT LINES
OFF SET IS USED FOR EMPLATES AND TEMPLATESARE CREATED BLOCKS
BY USING THE LAYERS COMMAND GIVE THE PLAN COLORS, DIMENDION, ETC.,
RESULT:-
Design and Draft a layout of a residential building with the ABOVE details was completed
