Challenge

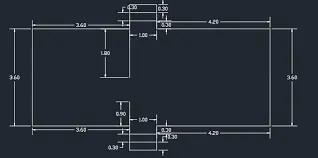

Creating a Floor plan, Footing detail and Isometric view using AutoCad

Aim : To creating a floor plan, footing detail ans isometic view using autocad

Part 1: Cross-section of load bearing wall over spread footing

procedure:

  • type rec and press enter for activating the rectangle command
  • specify the first corner rectangle
  • enter D for dimensio
  • enter the width 0.90
  • enter the widtho.25
  • spacify the other corner
  • type L for line command press enter
  • spacify the start point a
  • specify the next point :@0.20,0
  • specify the next point :@0,0.40
  • specify the next point :@0.05,0
  • specify the next point :@0,0.40
  • specify the next point :@0.50,0
  • specify the next point :@0,0.60
  • specify the next point :@0.30,0
  • specify the next point :@0,-0.60
  • specify the next point :@0.50,0
  • specify the next point :@0,-0.40
  • specify the next point :@0.50,0
  • specify the next point :@0,-0.40
  • type L enter in command bar
  • spacify the start point b,
  • spacify the next point:@0,0.05
  • spacify the next point:@0.30,0
  • spacify the next point:@0,-0.50
  • angain L enter and spacify the start point c
  • spacify the next point:@0,1
  • spacify the next point:@0.30,0
  • spacify the next point:@0,-1
  • angain L enter and spacify the start point d
  • spacify the next point:@-0.30,0
  • spacify the next point:@-0.05,0
  • spacify the next point:@-1.15,0
  • spacify the next point:@0,-1.5
  • spacify the next point:@1.15,0
  • angain L enter and spacify the start point e
  • spacify the next point:@0.30,0
  • spacify the next point:@0,0.15
  • spacify the next point:@0.30,0
  • spacify the next point:@0,0.15
  • spacify the next point:@0.30,0
  • spacify the next point:@0,0.15
  • spacify the next point:@0.30,0
  • type l im command bar and spacify the first point f
  • spacify the next point:@1,0
  • spacify the next point:@0,-0.60
  • spacify the next point:@-0.95,0

Give the dimensions by using the dimensions command

The C.S of bearing wall over spread footing is completed

Part 2:

step by step procedure for the cross-section of isolated footong as given

procedure:

    • type rec and press enter for activating the rectangle command
    • specify the first corner rectangle
    • enter D for dimensio
    • enter the width 0.40
    • enter the length 1
    • spacify the other corner
    • type chamfer in command bar press enter
    • enter D for dimensions
    • spacify first point :0.25
    • second point:0.38
    • type L for line command press enter
    • spacify the start point e
    • specify the next point :@0,1.60
    • specify the next point :@0.24,0
    • specify the next point :@0,-1.60
    • type L enter in command bar
    • spacify the start point g,
    • spacify the next point:@0.04,0
    • spacify the next point:@0,-1.96
    • spacify the next point:@-0.38,0
    • angain L enter and spacify the start point h
    • spacify the next point:@-0.04,0
    • spacify the next point:@-0.38,0
    • spacify the next point:@0,0.04
    • angain L enter and spacify the start point i
    • spacify the next point:@0.12,0

    Type O om command bar press enter
    spacify the valu of offset distance:0.20
    select the object of i j
    more cursor inside to place the line and continue till required
    Enter D in command bar to give dimensions as per given
    The C.S of isolated footing completed
    Part 4:
    step by step procedure for load bearing wall
    Procedure :
      • type L for line command press enter
      • spacify the start point a
      • specify the next point :@0,0.45
      • specify the next point :@0.15,0
      • specify the next point :@0,0.40
      • specify the next point :@0.05,0
      • specify the next point :@0,0.30
      • specify the next point :@0.05,0
      • specify the next point :@0,0.60
      • specify the next point :@0.05,0
      • specify the next point :@0,1
      • specify the next point :@0.30,0
      • specify the next point :@0,-1
      • specify the next point :@0.05,0
      • spacify the next point:@0,-0.60
      • spacify the next point:@0.05,0
      • spacify the next point:@0,-0.30
      • spacify the next point:@0.05,0
      • spacify the next point:@0,-0.30
      • spacify the next point:@0.05,0
      • spacify the next point:@0,0.40
      • spacify the next point:@0.15,0
      • spacify the next point:@0,-0.45
      • spacify the next point:@-0.90 (r) C enter

Part 5:

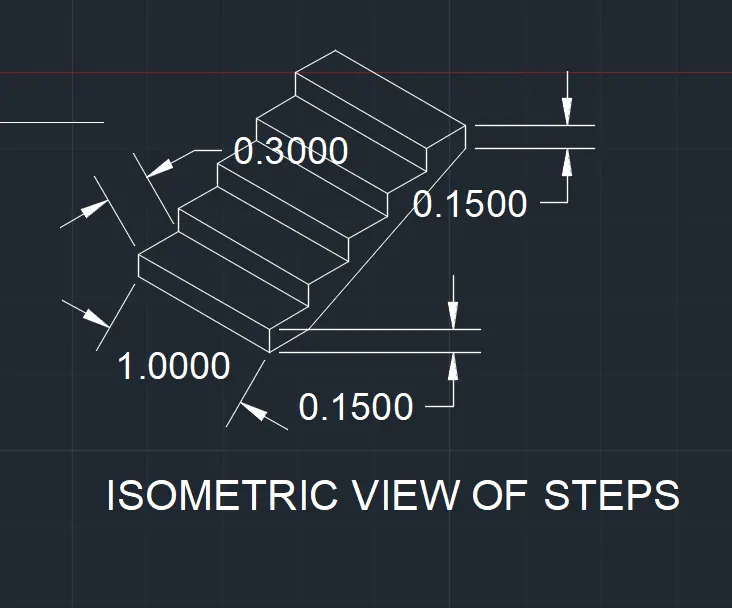

Isometric view of steps

Procedure:

Type DS in command line and press enter

unpick the snap on and grid on option .tick on the isometric snap in snap option

tjis will activate the isometric screen

Type the PL in command bar for drawing

spacify the first point a

take isolated left

spacify the nex point : 1 , move curser towards NW

take isoplane right

specify the next point :0.15, monve curser to N

specify the next point :1, monve curser to SE

specify the next point :0.15, monve curser to E

again PL enter and spacify first point b

takr isoplane top

spacify next point :0.30,monve curser to NE

spacify next point :1,monve curser to NW

spacify next point :0.30,monve curser to SW

type CO in command line and press enter

select complete steps and press enter

select the base point and place 4 times at thr position c,d,e and f

type line in command bar press enter

spacify the start point g

take isoplane right

specify the next point:0.15, move curser to s

type L enter and spacify the start point h

take isoplane right

specify the next point :0.30,curser NE

type L enter in command nar and spacify the start point i

specify start point j

give dimensions by using dimensiom command as given above

The C.S of isoplane steps was completed

Part 6:

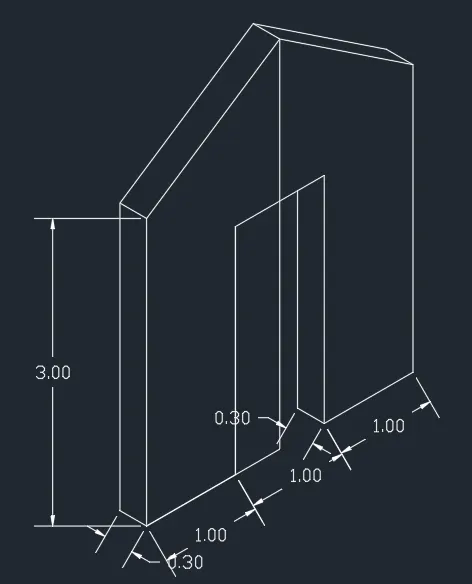

procedure for drawing of isometric view of gable wall as follow

Procedure:

Type DS in command line and press enter

unpick the snap on and grid on option .tick on the isometric snap in snap option

tjis will activate the isometric screen

Type the PL in command bar for drawing

spacify the first point a

take isolated left

spacify the nex point : 0.30 , move curser towards NW

take isoplane right

specify the next point :3, monve curser to N

specify the next point :0.30, monve curser to SE

specify the next point :3, monve curser to E

again PL enter and spacify first point a

takr isoplane top

spacify next point :1,monve curser to NE

spacify next point :1,monve curser to NE

spacify next point :1,monve curser to NE

type CO in command line and press enter

select complete steps and press enter

select the base point and place 4 times at thr position c,d,e and f

type line in command bar press enter

spacify the start point g

take isoplane right

specify the next point:0.15, move curser to s

type L enter and spacify the start point h

take isoplane right

specify the next point :0.30,curser NE

type L enter in command nar and spacify the start point i

specify start point j

give dimensions by using dimensiom command as given above

The C.S of isometric view of gable wallwas completed
