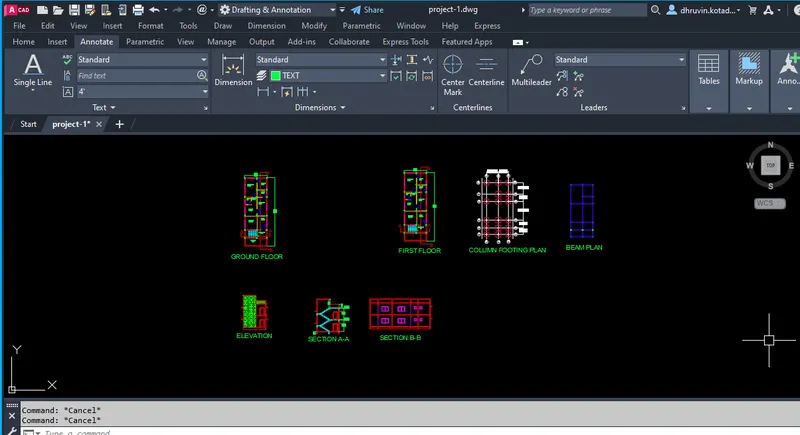

Project 1 _Creating an Architectural plan for the provided plot size and develop relevant basic structural drawings
AIM:

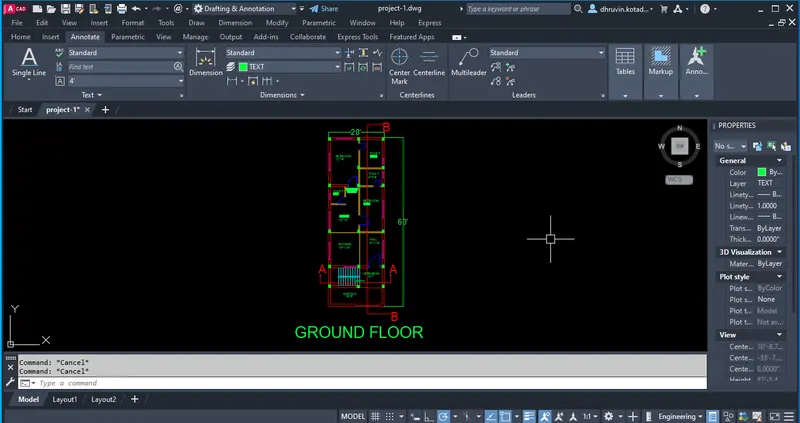

TO DRAFT PLAN, ELEVATION , SECTION BY USING A AUTOCAD
PROCEDURE:
HERE ALL UNITS ARE IN ENGINEERING.
BY USING THE CONSTRUCTION LINE CREATE THE HORIZOTAL AND VERTICAL LINE.
BUILDING DIMENSION IS 60'*20' EAST FACING.
TAKE OFFSET FOR 9" FROM THE HORIZOTAL LINE AND THEN OFFSET FOR 9" FROM THE VERTICAL LINE.
TAKE OFFSET FOR 10' FROM THE 9" LINE. THEN OFFSET 16' DOWN WARD FROM THE 9" LINE. BEDROOM IS CREATED.
TAKE OFFSET FOR 4.5" FROM THE 10' LINE. THEN OFFSET 8' FROM THE 4.5" LINE.
TAKE OFFSET 10' DOWNWARD FROM THE 9" LINE.TOILET IS CREATED.
TAKE OFFSET 4.5 FROM THE 10' LINE'
TAKE OFFSET 5'9" FROM THE 4.5" LINE.CREATED THE ANOTHER TOILET.
TAKE OFFSET 5' FROM THE 9' LINE.
TAKE OFFSET 6' DOWNWARD FROM THE 9" WALL CREATED THE TOILET.
TAKE OFFSET 4.5" FROM THE 5' LINE.
TAKE OFFSET THE 4'6" FROM THE 4.5" LINE. THEN OFFSET 6'6" DOWNWARD FROM THE 9" LINE CREATED PASSAGE.
TAKE OFFSET 4.5" FROM THE 4'6" LINE. THEN OFFSET 8' FROM THE 4.5" LINE.
TAKE OFFSET 16' DOWNWARD FROM THE 4.5" LINE. CREATED THE BEDROOM.
TAKE OFFSET 10' FROM THE 9" LINE.
TAKE OFFSET 10' DOWNWARD FROM THE 4.5" LINE DINING IS CREATED
TAKE OFFSET 10' FROM THE 9" LINE.
TAKE OFFSET 11'9" DOWNWARD FROM THE 4.5" LINE .CREATED THE KITCHEN.
TAKE OFFSET 4.5" FROM THE 10' LINE.THEN OFFSET 8' FROM THE 4.5" LINE.
TAKE OFFSET 11'9" DOWNWARD FROM THE 4.5" LINE. HALL IS CREATED.
TAKE OFFSET 8' FROM THE 4.5" LINE
THEN OFFSET 7' DOWNWARD FROM THE 9 LINE VERANDAH IS CREATED.
TAKE OFFSET 11' FROM THE 9" LINE.
THEN OFFSET 6' DOWNWARD FROM THE 9" LINE. PORTICO IS CREATED.

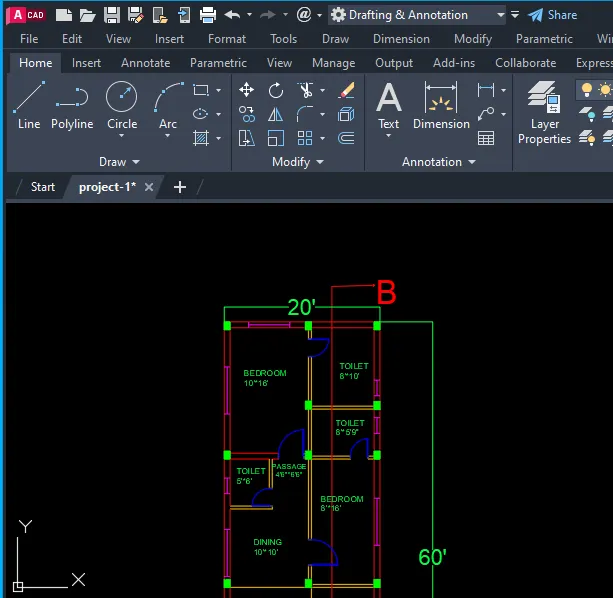

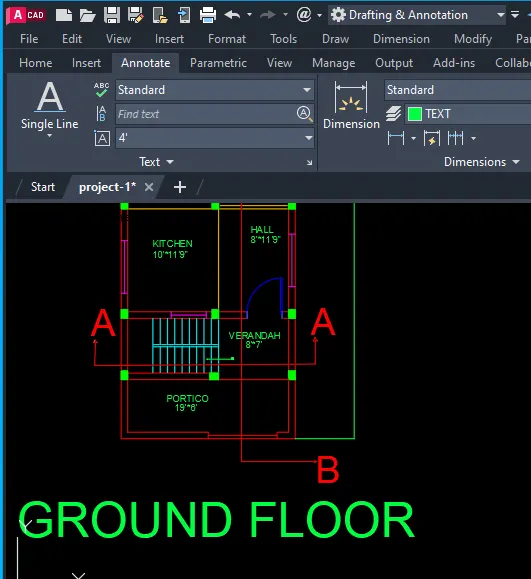

RESULT:
AIM:

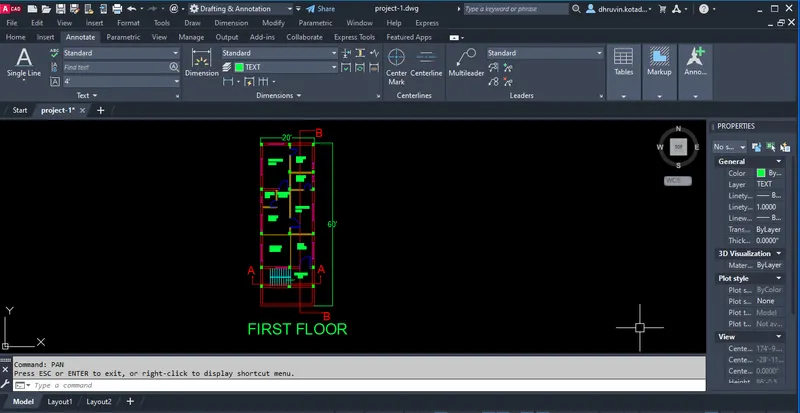

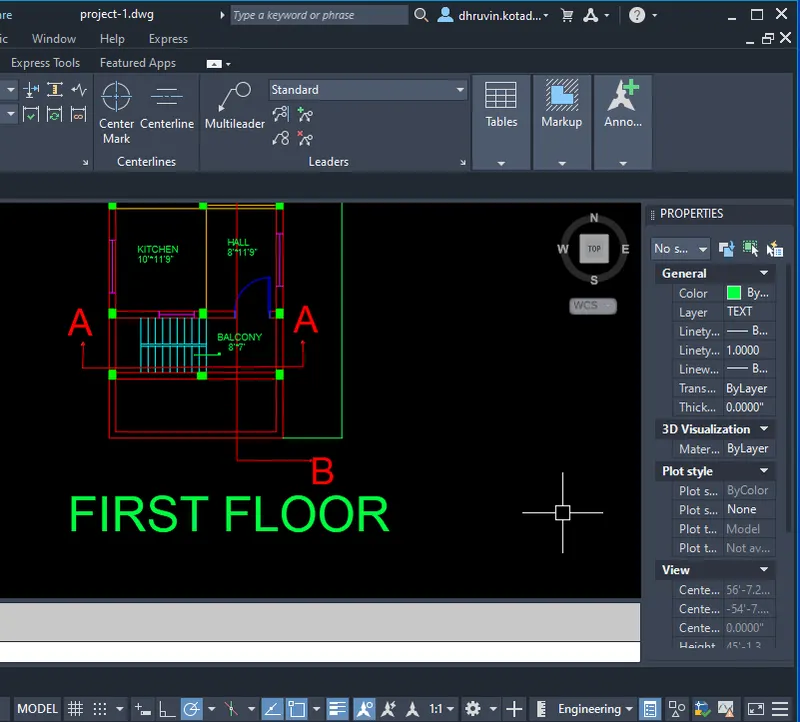

TO CREATE FIRST FLOOR PLAN.
PROCEDURE:
TAKE OFFSET FOR 9" FROM THE HORIZOTAL LINE AND THEN OFFSET FOR 9" FROM THE VERTICAL LINE.
TAKE OFFSET FOR 10' FROM THE 9" LINE. THEN OFFSET 16' DOWN WARD FROM THE 9" LINE. BEDROOM IS CREATED.
TAKE OFFSET FOR 4.5" FROM THE 10' LINE. THEN OFFSET 8' FROM THE 4.5" LINE.
TAKE OFFSET 10' DOWNWARD FROM THE 9" LINE.TOILET IS CREATED.
TAKE OFFSET 4.5 FROM THE 10' LINE'
TAKE OFFSET 5'9" FROM THE 4.5" LINE.CREATED THE ANOTHER TOILET.
TAKE OFFSET 5' FROM THE 9' LINE.
TAKE OFFSET 6' DOWNWARD FROM THE 9" WALL CREATED THE TOILET.
TAKE OFFSET 4.5" FROM THE 5' LINE.
TAKE OFFSET THE 4'6" FROM THE 4.5" LINE. THEN OFFSET 6'6" DOWNWARD FROM THE 9" LINE CREATED PASSAGE.
TAKE OFFSET 4.5" FROM THE 4'6" LINE. THEN OFFSET 8' FROM THE 4.5" LINE.
TAKE OFFSET 16' DOWNWARD FROM THE 4.5" LINE. CREATED THE BEDROOM.
TAKE OFFSET 10' FROM THE 9" LINE.
TAKE OFFSET 10' DOWNWARD FROM THE 4.5" LINE DINING IS CREATED
TAKE OFFSET 10' FROM THE 9" LINE.
TAKE OFFSET 11'9" DOWNWARD FROM THE 4.5" LINE .CREATED THE KITCHEN.
TAKE OFFSET 4.5" FROM THE 10' LINE.THEN OFFSET 8' FROM THE 4.5" LINE.
TAKE OFFSET 11'9" DOWNWARD FROM THE 4.5" LINE. HALL IS CREATED.
TAKE OFFSET 8' FROM THE 4.5" LINE
THEN OFFSET 7' DOWNWARD FROM THE 9 LINE BALCONY IS CREATED.
RESULT:
AIM:

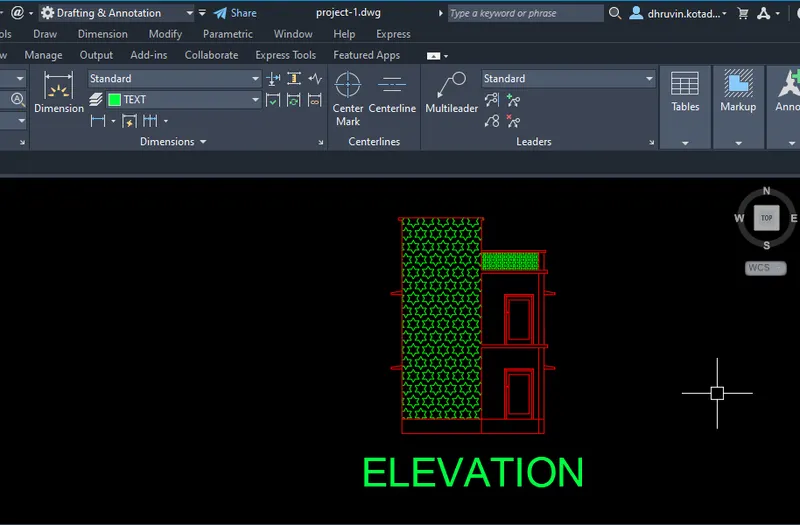

TO DRAFT THE ELEVATION OF THE BULIDING.
PROCEDURE:
TO CREATE THE HORIZNTAL AND VERTICAL LINE BY USING THE CONSTRUCTION LINE.
DRAW BASE LINE WHICH IS AT THE GL.
THEN OFFSET OF 2' FROM THE BASE LINE TO GET THE PLINTH LEVEL.
THEN OFFSET OF 7' FROM THE PLINTH LINE TO GET THE LINTEL LEVEL
THEN OFFSET OF 10' FROM THE PLINTH LINE TO GET THE FLOOR LEVEL.
THEN OFFSET OF 10'5" FROM THE PLINTH LEVEL TO GET THE FLOOR SLAB LEVEL.
RESULT:
AIM:

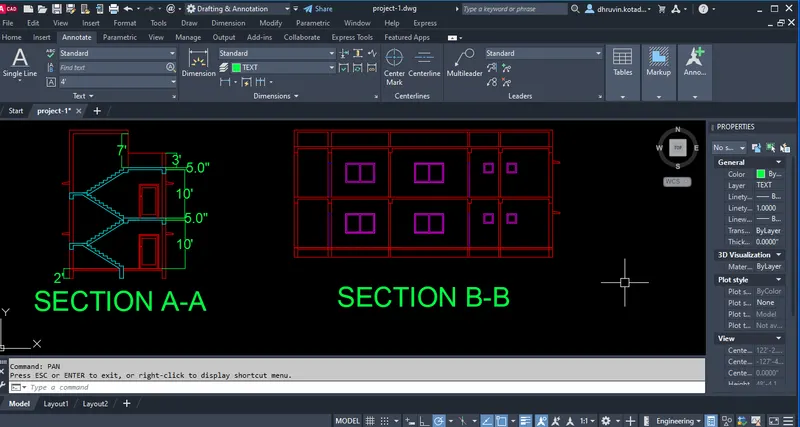

TO DRAFT THE SECTION OF BUILDING.
PROCEDURE:
TO CREATE THE HORIZNTAL AND VERTICAL LINE BY USING THE CONSTRUCTION LINE.
TO CREATE A SECTION A-A AND SECTION B-B.
DRAW BASE LINE WHICH IS AT THE GL.
THEN OFFSET OF 2' FROM THE BASE LINE TO GET THE PLINTH LEVEL.
THEN OFFSET OF 7' FROM THE PLINTH LINE TO GET THE LINTEL LEVEL
THEN OFFSET OF 10' FROM THE PLINTH LINE TO GET THE FLOOR LEVEL.
THEN OFFSET OF 10'5" FROM THE PLINTH LEVEL TO GET THE FLOOR SLAB LEVEL.
THEN OFFSET OF 3' FROM THE FLOOR SLAB TO GET THE PARAPET WALL.
THEN OFFSET OF 7' FROM THE FLOOR SLAB TO GET THE STAIRCASE ROOM.
RESULT:
AIM:

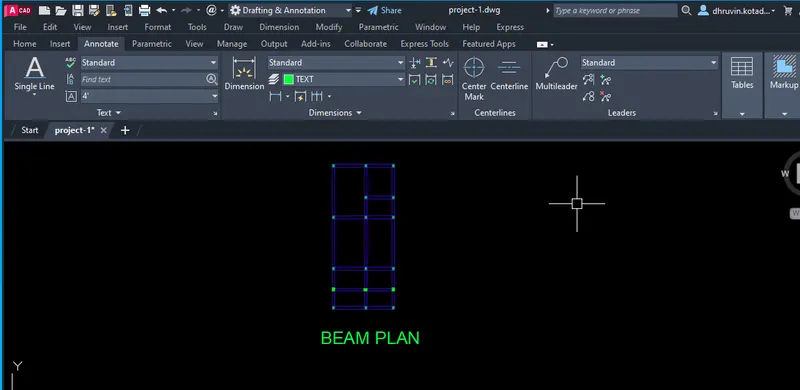

TO DRAFT THE BEAM LAYOUT PLAN
PROCEDURE:
BY USING THE DIRECT DISTANCE ENTRY METHOD
BY USING COPY COMMAND COPY COLUMN WITH SWITCH OFF THE PLAN LAYER ONLY COPY THE COLUMN.
THEN TO CREATE THE BEAM.
RESULT:
AIM:

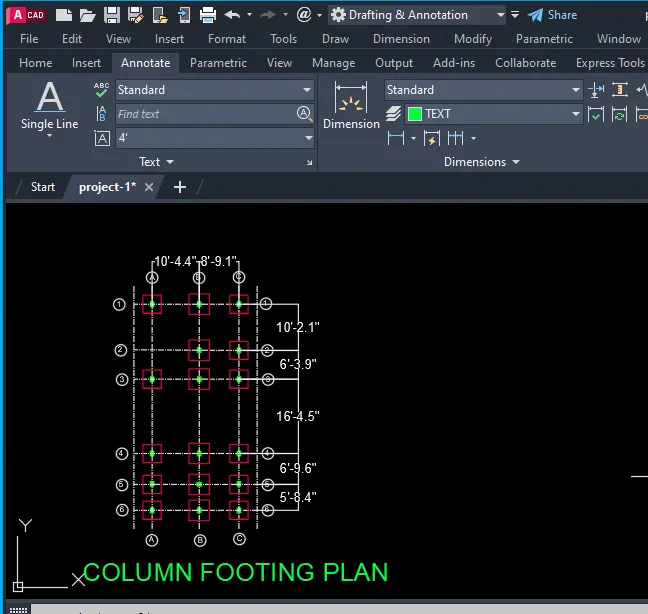

TO DRAFT COLUMN FOOTING LAYOUT PLAN
PROCEDURE:
TO DRAW THE CENTER LINE OF THE COLUMN TO EVERY COLUMN
TAKE OFFSE OF 10'4.4", 8'9.1" IN A,B,C IN X -DIRECTION
TAKE OFFSET OF 10'2.1",6'3.9",16'4.5",6'9.6",5'8.4" IN 1,2,3,4,5,6 IN Y DIRECTION
IT COSISTS OF A ISOLATED FOOTING
DRAW COLUMN BY USING RECTANGLE HAVING DIMENSION 9"*12" IN A TO 1 LINE.
DRAW THE FOUNDATION USING LINE WHICH HAS A LENGTH 1'6" FROM THE COLUMN EDGE AND WIDTH 1'7.5" FROM THE COLUMN EDGE IN A TO 1
DRAW COLUMN BY USING RECTANGLE HAVING DIMENSION 9"*12" IN A TO 3 LINE.
DRAW THE FOUNDATION USING LINE WHICH HAS A LENGTH 1'6" FROM THE COLUMN EDGE AND WIDTH 1'7.5" FROM THE COLUMN EDGE IN A TO 3
DRAW COLUMN BY USING RECTANGLE HAVING DIMENSION 9"*12" IN A TO 4 LINE.
DRAW THE FOUNDATION USING LINE WHICH HAS A LENGTH 1'6" FROM THE COLUMN EDGE AND WIDTH 1'7.5" FROM THE COLUMN EDGE IN A TO 4
DRAW COLUMN BY USING RECTANGLE HAVING DIMENSION 9"*12" IN A TO 5 LINE.
DRAW THE FOUNDATION USING LINE WHICH HAS A LENGTH 1'4.5" FROM THE COLUMN EDGE AND WIDTH 1'7.5" FROM THE COLUMN EDGE IN A TO 5
DRAW COLUMN BY USING RECTANGLE HAVING DIMENSION 9"*12" IN A TO 6 LINE.
DRAW THE FOUNDATION USING LINE WHICH HAS A LENGTH 1'6" FROM THE COLUMN EDGE AND WIDTH 1'7.5" FROM THE COLUMN EDGE IN A TO 6
DRAW COLUMN BY USING RECTANGLE HAVING DIMENSION 9"*12" IN B TO 1 LINE.
DRAW THE FOUNDATION USING LINE WHICH HAS A LENGTH 1'9" FROM THE COLUMN EDGE AND WIDTH 1'10.5" FROM THE COLUMN EDGE IN B TO 1
DRAW COLUMN BY USING RECTANGLE HAVING DIMENSION 9"*12" IN B TO 2 LINE.
DRAW THE FOUNDATION USING LINE WHICH HAS A LENGTH 1'9" FROM THE COLUMN EDGE AND WIDTH 1'10.5" FROM THE COLUMN EDGE IN B TO 2
DRAW COLUMN BY USING RECTANGLE HAVING DIMENSION 9"*12" IN B TO 3 LINE.
DRAW THE FOUNDATION USING LINE WHICH HAS A LENGTH 1'9" FROM THE COLUMN EDGE AND WIDTH 1'10.5" FROM THE COLUMN EDGE IN B TO 3
DRAW COLUMN BY USING RECTANGLE HAVING DIMENSION 9"*12" IN B TO 4 LINE.
DRAW THE FOUNDATION USING LINE WHICH HAS A LENGTH 1'9" FROM THE COLUMN EDGE AND WIDTH 1'10.5" FROM THE COLUMN EDGE IN B TO 4
DRAW COLUMN BY USING RECTANGLE HAVING DIMENSION 12"*9" IN B TO 5 LINE.
DRAW THE FOUNDATION USING LINE WHICH HAS A LENGTH 1'10.5" FROM THE COLUMN EDGE AND WIDTH 1'9" FROM THE COLUMN EDGE IN B TO 5
DRAW COLUMN BY USING RECTANGLE HAVING DIMENSION 9"*12" IN B TO 6 LINE.
DRAW THE FOUNDATION USING LINE WHICH HAS A LENGTH 1'9" FROM THE COLUMN EDGE AND WIDTH 1'10.5" FROM THE COLUMN EDGE IN B TO 6
DRAW COLUMN BY USING RECTANGLE HAVING DIMENSION 9"*12" IN C TO 1 LINE.
DRAW THE FOUNDATION USING LINE WHICH HAS A LENGTH 1'6" FROM THE COLUMN EDGE AND WIDTH 1'7.5" FROM THE COLUMN EDGE IN C TO 1
DRAW COLUMN BY USING RECTANGLE HAVING DIMENSION 9"*12" IN C TO 2 LINE.
DRAW THE FOUNDATION USING LINE WHICH HAS A LENGTH 1'6" FROM THE COLUMN EDGE AND WIDTH 1'7.5" FROM THE COLUMN EDGE IN C TO 2
DRAW COLUMN BY USING RECTANGLE HAVING DIMENSION 9"*12" IN C TO 3 LINE.
DRAW THE FOUNDATION USING LINE WHICH HAS A LENGTH 1'6" FROM THE COLUMN EDGE AND WIDTH 1'7.5" FROM THE COLUMN EDGE IN C TO 3
DRAW COLUMN BY USING RECTANGLE HAVING DIMENSION 9"*12" IN C TO 4 LINE.
DRAW THE FOUNDATION USING LINE WHICH HAS A LENGTH 1'6" FROM THE COLUMN EDGE AND WIDTH 1'7.5" FROM THE COLUMN EDGE IN C TO 4
DRAW COLUMN BY USING RECTANGLE HAVING DIMENSION 9"*12" IN C TO 5 LINE.
DRAW THE FOUNDATION USING LINE WHICH HAS A LENGTH 1'4.5" FROM THE COLUMN EDGE AND WIDTH 1'7.5" FROM THE COLUMN EDGE IN C TO 5
DRAW COLUMN BY USING RECTANGLE HAVING DIMENSION 9"*12" IN C TO 6 LINE.
DRAW THE FOUNDATION USING LINE WHICH HAS A LENGTH 1'6" FROM THE COLUMN EDGE AND WIDTH 1'7.5" FROM THE COLUMN EDGE IN C TO 6
RESULT:
