Creating Bar Bending schedule, Different Door types, and Creation of standard drawing templates using AutoCad
AIM:

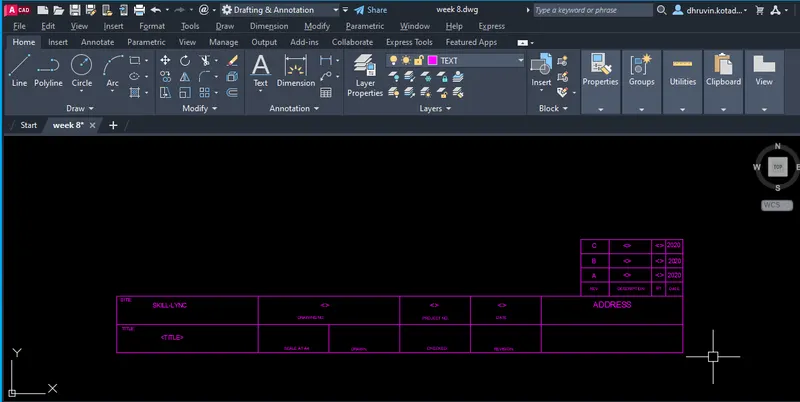

TO DRAFT THE TEMPLETE CUSTOM_1 TITLE BOCK
PROCEDURE:
CREATE CONSTRUCTION LINE HORIZONTAL AND VERTICAL AND PLACE IT ANY WHERE ON THE SCREEN.
TAKE OFFSET OF 2020MM FROM XL LINE IN X DIRECTION THEN OFFSET 1320MM FRO HE XL LINE IN Y DIRECTION.
TAKE OFFSET OF 250,70,70,70,70,70,300,70,70,70,70,70,70 FROM THE XL LINE IN Y DIRECTION.
THEN TAKE OFFSET OF 100MM ,1660MM,100MM,160MM IN X DIRECTION FOR A 4 LINES
THEN TAKE OFFSET OF 1760,260 MM FROMM XL LINE IN X DIRECTION.
TAKE A OFFSET OF 800, 400,550,260, FROM THE XL LINE IN X DIRECTION.
THEN INSERT THE TEXT INSIDE THE LINE BY USING A MTEXT.

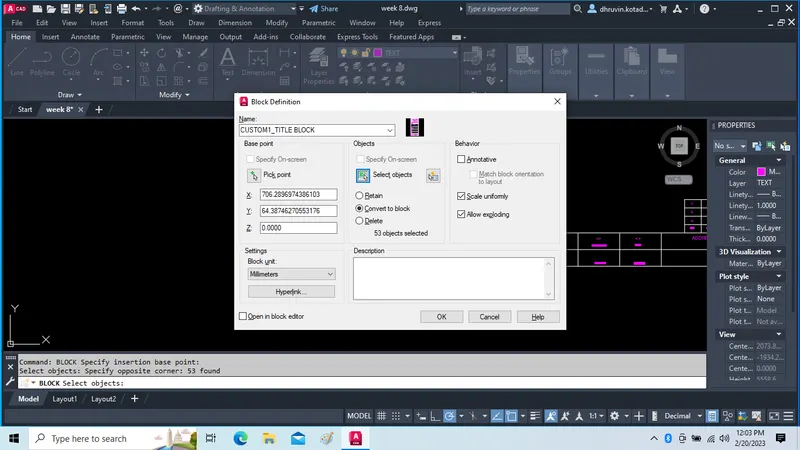

MAKE IT A BLOCK FOR COMMAND B.THEN GIVE A NAME FOR BLOCK IS CUSTOM_1 TITLE BLOCK.
RESULT:
AIM:

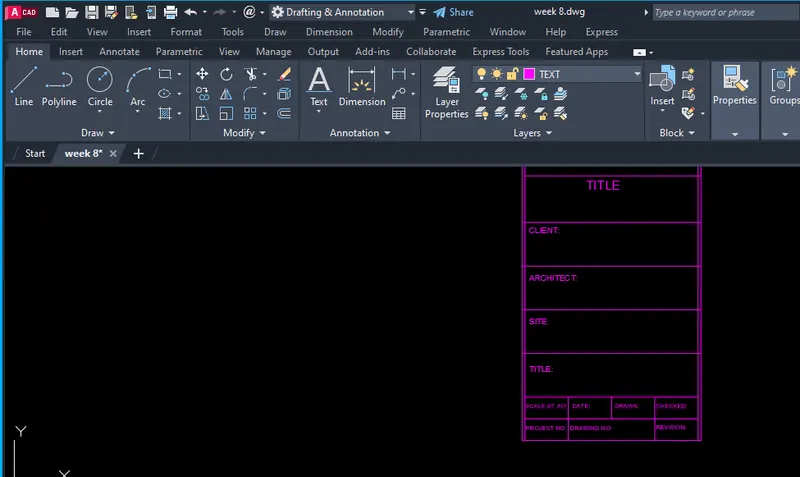

TO DRAFT THE TEMPLETE CUSTOM_2 TITLE BOCK.
PROCEDURE:
CREATE CONSTRUCTION LINE HORIZONTAL AND VERTICAL AND PLACE IT ANY WHERE ON THE SCREEN.
TAKE OFFSET OF 1990MM ,70MM,200MM,100MM,160MM FROM XL LINE IN X DIRECTION.
THEN TAKE OFFSET 350MM FROM THE XL LINE IN Y DIRECTION.THEN 1990MM OFFSET.
THEN TAKE OFFSET OF 1470MM,200MM,250MM,600MM,FROM THE THE XL LINE IN X DIRECTION.
THEN TAKE OFFSET 150MM FROM THE 350MM LINE IN Y DIRECTION.
THEN TAKE OFFSET 1270MM,200MM,200MM,250MM,600MM FROM THE XL LINE IN X DIRECTION.
THEN INSERT THE TEXT INSIDE THE LINE BY USING A MTEXT.

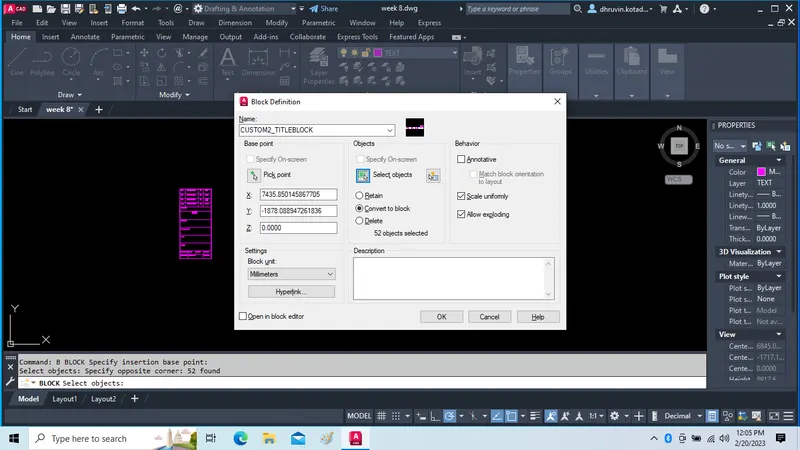

MAKE IT A BLOCK FOR COMMAND B.THEN GIVE A NAME FOR BLOCK IS CUSTOM_2 TITLE BLOCK.
RESULT:
AIM:

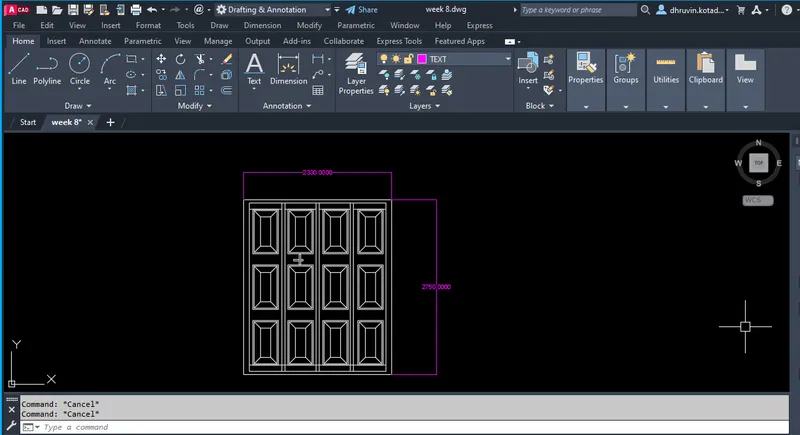

TO DRAFT THE DOOR 1 BY USING AUTOCAD.
PROCEDURE:
TAKE A RECTANGLE HAVING SIZE OF 2330MM*2750MM
TAKE OFFSET OF 10MM FROM CREATED RECTANGLE.THEN EXPLODE IT.
THAKE OFFSET 583MM FROM THE OUTER RECTANGLE HICH EXPOLDE IT AND TAKE OFFSET IT 4 TIMES.
THEN TAKE OFFSET OF 10MM LEFT AND RIGHT SIDE FROM THE EVERY 583 DISTANCE LINE.
THEN TAKE OFFSET OF 900MM FROM OUTER RECTANGLE FROM THE TOP IN Y DIRECTION.
CREATE DOOR BY USING RECTANGLE HAVING DIMENSION 400MM*700MM
THEN TAKE OFFSET OF 25MM INWARED FROM THE RECTANGLE.
AGAIN TAKE OFFSET 50MM INWARED FROM THE 25 MM RECTANGLE.
THEN ARRAY COMMAND USED AND PLACE IT 4 IS IN HORIZOTAL AND 3 IN VERTICAL DIRECTION.

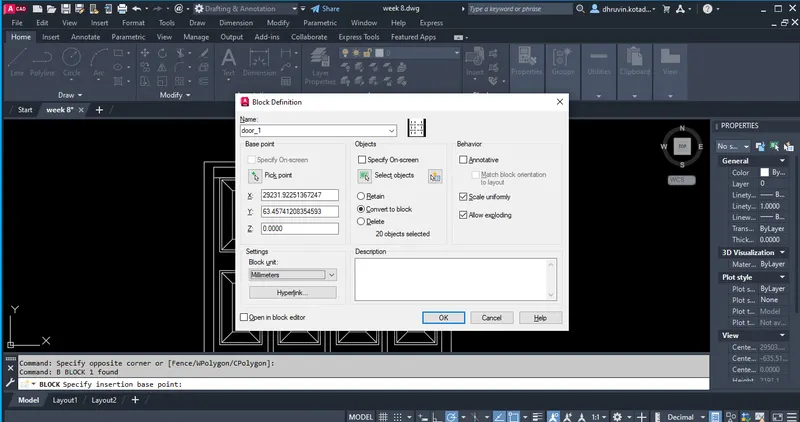

MAKE IT A BLOCK FOR COMMAND B.THEN GIVE A NAME FOR BLOCK IS DOOR 1.
RESULT:
AIM:

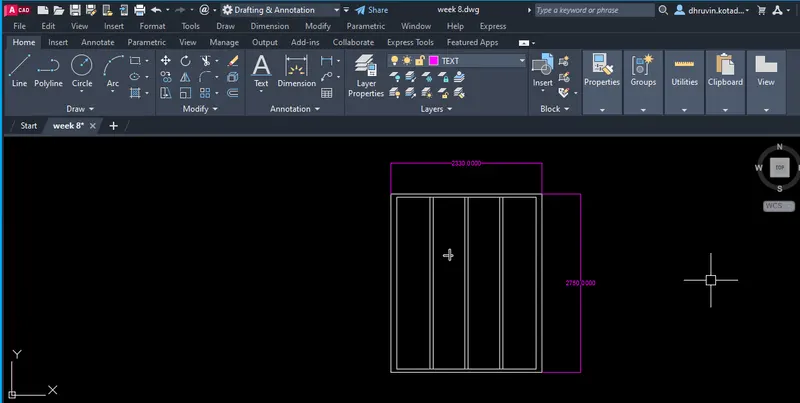

TO DRAFT THE DOOR 2 BY USING AUTOCAD.
PROCEDURE:
TAKE A RECTANGLE HAVING SIZE OF 2330MM*2750MM
TAKE OFFSET OF 10MM FROM CREATED RECTANGLE.THEN EXPLODE IT.
THAKE OFFSET 583MM FROM THE OUTER RECTANGLE HICH EXPOLDE IT AND TAKE OFFSET IT 4 TIMES.
THEN TAKE OFFSET OF 10MM LEFT AND RIGHT SIDE FROM THE EVERY 583 DISTANCE LINE.
MAKE IT A BLOCK FOR COMMAND B.THEN GIVE A NAME FOR BLOCK IS DOOR 2.
RESULT:
AIM:

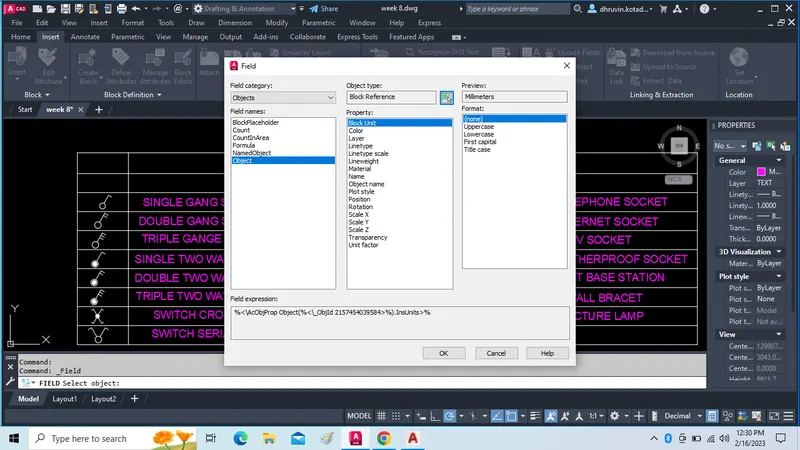

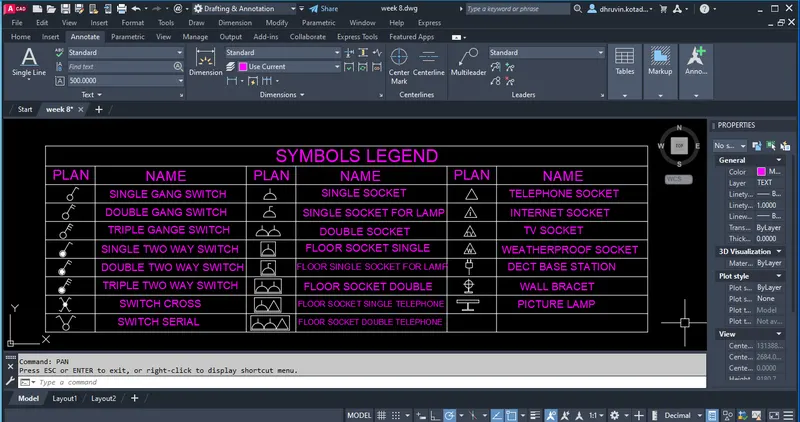

TO DRAFT THE ELECTRICAL SYMBOLE LEGAND BY USING AUTOCAD.
PROCEDURE:
CREATE CONSTRUCTION LINE HORIZONTAL AND VERTICAL AND PLACE IT ANY WHERE ON THE SCREEN.
THEN CREATE THE TABLE FOR 2430MM*670MM AND INSERT THE TEXT AND SYMBOLE BY USING THE M TEXT COMMAND.
THEN MAKE BLOCK OF THE SYMBOLE.
DRAW THE SYMBOLE AND MAKE IT BLOCK BY USING COMMAND B

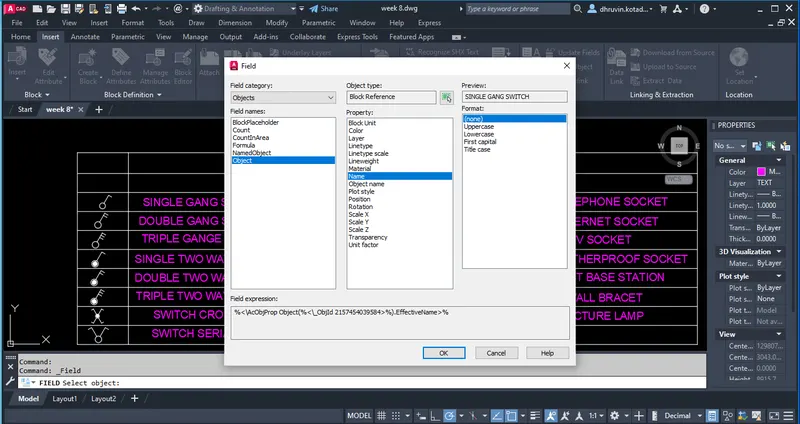

FOR EXAMPLE I HAVE DRAW SYMBOLE FOR SINGLE GANG SWITCH.

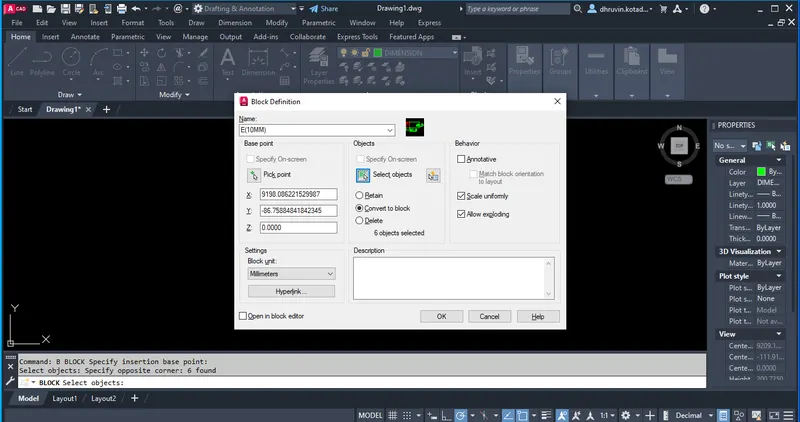

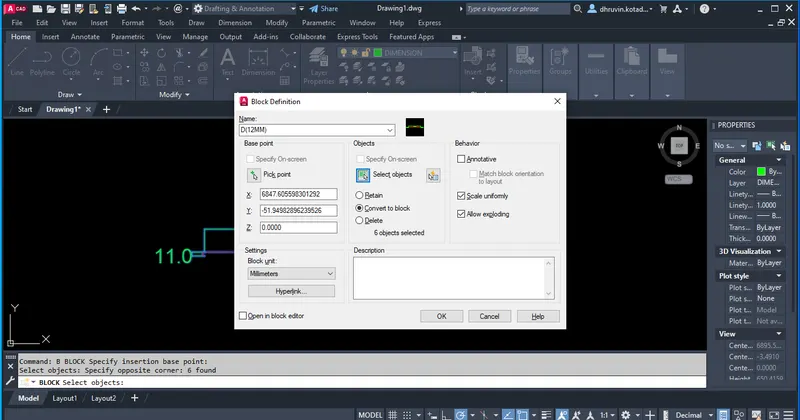

THEN USING BLOCK AND NAME OF BLOCK IS SINGLE GANG SWITCH THEN CLICK CONVERT INTO BLOCK ,UNIFORM SCALLING ,ALLOW EXPLODING THEN CLICK OK.
THEN SAME PROCEDURE FOR AOTHETR SYMBOLE.
RESULT:
AIM:

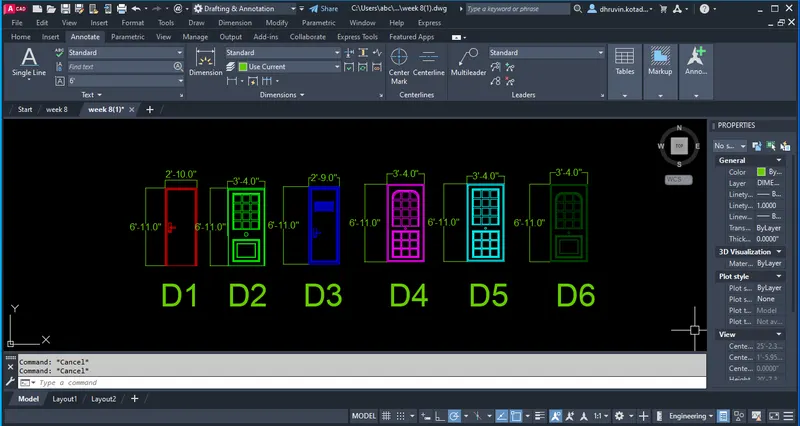

TO DRAFT THE DOOR TYPE FOR RESIDENTIAL BUILDING.
PROCEDURE:

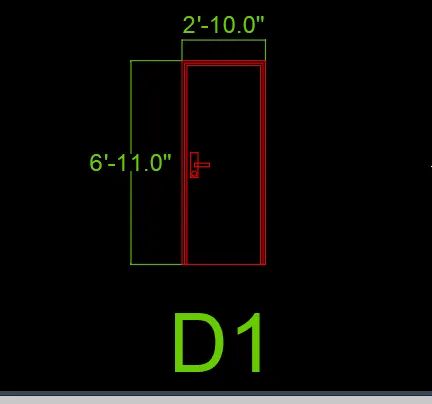

1)TO GET D1:
DRAW RECTANGLE BY USING COOMMAND REC SIZE HAVING 2'10"*6'11"
TAKE OFFSET OG 1" FROM THE RECTANGLE.
AGAIN OFFSET 1" FROM THE 1" RECTANGLE.THEN EXPLODE IT.
THEN RECTANGLE HAVING SIZE 3"*10" TO CREATE THE LOCK OF THE DOOR.
THEN ANOTHER RECTANGLE DRAW HAVING SIZE 6"*1.5" TO CREATE A HANDLE.
THEN DRAW CIRCLE HAVING THE 3"*10" HAVING A DIAMETER 2"
MAKE IT A BLOCK FOR COMMAND B.THEN GIVE A NAME FOR BLOCK IS D1.

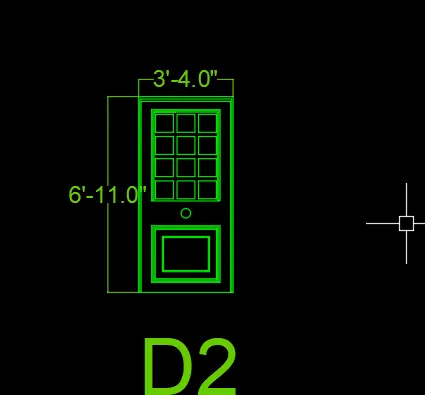

2)TO GET D2:
DRAW RECTANGLE HAVING A SIZE 3'4"*6'11"
TAKE OFFSET OF 1" AND 0.5" FROM THE 3'4"*6'11" RECTANGLE.
DRAW ANOTHER RECTANGLE HAVING SIZE 2'5"*3'2.7".
THAN TAKE OFFSET OF 0.5"AND 0.5" FROM THE 2'5"*3'2.7" RECTANGLE.
THEN SAME RECTANGLE INSIDE HAVING THE DIMENSION 8"*8" THEN TAKE OFFSET OF 0.2" FRO THE RECTANGLE.
THEN USING ARRAY COMMAND AND PLACE IT AS 3 IN HORIZONTAL DIRECTION AND 4 IN VERTICAL DIRECTION.
DRAW RECTANGLE HAVING SIZE 2'5"*2' AT THE BOTTOM. THEN TAKE OFFSET OF 0.5",0.5",0.5"
AGAIN TAKE OFFSET OF 3"AND 0.5" FROM THE LAST OFFSETED 0.5" RECTANGLE.
THEN DRAW THE CIRCLE BETWEEN THE TOP AND BOTTOM RECTANGLE HAVING A DIAMETER 2"
MAKE IT A BLOCK FOR COMMAND B.THEN GIVE A NAME FOR BLOCK IS D2.

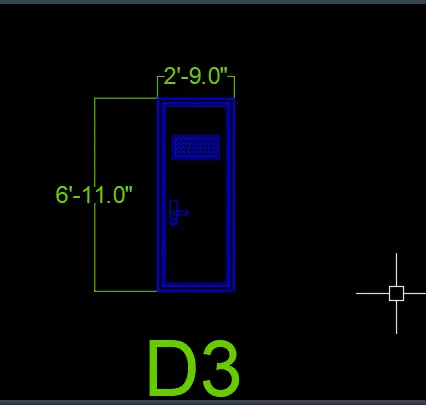

3)TO GET D3:
DRAW RECTANGLE HAVING SIZE 2'9"*6'11"
TAKE OFFSET OF 0.5",1.5",0.5"AND 1" FROM THE RECTANGLE.
DRAW ANOTHER INSIDE RECTANGLE HAVING SIZE 1'8"*10" THEN OFFSET OF 1" FROM THE RECTANGLE.
THEN INSIDE THE HATCH CREATED. THEN EXPLODE IT.
THEN RECTANGLE HAVING SIZE 3"*10" TO CREATE THE LOCK OF THE DOOR.
THEN ANOTHER RECTANGLE DRAW HAVING SIZE 6"*1.5" TO CREATE A HANDLE.
THEN DRAW CIRCLE HAVING THE 3"*10" HAVING A DIAMETER 2".
MAKE IT A BLOCK FOR COMMAND B.THEN GIVE A NAME FOR BLOCK IS D3.

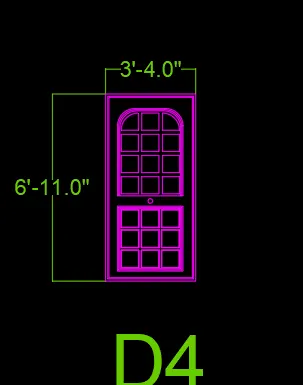

4) TO GET D4:
DRAW RECTANGLE HAVING A SIZE 3'4"*6'11"
TAKE OFFSET OF 1" AND 0.5" FROM THE 3'4"*6'11" RECTANGLE.
DRAW ANOTHER RECTANGLE HAVING SIZE 2'5"*3'2.7".
THAN TAKE OFFSET OF 0.5"AND 0.5" FROM THE 2'5"*3'2.7" RECTANGLE.
THEN SAME RECTANGLE INSIDE HAVING THE DIMENSION 8"*8" THEN TAKE OFFSET OF 0.2" FRO THE RECTANGLE.
THEN USING ARRAY COMMAND AND PLACE IT AS 3 IN HORIZONTAL DIRECTION AND 4 IN VERTICAL DIRECTION.
DRAW A RECTANGLE HAVING SIZE 2'5"*2'4.8" AT THE BOTTOM.
TAKE OFFSET OF 0.5" AND 0.5" FROM THE RECTANGLE.
THEN CRAETED ANOTHER RECTANGLE INSIDE HAVING SIZE 8"*8"
TAKE OFFSET OF 0.2" FROM THE RECTANGLE.
THEN USE ARRAY COMMAND AND PLACE IT 3 IS IN HORIZONTAL AND 3 IS IN VERTICAL DIRECTION. THEN EXPLODE IT.
THEN DRAW THE CIRCLE BETWEEN THE TOP AND BOTTOM RECTANGLE HAVING A DIAMETER 2"
MAKE A CURVE AT THE INSIDE PORTION HAVING A RADIUS VALUE 7.6" AT LEFT AND RIGHT SIDE IN THE PANNEL.
MAKE IT A BLOCK FOR COMMAND B.THEN GIVE A NAME FOR BLOCK IS D4.

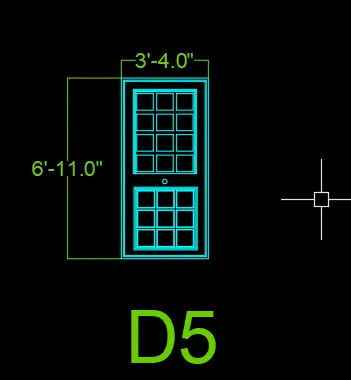

5)TO GET D5:
DRAW RECTANGLE HAVING A SIZE 3'4"*6'11"
TAKE OFFSET OF 1" AND 0.5" FROM THE 3'4"*6'11" RECTANGLE.
DRAW ANOTHER RECTANGLE HAVING SIZE 2'5"*3'2.7".
THAN TAKE OFFSET OF 0.5"AND 0.5" FROM THE 2'5"*3'2.7" RECTANGLE.
THEN SAME RECTANGLE INSIDE HAVING THE DIMENSION 8"*8" THEN TAKE OFFSET OF 0.2" FRO THE RECTANGLE.
THEN USING ARRAY COMMAND AND PLACE IT AS 3 IN HORIZONTAL DIRECTION AND 4 IN VERTICAL DIRECTION.
DRAW A RECTANGLE HAVING SIZE 2'5"*2'4.8" AT THE BOTTOM.
TAKE OFFSET OF 0.5" AND 0.5" FROM THE RECTANGLE.
THEN CRAETED ANOTHER RECTANGLE INSIDE HAVING SIZE 8"*8"
TAKE OFFSET OF 0.2" FROM THE RECTANGLE.
THEN USE ARRAY COMMAND AND PLACE IT 3 IS IN HORIZONTAL AND 3 IS IN VERTICAL DIRECTION. THEN EXPLODE IT.
THEN DRAW THE CIRCLE BETWEEN THE TOP AND BOTTOM RECTANGLE HAVING A DIAMETER 2"
MAKE IT A BLOCK FOR COMMAND B.THEN GIVE A NAME FOR BLOCK IS D5.

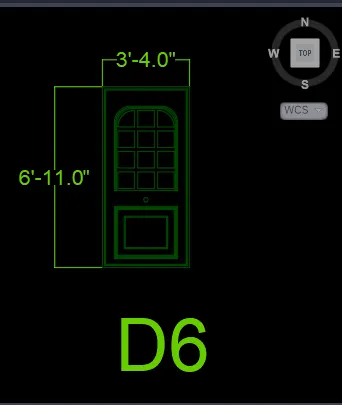

6)TO GET D6:
DRAW RECTANGLE HAVING A SIZE 3'4"*6'11"
TAKE OFFSET OF 1" AND 0.5" FROM THE 3'4"*6'11" RECTANGLE.
DRAW ANOTHER RECTANGLE HAVING SIZE 2'5"*3'2.7".
THAN TAKE OFFSET OF 0.5"AND 0.5" FROM THE 2'5"*3'2.7" RECTANGLE.
THEN SAME RECTANGLE INSIDE HAVING THE DIMENSION 8"*8" THEN TAKE OFFSET OF 0.2" FRO THE RECTANGLE.
THEN USING ARRAY COMMAND AND PLACE IT AS 3 IN HORIZONTAL DIRECTION AND 4 IN VERTICAL DIRECTION.
MAKE A CURVE AT THE INSIDE PORTION HAVING A RADIUS VALUE 7.6" AT LEFT AND RIGHT SIDE IN THE PANNEL.
DRAW RECTANGLE HAVING SIZE 2'5"*2' AT THE BOTTOM. THEN TAKE OFFSET OF 0.5",0.5",0.5"
AGAIN TAKE OFFSET OF 3"AND 0.5" FROM THE LAST OFFSETED 0.5" RECTANGLE.
THEN DRAW THE CIRCLE BETWEEN THE TOP AND BOTTOM RECTANGLE HAVING A DIAMETER 2"
MAKE IT A BLOCK FOR COMMAND B.THEN GIVE A NAME FOR BLOCK IS D6.
RESULT:
AIM:

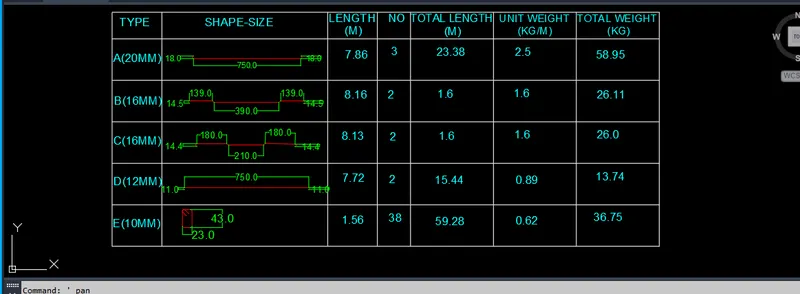

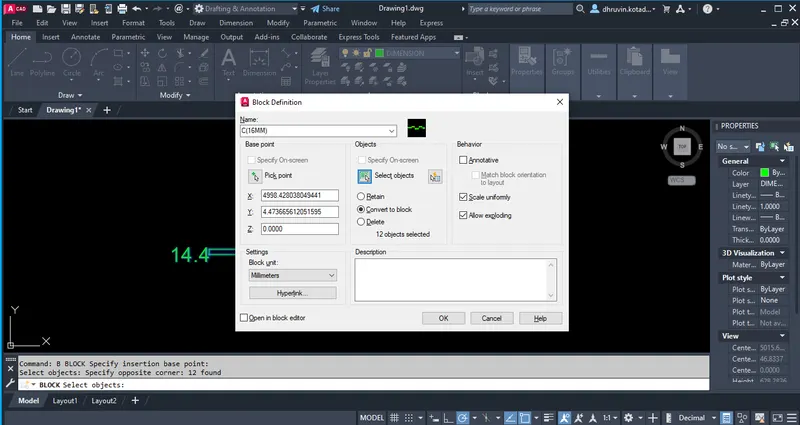

TO DRAFT THE SHAPE OF THE BARBANDING SCHDULE BY USING AUTOCAD.
PROCEDURE:
CREATE CONSTRUCTION LINE HORIZONTAL AND VERTICAL AND PLACE IT ANY WHERE ON THE SCREEN.
TAKE OFFSET OF 300M,1000MM,300MM,200MM,500MM,500MM,500MM FROM XL LINE IN X DIRECTION.
TAKE OFFSET OF 160MM,250MM,250MM,250MM,250MM,250MM FROM THE XL LINE IN Y DIRECTION.
RESULT:
