Creating Kitchen layout, Hatching of Architectural elements and sectional view of an Industrial Building in AutoCad
AIM:

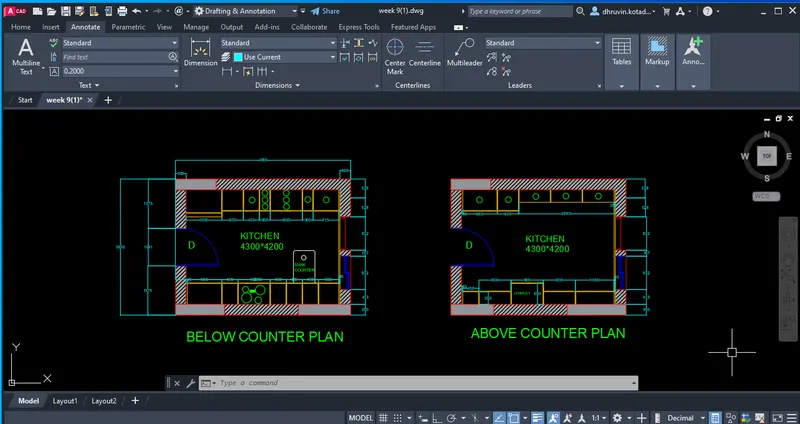

TO DRAFT THE KITCHEN LAYOUT BY USING AUTOCAD.
PROCEDURE:
CREATE THE CONSTRUCTION LINE IN HORIZONTAL AND VERTICAL DIRECTION.
TAKE OFFSET OF 300MM FOR THE OUTER WALL FROM THE VERTICAL LINE.
TAKE OFFSET OF 300MM FOR THE OUTER WALL FROM THE HORIZONTAL LINE.

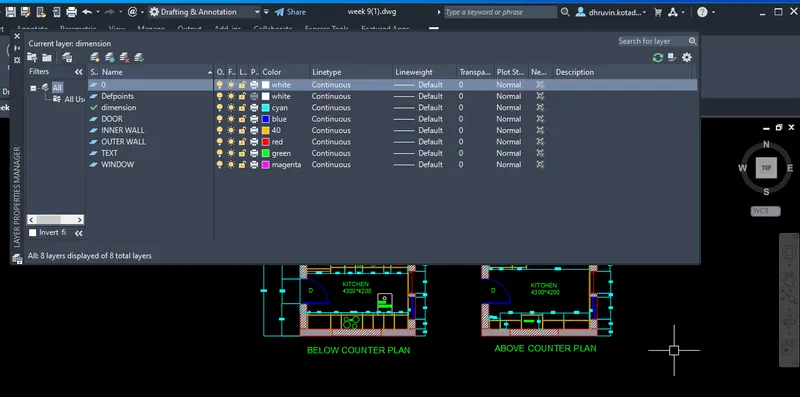

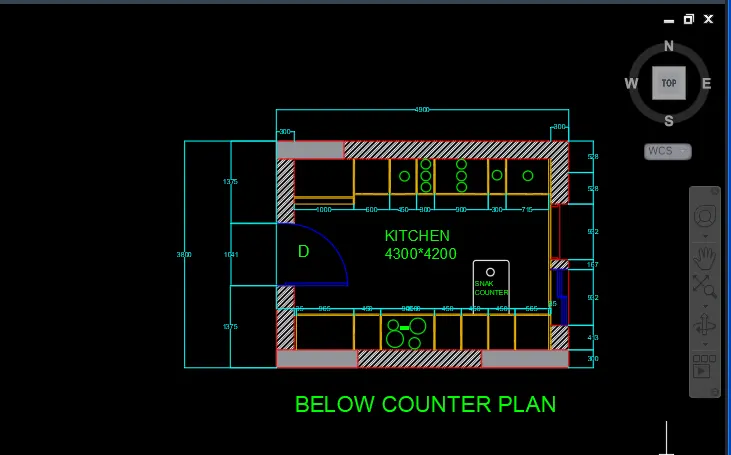

TO GET THE KITCHEN BELOW COUNTER PLAN
TAKE OFFSET OF 1000,600,450,300,900,300,715MM FROM THE 300MM WALL IN X DIRECTION AT TOP
TAKE OFFSET OF 600MM FROM THE TOP IN Y DIRECTION.
AGAIN TAKE OFFSET OF 10MM FROM EVERY OFFSET DISTANCE TOWARD LEFT AND RIGHT SIDE IN X DIRECTION
TAKE OFFSET OF 35,900,450,900,450,450,450,630,35MM RESPECTIVELY FROM THE 300MM WALL IN X DIRECTION AT BELOW.
TAKE OFFSET OF 600MM FROM THE BELOW IN Y DIRECTION.
AGAIN TAKE OFFSET OF 10MM FROM EVERY OFFSET TOWARD LEFT AND RIGHT SIDE IN X DIRECTION.

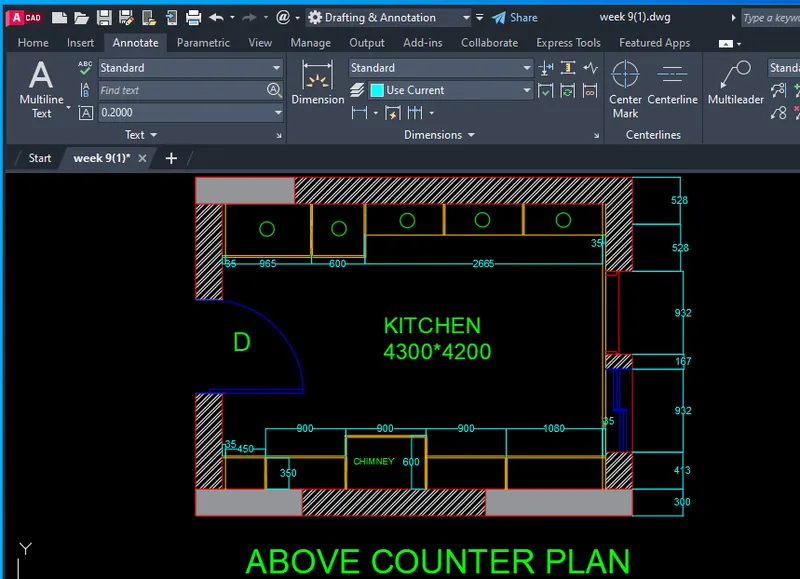

TO GET THE KITCHEN ABOVE THE COUNTER PLAN.
TAKE OFFSET OF 35,450,900,900,1080,35MM FROM THE 300MM WALL IN DIRECTION AT BELOW.
TAKE OFFSET OF 360MM FROM THE BELOW IN Y DIRECTION.
AGAIN TAKE OFFSET OF 10MM FRO EVERY DISTANCE TOWARD LEFT AND RIGHT SIDE IN X DIRECTION.
TAKE OFFSET OF 35,965,600,2665MM RESPECTIVELY FROM THE 300MM WALL IN X DIRECTION THE TOP.
TAKE OFFSET OF 600MM FROM THE TOP IN Y DIRECTION.
AGAIN TAKE OFFSET OF 10MM FROM EVERY OFFSET DISTANCE TOWARD LEFT AND RIGHT SIDE IN X DIRECTION.
RESULT:
AIM:

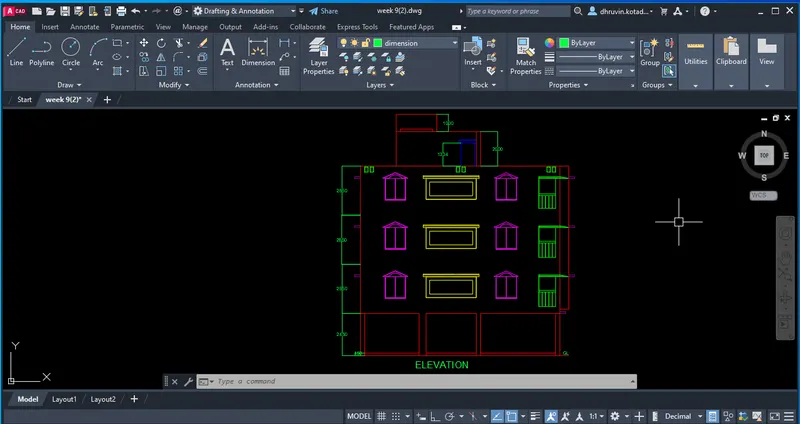

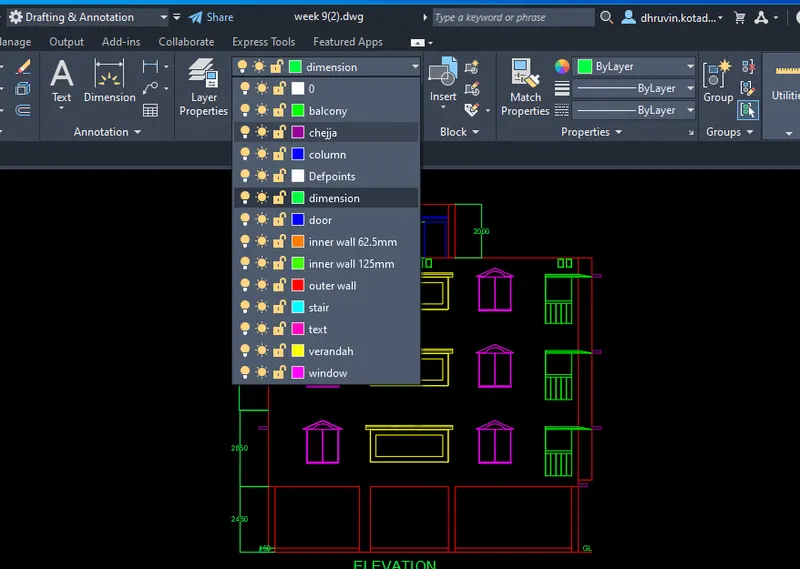

TO DRAFT THE ELEVATION OF THE BUILDING.
PROCEDURE:
CREATE CONSTRUCTION LINE IN HORIZONTAL AND VERTICAL LINE.
DRAW CONSTRUCTION LINE BELOW WHICH IS BASE LINE FOR THE SECTION.
TAKE OFFSET OF 150MM FROM THE BASE.
GROUND FLOOR:
TAKE OFFSET OF 2450MM FRO THE GL
PROJECTION DIMENSION IS 400MM FROM THE OUTSIDE OF THE WALL IN X DIRECTION AND 40MM UPWARD IN Y DIRECTION.
FIRST FLOOR:
TAKE OFFSET OF 2850MM FROM THE 2450MM LINE
CREATE A WINDOWS AND BALCONY FOR THE BUILDING.
THEN TAKE OFFSET OF 914MM FROM THE 2850 LINE TO GET SILL LEVEL
THEN TAKE OFFSET OF 2134MM FROM THE 2850 LINE TO GET DOOR & WINDOW LEVEL
THEN TAKE A OFFSET OF 2209MM FROM THE 2850 LINE TO GET LINTEL LEVEL.
THEN TAKE OFFSET 2775 MM FROM THE 2850 LINE TO GET FLOOR LEVEL.
THEN TAKE OFFSET 2850MM FROM THE 2850MM LINE TO GET SLAB LEVEL.
SECOND FLOOR:
TAKE OFFSET OF 2850MM FROM THE 2450MM LINE
CREATE A WINDOWS AND BALCONY FOR THE BUILDING.
THEN TAKE OFFSET OF 914MM FROM THE 2850 LINE TO GET SILL LEVEL
THEN TAKE OFFSET OF 2134MM FROM THE 2850 LINE TO GET DOOR & WINDOW LEVEL
THEN TAKE A OFFSET OF 2209MM FROM THE 2850 LINE TO GET LINTEL LEVEL.
THEN TAKE OFFSET 2775 MM FROM THE 2850 LINE TO GET FLOOR LEVEL.
THEN TAKE OFFSET 2850MM FROM THE 2850MM LINE TO GET SLAB LEVEL.
THIRD FLOOR:
TAKE OFFSET OF 2850MM FROM THE 2450MM LINE
CREATE A WINDOWS AND BALCONY FOR THE BUILDING.
THEN TAKE OFFSET OF 914MM FROM THE 2850 LINE TO GET SILL LEVEL
THEN TAKE OFFSET OF 2134MM FROM THE 2850 LINE TO GET DOOR & WINDOW LEVEL
THEN TAKE A OFFSET OF 2209MM FROM THE 2850 LINE TO GET LINTEL LEVEL.
THEN TAKE OFFSET 2775 MM FROM THE 2850 LINE TO GET FLOOR LEVEL.
THEN TAKE OFFSET 2850MM FROM THE 2850MM LINE TO GET SLAB LEVEL.
PARAPET WALL:
TAKE A OFFSET OF 2000MM FROM THE 2850MM LINE IN Y DIRECTION.
DRAW LINE NEAR THE LEFT WINDOW HAVING A LENGTH 2000MM IN Y DIRECTION.
TAKE OFFSET OF 5000MM FROM THE 2000MM LINE IN X DIRECTION.
DOOR HAVING A WIDTH 742MM AND HEIGHT 1334 THEN TAKE A OFFSET OF 10MM INSIDE THAT DOOR.
THEN TAKE OFFSET OF 1000MM FROM THE 2000MM IN Y DIRECTION.
DRAW A LINE AT THE LEFT END HAVING A LENGTH 1000MM IN Y DIRECTION.
RESULT:
AIM:

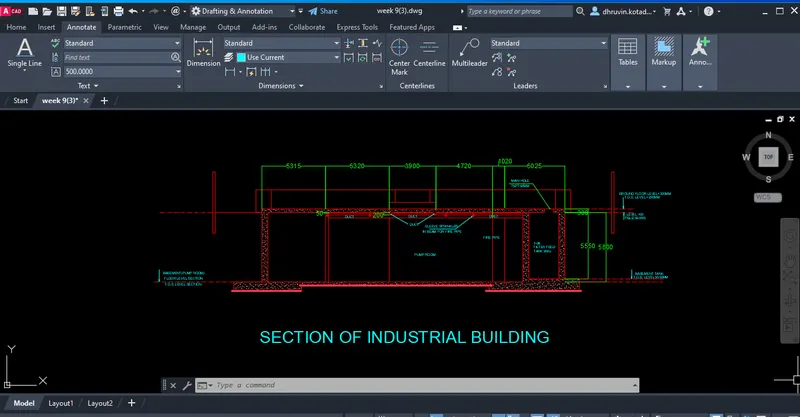

TO DRAFT THE SECTIONAL VIEW OF INDUSTRIAL BUILDING.
PROCEDURE:
CREATE A CONSTRUCTION LINE IN HORIZONTAL AND VERTICAL DIRECTION.
TAKE OFFSET OF 5315,5320,3900,4720,1020,5025MM FROM THE VERTICAL LINE IN X DIRECTION.
TAKE OFFSET OF 5800,5550MM FROM THE BASE LINE AND AGAIN TAKE OFFSET OF 300MM FROM THE 5800MM LINE IN Y DIRECTION.
TAKE OFFSET OF 250MM,700MM,800MM FROM THE BASE LINE IN Y DIRECTION
TAKE OFFSET OF 1500MM FROM THE VERTICAL 700MM LINE CREATE THE FILTERED FEED TANK
DRAW VERTICAL LINE FROM 1500MM UPTO 5800MM LINE.
TAKE OFFSET OF 500MM FROM THE VERTICAL BASE LINE TO DRAW A WALL FOR THE FILTERED FEED TANK IN X DIRECTION.
AGAIN TAKE OFFSET 2500MM FROM THE OFFSETED 500MM AND AGAIN TAKE A OFFSET OF 500MM FROM THE 2500MM LINE IN X DIRECTION.
TAKE A OFFSET OF 250MM FROM THE 300MM LINE WHICH IS AT TOP IN Y DIRECTION.
TAKE OFFSET OF 25MM FROM THE 300MM LINE WHICH IS AT TOP IN Y DIRECTION PROVIDE A GAP TO THE WALL.
TAKE OFFSET OF 750MM TO CRAETE A OPENING FOR THE MANHOLE.
TAKE OFFSET OF 20MM ,50MM,200MM,450MM FROM THE HORIZOTAL WALL TO CREATE A DUCT IN Y DIRECTION.
CREATE A SLEEVE SPRINKLER IN BEAM FOR FIRE PIPE NEAR THE PUMP ROOM.
DRAW A FIRE PIPLE FROM THE DUCT TILL THE BASE LINE.
AT THE LEFT SIDE WALL DRAW A LINE HAVING LENGTH 2500 IN X DIRECTION.
AT THE BOTTOM CONNECT THE OFFSETED VALUES OF 250MM ,700MM,800MM FROM THE BASE LINE IN Y DIRECTION.
IN THE MIDDLE PORTION TAKE OFFSET OF 100MM FROM THE 250MM LINE TAKE A OFFSET OF 200MM FROM THE 100MM LINE AND TAKE A OFFSET OF 100MM FROM THE 200MM LINE TO CREATE A CONCRETE BED AND PCC
THEN DRAW 3 LINES VERTICALLY HAVING A HEIGHT 1900MM .2 LINES FROM THE WALL EDGE LEFT AND RIGHT SIE WHICH AT TOP AND ANOTHER FROM THE +00 LINES.
THEN THE DRAW VERTICAL LINE 550MM FROM THE MID LINEIN Y DIRECTION AND HORIZONTAL LINE AT 3900MM IN X DIRECTION AND CLOSED IT.
THEN DRAW VERTICAL LINE FROM THE CREATED GEOMETRY HAVING LENGTH 1350MM MM IN Y DIRECTION.
THEN USE COMMAND FOR HATCH AND HATCH THE PORTION OF WALL.
