Project 1 _Creating an Architectural plan for the provided plot size and develop relevant basic structural drawings
AIM - Design and Draft a layout of a residential building with the following details:
a. Plot Size: 60’x20’(18.3m x6m)
b. Orientation- Facing East
c. Develop the following: 1. Architectural Drawing (Floor Plan, Elevations, and Sections) 2. Structural Drawing (Column, Beam, Footing Plan)
PROCEDURE: -

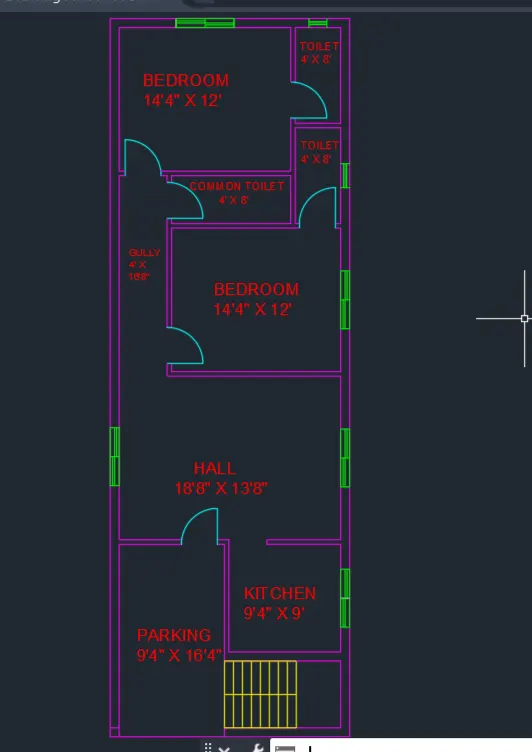

STEP 1: GROUND FLOOR PLAN
1.External Walls :
To create a Layer
In the Layer Properties Manager, click New Layer.
A layer name is added to the layer list.
Enter a new layer name as wall by typing over the highlighted layer name.
Select a suitable colour for that layer.
Using the construction line, offset, trim and fillet tool the external walls was drawn and a thickness of 9" was provided for these walls

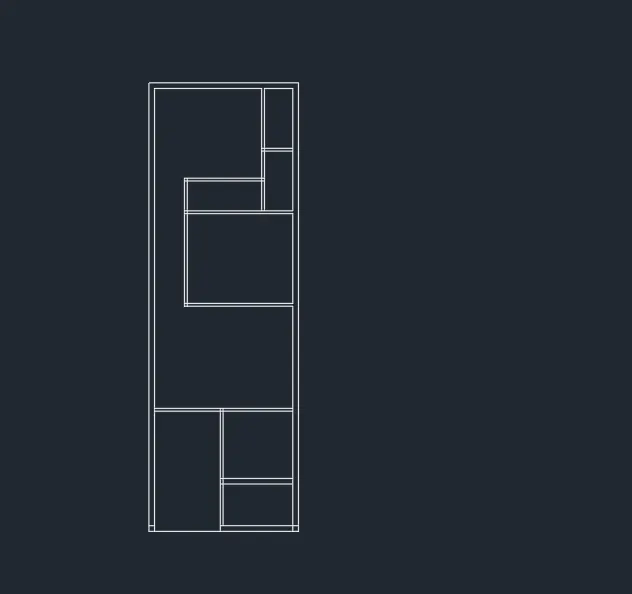

2. Internal walls
The internal walls was also given the same layer as that of external walls.
The thickness of internal walls was taken as 4.5"
A small provision for sit out is also provided in the plan.
A hall of size 18'8" X 13'8"was drawn and is followed by the rooms and size of rooms as follows.
Toilet-4' x 8'
Bedroom-14'4" X 12'
Toilet-4' X 8'
Master bedroom-14'4" X 12'
Kitchen-9'4" X 9'
Parking-9'4" x 16'4"
A open kitchen dining layout is made for this plan and is separated from each other by a slab

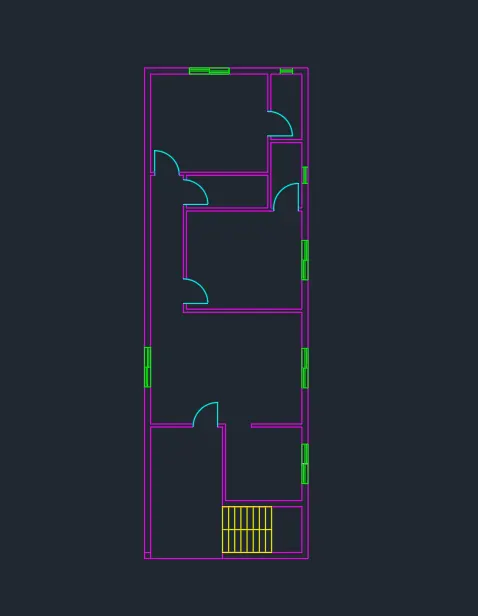

The edges and corners after trimming or filleting the following image is obtained
3.Staircase and steps
A new layer is now created, named as staircase and a suitable colour is selected and this layer is made as the default.
The Dimension data of staircase is as follows:
Thread: 9"
Riser: 7.5"
Now using the line and offset tool staircase was drafted and the following image is obtained
This was done with help of line and offset command
4.Doors
A new layer is now created, named as doors and windows and a suitable colour is selected and this layer is made as the default.
Two sizes of doors was made and the dimensions is as follows:
D1: 2'6"x6'5"
D2:2'x6'5"
D3:2'3"x6'5"
The doors was drawn with help of line, offset, trim and circle command.
5.Windows
The doors and windows layer was selected as default and the windows was plotted with the help of line, offset, trim command.
Different sized windows was made and the dimensions is as follows:
W1: 4'10" X 4'10"
W2: 4' 2" X 4' 10"
Along with the windows sunshade of 2'3"width was also drafted using the dotted lines ACAD_ISO02W100
6.Ventilations
The doors and windows layer was selected as default and the single ventilation of size 2' X 2' was plotted with the help of line, offset, trim command.
7.Blocks
A new layer is now created, named as blocks and a suitable colour is selected and this layer is made as the default
Pre-existing block drawing of wash basin, dining table and closet blocks was placed at the correct places and the following image is obtained
8.Dimensions
A new layer is now created, named as dimensions and a suitable colour is selected and this layer is made as the default

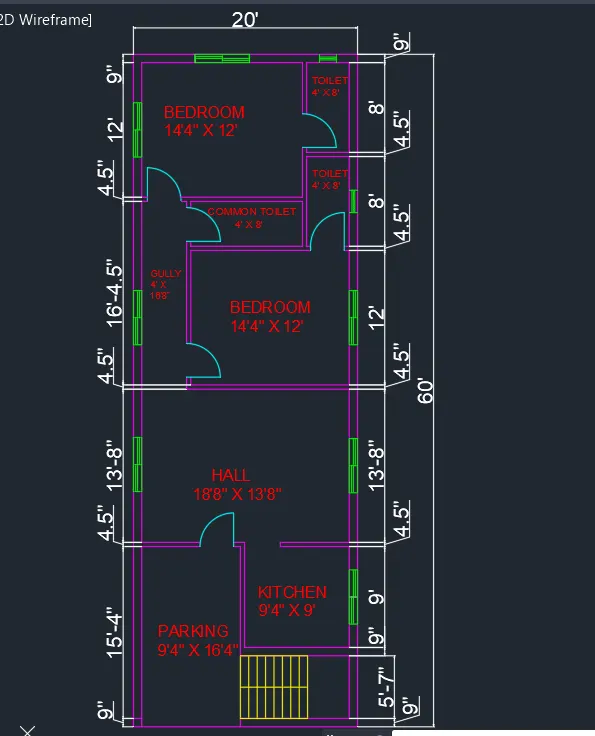

Now using the Dimlin the dimensions was plotted and the following image is obtained
9.Texts
A new layer is now created, named as texts and a suitable colour is selected and this layer is made as the default.
Now using the MTEXT all the texts was made and the following image is obtained.
RESULTS:
RESULT :

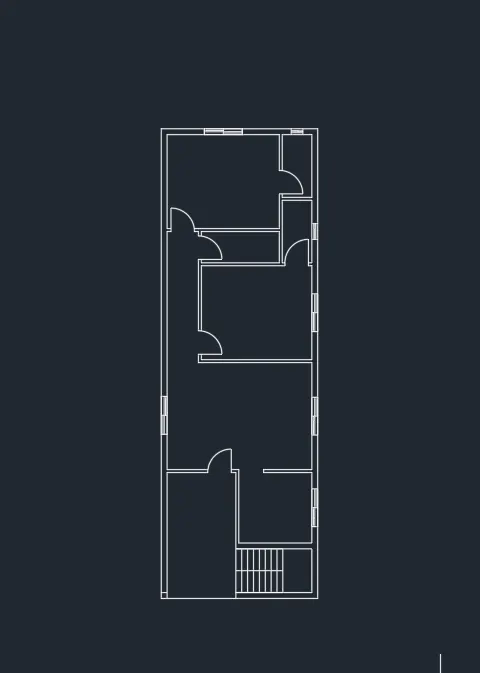

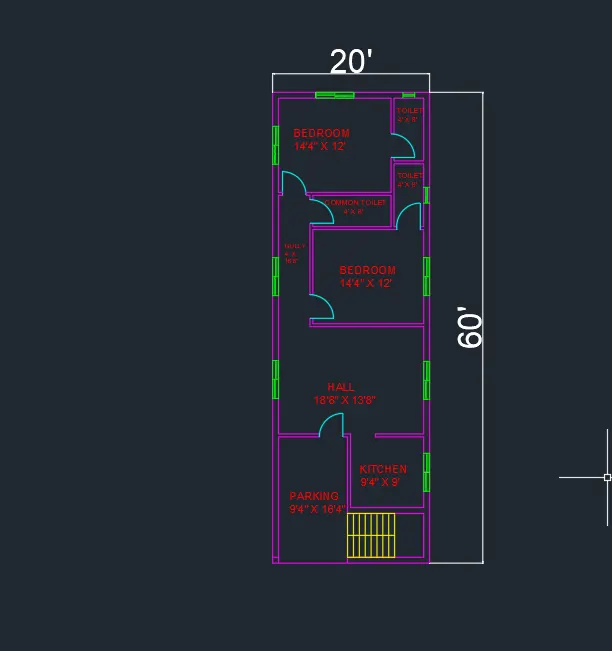

The ground floor plan was drafted in AutoCAD and the final image is as follows
STEPS 3: FIRST FLOOR AND 2ND FLOOR PLANS
1.External walls
The wall layer which was created was made default layer.
Using the construction line, offset, trim and fillet tool the external walls was drawn and a thickness of 9" was provided for these walls
2.Internal walls
The internal walls was also given the same layer as that of external walls.
The thickness of internal walls was taken as 4.5"
A hall of size 18'8" X 13'8"was drawn and is followed by the rooms and size of rooms as follows.
Toilet-4' x 8'
Bedroom-14'4" X 12'
Toilet-4' X 8'
Master bedroom-14'4" X 12'
Kitchen-9'4" X 9'
Parking-9'4" x 16'4"
The edges and corners after trimming or filleting the following image is obtained
3.Staircase
The staircase layer which was created earlier was made the default layer.
The Dimension data of staircase is as follows:
Thread:9"
Riser: 7.5"
Now using the line and offset tool staircase was drafted and the following image is obtained
The dotted lines ACAD_ISO02W100 indicating the lower part of staircase was also drawn by setting a global scale factor
4.Door
The doors and windows layer is selected and this layer is made as the default.
Two sizes of doors was made and the dimensions is as follows:
D1: 2'6"x6'5"
D2:2'x6'5"
D3:2'3"x6'5"
The doors was drawn with help of line, offset, trim and circle command.
5.Windows
The doors and windows layer was selected as default and the windows was plotted with the help of line, offset, trim command
The windows was plotted next and all the windows had the same dimensions:
W1: 4'10" X 4'10".
Along with the windows sunshade of 2.3'width was also drafted
6.Ventilation
The doors and windows layer was selected as default and the ventilations of size 2' mm was plotted with the help of line, offset, trim command.
7.Blocks
The Blocks layer is selected and this layer is made as the default
Pre-existing block drawing of wash basin and closet was placed at the correct places and the following image is obtained
8.DIMENSIONS
The Dimensions layer is selected and this layer is made as the default
Now using the Dimlin the dimensions was plotted and the following image is obtained
9.Texts
The texts layer is selected and this layer is made as the default.
Now using the MTEXT all the texts was made and the following image is obtained.
The first floor plan was drafted in AutoCAD and the final image is as follows

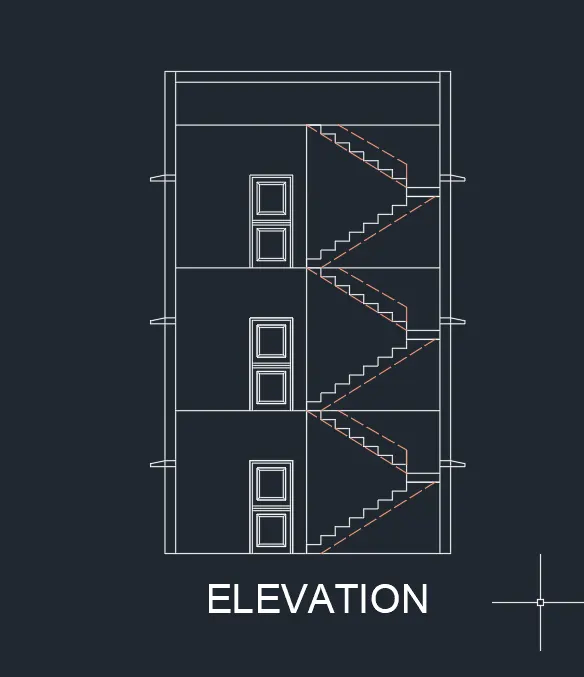

STEP 4: ELEVATION
Type X L. in command box and press enter.
Click on ''ver" in command box.
Select the points required to take the projection for Elevation.
Draw a Horizontal line for Ground level which cuts all vertical line projections.
Now, type "Breakpoint" in the command box and break all the vertical projection lines from the point of intersect ion with horizontal line.
Type "E" for erase command and press enter.
Select all the vertical line below the horizontal line and press enter.
Mark this horizontal line as Natural Ground Level.
Type "O" for offset in command box and press enter.
Specify offset distance as 2' and press enter.
Select the horizontal line drawn earlier and click on top.
Type "O" for offset in command box and press enter.
Specify offset distance as 10' and press enter.
Select the last offset line and click on top.
Type "O" for offset in command box and press enter.
Specify offset distance as 10' and press enter.
Select the last offset line and click on top.
Type "O" for offset in command box and press enter.
Specify offset distance as 3'2" and press enter.
Select the last offset line and click on top.
Type 'TR" in command box for Trim command and trim the extra portions.
Change the current layer to “DOORS AND WINDOWS “layer.
Type "L" in the command box and press enter.
Draw the line connecting the door and window line projections at the ground-floor level.
The doors and windows are drawn with the help of line command.
The door size will be small as the door wall is not aligned vertically
Using the hatch command a suitable hatch pattern was given to the hatch the windows.
The sunshades was also drawn at this point of time.
Type 'TR" in command box for Trim command and trim the extra portions.
In the similar manner the first floor doors and windows was also drafted and hatched as in above steps.
The Staircase and steps layer was now made active.
The steps was projected as shown to draw the entrance steps
Type 'TR" in command box for Trim command and trim the extra portions.

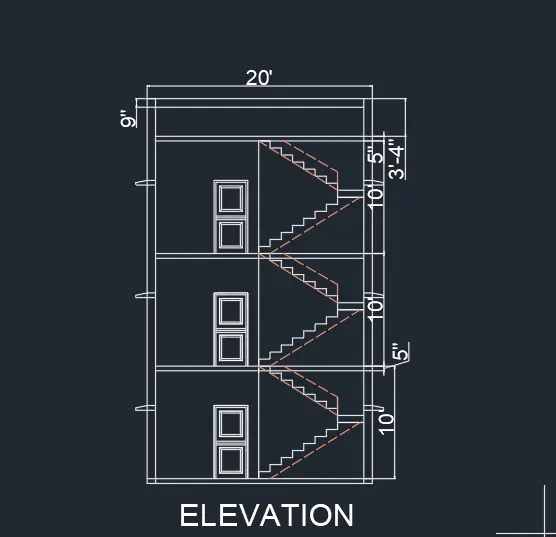

Using the DIMLIM command the dimensioning was done as required and the final elevation view of house is as shown.

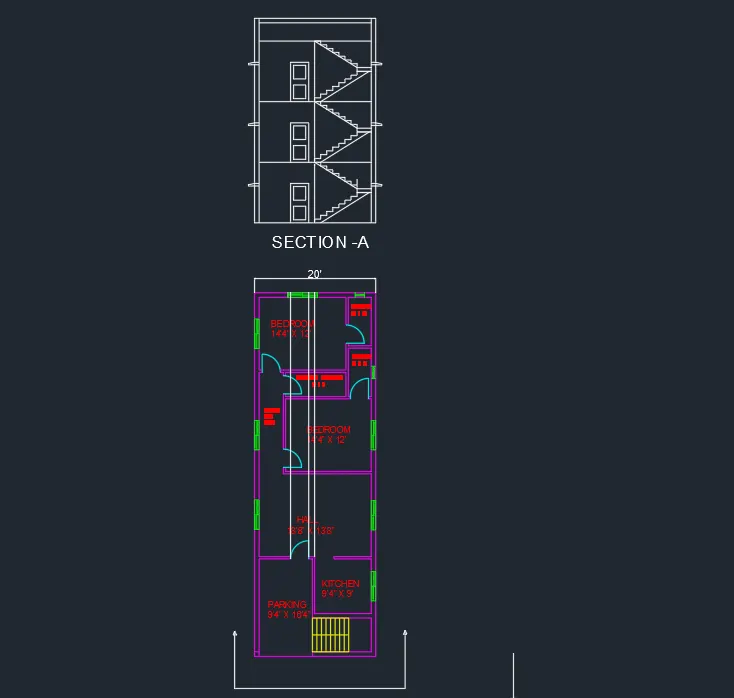

STEP 5: SECTION DRAWING

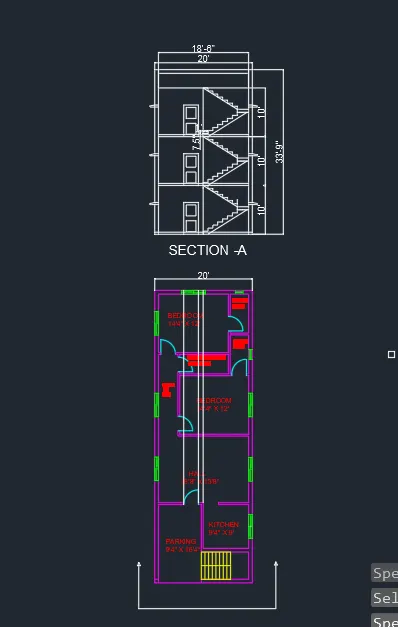

The Ground floor and First floor And 2ND Floor plan are shown along with the section line A and B
Type X L in command box and press enter.
Click on ''ver" in command box.
Select the points required to take the projection for Section A.
Draw a Horizontal line for Ground level which cuts all vertical line projections.
Now, type "Breakpoint" in the command box and break all the vertical projection lines from the point of i intersection with horizontal li ne.
Type "E" for erase command and press enter.
Select all the vertical line below the horizontal line and press enter.
Take this horizontal line as N.G.L.

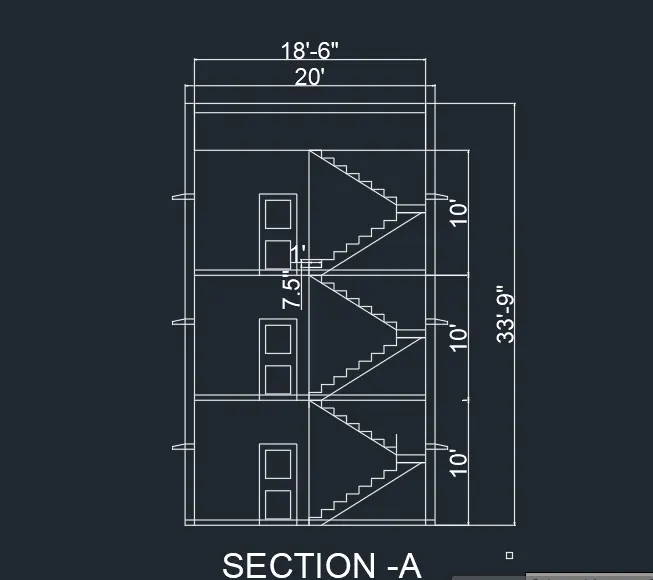

The plan dimension height is taken as follows
Plinth level 1'11"
Floor thickness 5"
Room height 9'6"
Floor thickness 5"
Room height 9'6".
Parapet 3'2"
All the wall projections was projected as shown.
Type 'TR" in command box for Trim command and trim the extra portions.
Change the current layer to Door and window layer.
Type "L" in the command box and press enter.
Draw lines connecting the windows and the door positions in both ground and first floors.
From the projections we will easily get the dimension of windows and doors and was drafted
All the doors and windows projections was projected as shown.
Type 'TR" in command box for Trim command and trim the extra portions.
Change the current layer to Staircase and steps layer.
Type "L" in the command box and press enter.
Draw lines connecting the staircase and entrance steps positions in both ground and first floors.
From the projections we will easily get the dimension of steps and was drafted.
Thread of staircase-9"
Riser of staircase-7.5"
All the staircase and stairs projections was projected and drawn as shown and SECTION A is completed
Type 'TR" in command box for Trim command and trim the extra portions.

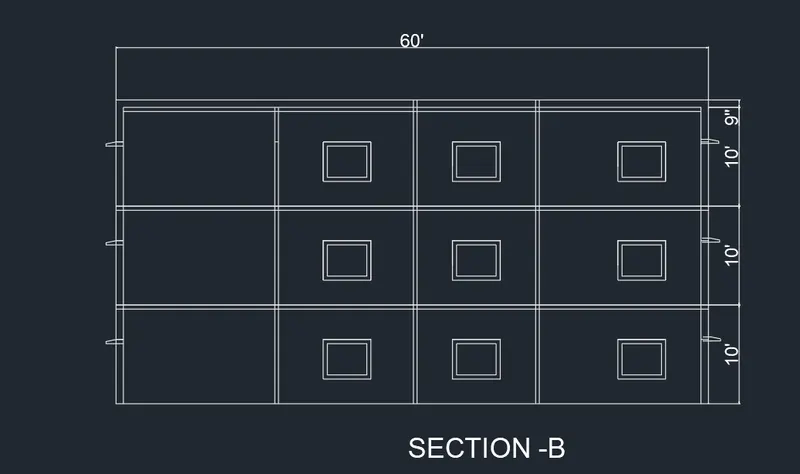

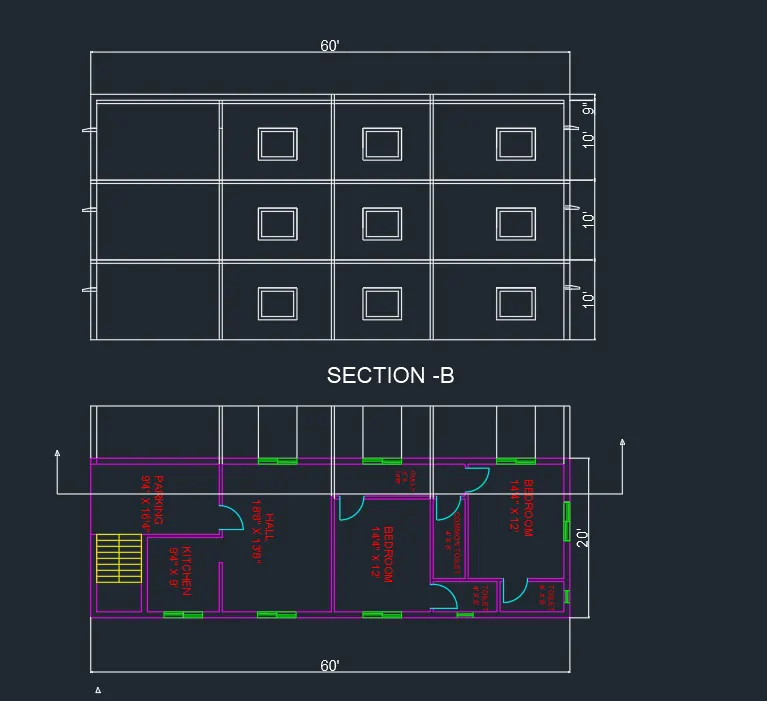

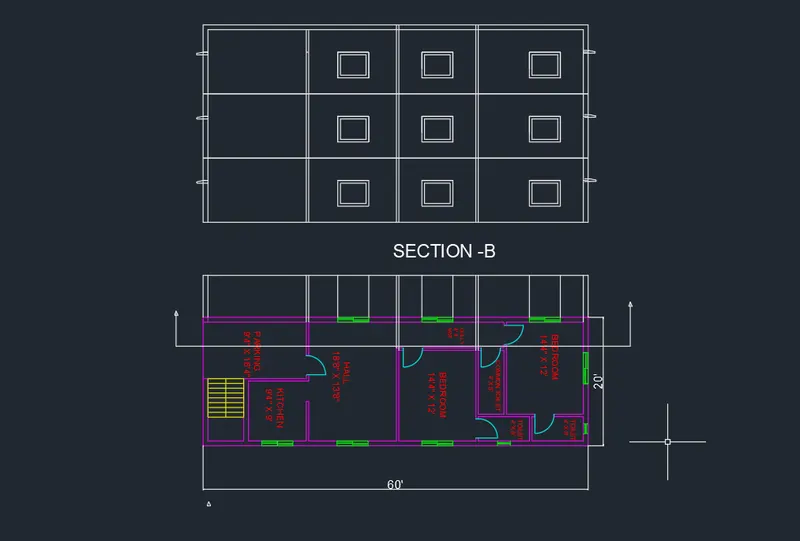

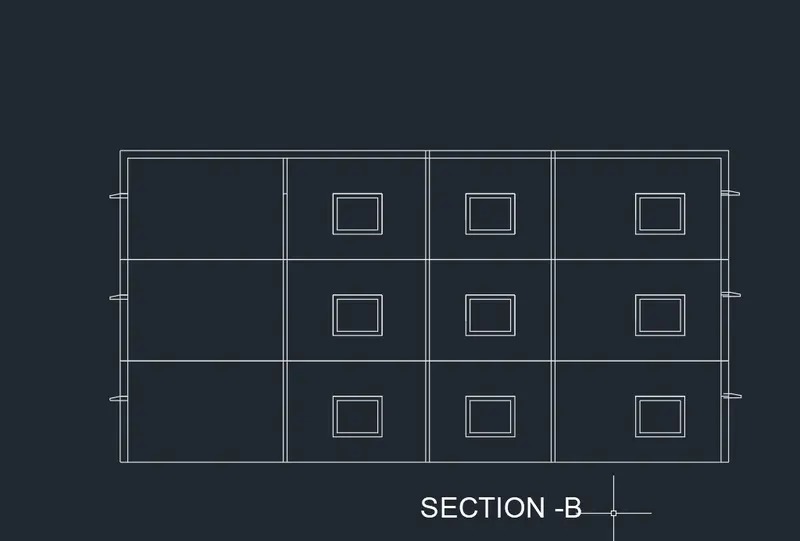

SECTION B
Type "XL'' in command box and press enter.
Click on "Hor" in command box.
Select the points required to take the projection for Section B
Draw a Vertical line which cuts all horizontal line projections.
Now, type "'Breakpoint" in the command box and break all the vertical projection lines from the point of intersection with horizontal line.
Type "E" for erase command and press enter.
Using the projection all the wall parts was completed first

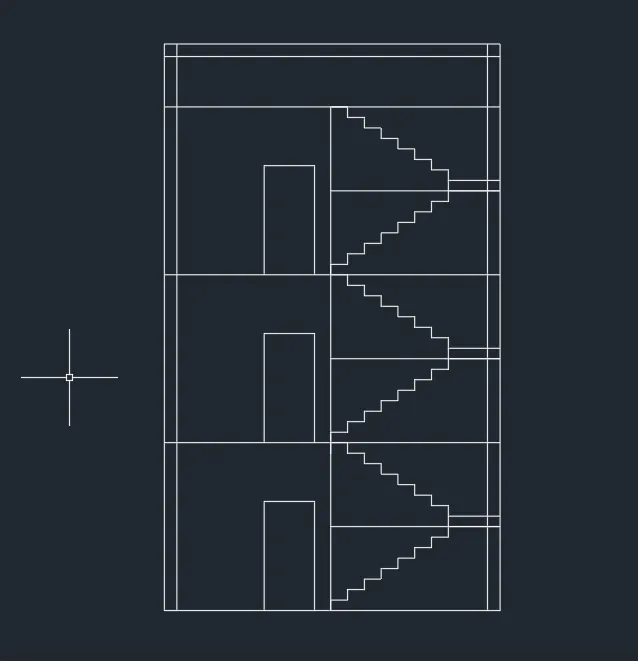

Draw the staircase with the taking the riser as 7.5"and treads as 9".
Type 'TR" in command box for Trim command and trim the extra portions.
The section B is now complete
RESULT:
All the architectural drawing is now complete.
The Ground Floor Plan, First Floor Plan, Elevation, Section A and Section B is as shown as above.

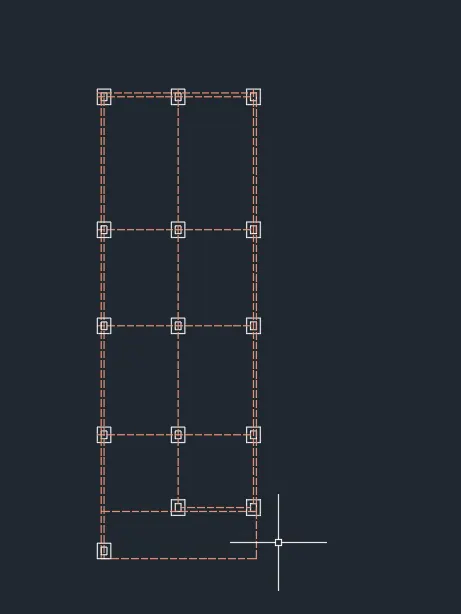

STEP 6: COLUMN LAYOUT
- Column size to take 9" x 1'.
- Turn off All the Layers except columns and center line.
- Use the copy command and Select all the columns from plan view drawing and move them to a different position.
- Select the layer "center line".
- Type "L" for the line command and press enter.
- Draw the center line through each column from their center point.
- Extend the center lies a little from each column as shown below.
- Type "c" in the command box and press enter.
- Draw a small circle with respect to the drawing and press enter.
- Copy the circle to extension point of center line and fill the text in-between the circle by typing "DT" command in the command box.
- Turn all ayers on and select the dimension layer and give dimension to the drawing.
- Give title to the drawing by using DT command.
- Give names to each column in that layout
- The Column layout is now completed and is as shown

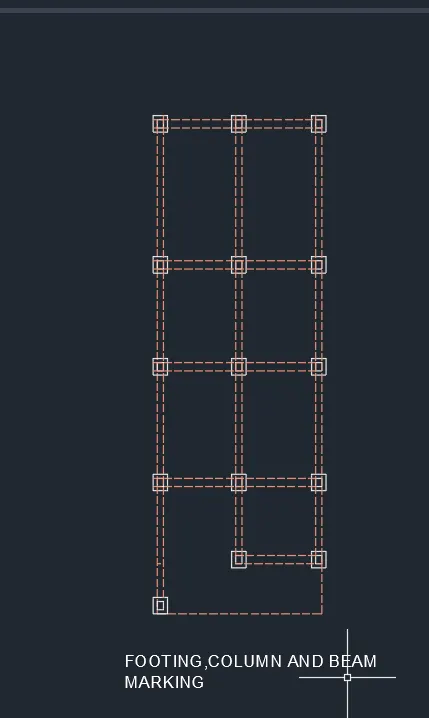

STEP 7: BEAM LAYOUT
BEAM LAYOUT FOR FLOORS:-
- Turn off All the Layers except columns,beam,centerline and walls.
- Use the copy command and Select all the columns from ground floor plan view drawing and move them to a different postion.
- join all the columns with line command for representing the beam.
- Select the layer "Beam" and specify all the column joining lines in the beam layer.
- Select the layer "center line".
- Type "L" for the line command and press enter.
- Draw the center line through each column from their center point.
- The primary beams which connect from column to column is now completed.
- Secondary beams are beams which connects from the primary beam.
- All the internal walls are connected to the primary beams.
- Extend the center lines a little from each column as shown below.
- Type "c" in the command box and press enter.
- Draw a small circle with respect to the drawing and press enter.
- Copy the circle to extension point of center line and fill the text in between the circle by typing"DT" command in the command box.
- Turn alll ayers on and select the dimension layer and give dimension to the drawing.
- Give title to the drawing by using"DT" command.
- Give names to each beam in the layout.

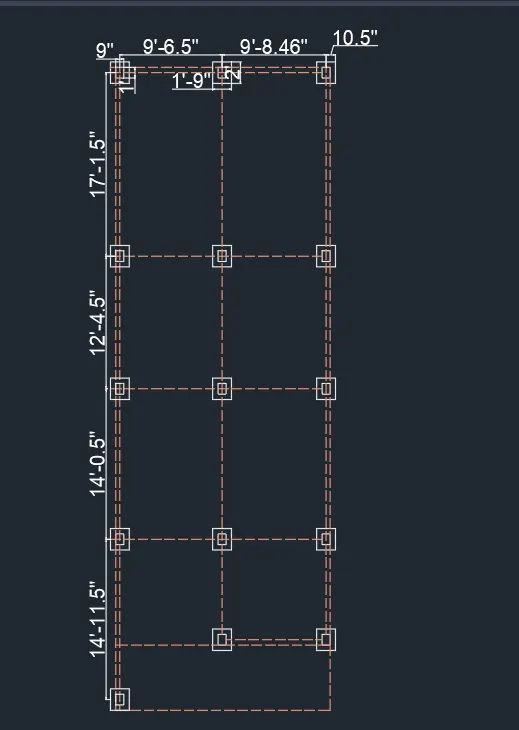

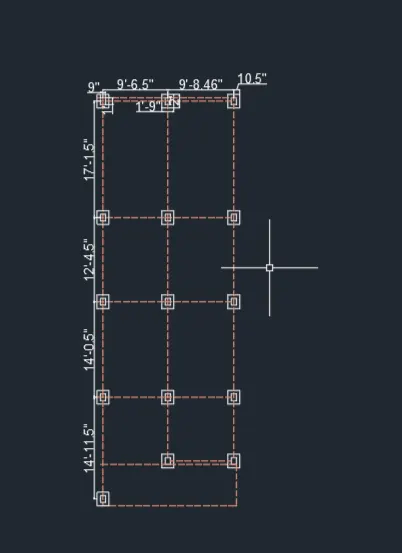

STEP 8: FOOTING LAYOUT
- Use the copy command and Select column layout drawing and move it to some other location.
- Select the layer "center line".
- Type "L" for the line command and press enter.
- Draw the center line through each column from their center point.
- Extend the center lines a little from each column as shown below.
- The size of the Isolating footing is taken as 1'9" x 2'.
- Type "c" in the command box and press enter.
- Draw a small circle with respect to the drawing and press enter.
- Copy the circle to extension point of center line and fill the text in between the circle by typing "DT" command in the command box.
- Turn all layers on and select the dimension layer and give dimension to the drawing.
- Give title to the drawing by using "DT" command.
- Give names to each column in the layout
RESULT:- All the architectural drawing and structural drawing of the house in the plot 60' x 20' facing east is drafted and The Ground Floor Plan, First Floor and Second Floor Plan, Elevation, Section A and Section B Is completed And The Structural Drawing COLUMN LAYOUT, BEAM LAYOUT AND FOOTING LAYOUT Is Now Completed by using autocad.
