Project 1 _Creating an Architectural plan for the provided plot size and develop relevant basic structural drawings

AIM:

Design and Draft a layout of a residential building with the following details:

a. Plot Size: 60’x20’(18.3m x6m)

b. Orientation- Facing East

c. Develop the following: 1. Architectural Drawing (Floor Plan, Elevations, and Sections) 2. Structural Drawing (Column, Bean, Footing Plan)

INTRODUCTION:

PROCEDURE:

open the new drawing file and change the units to decimals to engineering and enter

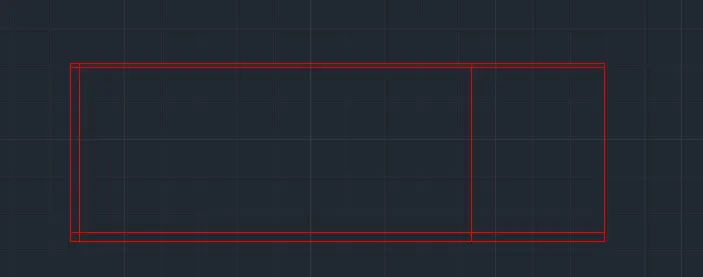

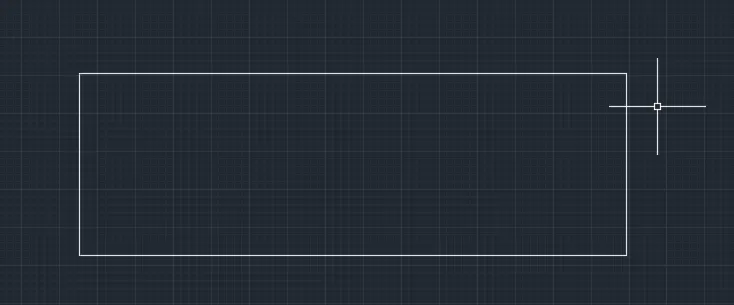

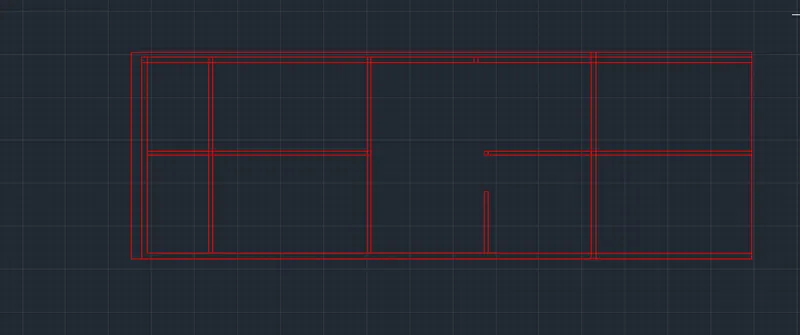

Draw the rectangle using command REC enter with 60',20' and enter

create a required layer properties

explode the rectangle with ex enter

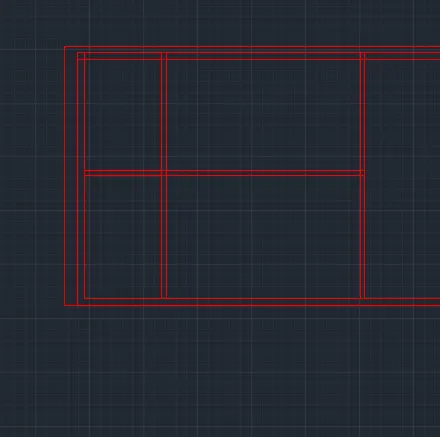

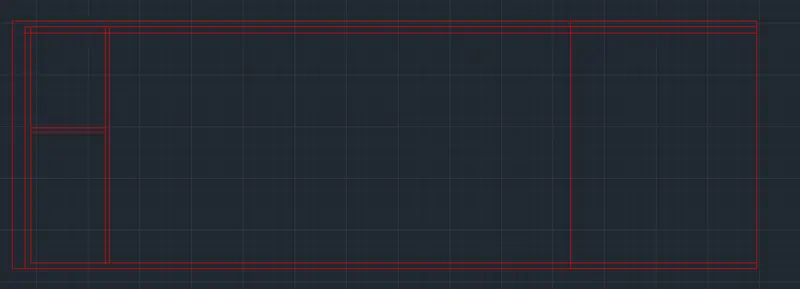

Use the offset command and do offset to the north side line with 6"

Use the offset command and do offset to the west side line with 1'

Use the offset command and do offset to the south side line with 1'

Use the offset command and do offset to the east side line with 15'

Use the offset command and do offset to the west side line with 6''

Use the offset command and do offset to the west side line with 6'

Use the offset command and do offset to the west side line with 4"

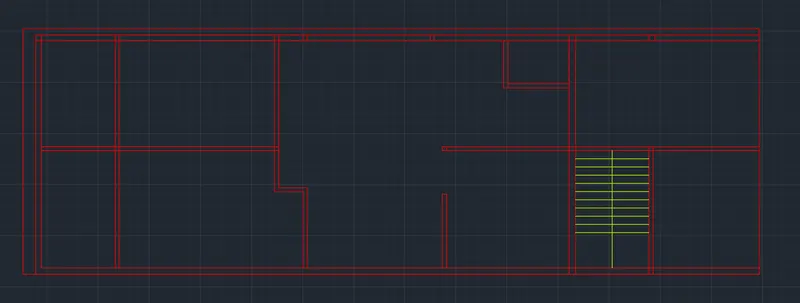

And draw the required walls for the toilets

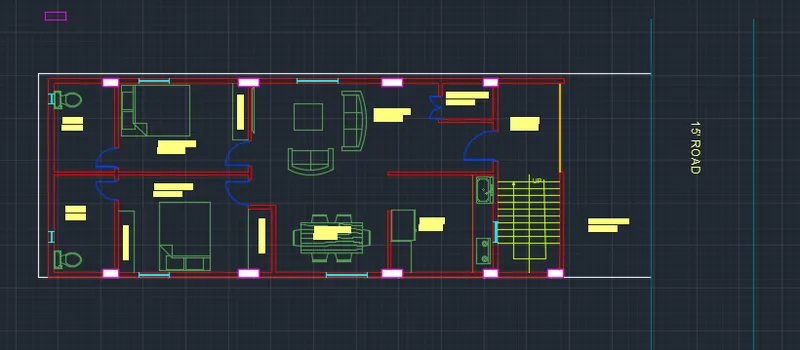

And draw the master bedroom and childern bedroom

And draw the kitchen area

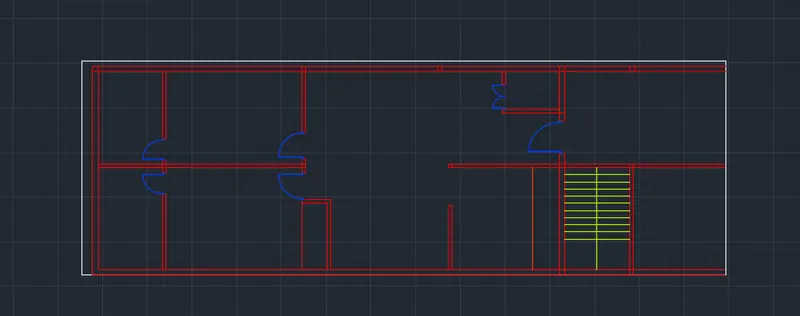

Darw the staricase with the stair case layer

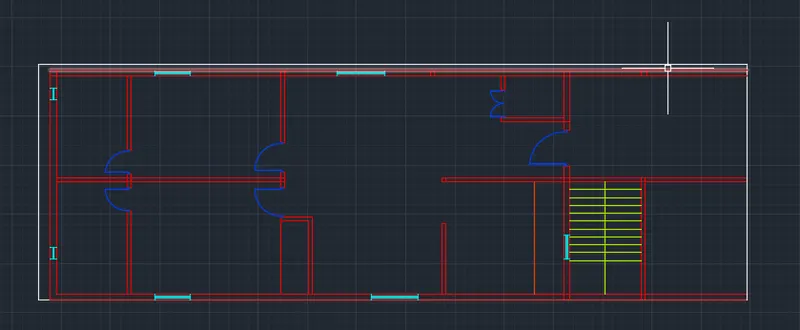

Give the required doors for the floor plan in entrances and bed rooms toilets and pooja room with the door layer properties

and draw the windows for the floor plan with the layer properties

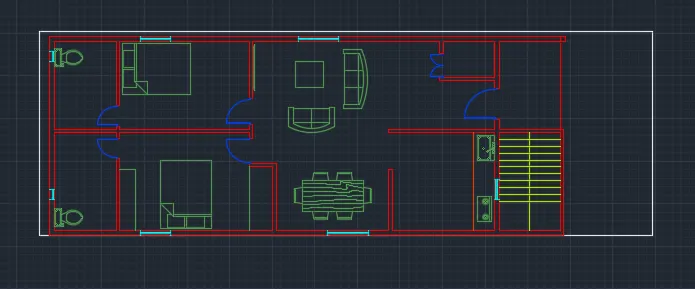

And draw the furniture for drawing with his layer properties

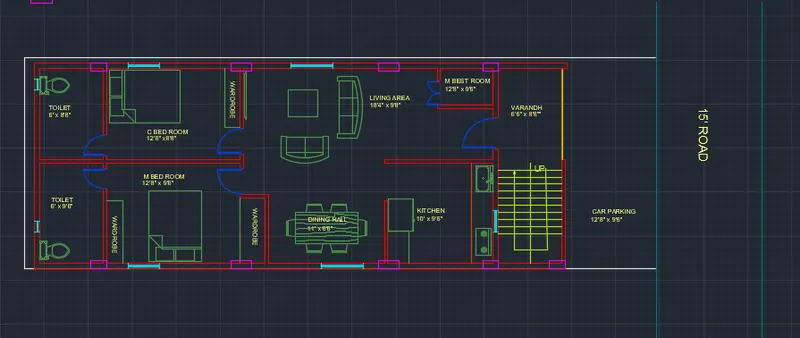

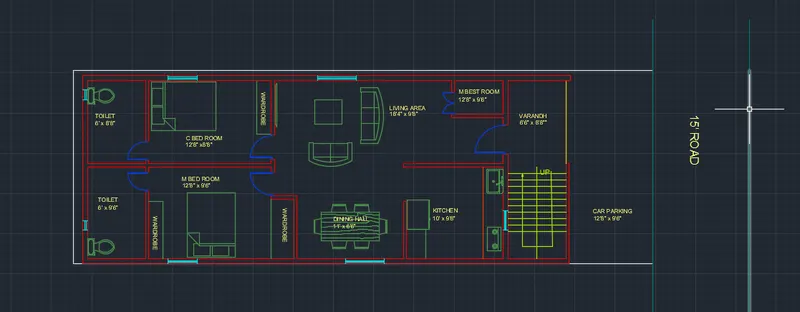

And entry required text

Draw the columns for the house with column layer properties

Hatech the columns with solid hatch

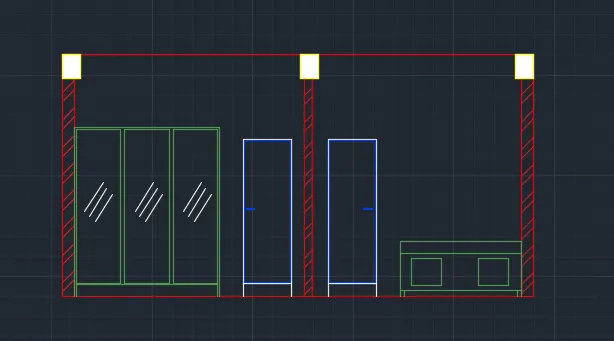

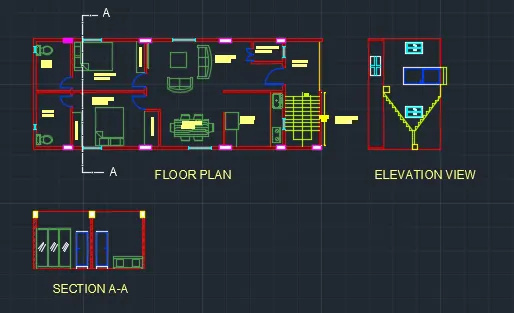

section A-A View

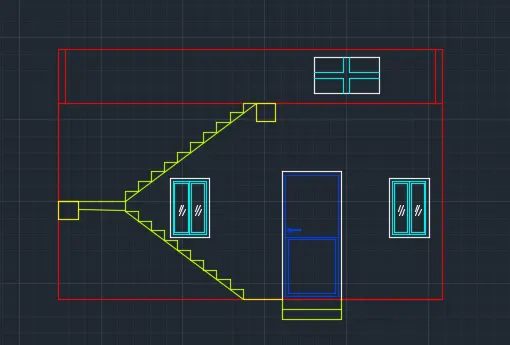

elevation view of the house

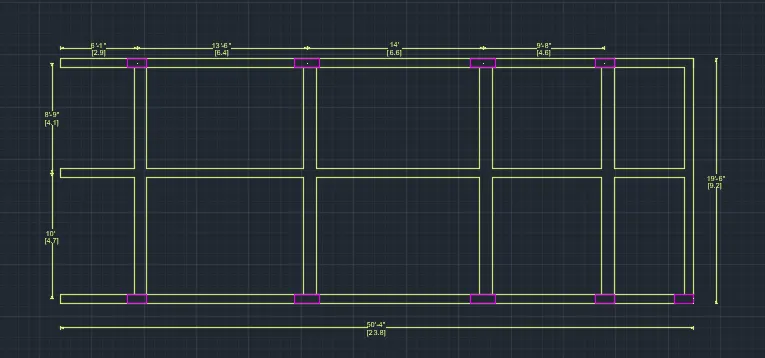

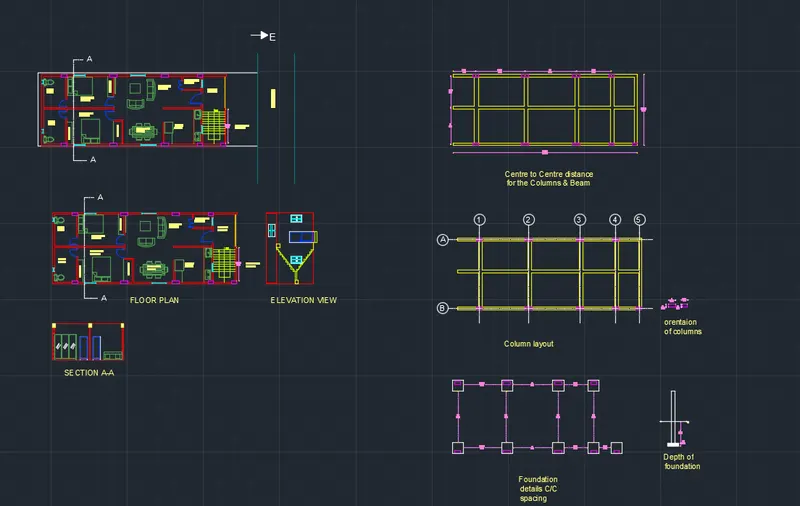

After the completing the floor plan and i am drawing the column and beam and fotting layout

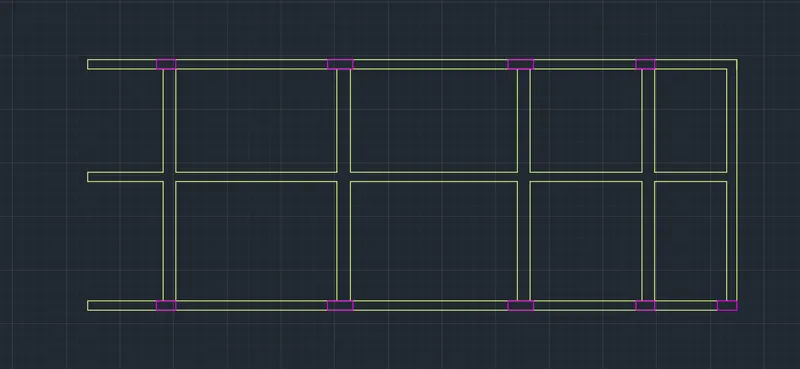

Columns and beam

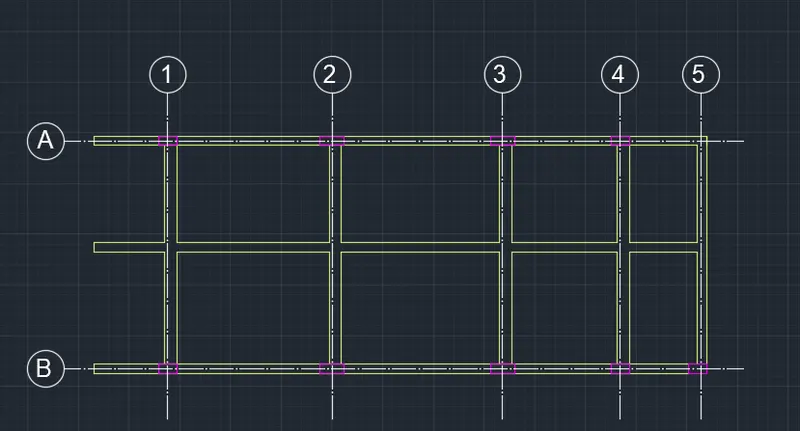

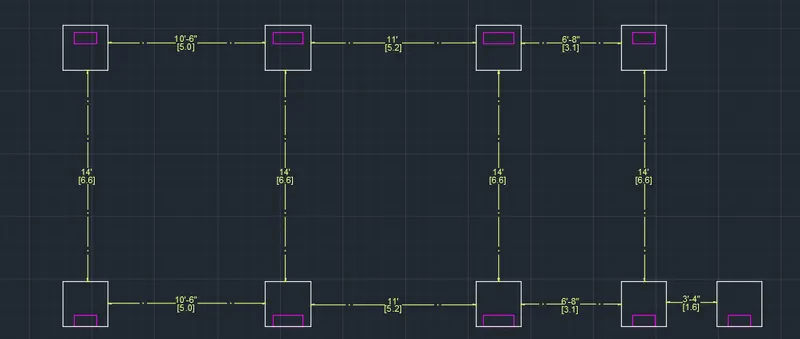

c/c distance for beam and column

So i am assuming the ecentric type fotting for my floor plan

while designing the ecentric footing does not over trum due to uplift

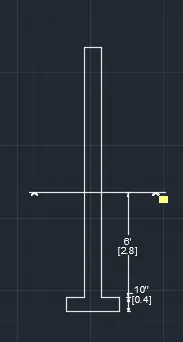

Footing details

RESULT:
