Project 1 _Creating an Architectural plan for the provided plot size and develop relevant basic structural drawings

AIM:
To design and draft a layout of a residential building
To create an architectural drawing and structural drawing.
To show Plan ,elevation and Sections for a plot size of 60'x20'.
To show column ,Beam, Footing plan.
To use proper texts and dimensions.
Procedure:
Select a line tool
Set the units of the project in Engineering

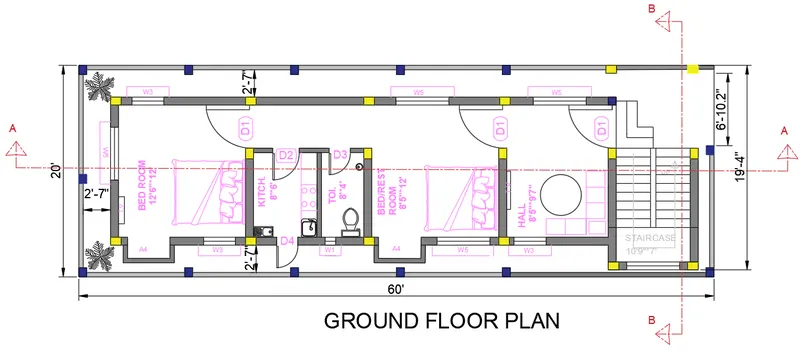

Draw a rectangle of size 60feet×20feet
Offset the outline of the rectangle inward to form a wall from the plan

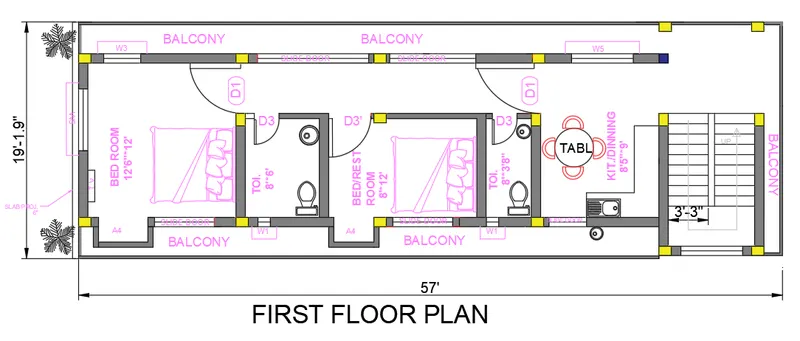

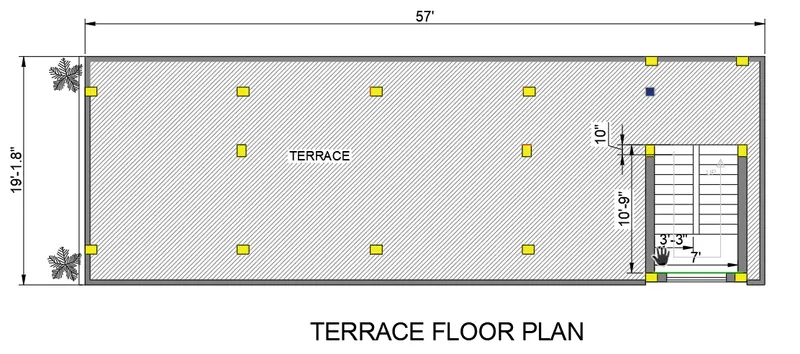

Further the rooms are divided as hall, bedroom, kitchen, ...etc
Doors and windows are drawn as block and placed in the room
Windows and doors dimensions are differentiated according to the types of room
This plan contains porch, balcony, hall, kitchen, bedroom, toilet.
The plan is shown in elevation and sections.
The orientation of the layout is set in east.
The facing of the house is in south.

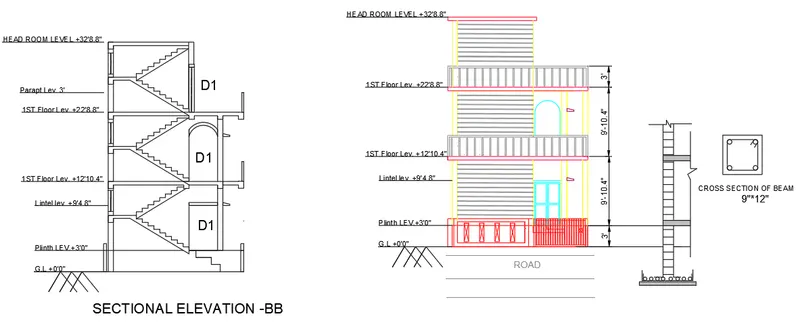

The elevation is taken in two sides.
The front elevation and the right view elevation.
The doors and windows along the dimensions are shown in the elevation drawing.
Then the plan is cut for Section.
The SECTION AA is cut to show the wall dimensions, window and inner door dimension.
The section is properly marked with the dimension and texts.

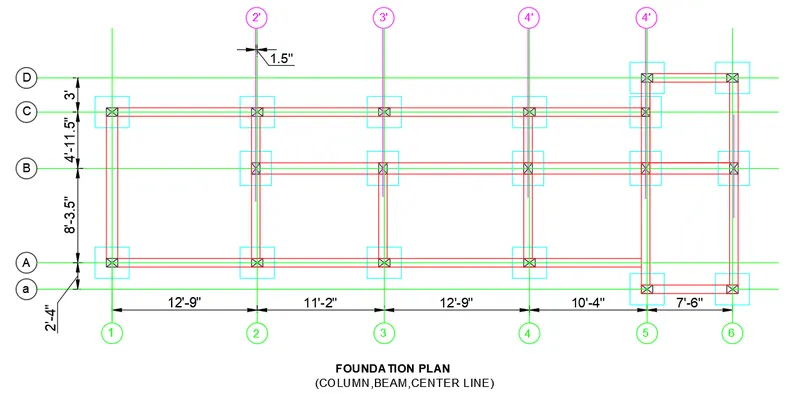

The below plan is drawn with basic structural detailing.
The structural drawing contains

And thus the required Architectural plan along with the Structural drawing is obtained as follow:-
,E
,

The Plan, section ,elevation and details of the plot size 60'x20' was successfully created.
All units are in feet and inches.
The drawing contains the texts of required sizes.
The drawing is marked with proper dimentions and specifications.
