Project 1 _Creating an Architectural plan for the provided plot size and develop relevant basic structural drawings

1.) Aim:

• Plot Size: 60’x20’(18.3m x6m)
• Orientation- Facing East

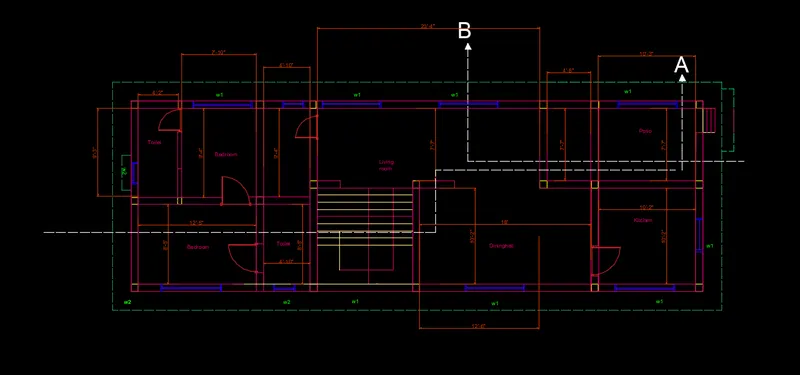

• . Architectural Drawing (Floor Plan, Elevations, and Sections) 2. Structural Drawing (Column, Bean, Footing Plan)

procedure

• Fix the units too feet and inches
• set the limits

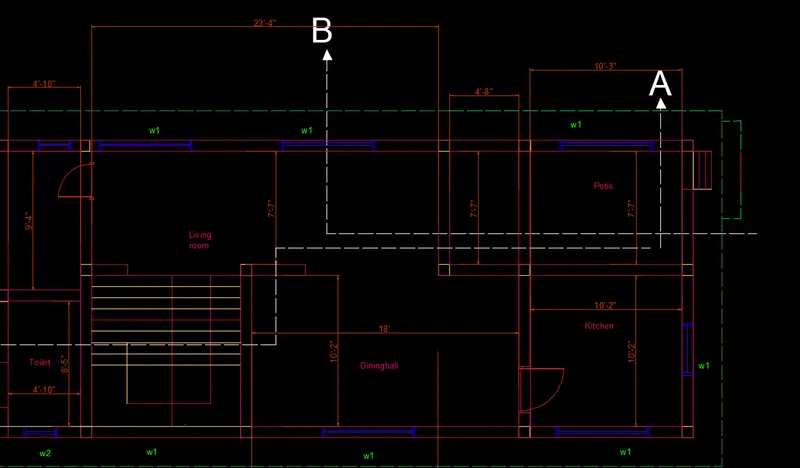

• plot the size of layout

• Draw as the procedure give th assumed dimensions.
• provide th e windows and doors
• provide the sunshade
• provide the staicase
• provide the partian wall

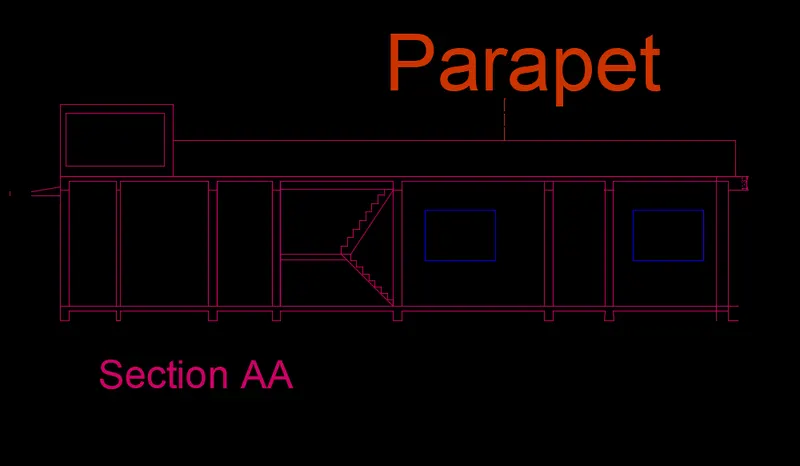

• project the lines to get the both section AA and BB
• Draw trhe windoe parapet etc
• draw the lines

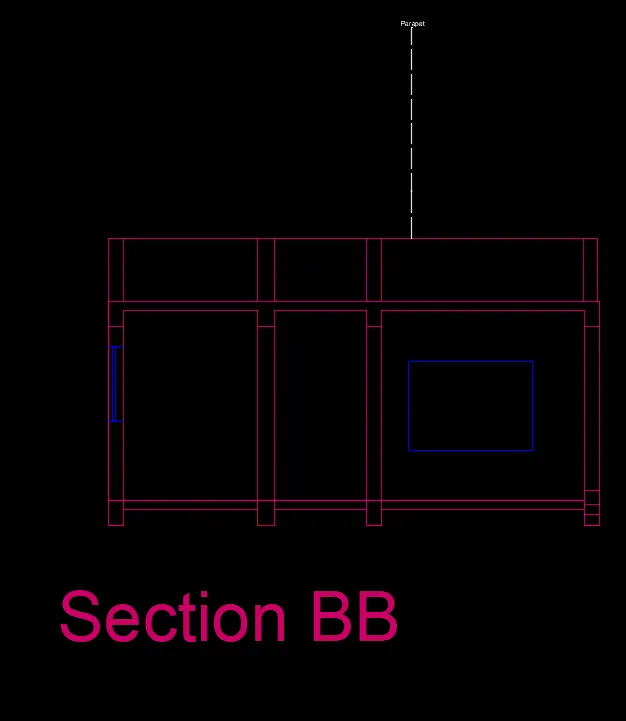

• continues the procedure for second BB section
• draw the lines and assunme the values

• Continue the ptrocedure

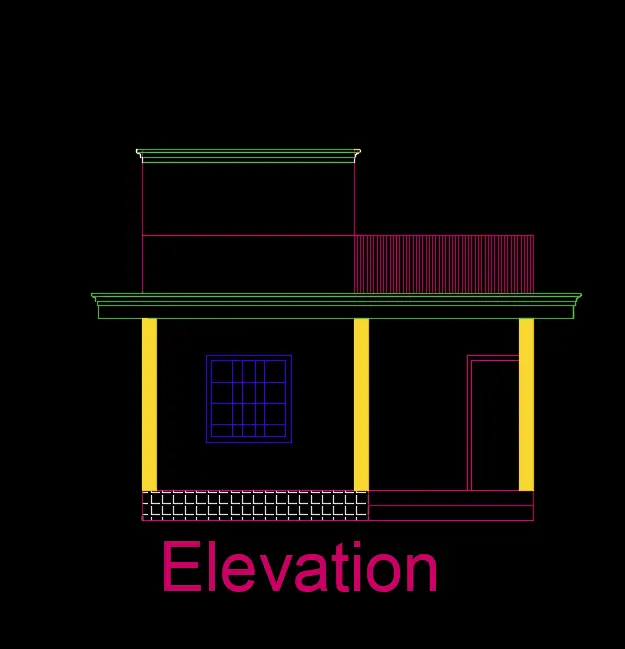

• projet the lines to do elevation in general form
• Draw th eelevation as per the project
• Draw the elevation part

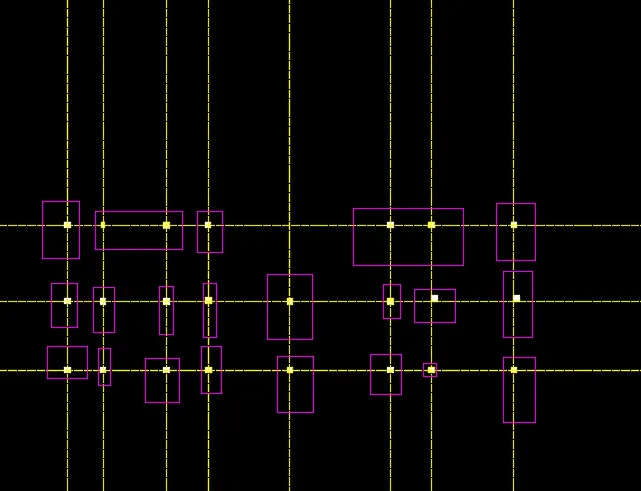

• Continue the layout for placing the beam and coloumn
• do as per th3e asumed
• plot the layout in the general form

• Place the coloumns
• fix the foundation as paer thre shedule.
