Project 1 _Creating an Architectural plan for the provided plot size and develop relevant basic structural drawings

Design and Draft a layout of a residential building with the following details:

a Plor Size: 50x20 (18.3m xsm)

b Orientation Facing Fast

c Develop the following:

1. Architectural Drawing (Floor Plon, Flovations, and Section)

2. Structural Drawing (Colume Beam, Footing Plan)

AIM:

To Design and Draft a layout of o residential building with plot size (18.3 m x 6 m)

• Commands Used:
• Xl
• ofset
• trim
• Extension
• ADC (design contre)
• line
• rectangle
• It (linetype)
• Arc

Procedure:

step 1:

• in the command prompt type units >meters
• in the command prompt type immax >100100
• in the command prompt type limits>0,0
• in the command prompt type zoom>α

step 2:

• In the command prompt type xi to draft the infinite lines
• in the command promal type offset, to offset it to the desired lines
• in the command promt type trim to remove the extra lines

• The main enterance of my plan is in the cast direction

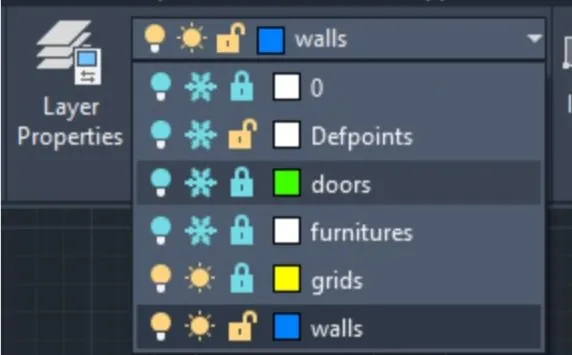

• in the ribbon bar loyers >walls, grids, furnitures,doors

• In the command prompt type ADC( design centre) to odd the components
• in the command prompt type arc (to drow the doors)

• in the command prompt type lines (to drow the windows)

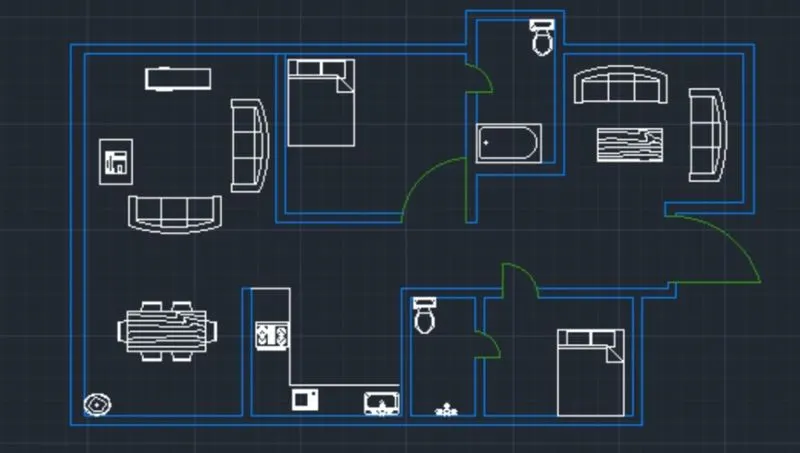

• The architectural plan is completed

• In the ribbon bar type Annotate to text the dimensions

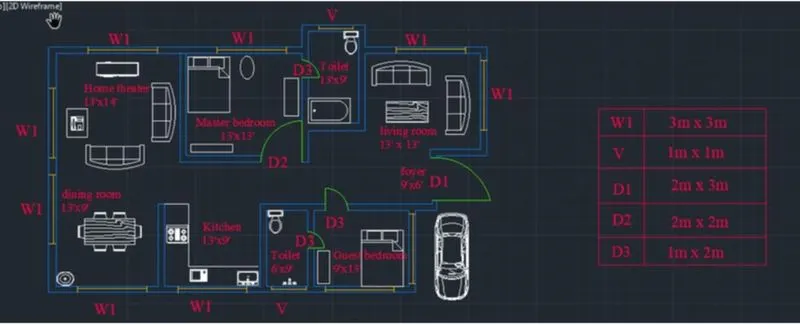

• in the command prompt type table to give the door and window schedule

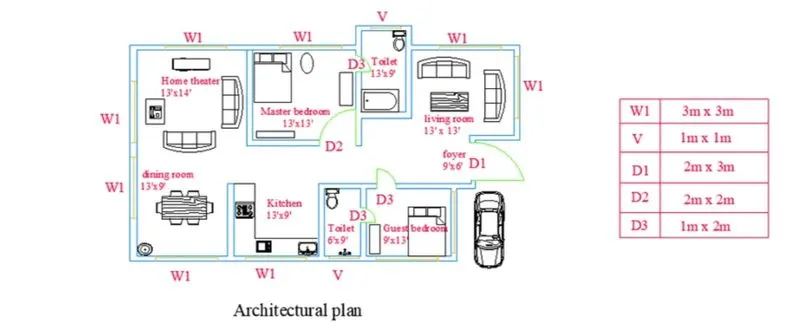

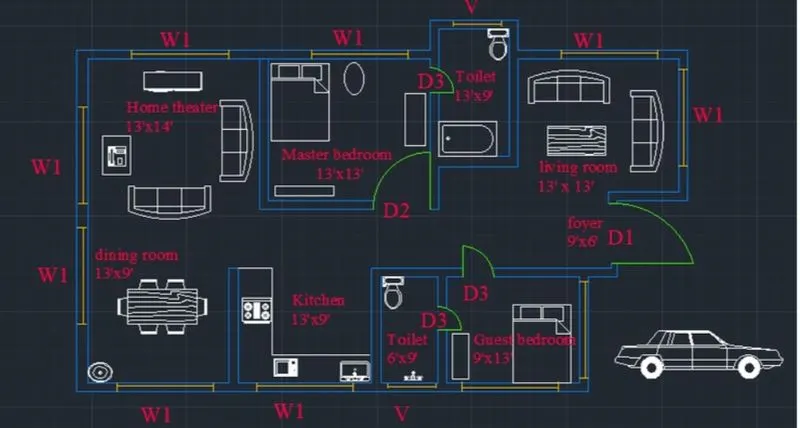

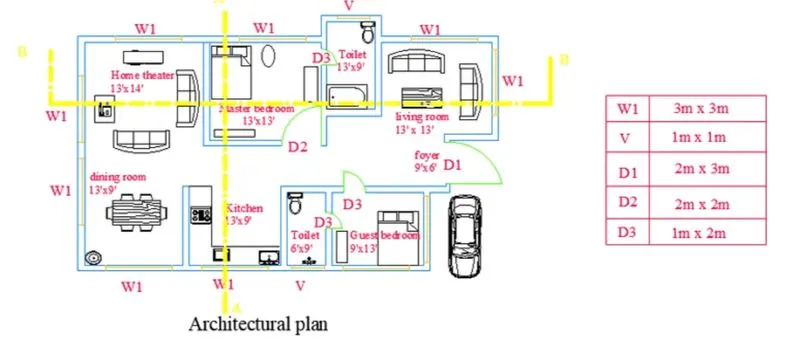

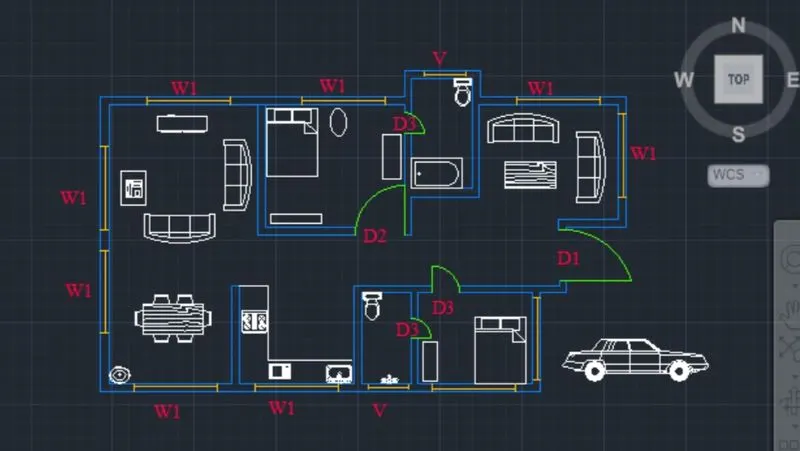

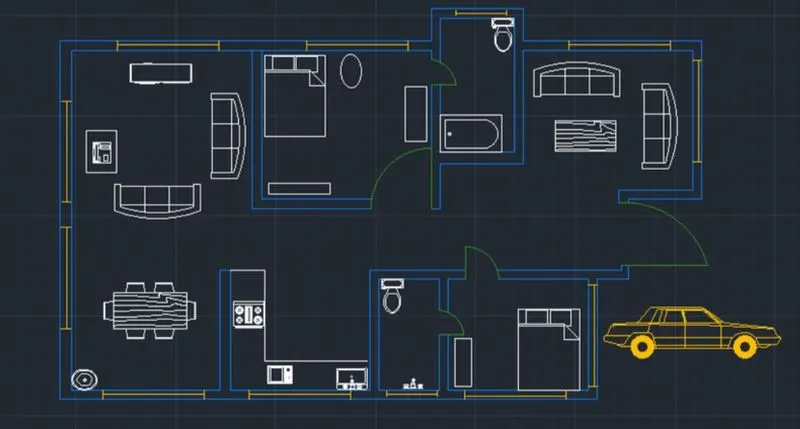

Final result of architectural plan

Step 3:(structural drawings)

• in the command prompt type xl to draw the grid lines
• In the command prompt type LT (to get the dolled lines) to get the dotted lines

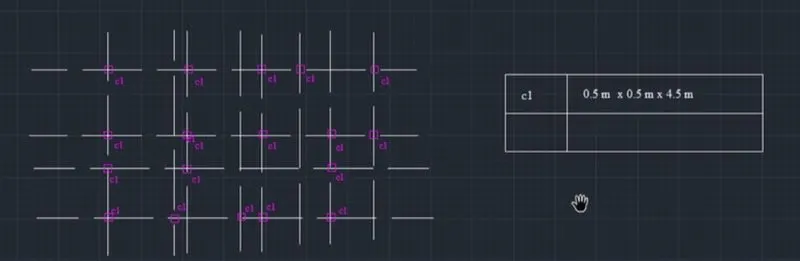

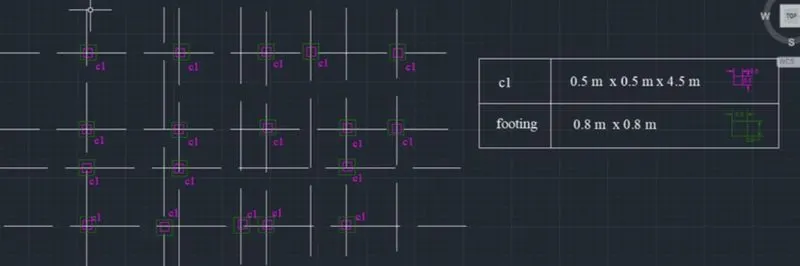

• in the command prompt type rac of dimensions 0.5 x0.5 for columns

• In the command prompt type rec of dimensions 0.8x0.8 for footings

• in the command prompt type line to craft the beams

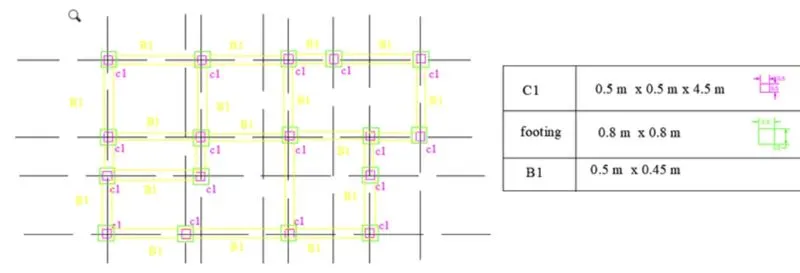

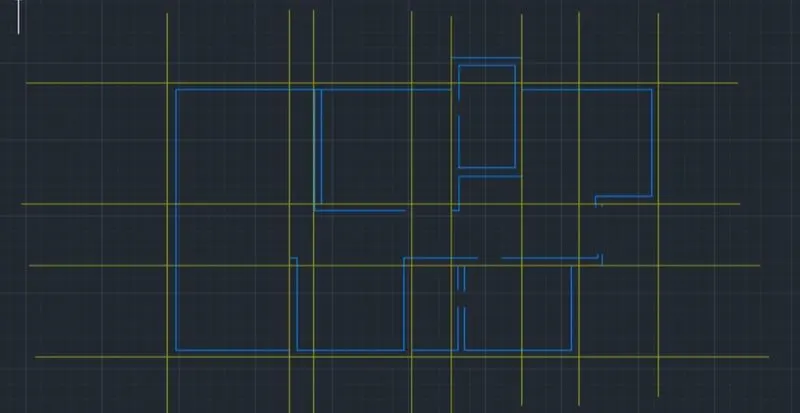

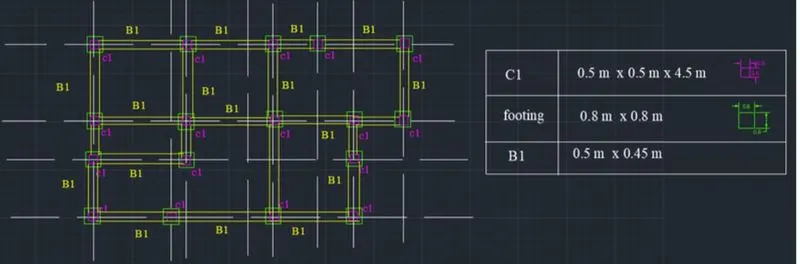

Final result for strutural drawing

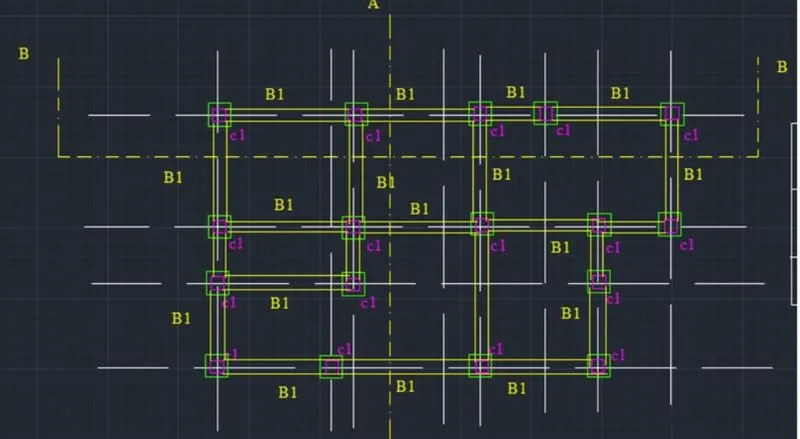

Step 4: (to give section views)

• using ootted lines the horizonto and vertical sections are created

• In the robon tablaton (to annotations for concrete)

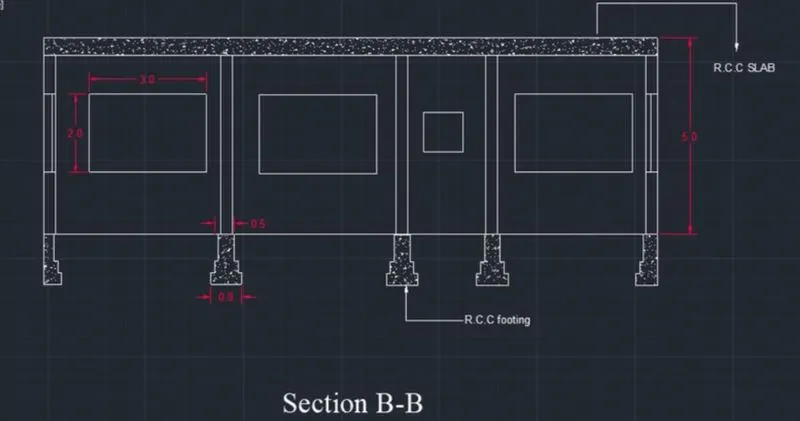

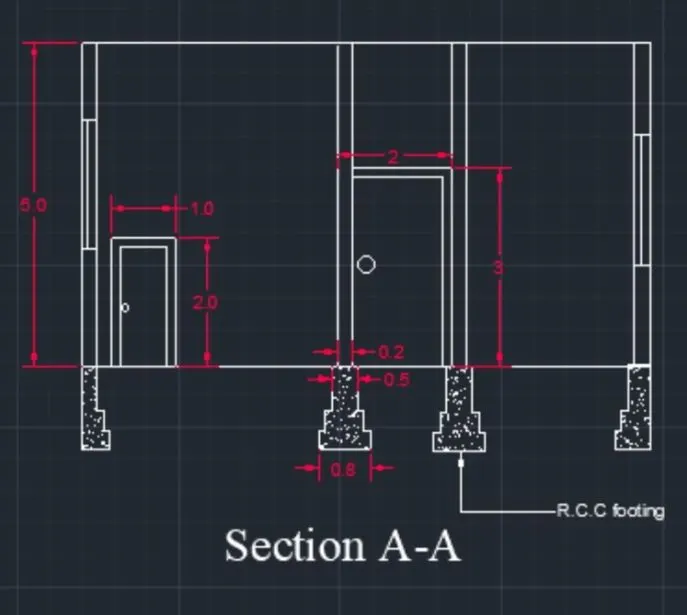

Final results for section view

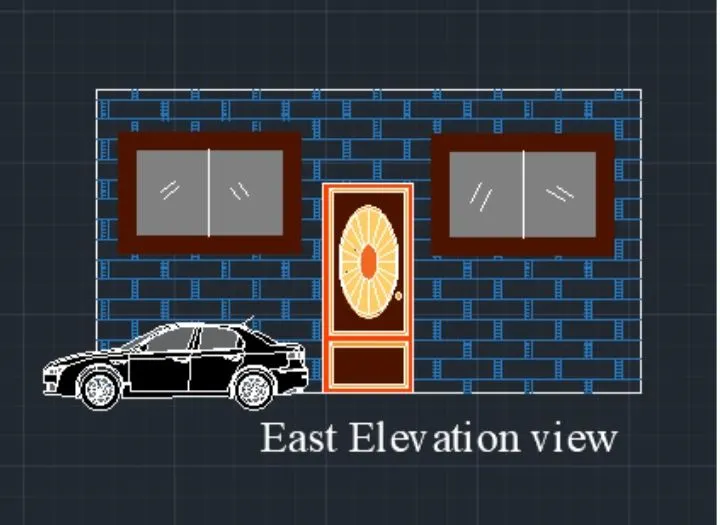

Step 5 (to create elevation)

• in the command prompt type 1 to draft the lines
• in the command prompt type Hatch solid to give the desired annotations, colour to the elevation
• In the command prompt type adc> for car, door etc components

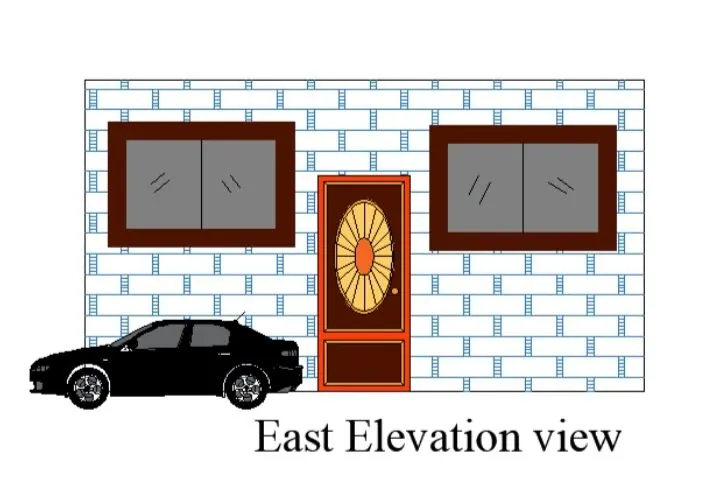

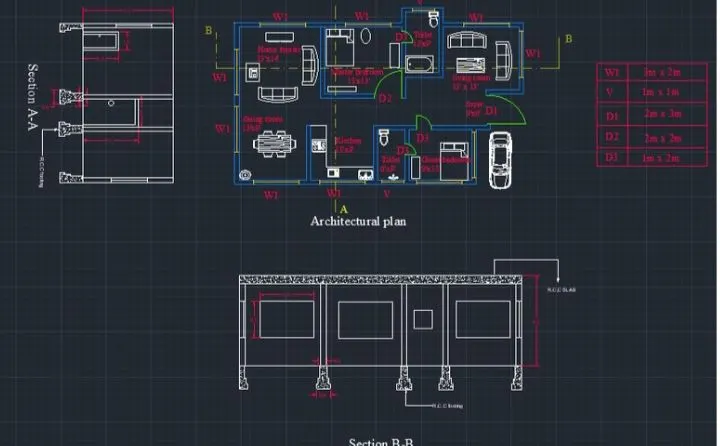

Final result:
