Project 1_Comparative study of different storey buildings for Seismic forces
- Effect of stiffness on T: Compare fundamental natural periods of buildings E & F as well as G & H. Why is there a marginal or significant difference in the fundamental natural periods?
- Effect of mass on T: Compare fundamental natural periods of buildings H, J and K. Have the buildings become more flexible or stiff due to change in mass?

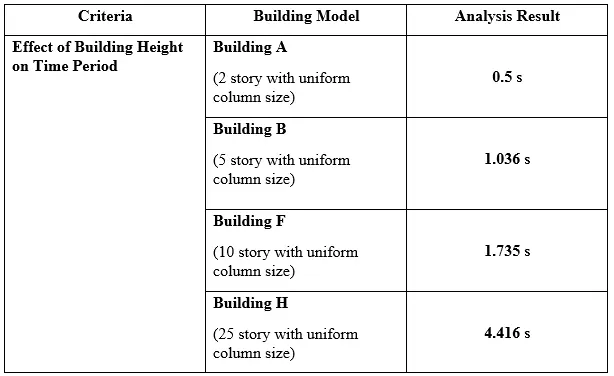

- Effect of Building Height on T: How does the fundamental natural periods of Buildings A, B, F and H change with change in building height?
- Effect of Column Orientation on T: How does the fundamental natural periods of Buildings B, C and D change with change in column orientation?

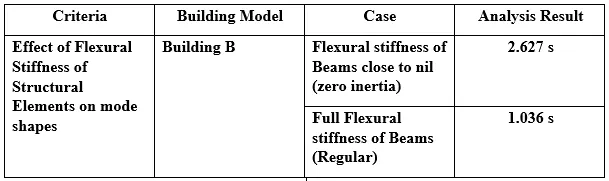

- Effect of Flexural Stiffness of Structural Elements on mode shapes: Compare fundamental mode shape of Building B in two situations when flexural stiffness of beams relative to that of adjoining columns is very small versus when it is large.
- Effect of Axial Stiffness of Vertical Members on mode shapes: Compare fundamental mode shape of Building H in two situations when axial cross-sectional area of columns is very small versus when it is large.

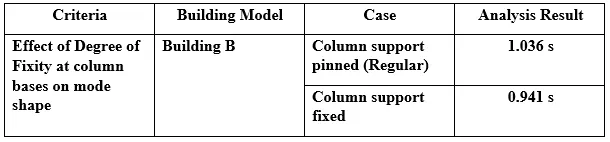

- Effect of Degree of Fixity at column bases on mode shape: Compare fundamental mode shape of Building B in two situations when base of columns is pinned versus when it is fixed
ANS :

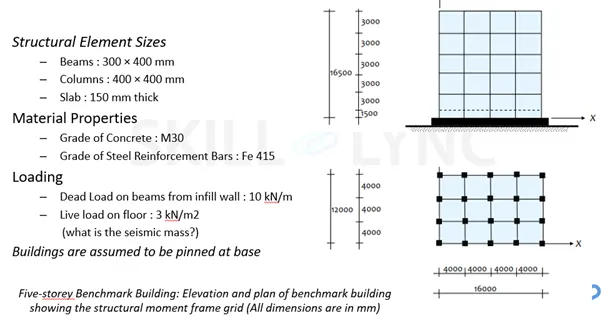

AIM : To analysis 10 different Buildings with same Beam size but different column size and find the modal time period of each building for given condition
PROCEDURE :
BUILDING A

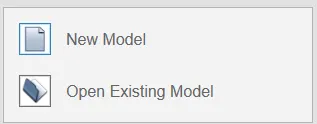

Step 1 : Open then Etabs software and click on new model, the model initialization dialogue box will appear in that select use Built-in settings with and make the settings accordingly and press ok

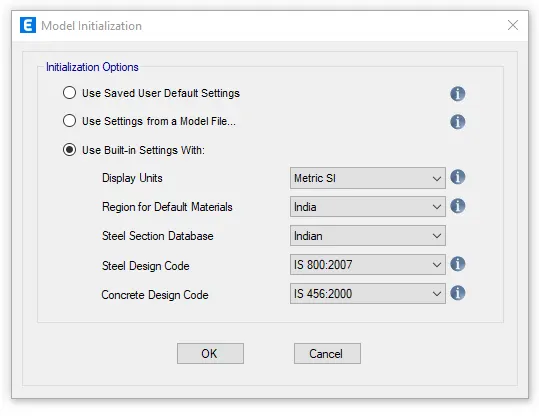

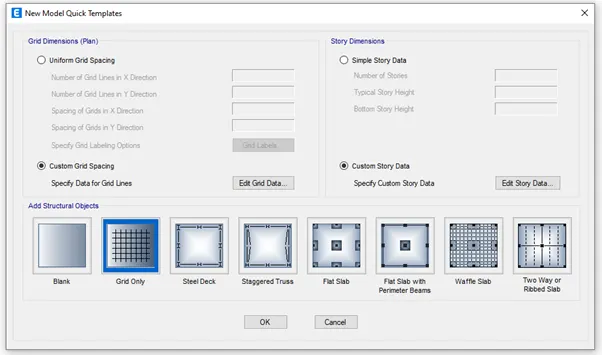

Step 2 : New model quick template dialogue box will appear

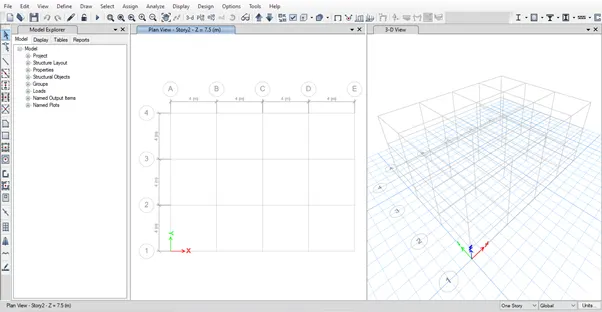

In the above dialogue box select custom grid spacing in grid dimension and select custom story data in story dimension
In custom grid spacing click on edit grid data you will get the grid system data dialogue box
Give the data according to the question given in both x and y direction

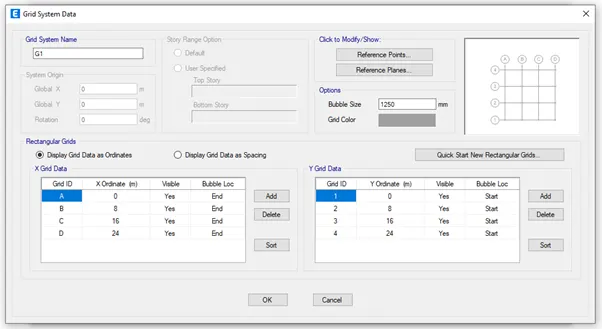

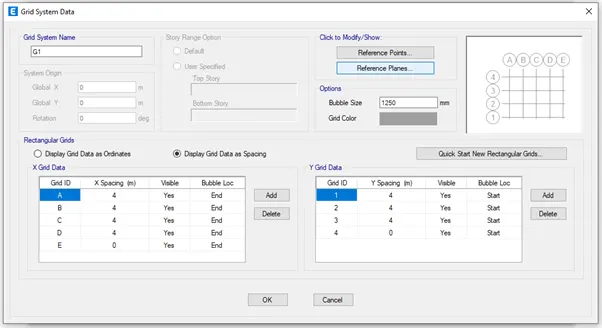

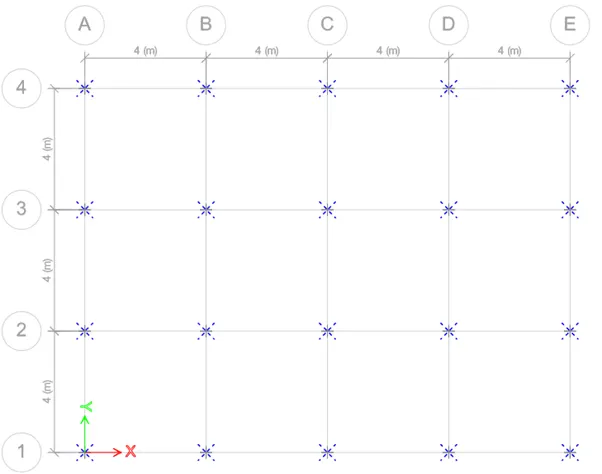

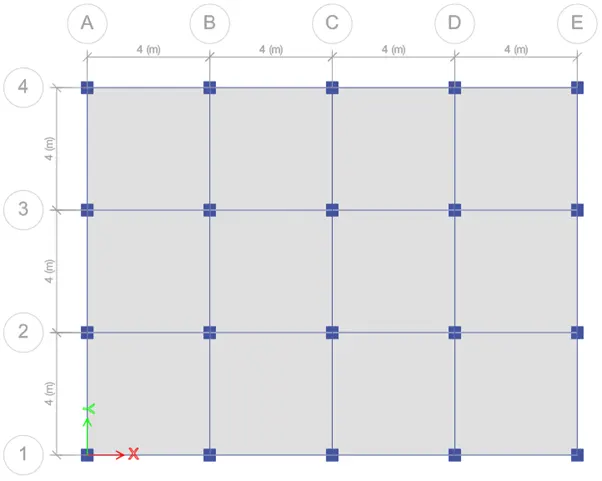

As per the question the spacing between the grids is 4m in both x and y direction and give other data accordingly and press ok

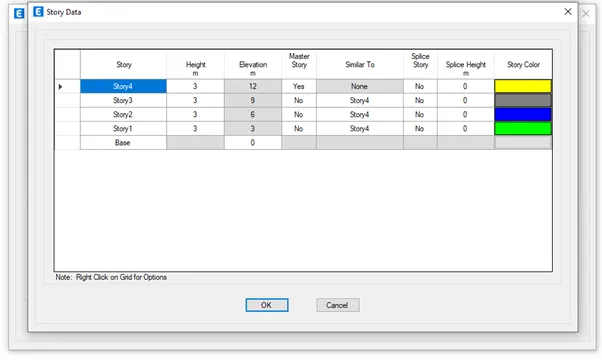

In custom story data click on edit story data you will get the story data dialogue box
Give 2 story with each story height as 3m and base to plinth floor level as 1.5m as per the given question

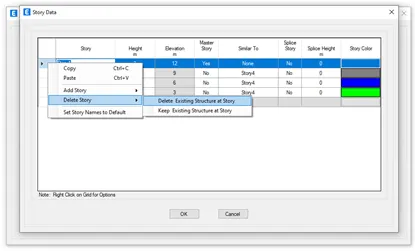

Extra story can be deleted by right clicking the mouse on the arrow shown in each row and delete the extra story
Give the master story as first story and for other story give similar to as first story

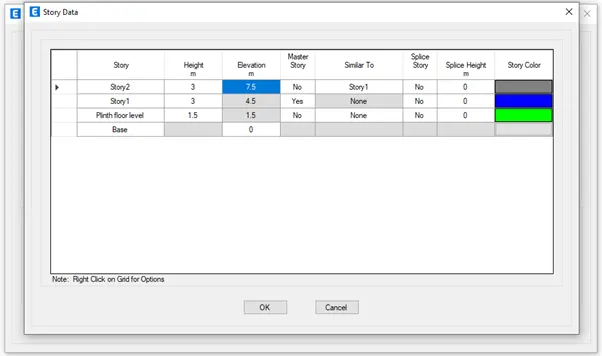

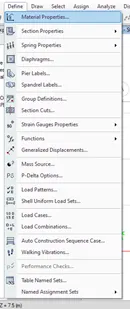

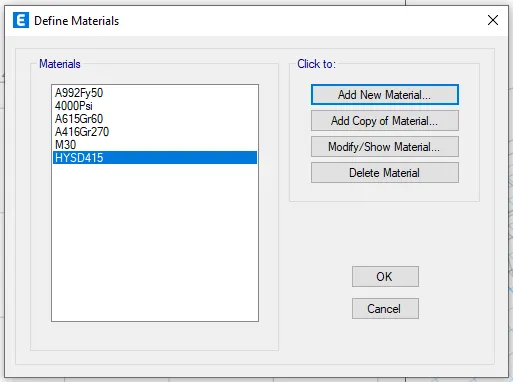

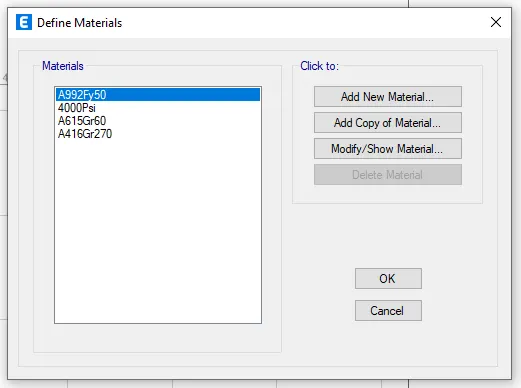

Step 3 : Go to define tab and select material properties

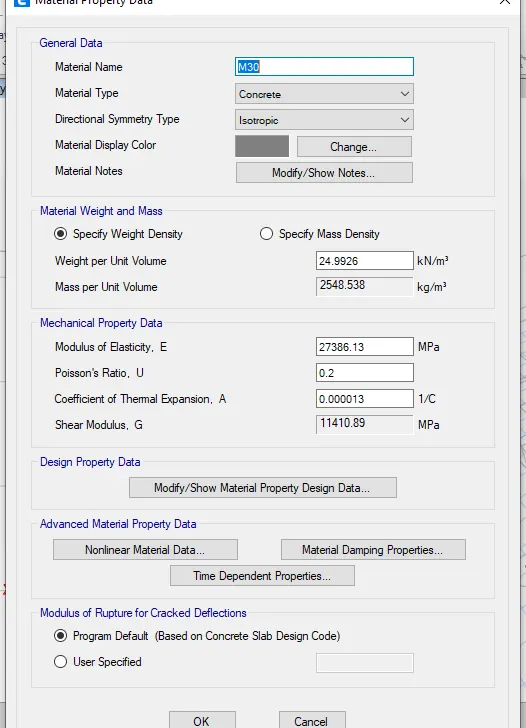

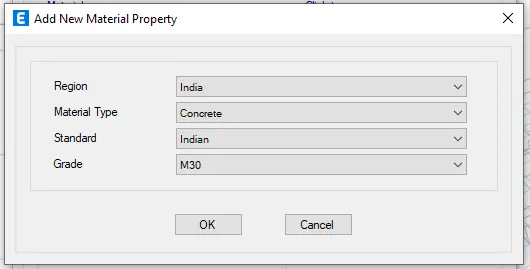

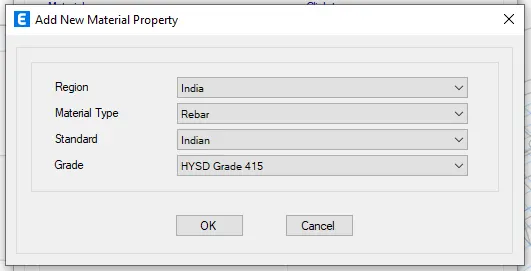

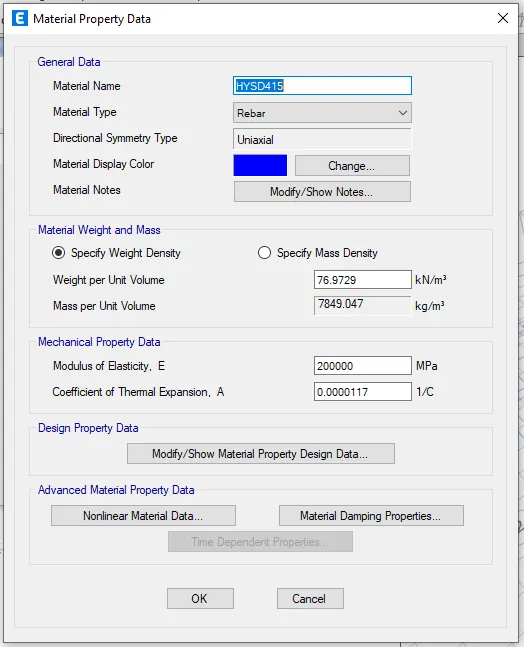

Add grade of concrete as M30 and Grade of steel reinforcement bars as Fe415 and do the settings accordingly for each material

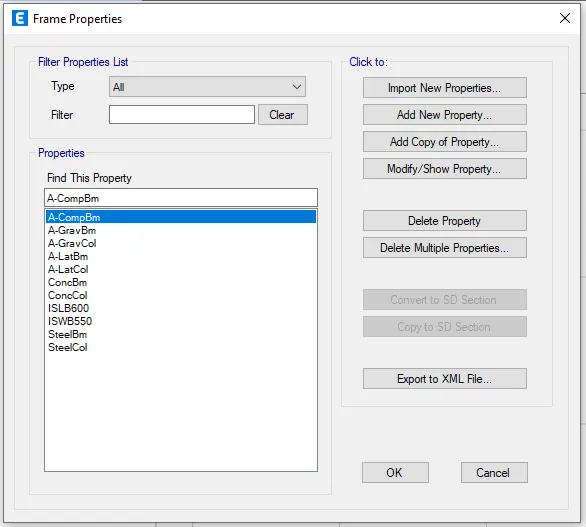

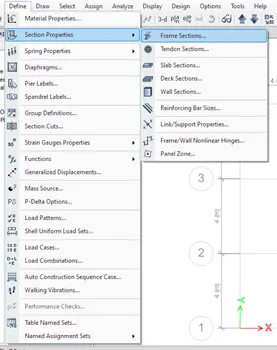

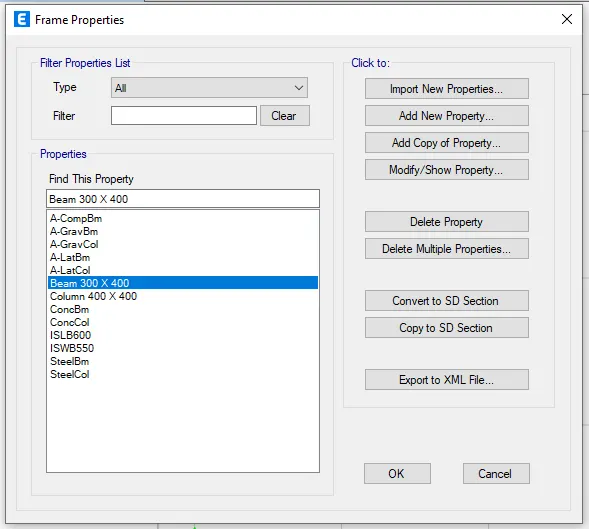

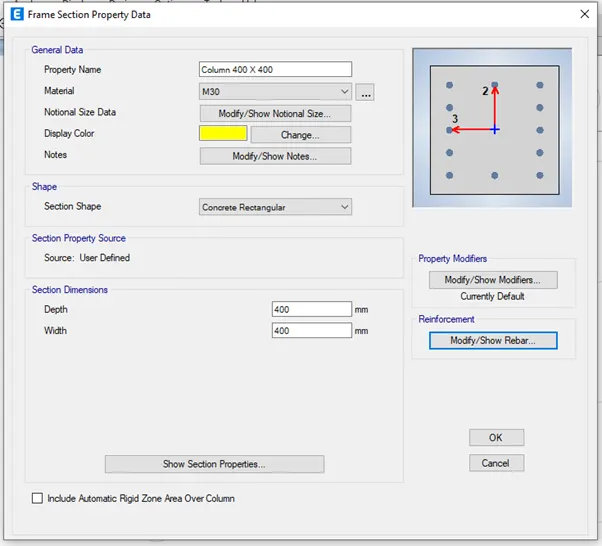

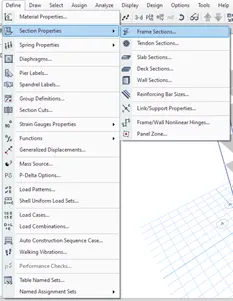

Step 4 : Go to define tab and select section properties in that select frame sections

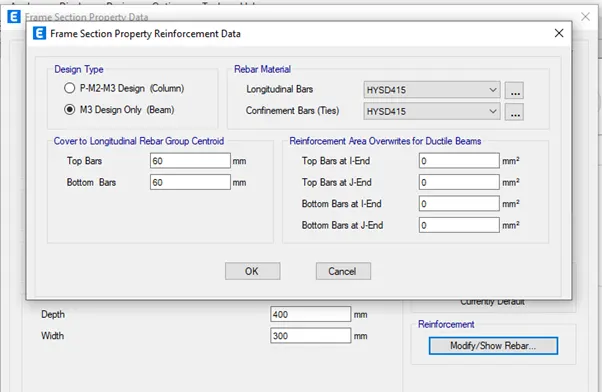

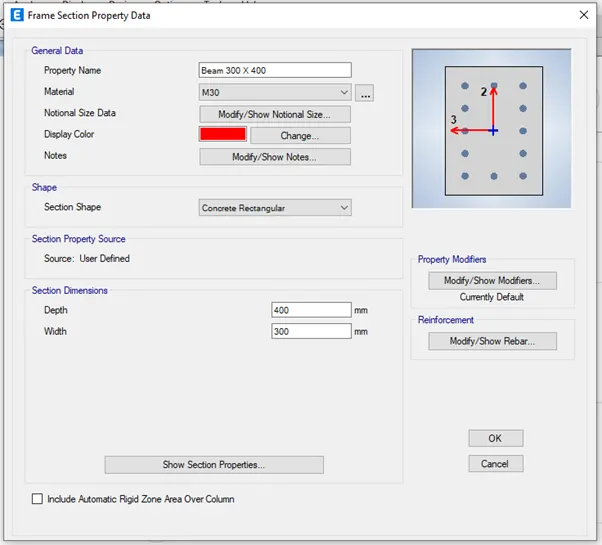

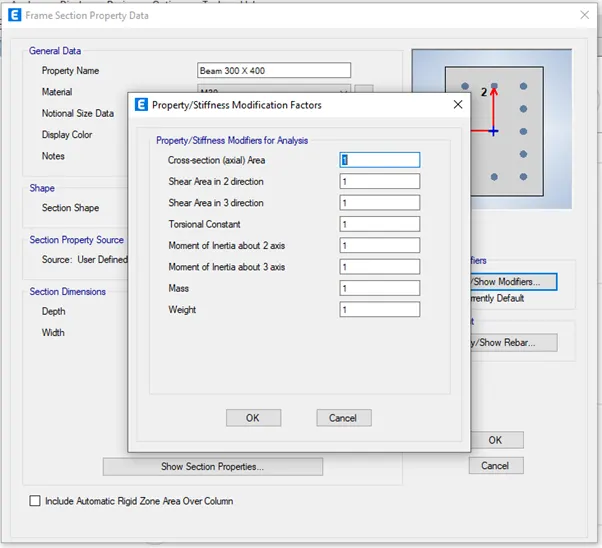

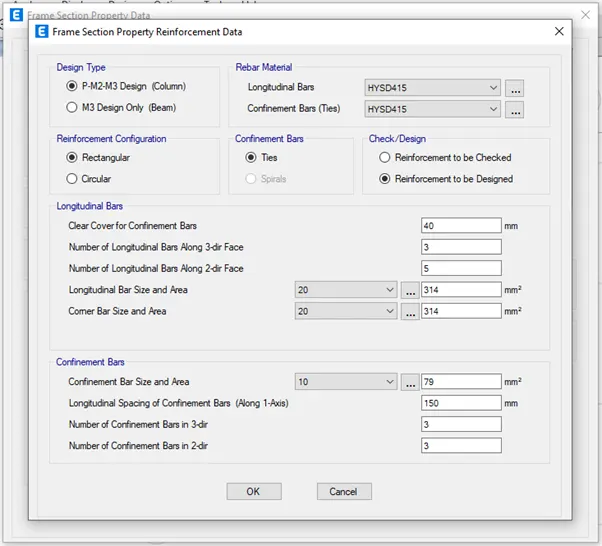

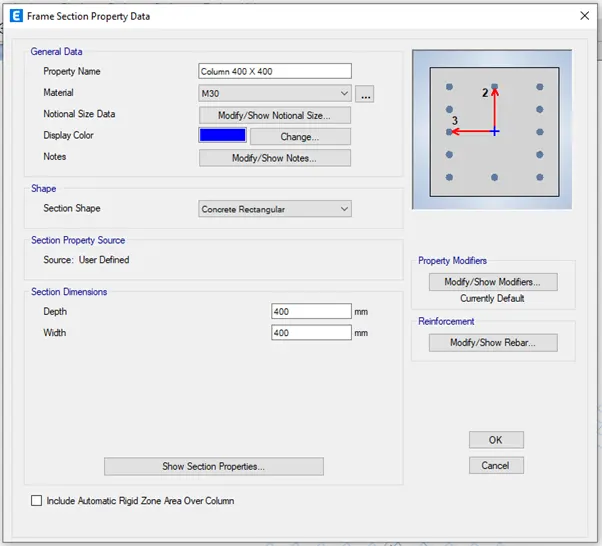

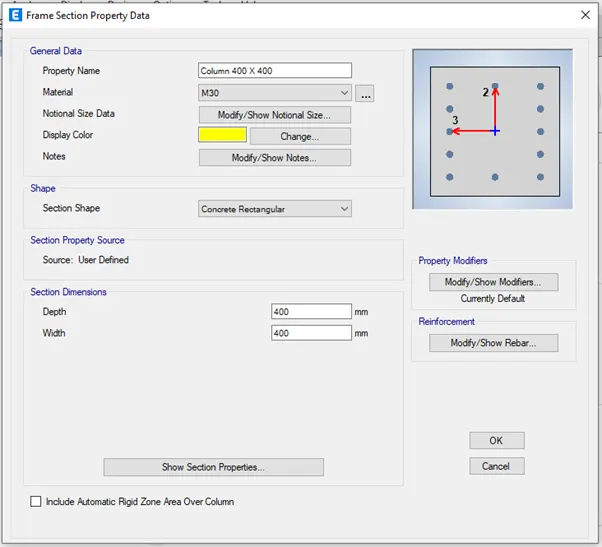

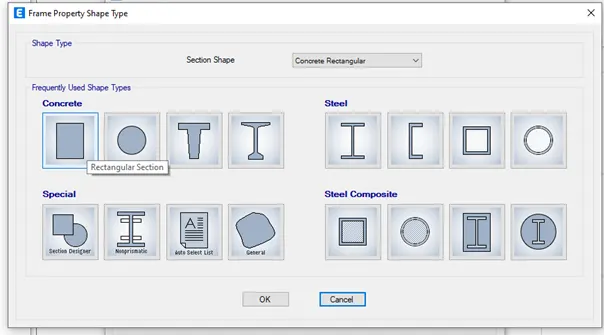

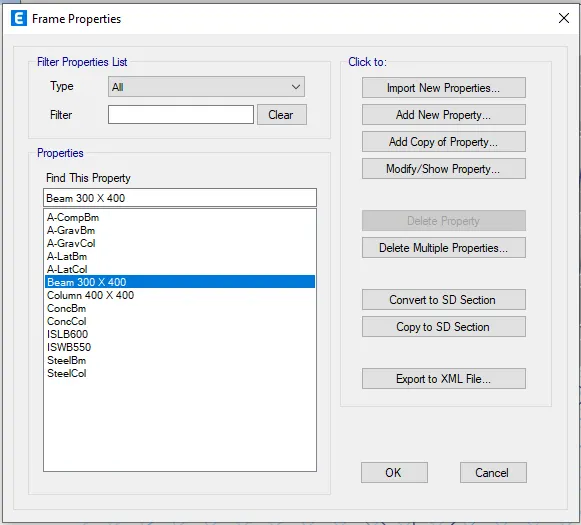

Add beam of size 300 x 400 mm and column of size 400 x 400 mm properties as per the question by clicking on Add new property

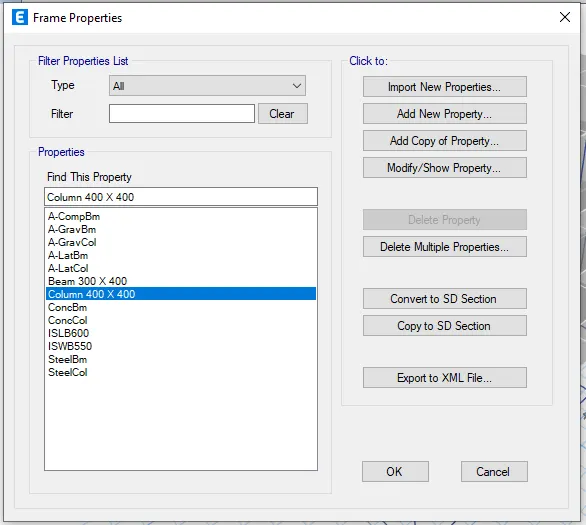

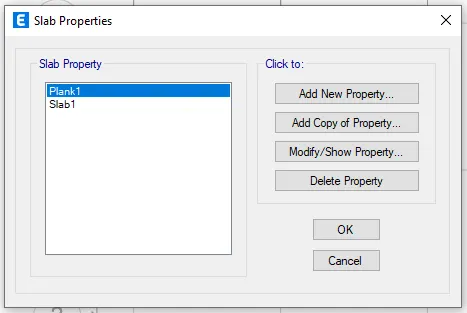

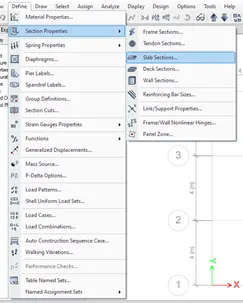

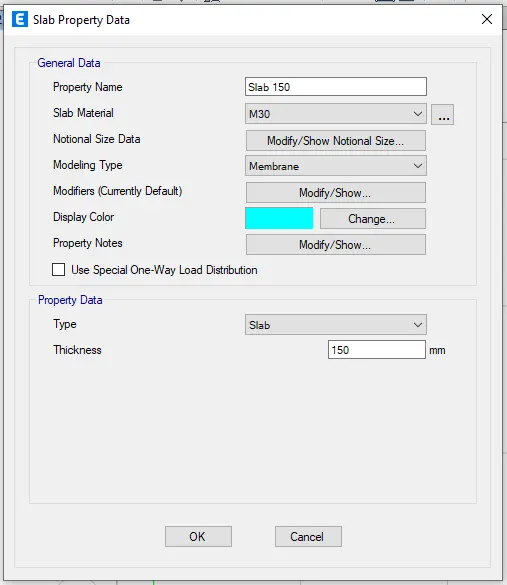

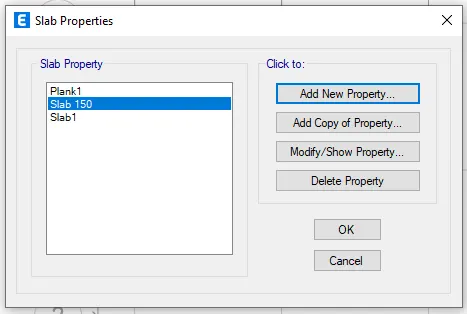

Go to define tab and select section properties in that select slab sections

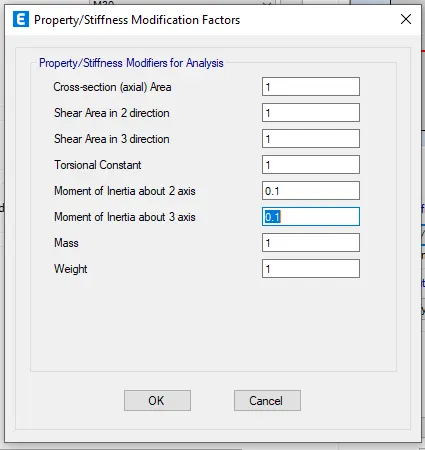

Add slab of 150mm thick as per the question by clicking on Add new property

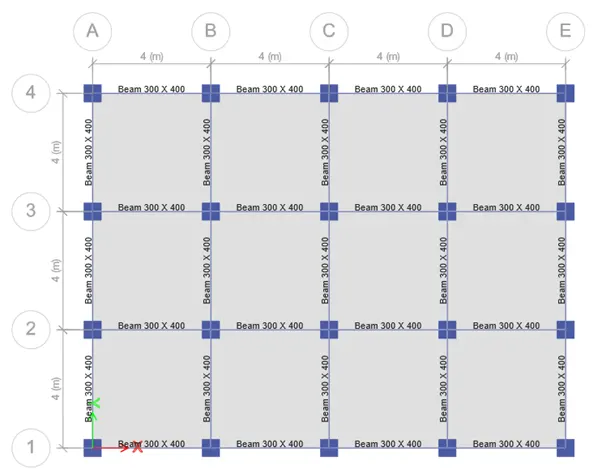

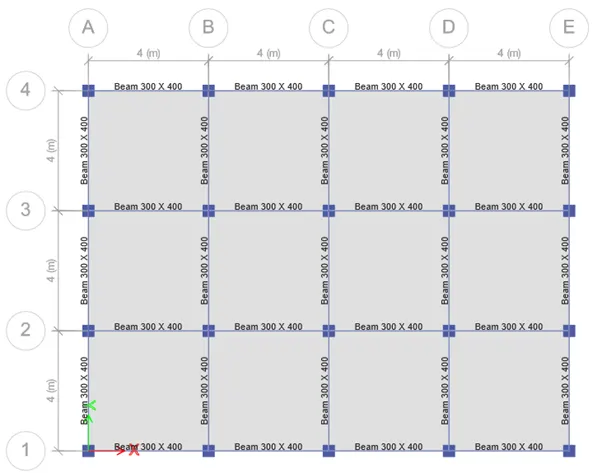

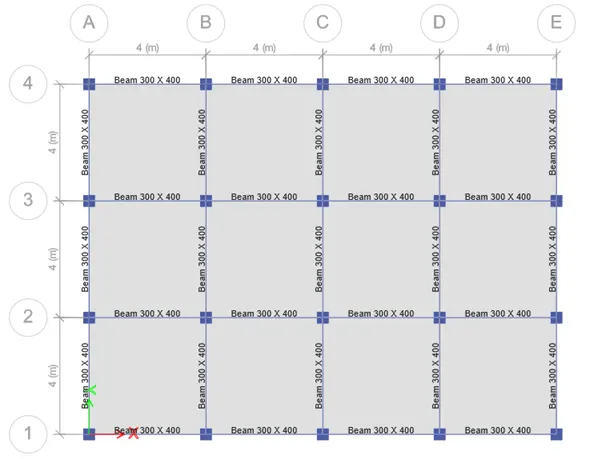

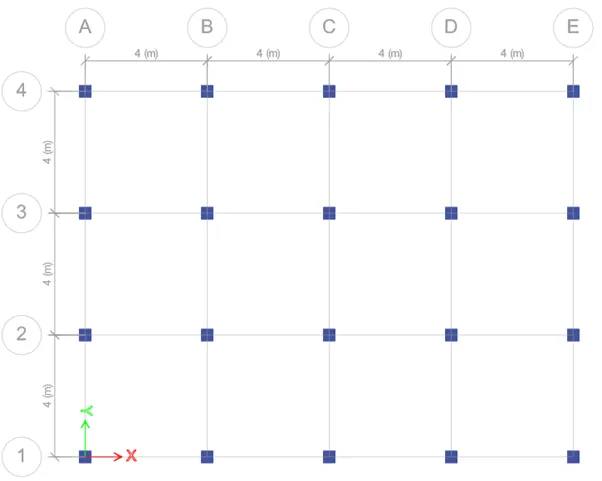

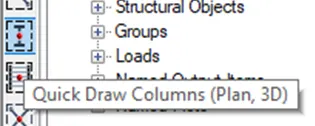

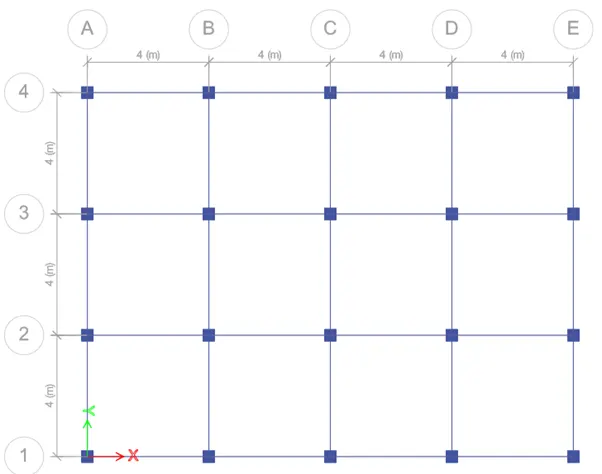

Step 5 : Draw the column 400 x 400 at each intersection of the grid by selecting Quick draw column and keep it as all stories

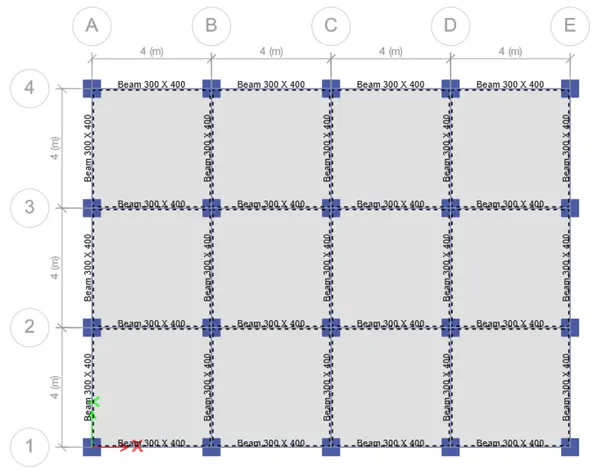

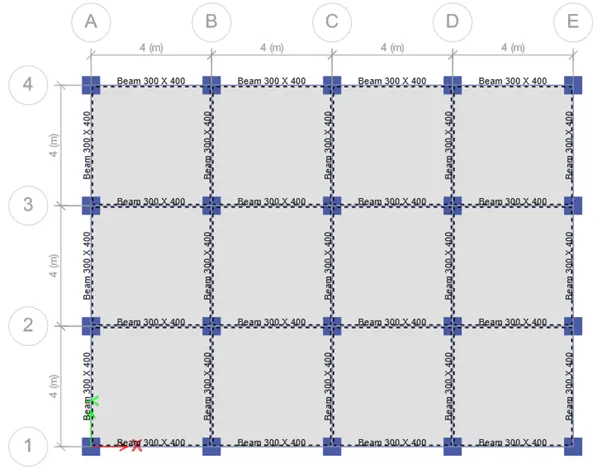

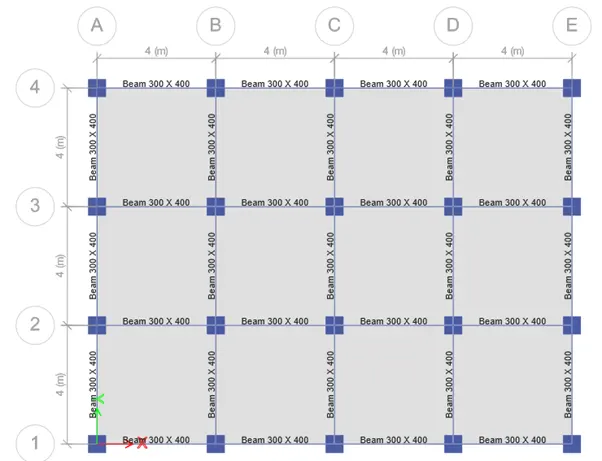

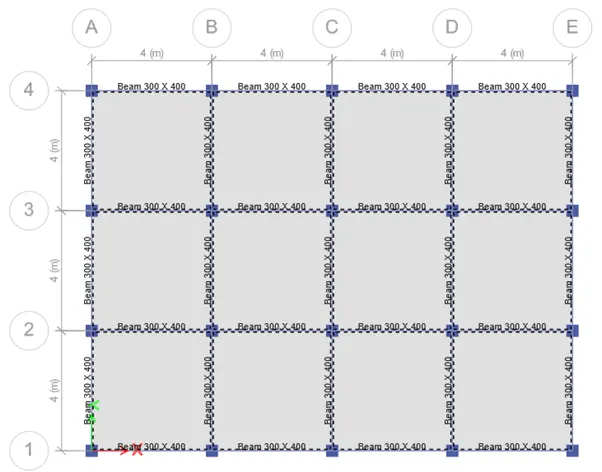

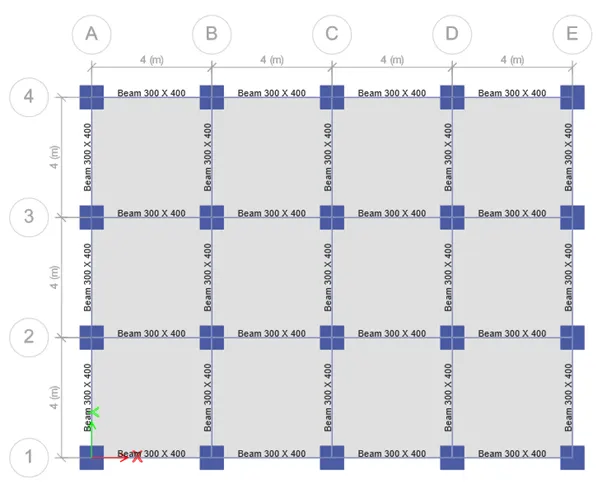

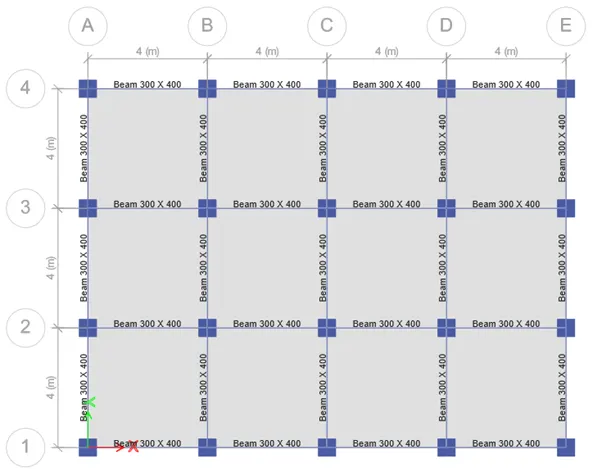

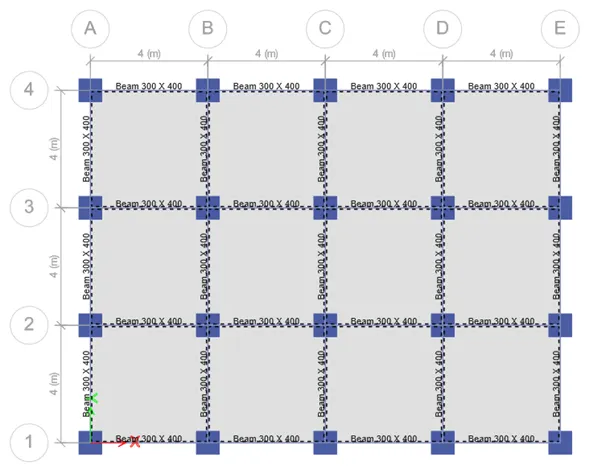

Draw the beam 300 x 400 at grid line by selecting Quick draw beam and keep it as all stories

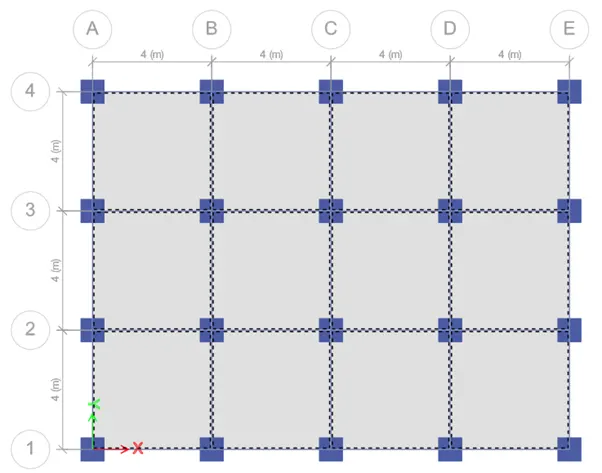

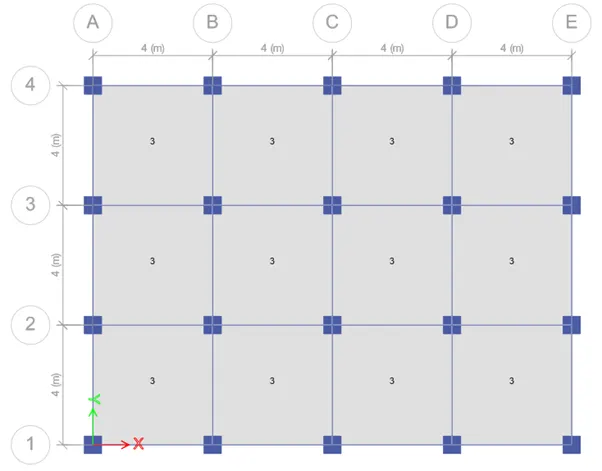

Draw slab of 150mm by selecting quick draw floor and keep it as similar stories

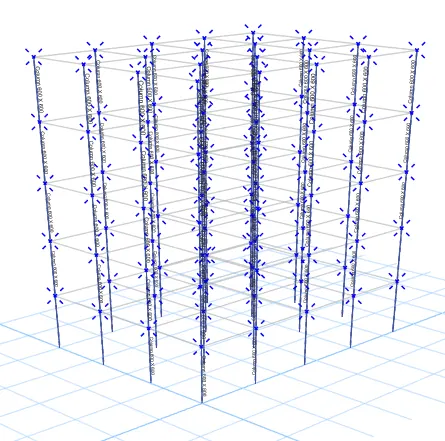

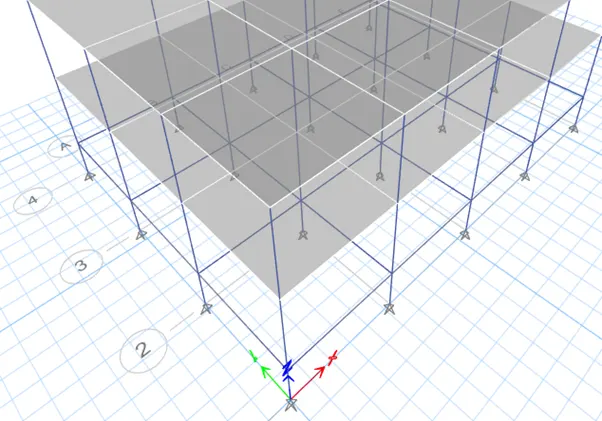

Step 6 : Go to base and select all the joints

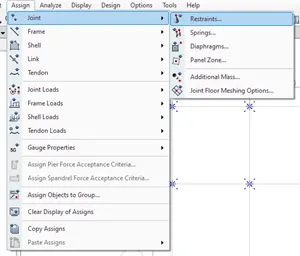

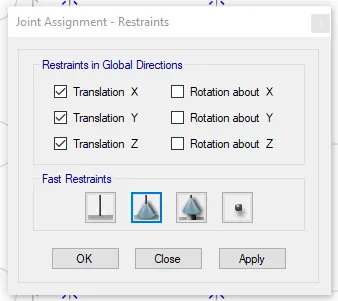

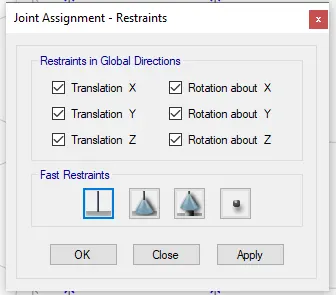

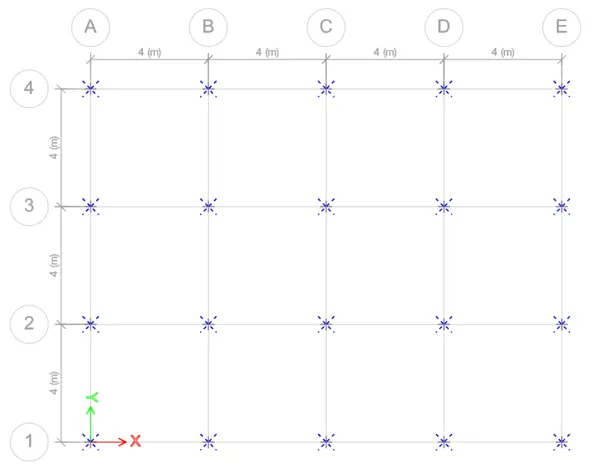

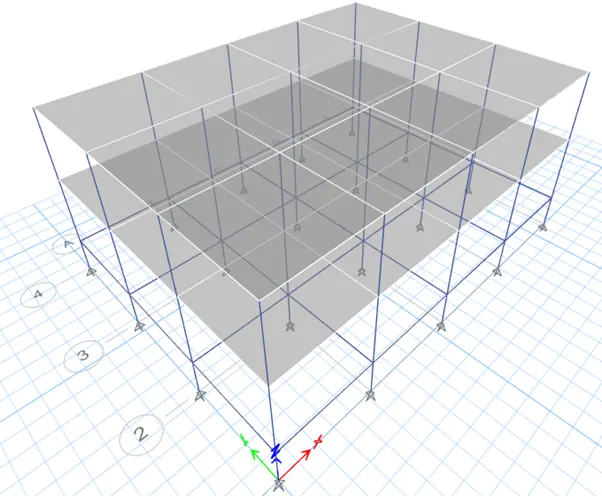

Go to assign tab select joint in that select restaints and select pinned support for all the directions and click on apply

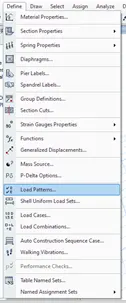

Step 7 : Go to define and select the load pattern
Add the loads like dead load, live load, brickwall load and earthquake load both in x and y direction

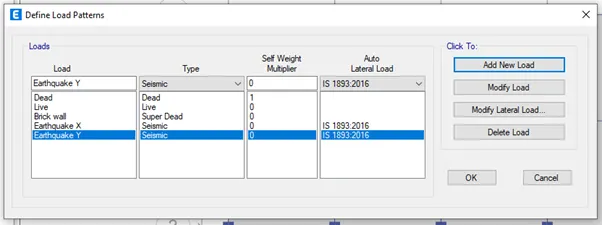

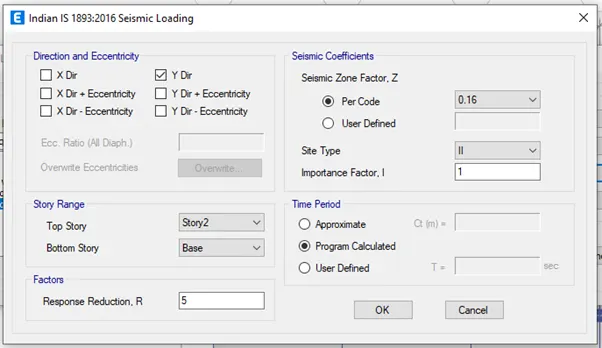

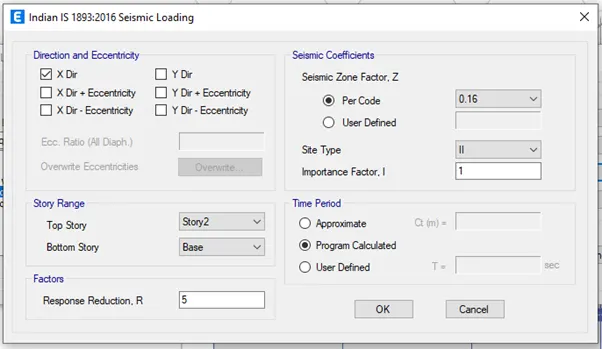

Click on modify lateral load of all earthquake loads, set a range from base to second story, seismic zone factor as 0.16, importance factor as 1, site type as II and time period as program calculated
Step 8 : Assign live load to all the similar stories

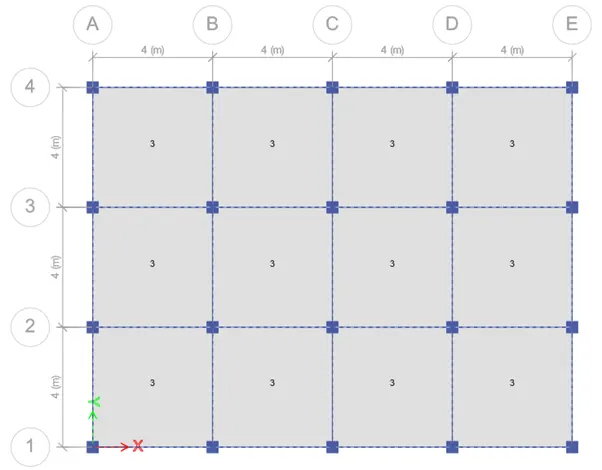

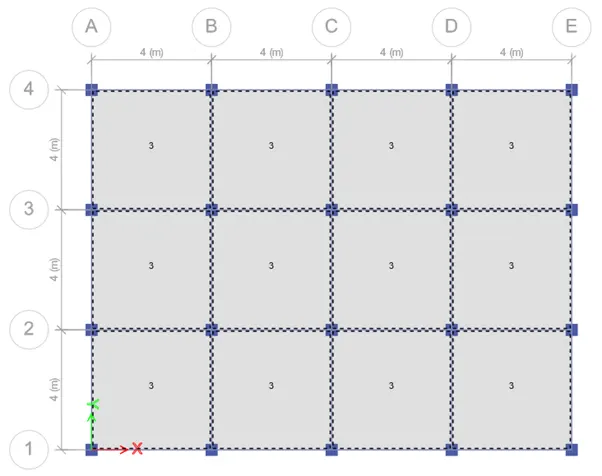

For first story and second story give the slab load as 3KN/m^2

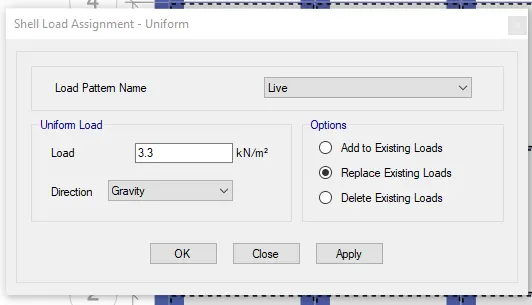

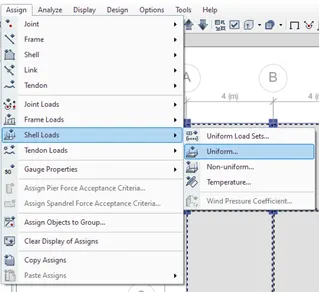

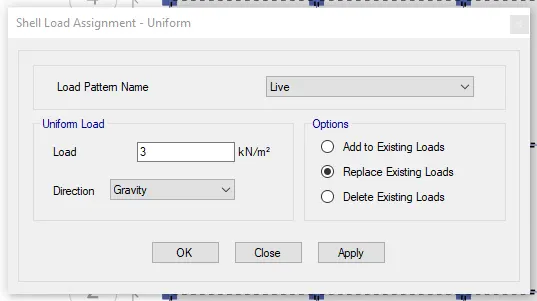

By selecting the slabs go to assign tab and select shell load in that uiform and do the settings accordingly and click apply

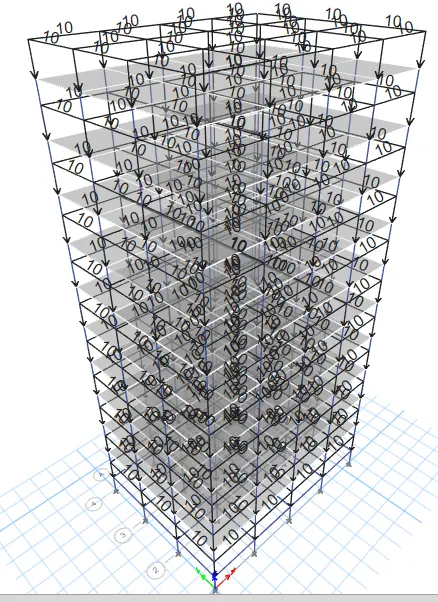

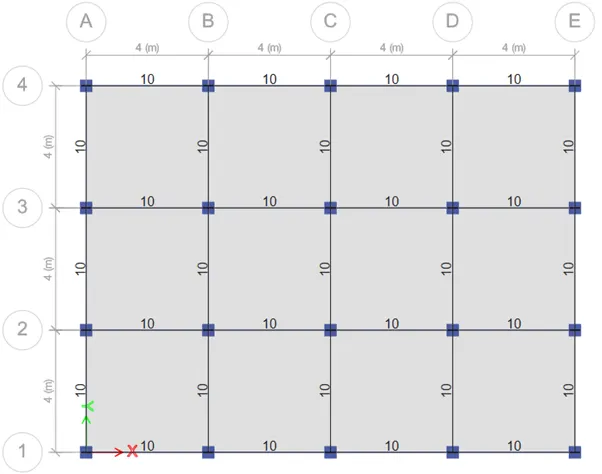

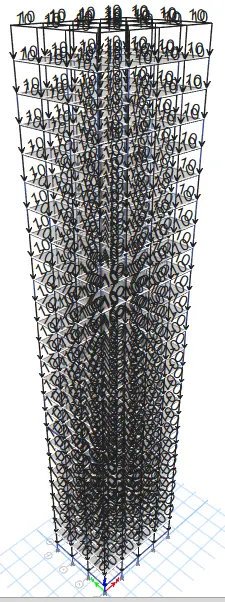

Step 9 : Assign brick wall load to all the story
Give the brick wall load as 10KN/m for all the stories

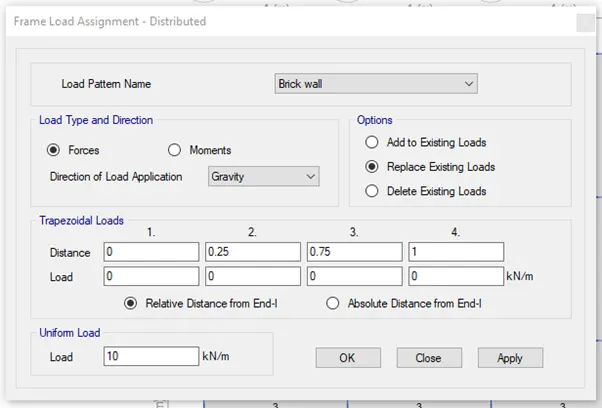

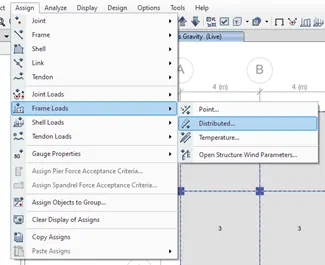

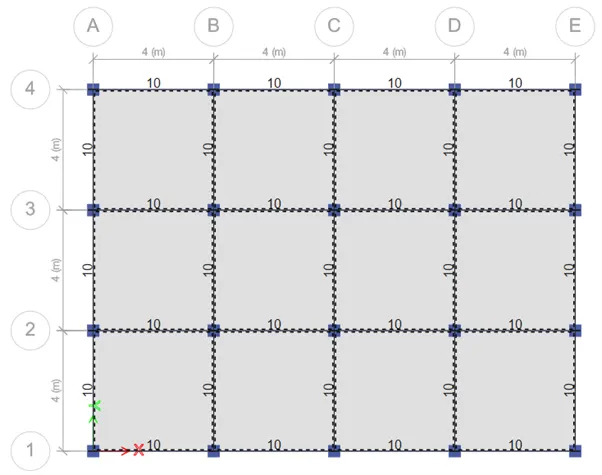

By selecting the beams go to assign tab and select frame load select distributed load and do the settings accordingly and click apply

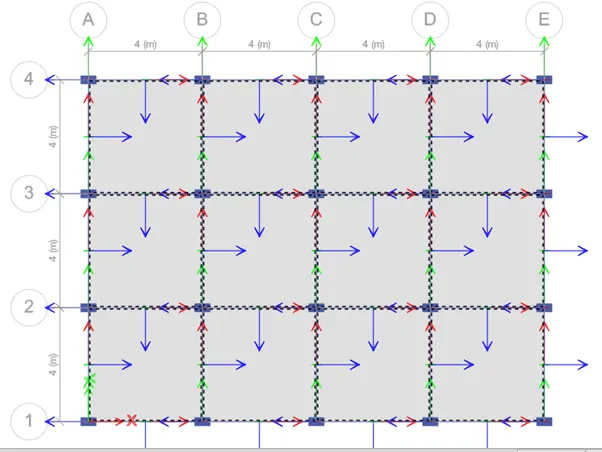

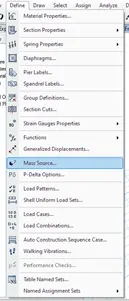

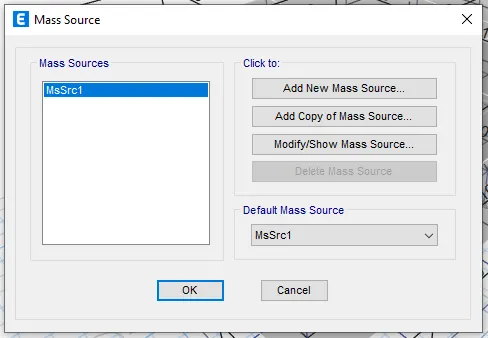

Step 10 : Go to define tab and select mass source and modify the mass source
Add the required load and assign the load to the model

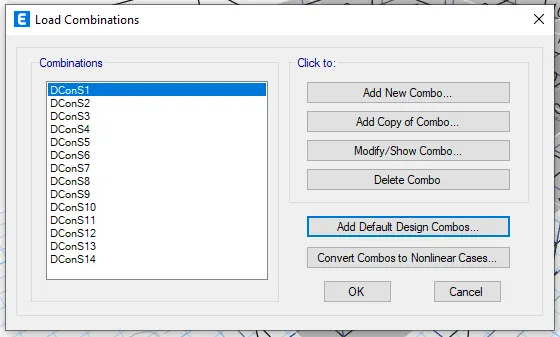

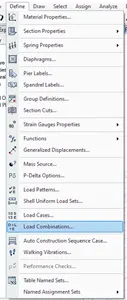

Step 11 : Go to define tab and select load combinations in the dialogue box click on add defaut design combinations

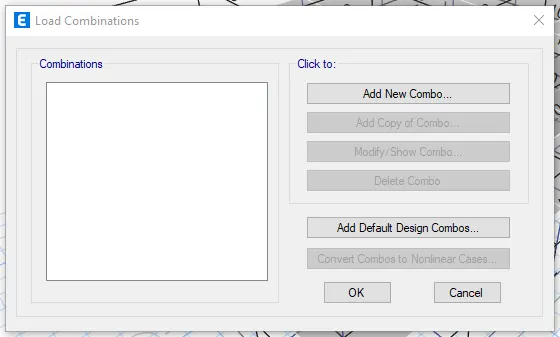

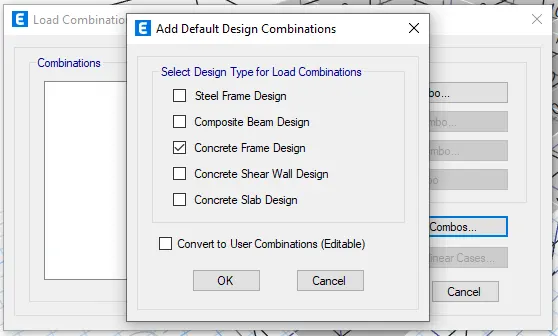

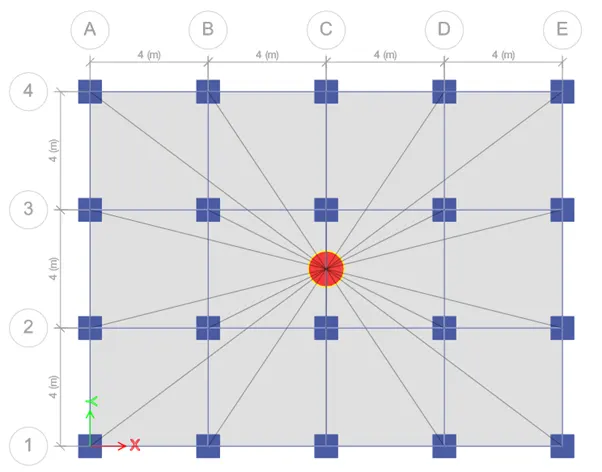

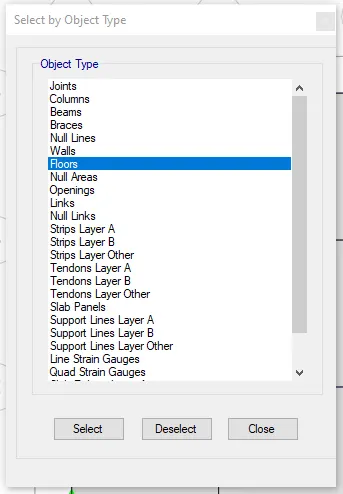

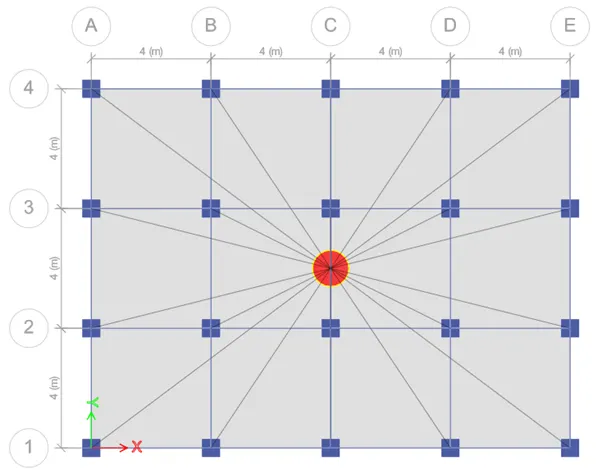

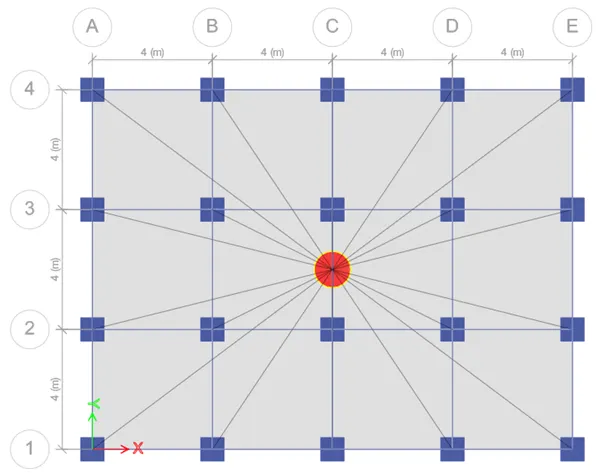

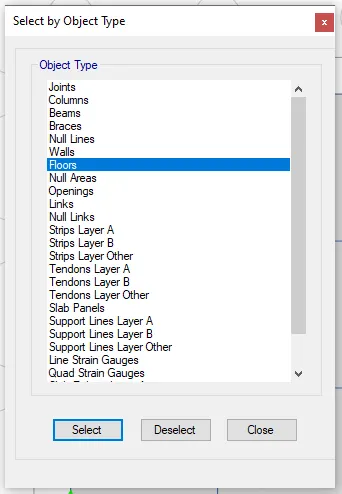

Step 12 : To create the diaphragm to the shell go to select in that select object type and in that select floors and click select and preess close

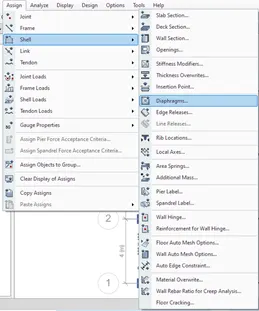

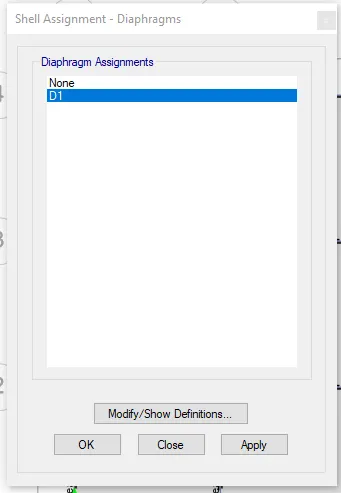

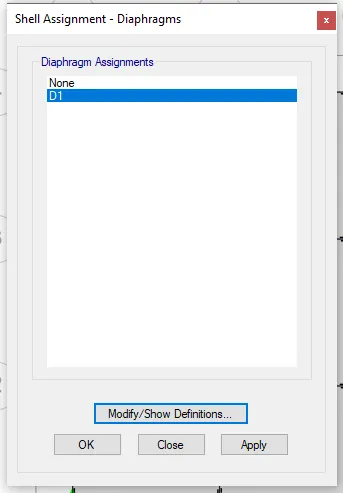

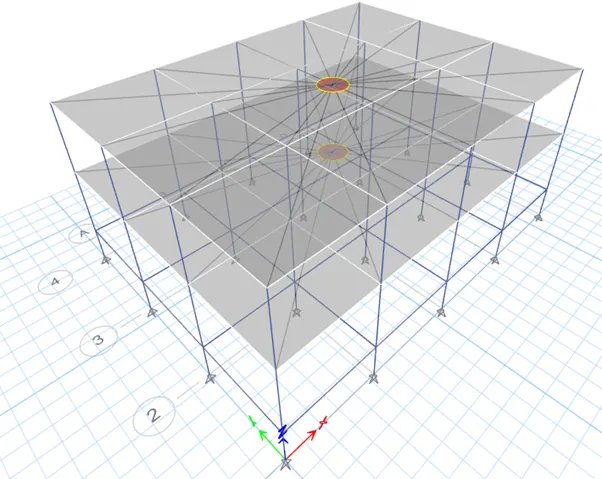

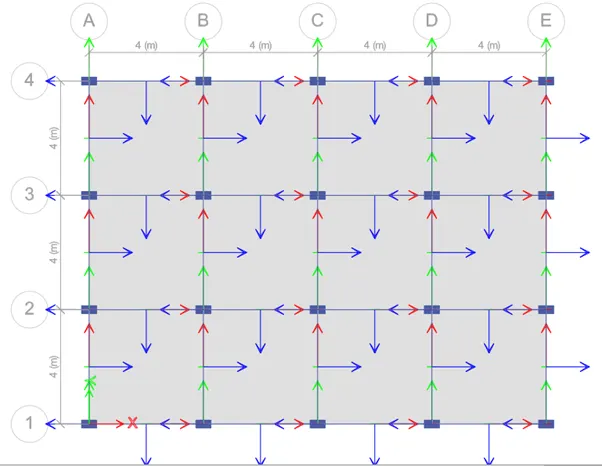

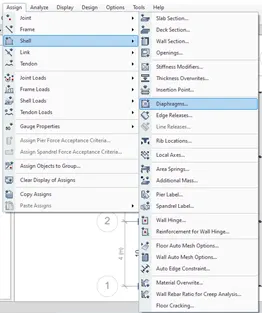

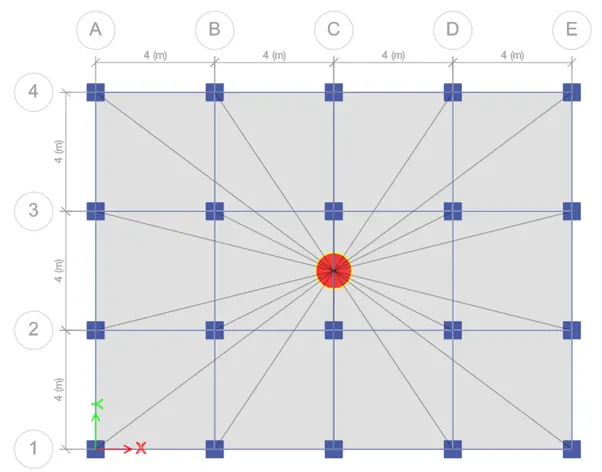

Go to assign tab select shell in that select diaphragms and select D1 and click ok

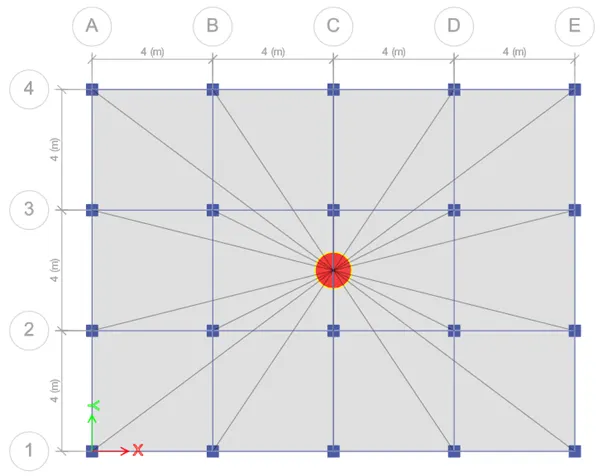

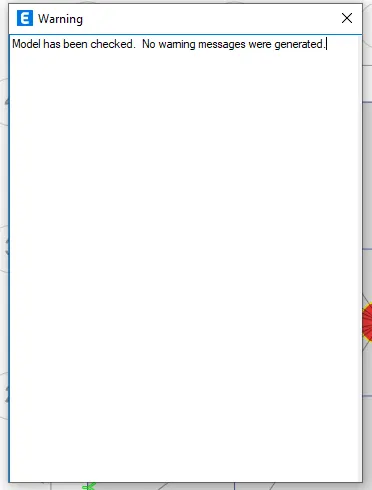

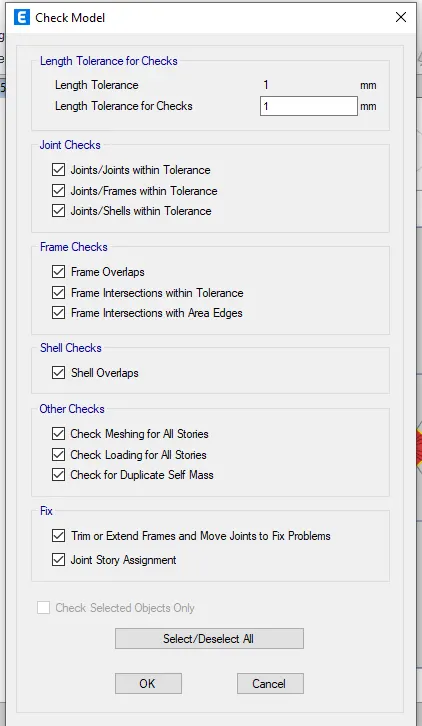

Step 13 : Go to Analyze and select check model and analyze the model for errors
Step 14 : Save the model
Go to analyze tab in that select trun analysis the model will get analyzed and results will occur
The model has been analysied

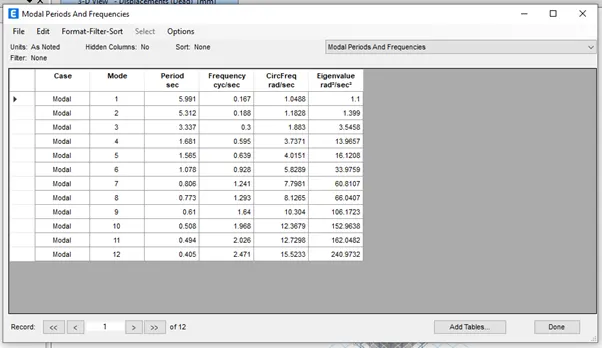

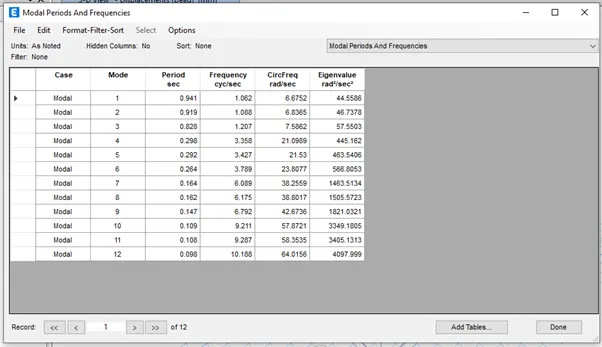

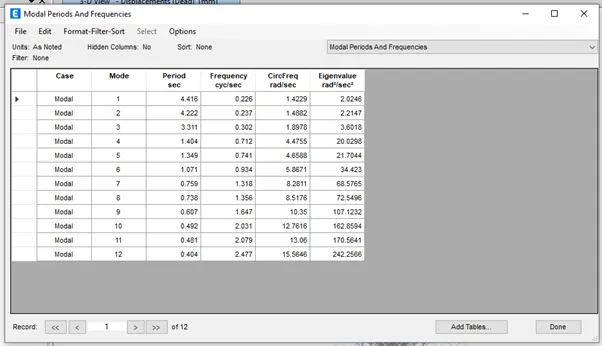

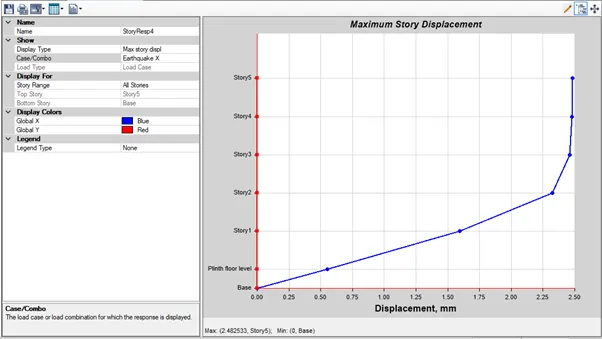

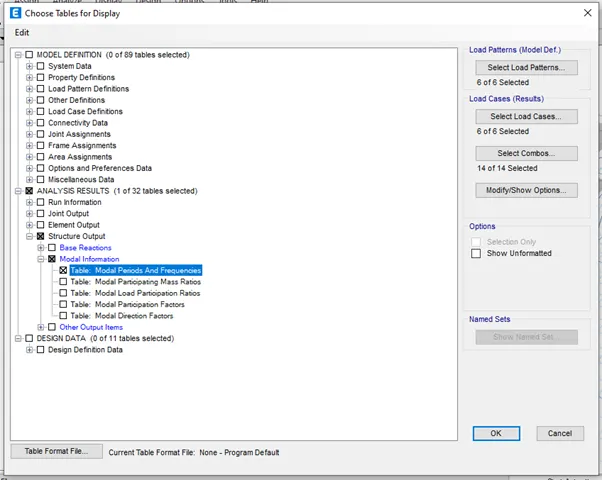

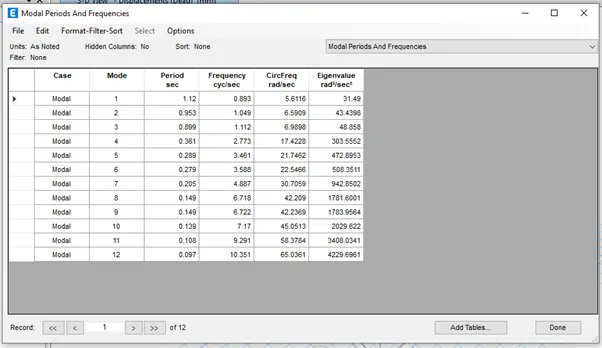

Step 15 : Go to display select show tables and select the modal periods and frequencies table and click ok

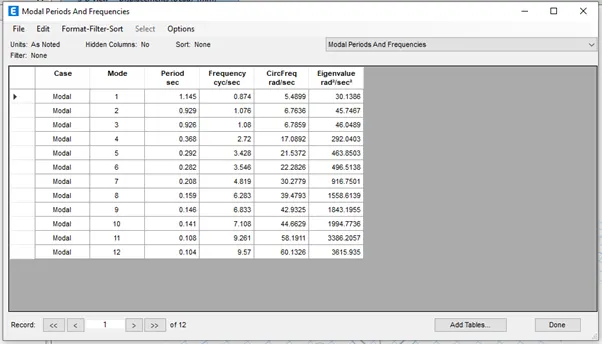

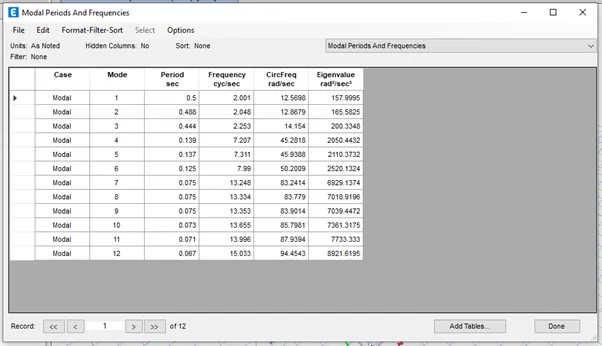

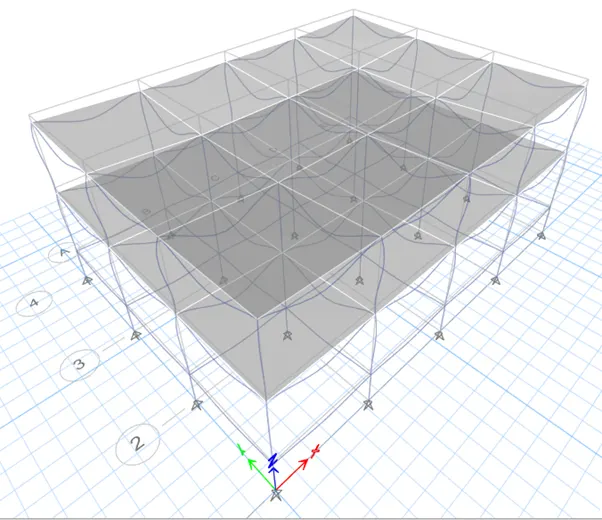

Building A model has been analysed
BUILDING B

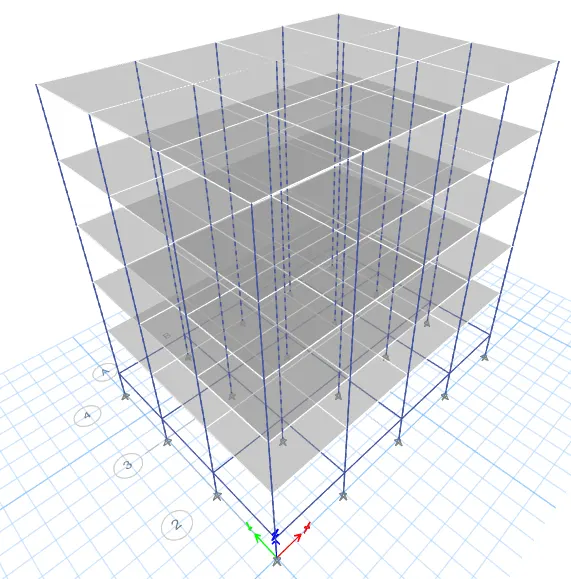

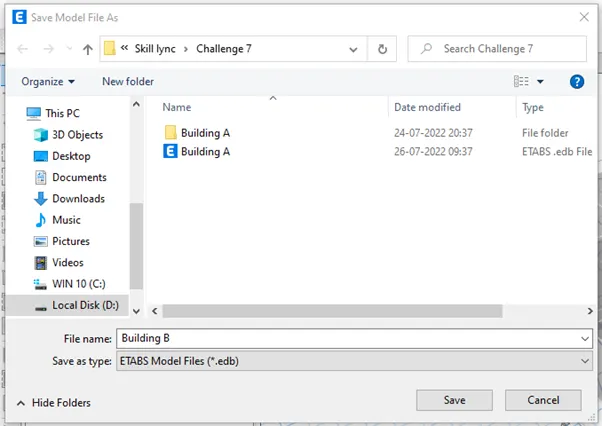

Step 16 : Go to file menu and save as the Building A model as Building B

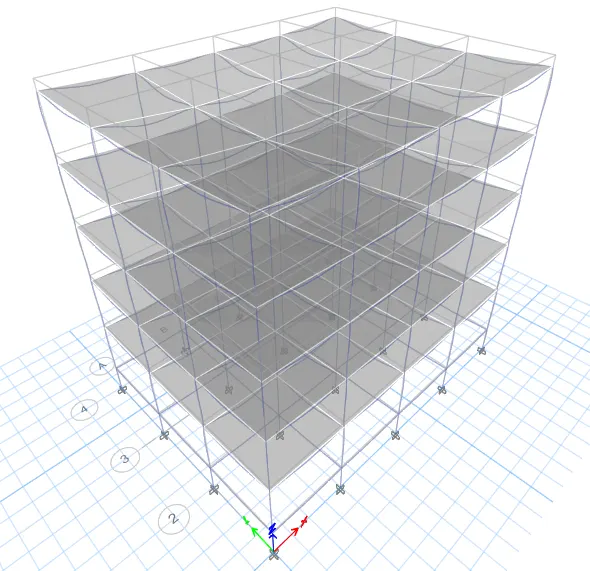

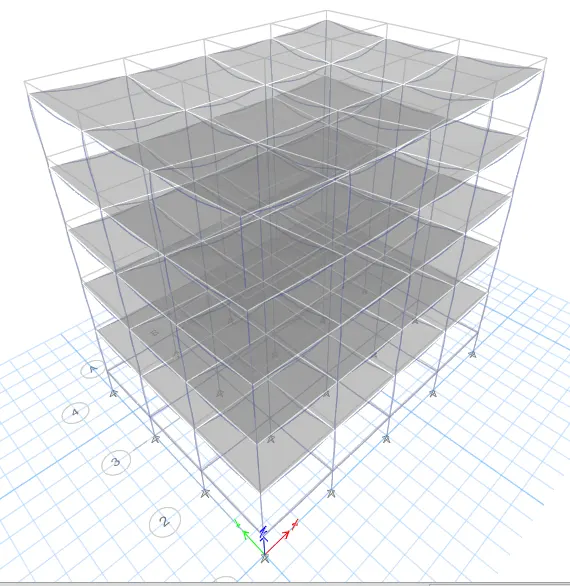

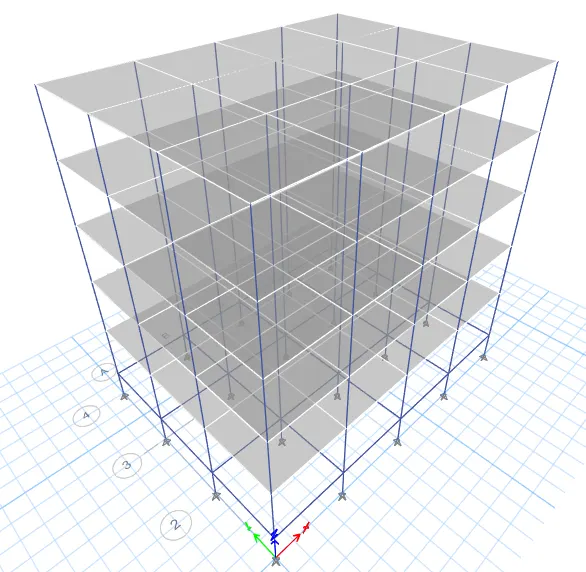

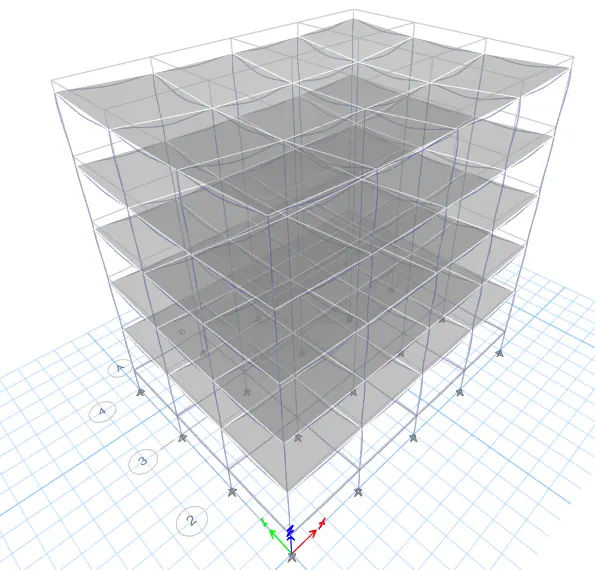

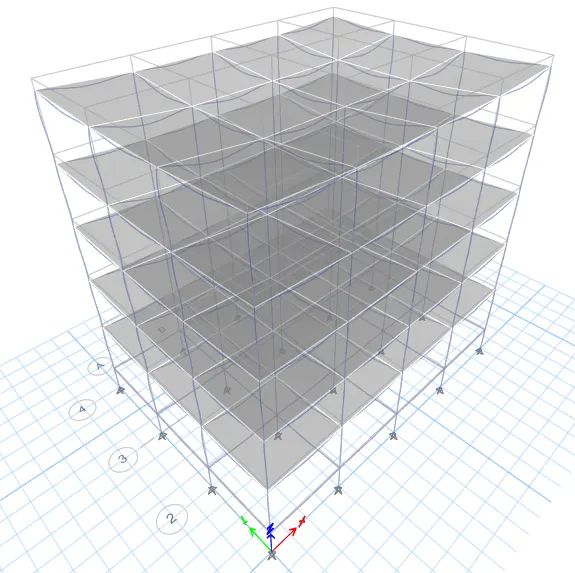

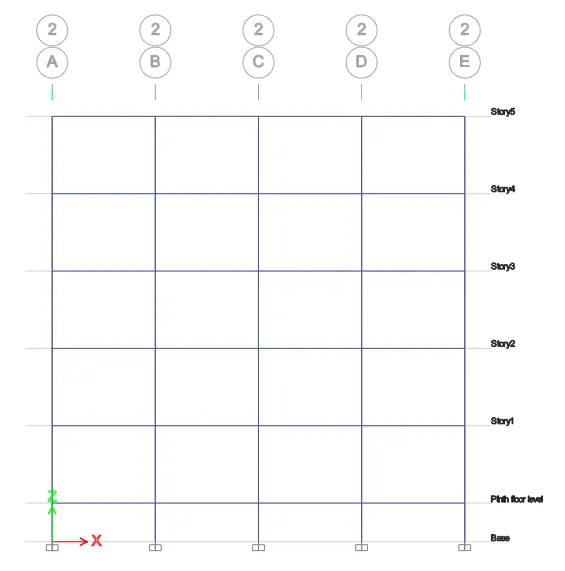

Step 17 : Building B model sould be designed for 5 story with same column and beam size as Building A modelGo to edit tab select Edit stories and grid system

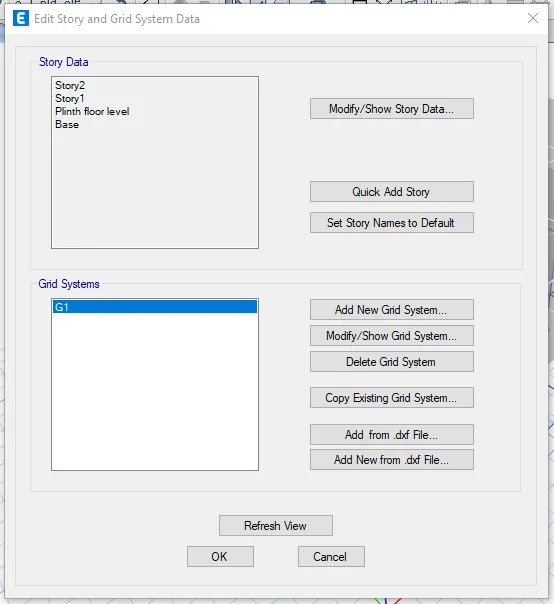

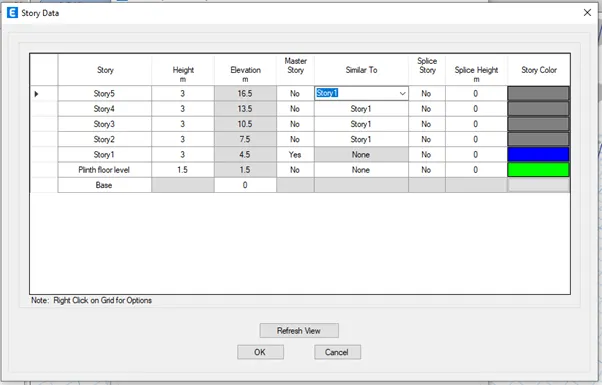

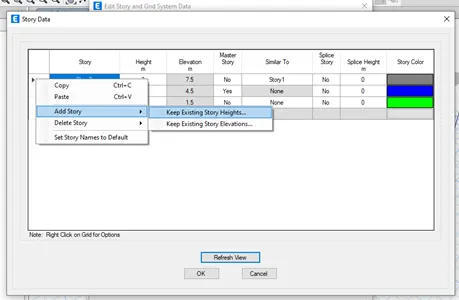

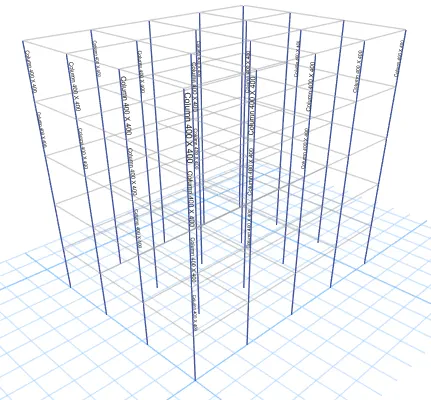

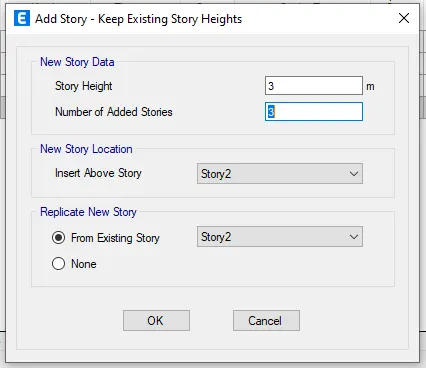

Click on Modify/show story data already 2 story is there by right clicking the arrow given in top row add 3 more story and do the settings accordingly and press ok

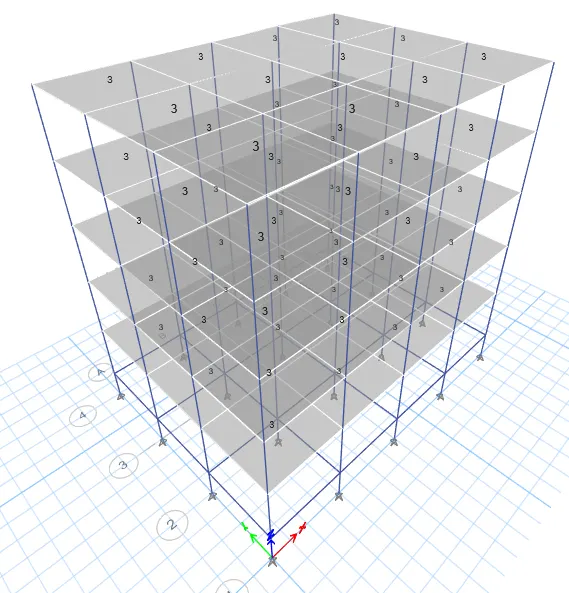

Step 18 : Now check whether the brickwall load assigned to beams and live load is aasigned to all the floors

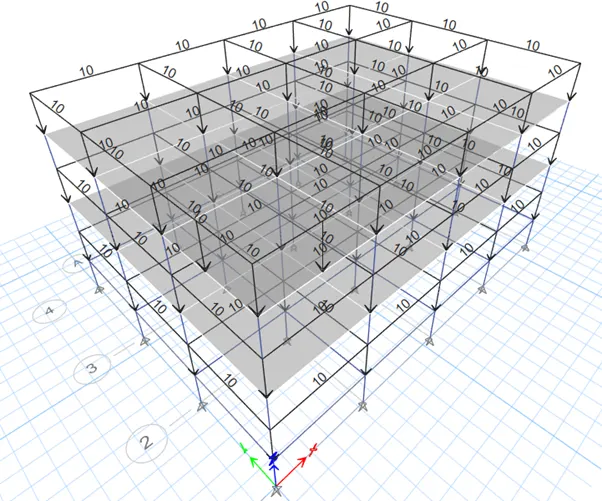

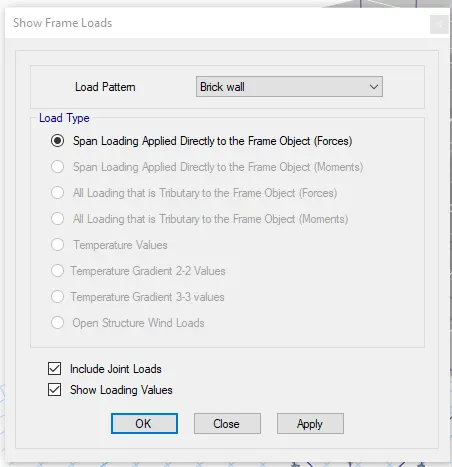

Click on display frame load assigned and check whether the load is assigned by clicking on apply

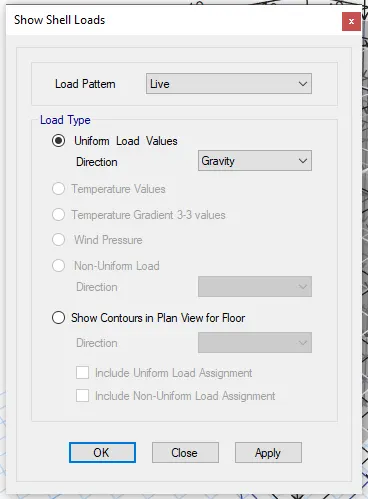

Click on display shell load assigned and check whether the load is assigned by clicking on apply

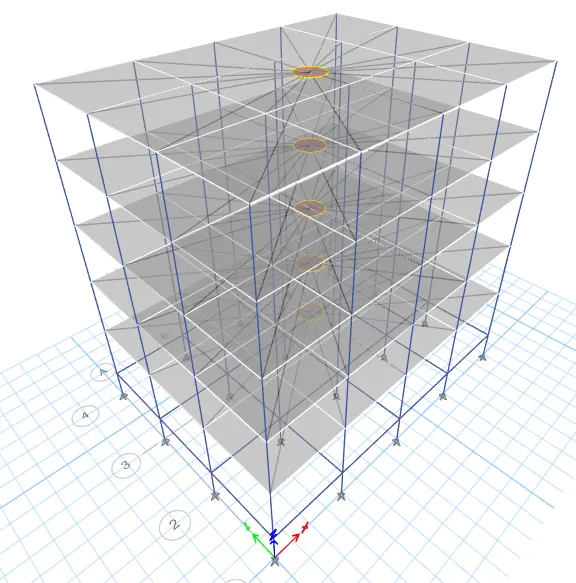

Step 19 : To create the diaphragm to the shell go to select in that select object type and in that select floors and click select and preess close

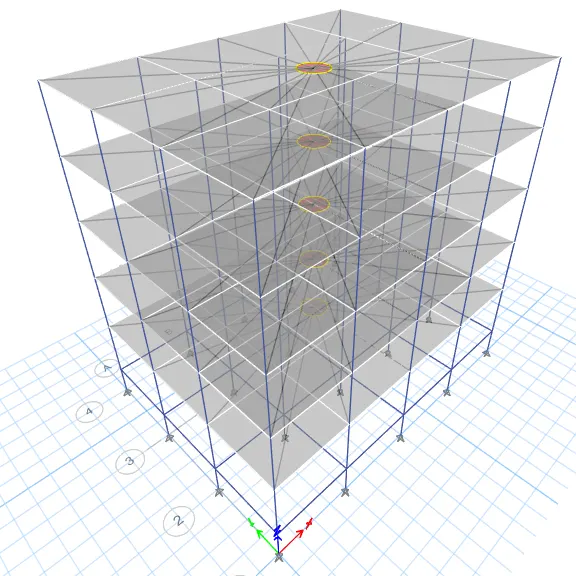

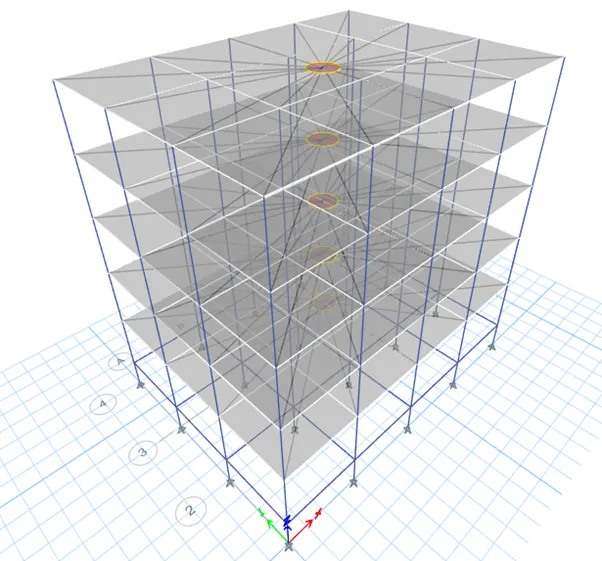

Go to assign tab select shell in that select diaphragms and select D1 and click ok
Step 20 : Go to Analyze and select check model and analyze the model for errors
Step 21 : Go to analyze tab in that select run analysis the model will get analyzed and results will occur

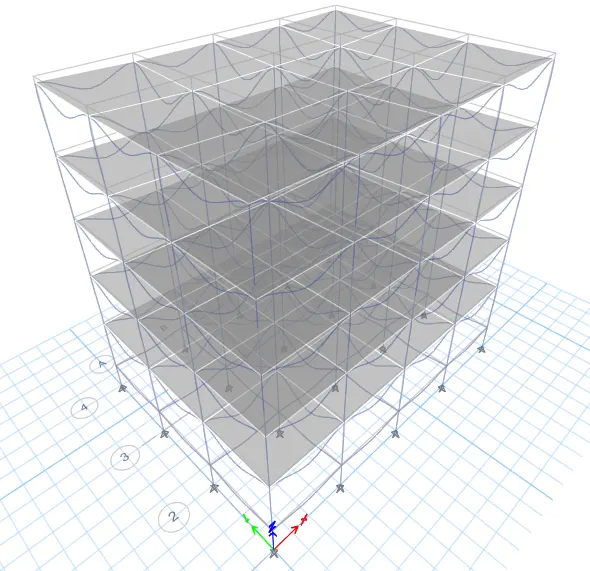

The model has been analysied
Step 22 : Go to display select show tables and select the modal periods and frequencies table and click ok
Building B model has been analysed
BUILDING C

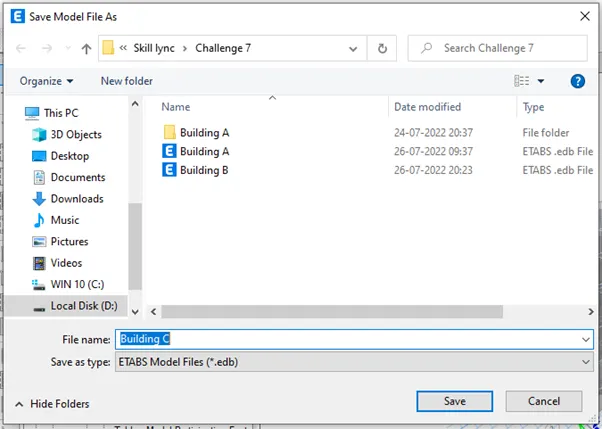

Step 23 : Go to file menu and save as the Building B model as Building C
Step 24 : The Stories is same as that of building B but the column size is different 550 X 300 mm

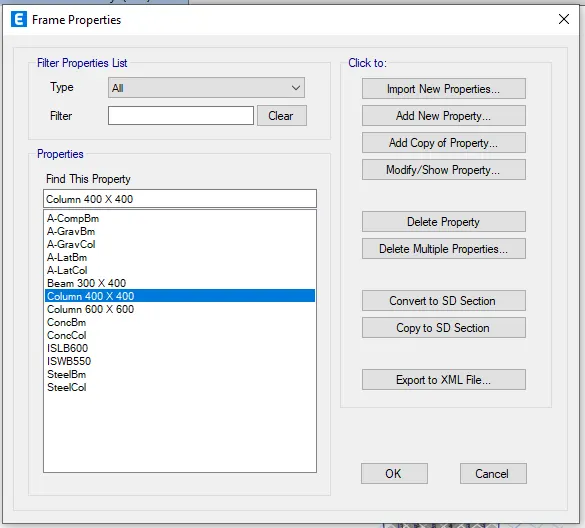

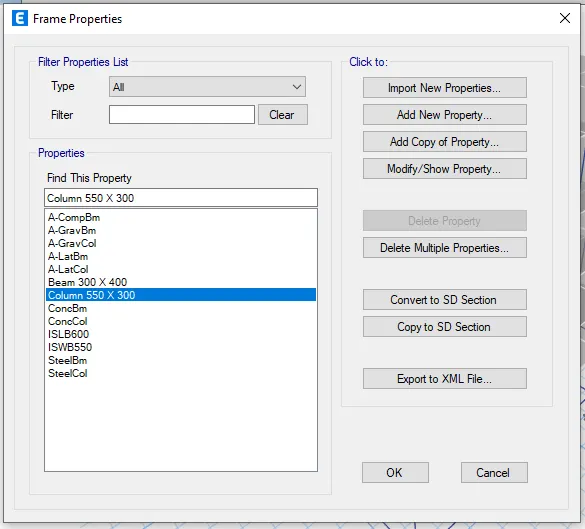

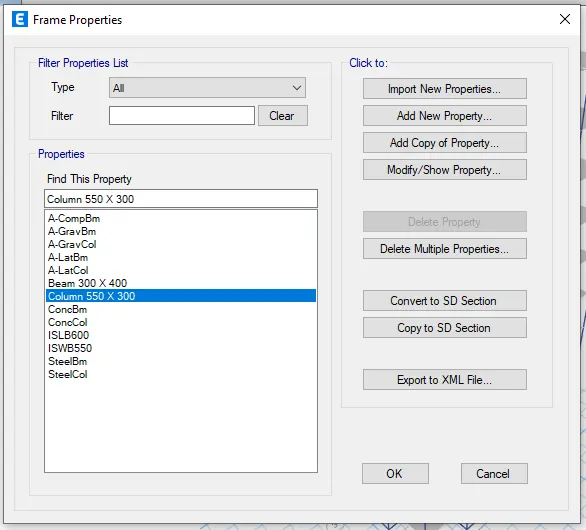

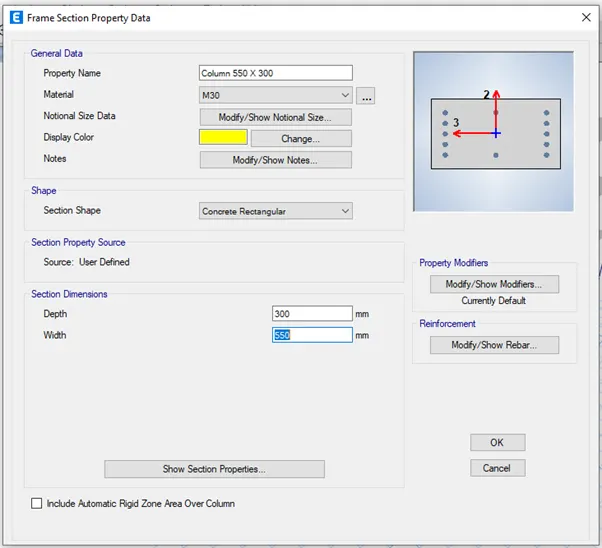

Go to define tab select section properties and in that frame section s and modify the column 400 X 400 mm to 550 X 300mm and refresh the view
In the above view the column as oriented in y direction but we need it in x direction

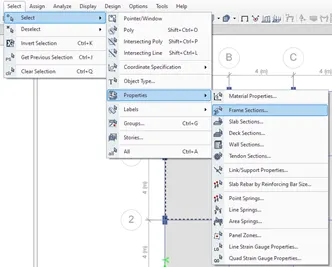

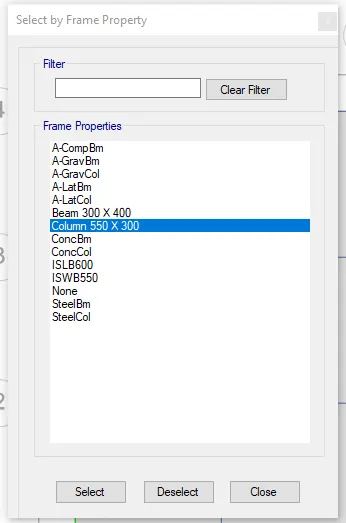

Go to select tab in that select properties and select frame section and select column 550 X 300

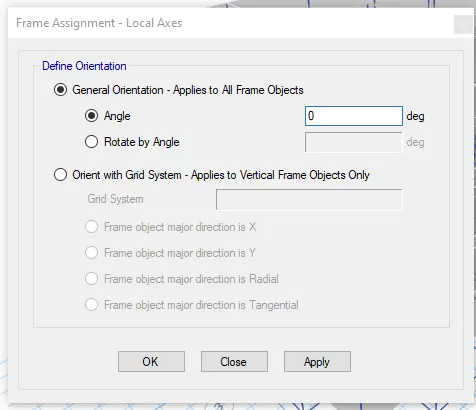

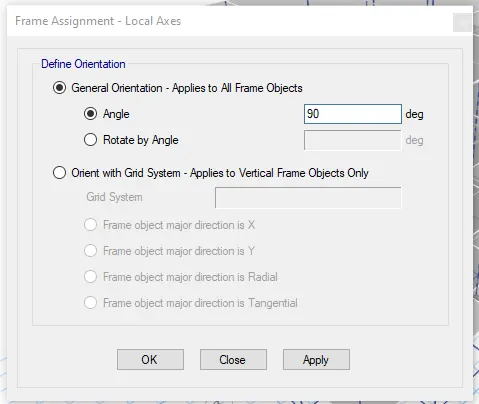

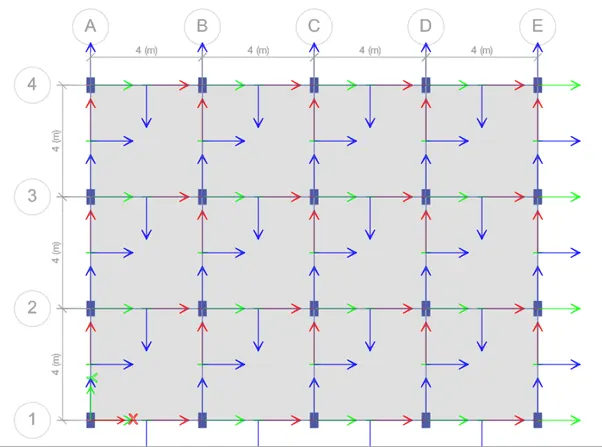

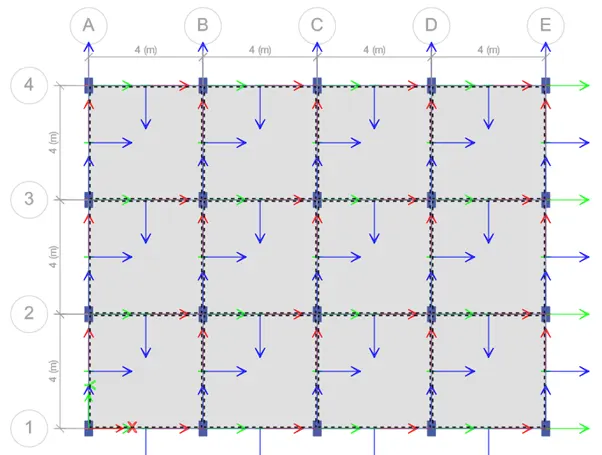

Go to Assign tab in tha select frame and local axes and keep the angle as 90 degree

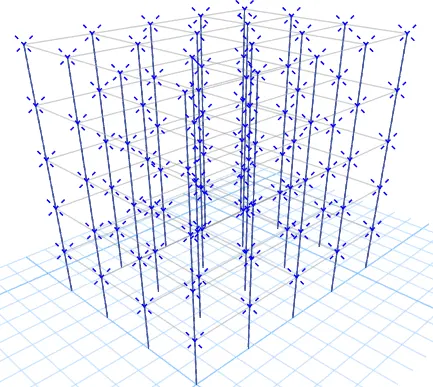

The column will rotate towards x direction
Step 25 : To create the diaphragm to the shell go to select in that select object type and in that select floors and click select and preess close

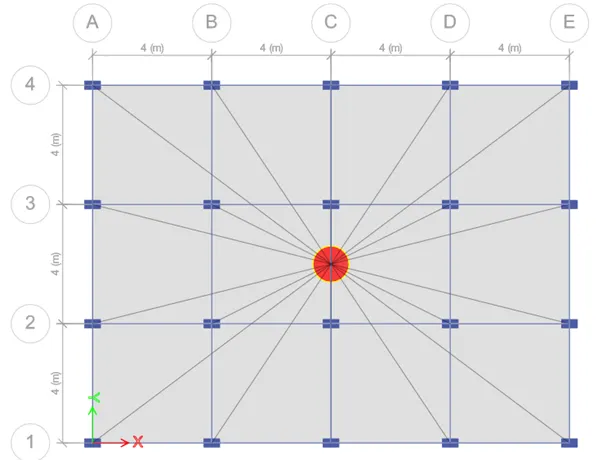

Go to assign tab select shell in that select diaphragms and select D1 and click ok
Step 26 : Go to Analyze and select check model and analyze the model for errors
Step 27 : Go to analyze tab in that select run analysis the model will get analyzed and results will occur
The model has been analysied
Step 28 : Go to display select show tables and select the modal periods and frequencies table and click ok
Building C model has been analysed
BUILDING D

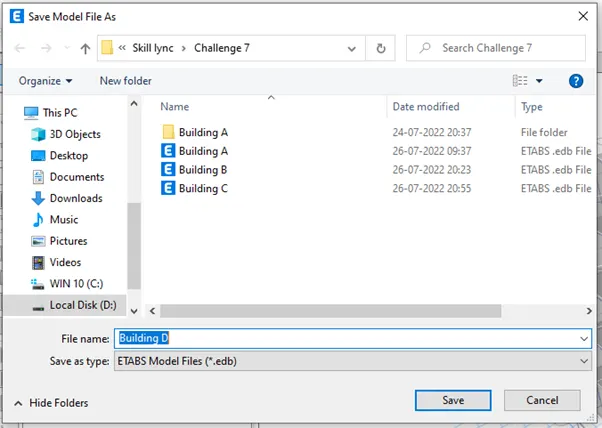

Step 29 : Go to file menu and save as the Building C model as Building D
Step 30 : The Stories is same as that of building C but the column size is different 300 X 550 mm
Go to select tab in that select properties and select frame section and select column 550 X 300
Go to Asiign tab in tha select frame and local axes and keep the angle as 0 degree
The column will rotate towards y direction
Step 31 : To create the diaphragm to the shell go to select in that select object type and in that select floors and click select and preess close
Go to assign tab select shell in that select diaphragms and select D1 and click ok
Step 32 : Go to Analyze and select check model and analyze the model for errors
Step 33 : Go to analyze tab in that select run analysis the model will get analyzed and results will occur
The model has been analysied
Step 34 : Go to display select show tables and select the modal periods and frequencies table and click ok
Building D model has been analysed
BUILDING E

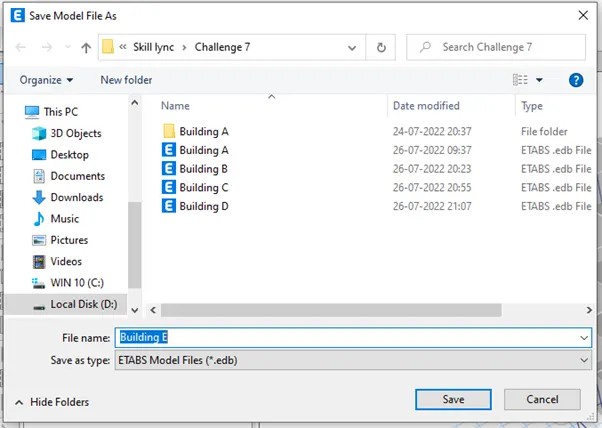

Step 35 : Go to file menu and save as the Building D model as Building E

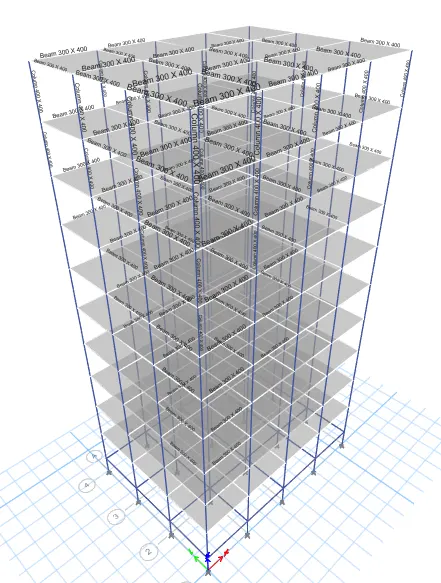

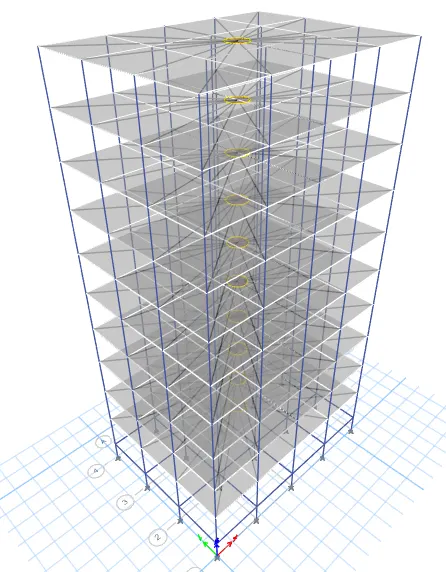

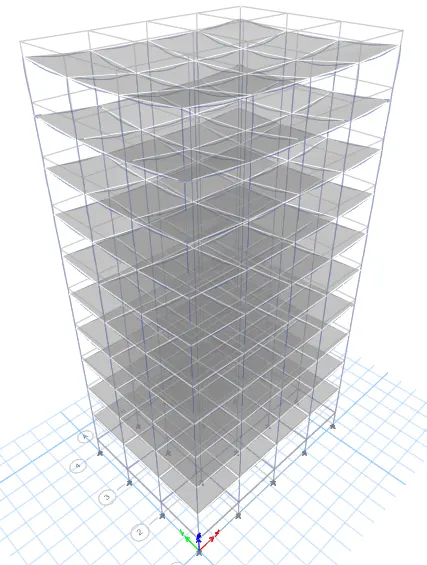

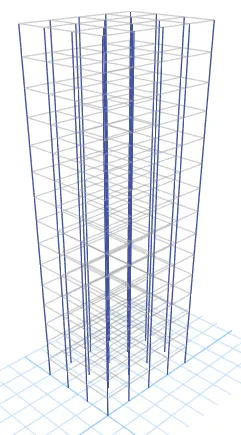

Step 36 : Building E model sould be designed for 10 story

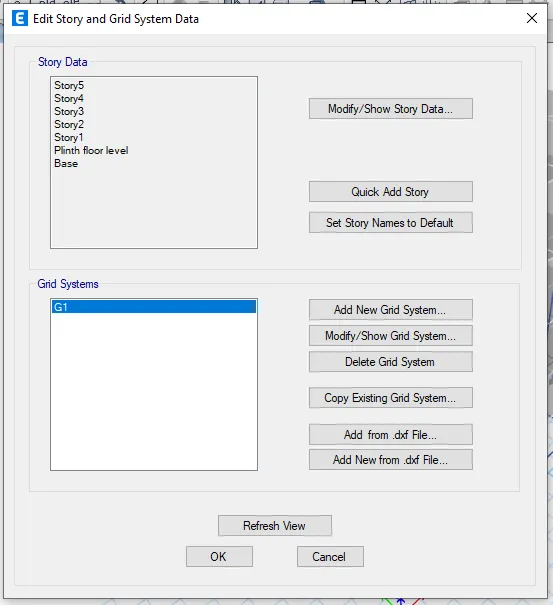

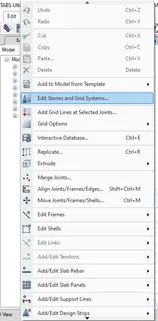

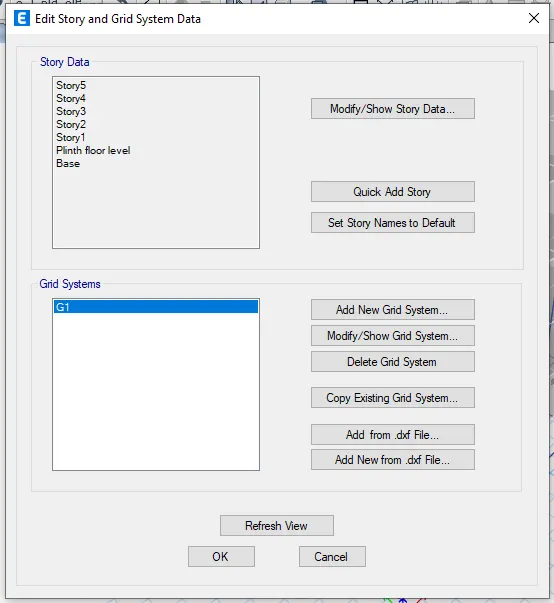

Go to edit tab select Edit stories and grid system

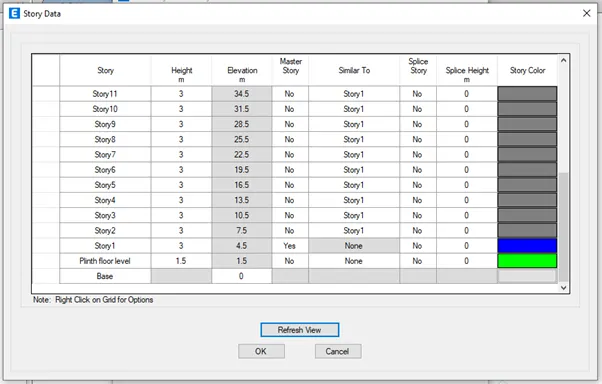

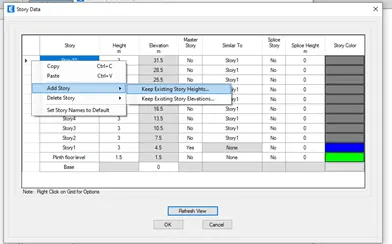

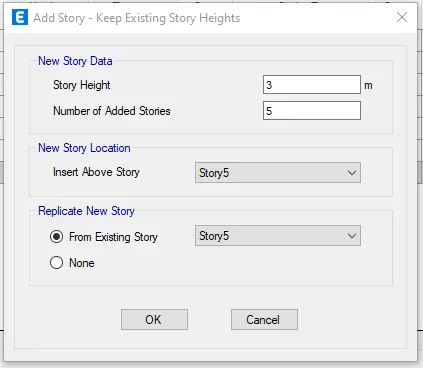

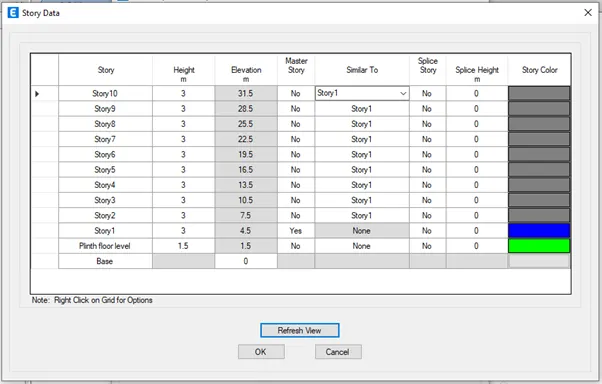

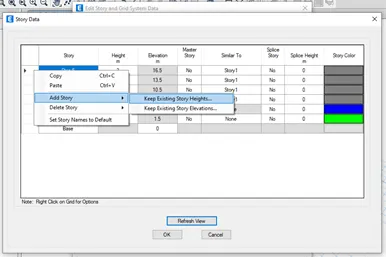

Click on Modify/show story data already 5 story is there by right clicking the arrow given in top row add 5 more story and do the settings accordingly and press ok
Step 37 : Now check whether the brickwall load assigned to beams and live load is aasigned to all the floors

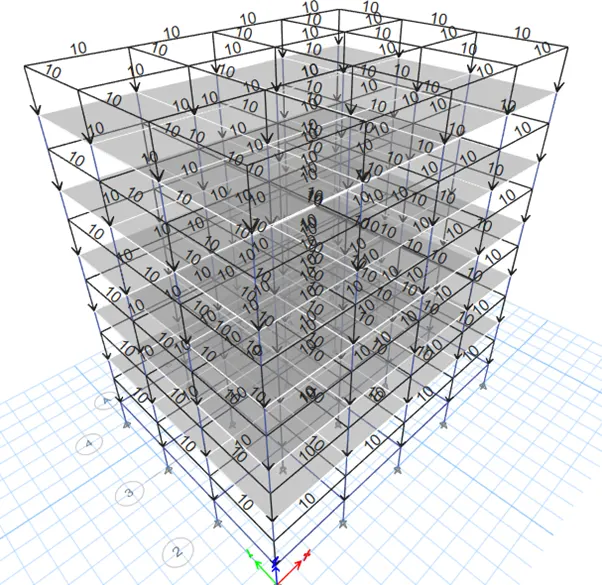

Click on display frame load assigned and check whether the load is assigned by clicking on apply

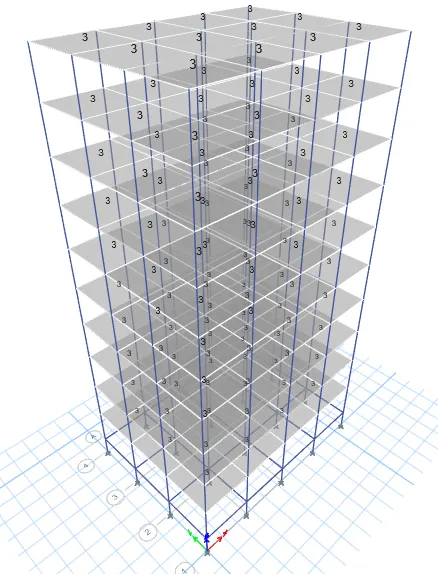

Click on display shell load assigned and check whether the load is assigned by clicking on apply

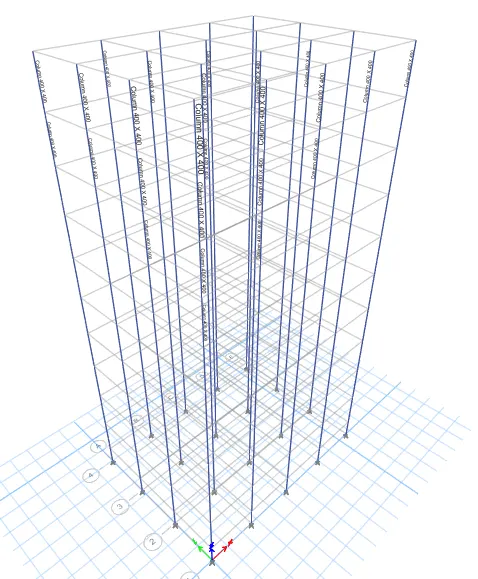

Step 38 : There are 2 different size columns i.e, for upper 5 story the column size is 400 X 400 mm and for the bottom 5 stories the column size is 600 X 600 mm
Go to define tab select section properties and in that frame section s and modify the column 550 X 300 mm to 600 X 600mm and add other column as 400 X 400 mm and refresh the view

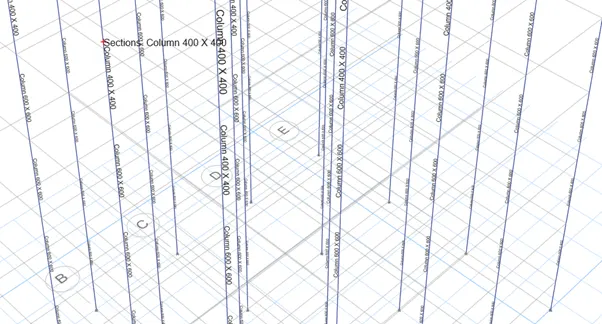

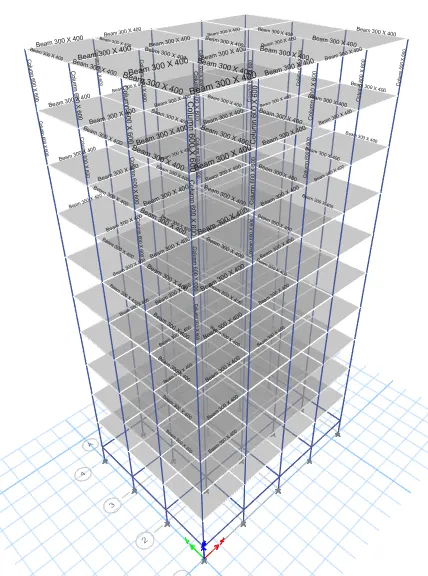

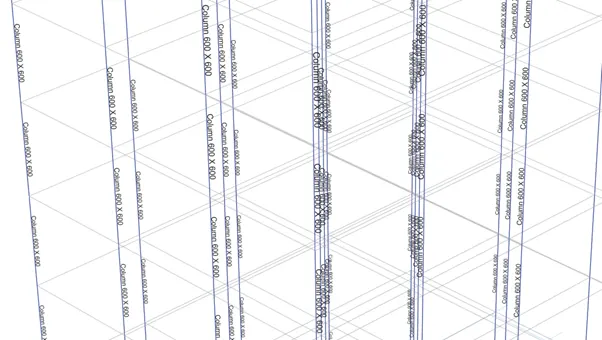

As per model created all the columns in all the story is 600 X 600 mm, now we need to change the column size as 400 X 400 mm from story 6 to story 10

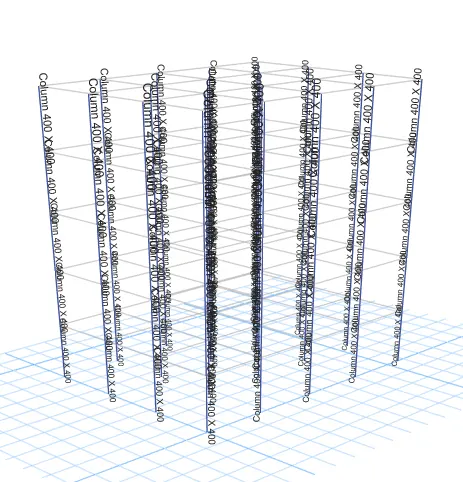

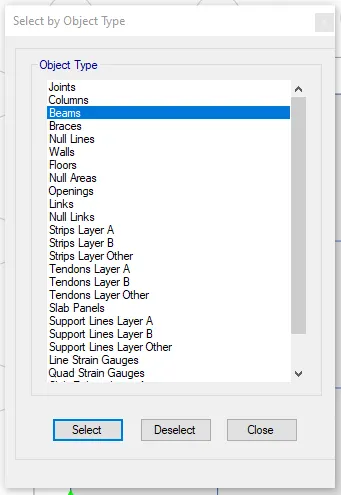

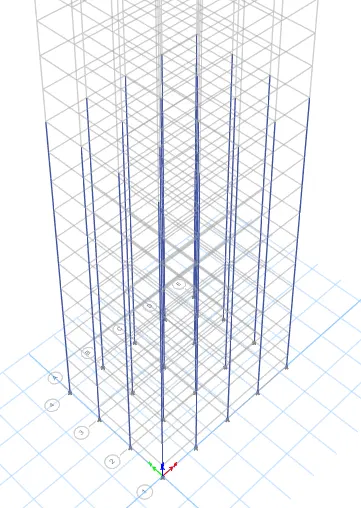

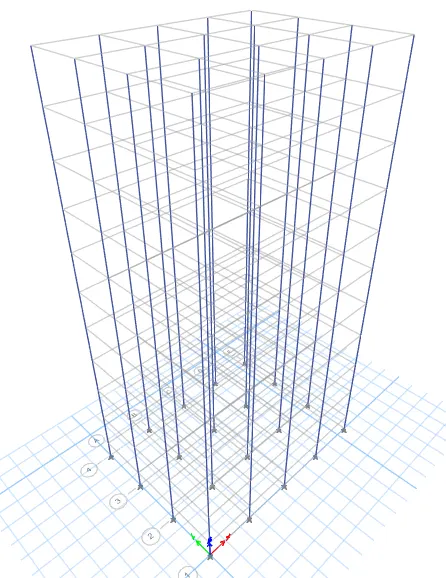

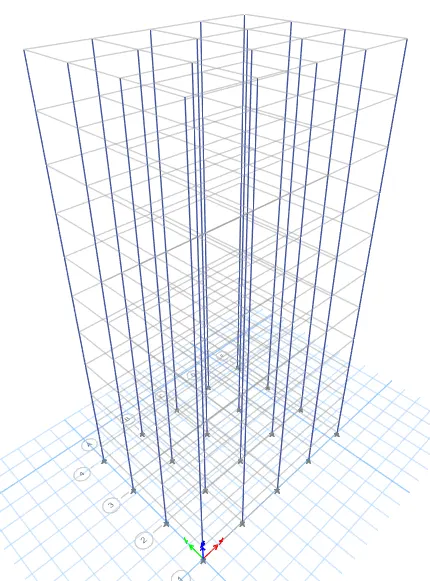

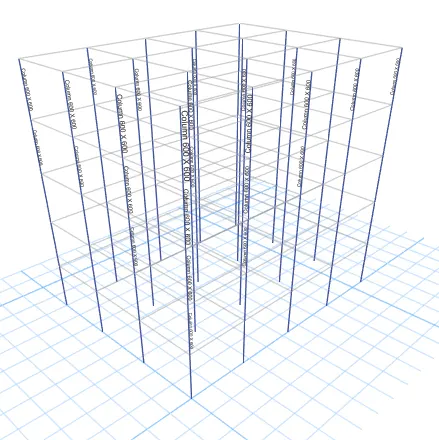

We have hide beams and slabs, Click on set display option and select beams and floors so that they will hide

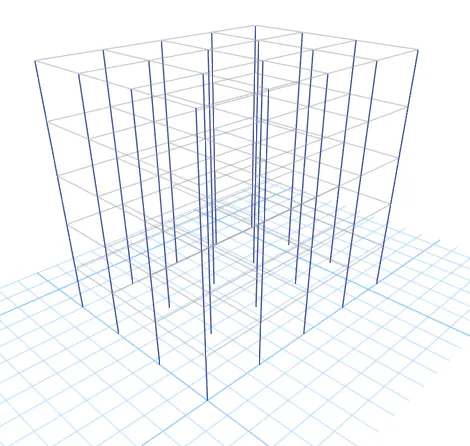

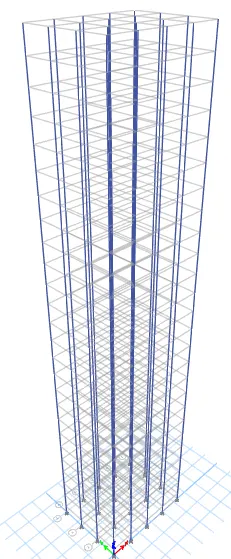

Now beams and slabs are not visible

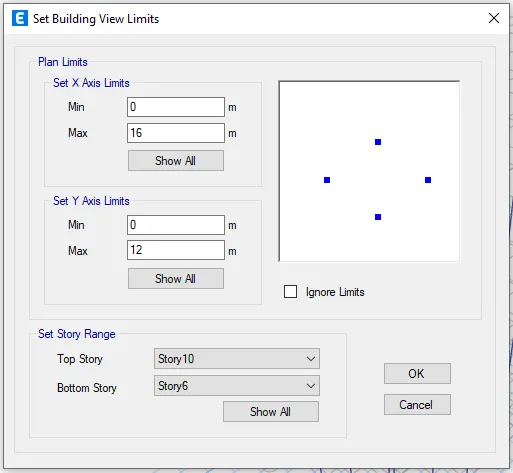

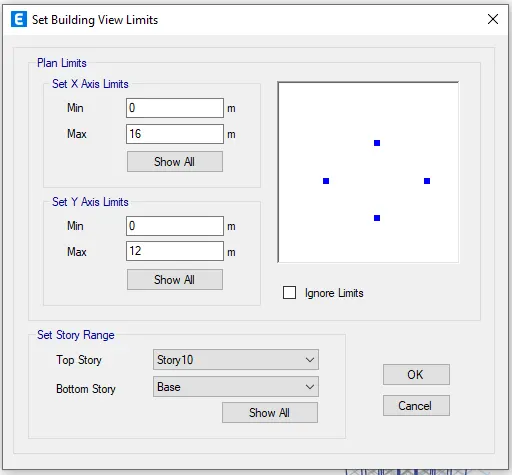

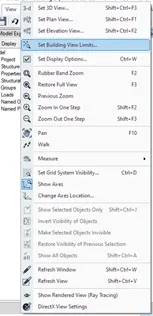

Go to view tab and select set building view limits give the inputs as story 6 to story 10 and click on ok
Select the columns go to assign in that select frame and section properties
Select column 400 X 400 mm and apply

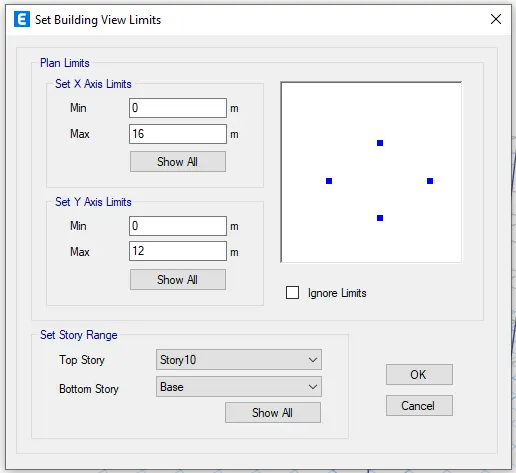

Go to view tab and select set building view limits give the inputs as base to story 10 and click on ok

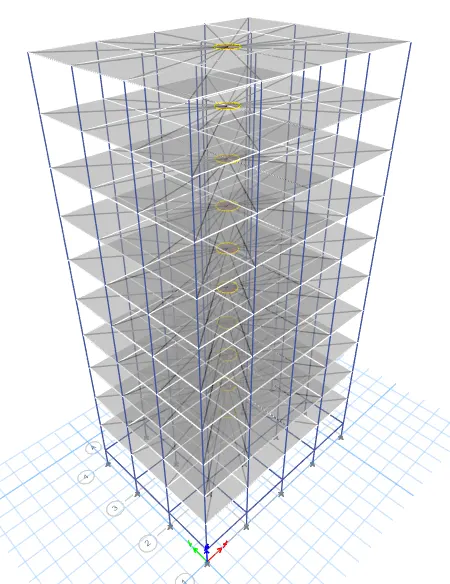

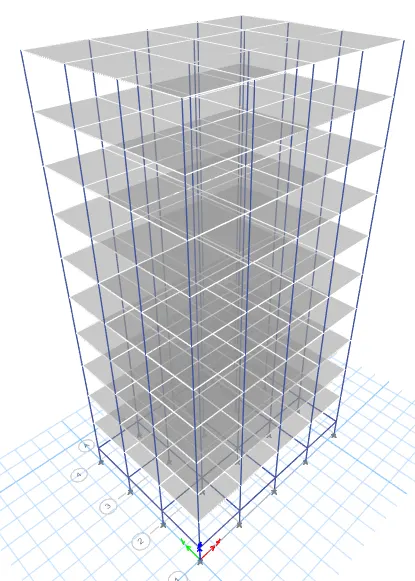

Click on set display option and select beams and floors so that they will unhide
Step 39 : To create the diaphragm to the shell go to select in that select object type and in that select floors and click select and preess close
Go to assign tab select shell in that select diaphragms and select D1 and click ok
Step 40 : Go to Analyze and select check model and analyze the model for errors

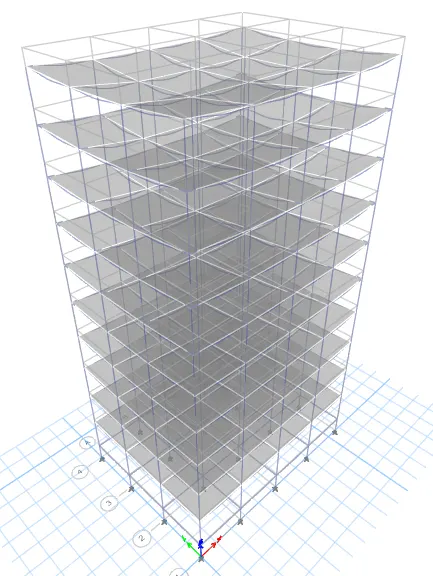

Step 41 : Go to analyze tab in that select run analysis the model will get analyzed and results will occur
The model has been analysied
Step 42 : Go to display select show tables and select the modal periods and frequencies table and click ok
Building E model has been analysed
BUILDING F

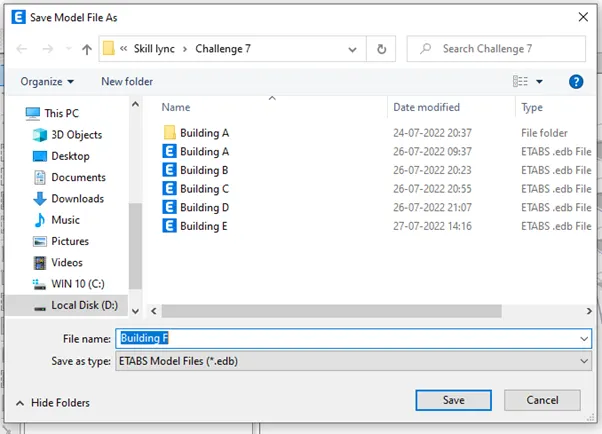

Step 43 : Go to file menu and save as the Building E model as Building F
Step 44 : Story of Building F is as same as Building E model

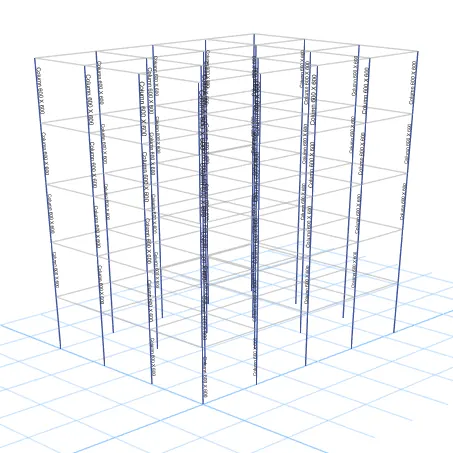

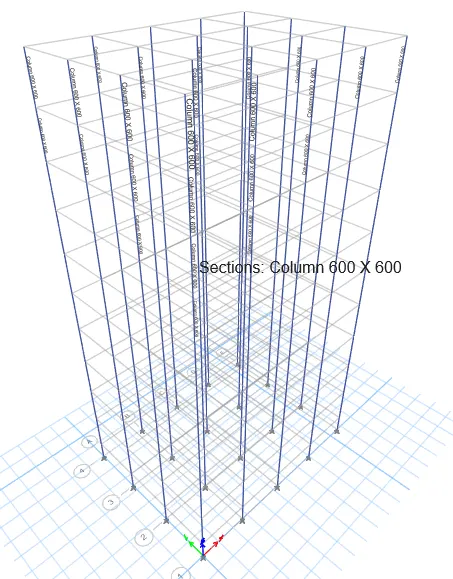

But allthe story have same column size as 600 X 600 mm so wehave change the column size from story 6 to story 10

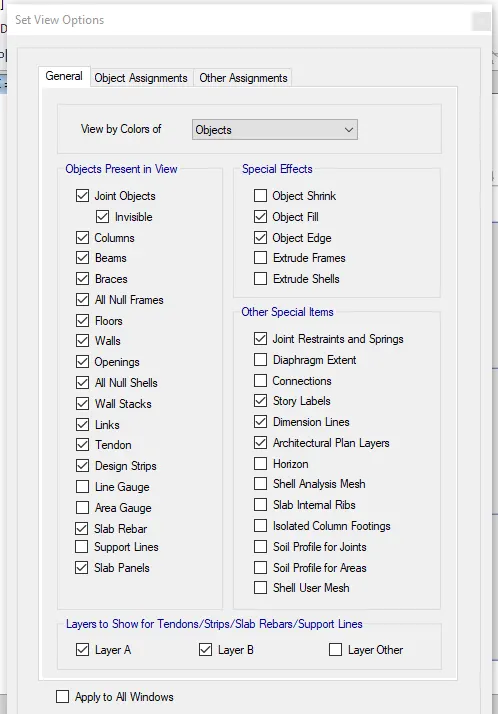

We have hide beams and slabs, Click on set display option and select beams and floors so that they will hide
Now beams and slabs are not visible
Go to view tab and select set building view limits give the inputs as story 6 to story 10 and click on ok

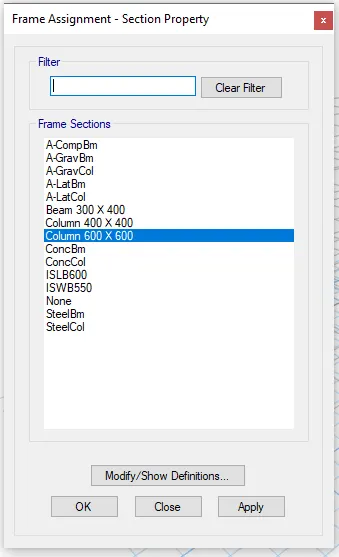

Select the columns go to assign in that select frame and section properties
Select column 600 X 600 mm and apply
Go to view tab and select set building view limits give the inputs as base to story 10 and click on ok
Click on set display option and select beams and floors so that they will unhide
Step 45 : To create the diaphragm to the shell go to select in that select object type and in that select floors and click select and preess close
Go to assign tab select shell in that select diaphragms and select D1 and click ok
Step 46 : Go to Analyze and select check model and analyze the model for errors
Step 47 : Go to analyze tab in that select run analysis the model will get analyzed and results will occur
The model has been analysied
Step 48 : Go to display select show tables and select the modal periods and frequencies table and click ok
Building F model has been analysed
BUILDING G

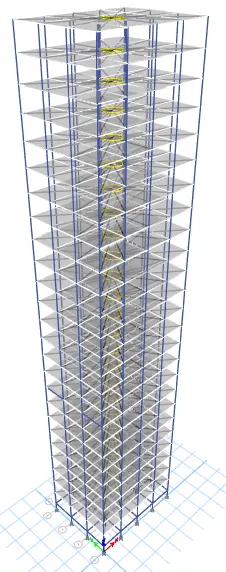

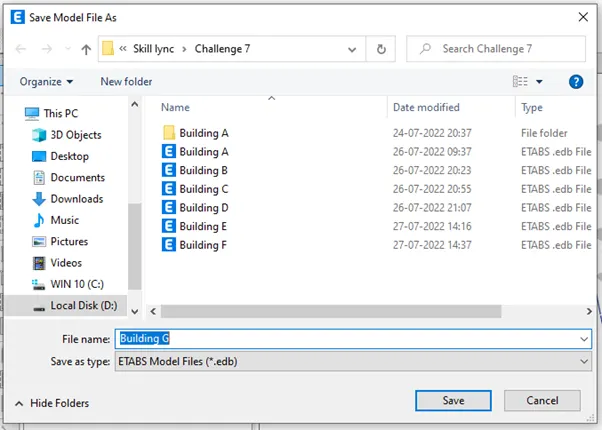

Step 49 : Go to file menu and save as the Building D model as Building E

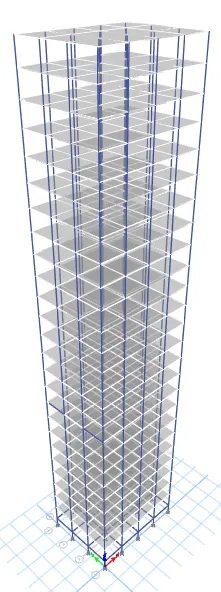

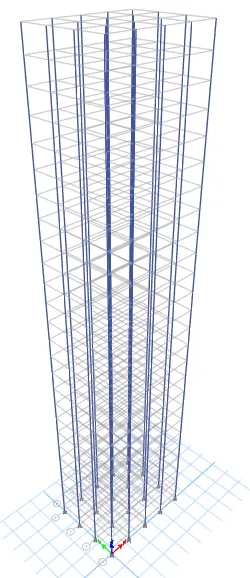

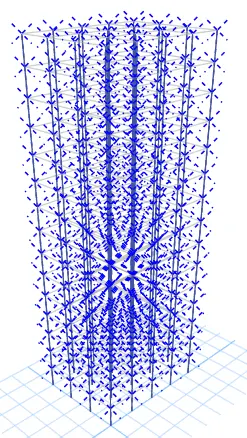

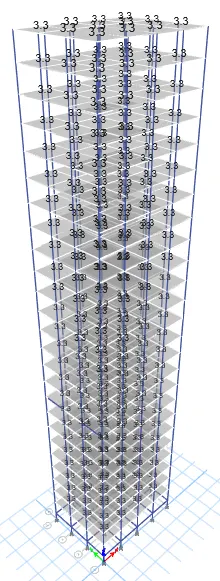

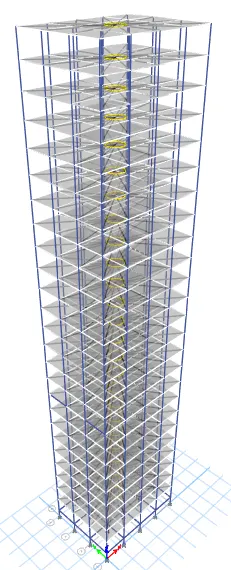

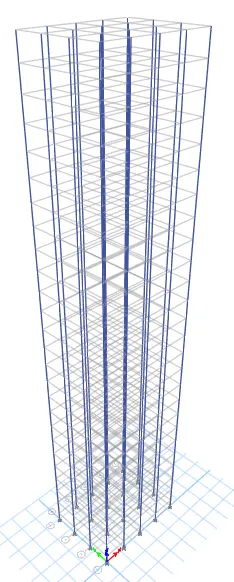

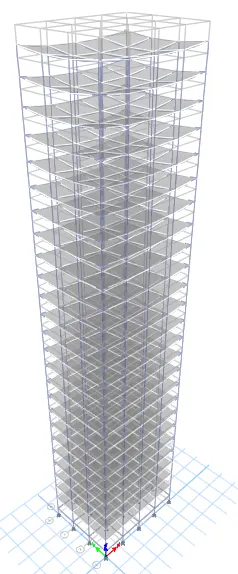

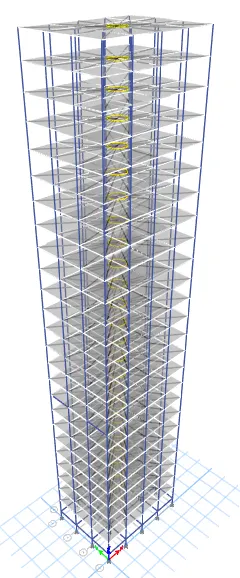

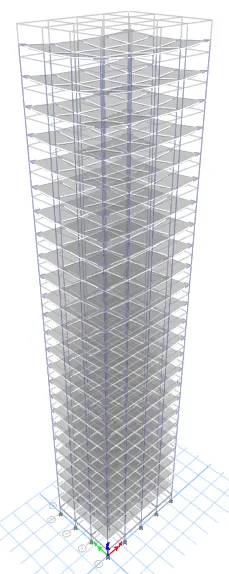

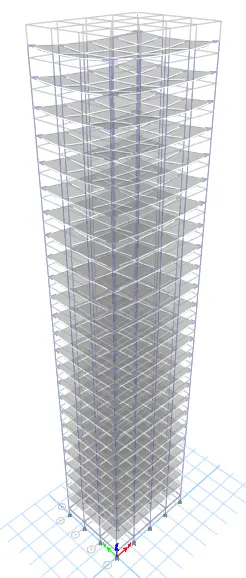

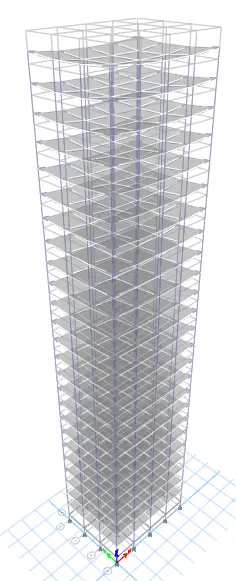

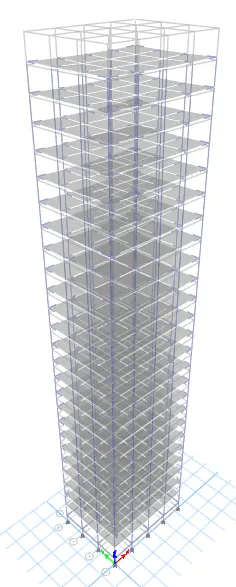

Step 50 : Building G model sould be designed for 25 story

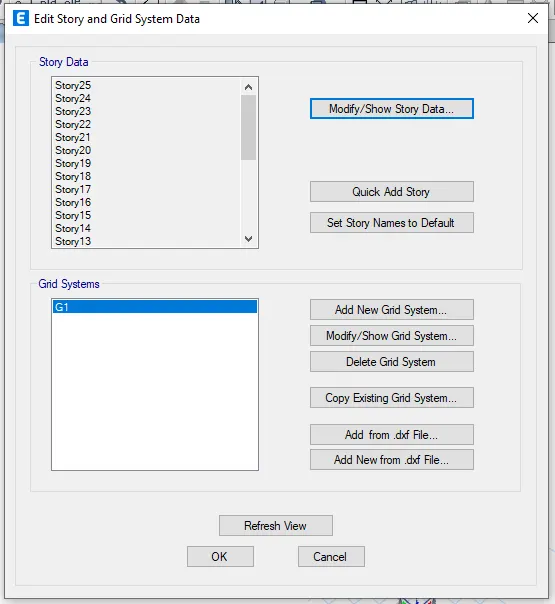

Go to edit tab select Edit stories and grid system

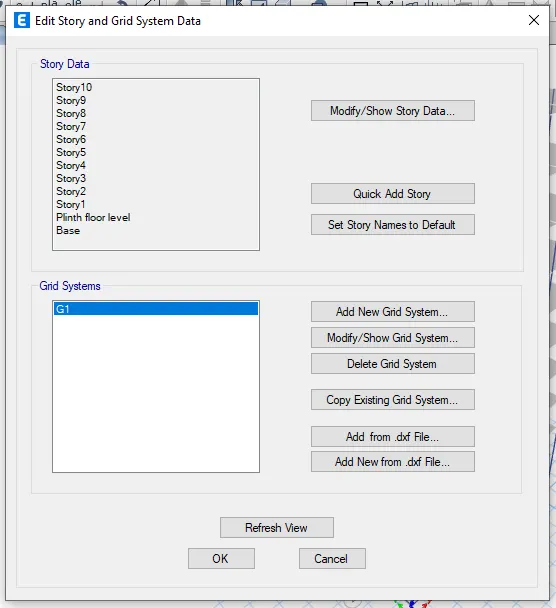

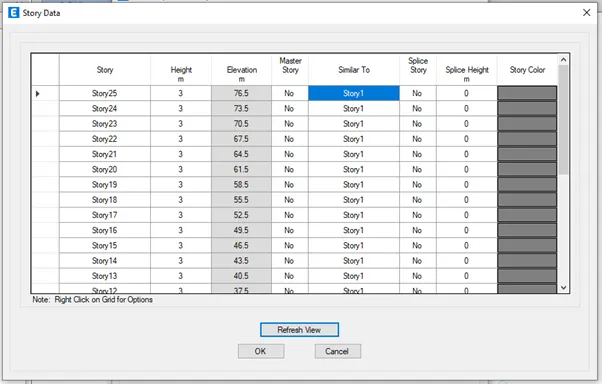

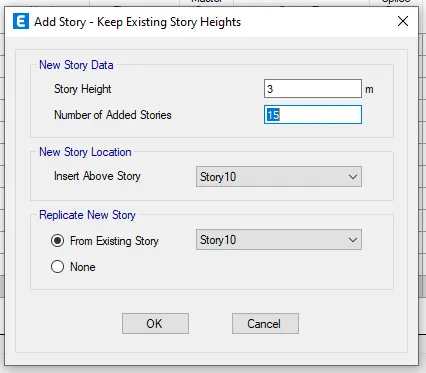

Click on Modify/show story data already 10 story is there by right clicking the arrow given in top row add 15 more story and do the settings accordingly and press ok
Step 51 : Now check whether the brickwall load assigned to beams and live load is aasigned to all the floors
Click on display frame load assigned and check whether the load is assigned by clicking on apply
Click on display shell load assigned and check whether the load is assigned by clicking on apply
Step 52 : There are 3 different size columns i.e, for upper 5 story the column size is 400 X 400 mm, for the middle 10 stories the column size is 600 X 600 mm and for the bottom 5 stories the column size is 800 X 800 mm
In the model column 400 X 400 mm and column 600 X 600 mm is already created now we need to create only column 800 X 800 mm

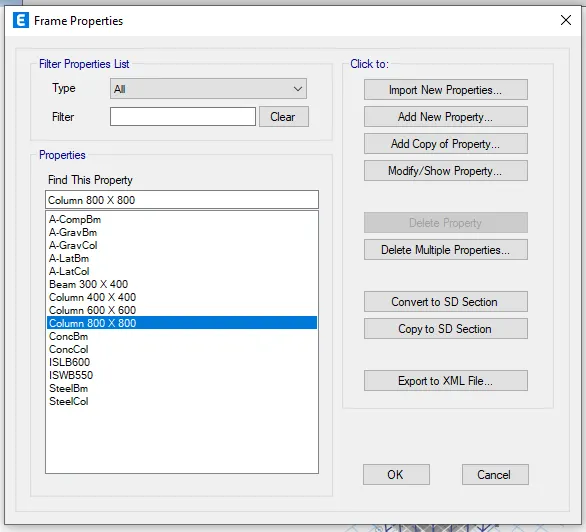

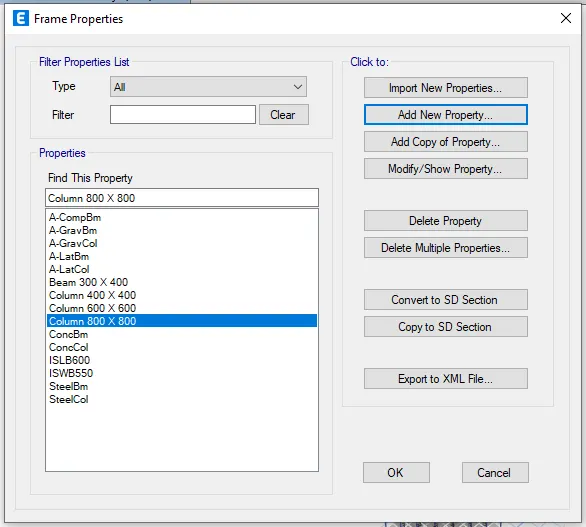

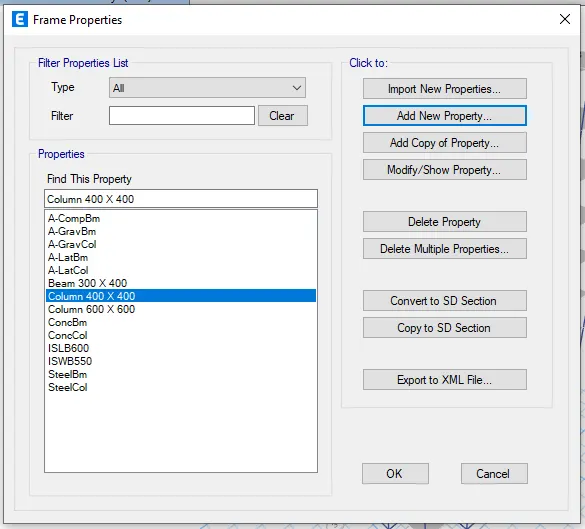

Go to define tab select section properties and add new property as column 800 X 800 mm
As per model created all the columns in all the story is 600 X 600 mm, now we need to change the column size as 400 X 400 mm from story 21 to story 25, Column size as 600 X 600 mm from story 11 to 20 and column size as 800 X 800 mm from base to story 10

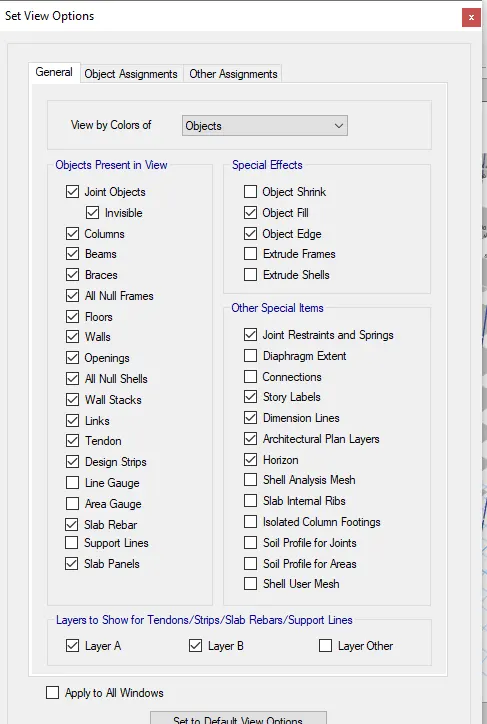

We have hide beams and slabs, Click on set display option and select beams and floors so that they will hide

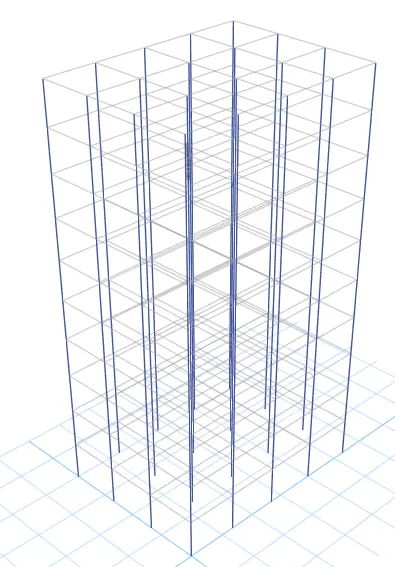

Now beams and slabs are not visible

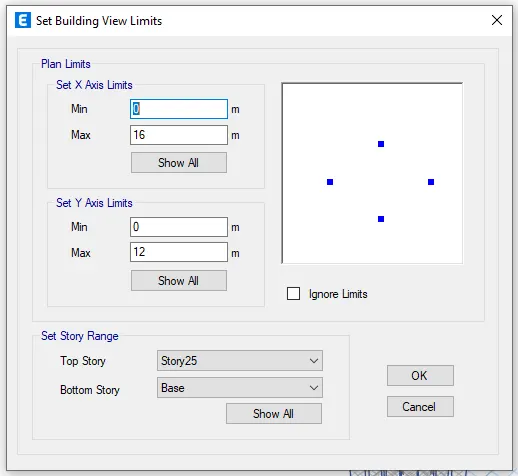

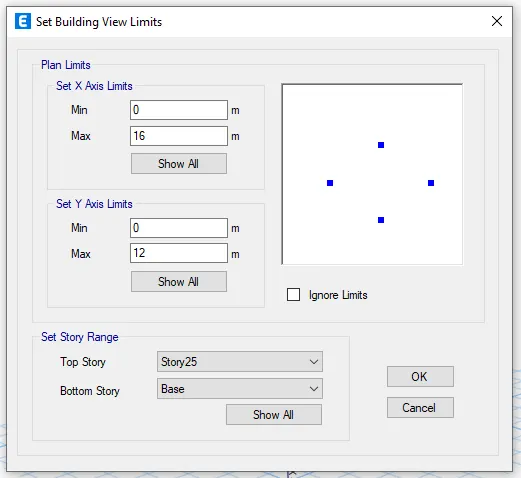

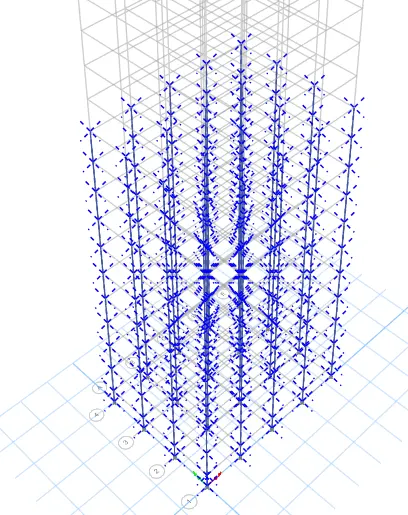

Go to view tab and select set building view limits give the inputs as base to story 10 and click on ok

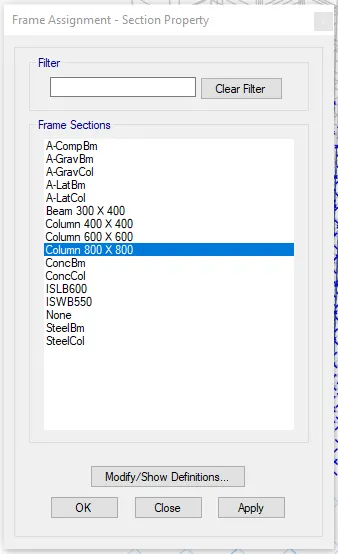

Select the columns go to assign in that select frame and section properties
Select column 800 X 800 mm and apply
Go to view tab and select set building view limits give the inputs as story 11 to story 20 and click on ok.
The column size is already column 600 X 600mm so need to change
Go to view tab and select set building view limits give the inputs as story 21 to story 25 and click on ok
Select the columns go to assign in that select frame and section properties

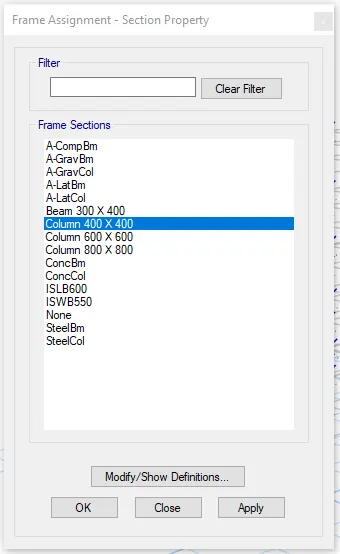

Select column 400 X 400 mm and apply

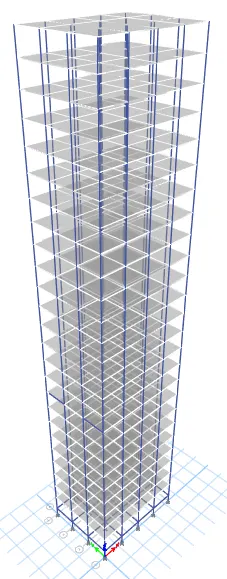

Go to view tab and select set building view limits give the inputs as base to story 25 and click on ok

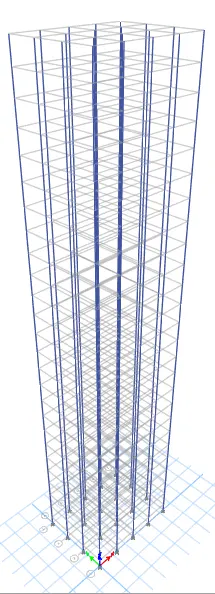

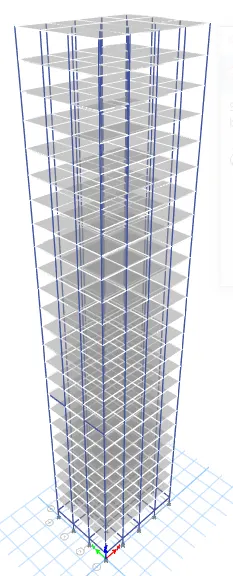

Click on set display option and select beams and floors so that they will unhide
Step 53 : To create the diaphragm to the shell go to select in that select object type and in that select floors and click select and preess close
Go to assign tab select shell in that select diaphragms and select D1 and click ok
Step 54 : Go to Analyze and select check model and analyze the model for errors
Step 55 : Go to analyze tab in that select run analysis the model will get analyzed and results will occur
The model has been analysied
Step 56 : Go to display select show tables and select the modal periods and frequencies table and click ok
Building G model has been analysed
BUILDING H

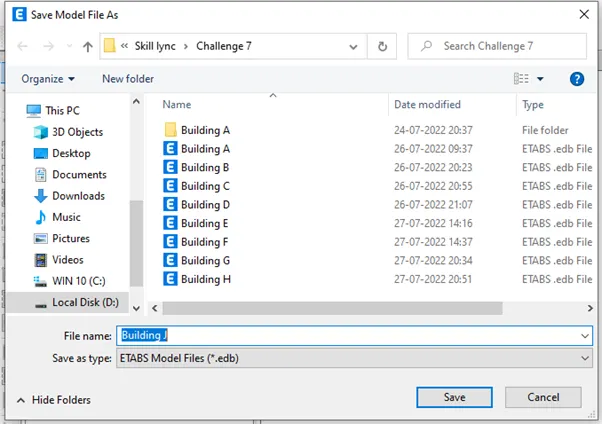

Step 57 : Go to file menu and save as the Building G model as Building H
Step 58 : Story of Building H is as same as Building G model

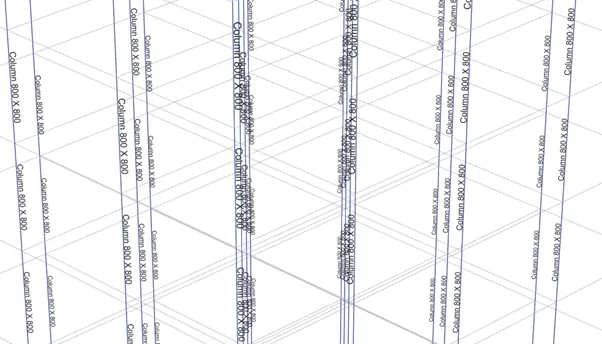

But all the story have same column size as 800 X 800 mm so wehave change the column size from story 11 to story 25
We have hide beams and slabs, Click on set display option and select beams and floors so that they will hide
Now beams and slabs are not visible
Go to view tab and select set building view limits give the inputs as story 11 to story 25 and click on ok

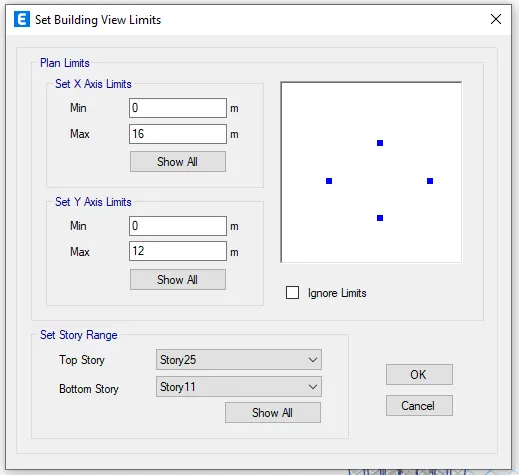

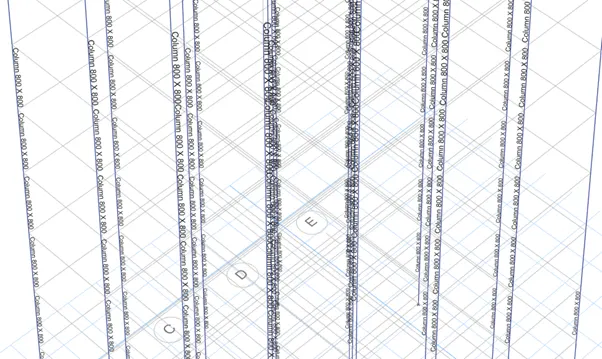

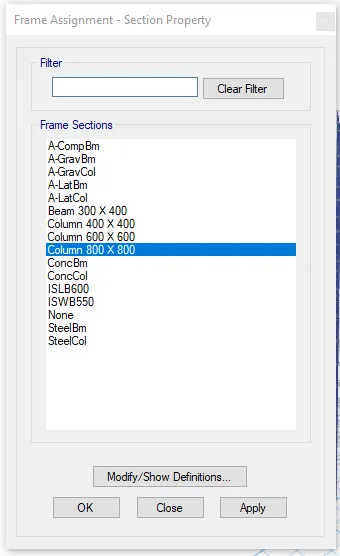

Select the columns go to assign in that select frame and section properties
Select column 800 X 800 mm and apply
Go to view tab and select set building view limits give the inputs as base to story 25 and click on ok
Click on set display option and select beams and floors so that they will unhide
Step 59 : To create the diaphragm to the shell go to select in that select object type and in that select floors and click select and preess close
Go to assign tab select shell in that select diaphragms and select D1 and click ok
Step 60 : Go to Analyze and select check model and analyze the model for errors
Step 61 : Go to analyze tab in that select run analysis the model will get analyzed and results will occur
The model has been analysied
Step 62 : Go to display select show tables and select the modal periods and frequencies table and click ok
Building H model has been analysed
BUILDING J
Step 63 : Go to file menu and save as the Building H model as Building J
Step 64 : Story of Building J is as same as Building H model
Even column sizes are same
But the live load acting on the slab is 10% more than the Building H i.e, 3.3 kN/m^2
Go to select in that select object type and in that select floors and click select and preess close
Go to assign in that select shell load and select uniform load

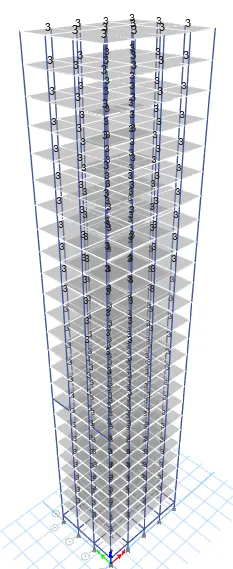

Step 65 : To create the diaphragm to the shell go to select in that select object type and in that select floors and click select and preess close
Go to assign tab select shell in that select diaphragms and select D1 and click ok
Step 66 : Go to Analyze and select check model and analyze the model for errors
Step 67 : Go to analyze tab in that select run analysis the model will get analyzed and results will occur
The model has been analysied
Step 68 : Go to display select show tables and select the modal periods and frequencies table and click ok
Building J model has been analysed
BUILDING K
Step 69 : Go to file menu and save as the Building J model as Building K
Step 70 : Story of Building K is as same as Building H model
Even column sizes are same
But the live load acting on the slab is 20% more than the Building H i.e, 3.6 kN/m^2

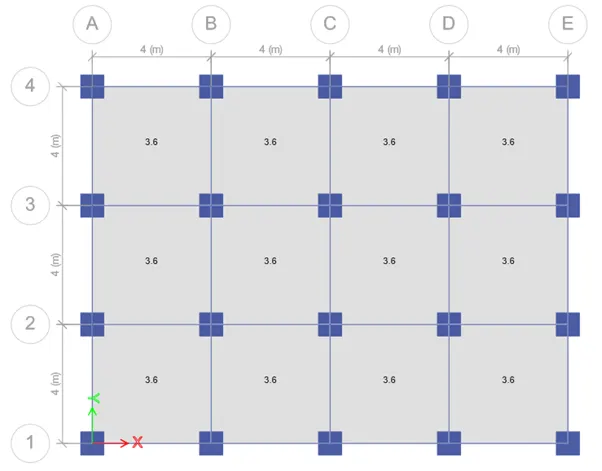

Go to select in that select object type and in that select floors and click select and preess close

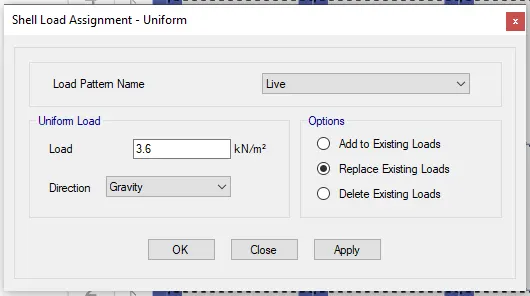

Go to assign in that select shell load and select uniform load

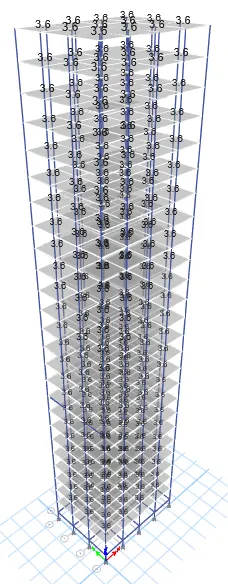

Step 71 : To create the diaphragm to the shell go to select in that select object type and in that select floors and click select and preess close
Go to assign tab select shell in that select diaphragms and select D1 and click ok
Step 72 : Go to Analyze and select check model and analyze the model for errors
Step 73 : Go to analyze tab in that select run analysis the model will get analyzed and results will occur
The model has been analysied
Step 74 : Go to display select show tables and select the modal periods and frequencies table and click ok
Building K model has been analysed
All the 10 buildings has been modelled and analysed
RESULT :

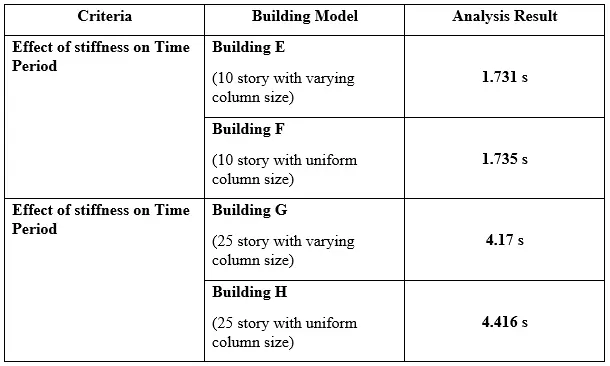

1.Effect of stiffness on T: Compare fundamental natural periods of buildings E & F as well as G & H. Why is there a marginal or significant difference in the fundamental natural periods?
In 10 story building there is no significant difference in the fundamental natural periods in the mode 1
In 25 story building the varying column sizes are more stable than uniform colum sizes because in uniform column size buiding the excess mass is lumped at the top story of the building so the mass directly proportional to the lateral load acting on the building that induces more lateral displacement of the building leading to greater time period

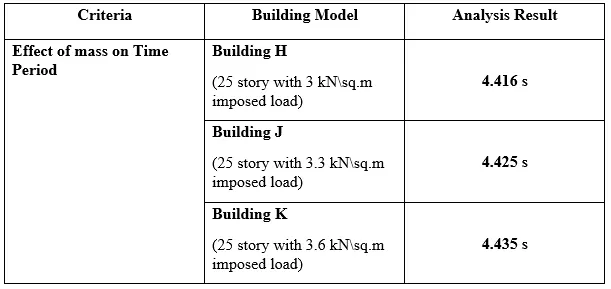

2.Effect of mass on T: Compare fundamental natural periods of buildings H, J and K. Have the buildings become more flexible or stiff due to change in mass?
There is a difference in timr period but not so significant variations in the time period because the imposed load acting on all the floors are same. If there is only variation in the top floor of the building then they are significant.
Mass is directly proportion to the lateral displacement, so the time period of the building is increased
3.Effect of Building Height on T: How does the fundamental natural periods of Buildings A, B, F and H change with change in building height?
As height increase the time period will also increases because height of the building is directly proportion to the time period
4.Effect of Column Orientation on T: How does the fundamental natural periods of Buildings B, C and D change with change in column orientation?
Building B

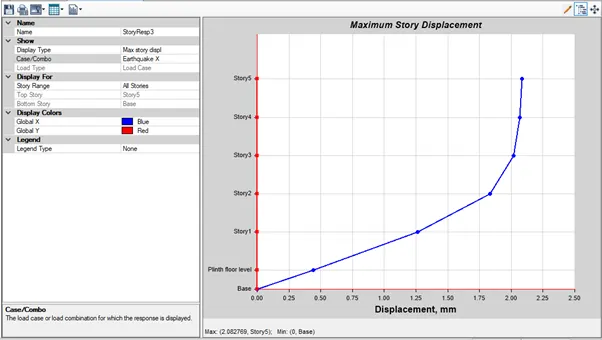

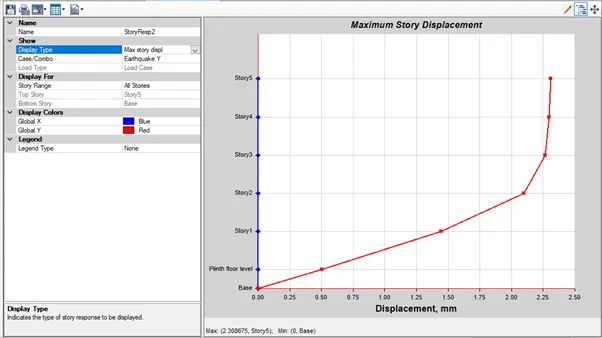

Go to display tap select story response plots
Building C

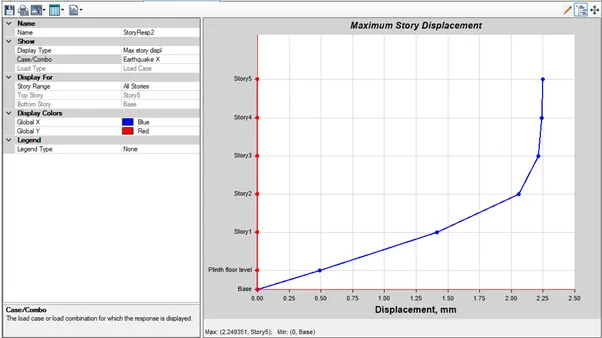

Go to display tap select story response plots
Building D
Go to display tap select story response plots
Effect of column orientation depends on the flexible behaviour of the building.
5.Effect of Flexural Stiffness of Structural Elements on mode shapes: Compare fundamental mode shape of Building B in two situations when flexural stiffness of beams relative to that of adjoining columns is very small versus when it is large.
Open Building B model and save as the model
Go to define tab select section properties in that select frame sections select beam 300 X 400 and modify the property
Run the analysis
Time period table
6.Effect of Axial Stiffness of Vertical Members on mode shapes: Compare fundamental mode shape of Building H in two situations when axial cross-sectional area of columns is very small versus when it is large.
Open Building B model and save as the model

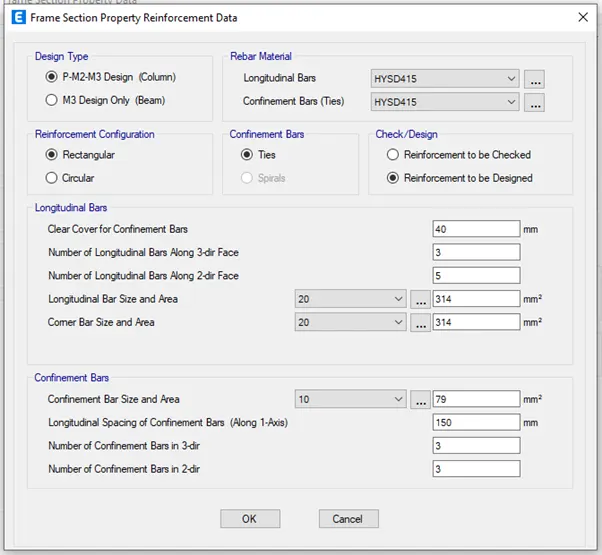

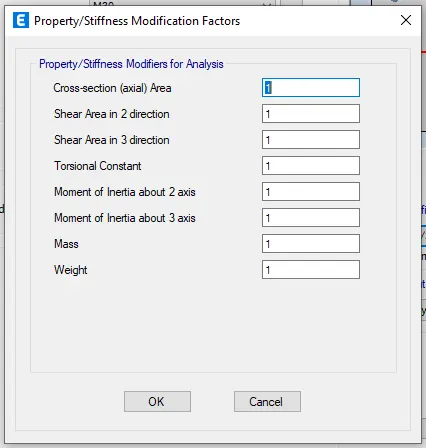

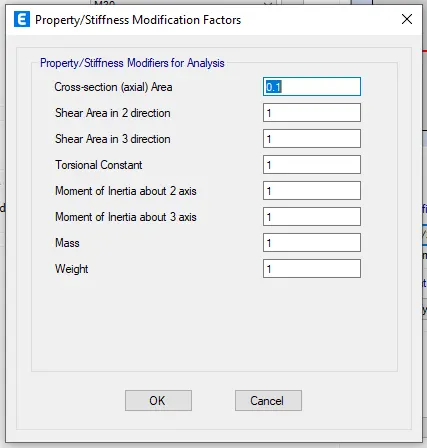

Go to define tab select section properties in that select frame sections select column 800 X 800 and modify the property
Run the analysis

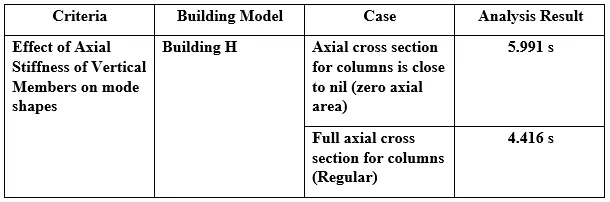

Time Period table
7.Effect of Degree of Fixity at column bases on mode shape: Compare fundamental mode shape of Building B in two situations when base of columns is pinned versus when it is fixed.
Open Building B model and save as the model
Select all the joints in the base view
Go to Assign tab select joints in that restraints and select fixed support
Run the analysis
Time period table
The given challenge is completed
