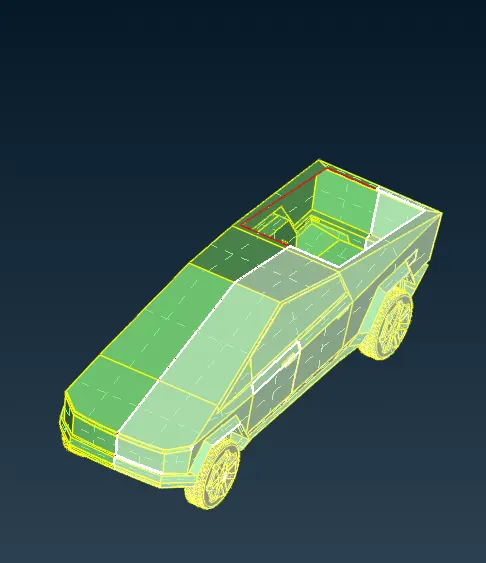

Project 1 : CFD Meshing for Tesla Cyber Truck

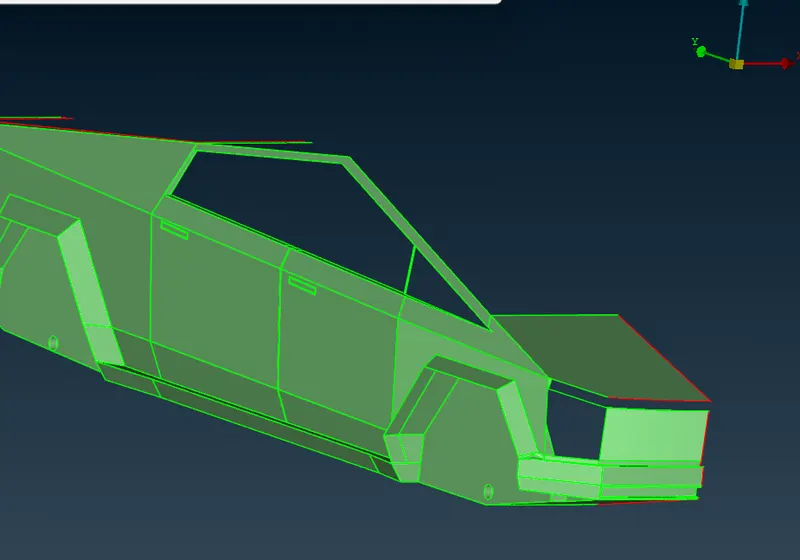

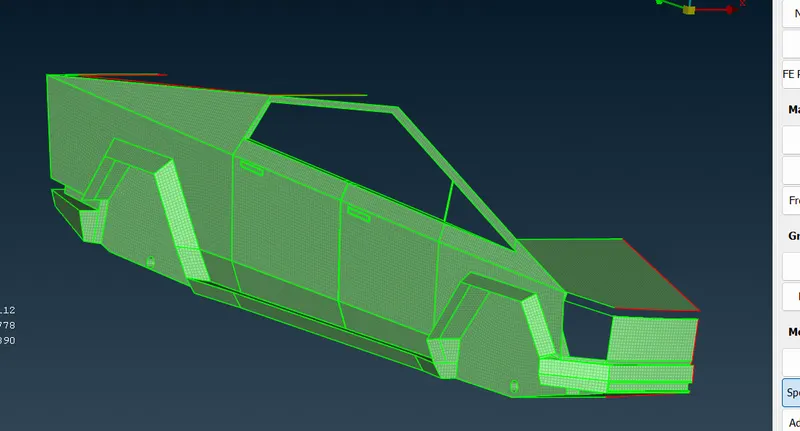

Now we will go for surface meshing

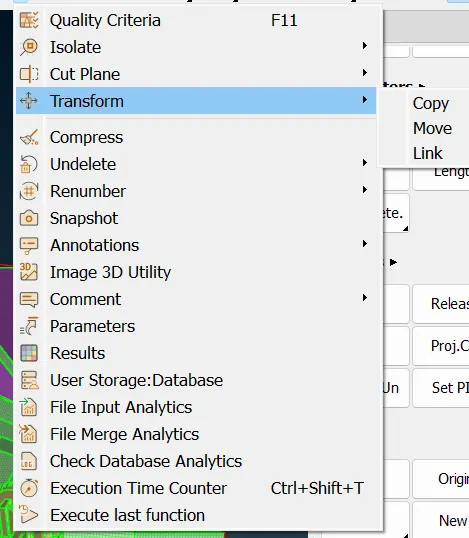

Lets give universal quality criteria,lets goto quality parameter,Just enabled skewness,min length,max length,Now gives values,Here skewness=0.5,min length=0.1mm,max length=6mm because here the minimum target length = 2mm and maximum target length=4mm

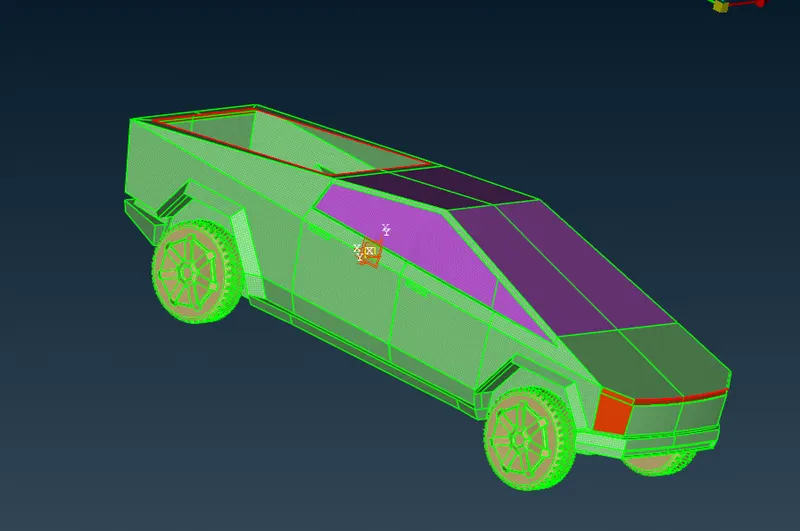

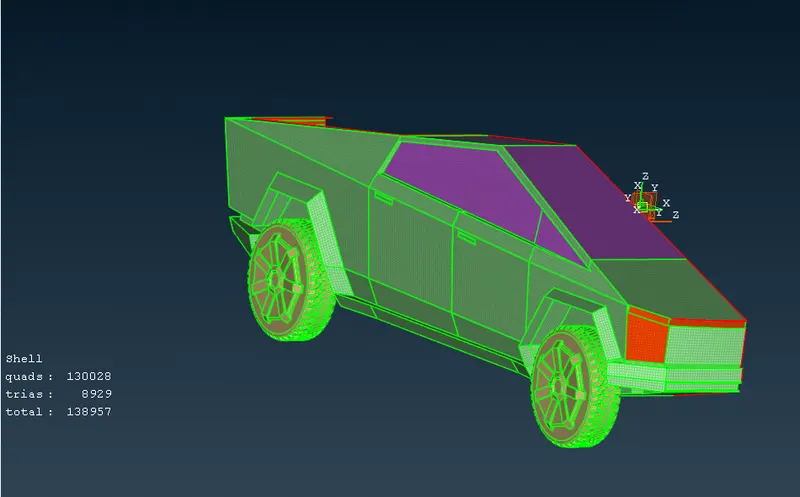

STEP 2- 2D MESHING

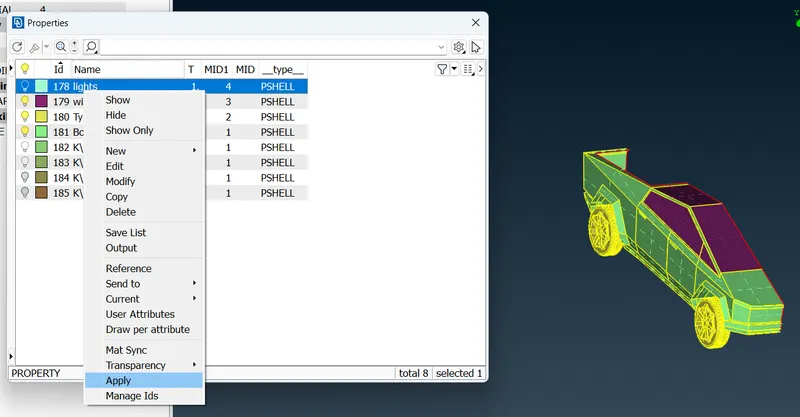

Mesh length for differnt PID's

Roof top- 3mm

Lights - 2mm

Tyres - 2mm

Windows -4mm

Body- 5mm

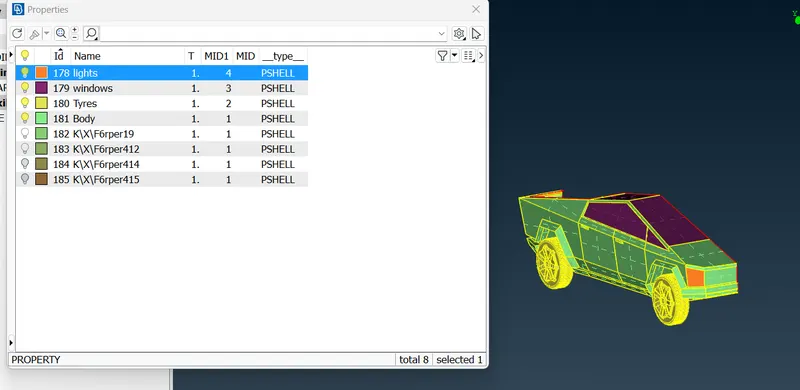

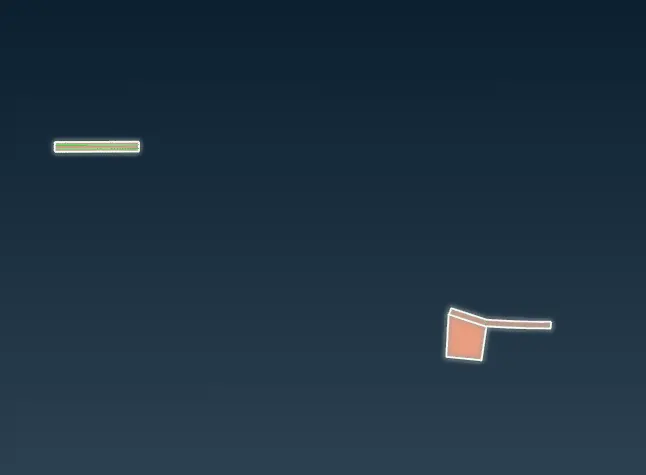

Lights meshing-

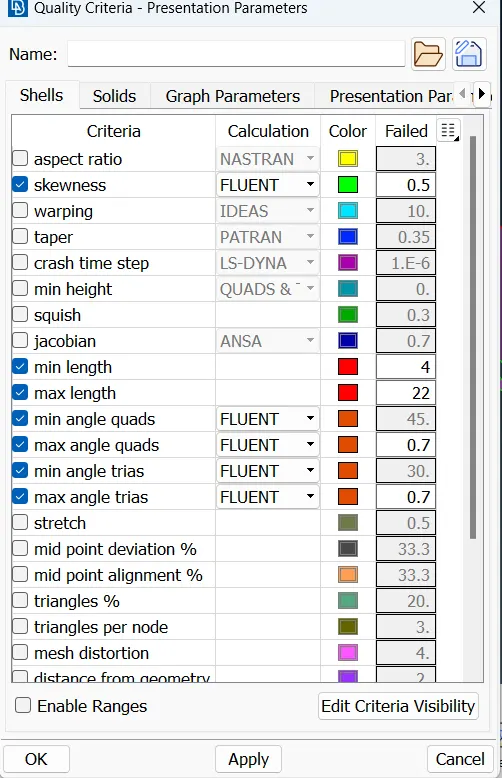

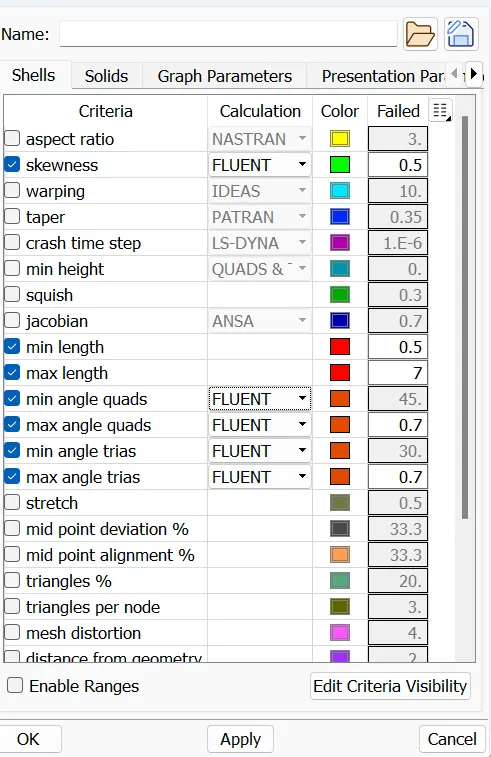

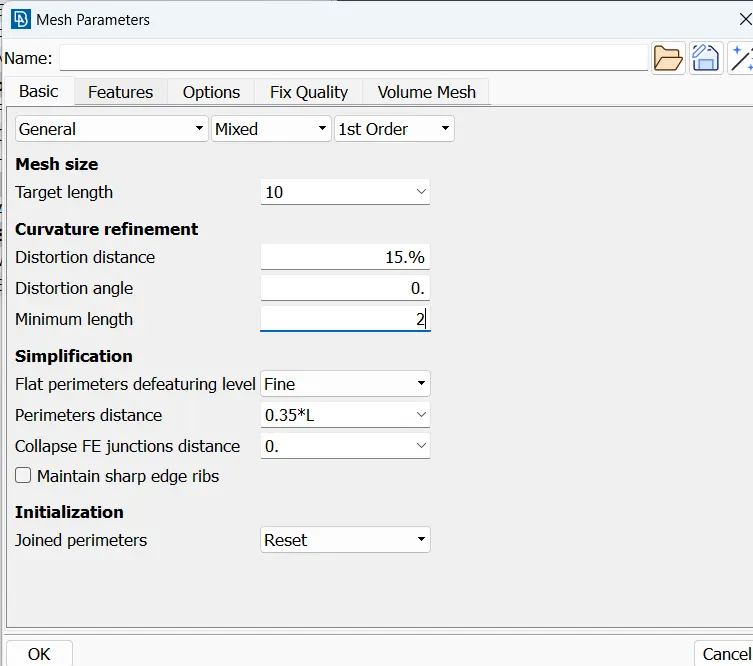

Quality criteria and mesh parameters for light

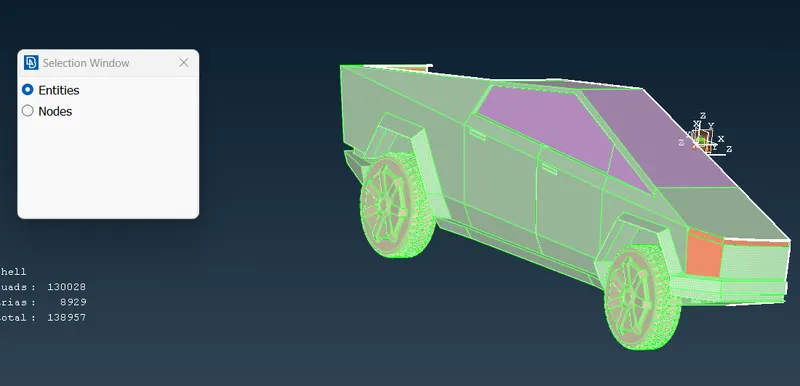

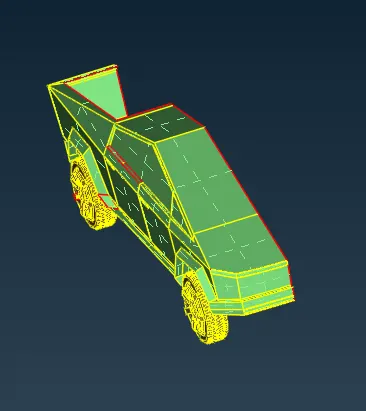

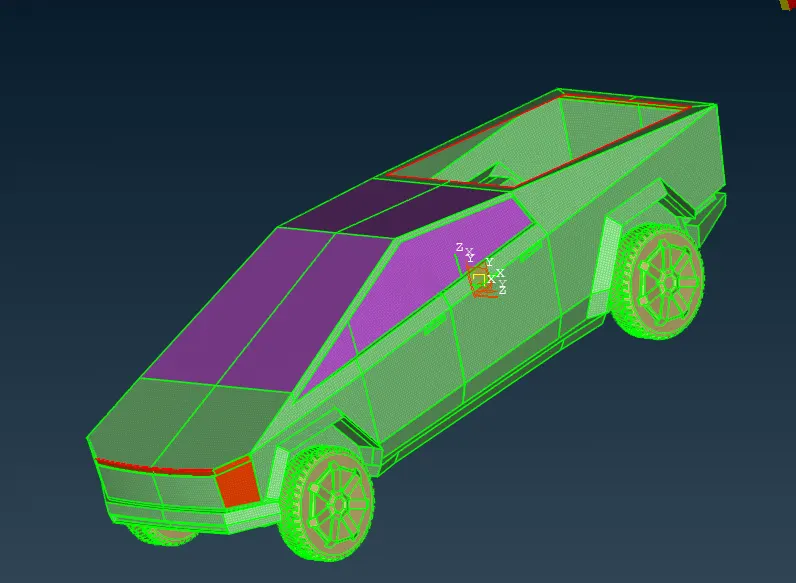

BODY MESHING-

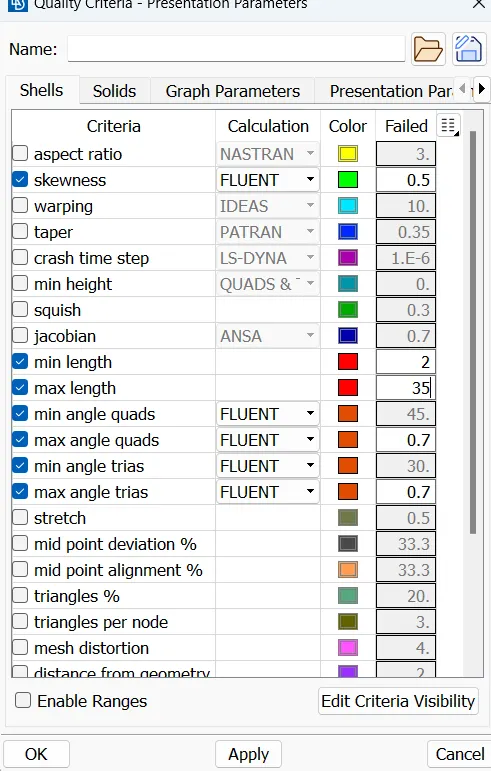

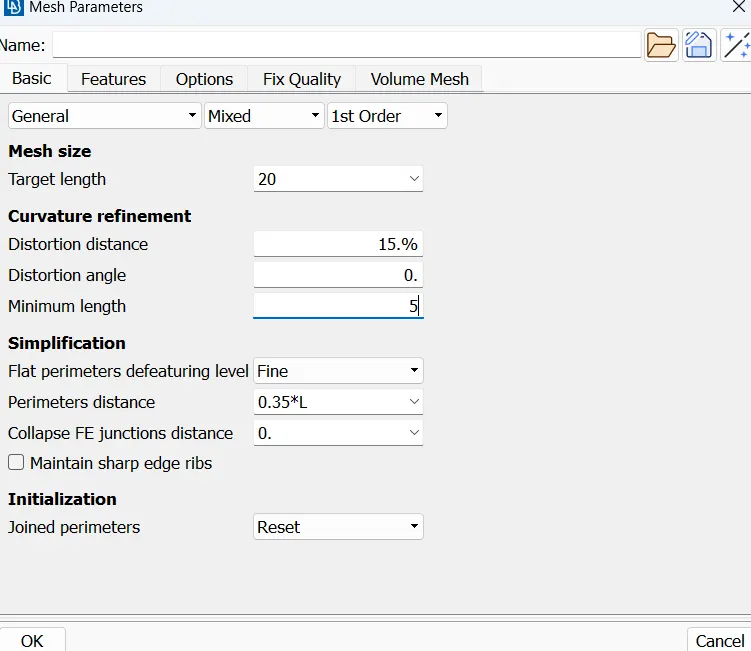

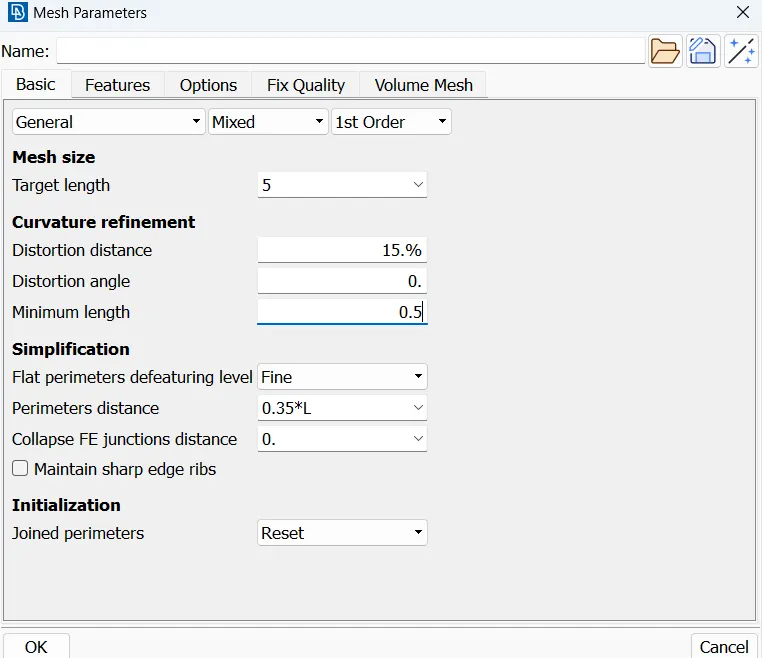

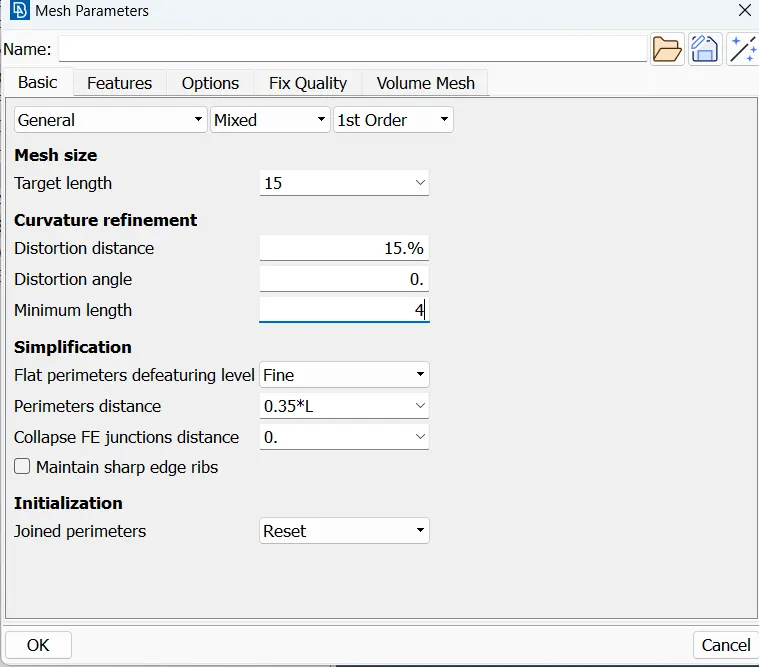

Quality criteria and mesh parameters for Body

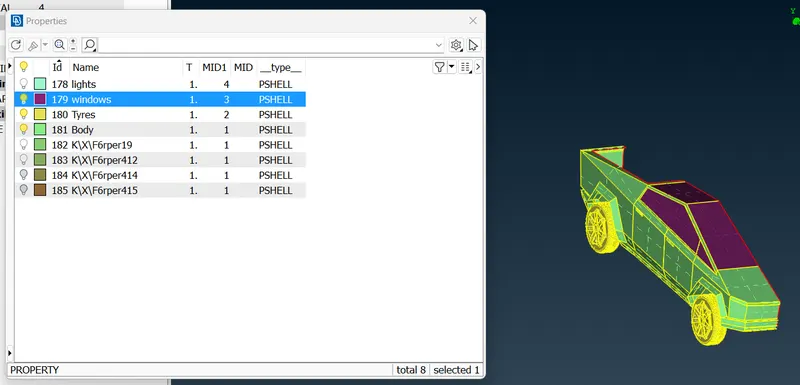

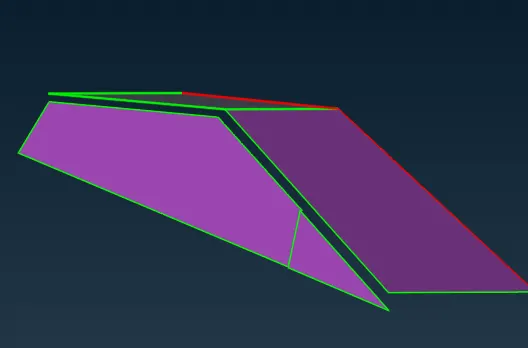

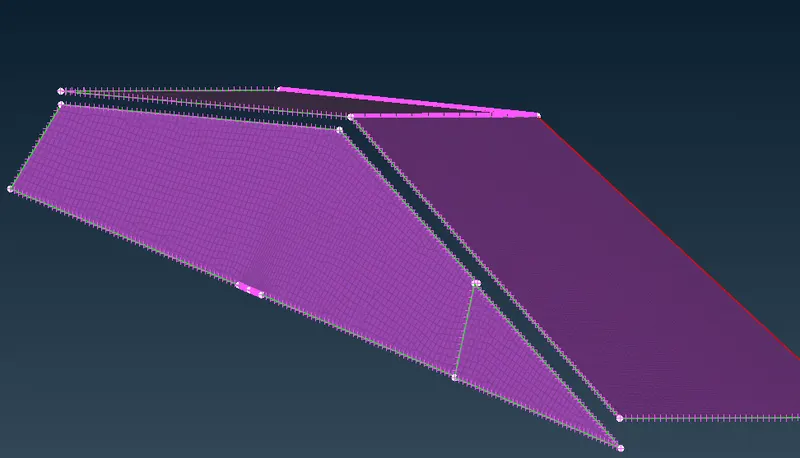

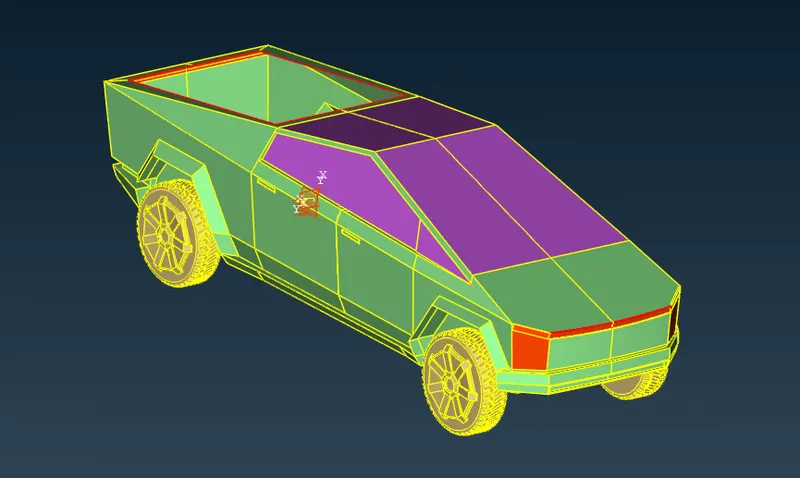

WINDOWS & ROOFTOP MESHING-

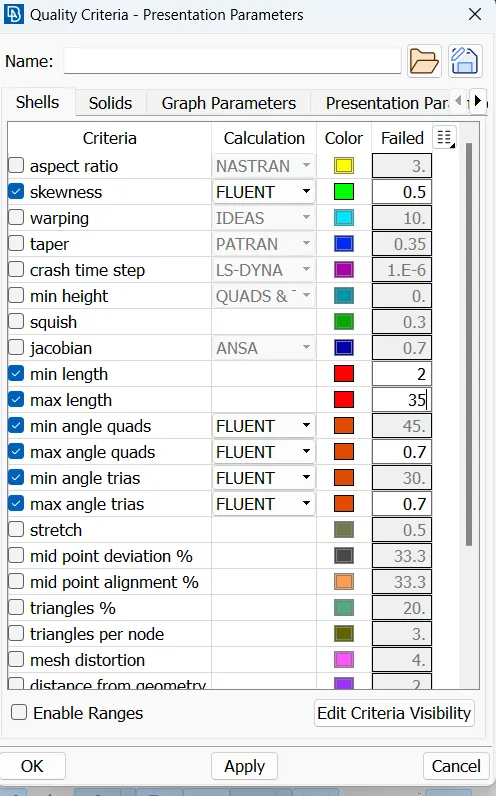

Quality and mesh parametrs for windows and rooftop.

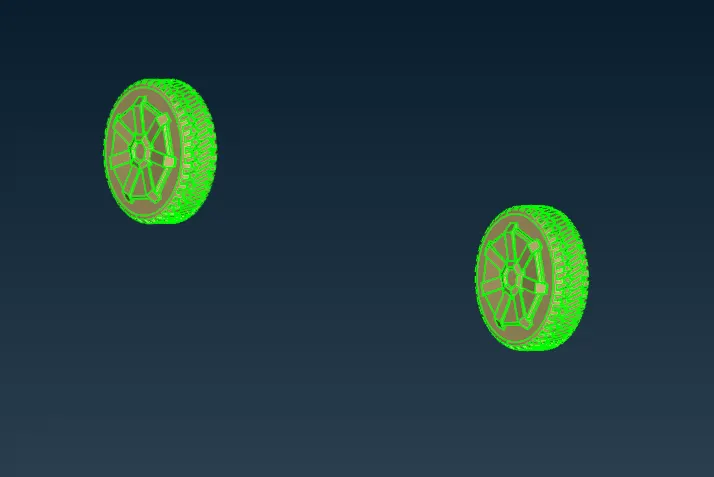

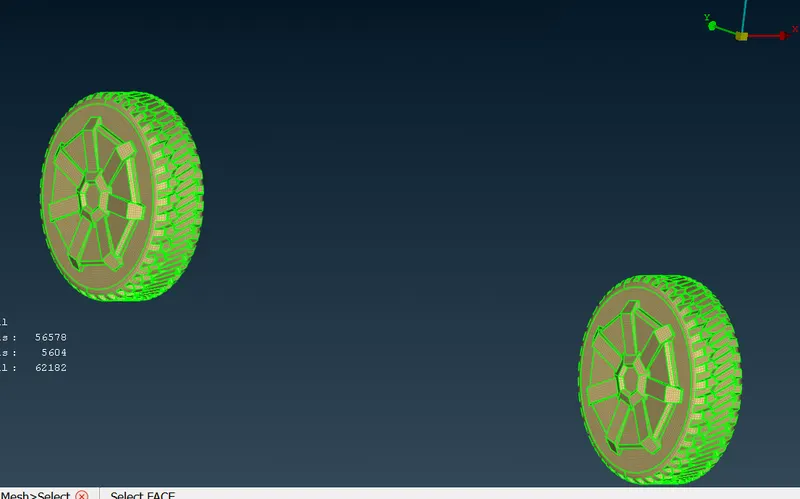

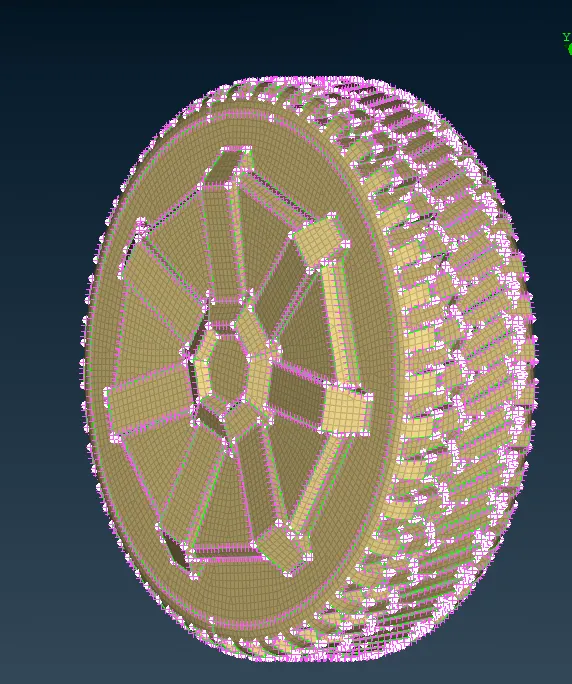

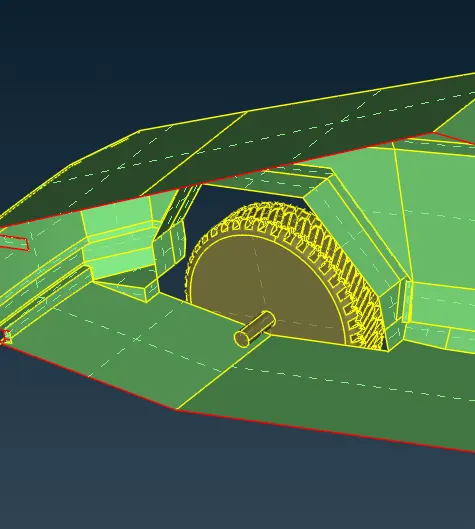

TYRES MESHING-

STEP-3 CREATING WIND TUNNEL-
