Project 1 : CFD Meshing for Tesla Cyber Truck

AIM : For the given model we need to check and solve the geometrical errors and assign appropriate PID perform meshing with suitable target length and element quality criteria

PROCEDURE:

•  as we have the model teslacyber truck car

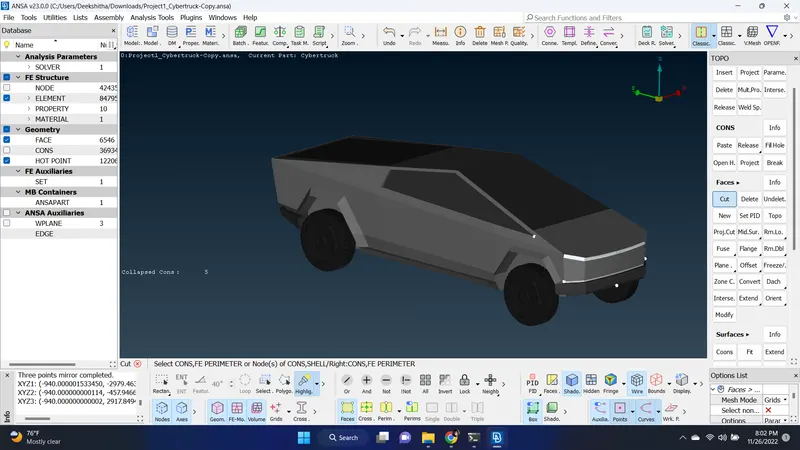

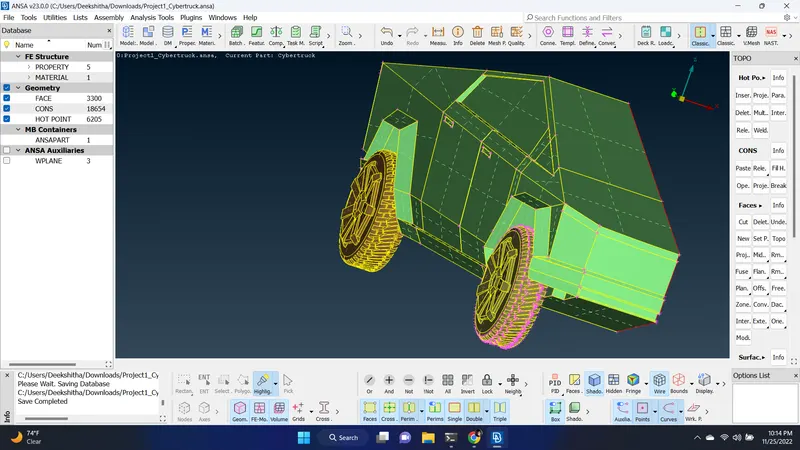

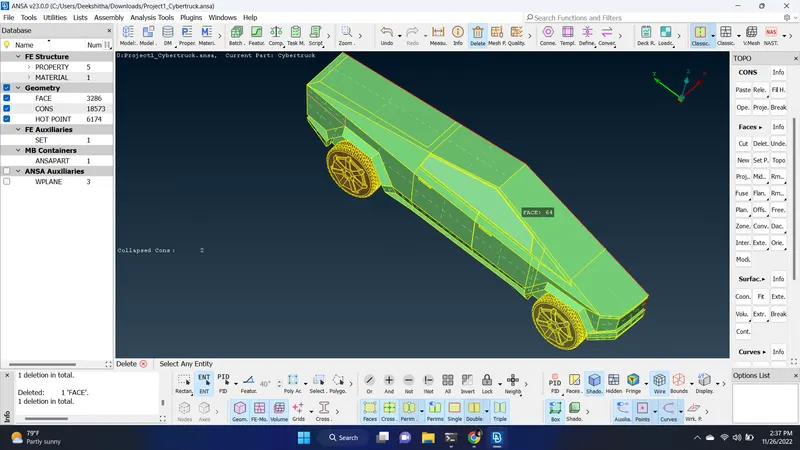

• first we need to do topo for the model then all appers in double cons
• we need to divide the model into two because the model is symmetric

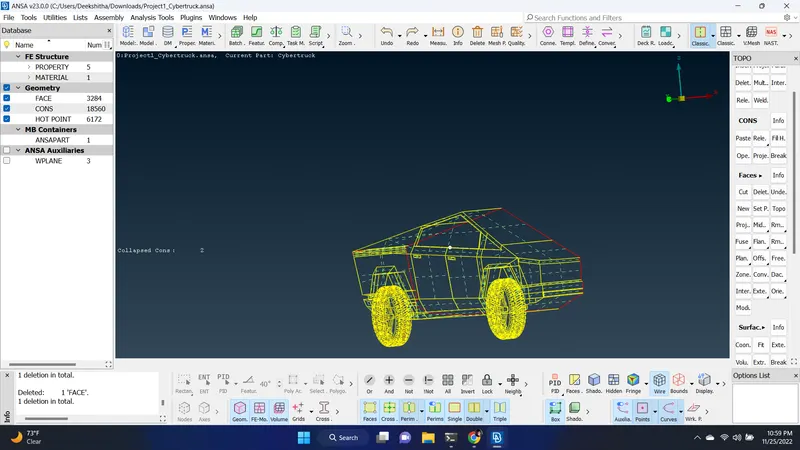

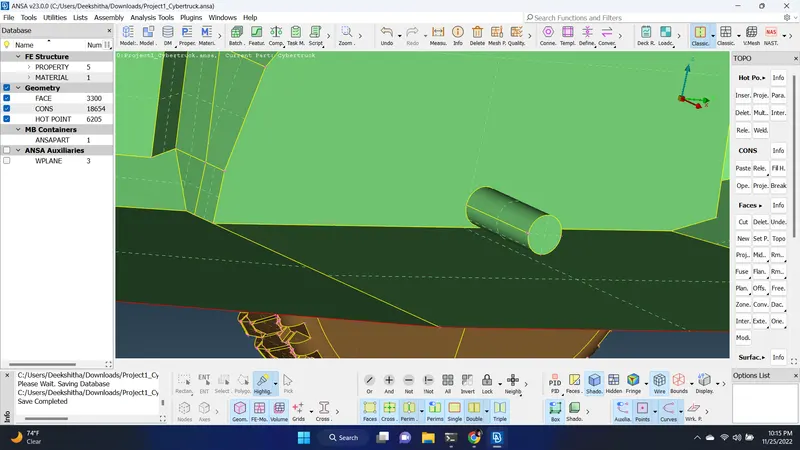

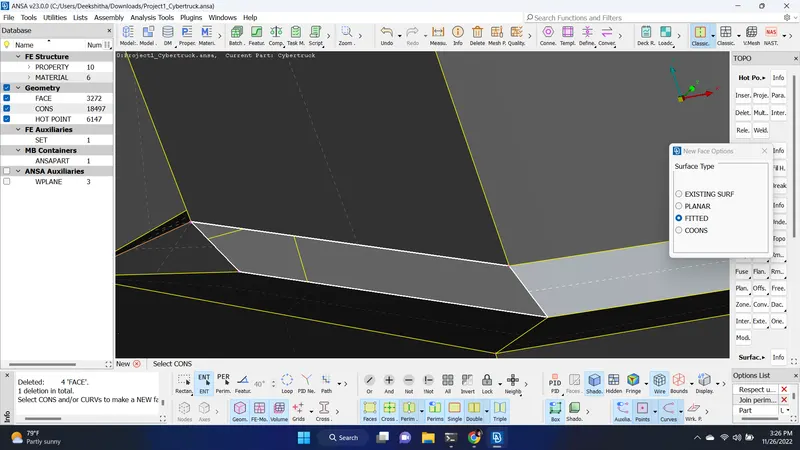

• try to resolve the single cons and missing surfaces in the model

check with geometrical errors and do topo cleanup for the model

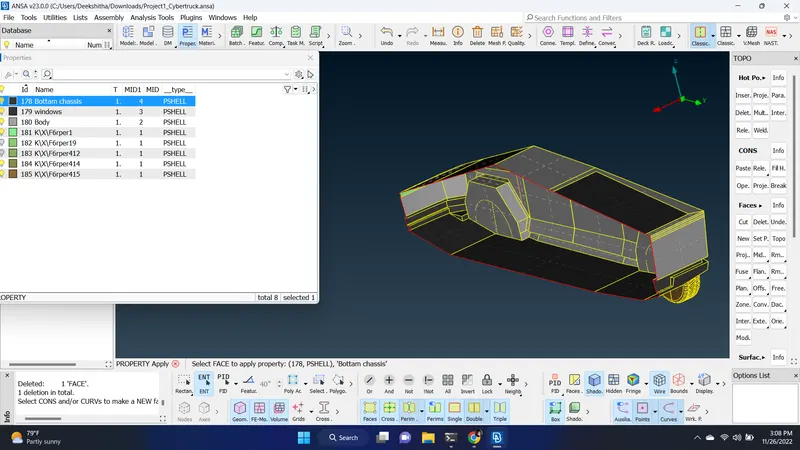

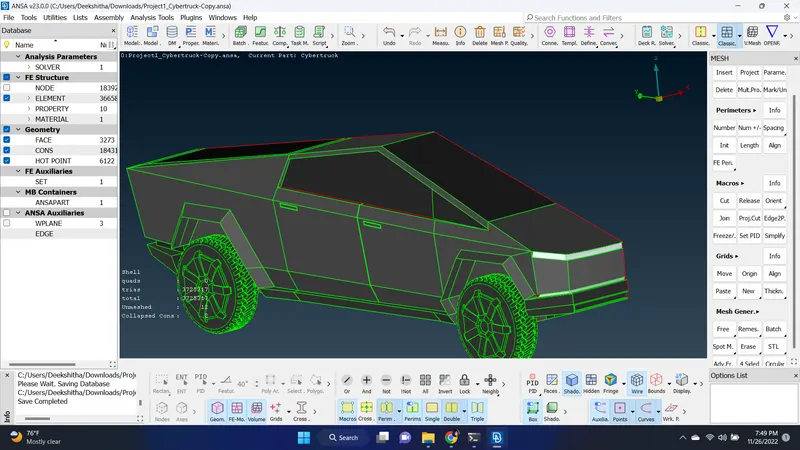

After topological cleanup assign appropriate PIDs for each part like BODY, WINDOWS, LIGHTS, TIRES

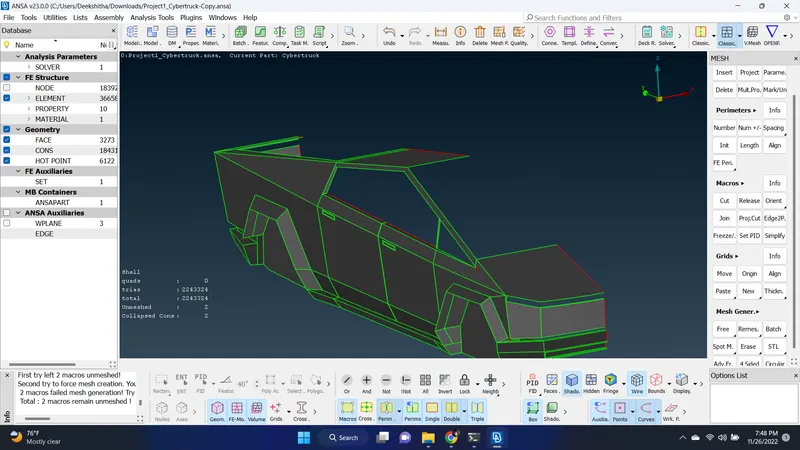

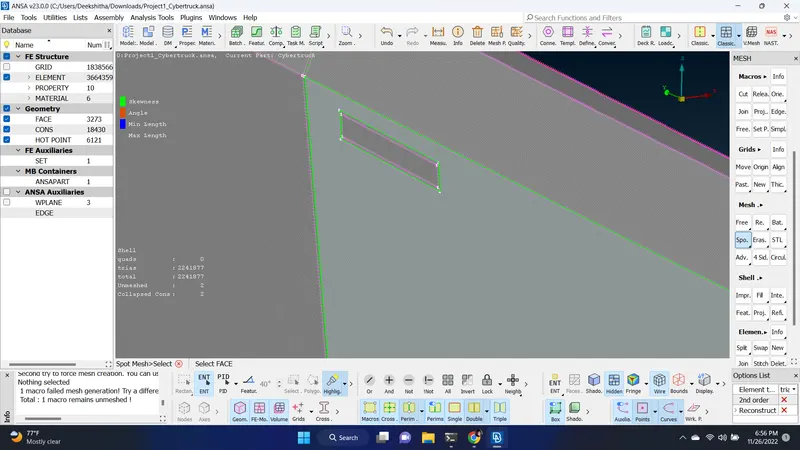

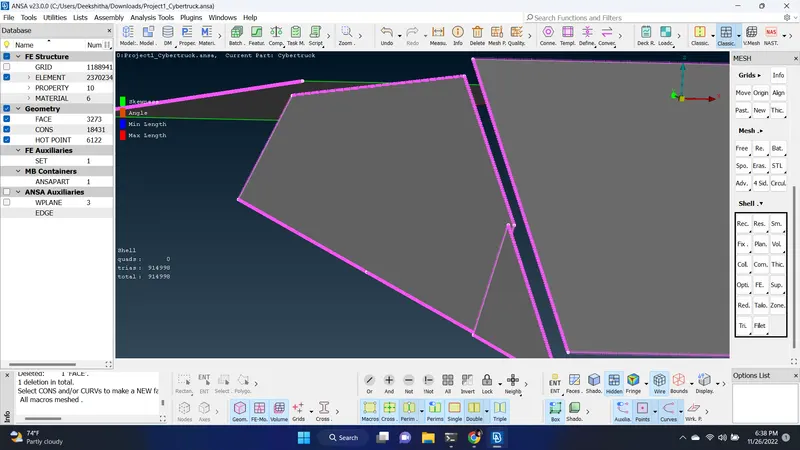

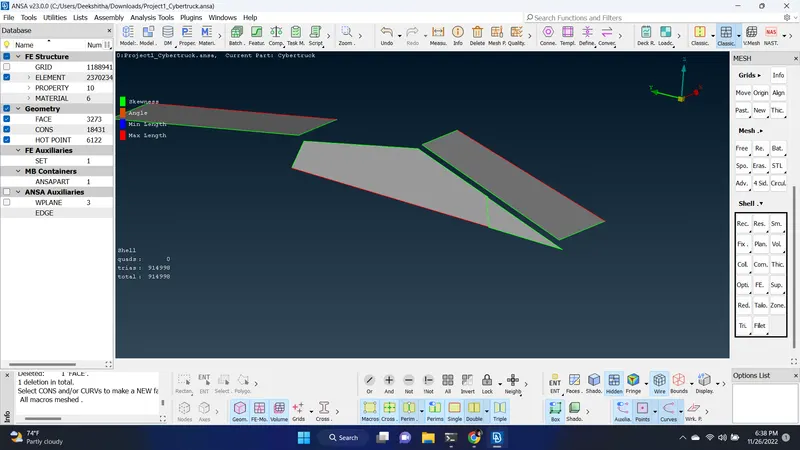

Get rid of small surfaces that could cause errors and off faces while meshing after this prosess we can start with meshing each parts one by one with the suitable target length

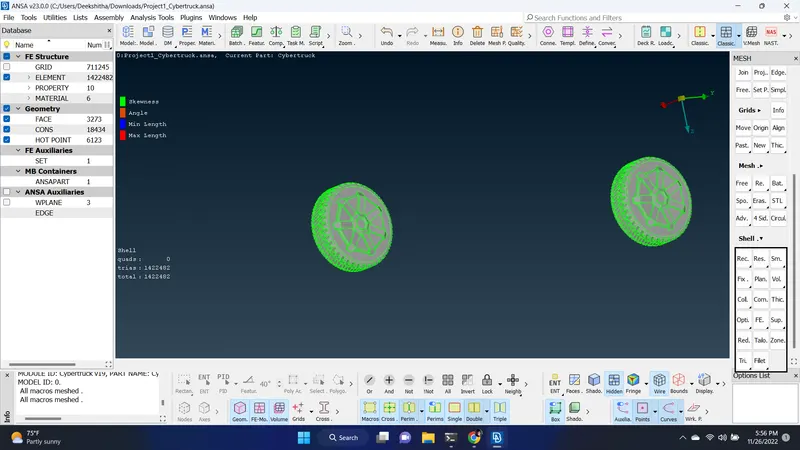

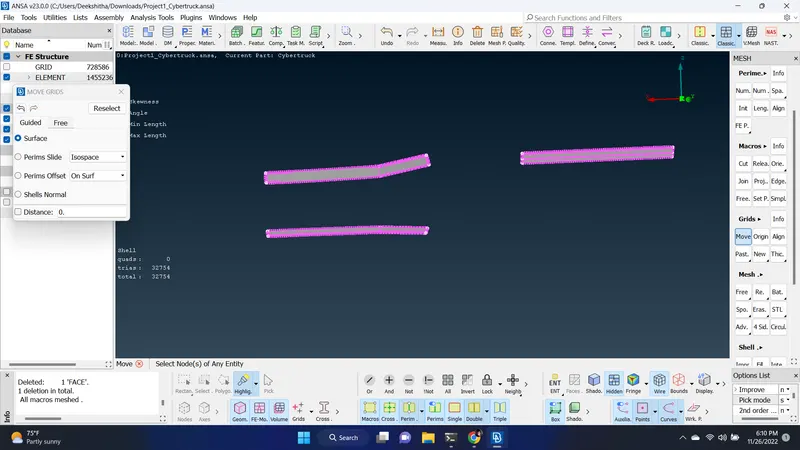

Tires, windows and ligths target length can be 3mm

and its quatlity criteria for min target length is 1mm and max target length can be 5mm

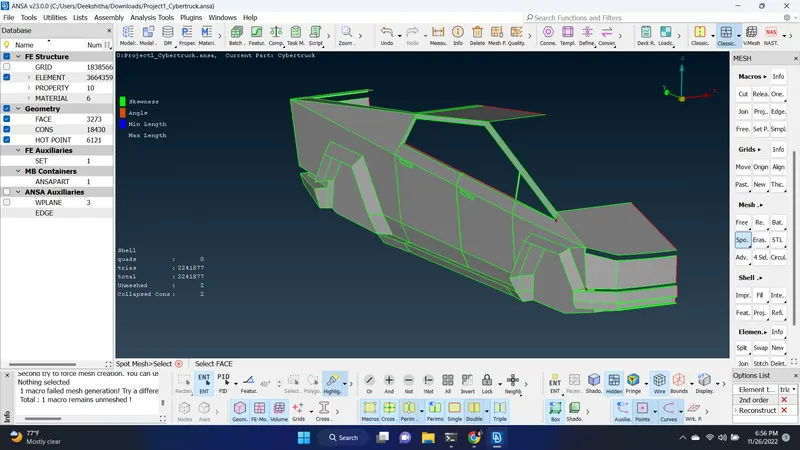

Simlarly for body and bottam chassis target length can be 4mm

and quallity criteria for mib target length is 2mm and max target length is 6mm

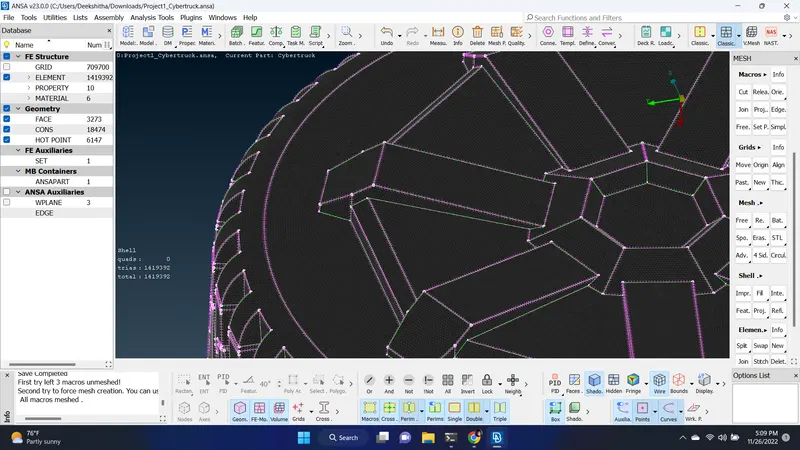

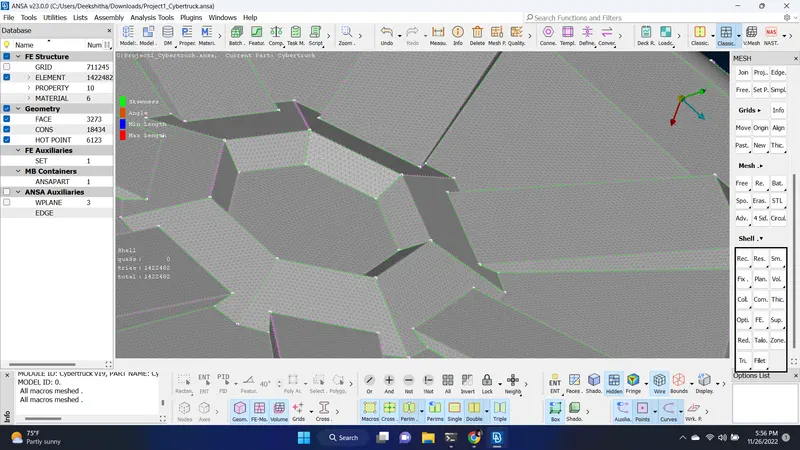

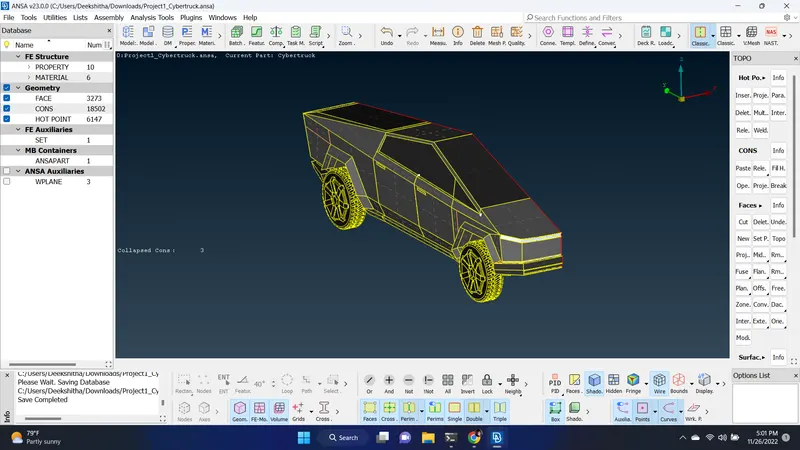

after meshing element use symmetry option to copy the exact part on other side the we get whole model
